Description
9-Inch Trapezoid Head Unit Fascia Isuzu D-MAX RT50-RT85 (2012–2019) and MU-X RF10/RF20 (2013–2017). Covers Both Ute and SUV. Fascia Panel Only. Not Compatible with 2020+ D-MAX or 2018+ MU-X.
Product Overview

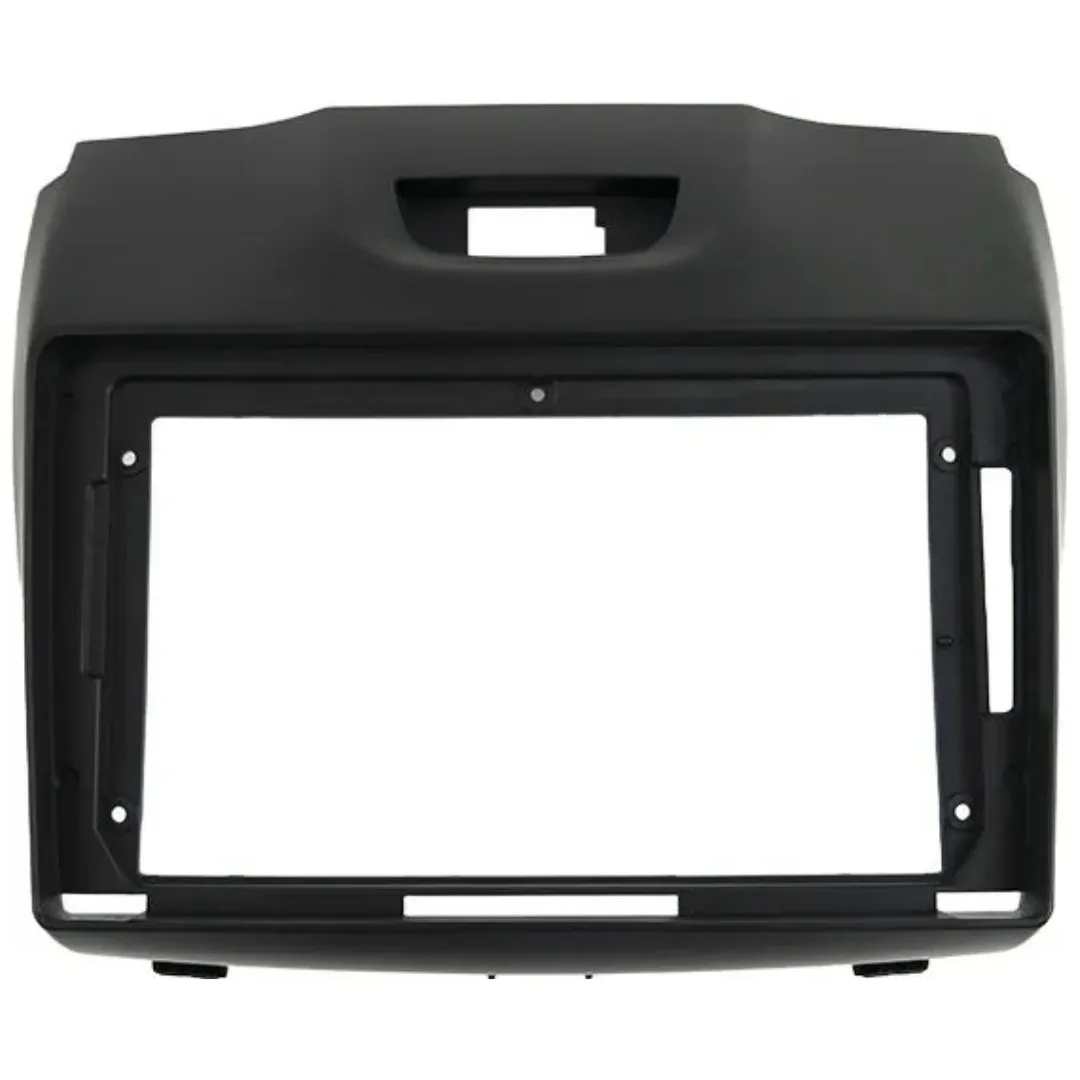

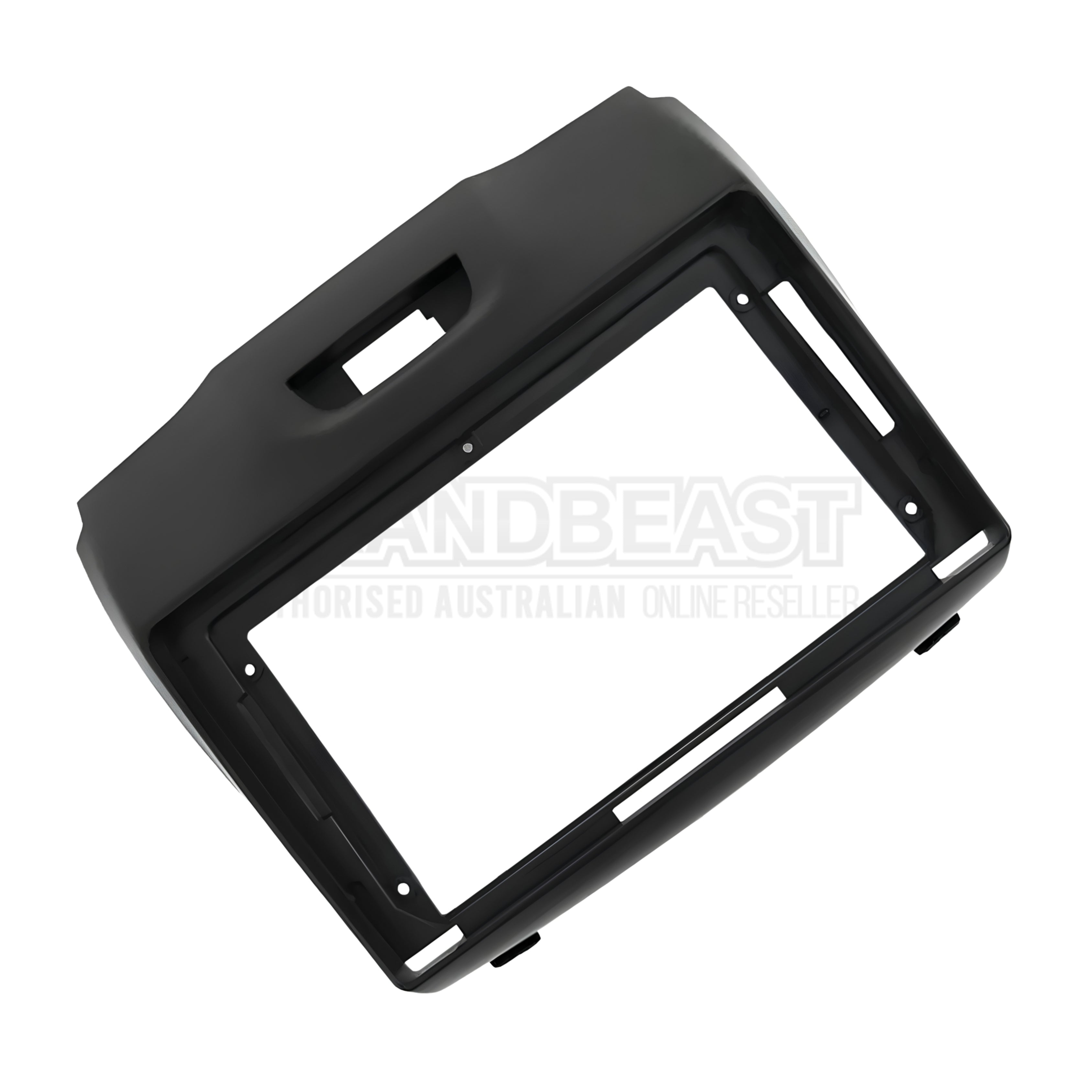

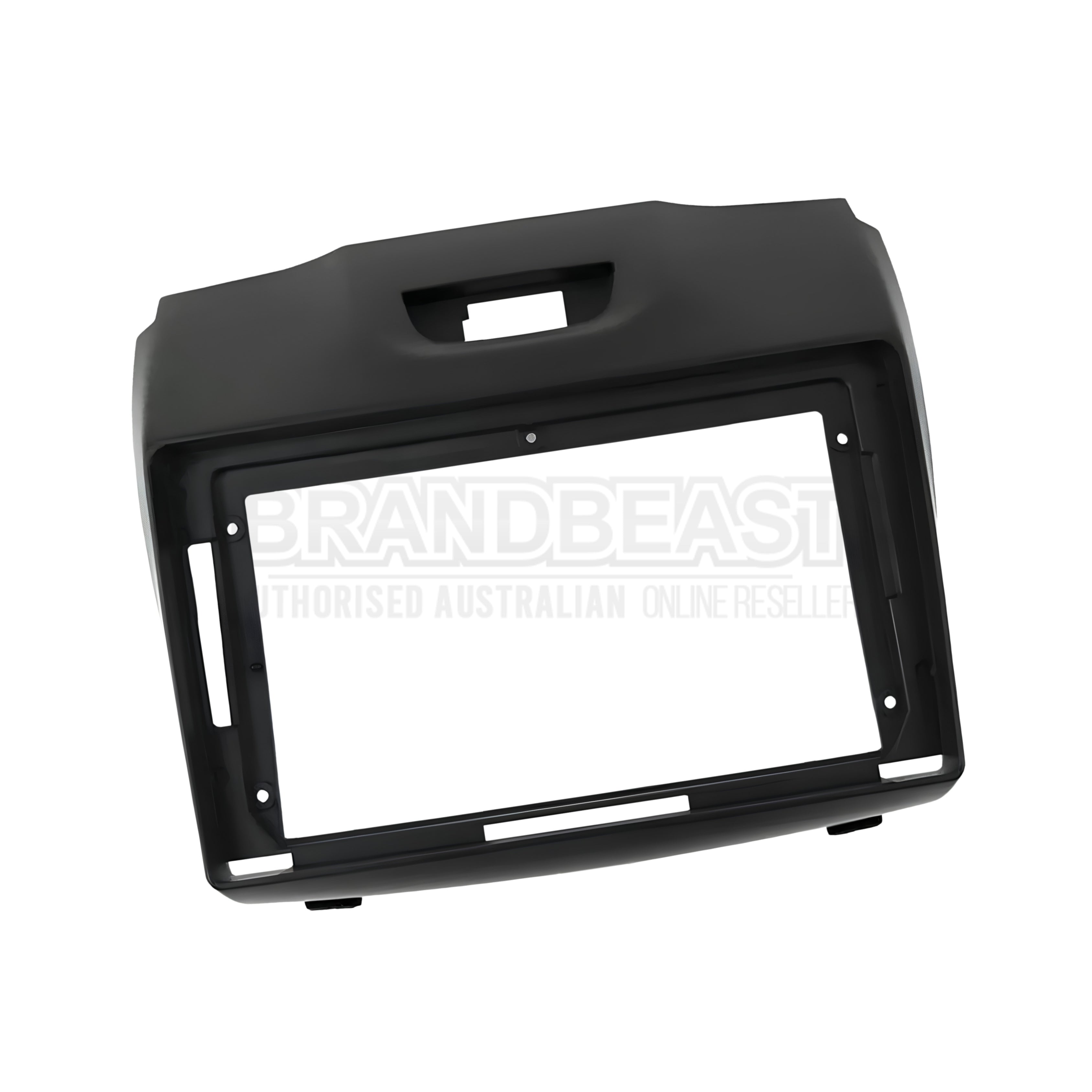

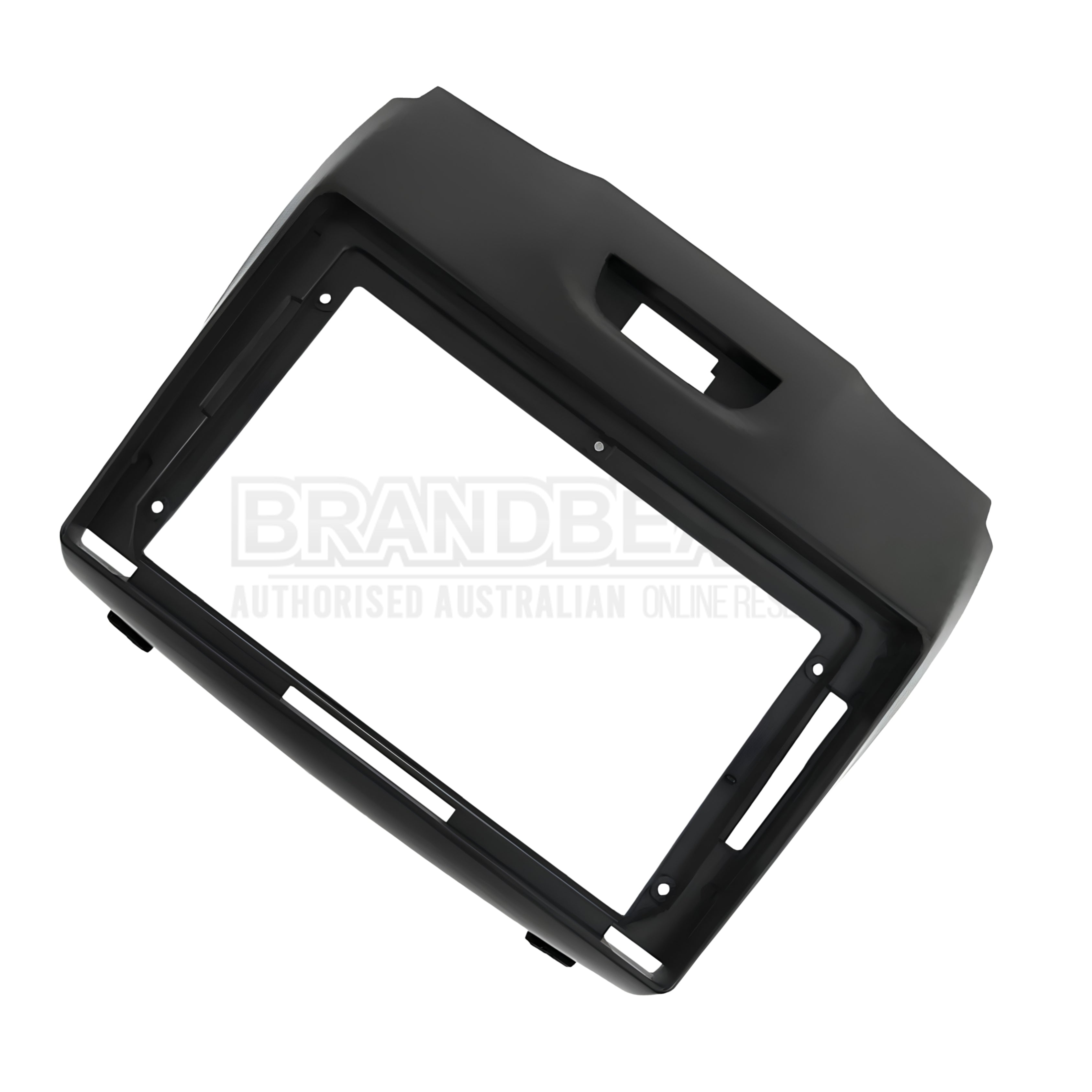

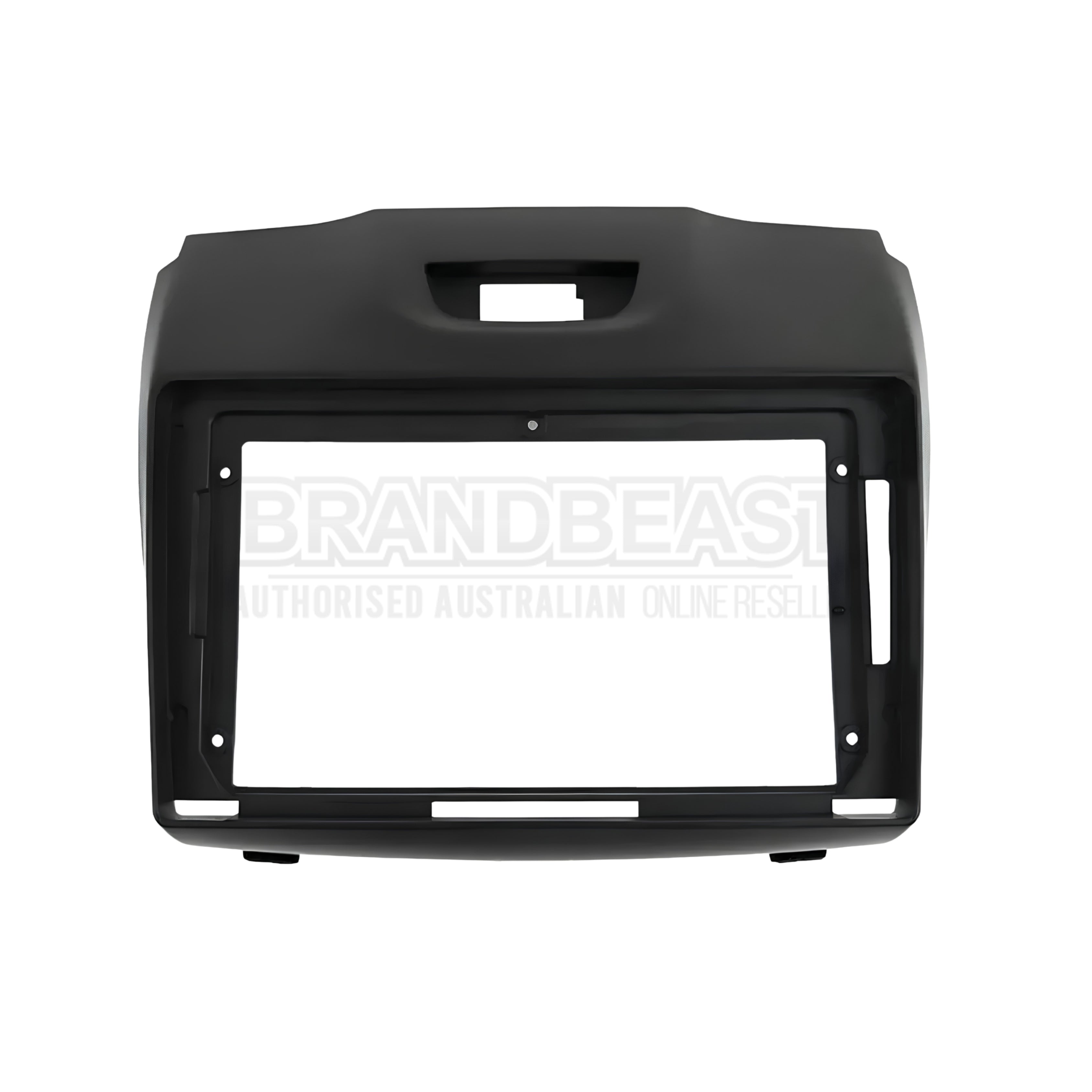

The Stinger SF9-IZ01 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Isuzu D-MAX (RT50-RT85 chassis, 2012–2019) and MU-X (RF10/RF20 chassis, 2013–2017). Both models share identical dashboard architecture during these production periods one fascia covers both. This is the earlier-generation companion to the SF9-IZ02, which covers the redesigned 2019–2023 fourth-generation D-MAX and MU-X. The D-MAX and MU-X factory dashboards feature a trapezoid-shaped aperture that standard rectangular double DIN fascias cannot accommodate. The SF9-IZ01 is precision-moulded for this trapezoid geometry, providing a flush, factory-quality fit across D-MAX variants (SX, LS-M, LS-U, LS-T) and MU-X variants (LS-M, LS-U, LS-T) for the complete respective production runs.
Confirmed compatible head units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X. The SF9-IZ01 is not compatible with the 2020+ third-generation D-MAX or the 2018+ second-generation MU-X both received completely redesigned dashboards covered by the SF9-IZ02. The finish is factory colour-matched (typically black or dark grey confirm the exact colour from the official Stinger SF9-IZ01 product page before publishing). Wiring harness, antenna adaptor, and steering wheel control interface are not included.
Key Specifications
- Part number: SF9-IZ01
- Brand: Stinger
- Product type: 9-inch trapezoid head unit fascia
- Compatible head unit format: 9-inch trapezoid only
- Finish: Factory colour match — typically black/dark grey (confirm from official product page)
- D-MAX: RT50-RT85 Series 2012–2019 (SX, LS-M, LS-U, LS-T)
- MU-X: RF10 2013–2015 / RF20 2016–2017 (LS-M, LS-U, LS-T)
- Not compatible with: D-MAX 2020+ / MU-X 2018+ (both require SF9-IZ02)
- Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
- Includes: Fascia panel only
- Wiring harness: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- SWC interface: Not included — sold separately
- Camera retention harness: Not included — sold separately
Features & Benefits
-
Covers Both D-MAX Ute and MU-X SUV — One SKU The RT50-RT85 D-MAX and RF10/RF20 MU-X share the same dashboard architecture. The SF9-IZ01 covers both vehicles across all trim levels without requiring separate products for each.
-
Earlier Generation — Not for 2020+ D-MAX or 2018+ MU-X The 2020+ third-generation D-MAX and 2018+ second-generation MU-X received completely redesigned dashboards. These are covered by the SF9-IZ02. The SF9-IZ01 covers the earlier RT50-RT85/RF10-RF20 generation only. Confirm the chassis code and year before purchasing.
-
9-Inch Trapezoid — Standard Double DIN Will Not Fit The D-MAX and MU-X factory aperture is trapezoid-shaped. Standard double DIN fascias cannot mount correctly. The SF9-IZ01 is the required solution for 9-inch head unit fitment in these models.
-
Factory Finish — UV-Resistant ABS Moulded to match the Isuzu factory dashboard finish for a factory-integrated appearance across the D-MAX and MU-X dashboard.
-
Fascia Panel Only — Installer Flexibility Supplied as the fascia alone, allowing installers to source the correct wiring harness, SWC interface, and accessories for the vehicle's specific trim configuration.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-IZ01 |
| Product Type |
9-Inch Trapezoid Head Unit Fascia |
| Compatible Format |
9-Inch Trapezoid |
| Finish |
Factory colour match, typically black/dark grey (confirm from official page) |
| D-MAX Application |
RT50-RT85 Series 2012–2019 (SX, LS-M, LS-U, LS-T) |
| MU-X Application |
RF10 2013–2015 / RF20 2016–2017 (LS-M, LS-U, LS-T) |
| Not Compatible |
D-MAX 2020+ / MU-X 2018+ (SF9-IZ02) |
| Confirmed Head Units |
Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X |
| Includes |
Fascia Panel Only |
| Wiring Harness |
Not included |
| Antenna Adaptor |
Not included |
| SWC Interface |
Not included |
| Camera Retention Harness |
Not included |
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Chassis |
Year Range |
Trim Variants |
| Isuzu |
D-MAX |
RT50, RT85 |
2012–2019 |
SX, LS-M, LS-U, LS-T |
| Isuzu |
MU-X |
RF10, RF20 |
2013–2017 |
LS-M, LS-U, LS-T |
Not compatible with:
- Isuzu D-MAX 2020 and newer (requires SF9-IZ02)
- Isuzu MU-X 2018 and newer (requires SF9-IZ02)
Confirmed compatible 9-inch trapezoid head units:
- Alpine INE-AW4095
- Alpine INE-AX809
- Kenwood DMX80AXS
- Pioneer DMH-AP6650BT
- Aerpro AM9X
Recommended accessories (sold separately):
- Isuzu D-MAX / MU-X-specific wiring harness (Isuzu-to-ISO)
- Antenna adaptor for Isuzu
- Steering wheel control interface
- Reverse camera retention harness (if equipped)
Frequently Asked Questions
Does the SF9-IZ01 cover both the D-MAX ute and MU-X SUV?
Yes — the RT50-RT85 D-MAX (2012–2019) and RF10/RF20 MU-X (2013–2017) share the same dashboard architecture. One fascia covers both vehicles across all trim levels.
What is the difference between the SF9-IZ01 and SF9-IZ02?
The SF9-IZ01 covers the earlier D-MAX RT50-RT85 (2012–2019) and MU-X RF10/RF20 (2013–2017). The SF9-IZ02 covers the redesigned fourth-generation D-MAX and MU-X from 2019 onwards. Both generations have different dashboards — confirm the chassis code and year before purchasing.
Is the SF9-IZ01 compatible with 2020 or newer D-MAX models?
No — the 2020+ D-MAX received a completely redesigned dashboard. The SF9-IZ02 is the correct fascia for 2019-onwards D-MAX and MU-X models.
Does the SF9-IZ01 include wiring harnesses or installation accessories?
No — the SF9-IZ01 is a fascia panel only. An Isuzu-specific wiring harness, antenna adaptor, and SWC interface are all required separately.
Which 9-inch head units are confirmed compatible?
Confirmed compatible head units include Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X. Standard double DIN or universal 9-inch units will not fit without this vehicle-specific fascia.
