Description
9-Inch Trapezoid Head Unit Fascia Mazda BT-50 RG04 Series (3rd Generation) 2020–2023. OEM Mazda Finish. Fascia Panel Only. Not Compatible with Previous BT-50 or Isuzu D-MAX/MU-X.
Product Overview

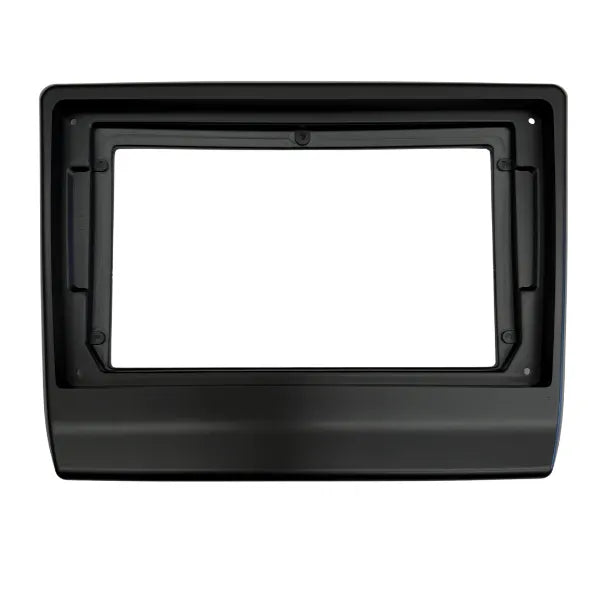

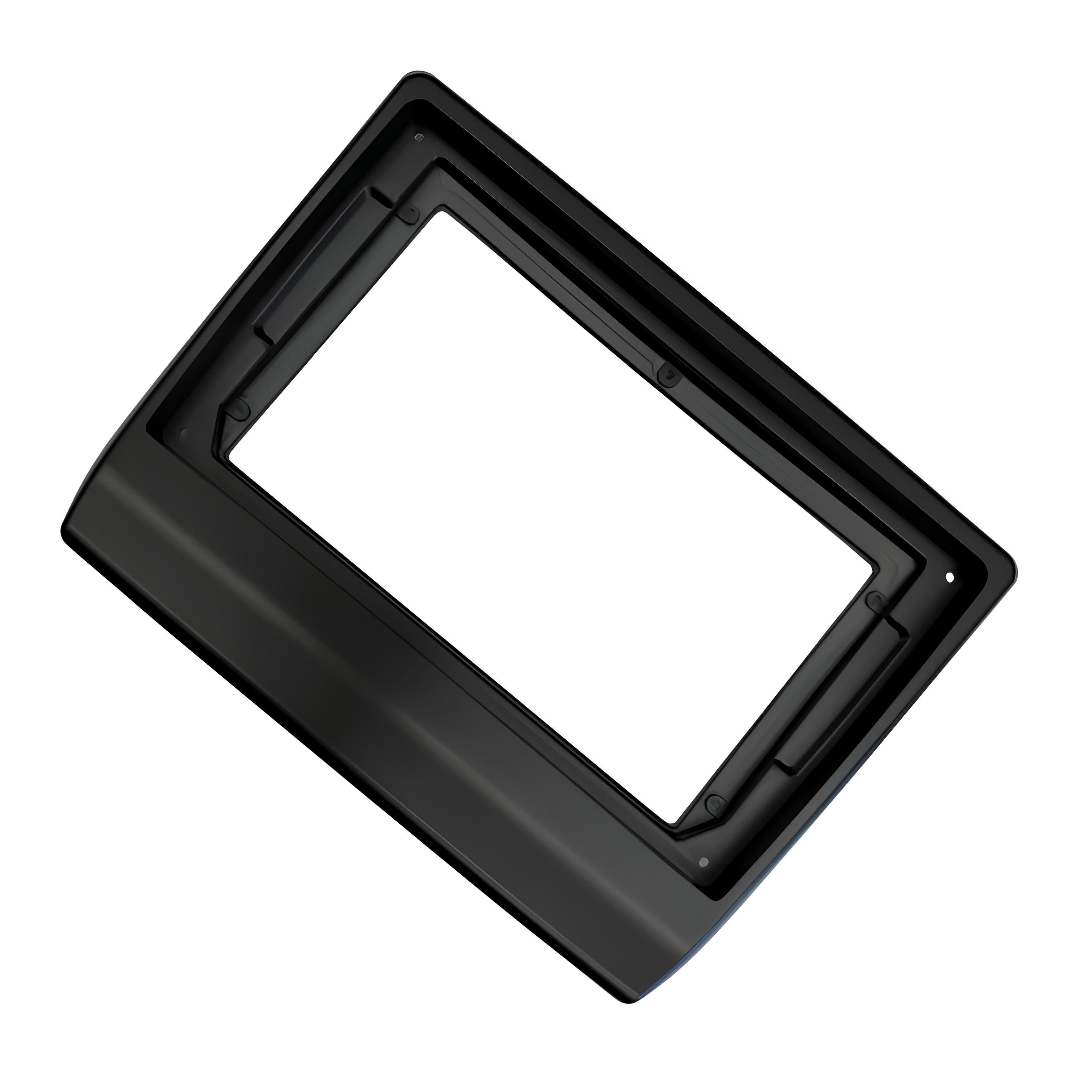

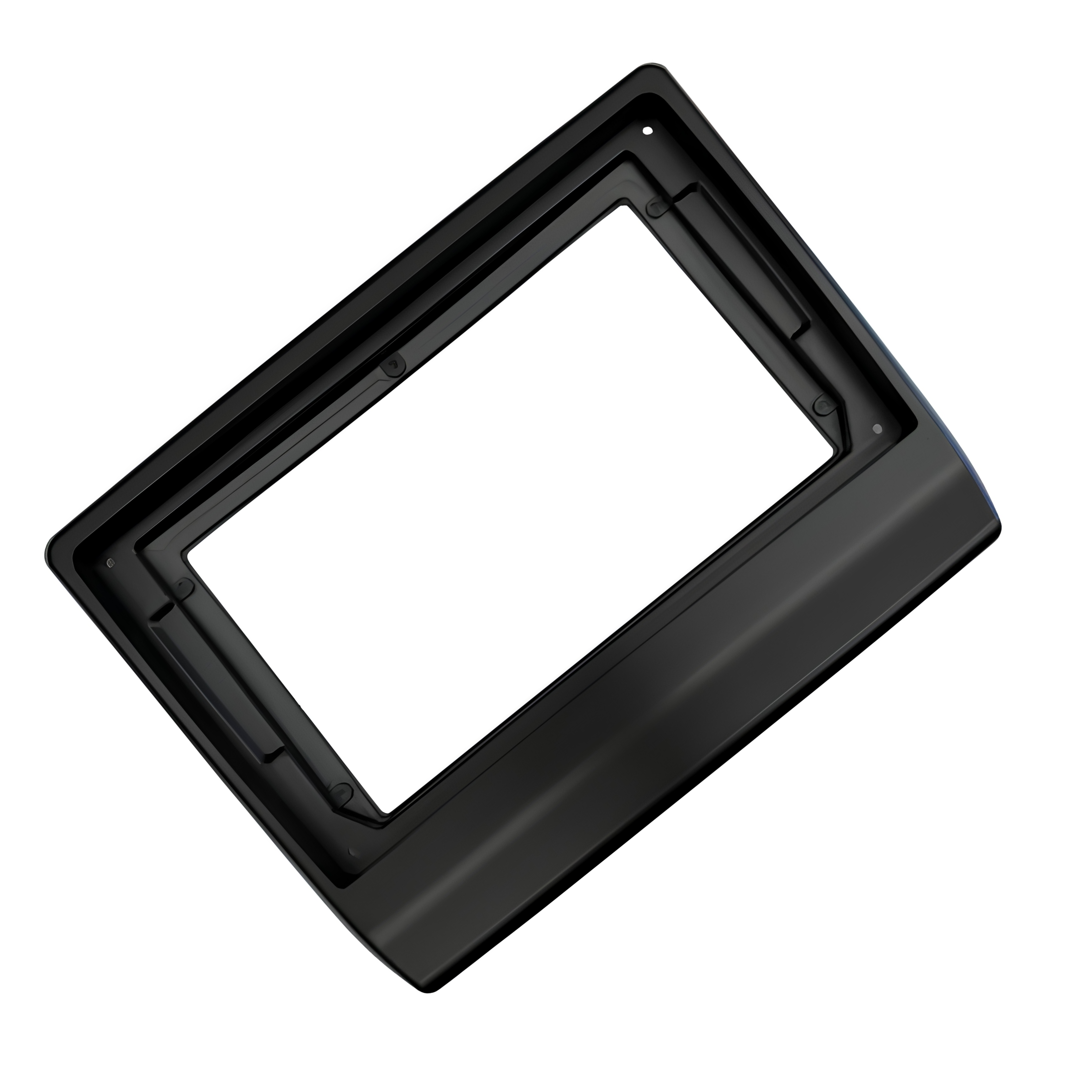

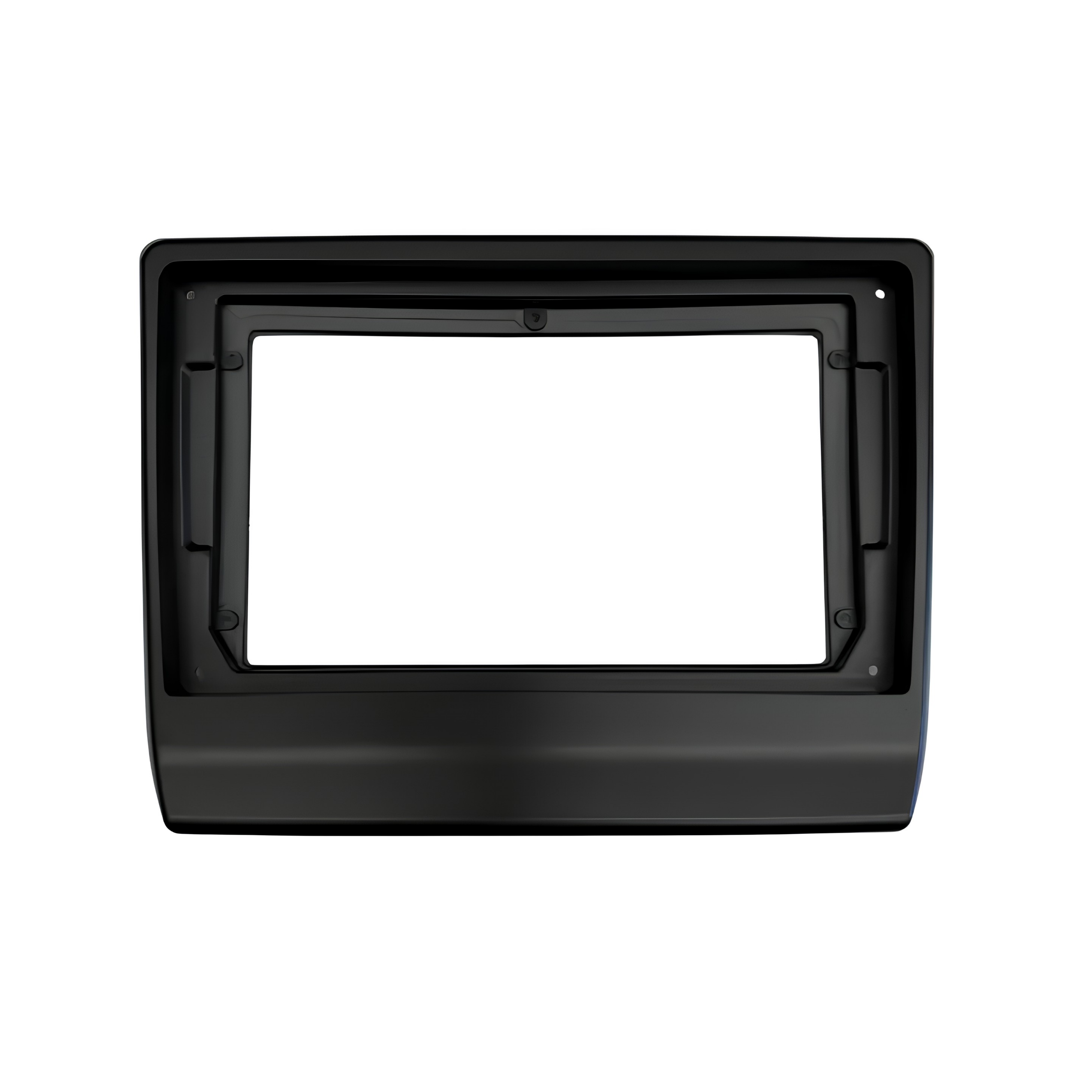

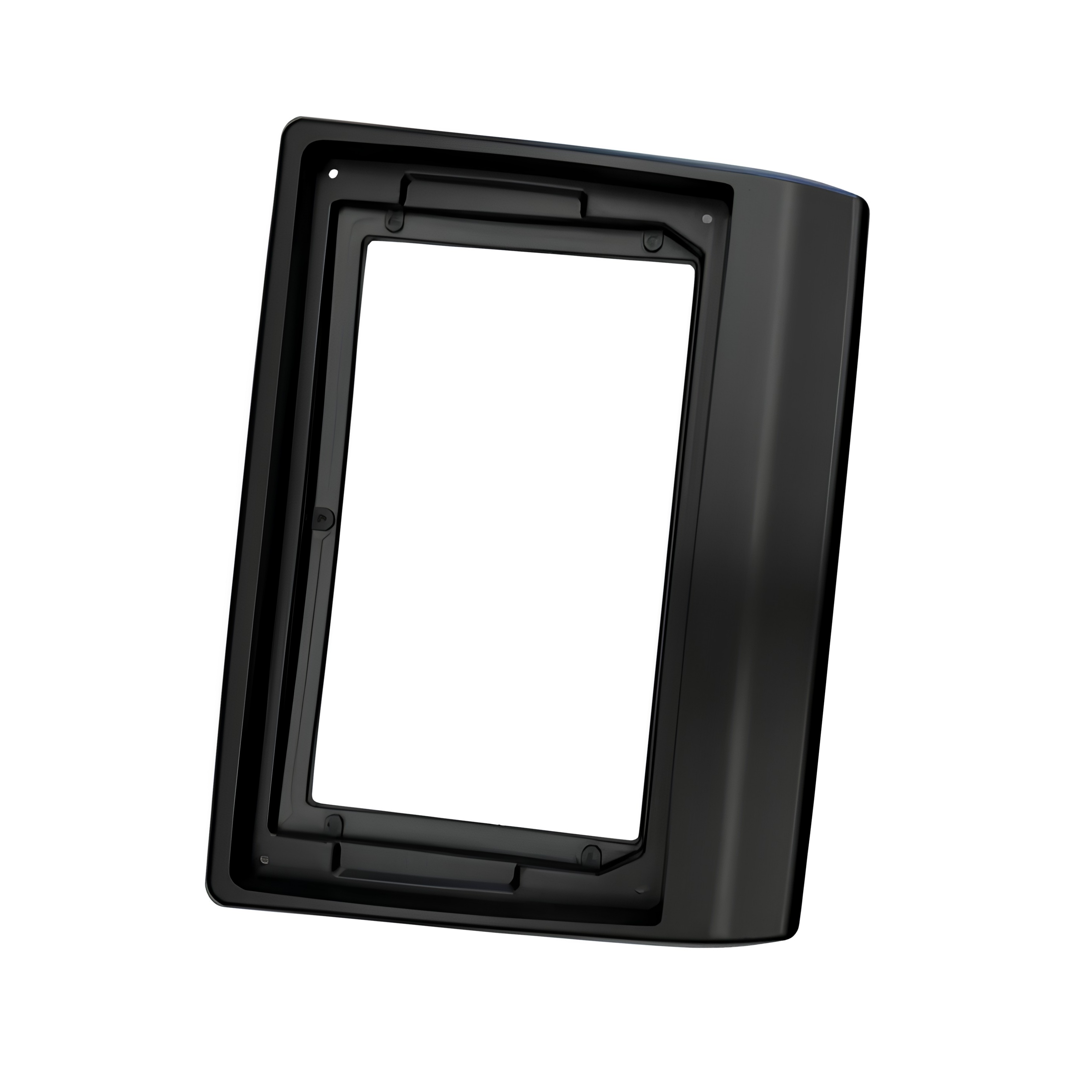

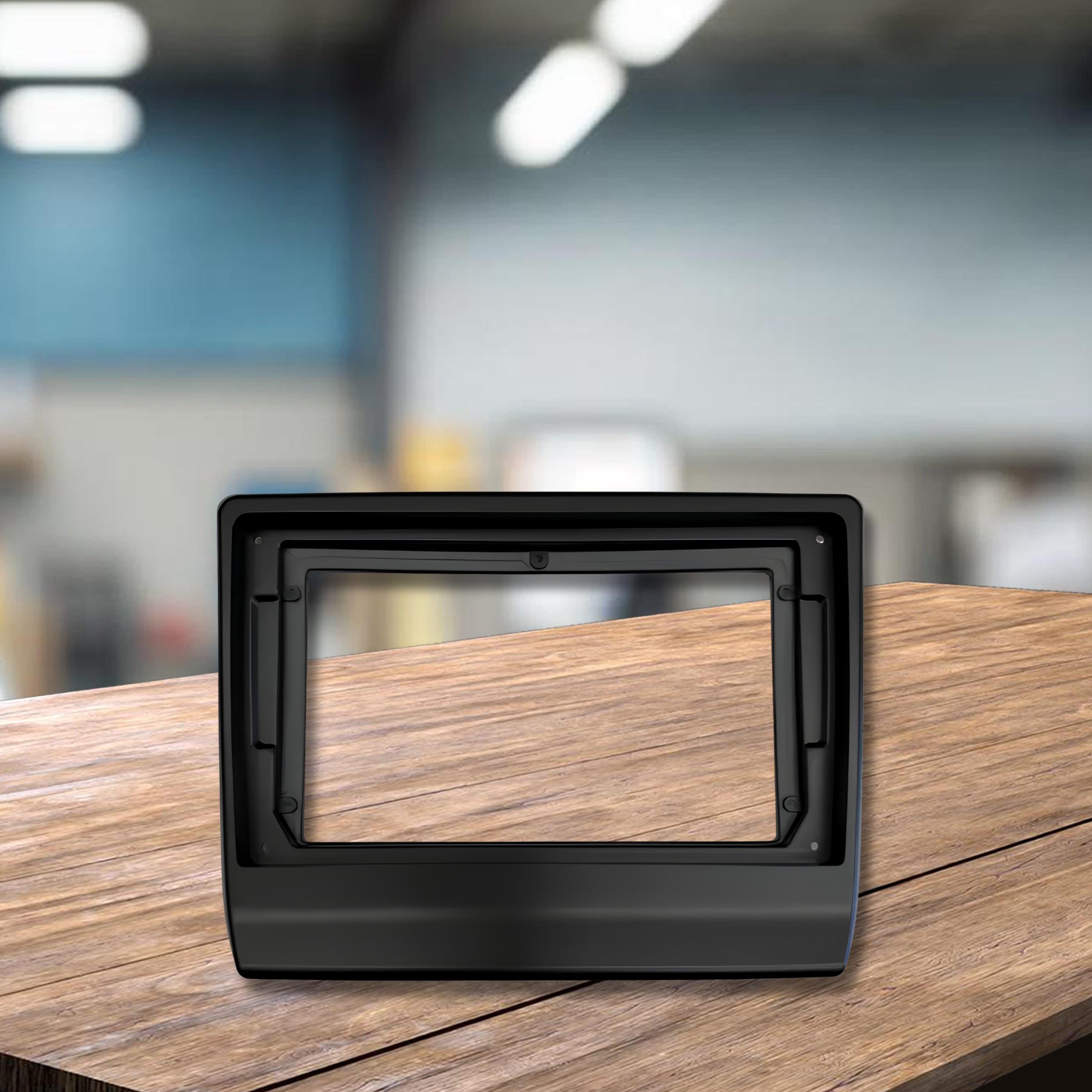

The Stinger SF9-MZ03 is a vehicle-specific 9-inch trapezoid head unit fascia designed exclusively for the Mazda BT-50 RG04 Series (3rd generation, 2020–2023). Although the RG04 BT-50 shares its mechanical platform with the Isuzu D-MAX and MU-X, the BT-50 features a completely distinct Mazda-designed dashboard with brand-specific styling, trim materials, and interior aesthetics the SF9-MZ03 is dedicated to this Mazda-specific dashboard and is not compatible with Isuzu D-MAX or MU-X models, which use the SF9-IZ02.
Key Specifications
- Part number: SF9-MZ03
- Brand: Stinger
- Product type: 9-inch trapezoid head unit fascia
- Compatible head unit format: 9-inch trapezoid only
- Finish: Mazda factory colour match with textured grain
- Vehicle: Mazda BT-50 RG04 Series (3rd generation) 2020–2023
- Platform: Isuzu-based — Mazda-specific dashboard
- Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
- Not compatible with: BT-50 UR Series 2015–2019 (SF9-MZ02) / Isuzu D-MAX / Isuzu MU-X (SF9-IZ02)
- Includes: Fascia panel only
- Wiring harness: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- SWC interface: Not included — sold separately
- Camera retention harness: Not included — sold separately
Features & Benefits
-
Exclusive RG04 BT-50 Fitment — Not Isuzu Compatible Although the BT-50 RG04 shares its mechanical underpinnings with the Isuzu D-MAX/MU-X, the Mazda dashboard is a completely independent design. The SF9-MZ03 is precision-moulded for the Mazda-specific dashboard layout, trim alignment, and brand finish — it will not fit the Isuzu dashboard.
-
Third-Generation BT-50 Only — Not for UR Series The RG04 (2020–2023) and the previous UR Series (2015–2019) are completely different platforms with different dashboard architectures. The SF9-MZ02 covers the UR Series. Confirm the build year before purchasing.
-
Mazda Factory Finish — Textured Grain Moulded to match the BT-50 RG04 factory dashboard finish including texture and grain pattern — integrating the head unit as a factory-matched dashboard component.
-
Camera Retention Harness Required All 2020+ BT-50 RG04 models are equipped with a factory reverse camera. A camera retention harness must be purchased separately to maintain reverse camera functionality with the aftermarket head unit.
-
CAN-Bus Integration Note Some BT-50 RG04 functions previously accessible through the factory screen (vehicle settings, trip computer) may require CAN-bus integration for continued access through the aftermarket head unit. Consult a professional installer for full feature compatibility specific to the vehicle's configuration.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-MZ03 |
| Product Type |
9-Inch Trapezoid Head Unit Fascia |
| Compatible Format |
9-Inch Trapezoid |
| Finish |
Mazda Factory Colour Match, Textured Grain |
| Vehicle |
Mazda BT-50 RG04 Series (3rd Gen) 2020–2023 |
| Platform |
Isuzu-based — Mazda-specific dashboard |
| Not Compatible |
BT-50 UR 2015–2019 (SF9-MZ02) / Isuzu D-MAX / Isuzu MU-X (SF9-IZ02) |
| Confirmed Head Units |
Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X |
| Includes |
Fascia Panel Only |
| Wiring Harness |
Not included |
| Antenna Adaptor |
Not included |
| SWC Interface |
Not included |
| Camera Retention Harness |
Not included — required (all RG04 have reverse camera) |
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Series |
| Mazda |
BT-50 |
2020–2023 |
RG04 Series (3rd Generation) |
Not compatible with:
- Mazda BT-50 UR Series 2015–2019 — requires SF9-MZ02
- Isuzu D-MAX 2019–2023 — requires SF9-IZ02
- Isuzu MU-X 2019–2023 — requires SF9-IZ02
Confirmed compatible 9-inch trapezoid head units:
- Alpine INE-AW4095
- Alpine INE-AX809
- Kenwood DMX80AXS
- Pioneer DMH-AP6650BT
- Aerpro AM9X
Required accessories (sold separately):
- Mazda BT-50 RG04 wiring harness (Mazda-to-ISO)
- Antenna adaptor (Mazda proprietary to standard)
- Steering wheel control interface
- Reverse camera retention harness (required — all RG04 models have factory camera)
Frequently Asked Questions
Is the SF9-MZ03 compatible with Isuzu D-MAX or MU-X models?
No — despite sharing the same mechanical platform, the Mazda BT-50 RG04 and the Isuzu D-MAX/MU-X have completely different dashboard designs. The SF9-MZ03 is for the Mazda BT-50 RG04 only. Isuzu D-MAX and MU-X require the SF9-IZ02.
What is the difference between the SF9-MZ02 and SF9-MZ03?
The SF9-MZ02 is for the previous-generation BT-50 UR Series (2015–2019) built on the Ford Ranger platform. The SF9-MZ03 is for the current third-generation BT-50 RG04 Series (2020–2023) built on the Isuzu platform. The two generations have entirely different dashboard architectures and are not interchangeable.
Does the SF9-MZ03 include a wiring harness or steering wheel control interface?
No — the SF9-MZ03 is a fascia panel only. A Mazda BT-50 RG04-specific wiring harness, antenna adaptor, steering wheel control interface, and reverse camera retention harness are all required separately for a complete installation.
Do all 2020–2023 Mazda BT-50 models have a factory reverse camera?
Yes — all third-generation RG04 BT-50 models are equipped with a factory reverse camera. A camera retention harness is required to maintain reverse camera functionality after installing an aftermarket head unit.
Is professional installation recommended for the SF9-MZ03?
Yes — the BT-50 RG04 dashboard involves Mazda-specific disassembly procedures, multiple factory integration harnesses, steering wheel control programming, and camera retention. Professional installation by a qualified car audio installer is strongly recommended.
