Description
Toyota 200mm to 9-Inch Trapezoid Head Unit Fascia Conversion Kit Covers Camry, Corolla, FJ Cruiser, Hilux, Kluger (Non-Nav), LandCruiser 200, RAV4, and Yaris. Fascia Panel Only.
Product Overview

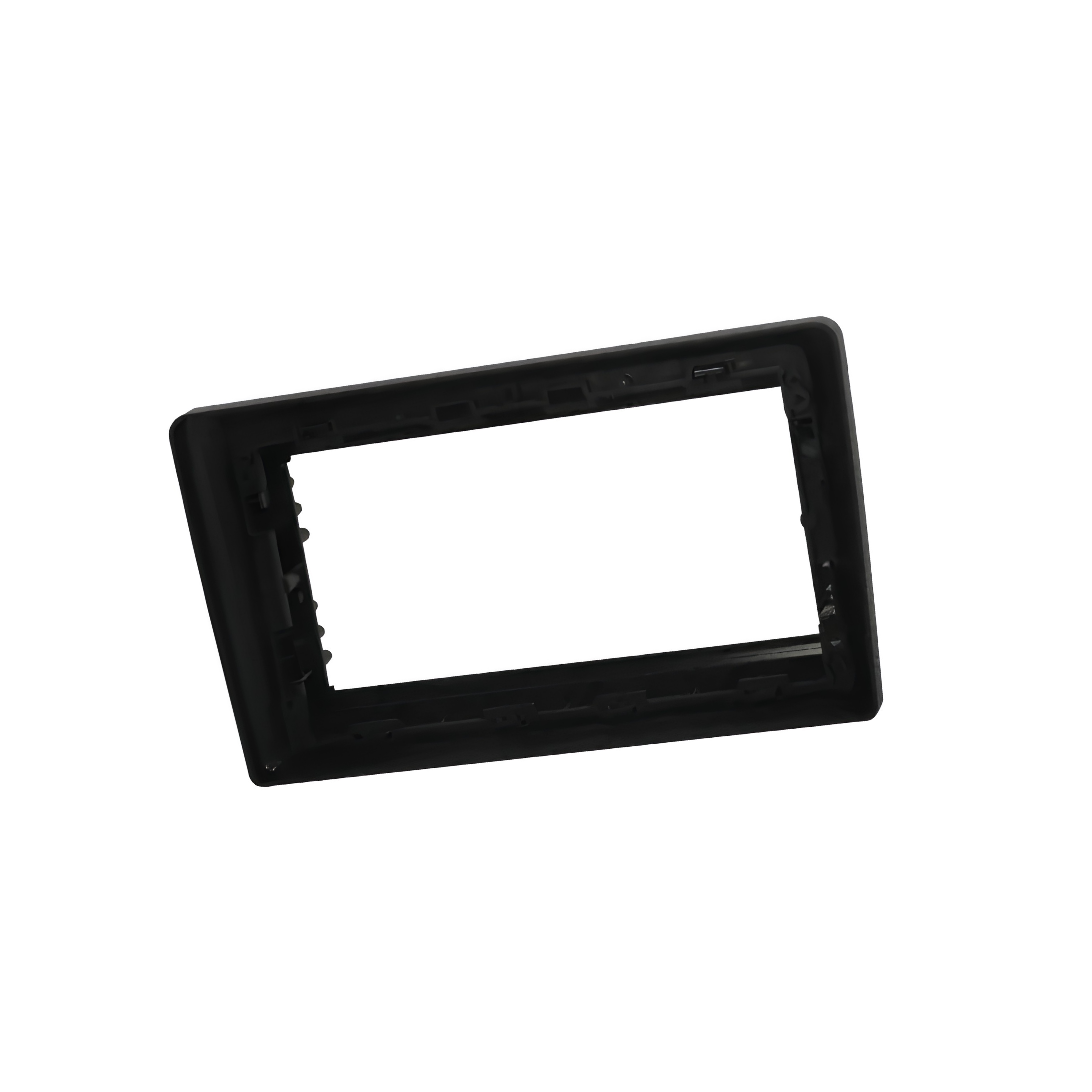

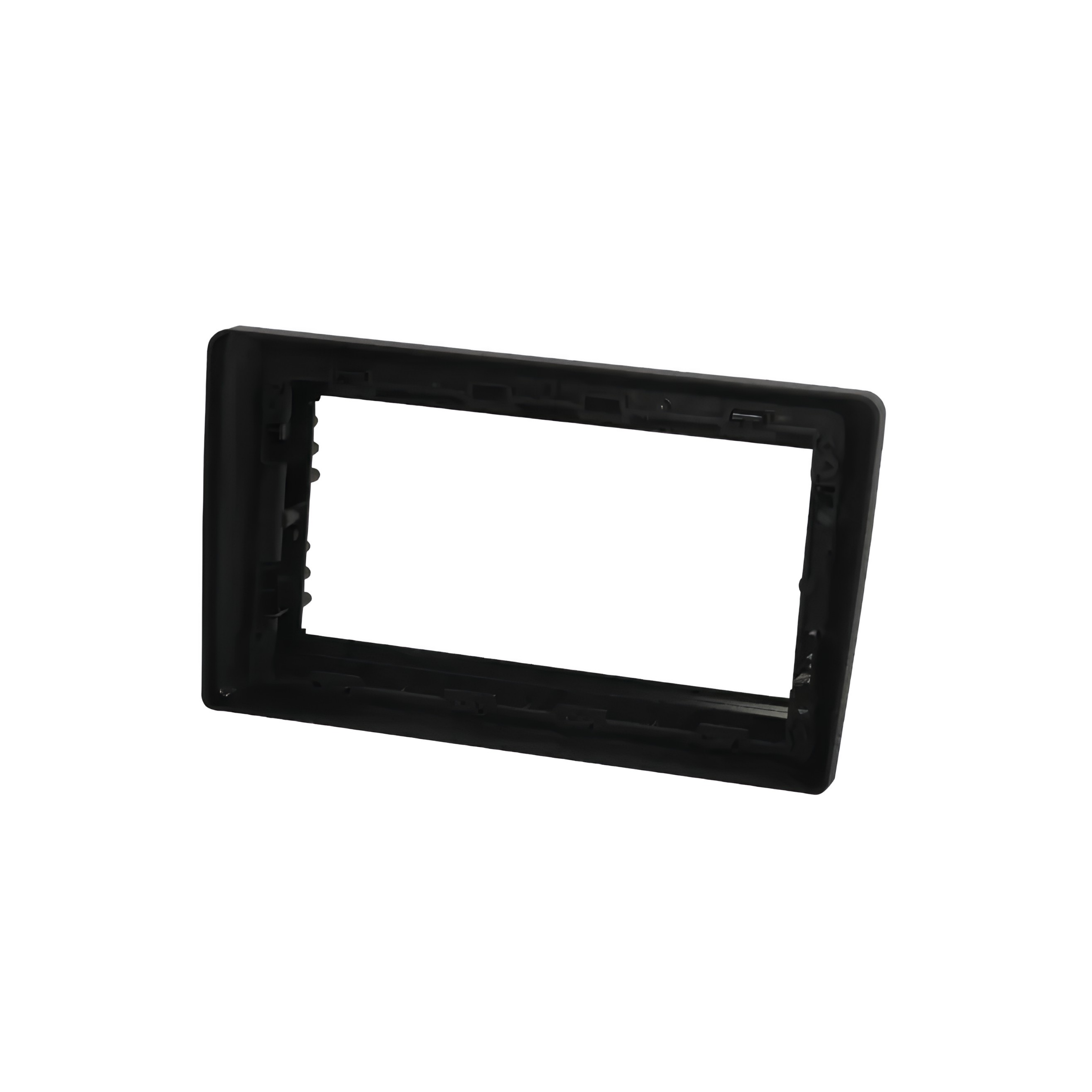

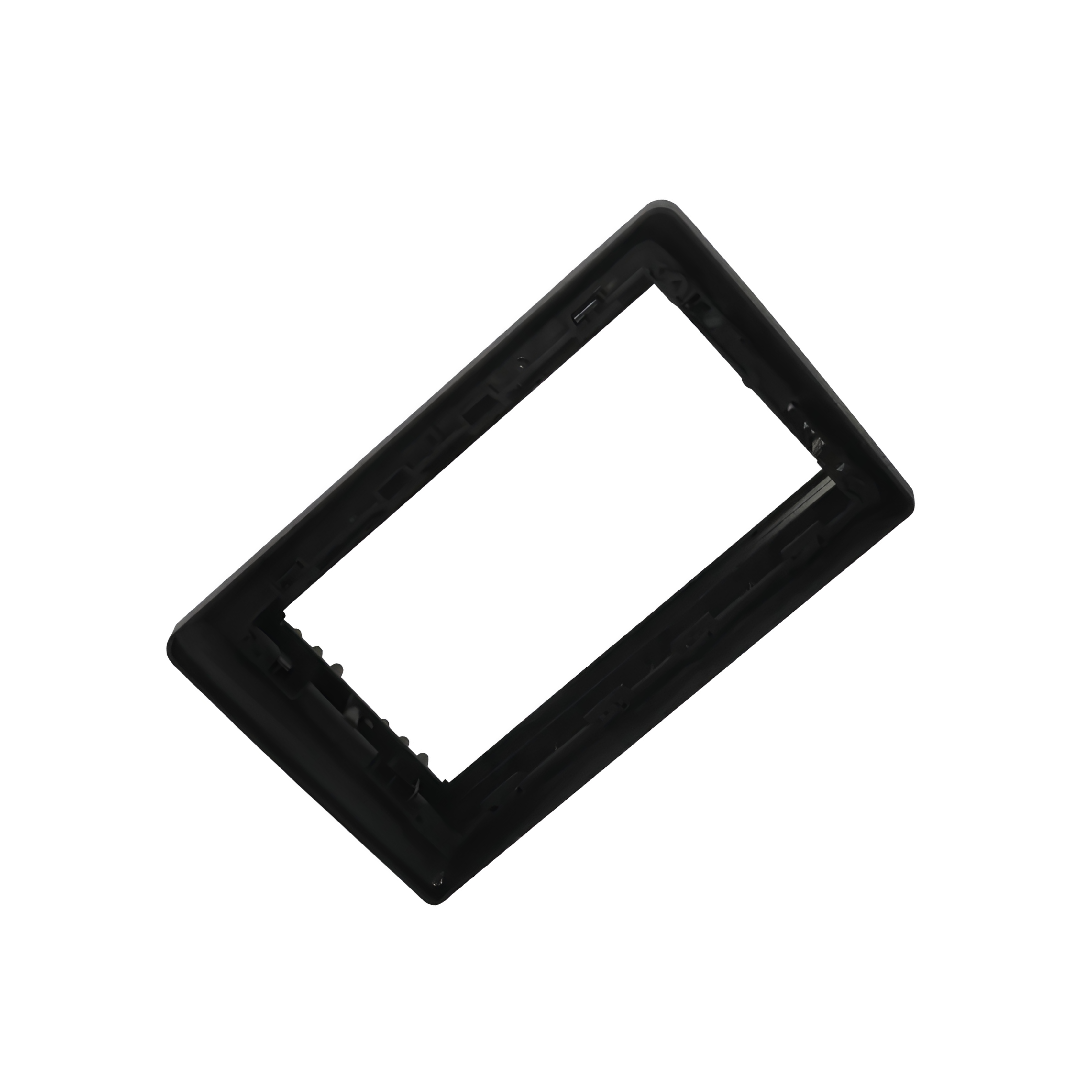

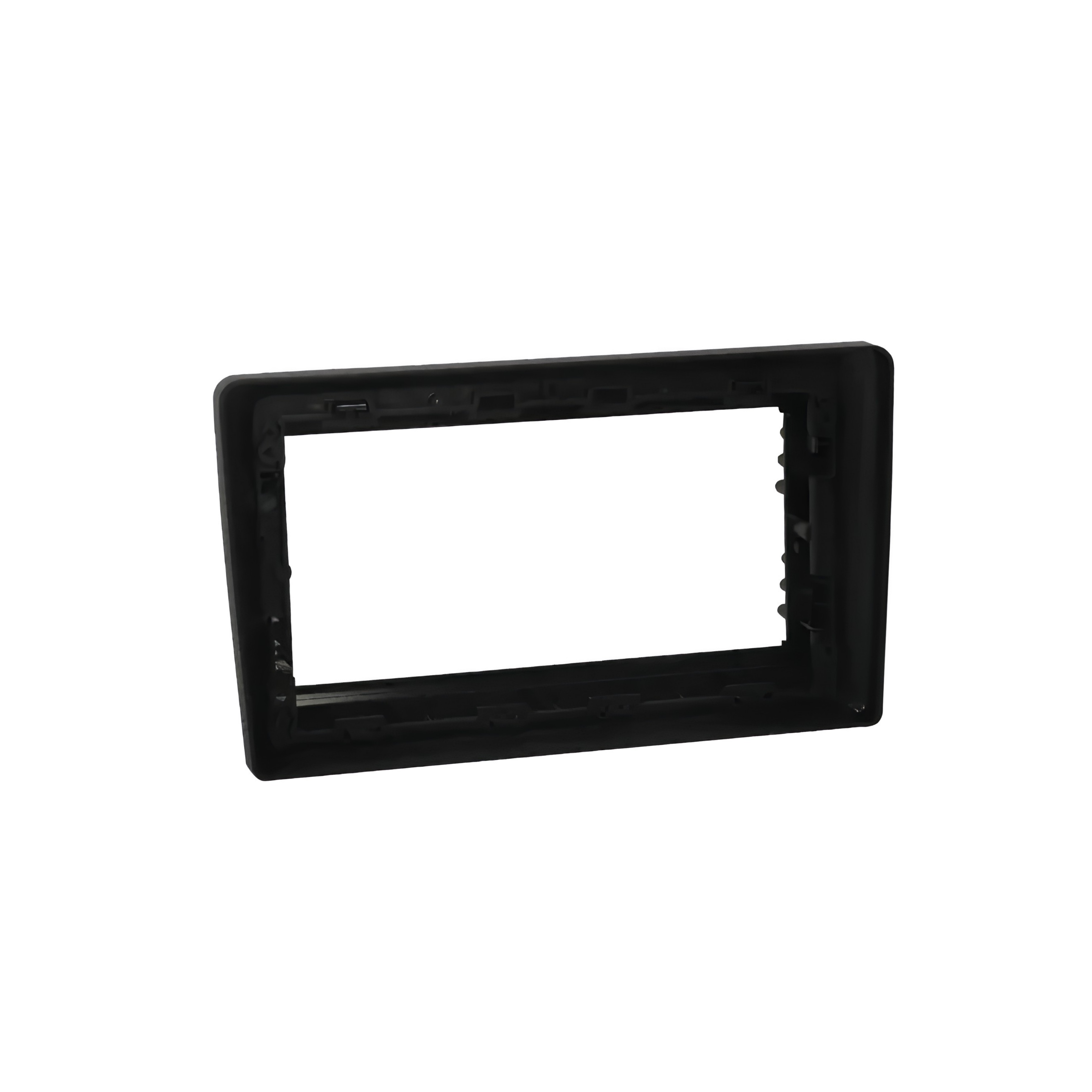

The Stinger SF9-TY01 is a vehicle-specific 200mm to 9-inch trapezoid head unit fascia conversion kit for select Toyota vehicles. Toyota's 200mm head unit format is a wider-than-standard factory opening approximately 200mm wide vs the standard 178mm single DIN found across a broad range of popular Toyota models from the mid-2000s to early 2010s. The SF9-TY01 bridges this wider 200mm factory opening to the trapezoid form factor of a 9-inch aftermarket head unit, ensuring a seamless, professional dashboard integration without cutting or modification.
Coverage spans eight Toyota model lines: Camry (XV40, 2007–2011), Corolla (E120, 2009–2012), FJ Cruiser (GSJ10, 2010–2016), Hilux (AN10/AN20/AN30, 2005–2010), Kluger (XU40, 2007–2013, non-navigation only), LandCruiser 200 Series (2008–2012), RAV4 (XA30, 2006–2011), and Yaris (XP90, 2012–2014).
Key Specifications
- SKU: SF9-TY01
- Brand: Stinger
- Product type: 200mm to 9-inch trapezoid head unit fascia conversion
- Factory opening: Toyota 200mm
- Compatible head unit format: 9-inch trapezoid
- Colour: Not specified — confirm with Stinger
- Vehicle coverage: 8 Toyota models (see Compatible With table)
- Kluger: Non-navigation XU40 only
- Includes: Fascia panel only
- Wiring harness: Not included — sold separately
- SWC harness: Not included — sold separately
- Camera adaptor: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- USB adaptor: Not included — sold separately
Features & Benefits
-
200mm to 9-Inch Trapezoid Conversion Toyota's 200mm factory opening is wider than a standard DIN slot — a direct 9-inch trapezoid fascia designed for a standard opening will not fill the Toyota dash correctly. The SF9-TY01 is specifically engineered to bridge the 200mm factory opening to the trapezoid form factor, producing a clean, gap-free finish without dashboard cutting or modification.
-
Eight Toyota Models — One Fascia A single SKU covers eight popular Toyota models across multiple chassis codes and production years — spanning the Hilux, LandCruiser 200, Kluger, RAV4, Camry, Corolla, FJ Cruiser, and Yaris. Confirm your specific model, year, and chassis code from the compatibility table below before purchasing.
-
Kluger Non-Navigation Models Only The SF9-TY01 is compatible with the Toyota Kluger XU40 (2007–2013) non-navigation variant only. Navigation-equipped Kluger models have a different factory head unit configuration and require a separate fascia solution.
-
9-Inch Trapezoid Format — Wide Head Unit Compatibility Supports the trapezoid 9-inch format used by Alpine (INE-AW409S, INE-AX809), Kenwood (DMX80AXS), Mongoose (Q9WCA), Pioneer (DMH-AP6650BT), and Aerpro (AM9X).
-
Fascia Panel Only — Installer Flexibility Supplied as the conversion fascia panel alone, giving installers full flexibility to select vehicle-specific wiring harnesses and accessories independently.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| SKU |
SF9-TY01 |
| Product Type |
200mm to 9-Inch Trapezoid Head Unit Fascia Conversion |
| Factory Opening |
Toyota 200mm |
| Compatible Format |
9-Inch Trapezoid |
| Colour |
Not specified — confirm with Stinger |
| Vehicle Make |
Toyota |
| Compatible Head Units |
Alpine INE-AW409S, INE-AX809; Kenwood DMX80AXS; Mongoose Q9WCA; Pioneer DMH-AP6650BT; Aerpro AM9X |
| Kluger |
Non-navigation XU40 only |
| Wiring Harness |
Not included |
| SWC Harness |
Not included |
| Camera Adaptor |
Not included |
| Antenna Adaptor |
Not included |
| USB Adaptor |
Not included |
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Chassis Code |
Notes |
| Toyota |
Camry |
2007–2011 |
XV40 |
|
| Toyota |
Corolla |
2009–2012 |
E120 |
|
| Toyota |
FJ Cruiser |
2010–2016 |
GSJ10 |
|
| Toyota |
Hilux |
2005–2010 |
AN10 / AN20 / AN30 |
|
| Toyota |
Kluger |
2007–2013 |
XU40 |
Non-navigation only |
| Toyota |
LandCruiser |
2008–2012 |
200 Series |
|
| Toyota |
RAV4 |
2006–2011 |
XA30 |
|
| Toyota |
Yaris |
2012–2014 |
XP90 |
|
Compatible 9-inch trapezoid head units:
- Alpine INE-AW409S / INE-AX809
- Kenwood DMX80AXS
- Mongoose Q9WCA
- Pioneer DMH-AP6650BT
- Aerpro AM9X
Recommended accessories (sold separately):
- Vehicle-specific wiring harness for your Toyota model
- SWC harness for your Toyota model
- Camera adaptor for your Toyota model
- Antenna adaptor for Toyota vehicles
Frequently Asked Questions
What is a Toyota 200mm head unit and how is it different from a standard DIN?
Toyota's 200mm head unit format measures approximately 200mm wide — wider than the standard 178mm single DIN opening used in most non-Toyota vehicles. The SF9-TY01 specifically bridges this wider 200mm factory opening to the 9-inch trapezoid form factor, filling the larger Toyota dash opening cleanly without gaps.
Is the SF9-TY01 compatible with navigation-equipped Toyota Kluger models?
No — the SF9-TY01 covers the Kluger XU40 (2007–2013) non-navigation variant only. Navigation-equipped Kluger models have a different factory head unit configuration and require a separate fascia solution. Confirm your Kluger's factory configuration before purchasing.
Does the SF9-TY01 include a wiring harness or any adaptors?
No — the SF9-TY01 is a fascia panel only. No wiring harness, SWC harness, camera adaptor, antenna adaptor, or USB adaptor is included. Source the appropriate Toyota model-specific accessories separately to complete the head unit upgrade.
Which 9-inch head units are confirmed compatible with the SF9-TY01?
The SF9-TY01 is confirmed compatible with Alpine INE-AW409S, Alpine INE-AX809, Kenwood DMX80AXS, Mongoose Q9WCA, Pioneer DMH-AP6650BT, and Aerpro AM9X. Confirm your chosen head unit uses the standard 9-inch trapezoid mounting format before purchasing.
Is professional installation recommended for the SF9-TY01?
Yes — professional installation by a qualified car audio technician is recommended to ensure correct fascia fitment, secure head unit mounting, and proper wiring harness and adaptor connections for full head unit functionality.
