Description
9-Inch and 10-Inch Trapezoid Head Unit Fascia Toyota Hilux AN120-AN130 Series 2015–2020. 10-to-9-Inch Reducer Panel Included. Covers SR, SR5, Rogue, Rugged X. Standard and Wide-Cab.
Product Overview

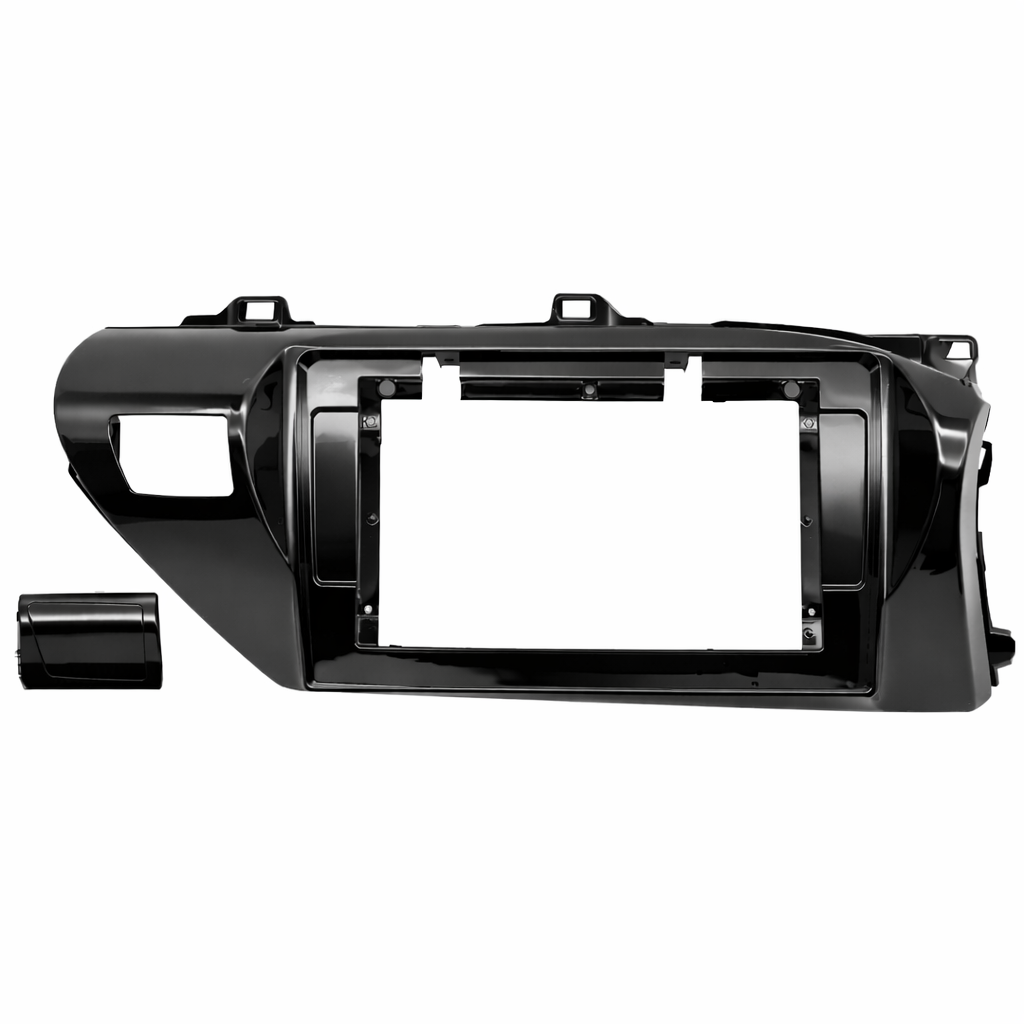

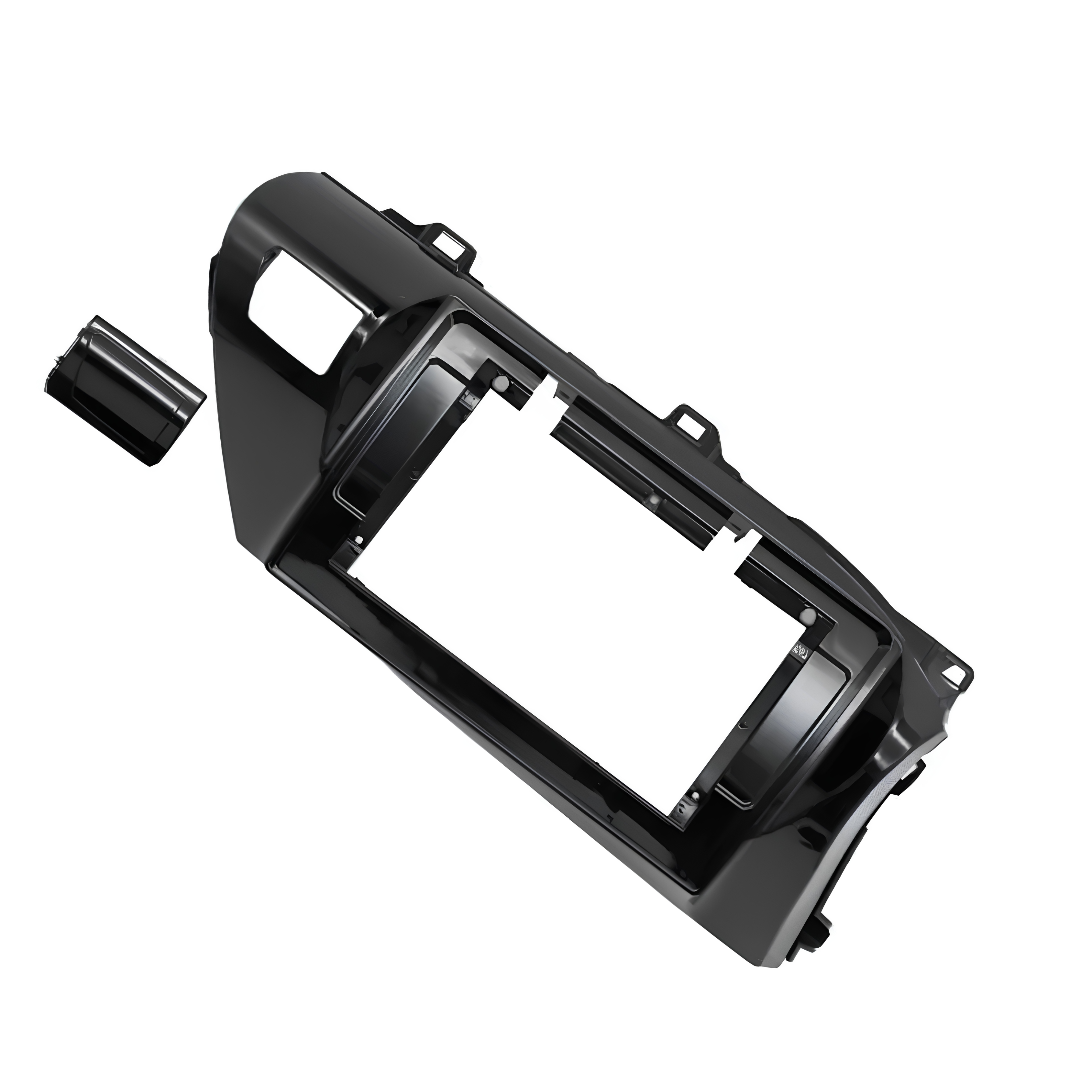

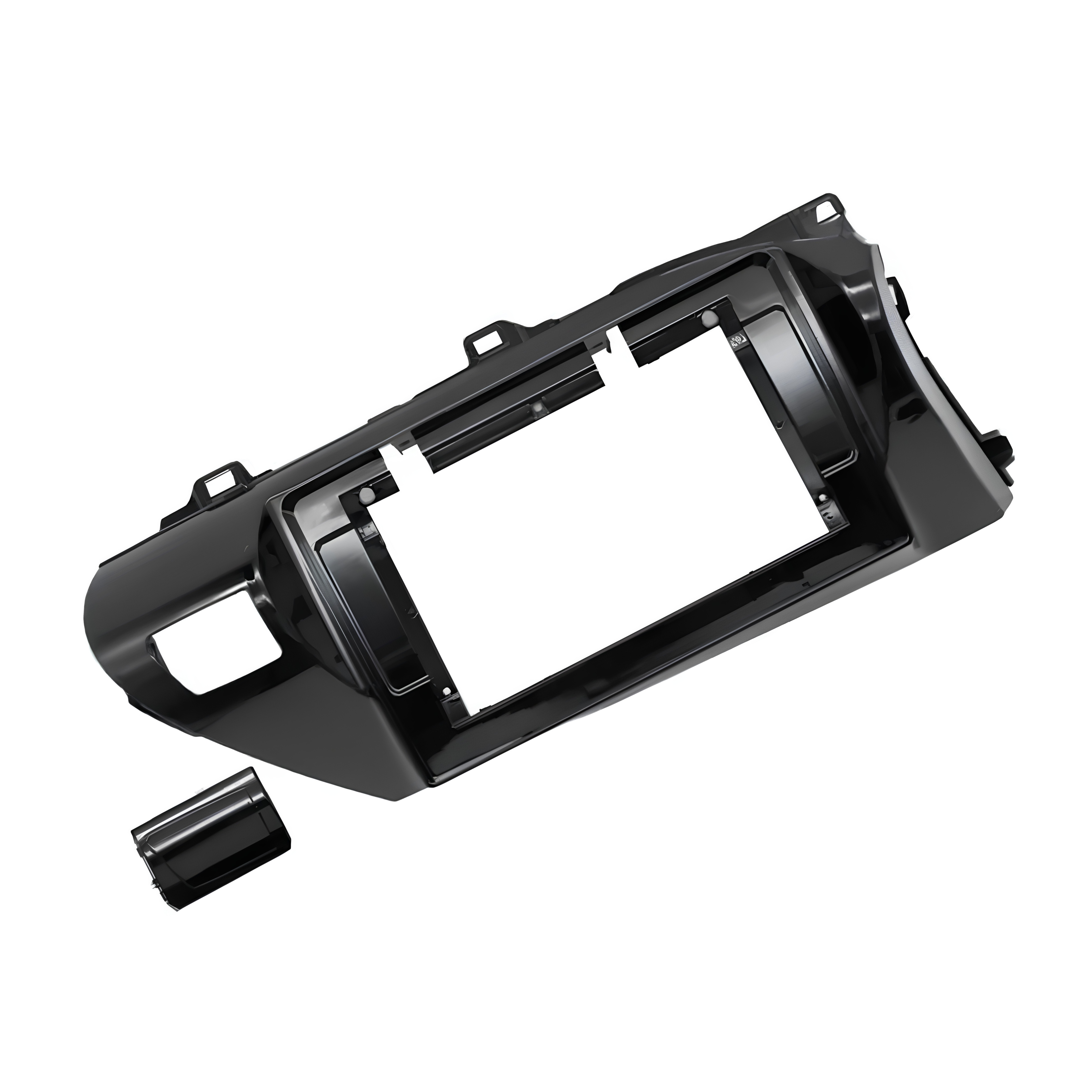

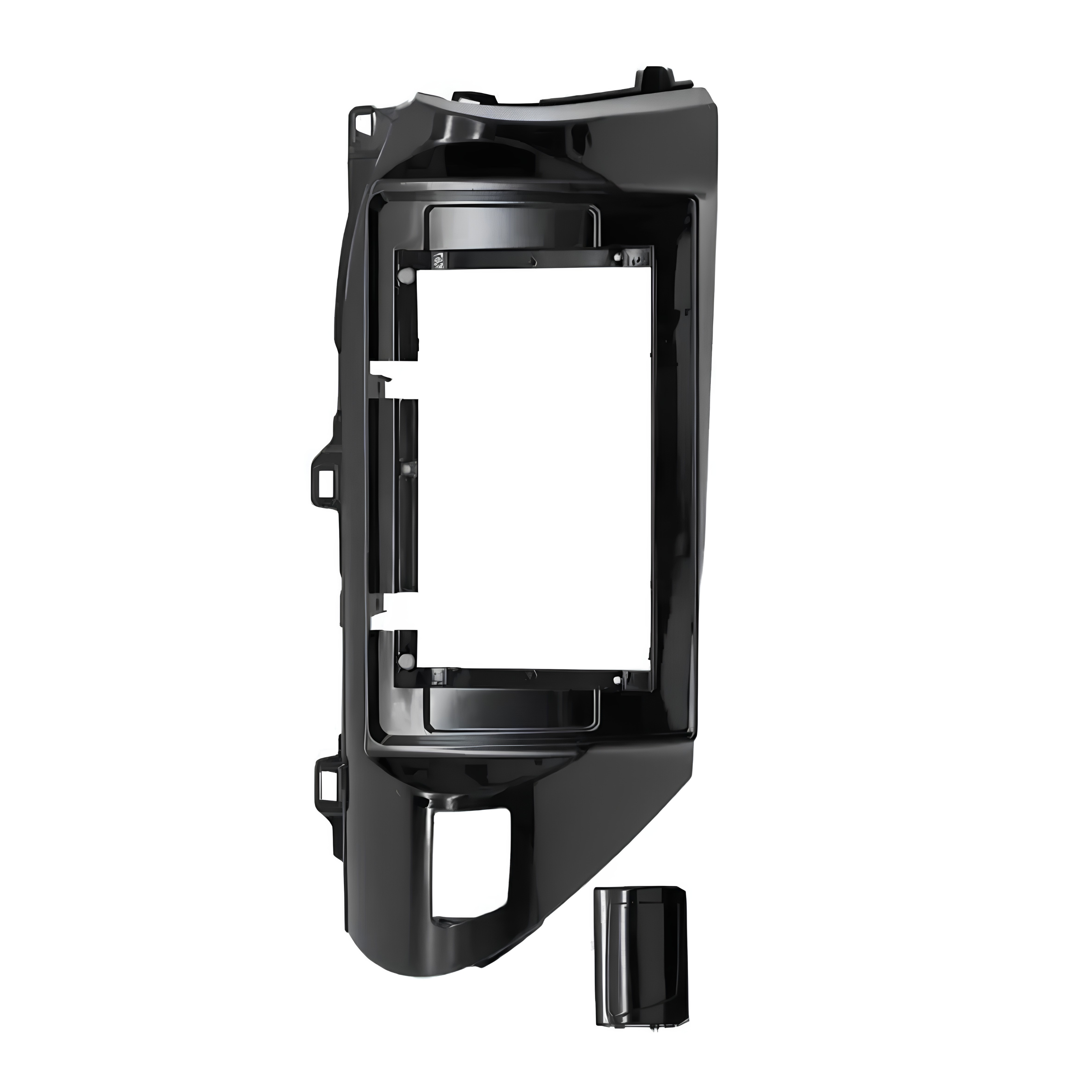

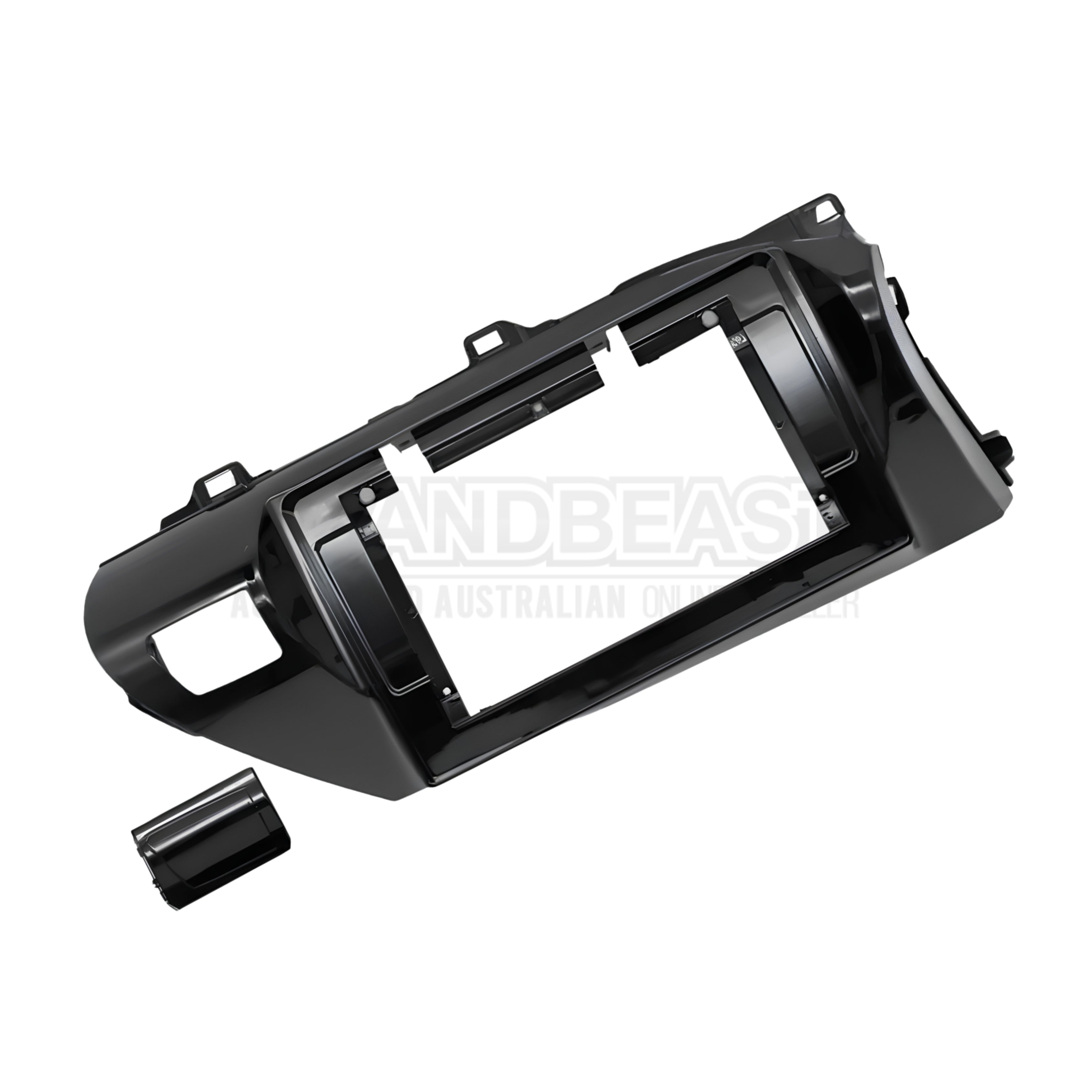

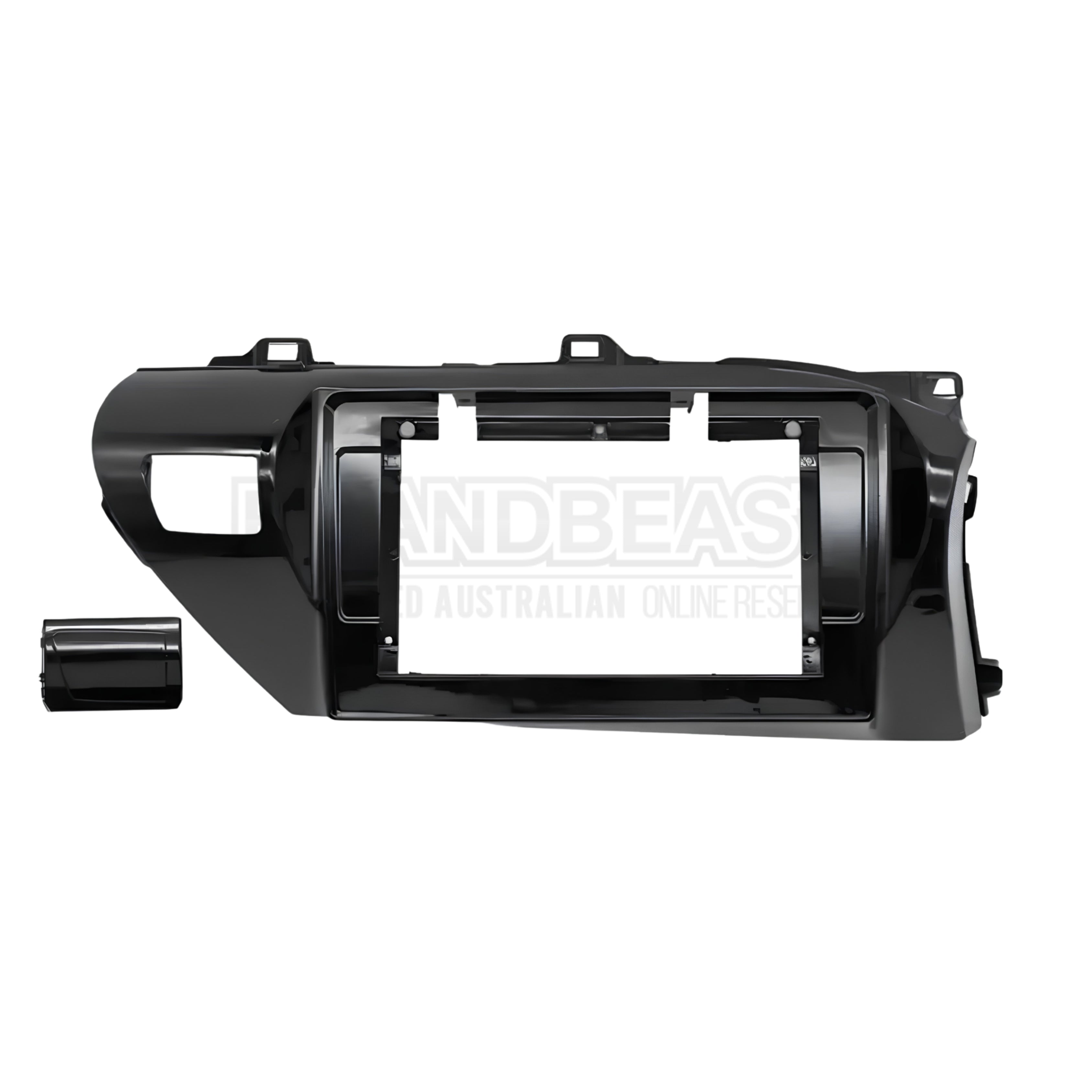

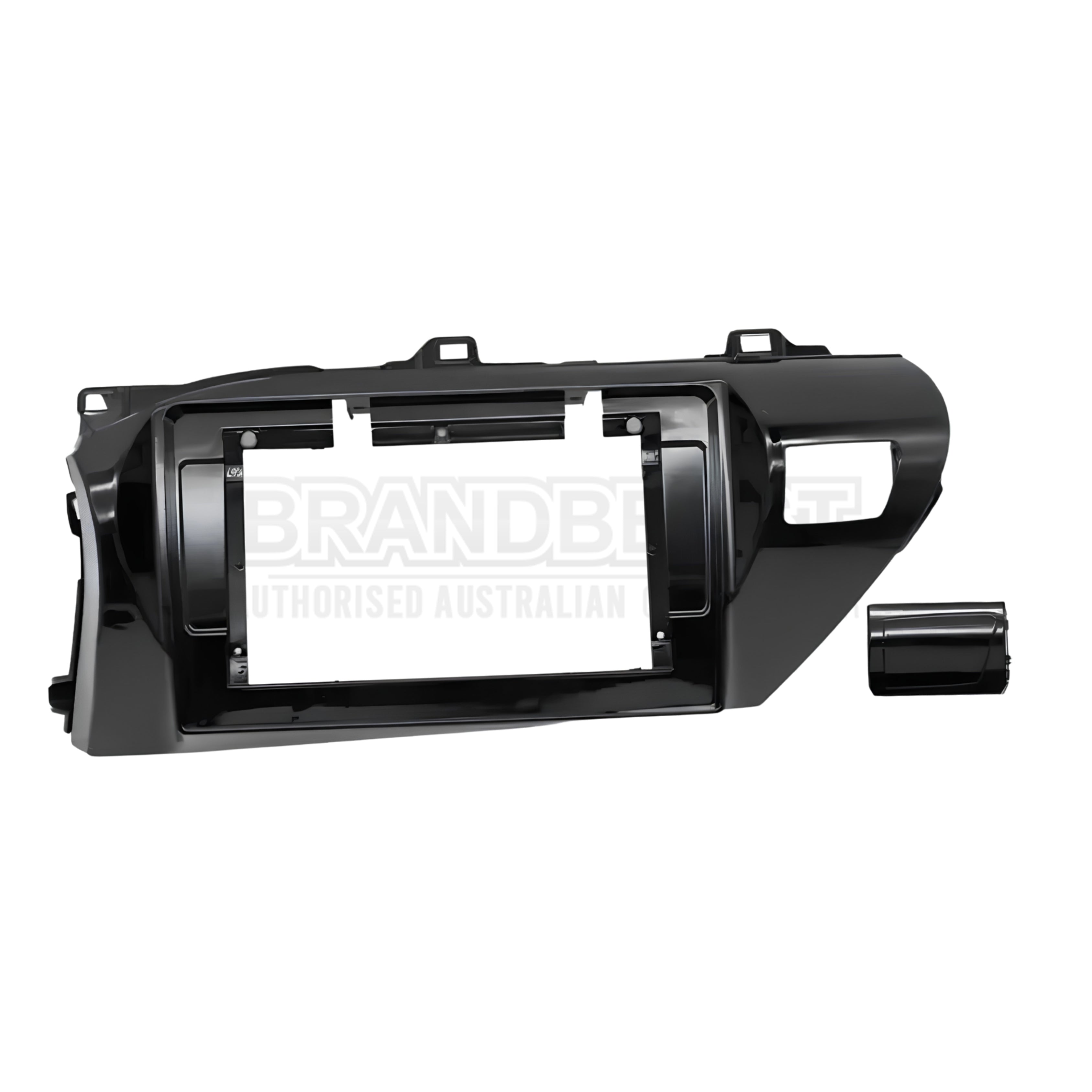

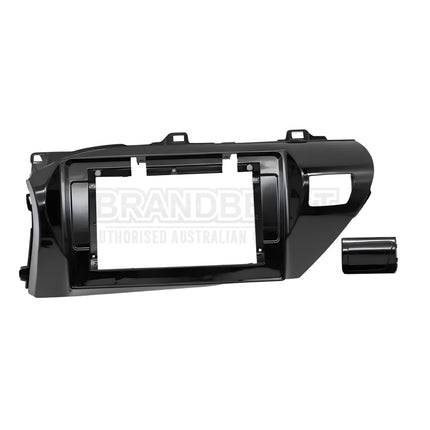

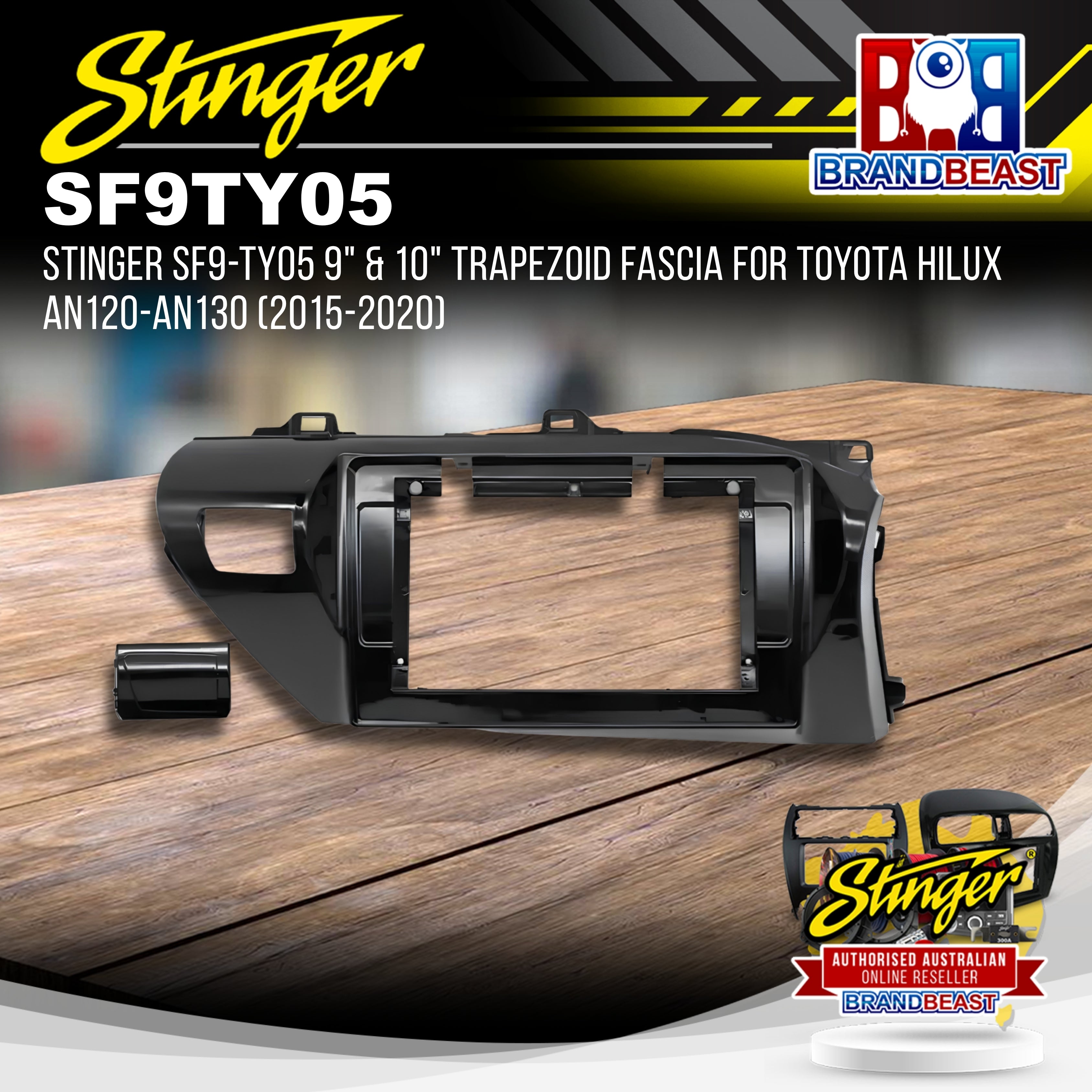

The Stinger SF9-TY05 is a vehicle-specific fascia panel designed for the Toyota Hilux AN120-AN130 Series (eighth-generation, 2015–2020). Like the SF9-TY08 (LandCruiser 200) and SF9-TY10 (Prado 150), the SF9-TY05 includes a 10-to-9-inch reducer panel in the box accommodating both screen sizes from a single fascia. For 10-inch head units the full fascia opening is used; for 9-inch head units the reducer panel is fitted to create the correct aperture. Confirmed compatible head units span both formats: Alpine INE-AW4095, INE-AX809 (9-inch) and INE-AW4095-10, INE-AX809-10 (10-inch), Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Aerpro AM9X (9-inch) and AM10X (10-inch). Coverage spans SR, SR5, Rogue, and Rugged X trim levels across both standard and wide-cab configurations for the complete 2015–2020 AN120-AN130 production run.
The SF9-TY05 is not compatible with 2021 and newer Hilux models the facelift introduced updated dashboard trim that requires verification for separate fascia compatibility. For the earlier Hilux AN10/AN20/AN30 series (2005–2015), the SF9-TY12 is the correct product. The SF9-TY05 is injection-moulded in UV-resistant ABS with a factory colour-matched finish (typically black or charcoal confirm the exact colour from the official Stinger SF9-TY05 product page before publishing). Wiring harness, antenna adaptor, steering wheel control interface, and camera retention harness are not included.
Key Specifications
- Part number: SF9-TY05
- Brand: Stinger
- Product type: 9-inch and 10-inch trapezoid head unit fascia
- Compatible head unit formats: 9-inch trapezoid and 10-inch trapezoid
- Reducer panel: Included (10-inch to 9-inch)
- Finish: Factory colour match — typically black/charcoal (confirm from official product page)
- Vehicle: Toyota Hilux AN120-AN130 Series 2015–2020
- Trim variants: SR, SR5, Rogue, Rugged X
- Body styles: Standard cab and wide-cab
- Not compatible with: Hilux 2021+ (facelift — different dashboard trim)
- Confirmed 9-inch head units: Alpine INE-AW4095, INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
- Confirmed 10-inch head units: Alpine INE-AW4095-10, INE-AX809-10, Aerpro AM10X
- Includes: Fascia panel and 10-to-9-inch reducer panel
- Wiring harness: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- SWC interface: Not included — sold separately
- Camera retention harness: Not included — sold separately
Features & Benefits
-
Dual 9-Inch and 10-Inch Format — Reducer Panel Included The SF9-TY05 includes the 10-to-9-inch reducer panel in the box. Use the full opening for 10-inch head units or fit the reducer for 9-inch units. No separate adapter purchase required for either format — the same future-upgrade path as the SF9-TY08 and SF9-TY10.
-
AN120-AN130 Specific — 2015 to 2020 Covers the complete eighth-generation Hilux production run from 2015 to 2020 across all trim levels (SR, SR5, Rogue, Rugged X) and both standard and wide-cab body styles. Not compatible with the 2021+ facelift Hilux.
-
Separate Confirmed 9-Inch and 10-Inch Head Unit Lists The SF9-TY05 is the only Hilux fascia in the range with confirmed 10-inch unit support alongside 9-inch. Both lists are explicitly confirmed in the spec table — Alpine's 10-inch variants (INE-AW4095-10, INE-AX809-10) and Aerpro's AM10X are all confirmed.
-
Factory Finish — UV-Resistant ABS Moulded to match the AN120-AN130 factory dashboard finish, maintaining the Hilux's utilitarian interior appearance for commercial operators, fleet managers, and trade contractors.
-
For Earlier Hilux AN10/AN20/AN30 (2005–2015), Use SF9-TY12 The SF9-TY05 covers the 8th-gen AN120-AN130 only. For the previous generation AN10/AN20/AN30 (2005–2015), the SF9-TY12 is the correct product.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-TY05 |
| Product Type |
9-Inch and 10-Inch Trapezoid Head Unit Fascia |
| Compatible Formats |
9-Inch Trapezoid and 10-Inch Trapezoid |
| Reducer Panel |
Included (10-inch to 9-inch) |
| Finish |
Factory colour match, typically black/charcoal (confirm from official page) |
| Vehicle |
Toyota Hilux AN120-AN130 Series 2015–2020 |
| Trim Variants |
SR, SR5, Rogue, Rugged X |
| Body Styles |
Standard Cab and Wide-Cab |
| Not Compatible |
Hilux 2021+ (facelift) |
| Confirmed 9-Inch |
Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X |
| Confirmed 10-Inch |
Alpine INE-AW4095-10, INE-AX809-10; Aerpro AM10X |
| Includes |
Fascia Panel + 10-to-9-Inch Reducer Panel |
| Wiring Harness |
Not included |
| Antenna Adaptor |
Not included |
| SWC Interface |
Not included |
| Camera Retention Harness |
Not included |
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Chassis |
Trims |
Body Styles |
| Toyota |
Hilux |
2015–2020 |
AN120, AN130 |
SR, SR5, Rogue, Rugged X |
Standard Cab and Wide-Cab |
Not compatible with:
- Toyota Hilux 2021 and newer (facelift — confirm separate fascia)
- Toyota Hilux AN10/AN20/AN30 2005–2015 (requires SF9-TY12)
Confirmed compatible head units:
9-inch:
- Alpine INE-AW4095 / INE-AX809
- Kenwood DMX80AXS
- Pioneer DMH-AP6650BT
- Aerpro AM9X
10-inch:
- Alpine INE-AW4095-10 / INE-AX809-10
- Aerpro AM10X
Recommended accessories (sold separately):
- Toyota Hilux AN120/AN130-specific wiring harness (Toyota-to-ISO)
- Antenna adaptor for Toyota
- Steering wheel control interface
- Reverse camera retention harness (confirm if equipped)
Frequently Asked Questions
Does the SF9-TY05 work with both 9-inch and 10-inch head units?
Yes — the SF9-TY05 includes a 10-to-9-inch reducer panel. Install the reducer for 9-inch head units or omit it for 10-inch head units. Confirmed 9-inch units: Alpine INE-AW4095, INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X. Confirmed 10-inch units: Alpine INE-AW4095-10, INE-AX809-10, Aerpro AM10X.
Is the SF9-TY05 compatible with 2021 or newer Hilux models?
No — the SF9-TY05 covers the AN120-AN130 eighth-generation Hilux from 2015 to 2020 only. The 2021+ facelift Hilux features updated dashboard trim — confirm separate fascia compatibility for your specific model year.
What is the difference between the SF9-TY05 and SF9-TY12?
The SF9-TY12 covers the earlier Hilux AN10/AN20/AN30 series (2005–2015). The SF9-TY05 covers the eighth-generation AN120-AN130 (2015–2020). These are different generations with different dashboards. Confirm the chassis code and year before purchasing.
Does the SF9-TY05 include wiring harnesses or installation accessories?
No — the SF9-TY05 includes the fascia panel and reducer panel only. A Toyota Hilux-specific wiring harness, antenna adaptor, SWC interface, and camera retention harness are all required separately.
Does the SF9-TY05 cover Rugged X and Rogue trim levels?
Yes — the SF9-TY05 covers all AN120-AN130 trim levels including SR, SR5, Rogue, and Rugged X across both standard and wide-cab body styles.
