Description

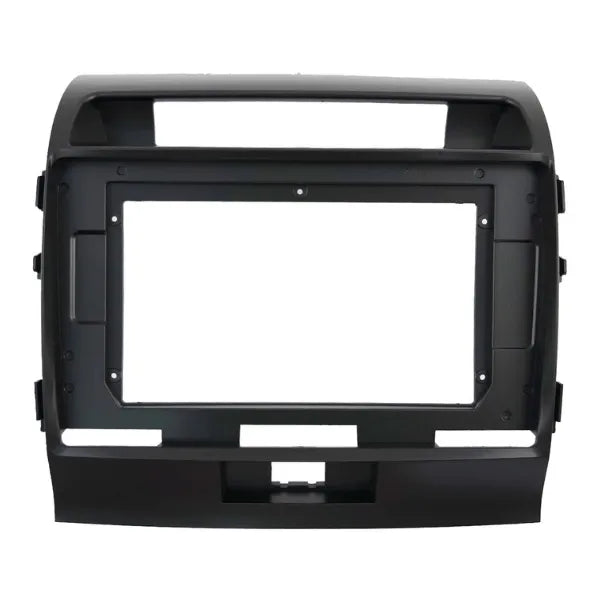

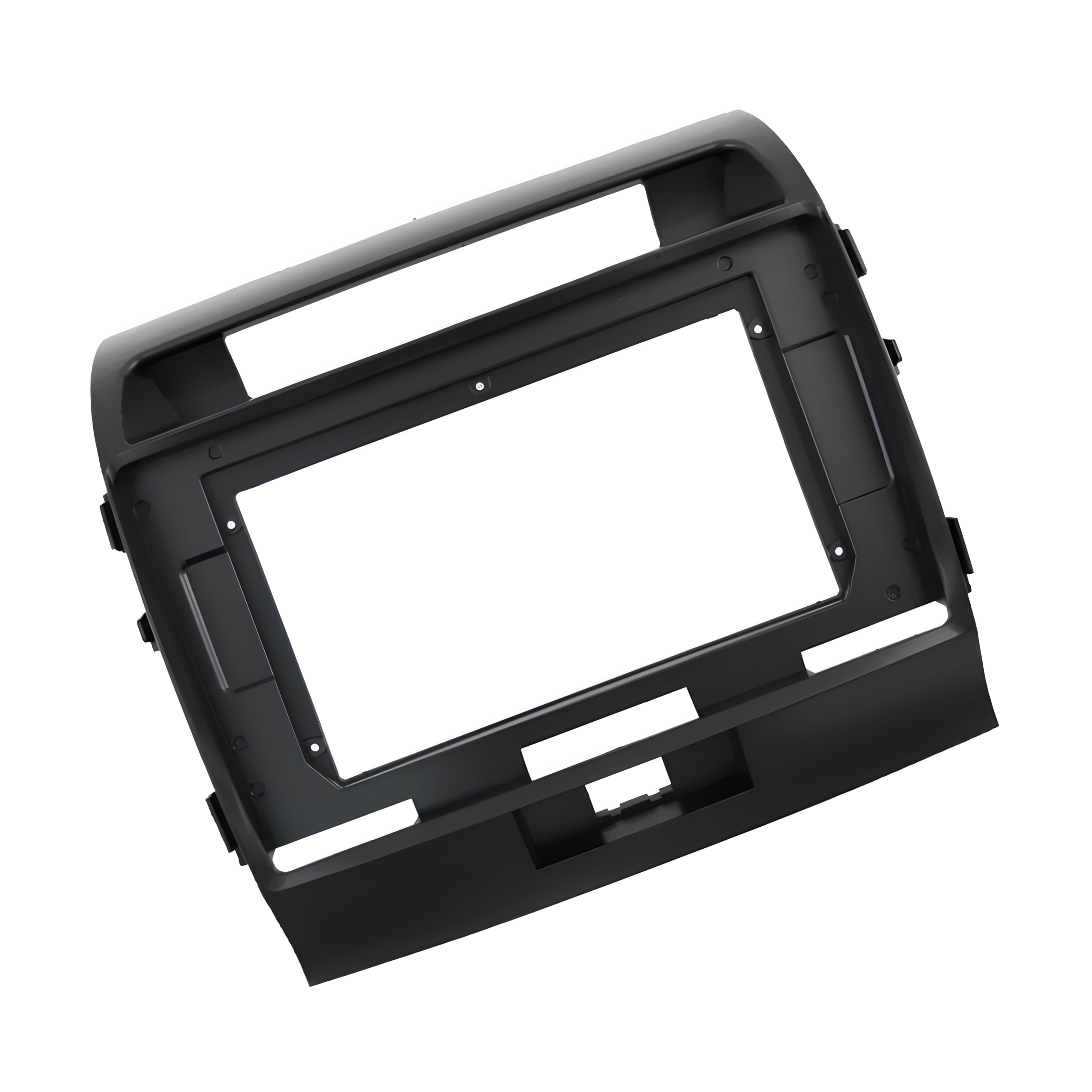

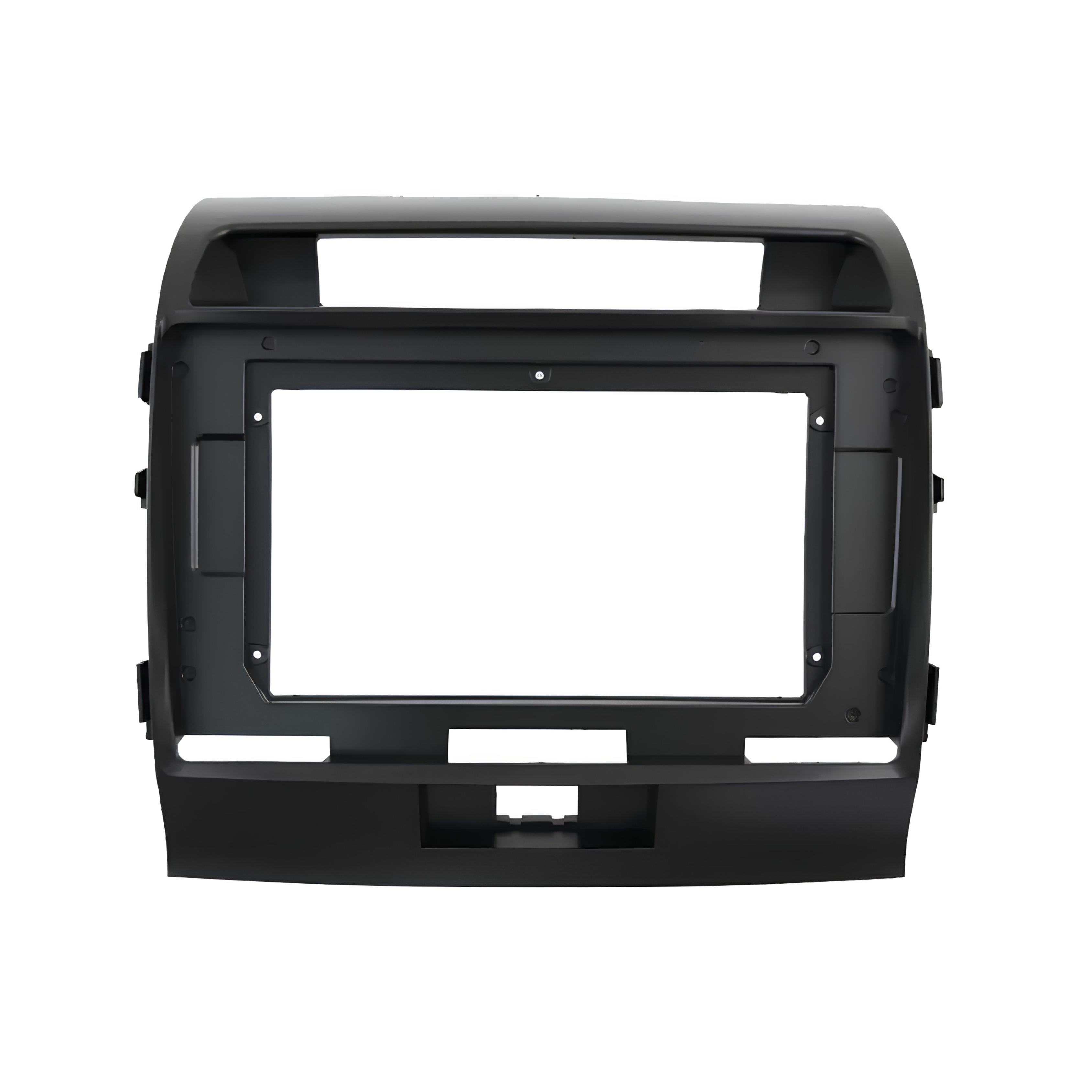

Stinger SF9-TY08 9-Inch and 10-Inch Trapezoid Head Unit Fascia for Toyota LandCruiser 200 Series GX and GXL 2008–2015
The Stinger SF9-TY08 is a vehicle-specific trapezoid head unit fascia designed for the Toyota LandCruiser 200 Series GX and GXL across the 2008 to 2015 model years. Compatible with both 9-inch and 10-inch trapezoid head unit formats, it provides a clean, factory-matched finish when upgrading the factory stereo. A 10-inch to 9-inch reducer panel is included, and screws are supplied for use when installing a 9-inch head unit.
Product overview
The SF9-TY08 covers the Toyota LandCruiser 200 Series in GX and GXL trim levels across the 2008 to 2015 production run, with dual screen size compatibility across both 9-inch and 10-inch trapezoid formats. A 10-inch to 9-inch reducer panel is included in the box for use when fitting a 9-inch unit, along with screws specific to the 9-inch installation configuration. This makes the SF9-TY08 a flexible solution covering the majority of 200 Series GX and GXL installations in a single SKU. Note that this fascia is designed for GX and GXL trim levels only. Other 200 Series variants have different dash configurations and will require a different fascia.
Features and benefits
Vehicle-specific fit for Toyota LandCruiser 200 Series GX and GXL 2008–2015: Engineered specifically for GX and GXL trim levels of the 200 Series LandCruiser across the 2008 to 2015 model years, delivering a precise, factory-integrated finish that generic panels cannot replicate.
Dual screen size compatibility, 9-inch and 10-inch: Accepts both 9-inch and 10-inch trapezoid head units, giving installers a broader choice of compatible aftermarket units from a single fascia SKU.

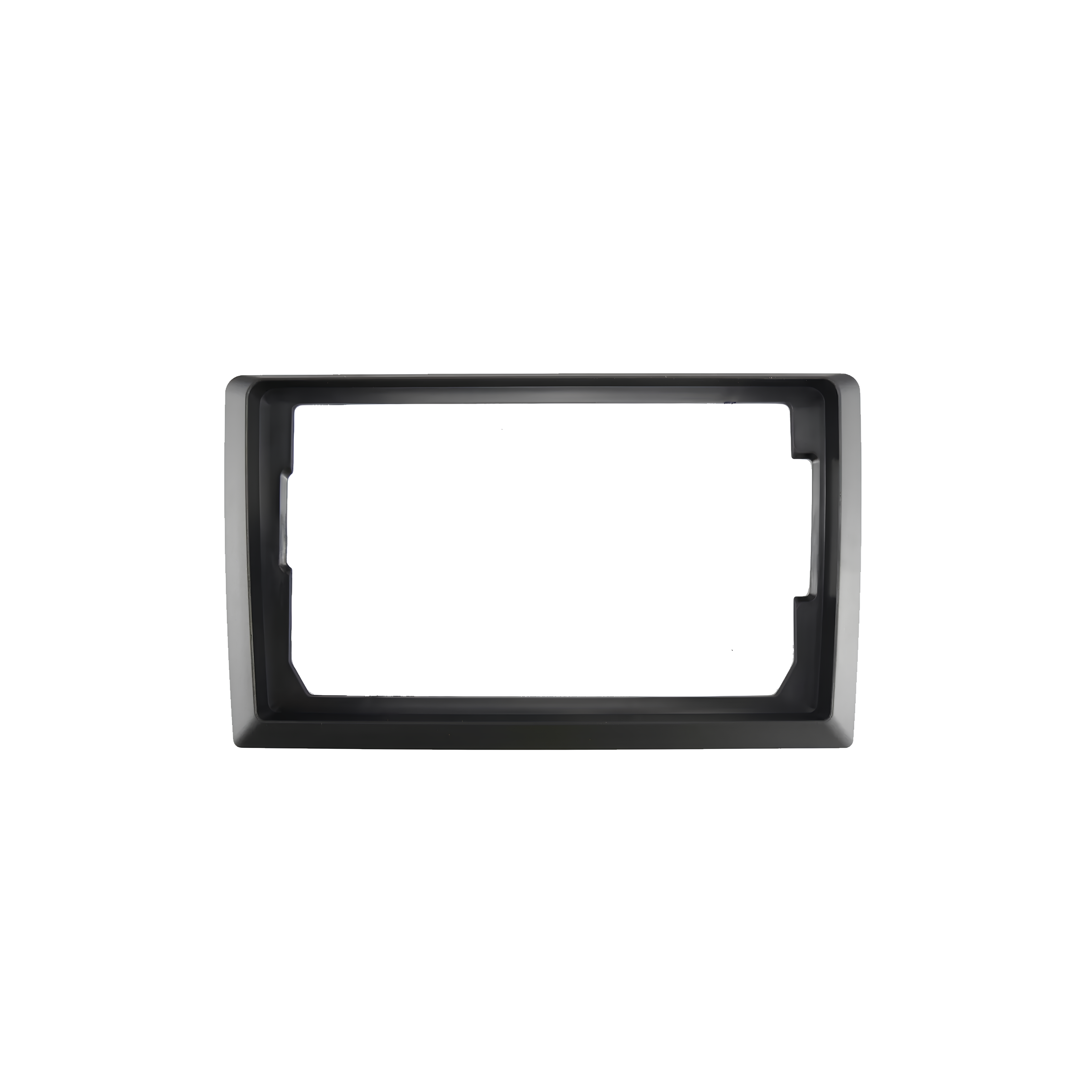

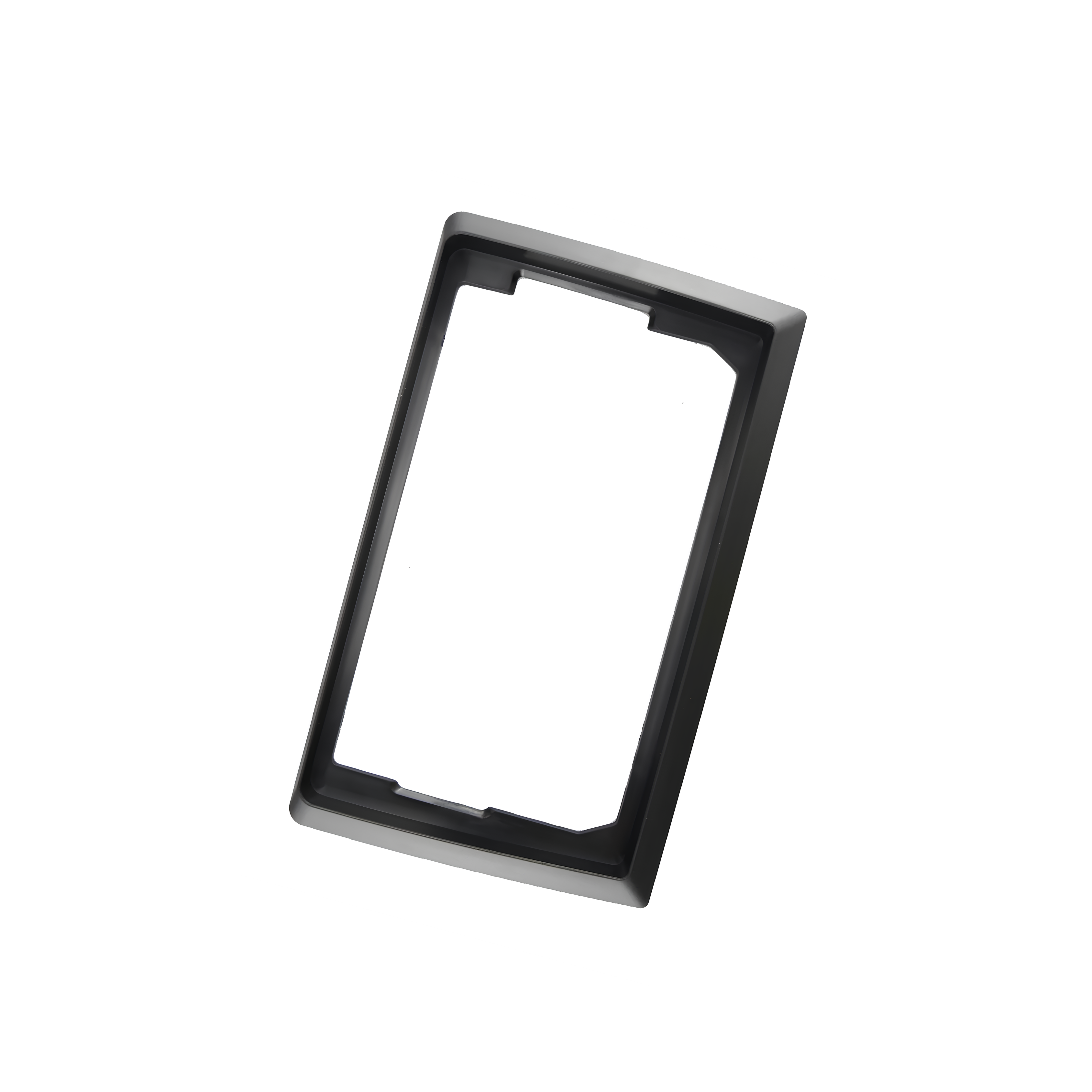

Includes 10-inch to 9-inch reducer panel: A reducer panel is supplied in the box for use when installing a 9-inch head unit, removing the need to source a separate adapter for the smaller screen size.
Supplied screws for 9-inch head unit installation: Screws are included for fitting a 9-inch head unit and are specific to the 9-inch installation configuration.
Broad head unit compatibility: Confirmed compatible with popular trapezoid head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro across both 9-inch and 10-inch formats.
Fascia panel only: Supplied as the fascia alone, allowing installers to specify their preferred wiring harness, antenna adaptor and accessories independently.
What's in the box
- SF9-TY08 fascia panel
- 10-inch to 9-inch reducer panel
- Screws for 9-inch head unit installation
Technical specs
| Specification |
Detail |
| SKU |
SF9-TY08 |
| Brand |
Stinger |
| Compatible Vehicles |
Toyota LandCruiser 200 Series GX and GXL 2008–2015 |
| Head Unit Format |
9" Trapezoid, 10" Trapezoid |
| Includes |
Fascia panel, 10" to 9" reducer panel, screws for 9" installation |
| Sold As |
Fascia panel only |
Compatible head units
The SF9-TY08 is confirmed compatible with the following trapezoid head units:
| Brand |
Model |
Screen Size |
| Alpine |
INE-AW409S |
9" |
| Alpine |
INE-AX809 |
9" |
| Alpine |
INE-AW409S-10 |
10" |
| Alpine |
INE-AX809-10 |
10" |
| Kenwood |
DMX80AXS |
9" |
| Mongoose |
Q9WCA |
9" |
| Pioneer |
DMH-AP6650BT |
9" |
| Aerpro |
AM9X |
9" |
| Aerpro |
AM10X |
10" |
Frequently asked questions
Is the SF9-TY08 compatible with all Toyota LandCruiser 200 Series variants? No. The SF9-TY08 is designed specifically for the GX and GXL trim levels of the Toyota LandCruiser 200 Series from 2008 to 2015. Other 200 Series variants such as the VX, Sahara or Altitude have different dash configurations and will require a different fascia. Contact us to confirm the correct fascia for your vehicle.
What is the 10-inch to 9-inch reducer panel included in the box used for? The reducer panel is used when installing a 9-inch head unit into the SF9-TY08 fascia. It fills the size difference between the 10-inch fascia opening and the smaller 9-inch head unit footprint to produce a clean, finished result.
What are the supplied screws used for? The supplied screws are for use when installing a 9-inch head unit. They are specific to the 9-inch installation configuration and may not be required when fitting a 10-inch unit.
Does this fascia support both 9-inch and 10-inch head units? Yes. The SF9-TY08 accepts both 9-inch and 10-inch trapezoid head units. The included reducer panel is used for 9-inch installations. Confirmed compatible models across both sizes are listed in the Compatible Head Units section above.
Does this fascia include a wiring harness or antenna adaptor? No. The SF9-TY08 is supplied with the fascia panel, reducer panel and installation screws only. A compatible wiring harness and antenna adaptor must be purchased separately to complete the installation.
