Description

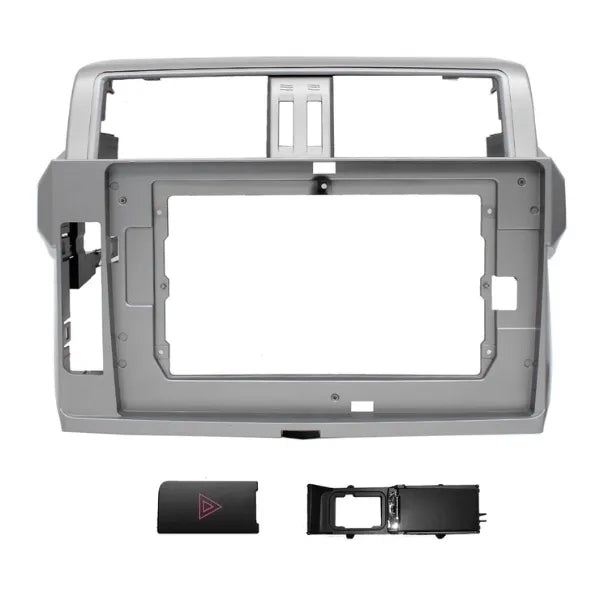

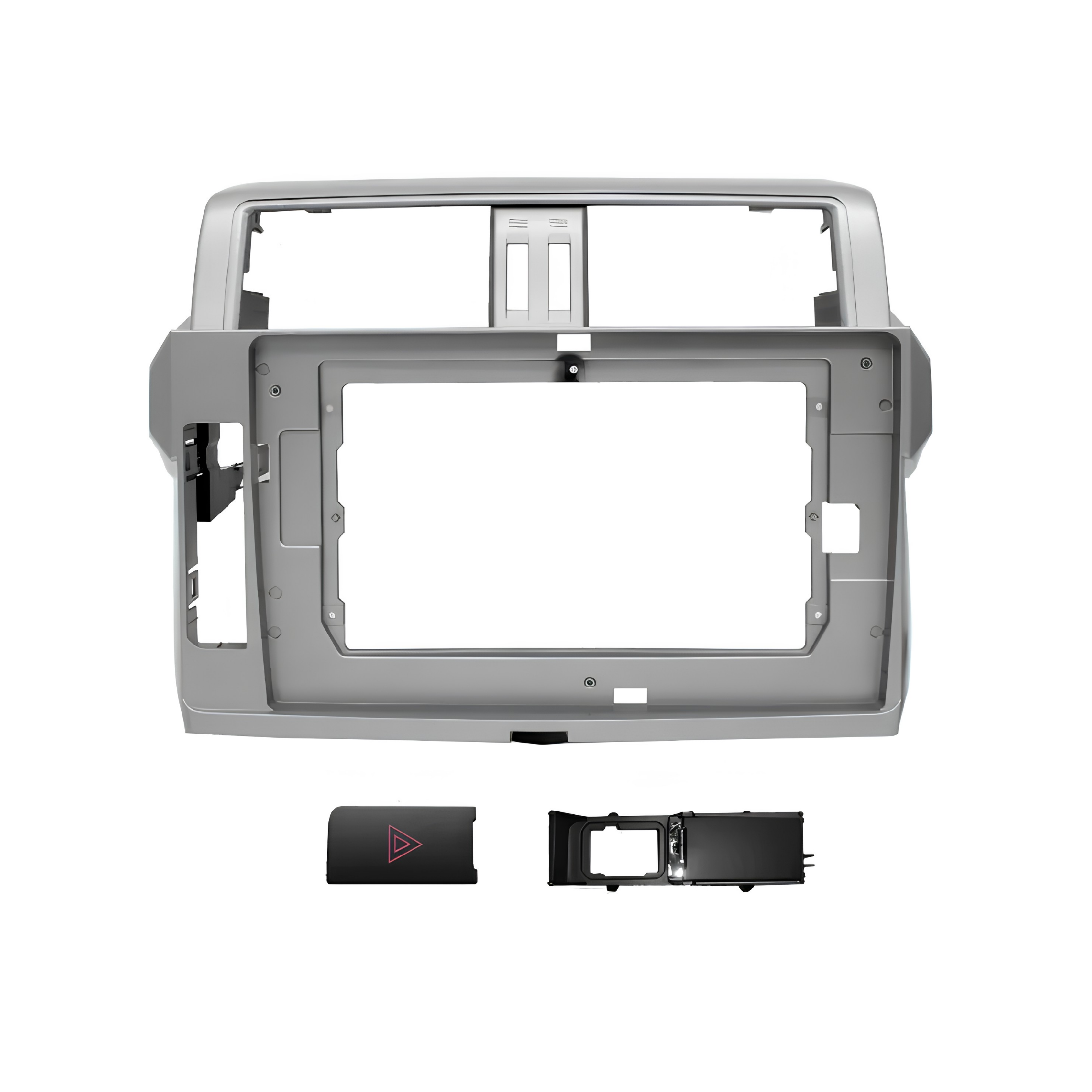

Stinger SF9-TY10 9-Inch and 10-Inch Trapezoid Head Unit Fascia for Toyota LandCruiser Prado 150 Series 2014–2017
The Stinger SF9-TY10 is a vehicle-specific trapezoid head unit fascia designed for the Toyota LandCruiser Prado 150 Series across the 2014 to 2017 model years. Compatible with both 9-inch and 10-inch trapezoid head unit formats, it provides a clean, factory-matched finish when upgrading the factory stereo. Note that installation requires the factory hazard button to be disassembled and reassembled into the replacement button housing, and the hazard button wire harness may need to be extended depending on the installation.
Product overview
The Toyota LandCruiser Prado 150 Series from 2014 to 2017 features a dash layout with an integrated hazard button that must be transferred to the replacement button housing during installation. This is a known requirement for this generation of Prado and is not unique to the SF9-TY10. The hazard button wire harness may also need to be extended depending on the specific installation configuration. Professional installation by a qualified car audio installer is strongly recommended for this vehicle.
The SF9-TY10 is precision-moulded for the Prado 150 Series dash opening across the 2014 to 2017 production run, accommodating both 9-inch and 10-inch trapezoid head units in a single SKU. For installers preferring a standard double DIN head unit, the SF9-TY10 can also accommodate this when paired with the Stinger SF9-1027 adapter trim, sold separately. Compatible head units include models from Alpine, Kenwood, Mongoose, Pioneer and Aerpro across both screen sizes.
Features and benefits
Vehicle-specific fit for Toyota LandCruiser Prado 150 Series 2014–2017: Precision-moulded for the Prado 150 Series dash opening across the full 2014 to 2017 model range, delivering a factory-integrated finish that generic panels cannot replicate.
Dual screen size compatibility, 9-inch and 10-inch: Accepts both 9-inch and 10-inch trapezoid head units, giving installers a broader choice of compatible aftermarket units from a single fascia SKU.

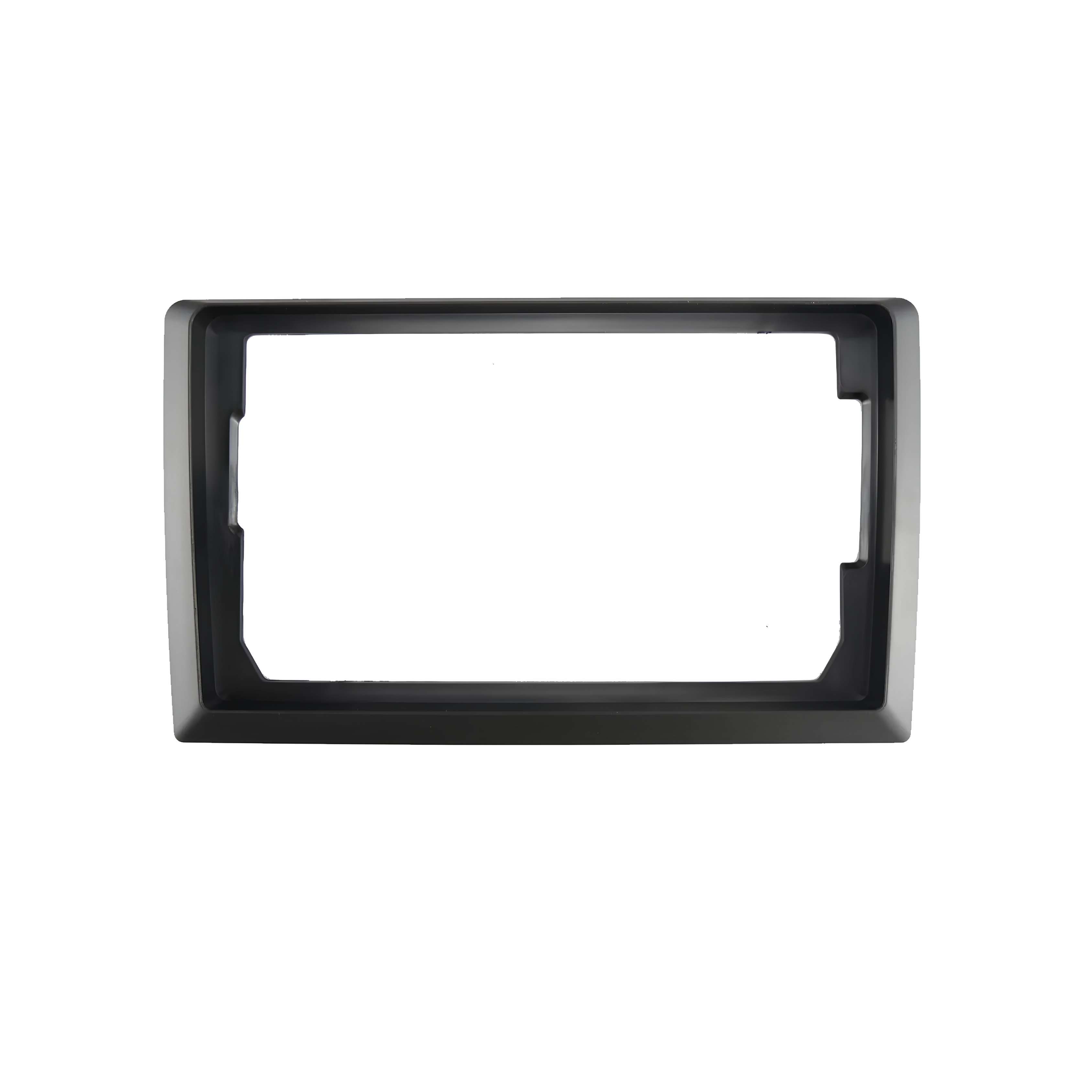

Double DIN compatibility when paired with SF9-1027: The fascia can be used for standard double DIN head unit installations when paired with the Stinger SF9-1027 adapter trim, sold separately.
Broad head unit compatibility: Confirmed compatible with popular trapezoid head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro across both 9-inch and 10-inch formats.
Fascia panel only: Supplied as the fascia alone, allowing installers to specify their preferred wiring harness, antenna adaptor and accessories independently.
Technical specs
| Specification |
Detail |
| SKU |
SF9-TY10 |
| Brand |
Stinger |
| Compatible Vehicles |
Toyota LandCruiser Prado 150 Series 2014–2017 |
| Head Unit Format |
9" Trapezoid, 10" Trapezoid |
| Hazard Button |
Must be disassembled and reassembled into replacement housing |
| Hazard Button Harness |
May require extension depending on installation |
| Sold As |
Fascia panel only |
Compatible head units
The SF9-TY10 is confirmed compatible with the following trapezoid head units:
| Brand |
Model |
Screen Size |
| Alpine |
INE-AW409S |
9" |
| Alpine |
INE-AX809 |
9" |
| Alpine |
INE-AW409S-10 |
10" |
| Alpine |
INE-AX809-10 |
10" |
| Kenwood |
DMX80AXS |
9" |
| Mongoose |
Q9WCA |
9" |
| Pioneer |
DMH-AP6650BT |
9" |
| Aerpro |
AM9X |
9" |
| Aerpro |
AM10X |
10" |
Frequently asked questions

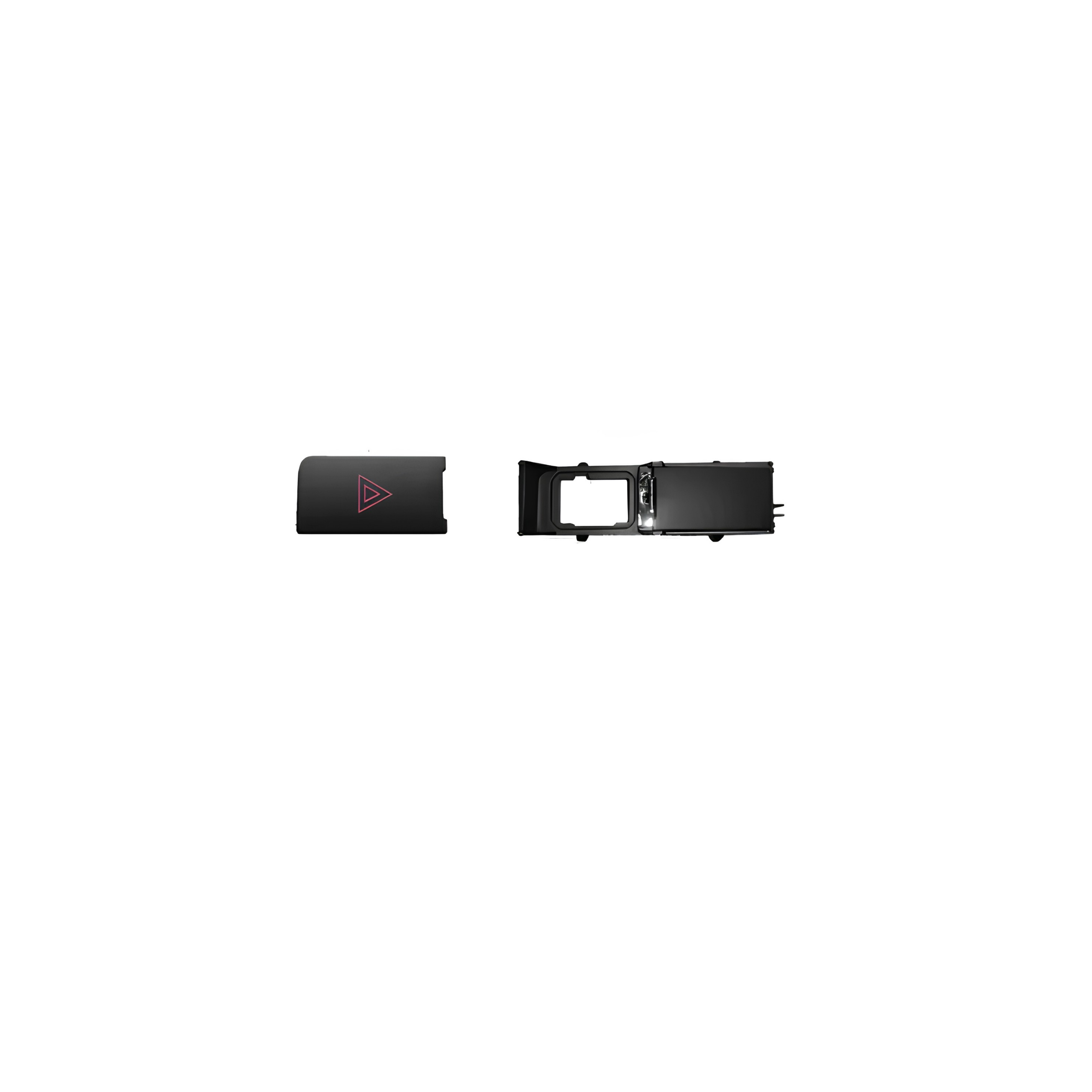

What needs to be done with the factory hazard button during installation? The factory hazard button must be disassembled from the original housing and reassembled into the replacement button provided with the fascia. Depending on the installation, the hazard button wire harness may also need to be extended. Professional installation by a qualified car audio installer is strongly recommended for this reason.
Does the SF9-TY10 fit all Toyota LandCruiser Prado 150 Series variants from 2014 to 2017? The SF9-TY10 is listed for the Toyota LandCruiser Prado 150 Series from 2014 to 2017. If you are unsure whether your specific variant or build date is covered, contact us before purchasing.
Can I use a standard double DIN head unit with the SF9-TY10? Yes, but the Stinger SF9-1027 adapter trim is required and is sold separately. Without the SF9-1027, the fascia is designed for 9-inch and 10-inch trapezoid head units only. Contact us for more information on pairing the SF9-TY10 with the SF9-1027.
Does this fascia support both 9-inch and 10-inch head units? Yes. The SF9-TY10 accepts both 9-inch and 10-inch trapezoid head units. Confirmed compatible models across both sizes are listed in the Compatible Head Units section above.
Does this fascia include a wiring harness or antenna adaptor? No. The SF9-TY10 is a fascia panel only. A compatible wiring harness and antenna adaptor must be purchased separately to complete the installation.
