Description
9-Inch and 10-Inch Trapezoid Head Unit Fascia Toyota LandCruiser Prado 150 Series 2017–2023. Includes 10-to-9-Inch Reducer Panel. For Models with 8-Inch or 9-Inch Factory Screen. Fascia Panel Only.
Product Overview
The Stinger SF9-TY11 is a vehicle-specific trapezoid head unit fascia designed for the Toyota LandCruiser Prado 150 Series late-production models (2017–2023). It is the only fascia in this range that includes a reducer panel in the box the SF9-TY11 accommodates both 9-inch and 10-inch trapezoid head units, with the included reducer trim converting the opening from 10-inch to 9-inch configuration.
Key Specifications
- Part number: SF9-TY11
- Brand: Stinger
- Product type: 9-inch and 10-inch trapezoid head unit fascia
- Compatible head unit formats: 9-inch trapezoid and 10-inch trapezoid
- Reducer panel: Included (converts 10-inch opening to 9-inch)
- Finish: Toyota factory colour match with textured grain
- Vehicle: Toyota LandCruiser Prado 150 Series 2017–2023 (late production)
- Factory screen compatibility: 8-inch screen (2017–2020) and 9-inch screen (2021–2023)
- Not compatible with: Prado 150 Series 2013–2017 (requires SF9-TY10)
- Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT

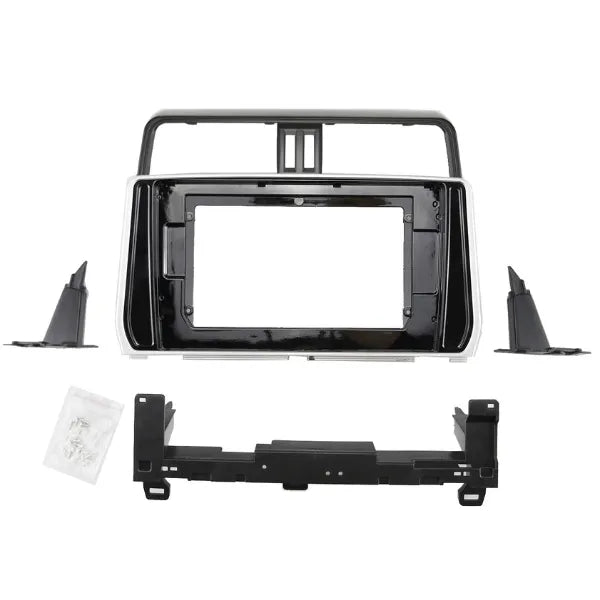

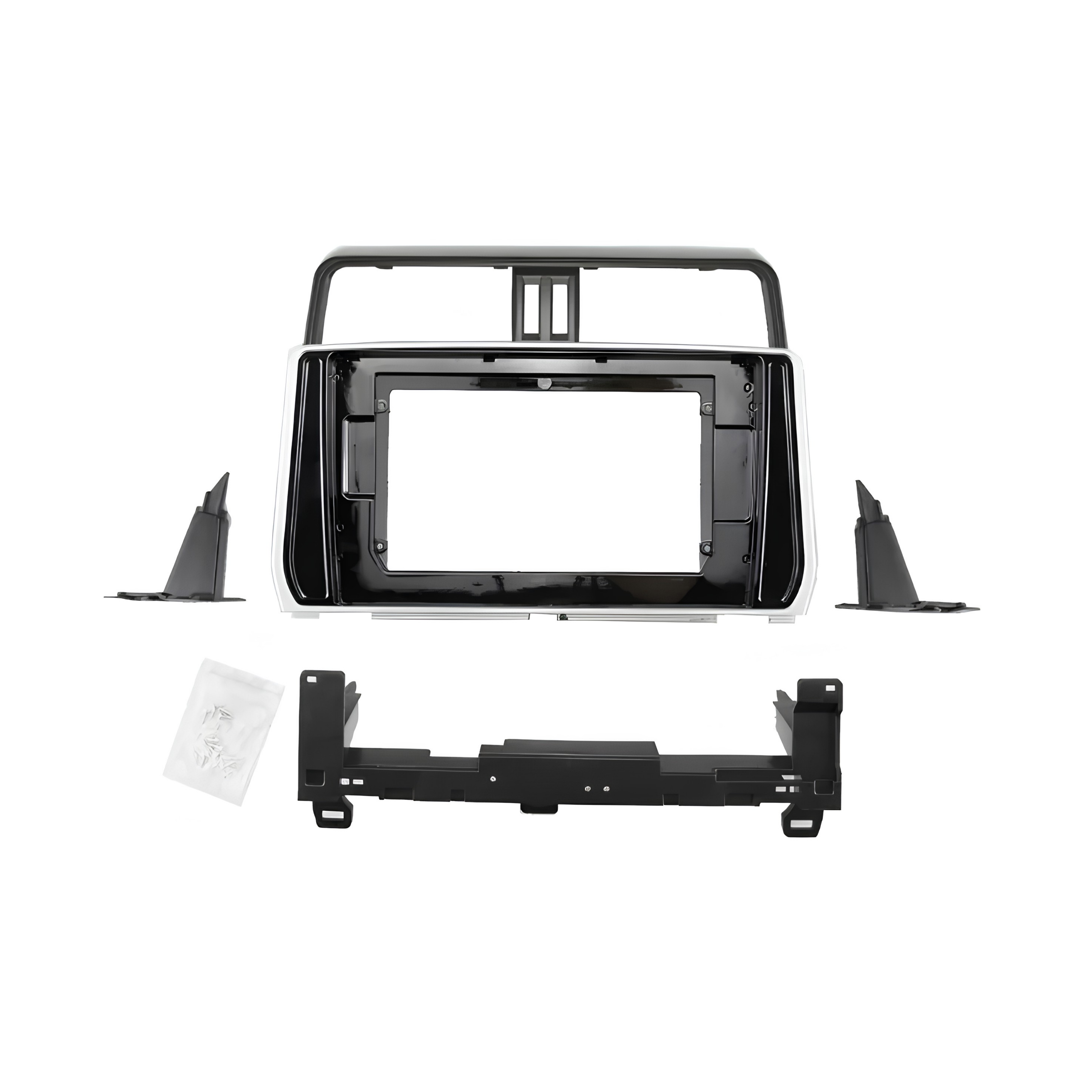

- Includes: Fascia panel and 10-to-9-inch reducer trim
- Wiring harness: Not included — sold separately
- Antenna adaptor: Not included — sold separately
- SWC interface: Not included — sold separately
- Camera retention harness: Not included — sold separately (required)
Features & Benefits
-

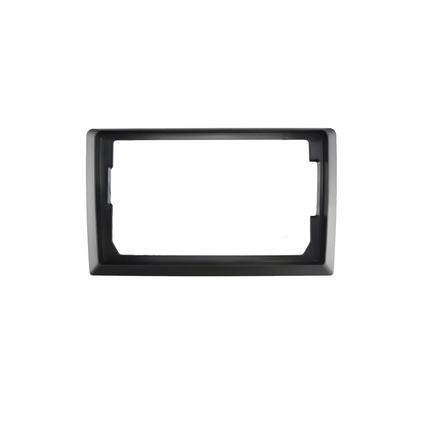

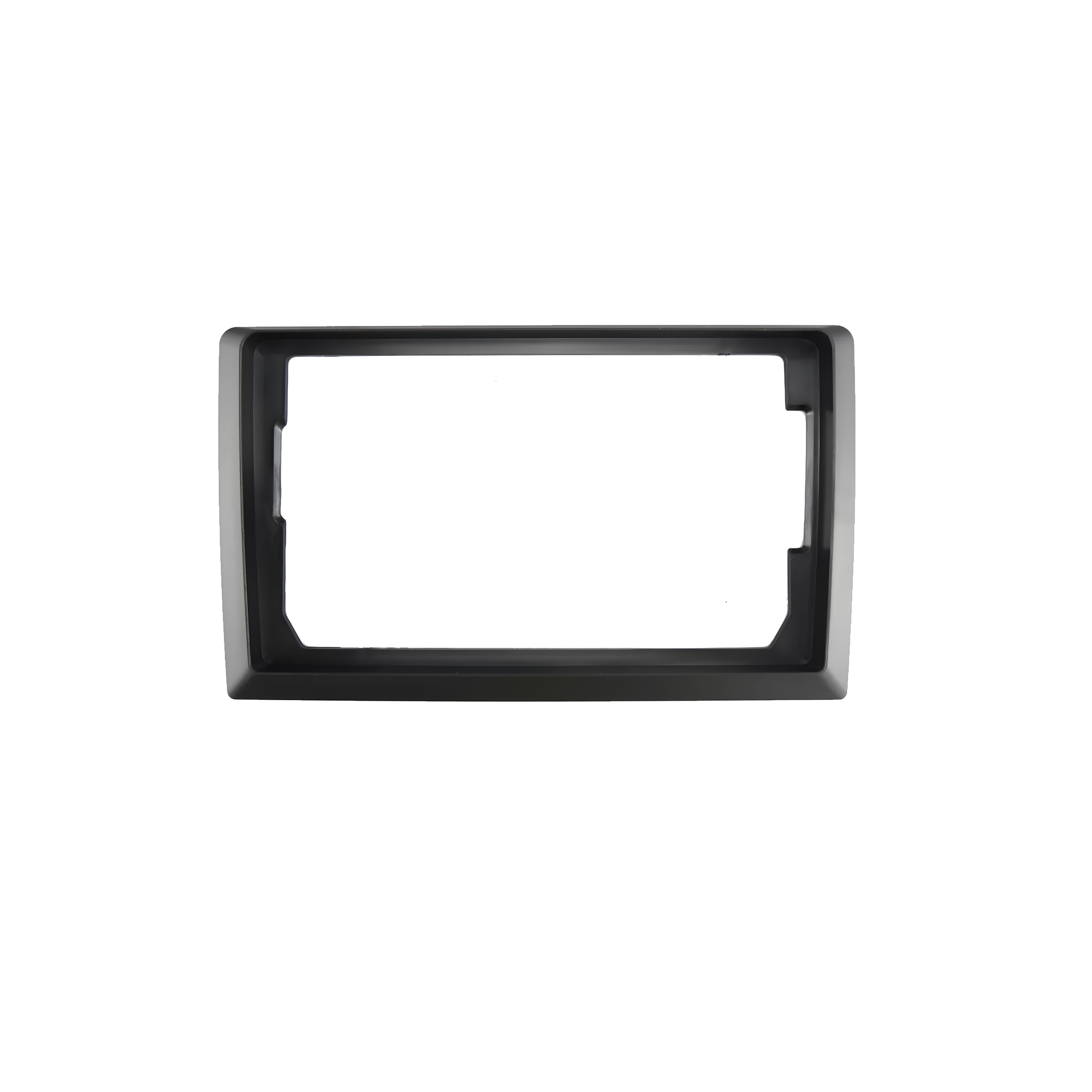

Includes 10-to-9-Inch Reducer Panel The SF9-TY11 is the only fascia in this batch that includes a format reducer panel in the package. For a 10-inch head unit, the fascia opening is used at full size. For a 9-inch head unit, the included reducer panel is fitted behind the fascia to create the correct 9-inch aperture. No separate adapter purchase required for either format.
-
Covers Both Factory Screen Variants — 8-Inch and 9-Inch The 2017–2020 Prado had a factory 8-inch screen; the 2021–2023 Prado upgraded to a 9-inch screen. The SF9-TY11 is confirmed compatible with both variants — the factory screen size does not affect compatibility; only the model year matters.
-
Late-Production Prado Only — Not for 2013–2017 Models The late-production Prado (2017–2023) has a different dashboard layout from the earlier 2013–2017 models, and crucially does not require hazard button relocation during installation. The earlier 2013–2017 Prado requires the SF9-TY10.
-
Toyota Factory Finish — Textured Grain Moulded to match the Prado 150 Series factory dashboard finish including texture and grain — integrating the head unit as a factory-matched component appropriate for the Prado's premium SUV interior.
-
Camera Retention Harness Required All 2017+ Prado 150 models are equipped with a factory reverse camera. A camera retention harness must be purchased separately to maintain reverse camera functionality.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-TY11 |
| Product Type |
9-Inch and 10-Inch Trapezoid Head Unit Fascia |
| Compatible Formats |
9-Inch Trapezoid and 10-Inch Trapezoid |
| Reducer Panel |
Included (10-inch to 9-inch) |
| Finish |
Toyota Factory Colour Match, Textured Grain |
| Vehicle |
Toyota LandCruiser Prado 150 Series 2017–2023 (Late Production) |
| Factory Screen |
8-Inch (2017–2020) or 9-Inch (2021–2023) |
| Not Compatible |
Prado 150 Series 2013–2017 (requires SF9-TY10) |
| Confirmed Head Units |
Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT |
| Includes |
Fascia Panel + 10-to-9-Inch Reducer Trim |
| Wiring Harness |
Not included |
| Antenna Adaptor |
Not included |
| SWC Interface |
Not included |
| Camera Retention Harness |
Not included — required for all 2017+ Prado |
Compatible With / Goes Well With
Vehicle compatibility:
| Make |
Model |
Year Range |
Factory Screen |
| Toyota |
LandCruiser Prado 150 |
2017–2020 |
8-Inch |
| Toyota |
LandCruiser Prado 150 |
2021–2023 |
9-Inch |
Not compatible with:
- Toyota LandCruiser Prado 150 Series 2013–2017 (requires SF9-TY10)
Confirmed compatible 9-inch and 10-inch trapezoid head units:
- Alpine INE-AW4095
- Alpine INE-AX809
- Kenwood DMX80AXS
- Pioneer DMH-AP6650BT
Required accessories (sold separately):
- Toyota Prado 150 wiring harness (Toyota-to-ISO)
- Antenna adaptor (Toyota proprietary to standard)
- Steering wheel control interface
- Reverse camera retention harness (required — all 2017+ Prado)
Frequently Asked Questions
What is the difference between the SF9-TY10 (2013–2017 Prado) and SF9-TY11 (2017–2023 Prado)?
The SF9-TY10 covers the earlier 2013–2017 Prado 150 which has a different dashboard requiring factory hazard button relocation during installation. The SF9-TY11 covers the later 2017–2023 Prado 150 with an updated dashboard that eliminates this requirement. Both include reducer panels for dual 9/10-inch format compatibility. Choose the fascia matching your specific Prado model year.
Does the SF9-TY11 include the reducer panel for 9-inch head units?
Yes — the SF9-TY11 includes a 10-to-9-inch reducer trim in the box. For 10-inch head units, the fascia is used without the reducer. For 9-inch head units, the reducer panel is fitted to create the correct aperture.
My Prado has a factory 8-inch screen. Is the SF9-TY11 compatible?
Yes — the SF9-TY11 covers both the 2017–2020 Prado (8-inch factory screen) and the 2021–2023 Prado (9-inch factory screen). The factory screen size does not affect compatibility — only confirm your Prado falls within the 2017–2023 model year range.
What accessories are required for a complete Prado installation?
At minimum: a Toyota Prado-specific wiring harness (Toyota-to-ISO), antenna adaptor, steering wheel control interface, and reverse camera retention harness. Advanced features (premium audio, driver assistance systems) may also require a sound processor or CAN-bus integration module. Consult a professional installer for a complete parts list specific to your Prado's configuration and model year.
Is professional installation recommended?
Yes — the Prado 150 dashboard requires Mazda-specific disassembly procedures, factory integration harnesses, steering wheel control programming, and camera retention. Professional installation by a qualified car audio installer is strongly recommended.
