Description
Universal 9-Inch Trapezoid Head Unit Fascia Volkswagen Amarok, Caddy, Golf (Mk5/Mk6/GTI), Jetta, Passat, Tiguan, Transporter/Multivan/Caravelle 2005–2019. VW Factory Finish. Fakra Antenna Adaptor Required. Fascia Panel Only.
Product Overview

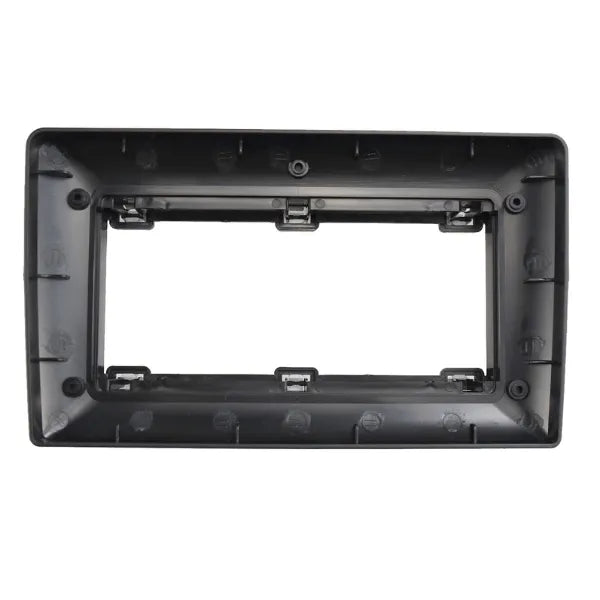

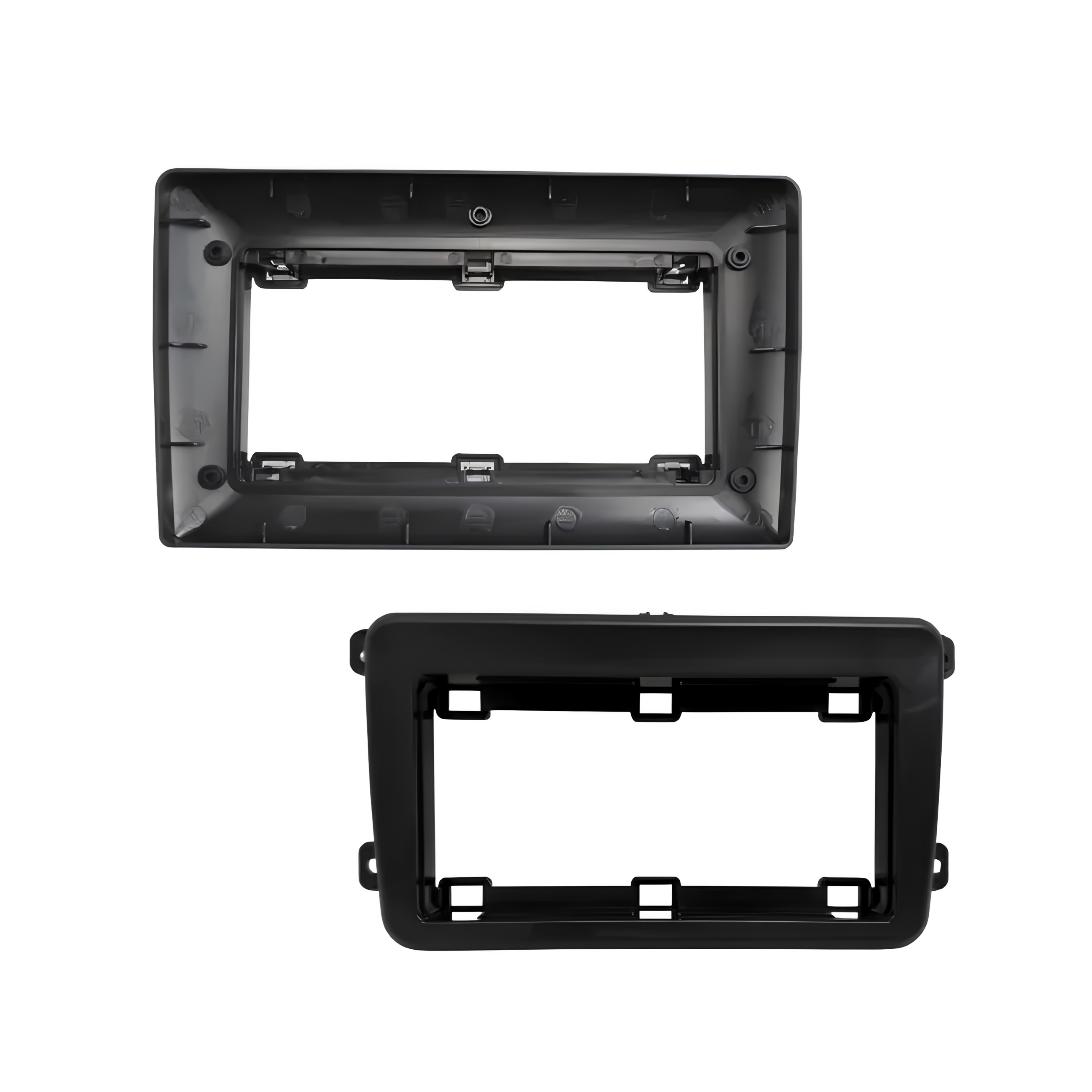

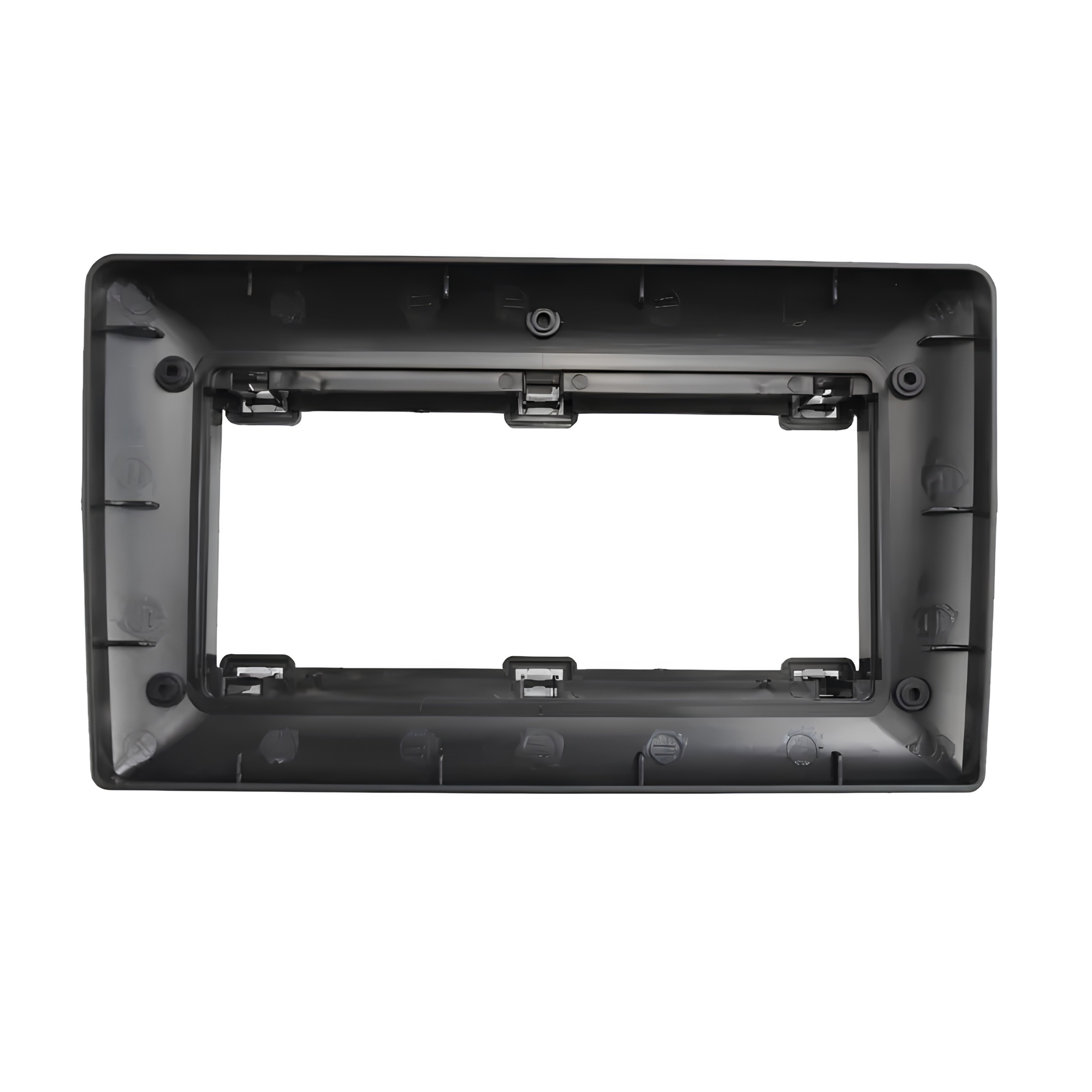

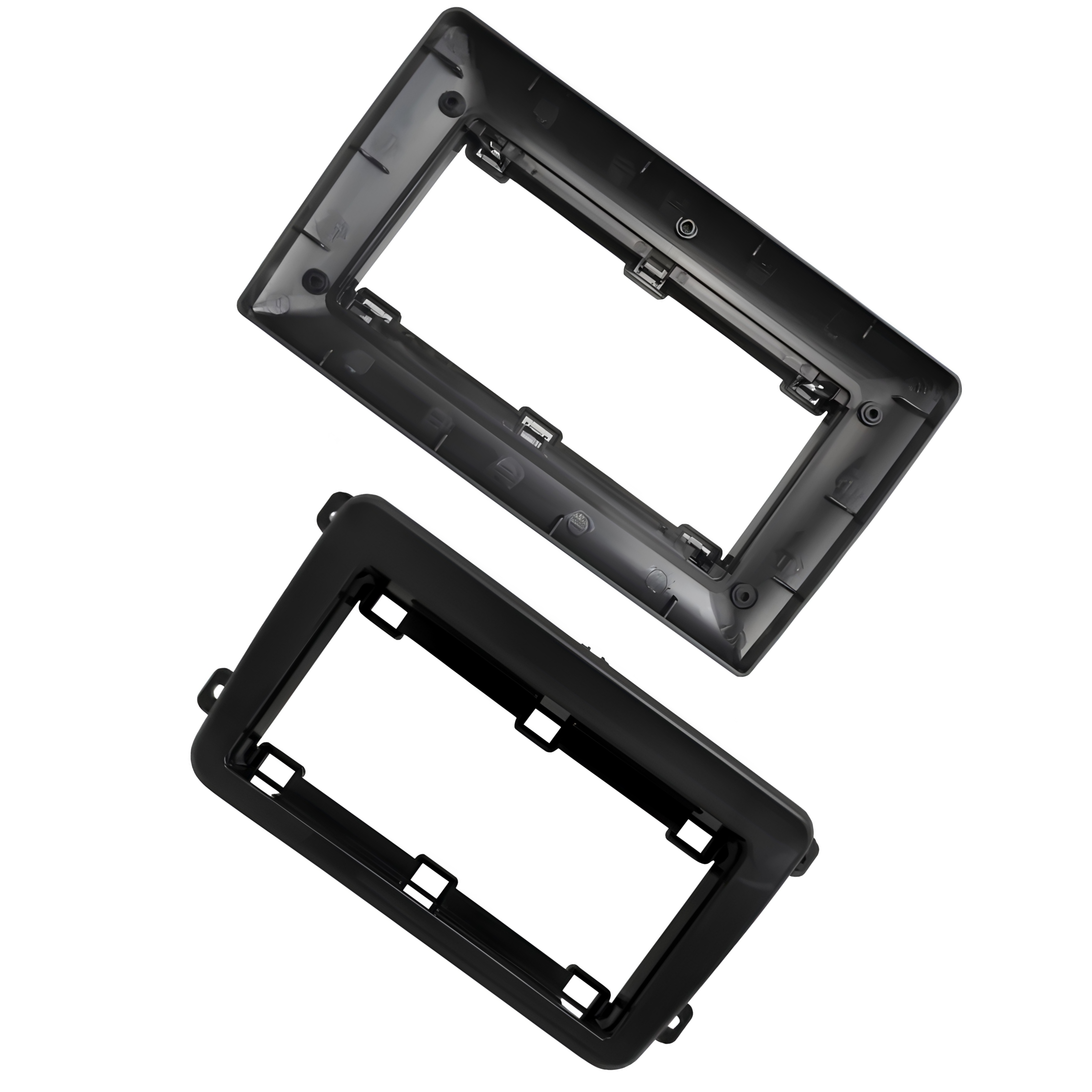

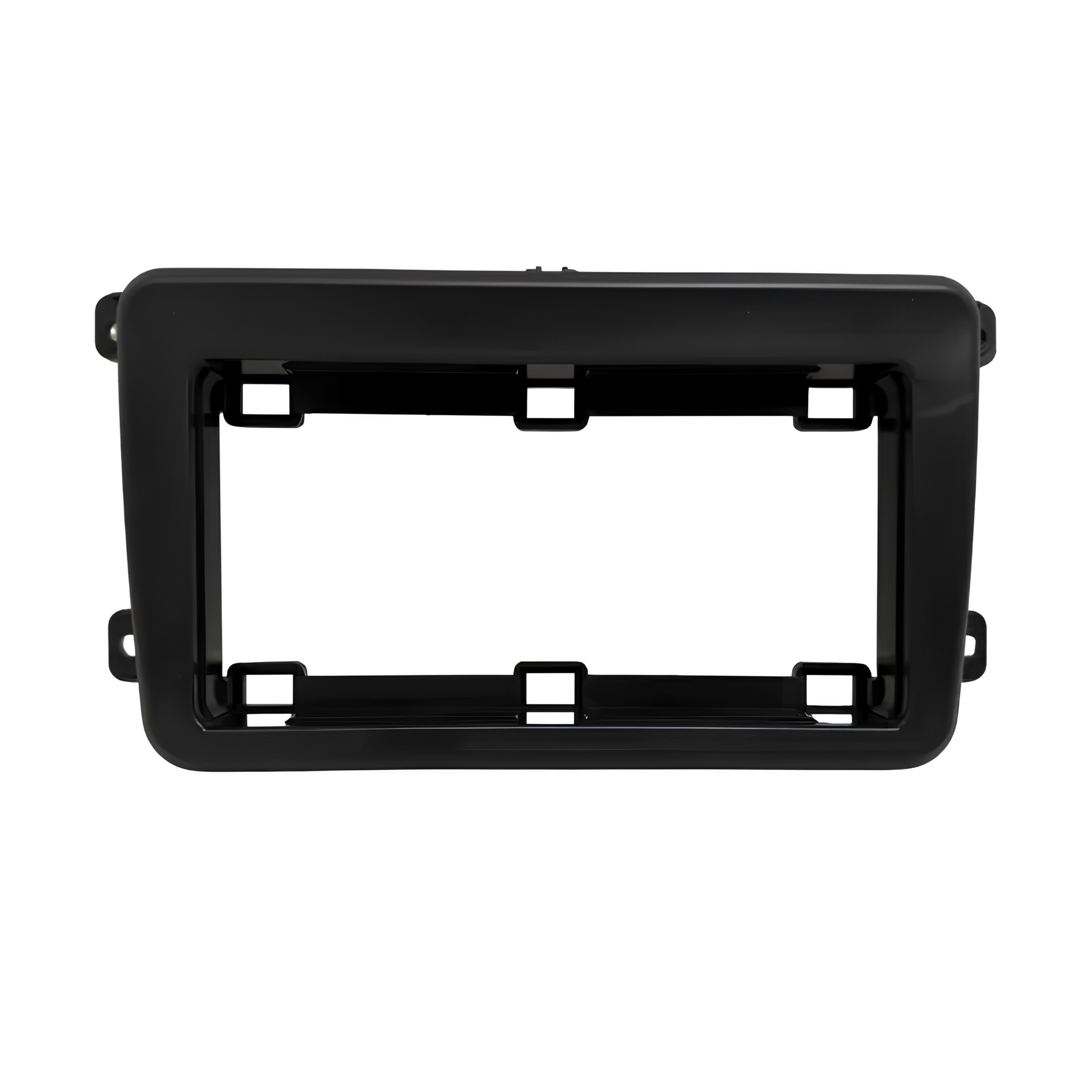

The Stinger SF9-VW01 is a universal 9-inch trapezoid head unit fascia engineered to fit common-platform Volkswagen models across the 2005–2019 production span. A single fascia covers: Amarok 2H Series (2011–2015), Caddy 2K Series (2005–2015), Golf Mk5 (2005–2008) and Golf Mk6 including GTI (2009–2013), Jetta A5–A6 Series (2005–2015), Passat B6–B7 Series (2005–2014), Tiguan 5N Series (2007–2016), and Transporter/Multivan/Caravelle T5 (2010–2015) and T6 (2015–2019). The SF9-VW01 is precision-moulded to match the VW factory dashboard finish across these shared-platform models, delivering a factory-integrated appearance with confirmed compatible head units from Alpine (INE-AW4095, INE-AX809), Kenwood (DMX80AXS), Pioneer (DMH-AP6650BT), and Aerpro (AM9X).
Volkswagen vehicles use a proprietary Fakra antenna connector a standard antenna adaptor will not fit the factory antenna cable. A Fakra-to-standard antenna adaptor is mandatory for any VW installation and must be purchased separately. VW's CAN-bus architecture also means some factory functions previously accessible through the factory head unit (climate display, parking sensors, vehicle settings) may require a CAN-bus integration module for continued access. Some VW models in this range include premium audio systems (Dynaudio, Fender) which require a dedicated sound processor to maintain audio quality after head unit replacement. Wiring harness, Fakra antenna adaptor, steering wheel control interface, and any required camera retention harness are all sold separately. Note that specific year ranges vary by model confirm the vehicle's model, series code, and year against the compatibility table before purchasing.
Key Specifications
- Part number: SF9-VW01
- Brand: Stinger
- Product type: 9-inch trapezoid head unit fascia
- Compatible head unit format: 9-inch trapezoid only
- Finish: Volkswagen factory colour match with textured grain
- Antenna connector: Fakra (VW proprietary) — Fakra adaptor required separately
- Confirmed compatible head units: Alpine INE-AW4095, Alpine INE-AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Aerpro AM9X
- Includes: Fascia panel only
- Wiring harness: Not included — sold separately
- Fakra antenna adaptor: Not included — sold separately (required)
- SWC interface: Not included — sold separately
- Camera retention harness: Not included — sold separately (confirm if required)
- Sound processor: Not included — required for premium audio (Dynaudio, Fender)
Features & Benefits
-
Universal Across Seven VW Model Lines A single SKU covers Amarok, Caddy, Golf, Jetta, Passat, Tiguan, and Transporter/Multivan/Caravelle — spanning VW's most popular Australian model range from 2005 to 2019. Each model line has specific year range coverage confirmed in the spec table. Verify the year range for the specific model before purchasing.
-
Fakra Antenna Connector — VW-Specific Requirement All Volkswagen vehicles in this range use a Fakra proprietary antenna connector rather than the standard DIN connector. A Fakra-to-standard adaptor is a mandatory purchase for any installation — standard antenna adaptors will not connect to the factory cable.
-
CAN-Bus Integration VW's CAN-bus architecture is present across all models in this range. Some factory functions previously displayed through the factory head unit may require a CAN-bus integration module for continued access through the aftermarket head unit. A VW-experienced professional installer is recommended for this reason.
-
Premium Audio Note — Dynaudio and Fender Systems Some Jetta, Passat, Golf, and Tiguan models in this range were optioned with Dynaudio or Fender premium audio packages. These systems require a dedicated sound processor to maintain audio quality after head unit replacement.
-
VW Factory Finish — Textured Grain Moulded to match the VW factory dashboard finish — maintaining interior consistency across the range of models covered.
Technical Specs
| Specification |
Detail |
| Brand |
Stinger |
| Part Number |
SF9-VW01 |
| Product Type |
9-Inch Trapezoid Head Unit Fascia |
| Compatible Format |
9-Inch Trapezoid |
| Finish |
VW Factory Colour Match, Textured Grain |
| Antenna Connector |
Fakra (VW proprietary) — Fakra adaptor required |
| Confirmed Head Units |
Alpine INE-AW4095, INE-AX809; Kenwood DMX80AXS; Pioneer DMH-AP6650BT; Aerpro AM9X |
| Includes |
Fascia Panel Only |
| Wiring Harness |
Not included |
| Fakra Antenna Adaptor |
Not included — required |
| SWC Interface |
Not included |
| Camera Retention Harness |
Not included |
| Sound Processor |
Not included — required for Dynaudio/Fender audio |
Compatible Volkswagen Models
| Make |
Model |
Year Range |
Series |
| Volkswagen |
Amarok |
2011–2015 |
2H Series |
| Volkswagen |
Caddy |
2005–2015 |
2K Series |
| Volkswagen |
Golf Mk5 |
2005–2008 |
Mk5 |
| Volkswagen |
Golf Mk6 (incl. GTI) |
2009–2013 |
Mk6 |
| Volkswagen |
Jetta |
2005–2015 |
A5–A6 Series |
| Volkswagen |
Passat |
2005–2014 |
B6–B7 Series |
| Volkswagen |
Tiguan |
2007–2016 |
5N Series |
| Volkswagen |
Transporter / Multivan / Caravelle |
2010–2015 |
T5 |
| Volkswagen |
Transporter / Multivan / Caravelle |
2015–2019 |
T6 |
Required accessories (sold separately):
- VW-specific wiring harness (VW-to-ISO) — confirm correct harness for specific model and year
- Fakra antenna adaptor (VW proprietary to standard — required for all models)
- Steering wheel control interface
- Camera retention harness (confirm if equipped)
- CAN-bus integration module (if required for factory function display)
- Sound processor (if equipped with Dynaudio or Fender premium audio)
Frequently Asked Questions
Which Volkswagen models are compatible with the SF9-VW01?
The SF9-VW01 covers: Amarok 2H (2011–2015), Caddy 2K (2005–2015), Golf Mk5 (2005–2008) and Mk6 including GTI (2009–2013), Jetta A5–A6 (2005–2015), Passat B6–B7 (2005–2014), Tiguan 5N (2007–2016), and Transporter/Multivan/Caravelle T5 (2010–2015) and T6 (2015–2019). Confirm the specific model, series code, and year against this list before purchasing — some special editions or premium trim variants may feature different factory dashboard configurations.
Why does the VW Amarok require a Fakra antenna adaptor?
All Volkswagen models in this range — including the Amarok — use a Fakra proprietary antenna connector rather than the standard DIN connector used on most Japanese and Korean vehicles. A Fakra-to-standard antenna adaptor must be purchased separately. A standard adaptor will not connect to the factory cable.
Does the SF9-VW01 include wiring harnesses or installation accessories?
No — the SF9-VW01 is a fascia panel only. A VW-specific wiring harness, Fakra antenna adaptor, steering wheel control interface, and any camera retention harness are all required separately. Models with Dynaudio or Fender premium audio also require a dedicated sound processor.
Will all factory VW functions be maintained after installation?
Physical climate controls and switches remain fully functional. Steering wheel controls and factory cameras retain function through the appropriate harnesses and interface. Some factory screen functions (climate display, parking sensor readout, vehicle settings) may require a CAN-bus integration module for continued access. Consult a VW-experienced professional installer for a full feature compatibility assessment specific to the model and trim level.
Is professional installation recommended for the SF9-VW01?
Yes — VW CAN-bus architecture, Fakra connectors, and premium audio integration make VW head unit installations more complex than many other brands. Professional installation by a VW-experienced car audio installer is strongly recommended.
