Description

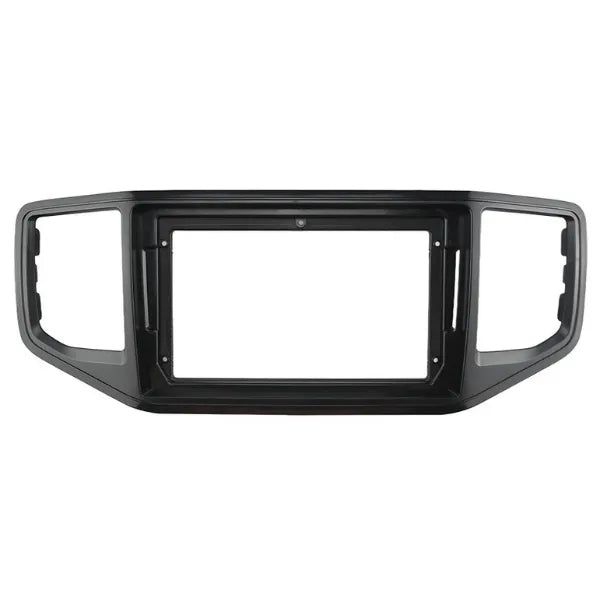

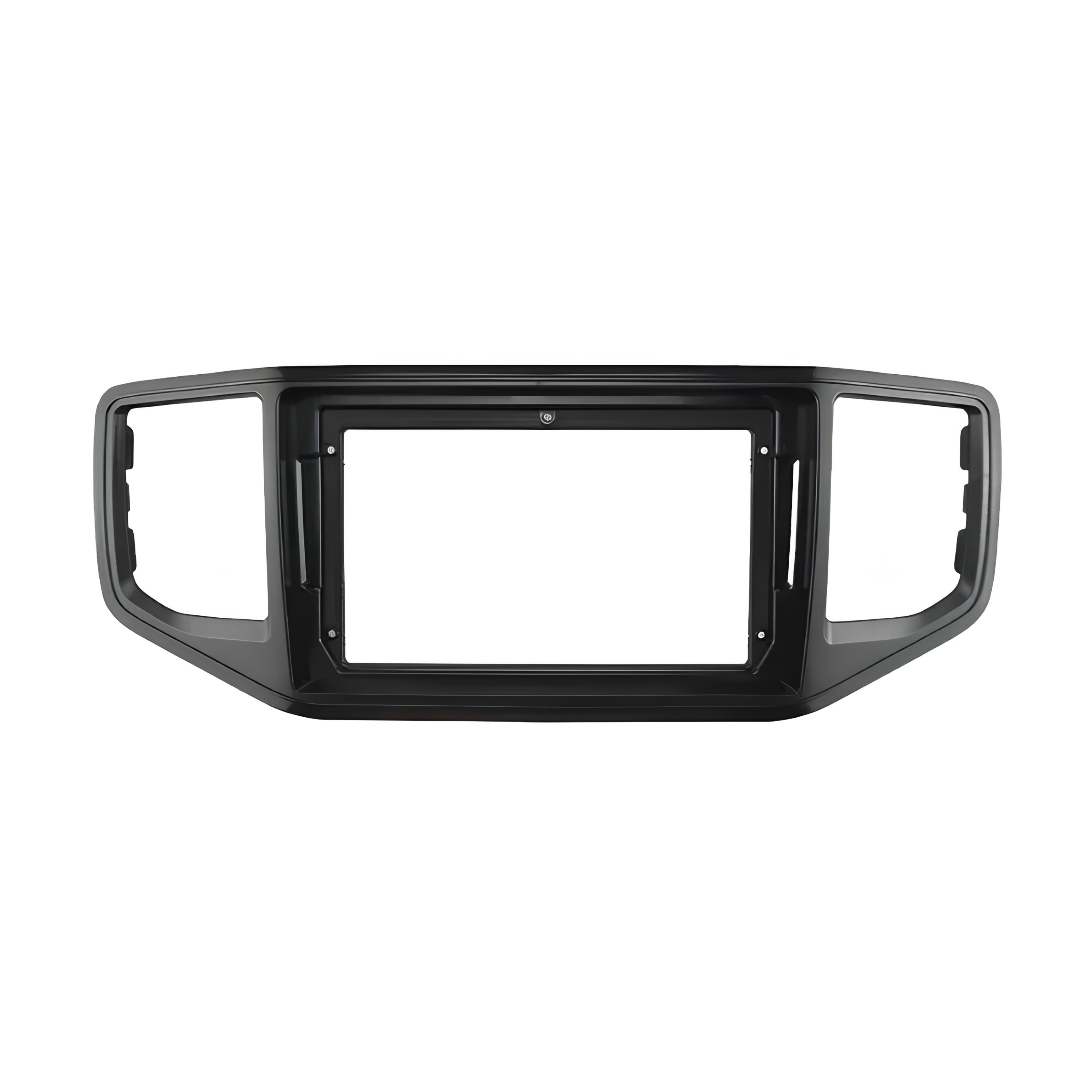

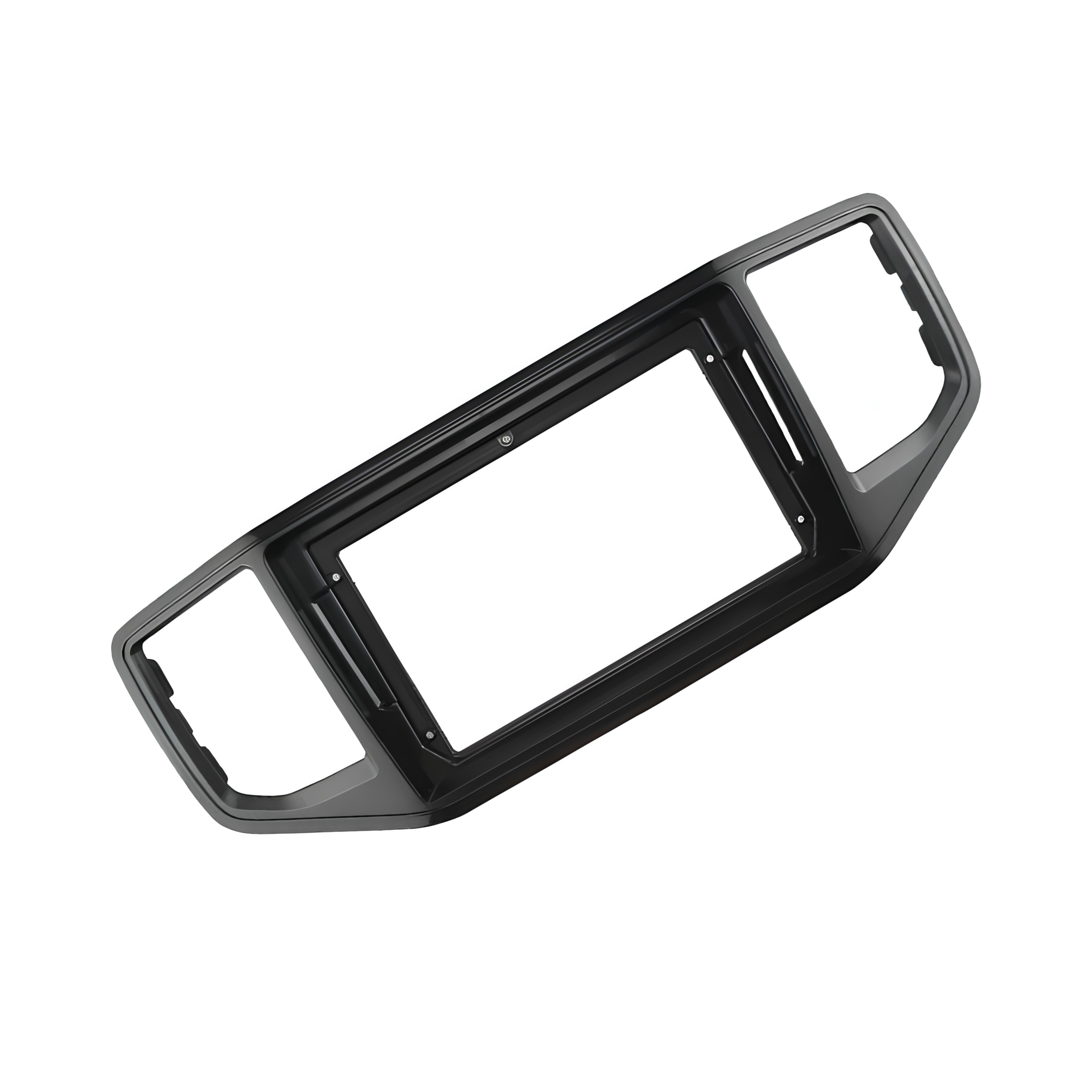

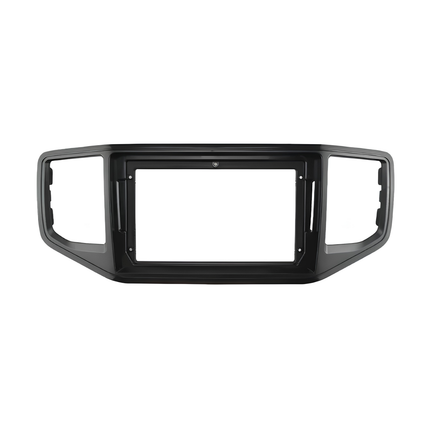

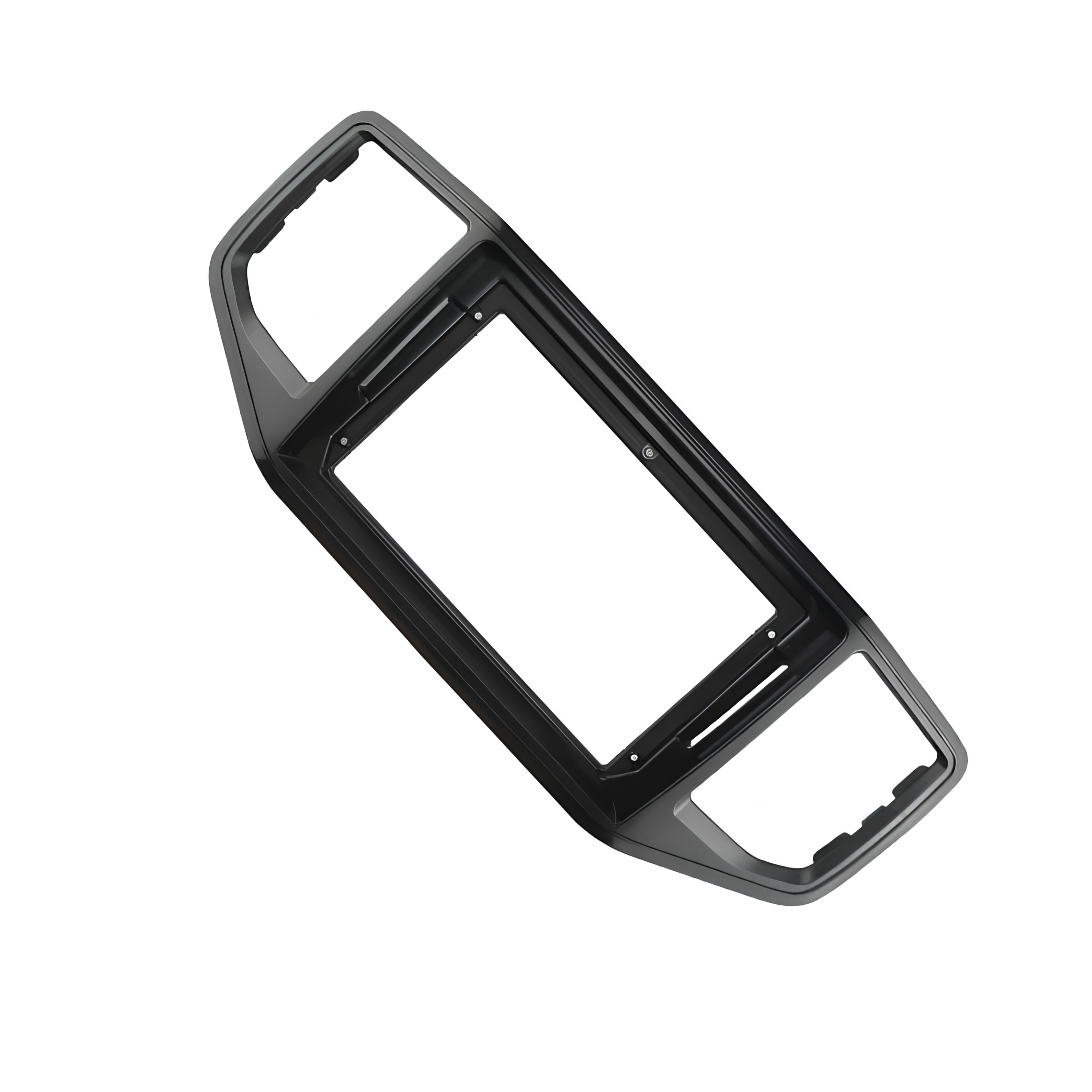

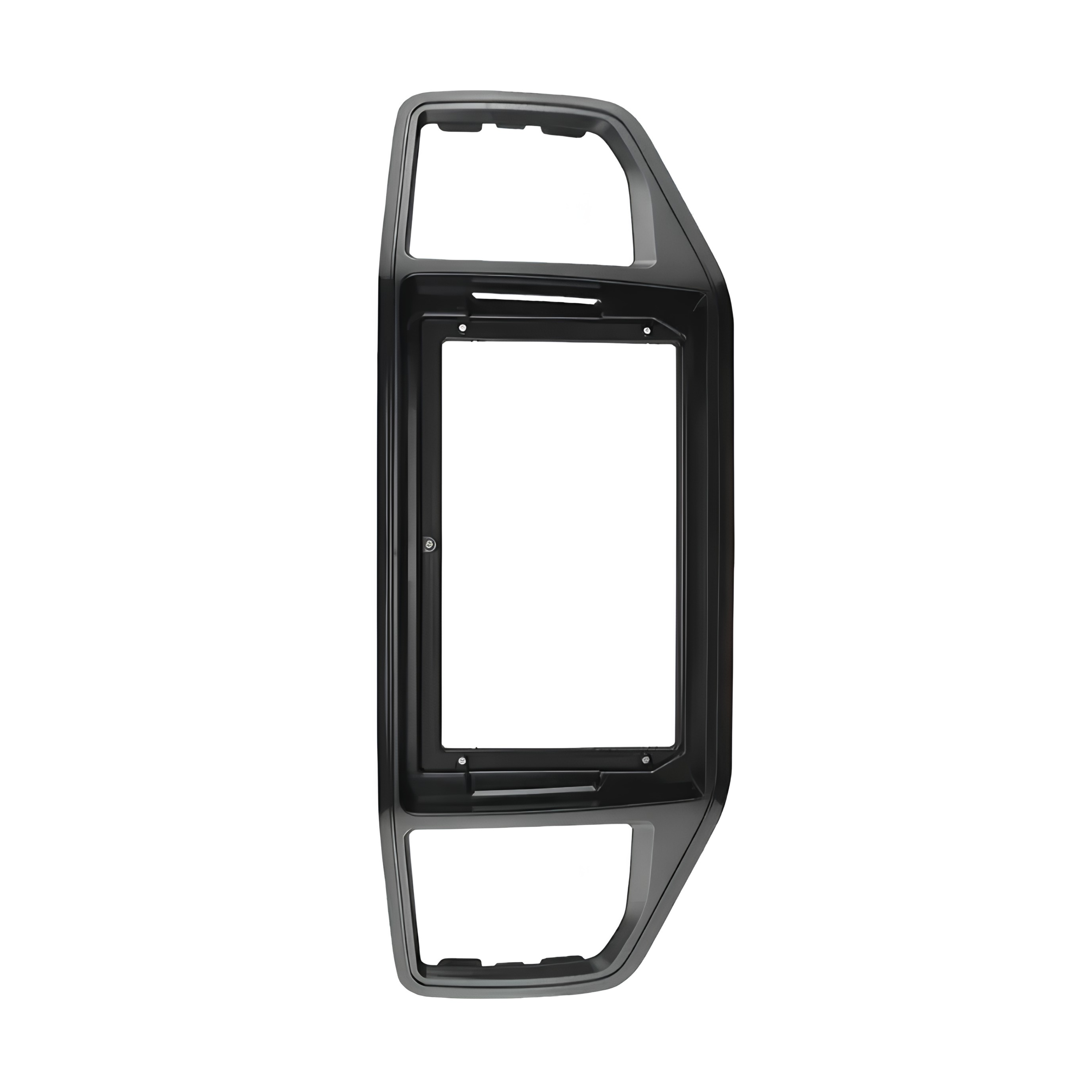

Stinger SF9-VW02 9-Inch Trapezoid Head Unit Fascia for Volkswagen Amarok 2H Series 2017–2021
The Stinger SF9-VW02 is a vehicle-specific 9-inch trapezoid head unit fascia designed for the Volkswagen Amarok 2H Series across the 2017 to 2021 model years. Built specifically for Amarok models fitted with squared air vents, it provides a clean, factory-matched finish when upgrading the factory stereo. Supplied as a fascia panel only.
Product overview
The Volkswagen Amarok 2H Series underwent interior revisions across its production run, resulting in different dash configurations depending on the model year and variant. The SF9-VW02 targets the specific configuration fitted with squared air vents, which has a distinct dash layout from other Amarok variants of the same era. Precision-moulded for this application across the 2017 to 2021 model years, the panel aligns with factory mounting points and trim lines for a professional, integrated finish. Compatible with popular 9-inch trapezoid head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro.
Features and benefits
Specific to Volkswagen Amarok 2H Series 2017–2021 with squared air vents: Designed for the Amarok 2H variant fitted with squared air vents, covering a dash configuration that differs from other Amarok models of the same production years.
Trapezoid head unit format compatibility: Accepts the trapezoid 9-inch format used by several leading aftermarket brands, delivering a correct face-to-frame fit without modification.
Broad head unit compatibility: Confirmed compatible with popular 9-inch trapezoid head units from Alpine, Kenwood, Mongoose, Pioneer and Aerpro.
Fascia panel only: Supplied as the fascia alone, allowing installers to specify their preferred wiring harness, antenna adaptor and accessories independently.
Technical specs
| Specification |
Detail |
| SKU |
SF9-VW02 |
| Brand |
Stinger |
| Compatible Vehicles |
Volkswagen Amarok 2H Series 2017–2021 |
| Factory Configuration |
Squared air vents |
| Head Unit Format |
9" Trapezoid |
| Sold As |
Fascia panel only |
Compatible head units
The SF9-VW02 is confirmed compatible with the following 9-inch trapezoid head units:
| Brand |
Model |
| Alpine |
INE-AW409S |
| Alpine |
INE-AX809 |
| Kenwood |
DMX80AXS |
| Mongoose |
Q9WCA |
| Pioneer |
DMH-AP6650BT |
| Aerpro |
AM9X |
Frequently asked questions
How do I know if my Volkswagen Amarok has squared air vents? Squared air vents on the Amarok 2H refer to the rectangular, angular vent design found on certain trim variants from 2017 onwards. If your Amarok has rounded or oval-shaped vents, this fascia is not the correct fit for your vehicle. Contact us with your build details and we can confirm the right fascia for your configuration.
Does the SF9-VW02 fit all Volkswagen Amarok 2H variants from 2017 to 2021? No. The SF9-VW02 is designed specifically for Amarok 2H models fitted with squared air vents. Variants with a different vent style have a different dash layout and will require a different fascia. Contact us to confirm fitment for your specific vehicle.
Does this fascia include a wiring harness or antenna adaptor? No. The SF9-VW02 is a fascia panel only. A compatible wiring harness and antenna adaptor must be purchased separately to complete the installation.
Will any 9-inch head unit fit this fascia? Not necessarily. The SF9-VW02 is designed specifically for the trapezoid 9-inch head unit format. Only the units listed in the Compatible Head Units section above are confirmed to fit. Contact us for guidance on units not listed.
Can I use a standard double DIN head unit with this fascia? No. This panel is shaped for the trapezoid 9-inch format. A standard double DIN unit will not seat correctly in the SF9-VW02.
