Description

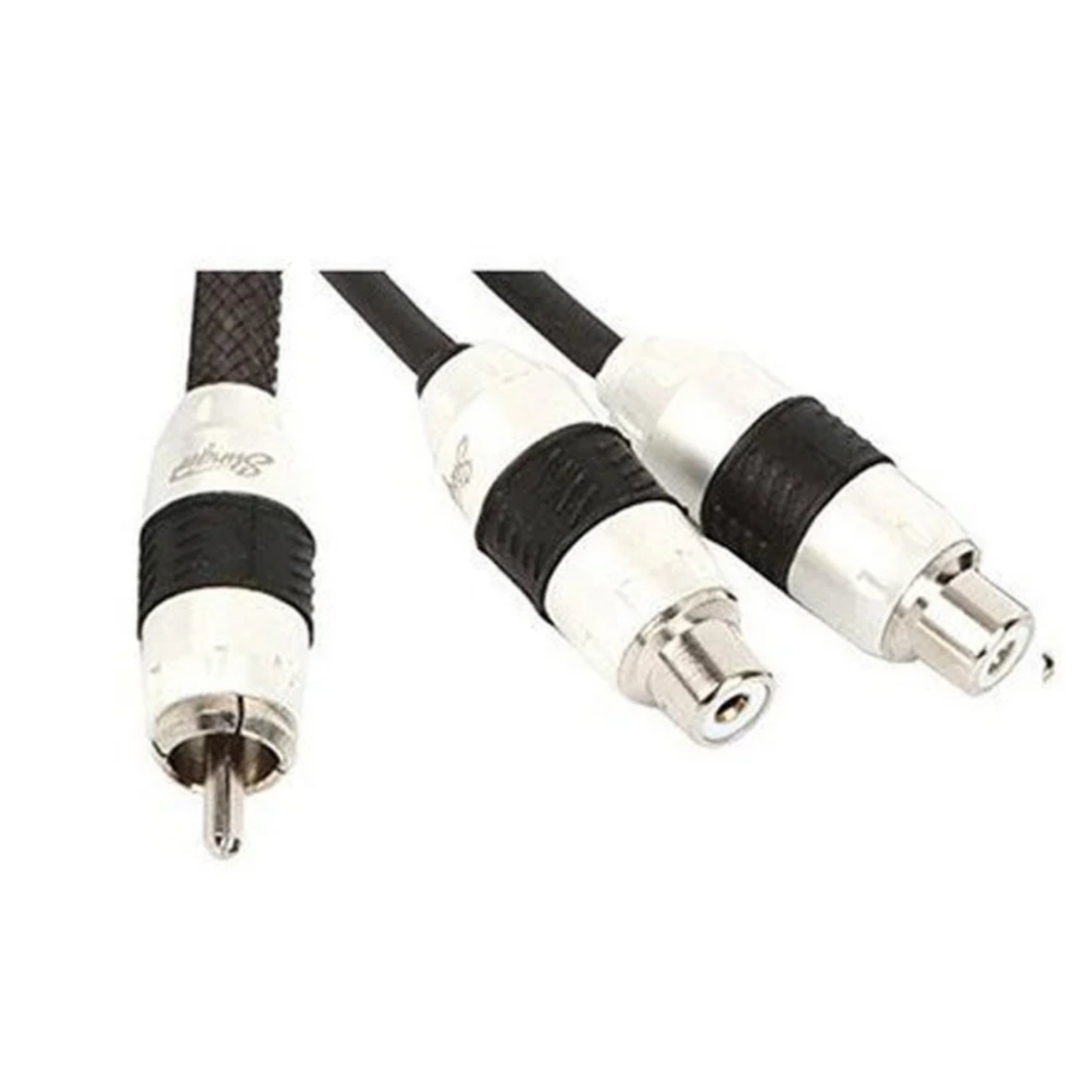

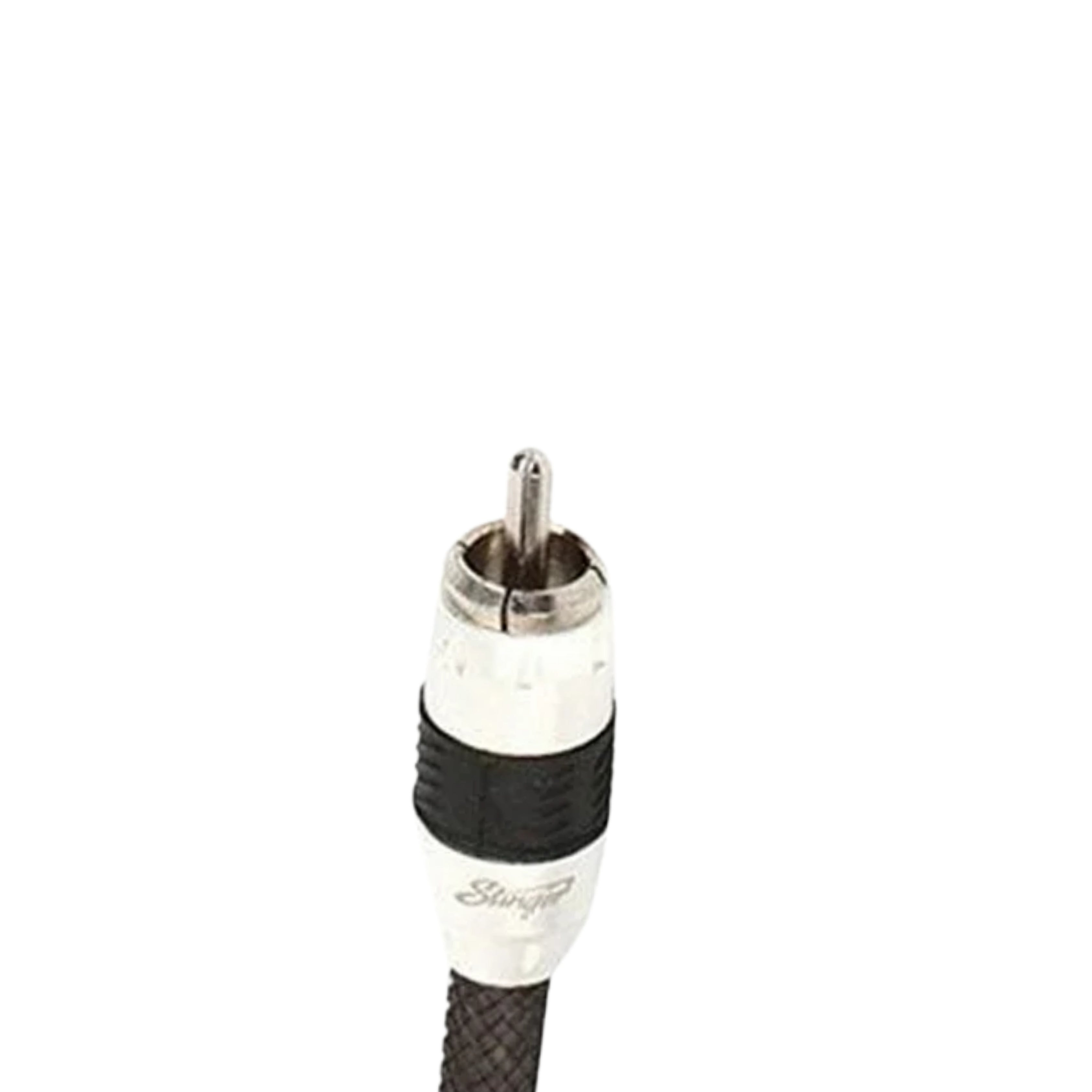

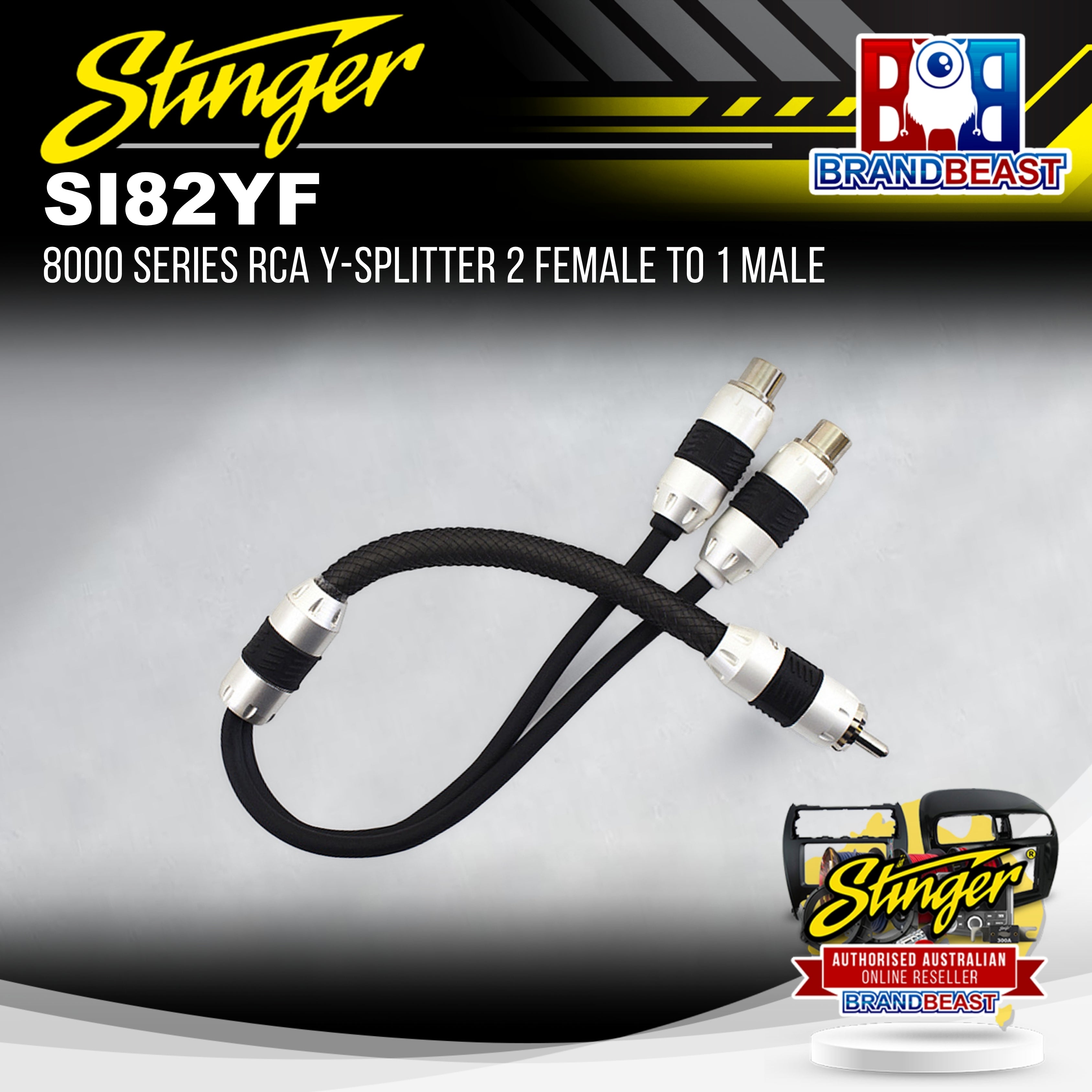

Stinger SI82YF 8000 Series RCA Y-Splitter 2 Female to 1 Male
The Stinger SI82YF is an audiophile-grade RCA Y-splitter from the 8000 Series, converting one male RCA output into two female inputs. Silver-plated copper conductors, triple braided shielding, and Continuous Connection Construction (C3 Tech) combine to deliver clean, interference-free signal transfer in high-end car audio installations.
Product overview

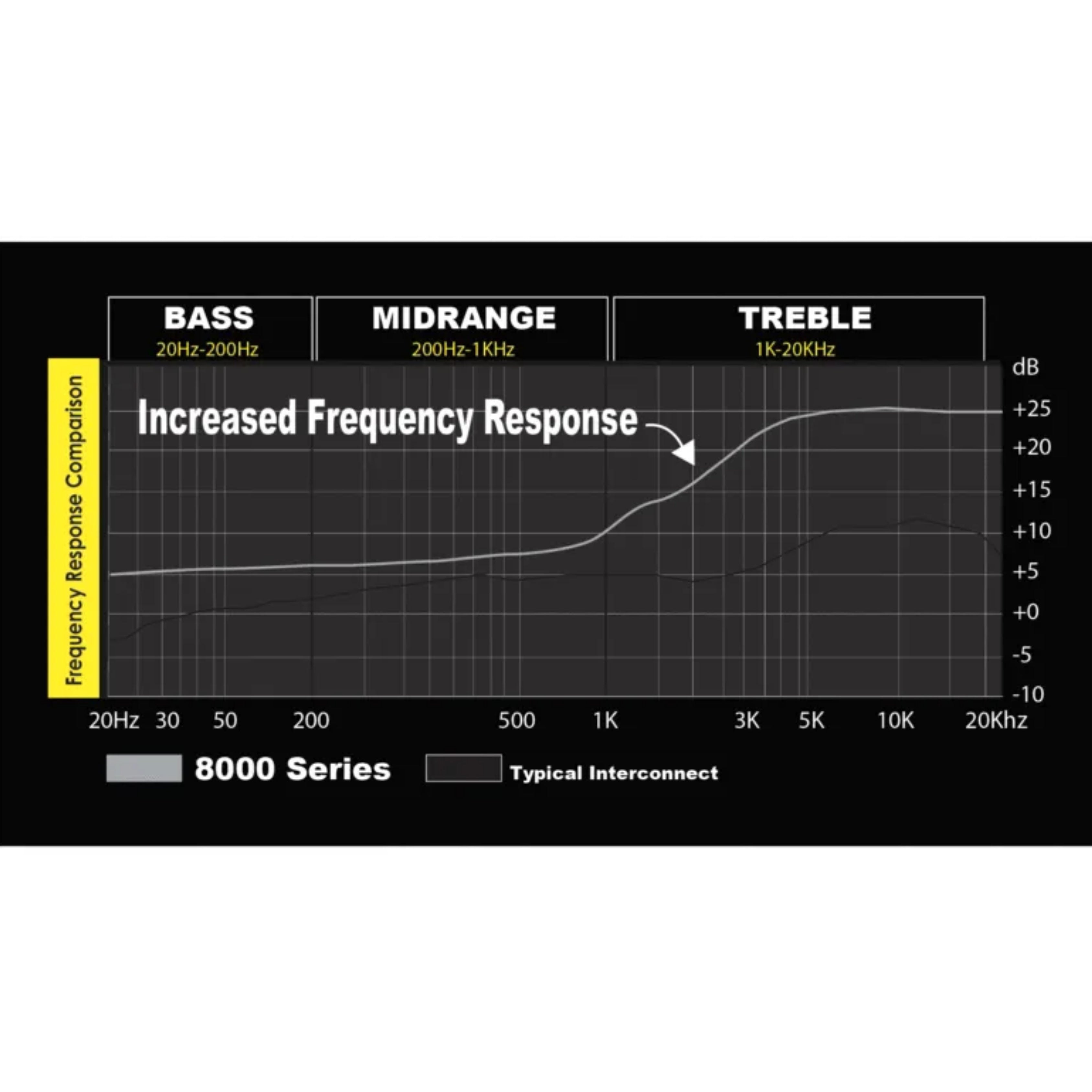

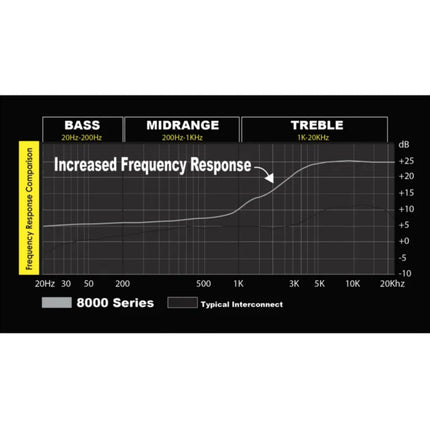

The 8000 Series sits at the top of Stinger's interconnect range, and the SI82YF brings that pedigree to female Y-splitter format. The combination of silver and copper in the conductor material extends frequency response across the full audio spectrum, with oversized conductors contributing to tight bass response and detailed high-frequency reproduction.
Shielding is taken seriously throughout. Triple braided shielding and Mylar shielding work together to reject noise and prevent interference from contaminating the audio signal. Directional high-rate double twisted-pair construction adds another layer of protection, while the twisted-pair winding pattern maintains consistent signal timing across both channels.
Build quality matches the installation demands of high-end audio. Precision machined locking metal ends with channel identification make connection fast and secure. Molded strain reliefs protect the cable at the connector entry point, and the black mesh jacket reduces friction during routing while keeping the install clean. No solder joints anywhere in the signal path means true channel separation is maintained from source to output.
Features and benefits
Silver-plated copper conductors. The combination of copper and silver extends frequency response, delivering tight bass and crystal-clear highs without the colouration that lesser conductor materials introduce.
C3 Tech (Continuous Connection Construction). Stinger's proprietary construction method eliminates breaks in the signal path, providing unmatched signal transfer consistency from end to end.
Triple braided shielding with Mylar layer. Three layers of braided shielding plus a Mylar wrap give the SI82YF exceptional noise rejection, critical in environments with multiple power cables and interference sources.
Locking split-tip connectors. The precision machined metal ends lock onto RCA sockets to prevent accidental disconnection and ensure a consistently solid signal contact point.
No solder joints. Solder-free construction maintains true channel separation and removes a common point of connection failure in lesser RCA accessories.
Directional double twisted-pair winding. High-rate directional winding patterns improve signal clarity and protect against interference, ensuring consistent timing across the stereo signal path.
Molded strain reliefs. Reinforced connector entry points protect the cable from flex fatigue at the point of greatest mechanical stress.
Black mesh protective jacket. The braided outer jacket looks at home in a premium install and reduces friction when routing through tight spaces.
Pewter finished ends. Suits high-end build aesthetics while providing a durable, corrosion-resistant surface on the connector body.
Channel identification markings. Clearly marked connectors make it easy to keep left and right channels correctly assigned during installation.
Technical specs
| Specification |
Detail |
| Part Number |
SI82YF |
| Brand |
Stinger |
| Series |
8000 Series |
| Configuration |
2 Female to 1 Male (Y-Splitter) |
| Conductor Material |
Silver-Plated Copper |
| Conductors per Channel |
3 |
| Total Conductors |
6 (2 Channels) |
| Shielding |
Triple Braided + Mylar |
| Connector Finish |
Pewter |
| Connector Type |
Locking Split-Tip |
| Cable Jacket |
Black Mesh |
| Construction |
Directional High-Rate Double Twisted-Pair |
| Technology |
C3 Tech (Continuous Connection Construction) |
Frequently asked questions
What does the SI82YF Y-splitter configuration do?
It takes a single male RCA output and splits it into two female RCA inputs, allowing one source signal to be received by two separate destinations, such as feeding a signal into two processing channels or two amplifier inputs simultaneously.
How does the SI82YF differ from the SI82YM?
The SI82YF is configured as 2 female to 1 male, while the SI82YM is 2 male to 1 female. Both share the same 8000 Series construction and shielding. The choice between them depends on the connector gender required at your head unit or signal source.
What makes the 8000 Series conductors different from standard RCA cables?
The conductors use a combination of silver plating over copper, extending frequency response beyond what plain copper achieves. Oversized conductor sizing also contributes to tighter bass and clearer highs compared to standard interconnects.
Does the locking connector design work with all RCA sockets?
The locking split-tip connectors are designed to seat firmly in standard RCA sockets and resist accidental pull-out. If you are unsure about compatibility with a specific head unit or amplifier, contact us before purchasing.
Why does a short Y-splitter adapter need shielding?
Even short passive adapters are susceptible to picking up electrical noise from nearby power cables, amplifiers, and chassis ground differentials. The triple braided shielding and Mylar layer in the SI82YF prevent that noise from entering the signal path regardless of the adapter's length.
