Stinger SK4241 4000 Series 4 Gauge Amplifier Power Wiring Kit with MIDI Fuse Holder and Pre-Terminated Ring Terminals
The SK4241 from Stinger is a 4 gauge amplifier power wiring kit from the 4000 Series range, designed for car audio systems up to 1500 watts or 150 amps. The kit includes 5.5 metres of matte red hyper-twist power wire, 0.9 metres of ground wire, a remote turn-on wire, a MIDI fuse holder, a 150 amp fuse, pre-installed crimp ring terminals, and all supporting installation hardware. RCA leads are not included and must be sourced separately.
Product overview
The Stinger 4000 Series is built for demanding car audio systems where power delivery, noise rejection, and signal integrity are critical. The SK4241 uses true-spec tinned oxygen-free copper conductors throughout, ensuring maximum current transfer without the resistance and corrosion issues that affect lesser cable constructions. The matte finish hyper-twist wire construction provides excellent flexibility during installation while maintaining a clean, professional appearance in the finished result.
All power connections are pre-terminated with 4 gauge crimp ring terminals, removing the need for field termination of the main power connections. The included SPD5801 mini-ANL MIDI fuse holder and 150 amp Shoc-Krome MIDI fuse provide correctly rated circuit protection for systems drawing up to 150 amps. Supporting hardware including a firewall grommet, self-drilling mounting screws, a butt connector, and wire ties are all included, making the SK4241 a complete wiring solution for mid to high-powered installations.
Features and benefits
Rated for systems up to 1500 watts or 150 amps: Designed specifically for car audio systems drawing up to 1500 watts or 150 amps, making the SK4241 suited to a broad range of single and multi-amplifier installations.
True-spec tinned OFC conductors: All cable is manufactured from 100% oxygen-free copper to true-spec tolerances with tinned conductors throughout, providing maximum current transfer and long-term corrosion resistance.
Matte finish hyper-twist wire construction: The hyper-twist construction delivers excellent flexibility for routing through tight spaces, while the matte finish provides a clean, professional appearance in the finished installation.
Pre-terminated power connections: The 4 gauge crimp ring terminals are pre-installed on the power wire, providing reliable, factory-grade terminations without the need for field crimping of the main power connections.
SPD5801 MIDI fuse holder and 150 amp Shoc-Krome fuse included: The mini-ANL MIDI fuse holder and matching 150 amp fuse provide correctly rated circuit protection for the system, with the Shoc-Krome fuse delivering reliable performance under sustained load.

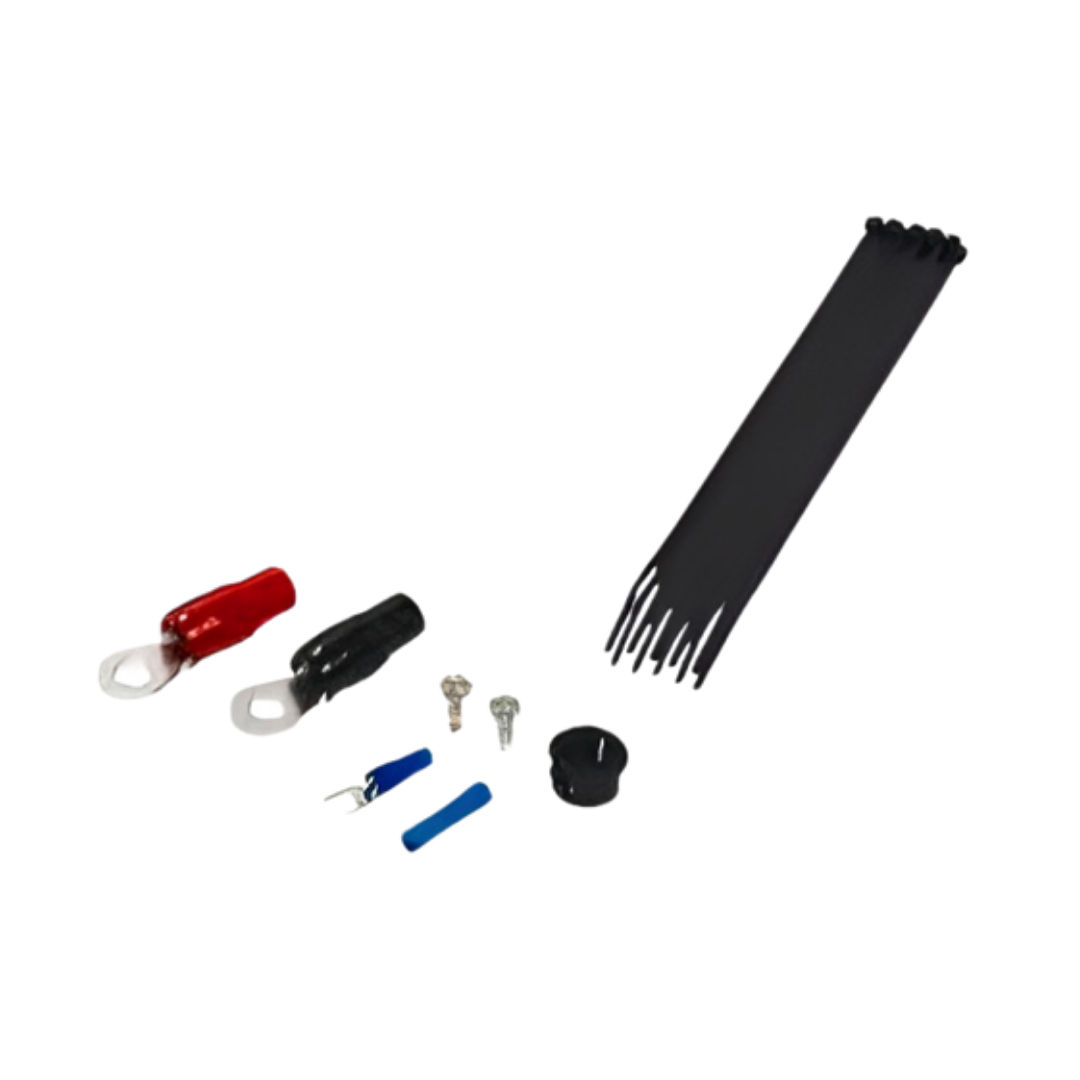

Complete installation hardware included: A 4 gauge snap-in firewall grommet, self-drilling mounting screws, a 16 gauge blue butt connector, and ten wire ties are all included, covering the supporting hardware typically needed to complete a professional installation.

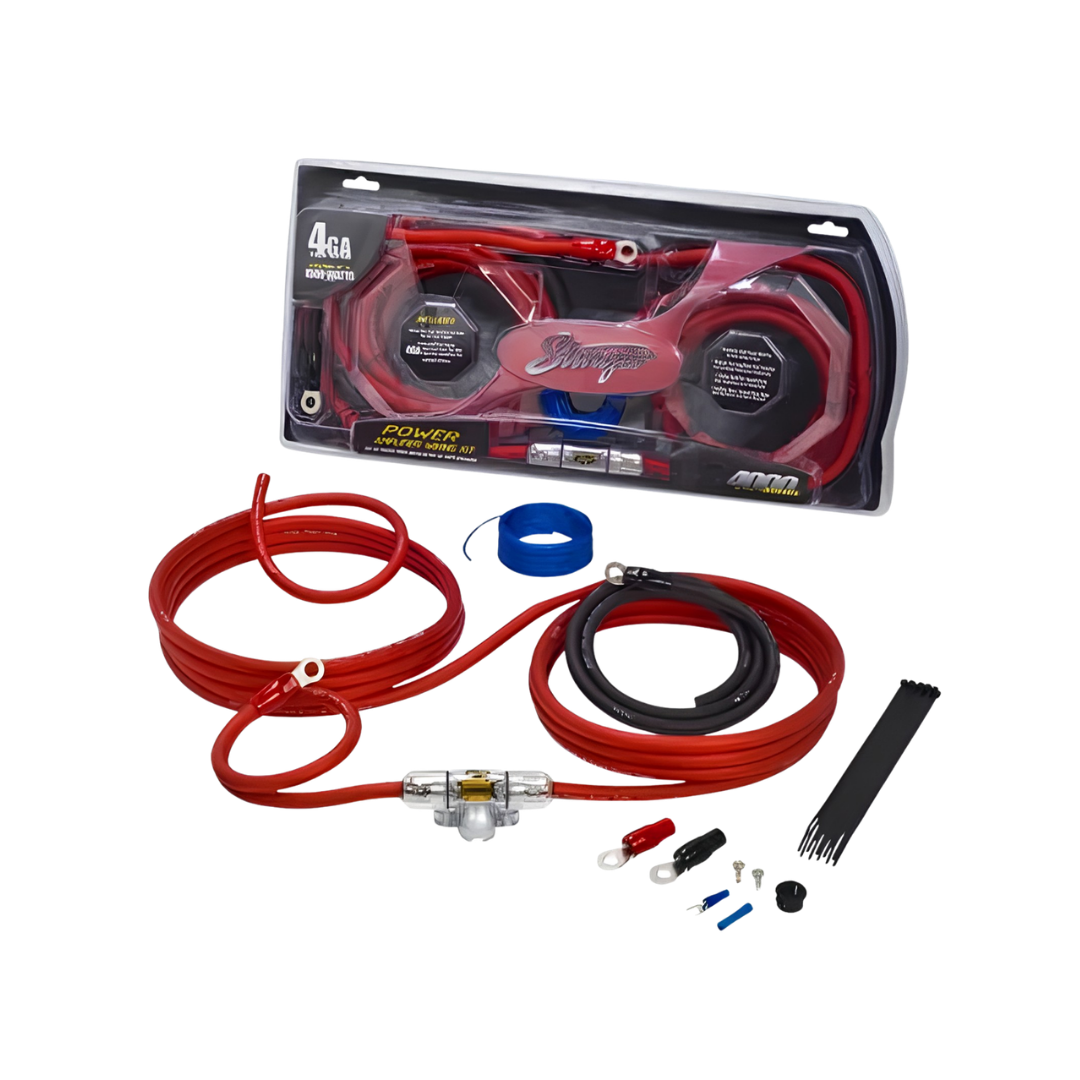

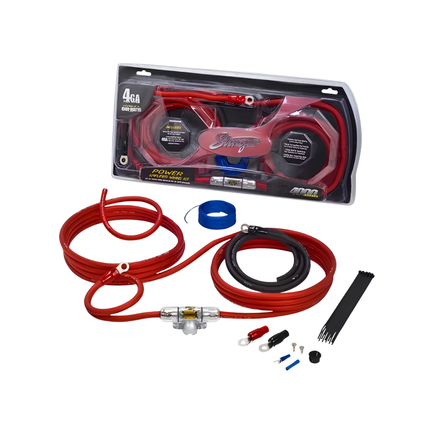

What's in the box

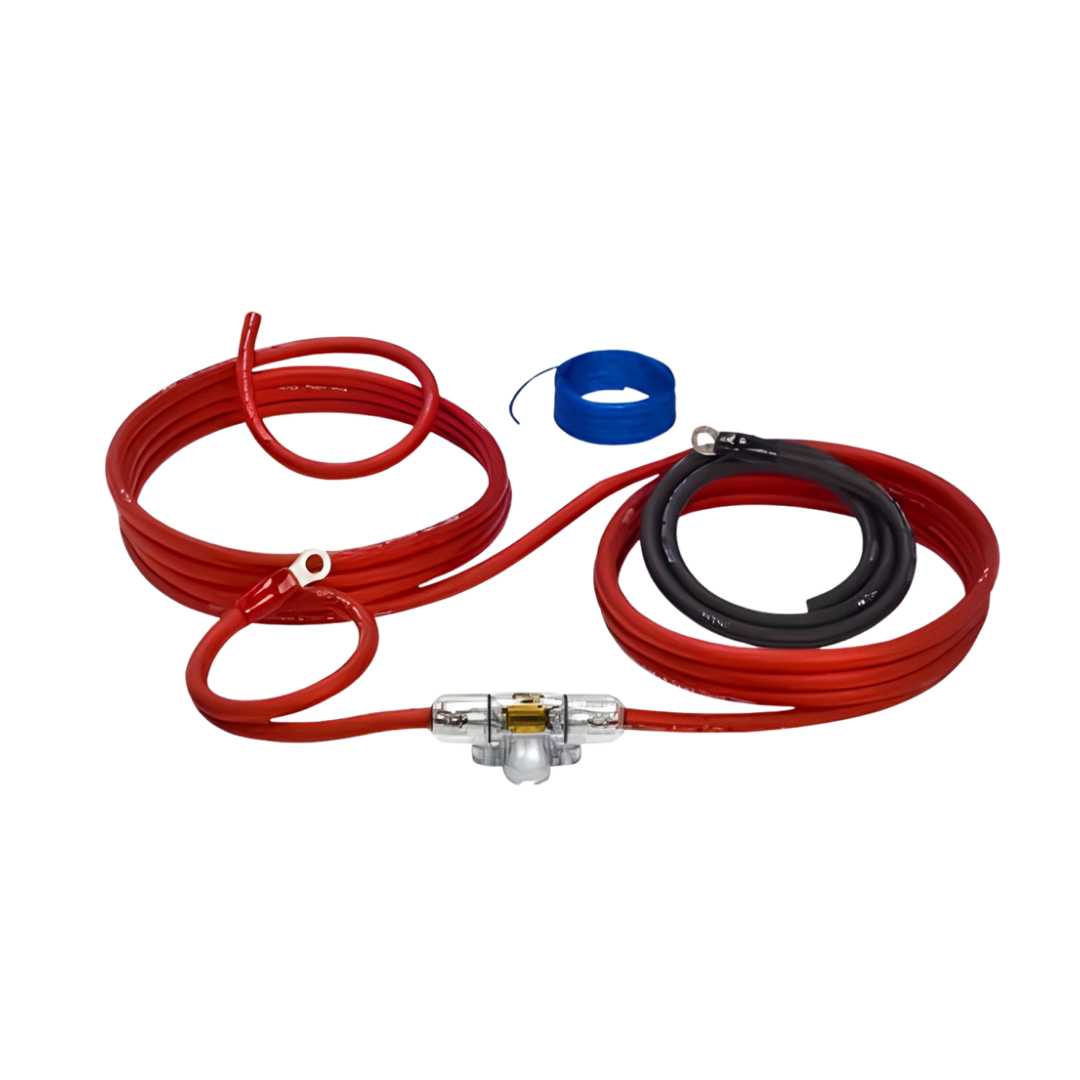

- 18ft (5.5m) Matte Red Hyper-Twist 4 Gauge Power Wire with pre-installed crimp ring terminals
- 3ft (0.9m) Matte Black Hyper-Twist 4 Gauge Ground Wire
- 17ft (5.2m) Matte Blue 18 Gauge Remote Turn-On Wire
- SPD5801 Mini-ANL (MIDI) Fuse Holder
- 150 Amp Shoc-Krome MIDI Fuse
- 16 Gauge Blue Butt Connector
- 4 Gauge Snap-In Protective Firewall Grommet
- Self-Drilling Mounting Screws
- 10x Wire Ties (178mm)
Technical specs
| Specification |
Detail |
| SKU |
SK4241 |
| Brand |
Stinger |
| Series |
4000 Series |
| Gauge |
4 Gauge |
| Power Wire Length |
18ft (5.5m) |
| Ground Wire Length |
3ft (0.9m) |
| Remote Turn-On Wire Length |
17ft (5.2m) |
| Conductor Type |
True-spec tinned OFC |
| Fuse Holder |
SPD5801 Mini-ANL (MIDI) style |
| Fuse Rating |
150 Amp Shoc-Krome MIDI |
| System Rating |
Up to 1500 Watts or 150 Amps |
| RCA Leads |
Not included |
Frequently asked questions
What system power rating is the SK4241 designed for?
The SK4241 is designed for car audio systems up to 1500 watts or 150 amps. It is suited to a wide range of single and multi-amplifier installations requiring 4 gauge power delivery.
Are the ring terminals already installed on the power wire?
Yes. The 4 gauge crimp ring terminals are pre-installed on the power wire, providing reliable, factory-grade terminations on the main power connections without the need for field crimping.
What fuse holder and fuse are included with the SK4241?
The kit includes the Stinger SPD5801 mini-ANL MIDI fuse holder and a 150 amp Shoc-Krome MIDI fuse. These provide correctly rated circuit protection for systems drawing up to 150 amps.
Are RCA leads included with the SK4241?
No. RCA leads are not included with the SK4241 and must be sourced separately. Contact us for guidance on suitable RCA cables to pair with this wiring kit for your installation.
What is the difference between the SK4241 and the SK4201?
Both are from the Stinger 4000 Series with identical conductor and construction specifications. The SK4201 is 1/0 gauge and rated for systems up to 3400 watts or 250 amps, while the SK4241 is 4 gauge and rated for systems up to 1500 watts or 150 amps. Select the gauge that matches your amplifier's power and current requirements.
