Description
Light Up Every Angle ENLIGHT10 4-Pod Dynamic RGB Rock Light Kit With Bluetooth App, RF Remote and HEIGH10 Integration
Product Overview
The Stinger SPXDK4 is a 4-pod dynamic RGB rock light kit from the ENLIGHT10 SPXD range, designed for wheel well, underbody, and bull bar lighting. Each pod houses 24 LEDs for maximum illumination output, with fully customisable colour patterns and dynamic modes controlled via the Stinger enLIGHT10 smartphone app or the included RF remote. The kit is HEIGH10-compatible, enabling direct lighting control from the head unit's interface where a HEIGH10 infotainment system is installed.
The pods feature durable aluminium housings with rugged watertight connections, engineered for the water, mud, dust, and debris conditions of off-road and powersports applications. Mounting hardware for both flat surfaces and bull bars is included. The daisy chain connection system allows additional SPXD pods to be added to the same setup, and 10-foot extension harnesses are included for larger vehicles.

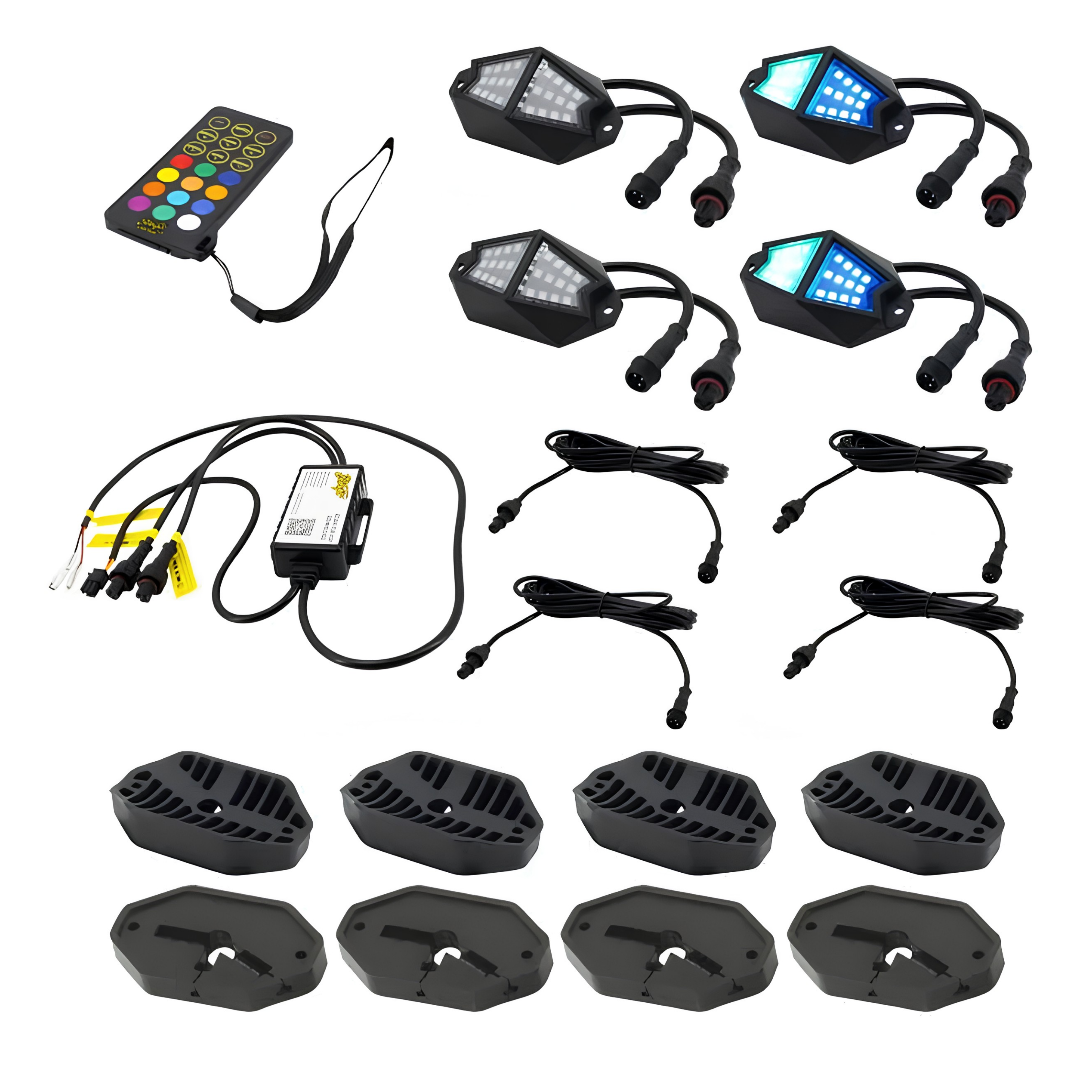

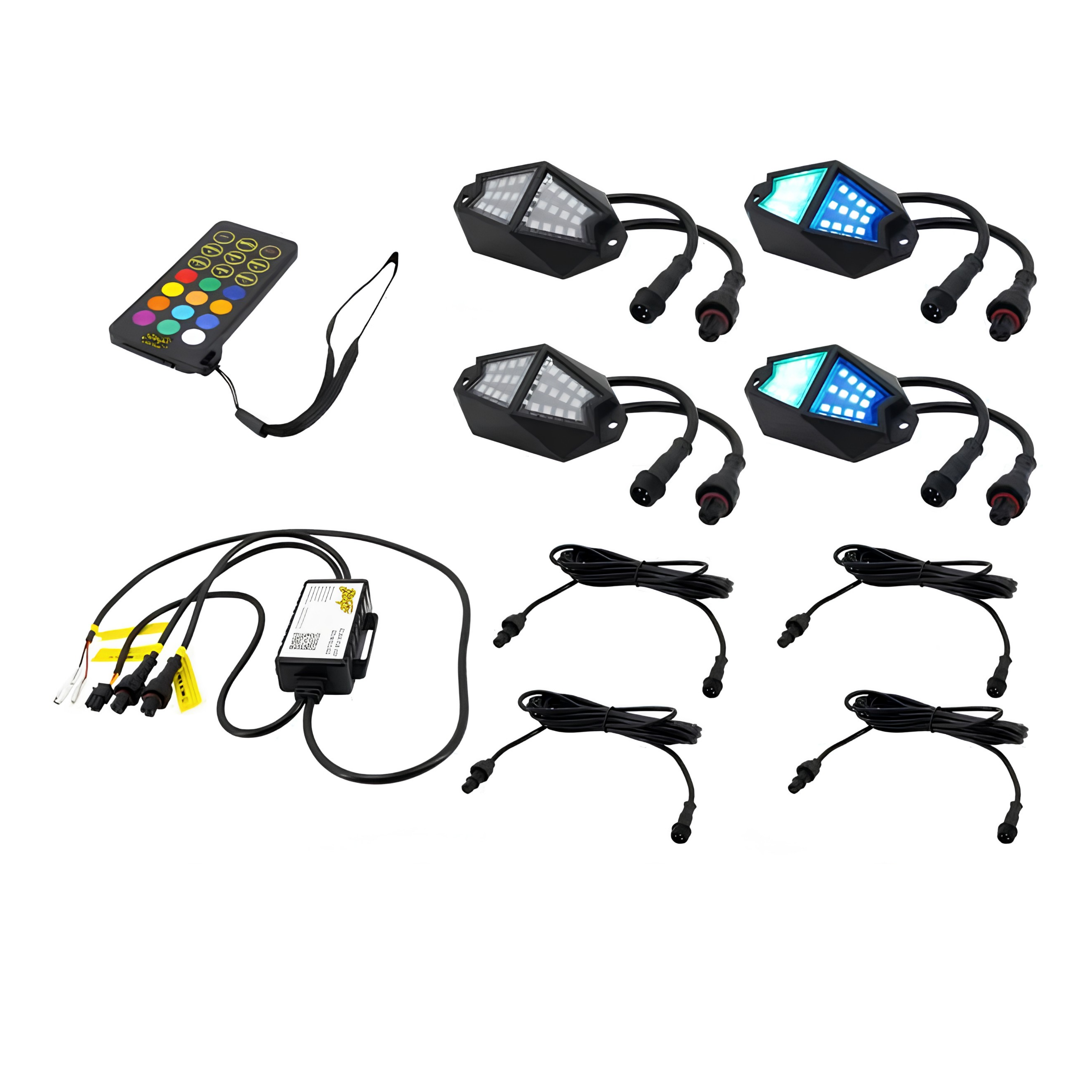

Crucially, the SPXDK4 includes the SPXDBTC Bluetooth controller and RF remote the RGB controller module is in the box. No separate controller purchase is required.
Key Specifications
- Manufacturer Part Number: SPXDK4
- Configuration: 4-pod dynamic RGB rock light kit
- LEDs per pod: 24
- LED type: Dynamic RGB
- Bluetooth controller: SPXDBTC — included
- RF remote: Included
- App control: Stinger enLIGHT10 app (iOS/Android — confirm platform support)
- HEIGH10 compatible: Yes (via SE-SXMHAR harness — sold separately)
- Expandable: Yes — daisy chain connection for additional SPXD pods
- Extension harnesses: 4x 10-foot (included)
- Housing material: Aluminium
- Connectors: Watertight
- Mounting: Flat surface pads and bull bar pads (both included)
- Weather resistance: Rated for water, dirt, dust, and debris
Features & Benefits
-
24 LEDs Per Pod — Each rock light pod contains 24 RGB LEDs for high-output, vivid illumination of wheel wells, underbody panels, and bull bar mounting points.
-
Bluetooth App Control — Full colour, pattern, and brightness control via the Stinger enLIGHT10 smartphone app using the included SPXDBTC Bluetooth controller.
-
RF Remote Included — The included RF remote provides wireless lighting control without a smartphone, for quick on-the-go adjustments.
-
HEIGH10 Compatible — Integrates with the Stinger HEIGH10 infotainment system via the SE-SXMHAR harness (sold separately) for in-dash lighting control alongside audio and navigation.
-
Expandable Daisy Chain — The daisy chain connection system allows additional SPXD pods to be connected to the same controller, expanding the lighting setup without additional controllers.
-
10-Foot Extension Harnesses Included — Four 10-foot extension cables are included, providing reach for larger vehicles and flexible pod placement across the underbody and wheel wells.
-
Dual Mounting Options — Flat rubber mounting pads and bull bar rubber pads are both included, supporting installation on flat underbody panels and tubular bull bar surfaces without additional hardware.
-
Durable Aluminium Housing with Watertight Connectors — Aluminium pod housings resist impact and vibration, while watertight connectors maintain protection in all off-road conditions.
-
SPXDBTC Controller Included — Unlike some SPXD lighting products that require a separately purchased controller, the SPXDK4 includes the SPXDBTC in the box — a complete, ready-to-run kit.
Technical Specs
| Specification |
Detail |
| Part Number |
SPXDK4 |
| Brand |
Stinger |
| Configuration |
4-pod dynamic RGB rock light kit |
| LEDs Per Pod |
24 |
| LED Type |
Dynamic RGB |
| Bluetooth Controller |
SPXDBTC — included |
| RF Remote |
Included |
| App Control |
Stinger enLIGHT10 app |
| HEIGH10 Compatible |
Yes — SE-SXMHAR harness required (sold separately) |
| Expandable |
Yes — daisy chain for additional SPXD pods |
| Extension Harnesses |
4x 10ft — included |
| Housing Material |
Aluminium |
| Connectors |
Watertight |
| Mounting Options |
Flat surface pads + bull bar pads (both included) |
| Weather Rating |
Rated for water, dirt, dust, debris |
Compatible With / Goes Well With
- Stinger enLIGHT10 smartphone app (iOS/Android — confirm current platform support)
- Stinger HEIGH10 infotainment system (via SE-SXMHAR harness — sold separately)
- Additional Stinger ENLIGHT10 SPXD pods via daisy chain (sold separately)
- Stinger SPXYADP Y adapter harness (sold separately)
- Off-road vehicles, 4WDs, ATVs, UTVs, Jeeps, trucks, and powersports vehicles
- Bull bar and flat-surface underbody mounting
Frequently Asked Questions
Does the SPXDK4 include the Bluetooth controller?
Yes — the SPXDBTC Bluetooth controller and RF remote are both included in the SPXDK4 kit. No separate controller purchase is required.
How many LEDs are in each rock light pod?
Each pod contains 24 RGB LEDs, providing high-output vivid illumination across the full colour spectrum.
Can I add more pods to the SPXDK4 setup later?
Yes — the SPXDK4 uses a daisy chain connection system, allowing additional SPXD rock light pods (sold separately) to be connected to the same SPXDBTC controller without needing additional controllers.
Is the SPXDK4 compatible with the Stinger HEIGH10 head unit?
Yes — the SPXDK4 is HEIGH10 compatible. Integration requires the SE-SXMHAR replacement harness (sold separately) and the HEIGH10 unit running the latest firmware.
What mounting options are included?

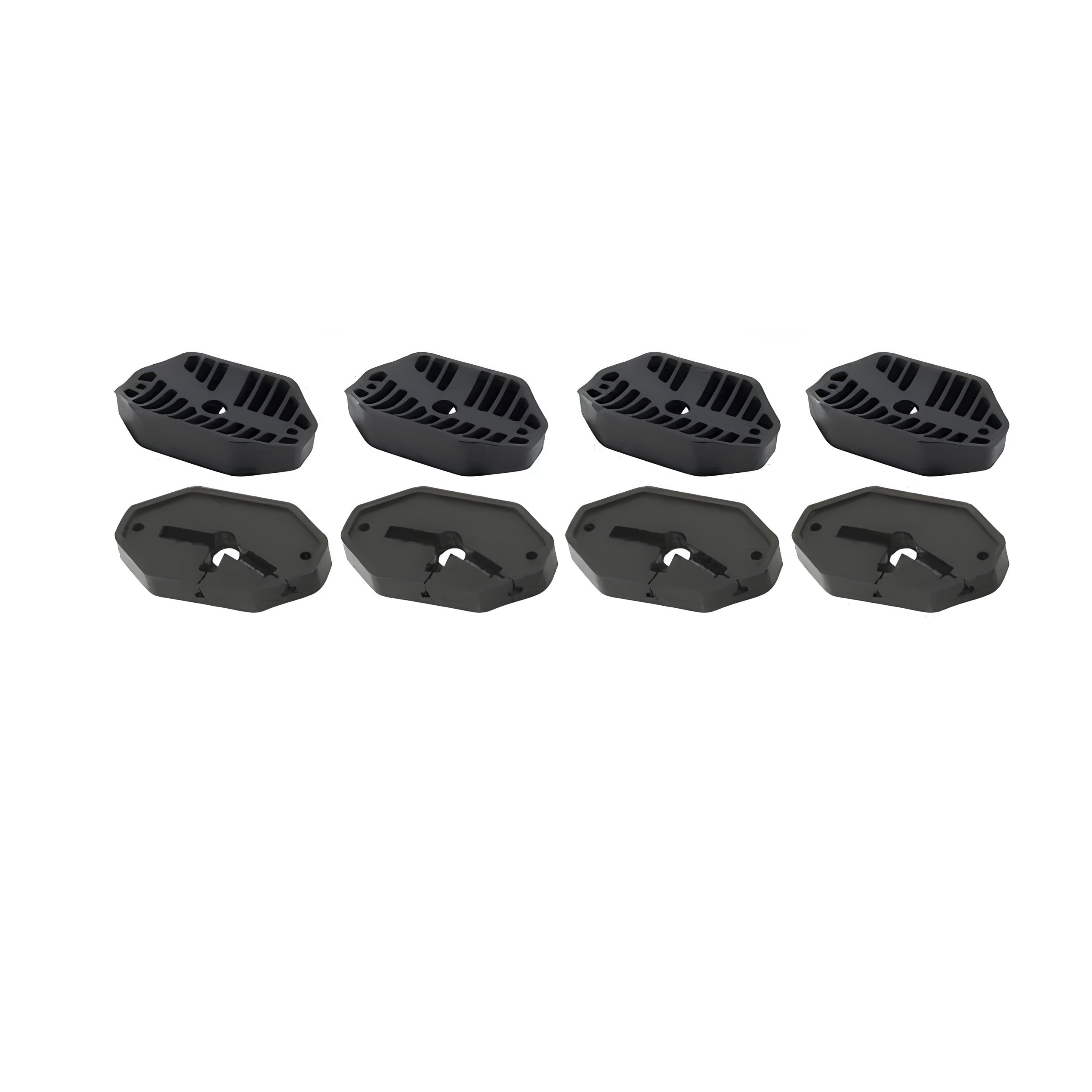

The kit includes four flat rubber mounting pads for underbody and panel surfaces and four bull bar rubber pads for tubular mounting surfaces — both types are in the box, covering the most common installation scenarios.
