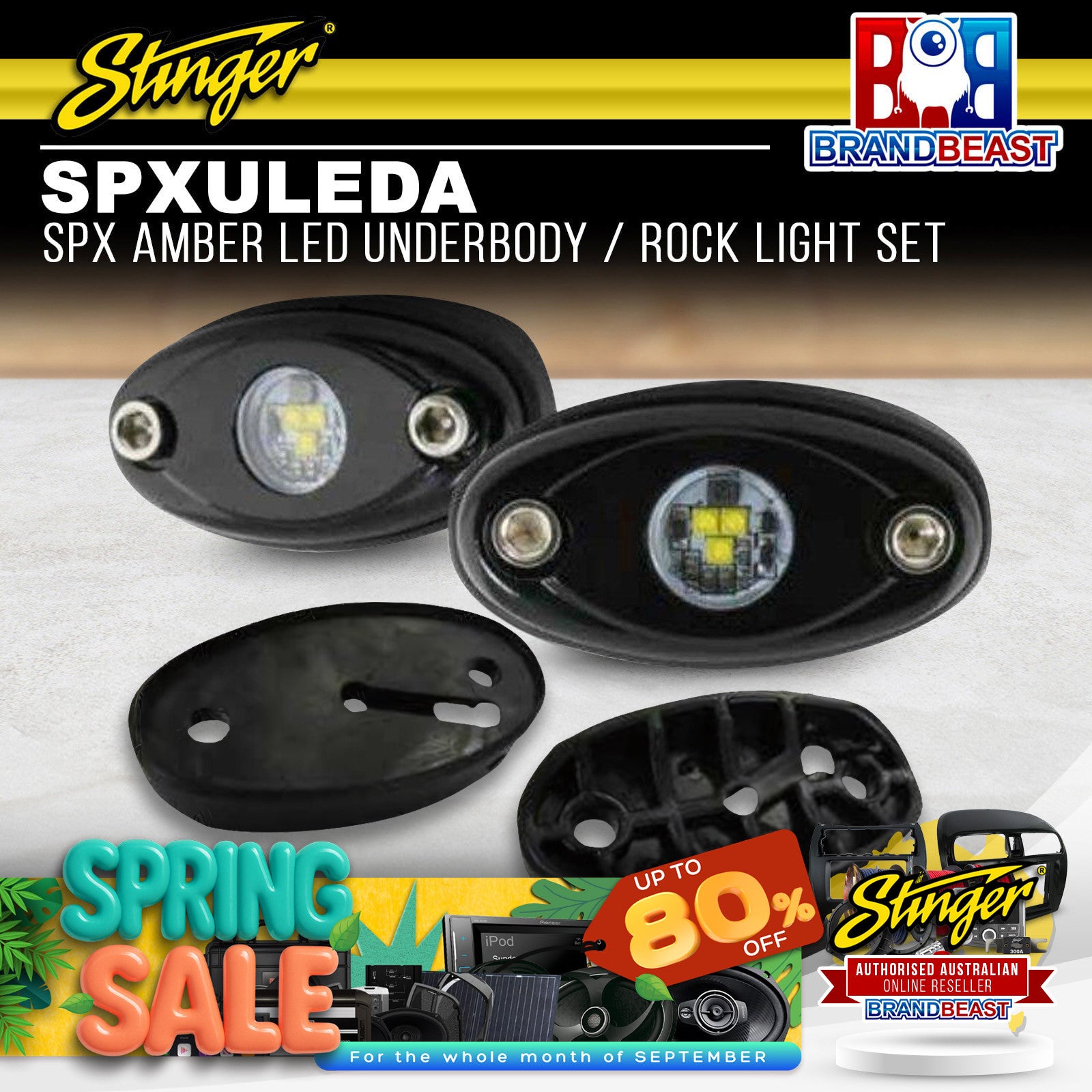

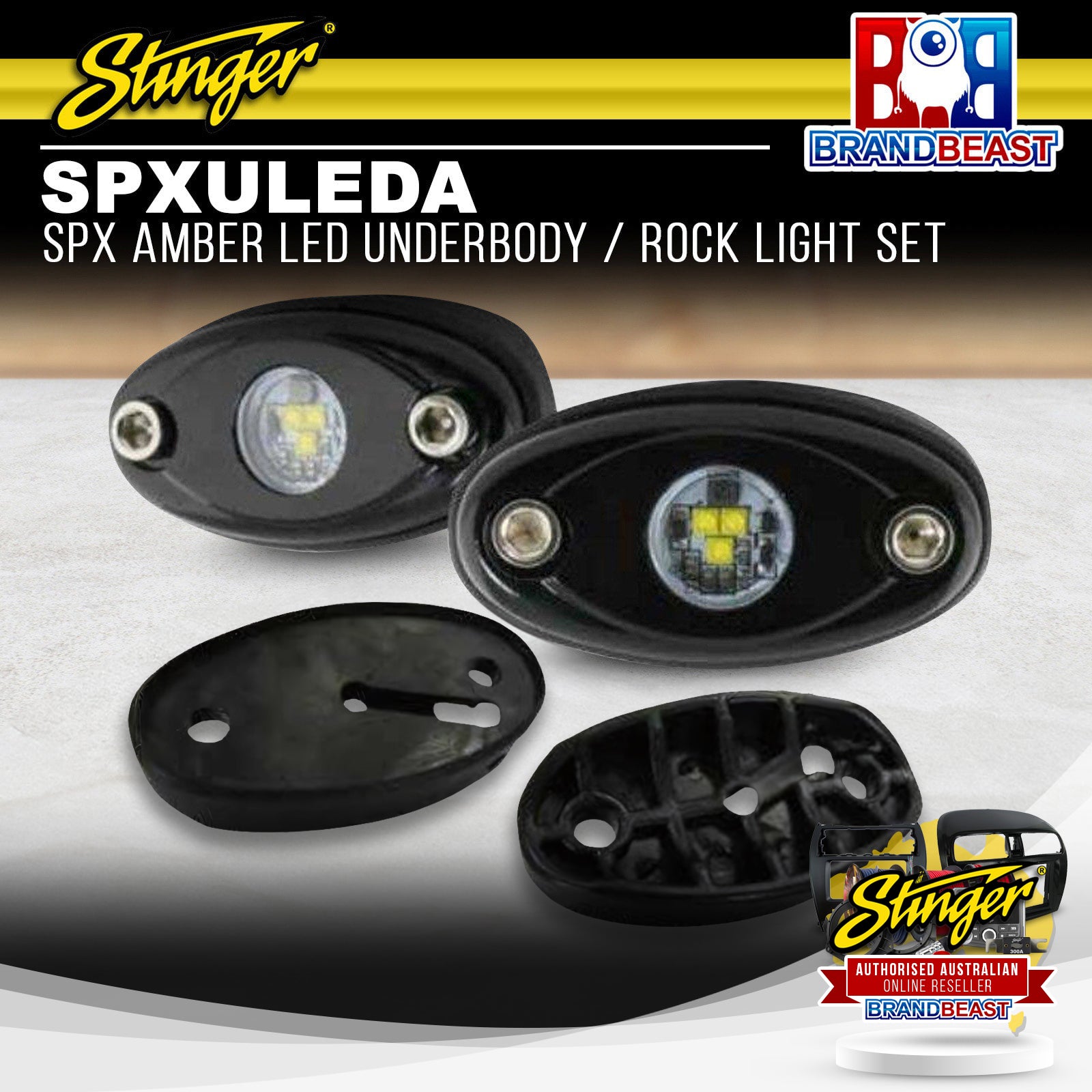

Stinger SPXULEDA Amber CREE LED Underbody / Rock Light Set with IP68 Aluminium Housing
Bright amber CREE LED rock lights in a die-cast aluminium IP68-rated housing purpose-built for off-road underbody, wheel well, and engine bay lighting on ATVs, 4x4s, trucks, and Jeeps.
Product Overview

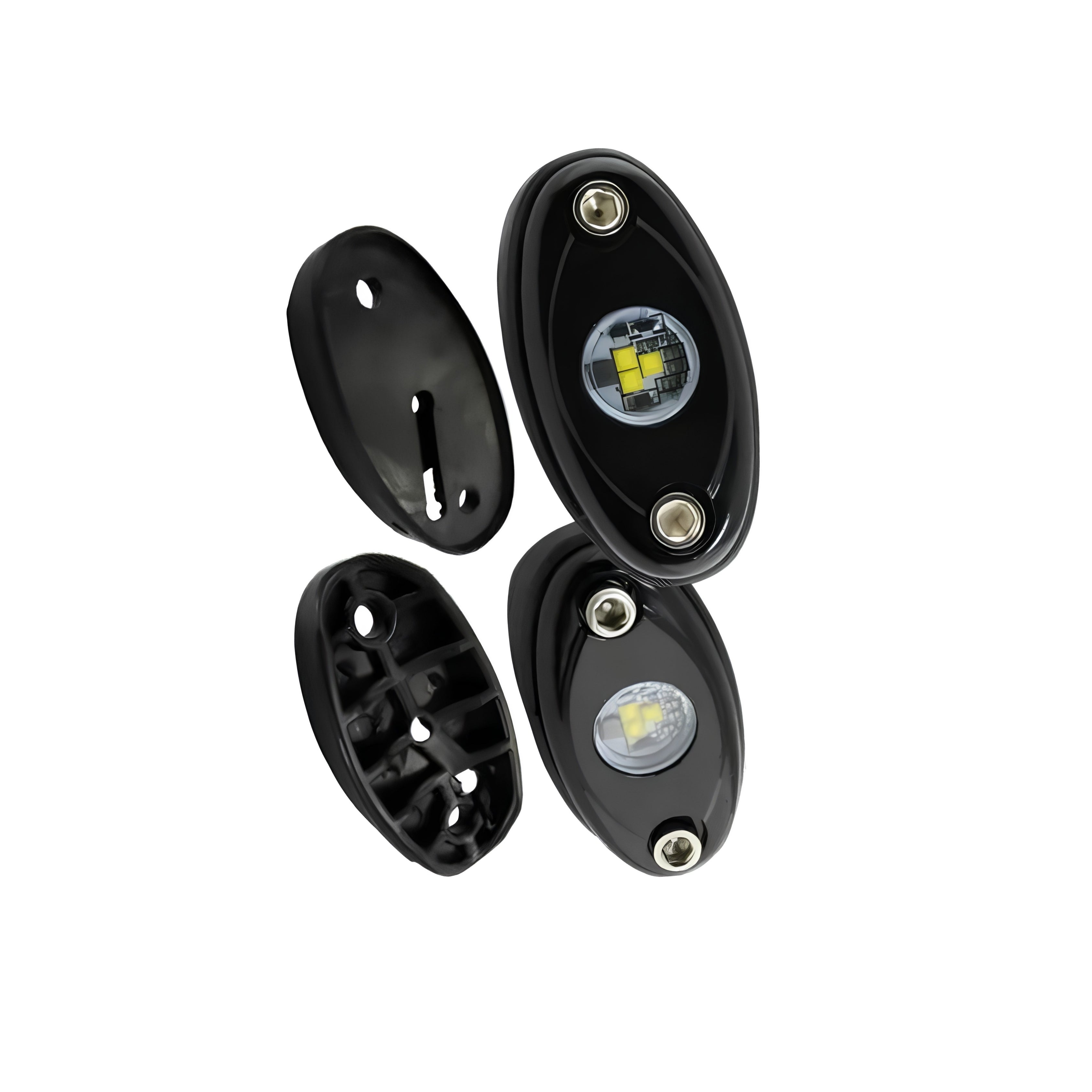

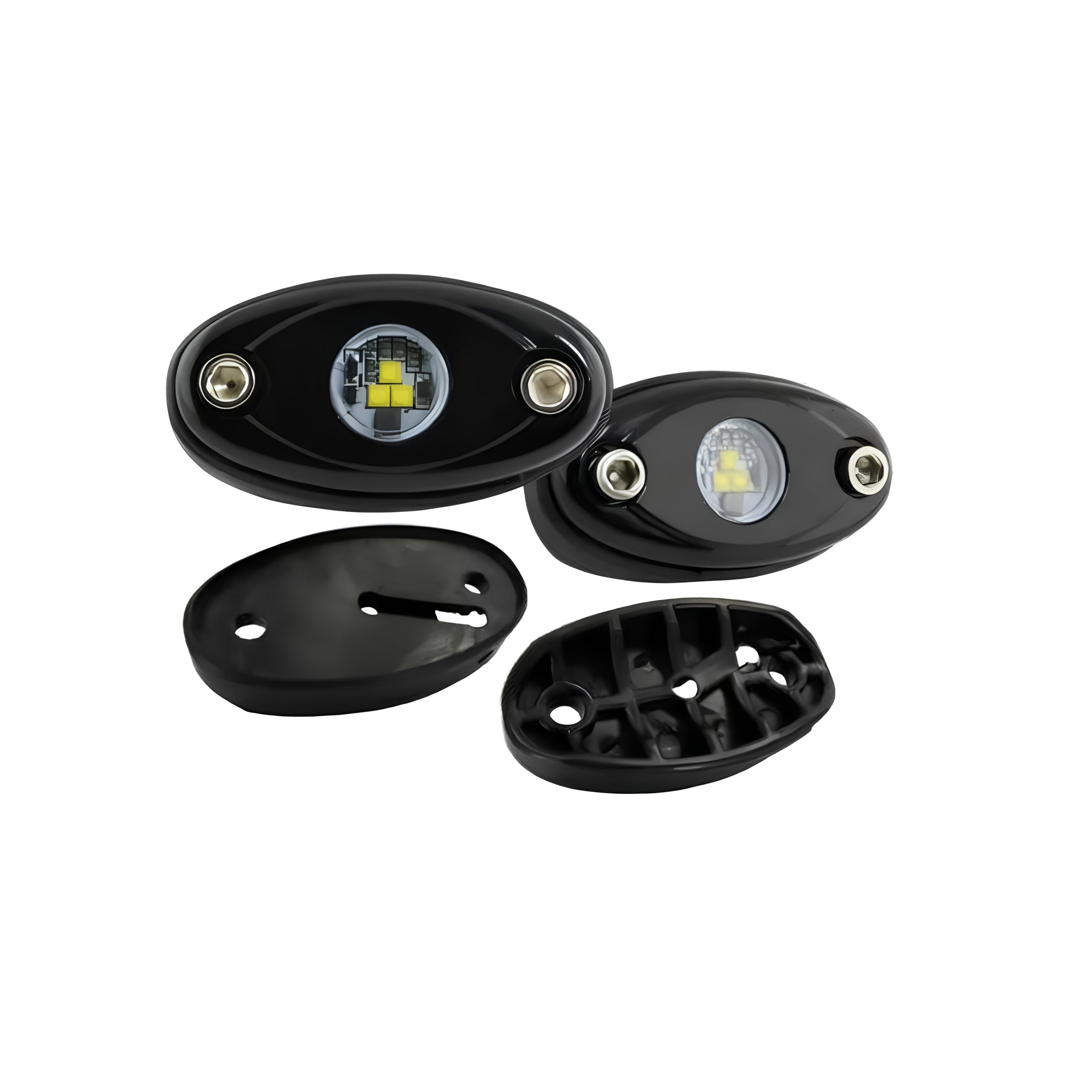

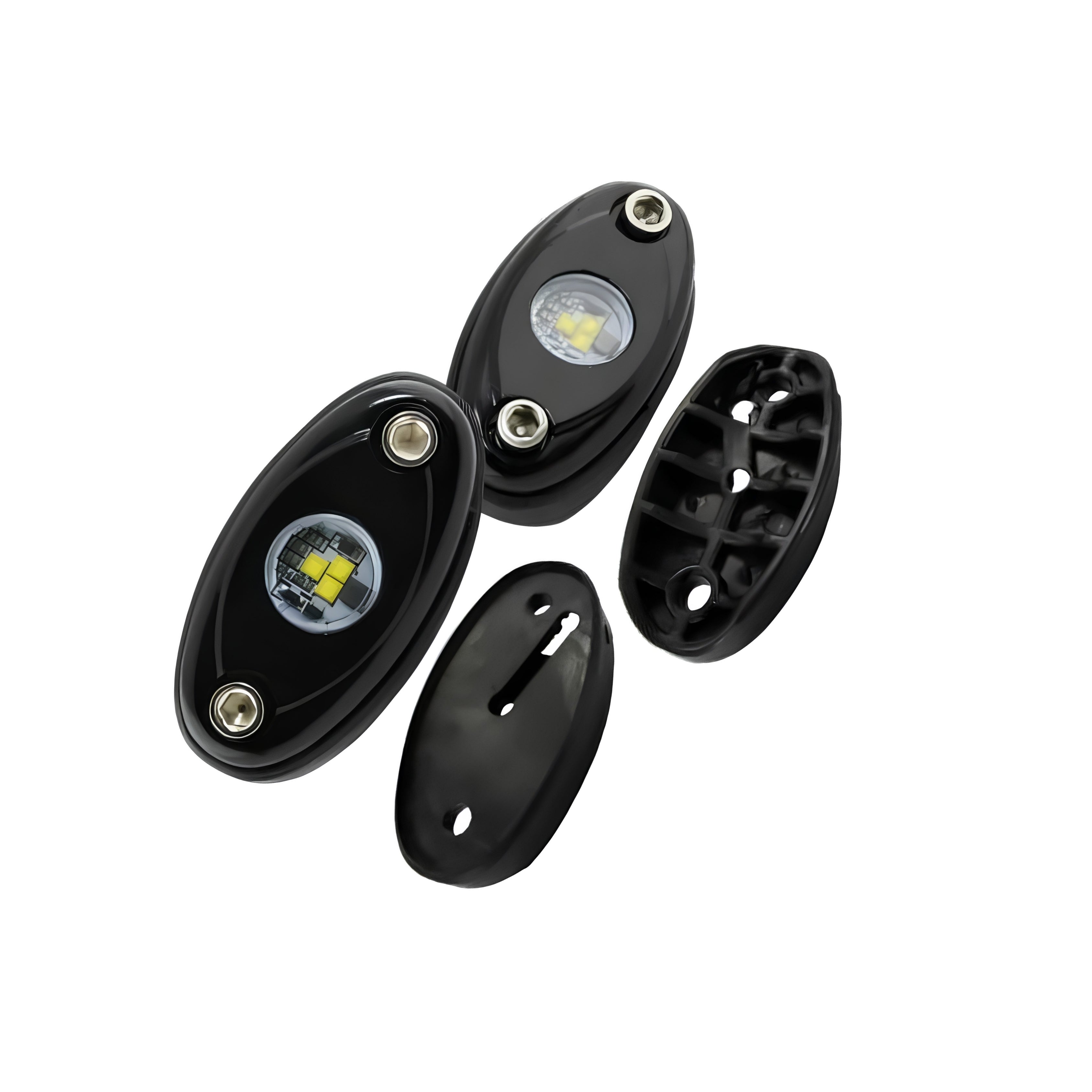

The Stinger SPXULEDA is an amber LED underbody and rock light set from the Stinger Powersports range. Each kit includes two 9W CREE LED pods housed in black die-cast aluminium with an IP68 waterproof and dustproof rating, making them suitable for the harshest off-road conditions including mud, water crossings, and heavy dust exposure.
The pods mount on both flat and tubular surfaces via included rubber mounting pads and hardware, with multiple cable routing options for a clean installation. Beam angle is 120 degrees for broad area illumination. Operating on 12V only, these lights are designed for use on ATVs, UTVs, cars, trucks, Jeeps, and powersports vehicles.
Please note: These lights are for off-road use only and are not road legal for on-road vehicle use in Australia.
Features & Benefits
- CREE LED light source — bright, powerful amber output
- IP68 rated — fully waterproof and dustproof
- Black die-cast aluminium housing for durability in extreme environments
- 9W per pod, 120-degree beam angle for wide area coverage
- Mounts on flat or tubular surfaces — rubber mounting pads included
- Multiple cable routing options
- CE and RoHS certified
- 12V operation
- Off-road use only
Technical Specs
| Specification |
Detail |
| SKU / Part Number |
SPXULEDA |
| Brand |
Stinger |
| LED Colour |
Amber |
| Light Source |
CREE LED (3x per pod) |
| LED Power |
9W per pod |
| Beam Angle |
120° |
| IP Rating |
IP68 (Waterproof & Dustproof) |
| Housing Material |
Black Die-Cast Aluminium |
| DC Voltage |
12V only |
| Working Temperature |
-20°C to +40°C |
| Dimensions (per pod) |
70 x 35 x 10mm (2.75 x 1.37 x 0.40in) |
| Certifications |
CE, RoHS |
| Use |
Off-road use only |
| What's in the Box |
2x LED Pods, 2x Rubber Mounting Pads, 4x Mounting Hardware |
Compatible With / Goes Well With
Direct Vehicle Fit:
- Universal — ATVs, UTVs, 4x4s, trucks, Jeeps, off-road vehicles, powersports vehicles
Goes Well With:
- Stinger SPXULEDB (blue variant) and SPXRGBUBKIT (RGB app-controlled variant)
- 12V wiring and switch accessories
- Off-road lighting wiring harnesses and relay switches
- Underbody and rock light mounting brackets
Frequently Asked Questions
Are these lights road legal in Australia?
No. The SPXULEDA is for off-road use only and is not approved for use on public roads in Australia. They are intended for use on ATVs, UTVs, off-road 4x4s, and powersports vehicles in off-road environments.
What does IP68 mean for these lights?
IP68 is the highest standard of waterproof and dustproof protection. The housing is fully sealed against dust ingress and can withstand continuous submersion in water beyond 1 metre depth. For rock lights and underbody use, this means they can handle water crossings, heavy rain, and mud without issue.
Can these be mounted on a roll cage or tubular frame?
Yes. The SPXULEDA includes rubber mounting pads designed to accommodate both flat and tubular surfaces, making them suitable for mounting on roll cages, bull bars, and tubular off-road frames.
Do these lights require a relay or switch harness?
The kit includes the pods, mounting pads, and hardware only — a wiring harness, relay, and switch are not included. For a clean and safe installation, a dedicated relay-switched wiring harness is recommended to avoid drawing directly from the vehicle's existing circuits.
What other colours are available in the SPXULED range?
The SPXULED range is available in amber (SPXULEDA), blue (SPXULEDB), and RGB app-controlled (SPXRGBUBKIT). Contact the F.A.E. team to check current stock across the range.
