Description
Stinger SRP-HD1101H HEIGH10 10 Inch Infotainment Replacement Kit for Honda Accord and Accord Euro 2003 to 2007 with CarPlay Android Auto Climate SWC and Display Retention
The Stinger SRP-HD1101H is a complete infotainment replacement kit for the 2003 to 2007 Honda Accord and Accord Euro, combining the Stinger HEIGH10 (UN1810) 10-inch HD infotainment system with all vehicle-specific hardware required to retain the Accord's factory climate controls, steering wheel audio buttons, exterior temperature display, and dash climate display. Suits navigation and base model variants, and both right-hand and left-hand drive. iGO navigation is optional and not included.
Product overview
A standard head unit swap in the Accord loses the factory climate control functionality the HVAC controls integrated into the centre stack become non-functional after a generic head unit installation. The SRP-HD1101H solves this with a dash kit and HVAC control panel specifically designed for the Accord's centre stack, retaining full climate control operation alongside the new HEIGH10 infotainment system.

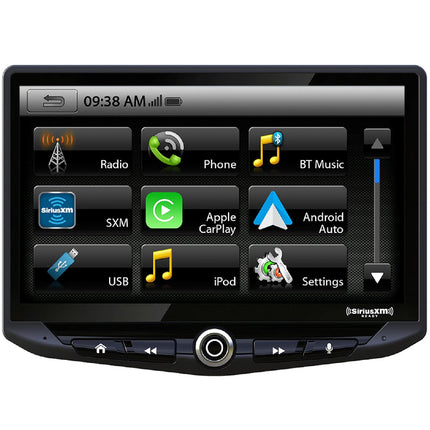

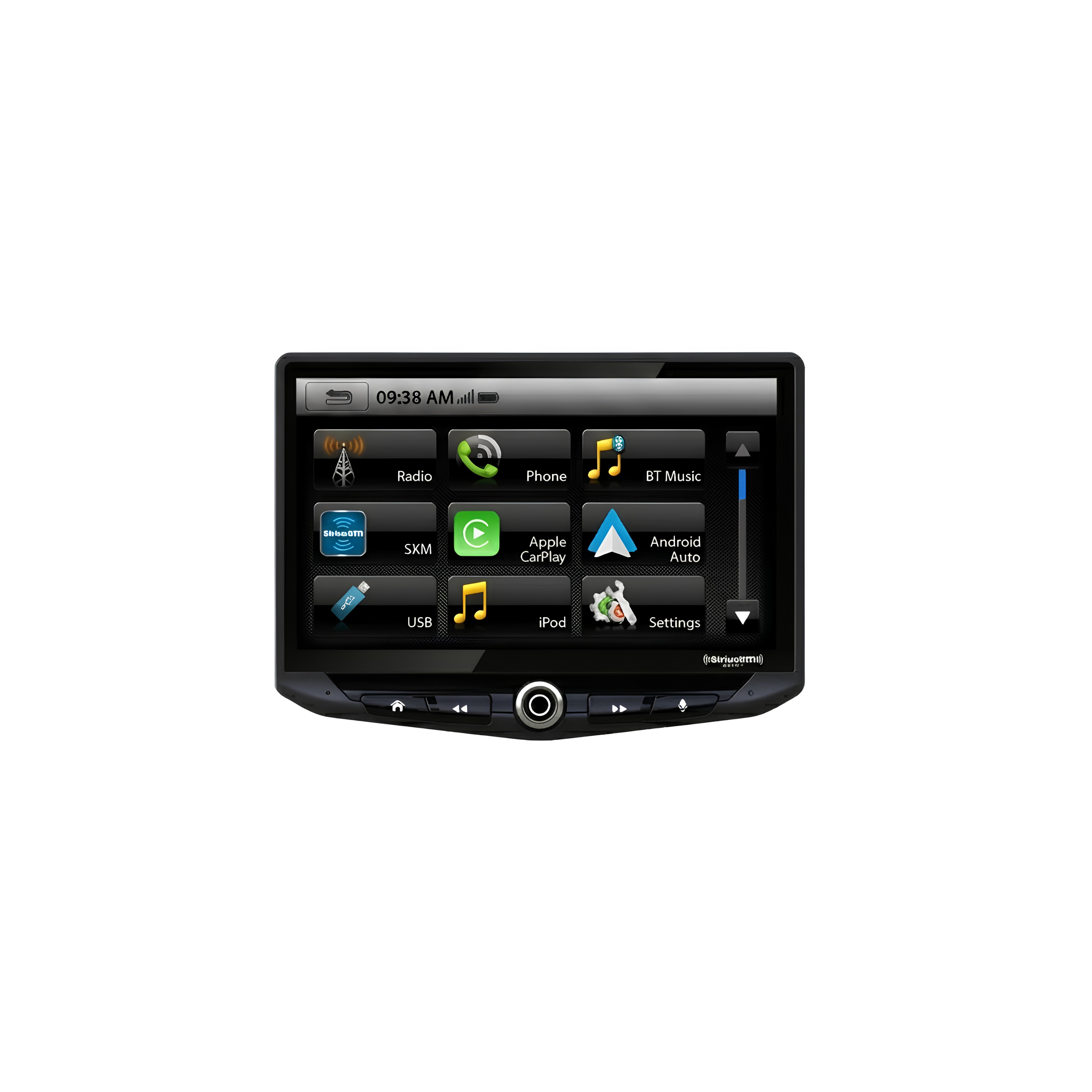

The Stinger HEIGH10 (UN1810) provides a 10-inch HD capacitive touchscreen with 16.7 million colour depth, wired Apple CarPlay and Android Auto, AM/FM with RDS, dual USB, HDMI input, Bluetooth with aptX for hands-free calling and high-quality audio streaming, a 4V 6-channel RCA output, and a built-in digital sound processor with TOSLINK output for connection to external amplifiers and processors.
Plug-and-play harnesses retain the factory steering wheel audio buttons and both display retention features where fitted: the exterior temperature display in the instrument cluster and the dash climate display on navigation-equipped models. USB socket addition is included. Everything needed for installation is in the box.
Features and benefits
Complete kit including the HEIGH10 infotainment system: Stinger HEIGH10 UN1810 head unit, RPK4-HD1101 radio mounting kit, dash kit with HVAC control panel, plug-and-play harnesses, mounting brackets, mounting screws, and USB retention harness all included.
10-inch HD capacitive touchscreen with 16.7 million colours: Large, sharp, responsive display replacing the Accord's factory centre stack.
Apple CarPlay and Android Auto: Wired CarPlay and Android Auto for navigation, music, messaging, and calls through the phone interface on the 10-inch display.
Climate control retention: Dash kit and HVAC control panel retain the Accord's factory climate controls after installation. Applies to both navigation and base model variants.
Steering wheel audio control retention: Factory steering wheel audio buttons retained via the included plug-and-play harness.
Factory display retention: Exterior temperature display in the instrument cluster retained where factory fitted. Dash climate display retained on navigation-equipped models where factory fitted.
4V 6-channel RCA output with built-in DSP and TOSLINK output: Foundation for connecting external amplifiers and digital audio processors in a full system build.
Bluetooth with aptX: Hands-free calling and high-quality audio streaming.
AM/FM with RDS tuner, dual USB, and HDMI input: Comprehensive source options beyond standard aftermarket head units.
Suits navigation and base model variants: Compatible with both equipped and non-equipped Accord models.
Right-hand and left-hand drive compatible: Suits both RHD and LHD vehicles.
iGO navigation optional: Not included; available separately.

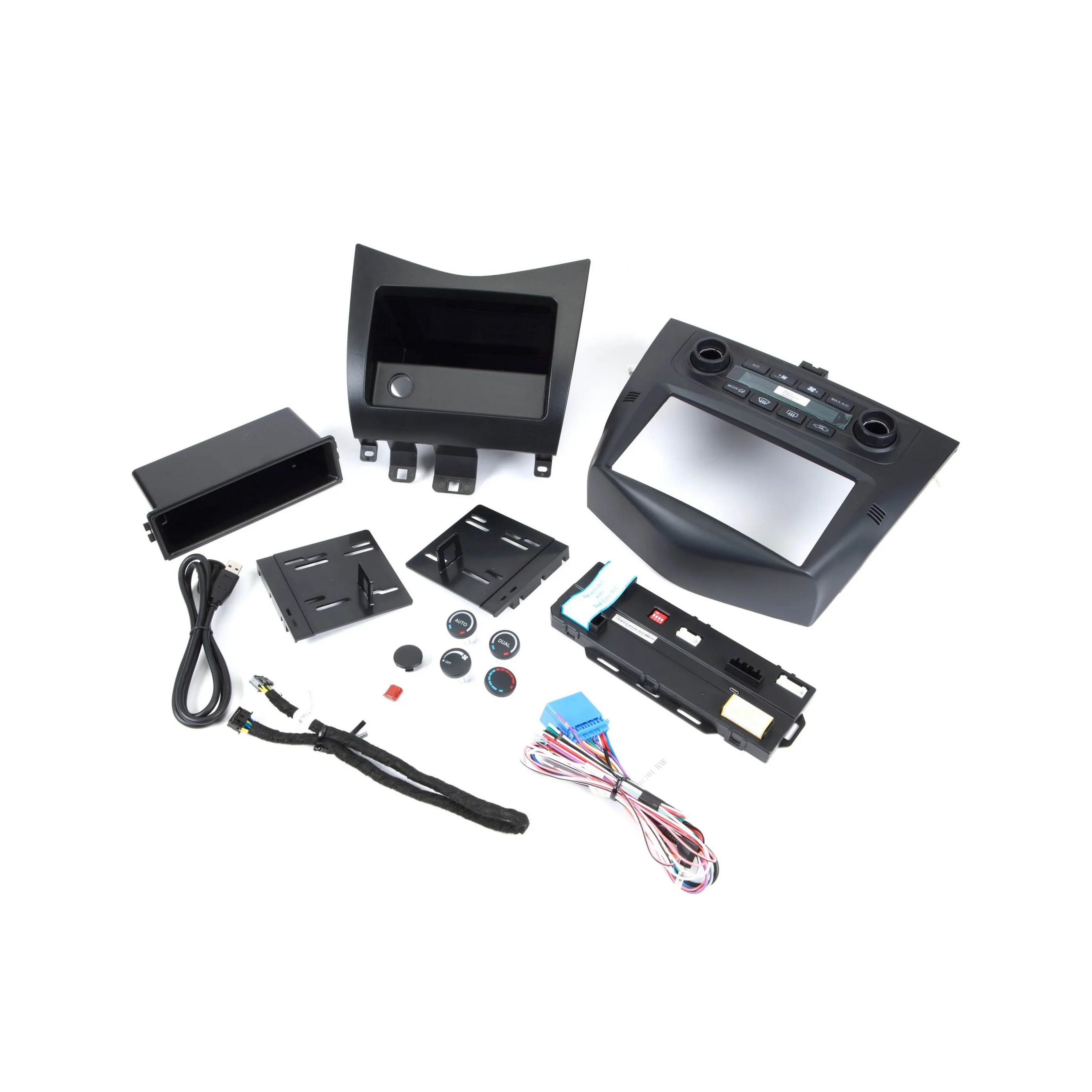

What's in the box
- Stinger HEIGH10 10" Infotainment System (UN1810)
- RPK4-HD1101 Radio Mounting Kit
- Dash Kit with HVAC Control Panel
- Plug-and-Play Harnesses
- Mounting Brackets
- Mounting Screws
- USB Retention Harness
Technical specs
| Specification |
Detail |
| SKU |
SRP-HD1101H |
| Brand |
Stinger |
| Included Head Unit |
Stinger HEIGH10 (UN1810) |
| Screen Size |
10-inch HD capacitive touchscreen |
| Colour Depth |
16.7 million colours |
| Apple CarPlay |
Yes, wired |
| Android Auto |
Yes, wired |
| AM/FM Radio |
Yes, with RDS tuner |
| Dual USB |
Yes |
| HDMI Input |
Yes |
| RCA Output |
4V, 6-channel |
| Digital Sound Processor |
Yes, with TOSLINK output |
| Bluetooth |
Yes, hands-free and audio with aptX |
| iGO Navigation |
Optional, not included |
| Climate Control Retention |
Yes |
| SWC Retention |
Yes |
| Exterior Temp Display Retention |
Yes, if factory fitted |
| Dash Climate Display Retention |
Yes, navigation models, if factory fitted |
| USB Socket Addition |
Yes |
| Plug and Play |
Yes |
| Drive Side |
RHD and LHD |
Compatible with
| Make |
Model |
Years |
| Honda |
Accord |
2003 to 2007 |
| Honda |
Accord Euro |
2003 to 2007 |
Suits navigation and base model variants. Suits both right-hand drive and left-hand drive vehicles.
Frequently asked questions
Does the SRP-HD1101H include the HEIGH10 head unit? Yes. The Stinger HEIGH10 infotainment system (UN1810) is included in this kit along with all vehicle-specific installation hardware. This is a complete all-in-one upgrade package.
Will this kit retain my Honda Accord's factory climate controls? Yes. The kit includes a dash kit with HVAC control panel and plug-and-play harnesses designed to retain the Accord's factory climate controls after installation. This applies to both navigation and base model variants.
Is this kit compatible with both navigation and non-navigation Accord models? Yes. The SRP-HD1101H suits both navigation-equipped and base model Honda Accord and Accord Euro vehicles from 2003 to 2007.
What audio outputs does the HEIGH10 provide for a system build? The HEIGH10 features a 4V 6-channel RCA output and a built-in digital sound processor with TOSLINK output, providing a foundation for connecting external amplifiers and audio processors in a full system build.
Is iGO navigation included? No. iGO navigation is an optional addition and is not included in the kit.
