Description

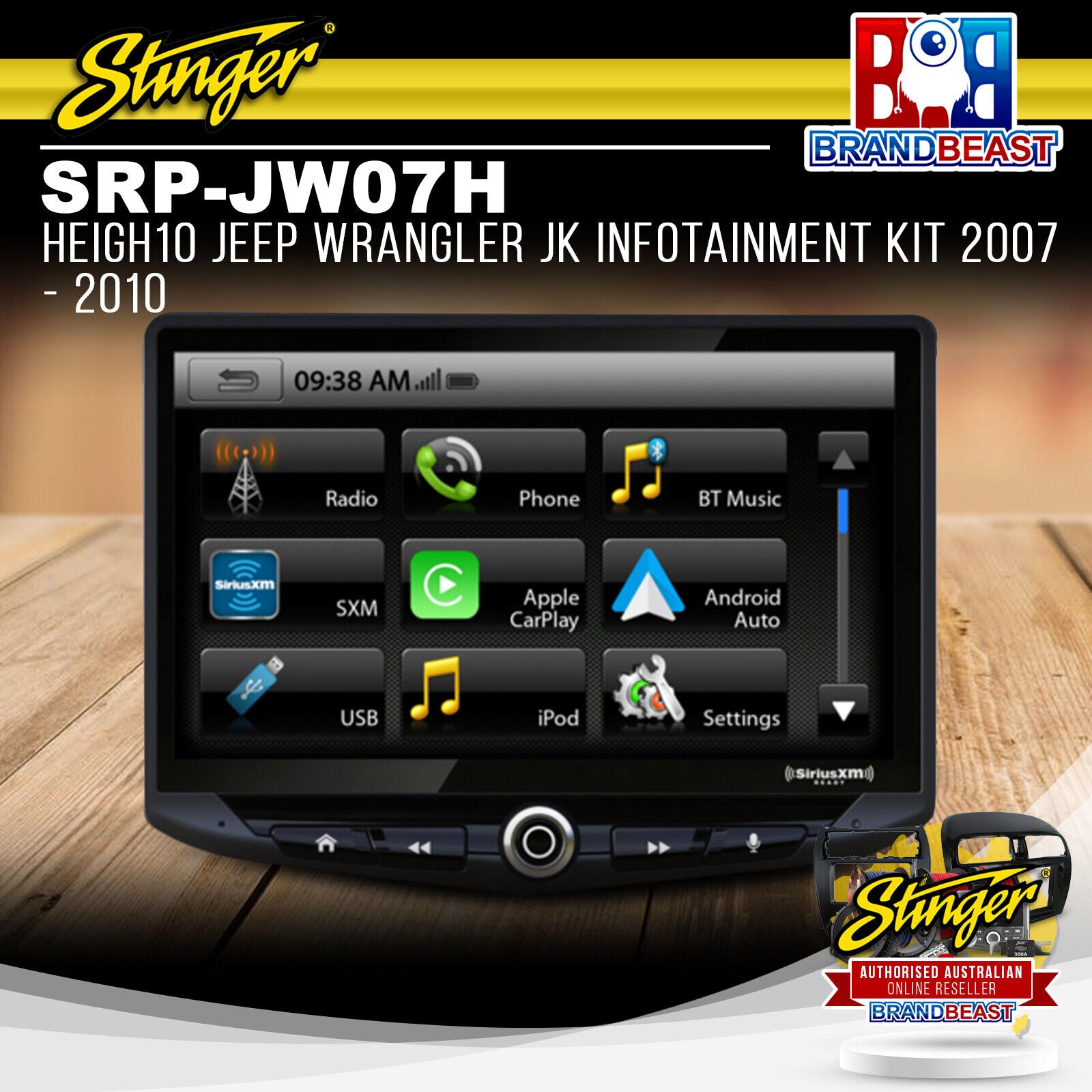

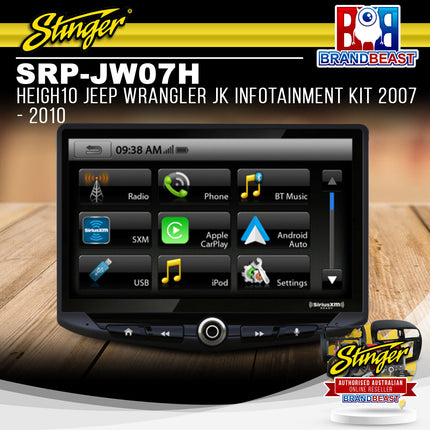

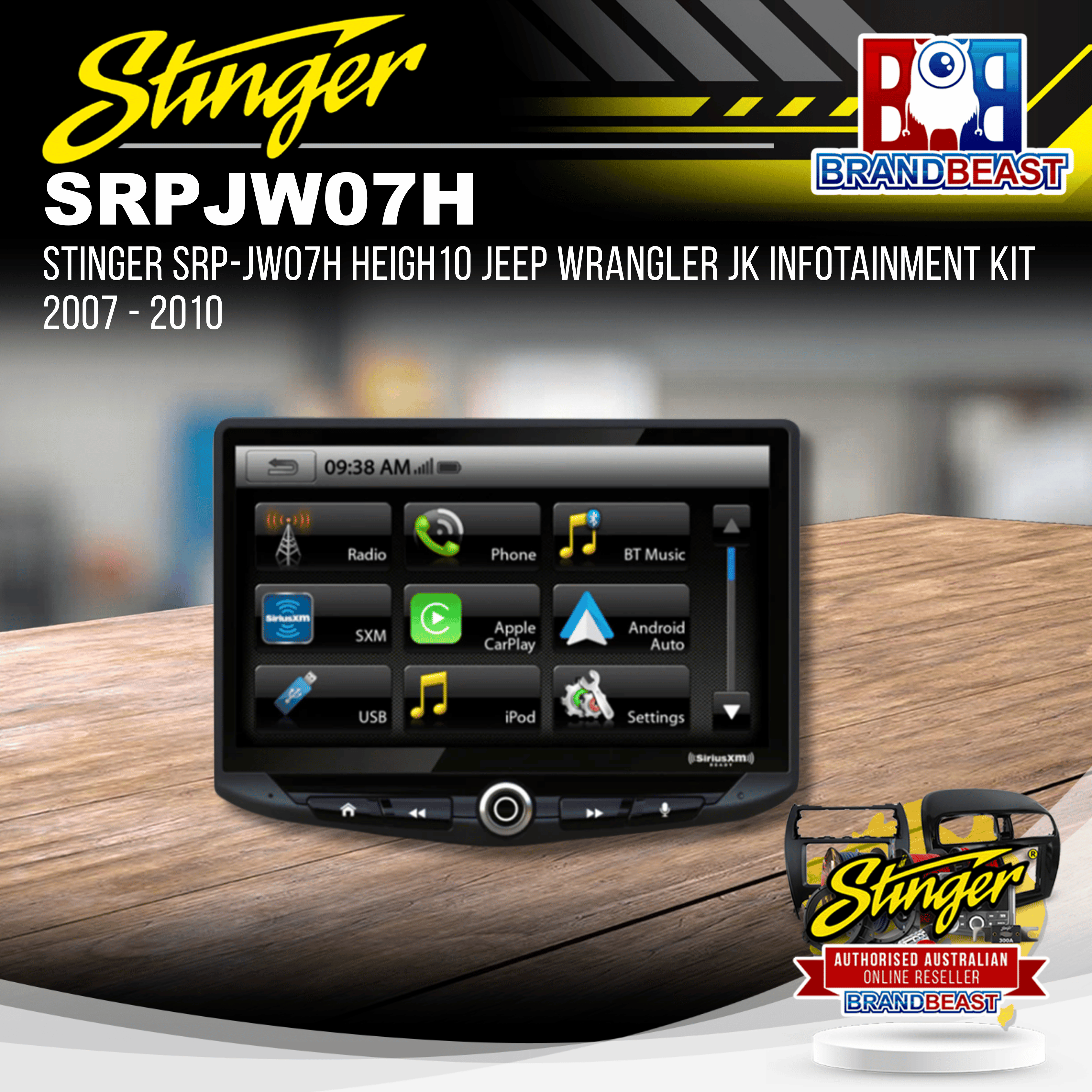

Stinger SRP-JW07H HEIGH10 Complete 10 Inch Infotainment Upgrade Kit for Jeep Wrangler JK 2007 to 2018 with CarPlay Android Auto DSP and Factory Feature Retention

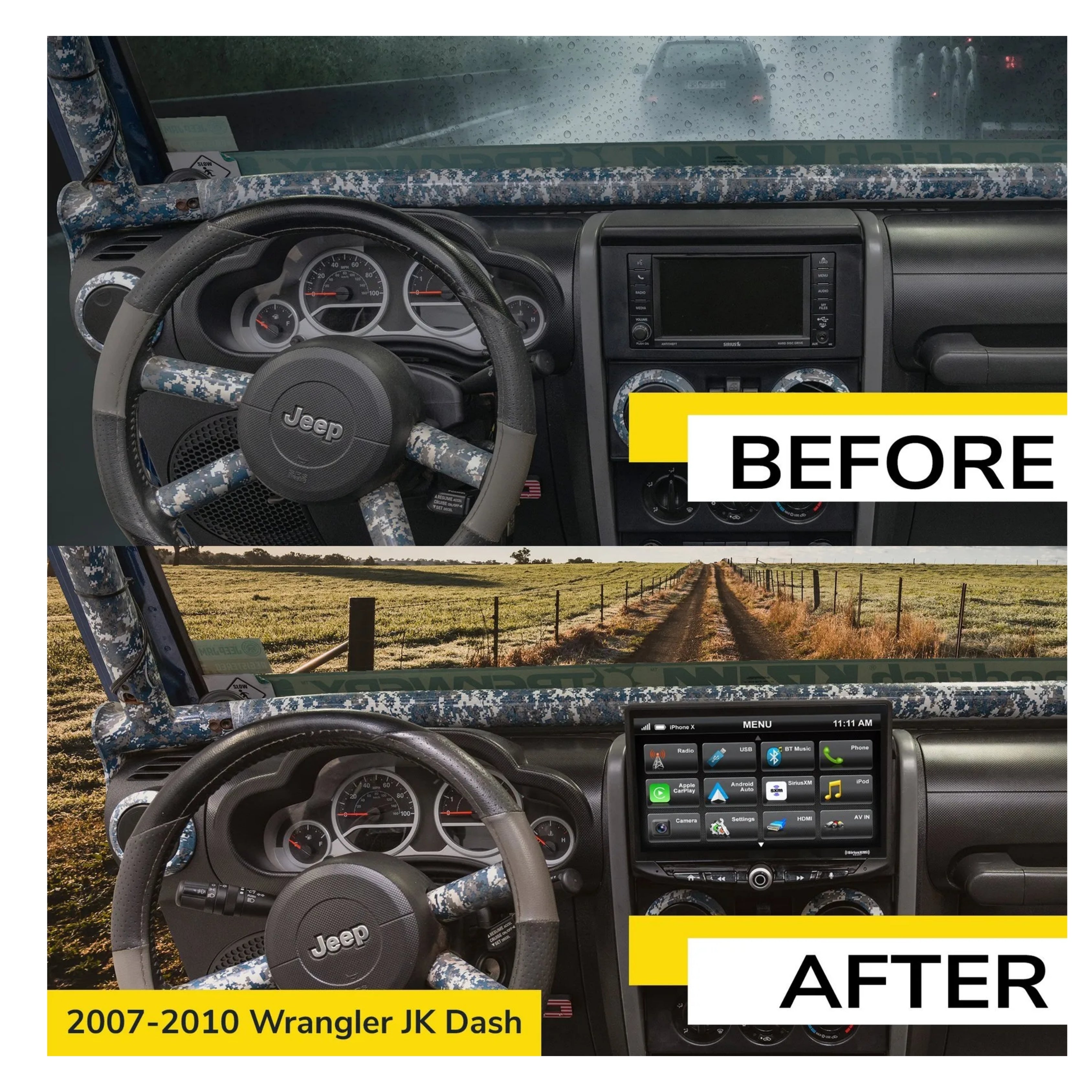

The SRP-JW07H from Stinger is a complete HEIGH10 infotainment upgrade kit for the Jeep Wrangler JK from 2007 to 2018, pairing the Stinger HEIGH10 10 inch infotainment system with a vehicle-specific dash panel, interface harness, and antenna adaptor. The kit retains factory OEM amplified audio (if equipped) and factory steering wheel controls (if equipped). Apple CarPlay, Android Auto, 4 camera inputs, a digital sound processor with TOSLINK output, and 4V 6-channel RCA outputs are all included. Note that front to rear fade is not retained on amplified vehicles due to Chrysler OEM amplifier limitations.
Product overview

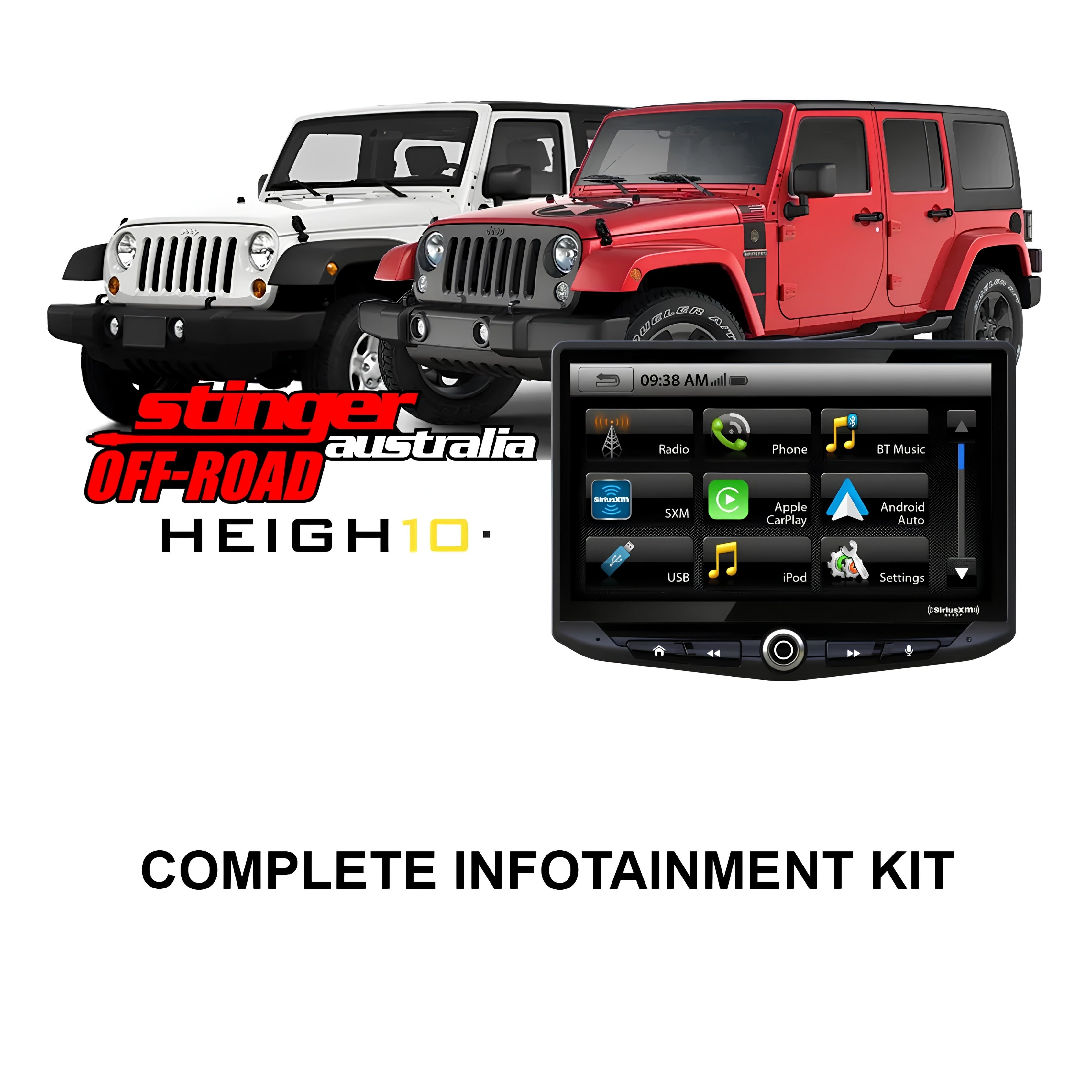

The SRP-JW07H includes the Stinger HEIGH10 10 inch infotainment system alongside a vehicle-specific dash panel, vehicle-specific interface and harness, vehicle-specific antenna adaptor, dual USB accessory socket and cigarette lighter replacement harness, and vehicle installation instructions. The 22-pin Chrysler-style connector provides plug and play connection to the factory wiring with bare wire outputs to the HEIGH10.

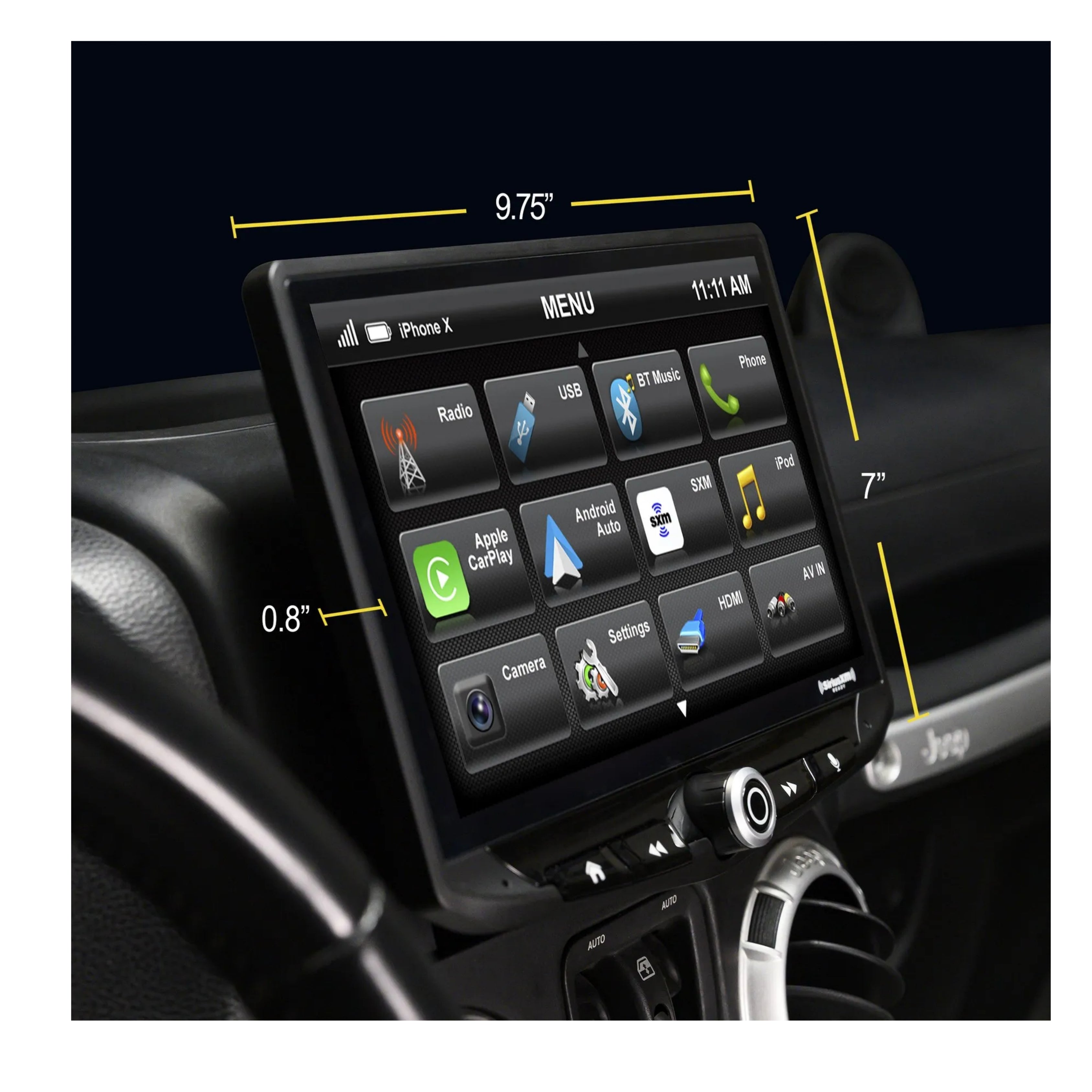

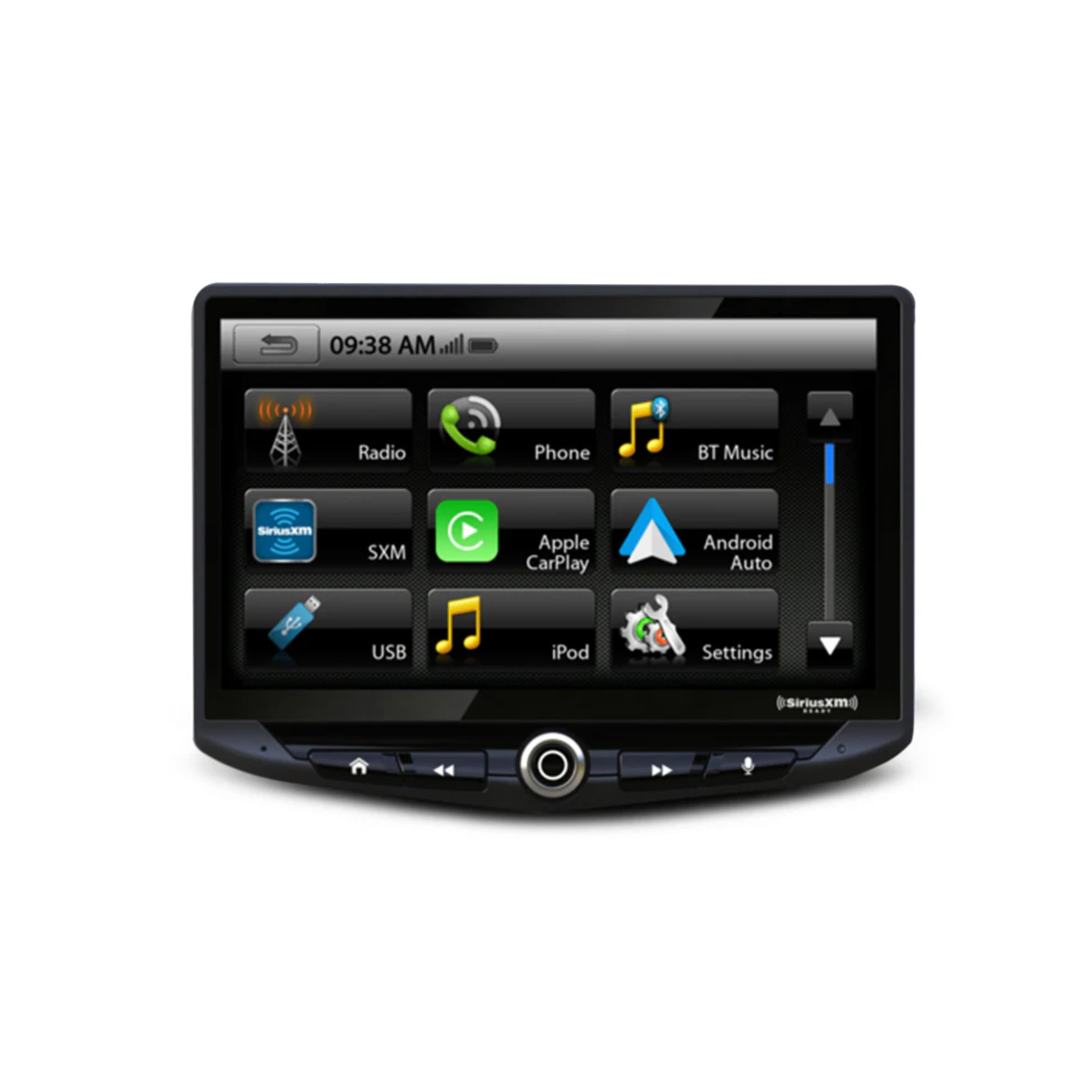

The HEIGH10 features a 1024x600 HD 10 inch capacitive touchscreen with 16.7 million colours, Apple CarPlay, Android Auto, AM/FM with RDS, dual USB at 1.5A, HDMI input, Bluetooth 4.2 with aptX, 4x50W peak built-in amplifier, 15-band EQ with three user presets per source, TOSLINK output, and four RCA camera inputs each with independent 12V trigger wiring for external switch control. Rear seat entertainment output (2x video, 1x audio) is also provided.
Offline iGO navigation is not included and is available separately. Slight trimming behind the dash may be required during installation. Front to rear fade is not retained on amplified vehicles due to limitations of the Chrysler OEM amplifier. The kit is compatible with both factory amplified and non-amplified models.
Features and benefits
Jeep Wrangler JK 2007 to 2018 specific complete kit: Vehicle-specific dash panel, interface harness, antenna adaptor, and dual USB accessory socket harness are all included alongside the HEIGH10 head unit for a complete single-purchase upgrade.
HEIGH10 10 inch HD capacitive touchscreen: 1024x600 HD 10 inch capacitive touchscreen with 16.7 million colours, Apple CarPlay, Android Auto, AM/FM with RDS, dual USB at 1.5A, HDMI input, and Bluetooth 4.2 with aptX for handsfree calling and audio streaming.
4 camera inputs with independent triggers: Four RCA camera inputs each with independent 12V trigger wiring allow external switch control of individual camera views, suited to off-road and trail applications with multiple camera positions.
Digital sound processor with TOSLINK output: 15-band EQ with three user presets per source, TOSLINK optical output, and 4V 6-channel RCA preouts covering front, rear, and subwoofer channels for amplifier integration.
Factory OEM amplifier and SWC retention: Factory OEM amplified audio (if equipped) and factory steering wheel controls (if equipped) are retained. Note that front to rear fade is not retained on amplified vehicles due to Chrysler OEM amplifier limitations.
Rear seat entertainment output: Two RCA video outputs and one RCA audio output provide rear seat entertainment connectivity for compatible rear screen installations.
Dual zone and off-road navigation capability: Android Auto and Apple CarPlay provide access to phone-based navigation including off-road mapping applications. Optional iGO offline mapping is available separately via naviextras.com.
What's in the box
- 1x Stinger HEIGH10 10 inch Infotainment System
- 1x Vehicle-Specific Dash Panel
- 1x Vehicle-Specific Interface and Harness
- 1x Vehicle-Specific Antenna Adaptor
- 1x Dual USB Accessory Socket and Cigarette Lighter Replacement Harness
- 1x Vehicle Installation Instructions
Vehicle feature retention
| Feature |
Retained |
| Factory OEM Amplified Audio |
Yes, if equipped. Front to rear fade not retained on amplified vehicles |
| Factory Steering Wheel Controls |
Yes, if equipped |
Technical specs
| Specification |
Detail |
| SKU |
SRP-JW07H |
| Manufacturer Part Number |
SRP-JW07H |
| Brand |
Stinger |
| Screen Size |
10 inch HD capacitive touchscreen |
| Resolution |
1024 x 600 |
| Colour Depth |
16.7 million colours |
| Apple CarPlay |
Yes, certified |
| Android Auto |
Yes, certified |
| AM/FM Tuner |
Yes, with RDS |
| USB Inputs |
2x rear, 1.5A output |
| HDMI Input |
Yes, 1x rear |
| AV RCA Input |
Yes, 1x |
| Camera Inputs |
4x RCA with independent 12V triggers |
| RCA Preouts |
4V, 6 channel (front, rear, subwoofer) |
| DSP |
Yes, 15-band EQ, 3 presets per source |
| TOSLINK Output |
Yes |
| Built-In Amplifier |
4x 50W peak |
| Bluetooth |
4.2, handsfree and A2DP with aptX |
| Rear Seat Entertainment |
2x RCA video, 1x RCA audio output |
| Factory Connector |
22-pin Chrysler style |
| Plug and Play |
Yes, factory connector to bare wires |
| Navigation |
CarPlay and Android Auto. iGO offline available separately |
Compatible with
This kit is confirmed for the following Jeep vehicle. Note the product title references 2007 to 2010 however the source data confirms fitment for the full JK range from 2007 to 2018. Confirm your specific build year before ordering.
| Make |
Model |
Variant |
Years |
| Jeep |
Wrangler |
JK chassis |
2007 - 2018 |
Frequently asked questions
Does the SRP-JW07H suit Jeep Wrangler JK models beyond 2010?
Yes. The application notes confirm this kit works with 2011 to 2018 Wrangler JK vehicles in addition to 2007 to 2010 models. The product title references 2007 to 2010 only however the confirmed fitment range covers the full JK chassis from 2007 to 2018.
Does the SRP-JW07H retain front to rear fade on amplified Wrangler models?
No. Front to rear fade is not retained on amplified vehicles due to limitations of the Chrysler OEM amplifier. The factory OEM amplified audio system is retained but fade capability is lost. Consider this before ordering if fade control is required for your installation.
Is offline iGO navigation included?
No. Offline iGO navigation is not included and is available separately via naviextras.com. Android Auto and Apple CarPlay provide access to phone-based navigation and off-road mapping applications including Gaia GPS.
Does the SRP-JW07H require any dash trimming?
The kit may require some slight trimming behind the dash during installation. Vehicle installation instructions are included in the kit. Professional installation is recommended.
How do the four camera inputs work?
Each of the four RCA camera inputs has its own independent 12V trigger wiring, allowing an external switch to be wired to jump directly to the relevant camera view. This is particularly suited to off-road applications with multiple camera positions such as front, rear, side, and underbody cameras.
