Description
The Complete Navara Upgrade HEIGH10 10" Infotainment With CarPlay, iGo Navigation, SWC and Camera Retention
Product Overview
The Stinger SRP-NI002H is an all-inclusive infotainment replacement kit designed for 2015–2019 Nissan Navara D23 (NP300) ST, ST-X, and ST-L models. This kit combines the Stinger HEIGH10 10" infotainment system with all vehicle-specific hardware to retain factory steering wheel audio controls, factory USB socket, factory reverse camera (where fitted), and the factory antenna delivering a complete, plug-and-play upgrade without sourcing individual components.

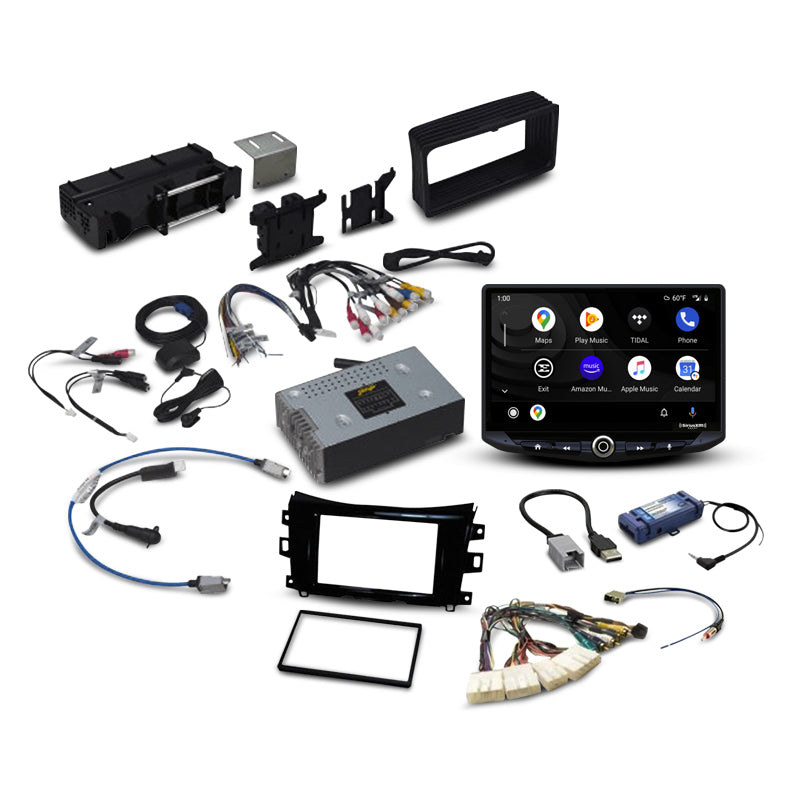

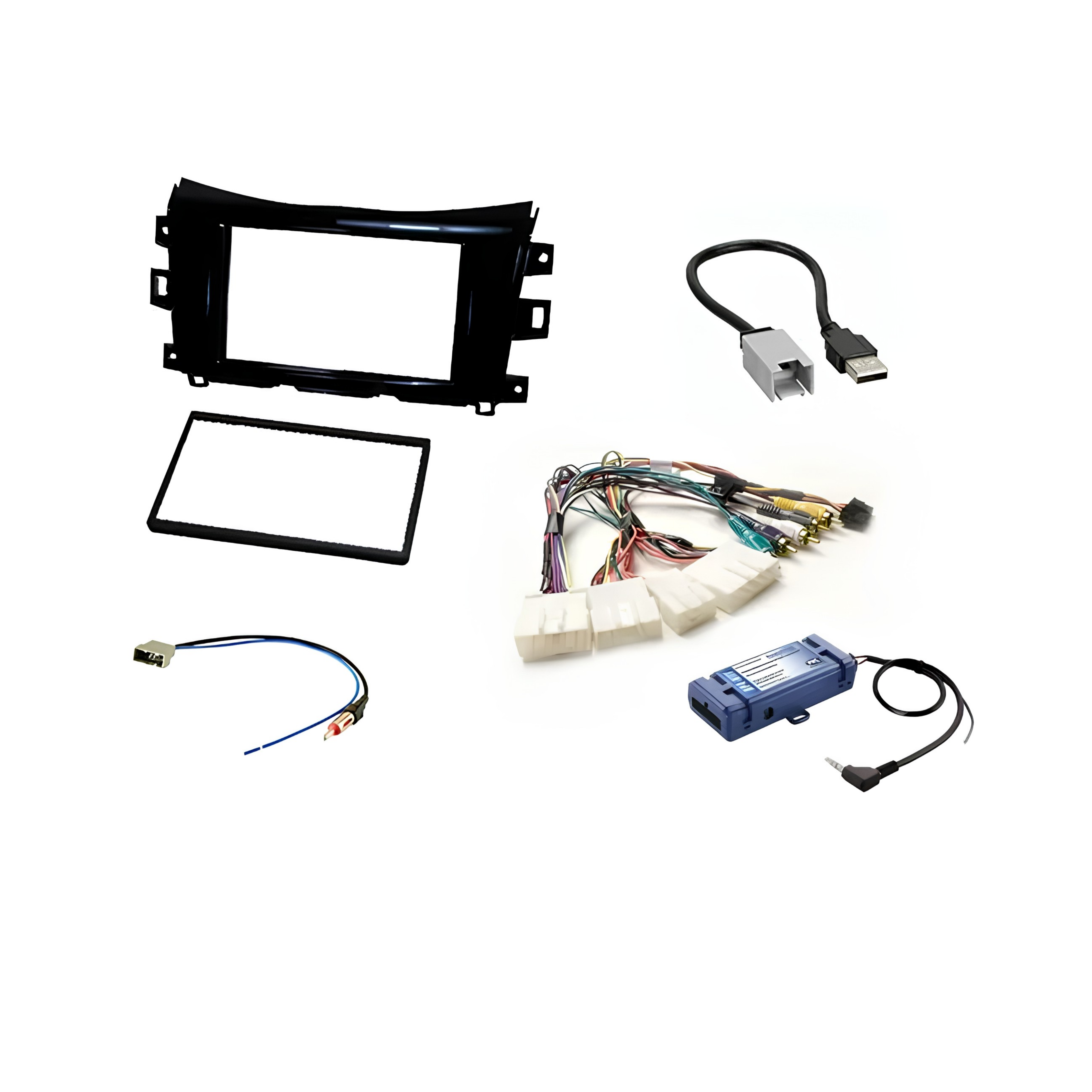

The bundle includes the HEIGH10 (UN1810), BN25K7351 radio mounting kit, PACRP4NI11 vehicle interface with harness, ST27AA36 antenna adaptor, AXUSBM-B USB retention harness, and an iGo navigation card with Australian and New Zealand maps. Please note: this kit is compatible with ST, ST-X, and ST-L grades only. The 360-degree camera system is not retained. The MFD clock display in the dash cluster is not retained. The Stinger HEIGH10 head unit is included.
Key Specifications
- Manufacturer Part Number: SRP-NI002H
- Included head unit: Stinger HEIGH10 UN1810 (10" display)
- Vehicle compatibility: Nissan Navara D23 NP300 2015–2019 — ST, ST-X, ST-L grades only
- Screen size: 10" HD capacitive touchscreen
- Colour depth: 16.7 million colours
- Apple CarPlay: Yes
- Android Auto: Yes
- AM/FM radio: Yes — with RDS tuner
- Dual USB: Yes
- HDMI input: Yes
- RCA output: 4V, 6-channel
- Digital Sound Processor: Yes — with TOSLINK output
- Bluetooth: Yes — handsfree and audio playback with aptX
- iGo navigation: Yes — included (navigation card, AU/NZ maps)
- Steering wheel audio control retention: Yes
- Factory USB socket retention: Yes
- Factory reverse camera retention: Yes — if fitted (standard reverse camera only)
- Factory antenna retention: Yes
- 360-degree camera retention: No
- MFD clock display retention: No
- Plug & Play: Yes
Features & Benefits
-

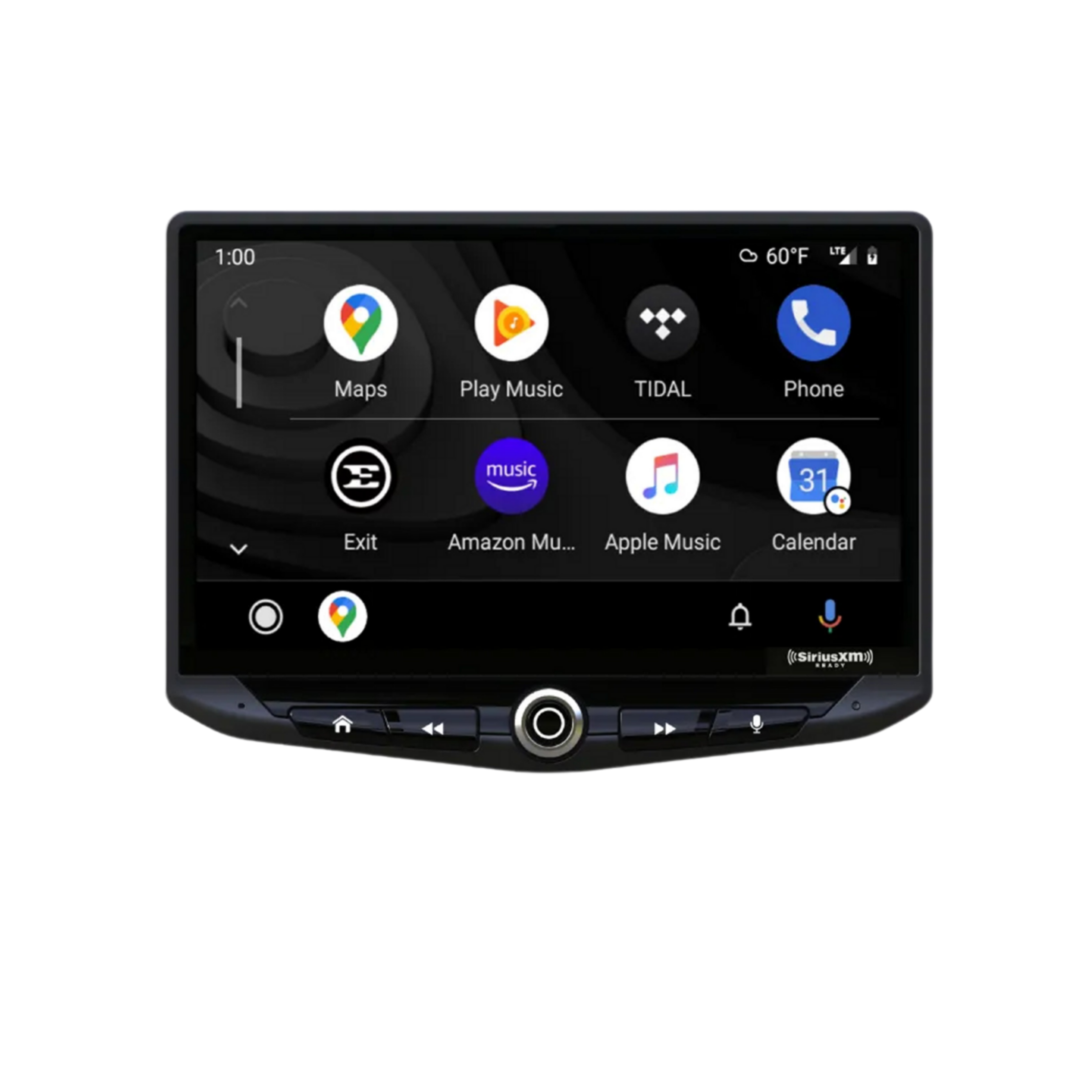

10" HD Capacitive Touchscreen — The HEIGH10's 10" display with 16.7 million colours upgrades the Navara's factory centre stack to a modern infotainment interface with a clean, professional result.
-
Apple CarPlay & Android Auto — Certified CarPlay and Android Auto with full access to navigation, music, calls, and messaging from a connected smartphone on the 10" screen.
-
iGo Offline Navigation Included — The included iGo navigation card provides Australian and New Zealand offline mapping — no mobile reception required. Maps are updatable via a naviextras.com account.
-
Steering Wheel Audio Control Retention — Factory steering wheel audio buttons are retained via the PACRP4NI11 vehicle interface, keeping hands-free audio control functional after installation.
-
Factory USB Socket Retention — The factory USB socket is retained via the AXUSBM-B harness, keeping the factory USB location accessible and functional with the new head unit.
-
Factory Reverse Camera Retention — The factory reverse camera is retained on Navara models where it is fitted. Note: the 360-degree camera system is not supported.
-
Factory Antenna Retention — The ST27AA36 antenna adaptor retains the factory antenna connection, maintaining FM/AM reception.
-
4V 6-Channel RCA Output + DSP — The HEIGH10's output stage and TOSLINK optical output provide a strong foundation for connecting external amplifiers and audio processors.
Technical Specs
| Specification |
Detail |
| Part Number |
SRP-NI002H |
| Included Head Unit |
Stinger HEIGH10 UN1810 |
| Brand |
Stinger |
| Screen Size |
10" HD capacitive touchscreen |
| Colour Depth |
16.7 million colours |
| Apple CarPlay |
Yes |
| Android Auto |
Yes |
| AM/FM Radio |
Yes — RDS tuner |
| Dual USB |
Yes |
| HDMI Input |
Yes |
| RCA Output |
4V, 6-channel |
| Digital Sound Processor |
Yes — TOSLINK output |
| Bluetooth |
Yes — handsfree + audio, aptX |
| iGo Navigation |
Yes — included (AU/NZ maps) |
| SWC Retention |
Yes |
| Factory USB Retention |
Yes |
| Reverse Camera Retention |
Yes — standard reverse camera only |
| 360-Degree Camera |
Not retained |
| Factory Antenna |
Retained via ST27AA36 |
| MFD Clock Display |
Not retained |
| Plug & Play |
Yes |
| Grade Compatibility |
ST, ST-X, ST-L only |
| Included Components |
HEIGH10 UN1810, BN25K7351 mounting kit, PACRP4NI11 interface, ST27AA36 antenna adaptor, AXUSBM-B USB harness, iGo navigation card |
Compatible With / Goes Well With
- Nissan Navara D23 NP300 ST 2015, 2016, 2017, 2018, 2019
- Nissan Navara D23 NP300 ST-X 2015, 2016, 2017, 2018, 2019
- Nissan Navara D23 NP300 ST-L 2015, 2016, 2017, 2018, 2019
- External amplifiers and processors via 4V 6-channel RCA output
- TOSLINK-compatible digital audio processors
- naviextras.com for iGo map updates
Caution: This kit is compatible with ST, ST-X, and ST-L grades only it is not confirmed for other Navara variants in this range. The 360-degree camera system is not retained. The MFD clock display in the dash cluster is not retained after installation. Confirm your Navara's grade before purchase.
Frequently Asked Questions
Does the SRP-NI002H include the HEIGH10 head unit and iGo navigation?
Yes — the Stinger HEIGH10 infotainment system (UN1810) and an iGo navigation card with Australian and New Zealand maps are both included. Maps can be updated at any time via a naviextras.com account.
Which Navara grades is this kit compatible with?
The SRP-NI002H is compatible with the Nissan Navara D23 NP300 in ST, ST-X, and ST-L grades from 2015 to 2019. It is not confirmed for other Navara grades or configurations.
Will the factory reverse camera be retained?
Yes — the standard factory reverse camera is retained where fitted. The 360-degree camera system is not supported by this kit and will not be retained.
Will the MFD clock display in the dash cluster still work?
No — control of the clock in the dash cluster MFD is not retained by this kit. This is a known limitation flagged by Stinger.
Will my factory USB socket still be accessible?
Yes — the AXUSBM-B USB retention harness retains the factory USB socket, keeping it functional and accessible after the HEIGH10 is installed.
