Description

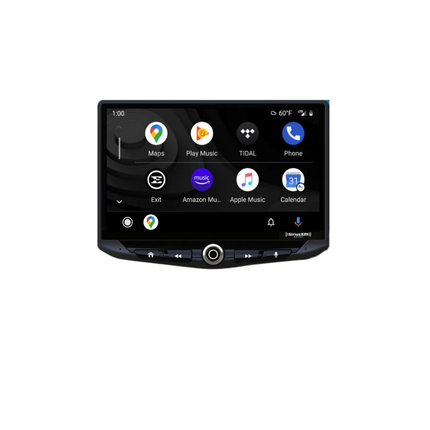

Stinger SRP-SZ001H HEIGH10 10 Inch Infotainment Replacement Kit for Suzuki Jimny 2018 to 2023 with CarPlay Android Auto SWC Reverse Camera Retention and Dual USB
The Stinger SRP-SZ001H is a complete infotainment replacement kit combining the Stinger HEIGH10 (UN1810) 10-inch HD infotainment system with all vehicle-specific hardware for the 2018 to 2023 Suzuki Jimny. Includes the head unit, radio mounting kit, vehicle interface with harness, reverse camera retention harness, dual USB flush mount kit, and ISO harness. Note: reverse camera retention is not possible on Jimny models fitted with the trapezoid OEM radio from 2021 to 2022 using the included harness. Confirm your Jimny's factory radio type before purchasing.
Product overview

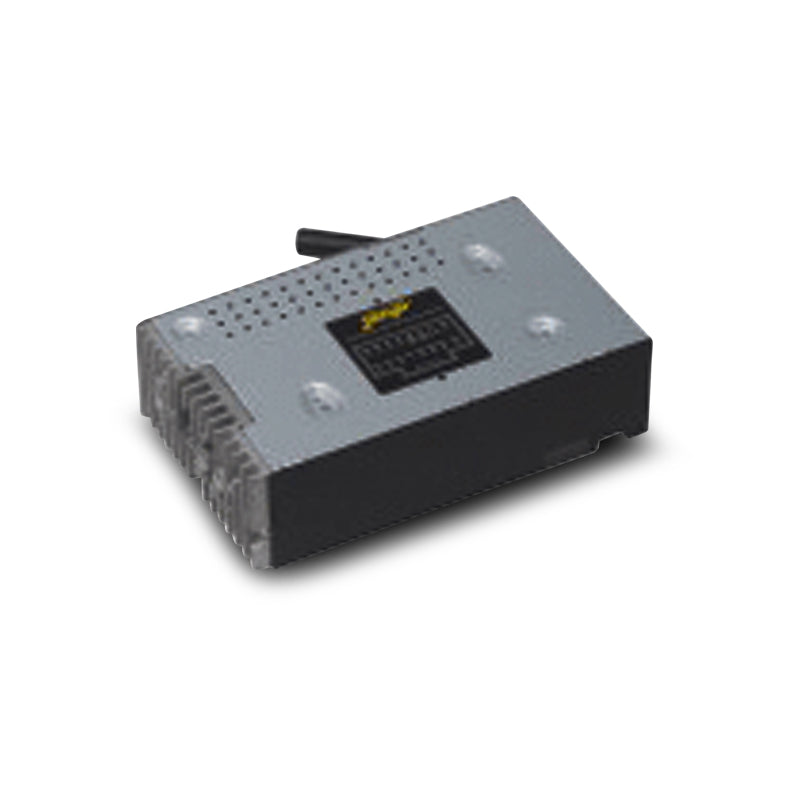

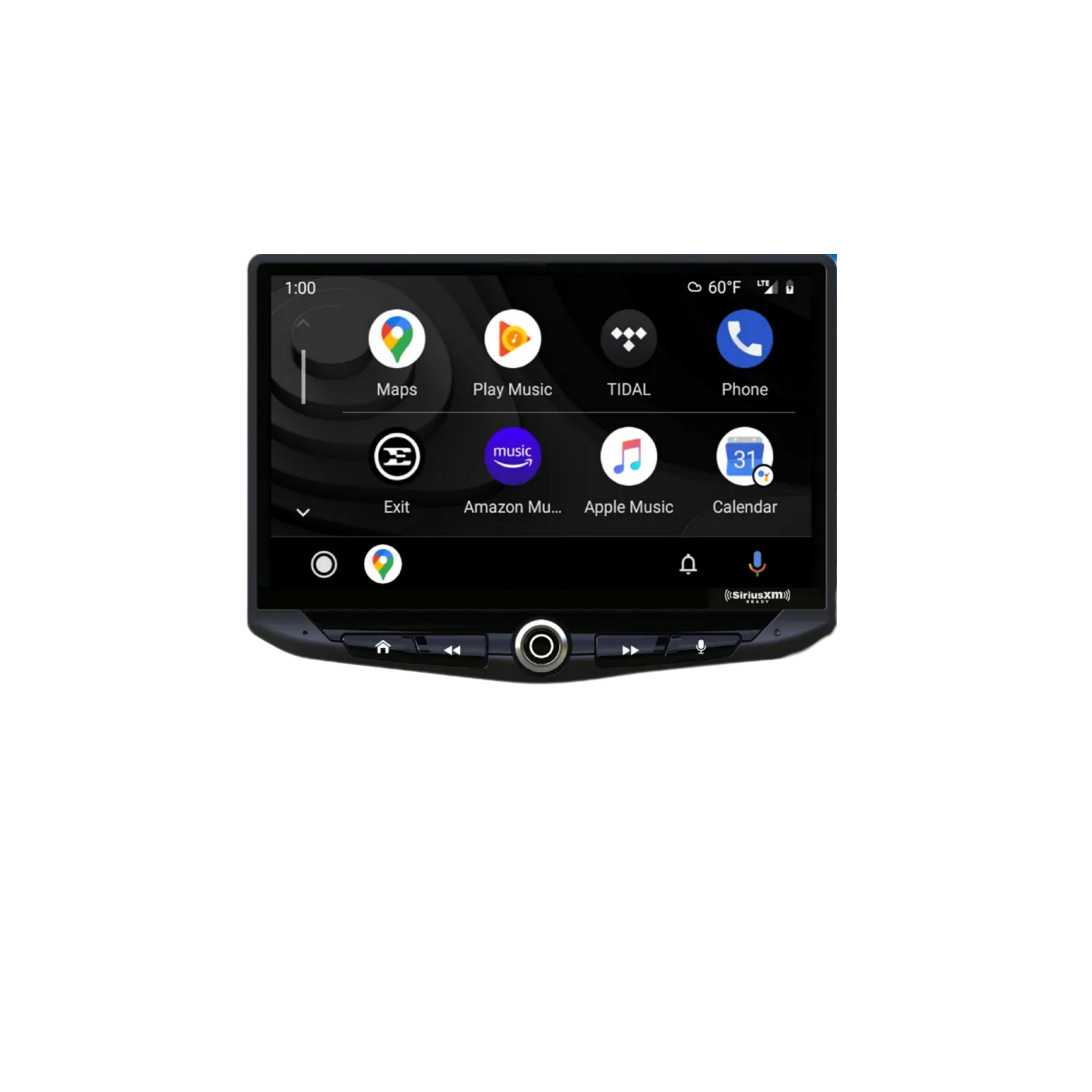

The SRP-SZ001H delivers a plug-and-play infotainment upgrade for the Jimny without sourcing individual parts. The Stinger HEIGH10 (UN1810) provides a 10-inch HD capacitive touchscreen with 16.7 million colour depth, wired Apple CarPlay and Android Auto, AM/FM with RDS, dual USB, HDMI input, Bluetooth with aptX for hands-free calling and audio streaming, a 4V 6-channel RCA output, and a built-in digital sound processor with TOSLINK output for connecting external amplifiers and processors.
Factory steering wheel audio controls are retained via the included vehicle interface on Jimny models factory-fitted with this feature. The included reverse camera retention harness retains the factory reverse camera in compatible models. Jimny vehicles fitted with the trapezoid OEM radio from 2021 to 2022 are excluded from camera retention using the included harness confirm the factory radio type before purchasing. The trapezoid OEM radio features a distinctively shaped (non-rectangular) head unit surround.
A dual USB flush mount kit is included, allowing USB access points to be neatly integrated into the installation.
Features and benefits
Complete kit including the HEIGH10 infotainment system: Head unit, radio mounting kit, vehicle interface with harness, reverse camera retention harness, dual USB flush mount kit, and ISO harness all included.

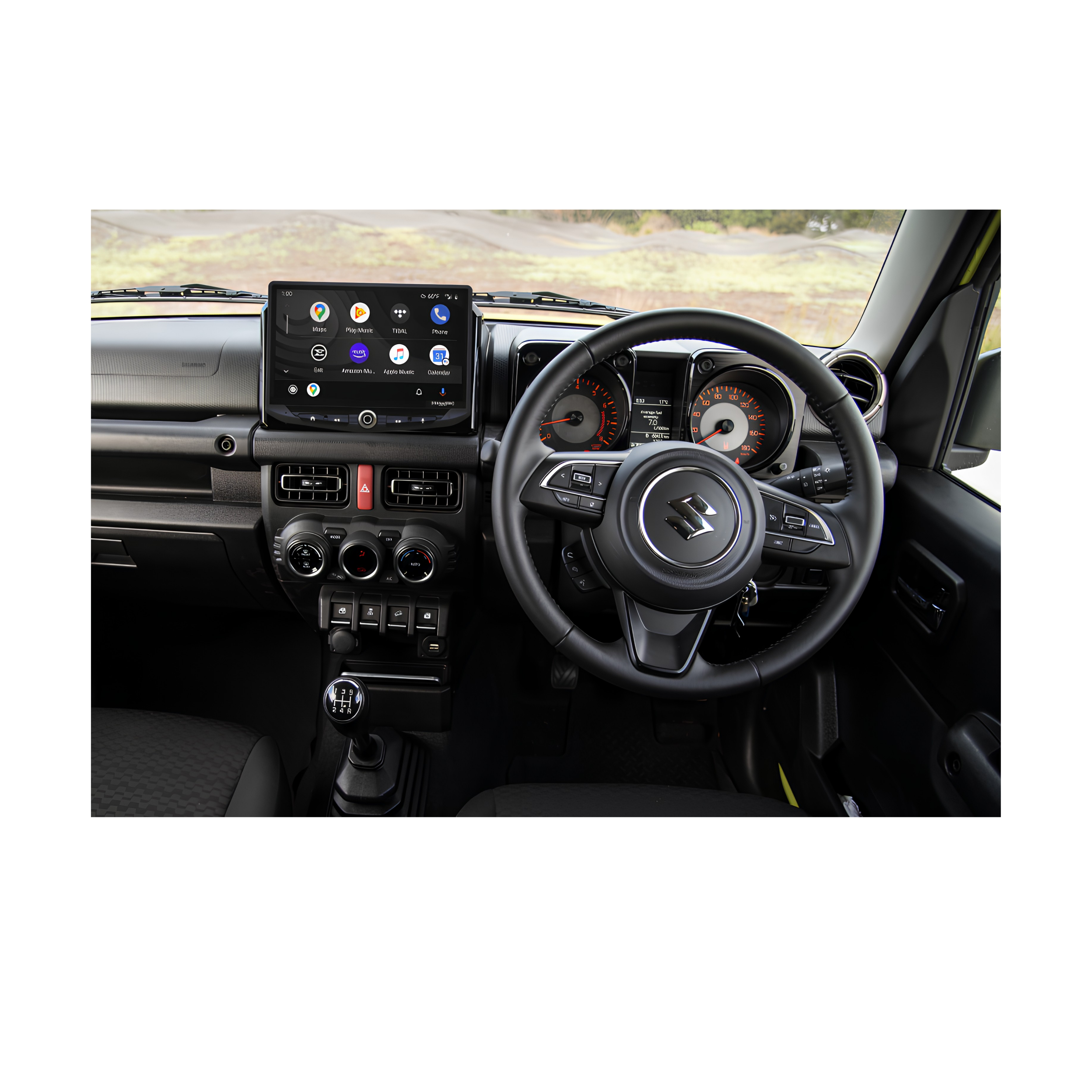

10-inch HD capacitive touchscreen with 16.7 million colours: Large, sharp, responsive display for the Jimny's compact centre stack.
Apple CarPlay and Android Auto: Wired CarPlay and Android Auto for navigation, music, messaging, and calls on the 10-inch screen.
Steering wheel control retention: Factory steering wheel audio buttons retained via the included vehicle interface on Jimny models factory-fitted with this feature.
Reverse camera retention (select models): Factory reverse camera retained via the included harness on compatible Jimny models. Not retained on Jimny models fitted with the trapezoid OEM radio from 2021 to 2022.
Dual USB flush mount kit included: Neatly integrates USB access points into the installation.
4V 6-channel RCA output with built-in DSP and TOSLINK output: Foundation for connecting external amplifiers and digital audio processors.
Bluetooth with aptX: Hands-free calling and high-quality audio streaming.

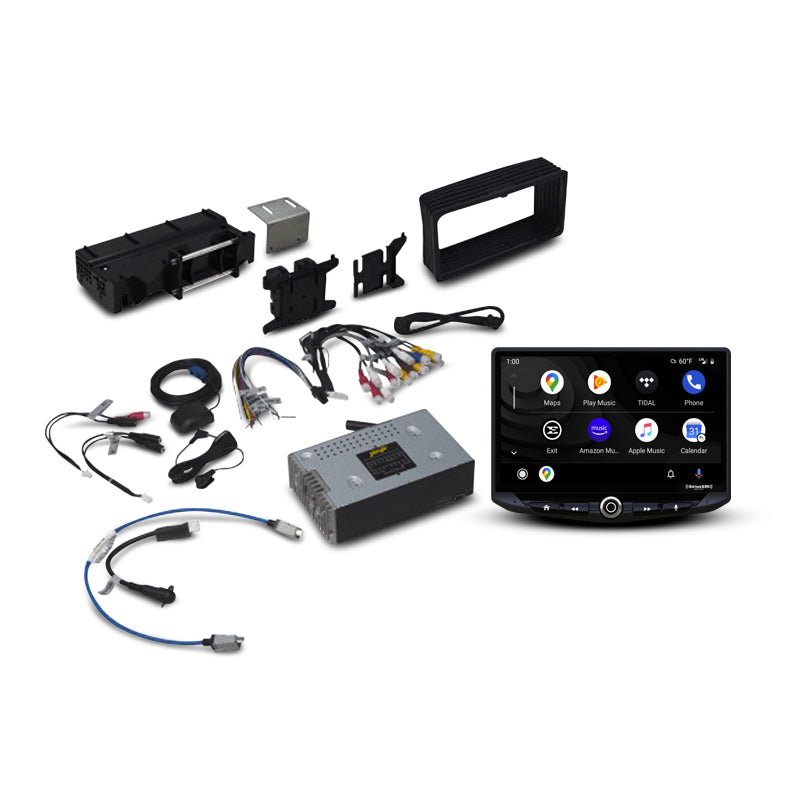

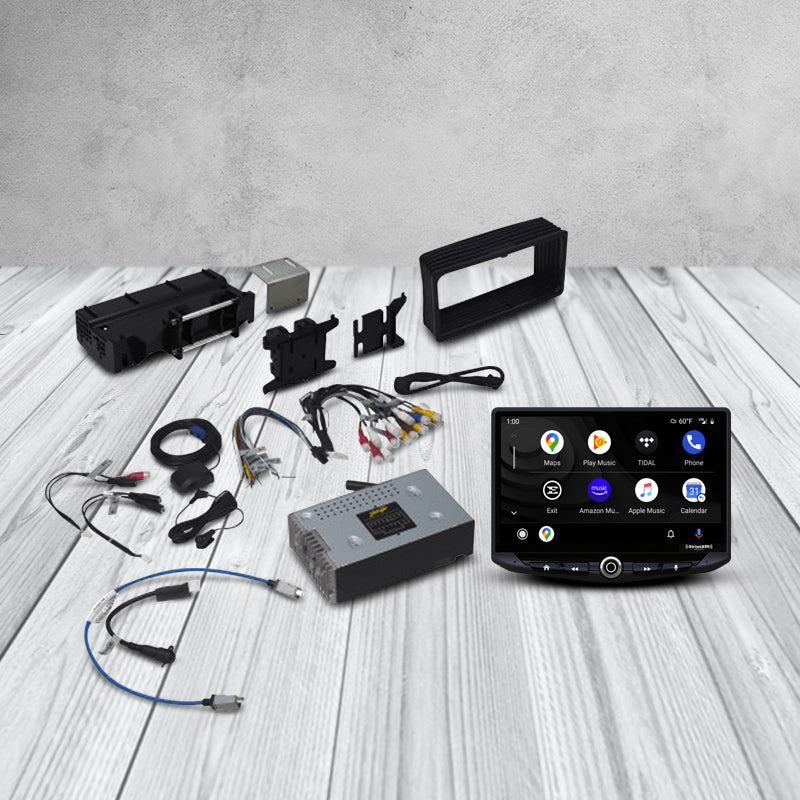

What's in the box

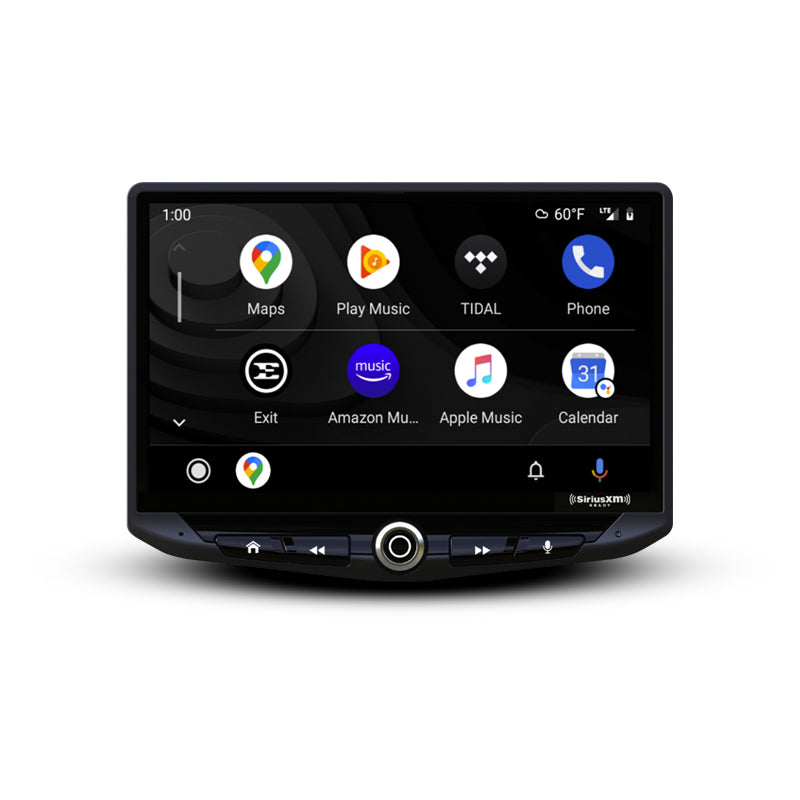

- Stinger HEIGH10 10" Infotainment System (UN1810)

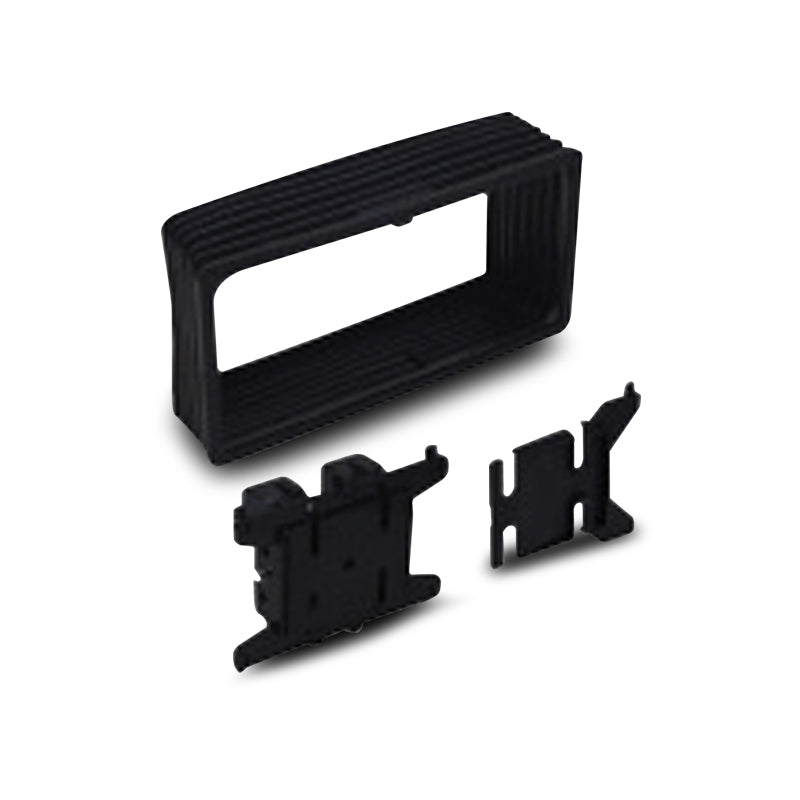

- Radio Mounting Kit

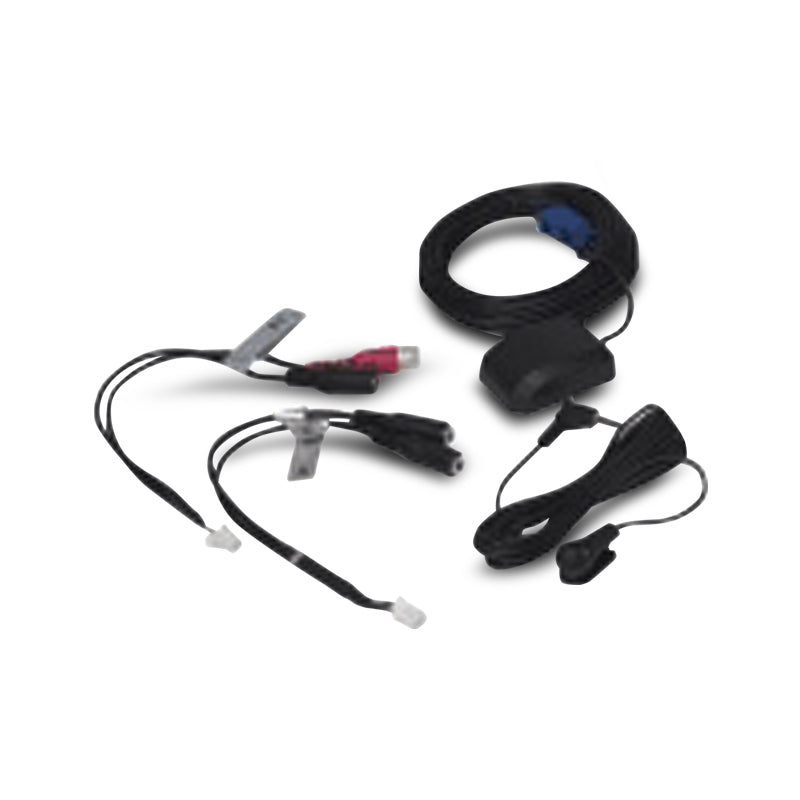

- Vehicle Interface with Harness

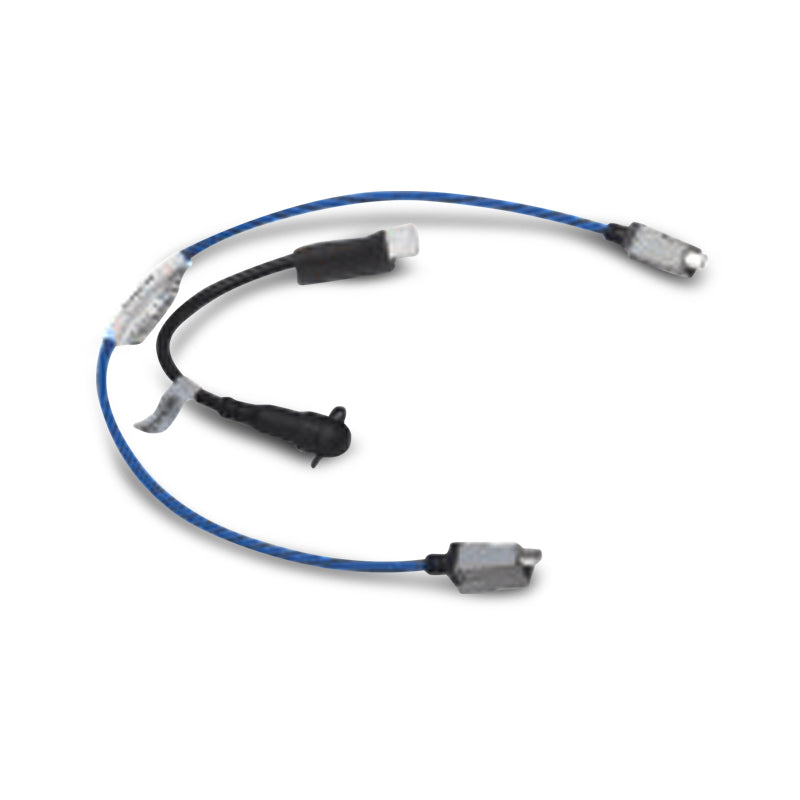

- Reverse Camera Retention Harness

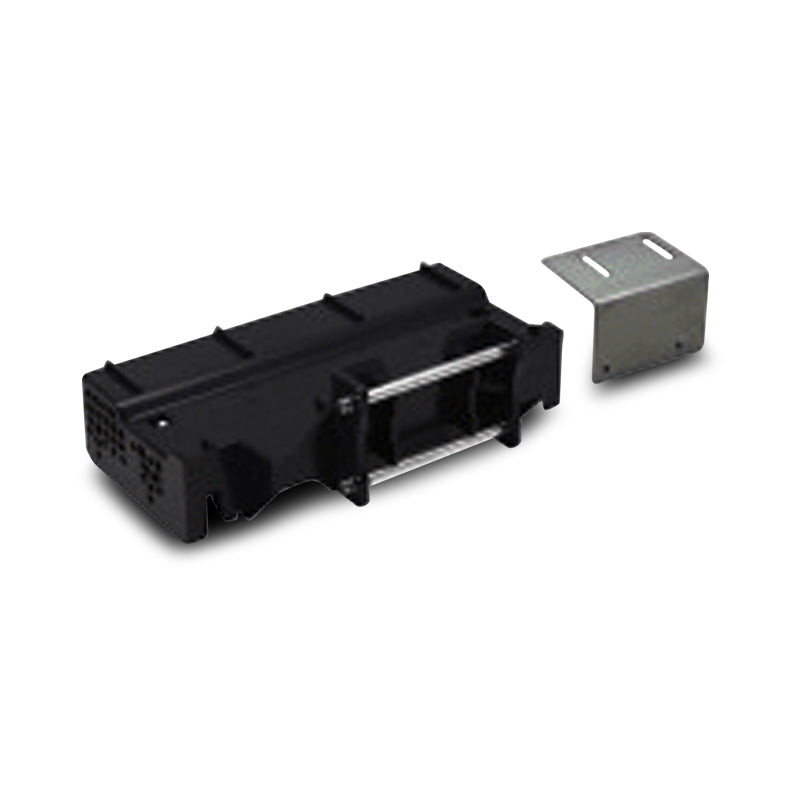

- Dual USB Flush Mount Kit

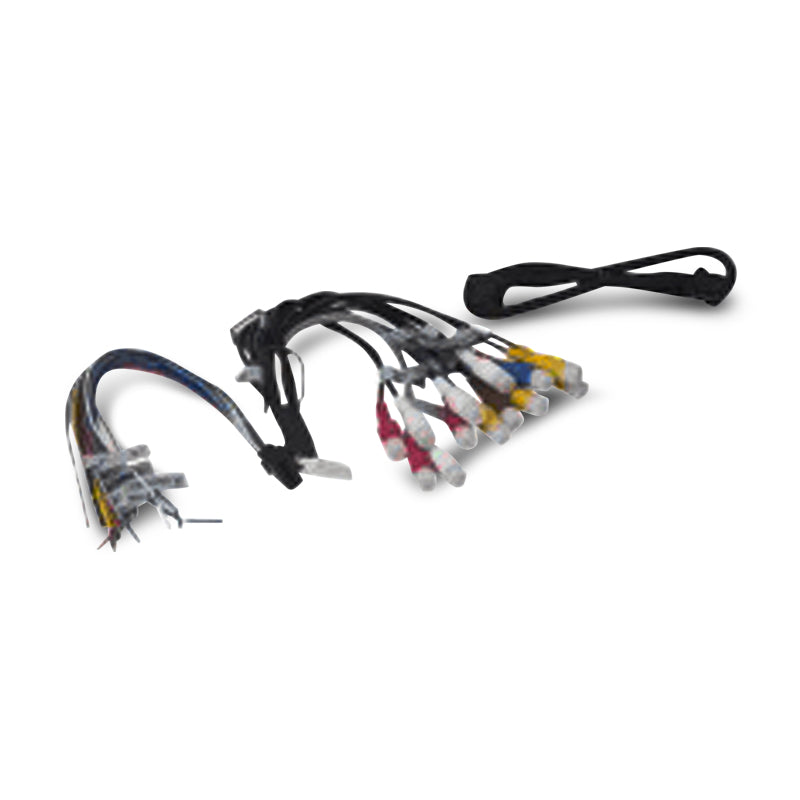

- ISO Harness
Technical specs
| Specification |
Detail |
| SKU |
SRP-SZ001H |
| Brand |
Stinger |
| Included Head Unit |
Stinger HEIGH10 (UN1810) |
| Screen Size |
10-inch HD capacitive touchscreen |
| Colour Depth |
16.7 million colours |
| Apple CarPlay |
Yes, wired |
| Android Auto |
Yes, wired |
| AM/FM Radio |
Yes, with RDS tuner |
| Dual USB |
Yes |
| HDMI Input |
Yes |
| RCA Output |
4V, 6-channel |
| Digital Sound Processor |
Yes, with TOSLINK output |
| Bluetooth |
Yes, hands-free and audio with aptX |
| SWC Retention |
Yes, if factory fitted |
| Reverse Camera Retention |
Yes, select models only |
| Camera Retention Exclusion |
Trapezoid OEM radio 2021 to 2022, not retained |
| Dual USB Flush Mount Kit |
Included |
| Plug and Play |
Yes |
Compatible with
| Make |
Model |
Years |
| Suzuki |
Jimny |
2018 to 2023 |
Note: Reverse camera retention is not available on Jimny models fitted with the trapezoid OEM radio from 2021 to 2022.
Frequently asked questions
Does the SRP-SZ001H include the HEIGH10 head unit? Yes. The Stinger HEIGH10 (UN1810) infotainment system is included along with all vehicle-specific installation hardware. This is a complete all-in-one upgrade package.
Will this kit retain my factory reverse camera? In most cases, yes. The kit includes a reverse camera retention harness for compatible Jimny models. However, Jimny vehicles fitted with the trapezoid OEM radio from 2021 to 2022 cannot retain the factory reverse camera using the included harness. Confirm your Jimny's factory radio type before purchasing.
How do I know if my Jimny has the trapezoid OEM radio? The trapezoid OEM radio features a distinctively shaped (non-rectangular) head unit surround in the factory dash. It was fitted to certain 2021 to 2022 Jimny variants. Contact us if you are unsure which radio your Jimny has before purchasing.
Will my steering wheel audio controls be retained? Yes, on Jimny models factory-fitted with steering wheel audio controls, these are retained via the included vehicle interface. If your Jimny does not have factory steering wheel audio controls, this feature is not applicable.
Does the kit include a dual USB flush mount? Yes. A dual USB flush mount kit is included, allowing USB access points to be neatly integrated into the installation without external cables or adaptors.
