Stinger SRPTY011H HEIGH10 10" Infotainment Kit for Toyota 2000-2019 with CarPlay, SWC and Camera Retention
The Stinger SRPTY011H is a complete infotainment replacement kit combining the Stinger HEIGH10 10" capacitive touchscreen head unit with all vehicle-specific hardware for 22 Toyota model and chassis combinations from 2000 to 2019. Apple CarPlay, Android Auto, steering wheel control retention via the SWI-TY01 interface, and dual reverse camera retention harnesses are included. The kit suits the Corolla, Echo, Estima, FJ Cruiser, HiAce, HiLux, Kluger, LandCruiser, LandCruiser Prado, MR2, Prius C, RAV4, Rukus, Tarago, and Yaris.
Product overview
The SRPTY011H bundles the HEIGH10 UN1810 head unit with the BKTTR998 radio mounting kit, SWI-TY01 vehicle interface with harness, two camera retention harnesses (SCTYRT4 for 4-pin connector vehicles and AXBUCH-T16V for 16-pin connector vehicles), and a CPH-STI01 ISO harness into a single ready-to-install kit. This removes the need to source individual components and ensures all parts are confirmed compatible with the supported Toyota vehicles.

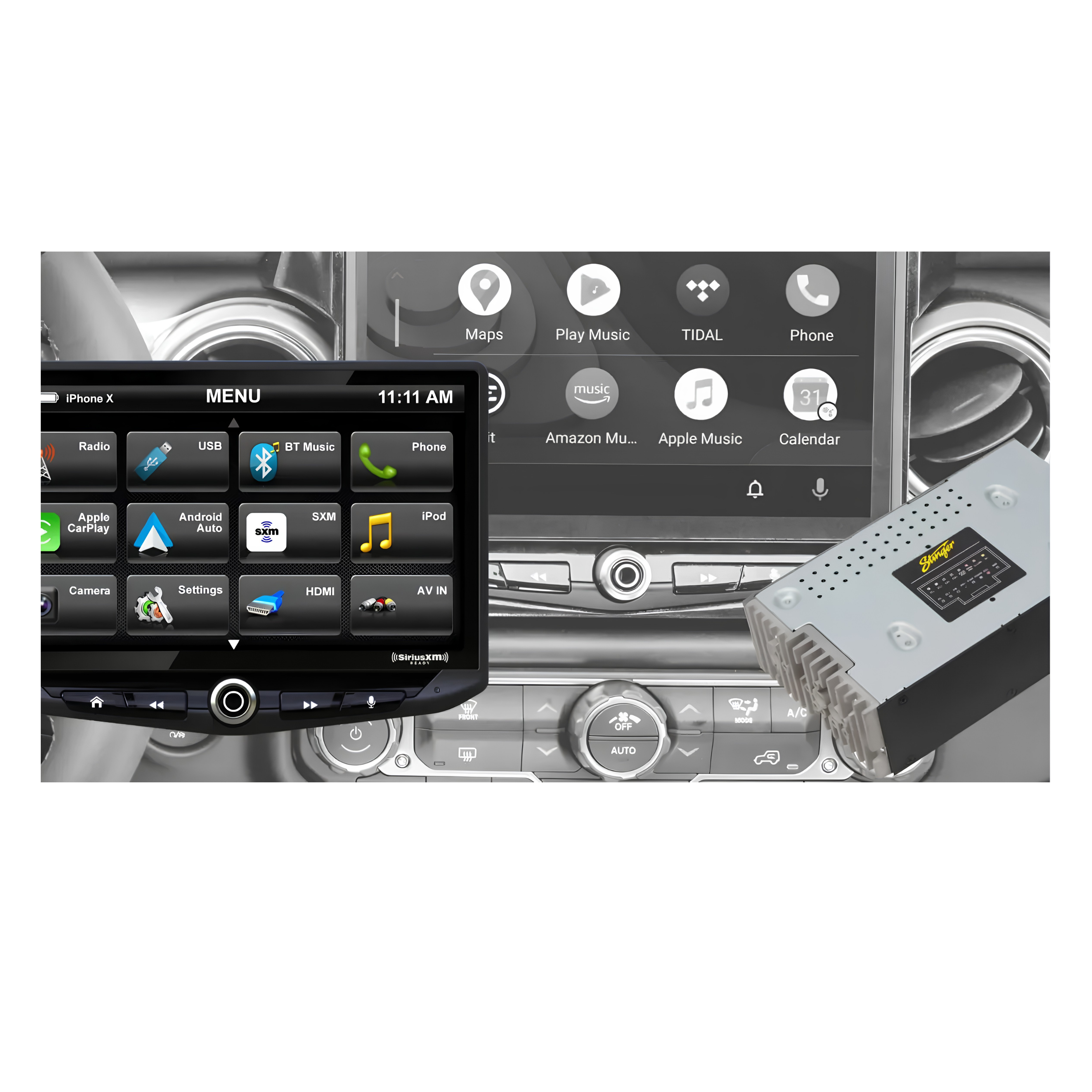

The HEIGH10 features a 10-inch HD capacitive touchscreen with 16.7 million colours, certified Apple CarPlay and Android Auto, AM/FM with RDS, dual USB, HDMI input, 4V 6-channel RCA output, a built-in digital sound processor with TOSLINK output, and Bluetooth with aptX for hands-free calling and audio playback. iGo navigation is optional and not included in the standard kit.
Reverse camera retention applies only to vehicles where the factory camera signal runs through the OEM infotainment system via a 4-pin or 16-pin connector. Cameras displayed in the rear view mirror or via an external display separate to the factory radio are not retained. A compatibility verification is recommended for your specific model, year, and variant before purchase, particularly for LandCruiser and Kluger models where multiple trim levels exist within a given year range.
Features and benefits
10" HD capacitive touchscreen: The HEIGH10's 10-inch display with 16.7 million colour depth brings a large modern infotainment screen to a broad range of Toyota models spanning two decades of production.
Apple CarPlay and Android Auto: Certified CarPlay and Android Auto provide full access to navigation, music, calls, and messaging from a connected smartphone on the 10-inch screen.
Steering wheel control retention: Factory steering wheel audio buttons are retained across all compatible Toyota models via the included SWI-TY01 vehicle interface.
Dual camera retention harnesses: Two camera harnesses are included, the SCTYRT4 for 4-pin connector vehicles and the AXBUCH-T16V for 16-pin connector vehicles, covering both connector types used across the compatible Toyota range.
4V 6-channel RCA output with DSP: The 4V 6-channel RCA output stage and TOSLINK optical output provide a solid foundation for connecting external amplifiers and audio processors.
Digital sound processor with TOSLINK output: The built-in DSP and TOSLINK optical output allow precise audio tuning and direct connection to external DSP processors and amplifiers.
Bluetooth with aptX: Bluetooth hands-free calling and audio playback with aptX codec support deliver clear wireless audio streaming from compatible devices.
Broad Toyota compatibility: 22 model and chassis combinations across 15 Toyota nameplates from 2000 to 2019 are covered by a single kit.
Complete plug-and-play installation: All required vehicle-specific components are included for a plug-and-play installation without cutting or splicing factory wiring.

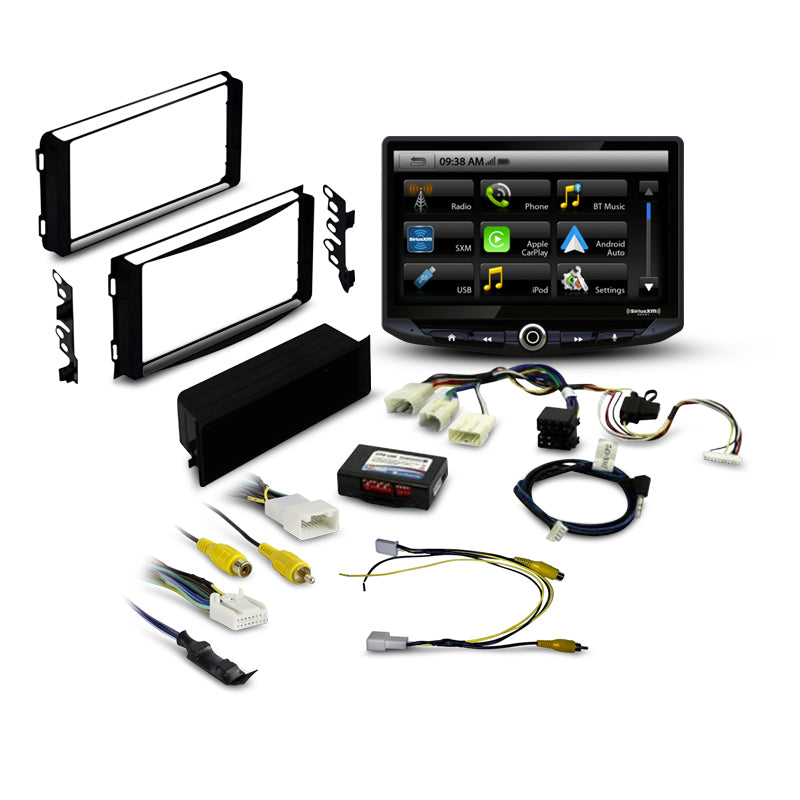

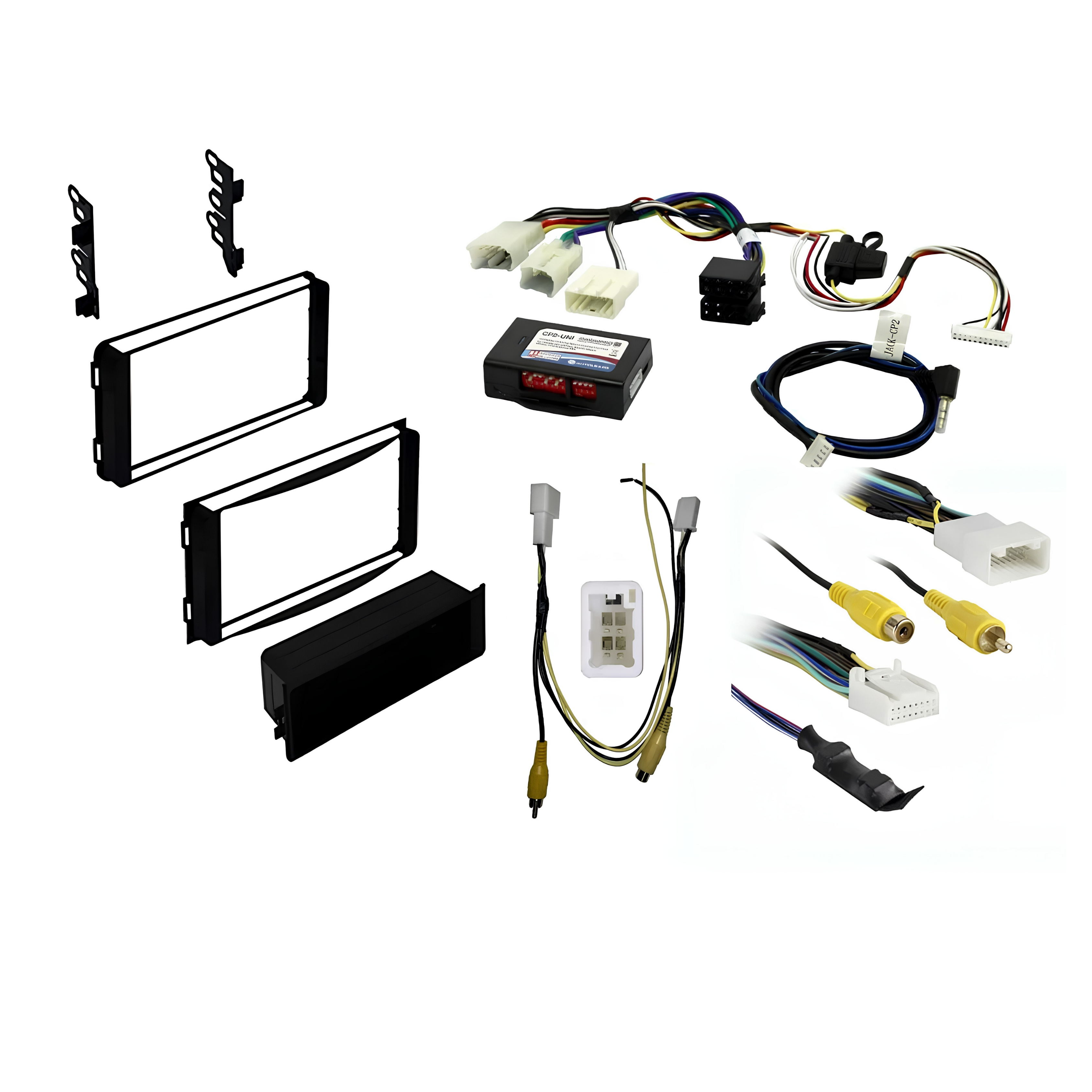

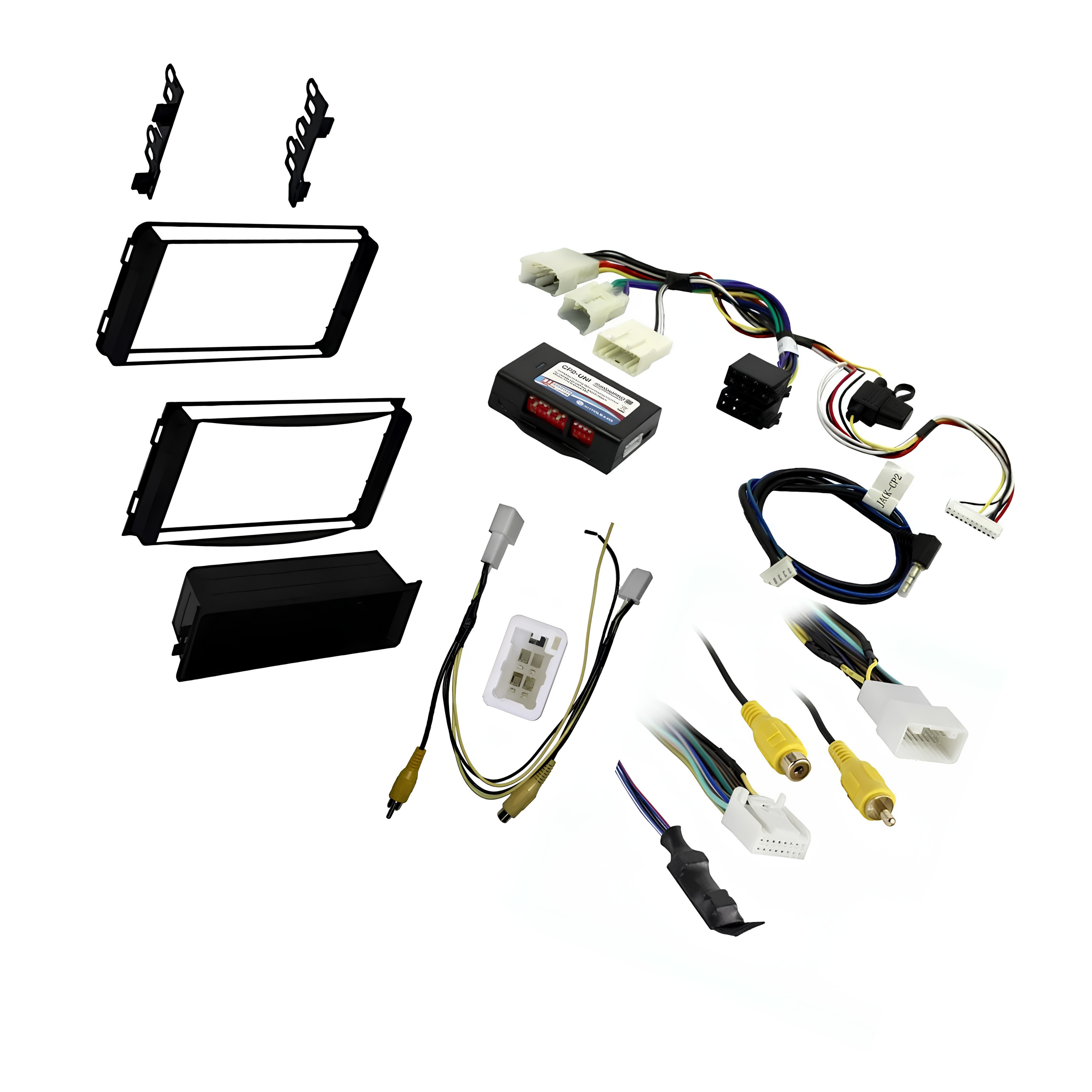

What's in the box
- 1 x Stinger HEIGH10 UN1810 10" infotainment head unit
- 1 x BKTTR998 radio mounting kit
- 1 x SWI-TY01 vehicle interface with harness
- 1 x SCTYRT4 camera retention harness (4-pin)
- 1 x AXBUCH-T16V camera retention harness (16-pin)
- 1 x CPH-STI01 ISO harness
Technical specs
| Specification |
Detail |
| SKU |
SRPTY011H |
| Brand |
Stinger |
| Included Head Unit |
Stinger HEIGH10 UN1810 |
| Screen Size |
10 inches HD capacitive touchscreen |
| Colour Depth |
16.7 million colours |
| Apple CarPlay |
Yes |
| Android Auto |
Yes |
| AM/FM Radio |
Yes, RDS tuner |
| Dual USB |
Yes |
| HDMI Input |
Yes |
| RCA Output |
4V, 6-channel |
| Digital Sound Processor |
Yes, with TOSLINK output |
| Bluetooth |
Yes, handsfree and audio with aptX |
| iGo Navigation |
Optional, not included |
| SWC Retention |
Yes, via SWI-TY01 |
| Reverse Camera Retention |
Yes, 4-pin and 16-pin OEM infotainment connector only |
| Camera Harnesses Included |
SCTYRT4 (4-pin) and AXBUCH-T16V (16-pin) |
| Plug and Play |
Yes |
| Compatible Vehicles |
Select Toyota models 2000-2019, see compatibility list |
Compatible with
The Stinger SRPTY011H is confirmed for the following Toyota models and chassis combinations:
| Make |
Model |
Variant |
Years |
| Toyota |
Corolla |
E140/E160 |
2003-2009 |
| Toyota |
Corolla |
E120 |
2009-2012 |
| Toyota |
Echo |
XP10 |
2000-2004 |
| Toyota |
Estima |
XR30/XR40 |
2000-2005 |
| Toyota |
FJ Cruiser |
GSJ10 |
2010-2016 |
| Toyota |
HiAce |
H200 |
2005-2019 |
| Toyota |
HiLux |
AN10/AN20/AN30 |
2005-2010 |
| Toyota |
HiLux |
AN10/AN20/AN30 |
2011-2013 |
| Toyota |
Kluger |
XU20 |
2003-2006 |
| Toyota |
Kluger |
XU40 |
2007-2013 |
| Toyota |
LandCruiser |
100 Series |
2001-2008 |
| Toyota |
LandCruiser |
120 Series |
2002-2009 |
| Toyota |
LandCruiser |
200 Series |
2008-2012 |
| Toyota |
LandCruiser Prado |
120 Series |
2002-2009 |
| Toyota |
MR2 |
W30 |
2000-2005 |
| Toyota |
Prius C |
XP130 |
2012-2018 |
| Toyota |
RAV4 |
XA20 |
2001-2005 |
| Toyota |
RAV4 |
XA40 |
2012-2013 |
| Toyota |
Rukus |
E150 |
2010-2014 |
| Toyota |
Tarago |
XR50 |
2005-2017 |
| Toyota |
Yaris |
XP90 |
2005-2011 |
| Toyota |
Yaris |
XP90 |
2012-2014 |
Reverse camera retention applies only to vehicles where the factory camera signal runs through the OEM infotainment system via a 4-pin or 16-pin connector. Cameras displayed in the rear view mirror or via an external display separate to the factory radio are not retained. Confirm your vehicle's camera connector type before purchase if reverse camera retention is required.
Frequently asked questions
Does the SRP-TY011H include the HEIGH10 head unit?
Yes. The Stinger HEIGH10 UN1810 infotainment system is included along with all vehicle-specific installation hardware. iGo navigation is optional and not included in the standard kit.
Will my factory reverse camera be retained?
Only if the factory camera signal runs through the OEM infotainment system via a 4-pin or 16-pin connector. Two camera harnesses are included in the kit. If your camera is displayed in the rear view mirror or through an external display separate to the factory radio, it cannot be retained with this kit.
How do I confirm which camera harness applies to my vehicle?
The SCTYRT4 suits vehicles with a 4-pin camera connector at the OEM infotainment system. The AXBUCH-T16V suits vehicles with a 16-pin connector. Both are included in the kit. Identify your vehicle's factory camera connector type before installation, and contact us if unsure.
Is iGo navigation included in the SRPTY011H kit?
No. iGo navigation is optional and not included in the standard kit. Contact us for further information on optional navigation availability and pricing.
Is a compatibility check recommended before purchasing?
Yes. A compatibility verification is recommended for your specific model, year, and variant before purchase, particularly for LandCruiser and Kluger models where multiple trim levels exist within a given year range. Contact us for confirmation before purchasing.
