Description
Stinger TCTOY1KIT Wireless Trailer Camera Kit for Toyota 16-Pin Connector Vehicles with Factory Camera Retention
The Stinger TCTOY1KIT is a wireless trailer camera kit designed for a broad range of Toyota vehicles fitted with a 16-pin Toyota camera connector, covering 22 Toyota model and chassis combinations and the Subaru Forester SJ (2013-2014) which shares the same connector. The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres at 2.4GHz with digital encryption. The kit includes the PCAM-WLP wireless camera, PAC PACAVS-21 AV switching unit, and the AXBUCH-T16V vehicle-specific Toyota 16-pin harness. Factory OEM reverse camera retention is supported where fitted.
Product overview
The TCTOY1KIT uses the Echomaster PCAM-WLP wireless camera to transmit live trailer video directly to a receiver installed behind the dashboard, with no video cable required through the caravan, float, or trailer. The camera connects to the trailer's reverse lights for power. When the trailer is connected and reverse is engaged, the trailer camera overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation automatically.
The PCAM-WLP uses a PWM power supply, making it safe for use on modern Toyota vehicles with CAN-controlled tail light circuits. The PAC PACAVS-21 AV switching unit manages input switching between the factory camera and trailer camera automatically. The included AXBUCH-T16V vehicle harness connects to the Toyota factory 16-pin camera connector. Note that the kit connects factory connector to bare wires and requires some wiring, so it is not fully plug-and-play.
If no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit. Parking guidelines are not provided on the trailer camera image. Confirm your vehicle has a 16-pin Toyota camera connector before purchasing. The Subaru Forester SJ (2013-2014) is listed as compatible due to shared connector type, but confirmation with us is recommended before purchase.
Features and benefits
45-metre wireless range: The PCAM-WLP transmits video wirelessly up to 45 metres without obstacles, eliminating the need to run cabling through caravans, horse floats, or trailers.
2.4GHz digital encrypted wireless: Digital encryption on the 2.4GHz wireless link provides a stable and secure video signal without interference from other wireless devices.
IP67 waterproof camera: Full IP67 rating makes the wireless camera suited to trailer mounting in all weather conditions including rain, dust, mud, and debris.
PWM power supply, CAN-bus safe: The PCAM-WLP uses a PWM power supply specifically designed for vehicles with CAN-controlled tail light circuits, preventing issues that conventional accessory connections can cause on modern Toyota vehicles.
Factory camera retention: Where the Toyota is fitted with a factory OEM reverse camera, it is retained by the kit. The trailer camera automatically takes priority when the trailer is connected and reverse is engaged, and the factory camera resumes when the trailer is removed.
140-degree wide viewing angle: A broad 140-degree field of view covers the full width of a trailer or caravan, reducing blind spots when reversing.
Vehicle-specific 16-pin Toyota harness: The AXBUCH-T16V vehicle harness provides a matched connection to the Toyota factory 16-pin camera connector across the compatible vehicle range.
PAC PACAVS-21 AV switching unit: The included PAC AV switching unit manages input switching between the factory camera and trailer camera, enabling automatic override when the trailer is connected and reverse is engaged.
Broad compatibility across 23 model and chassis combinations: 22 Toyota models and the Subaru Forester SJ are covered across vehicles from 2002 to 2020, making this the widest-coverage kit in the Stinger trailer camera range.

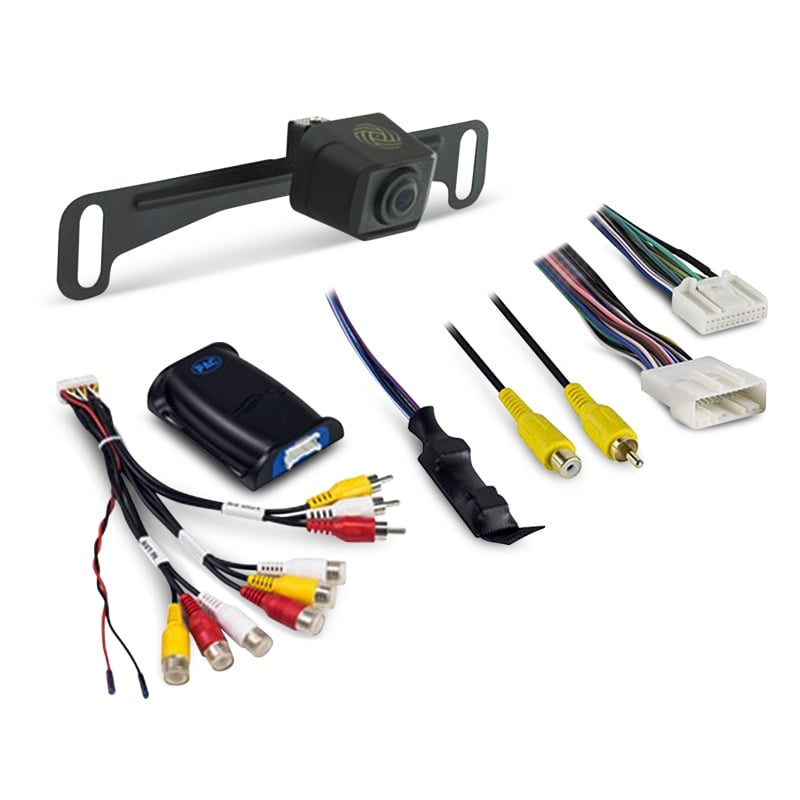

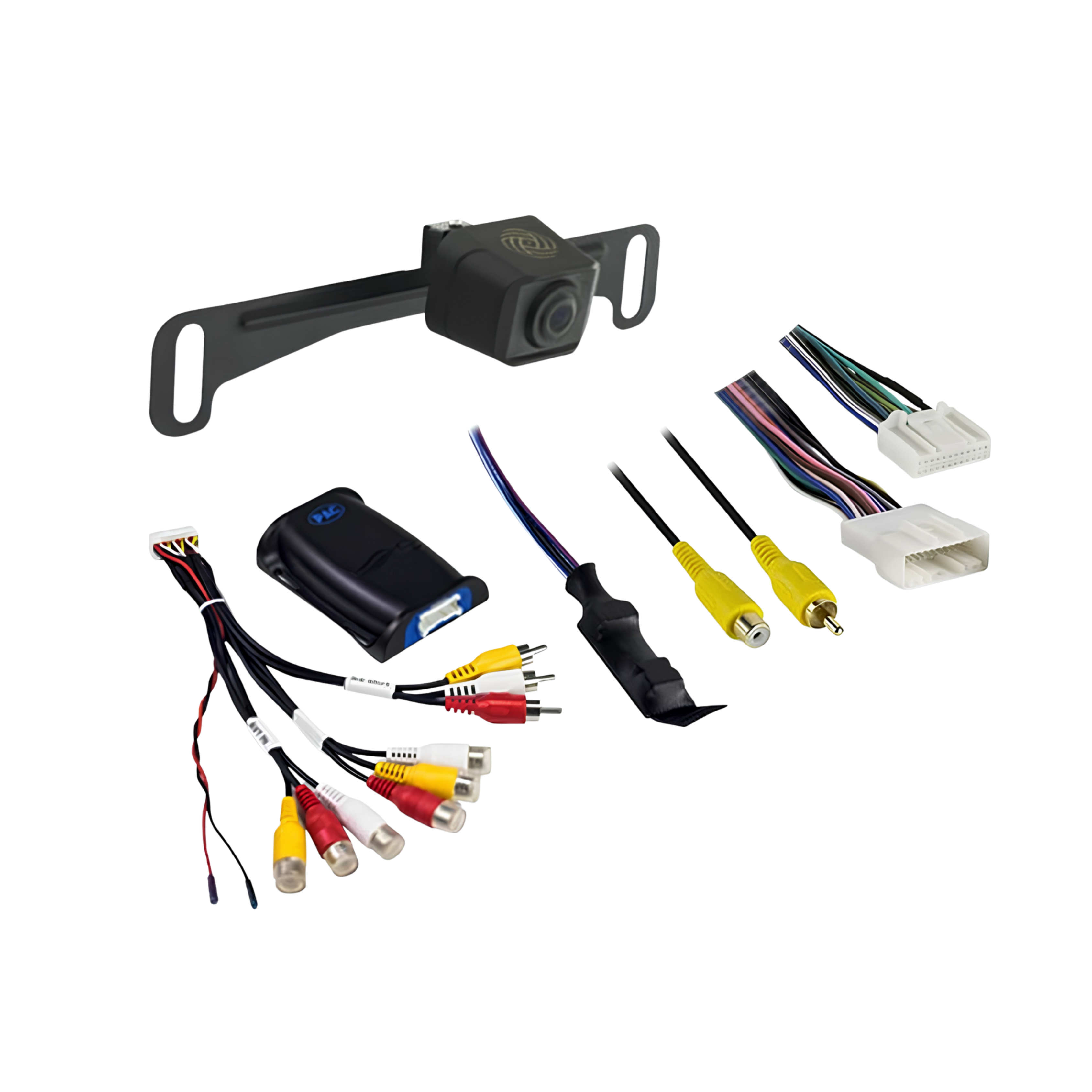

What's in the box

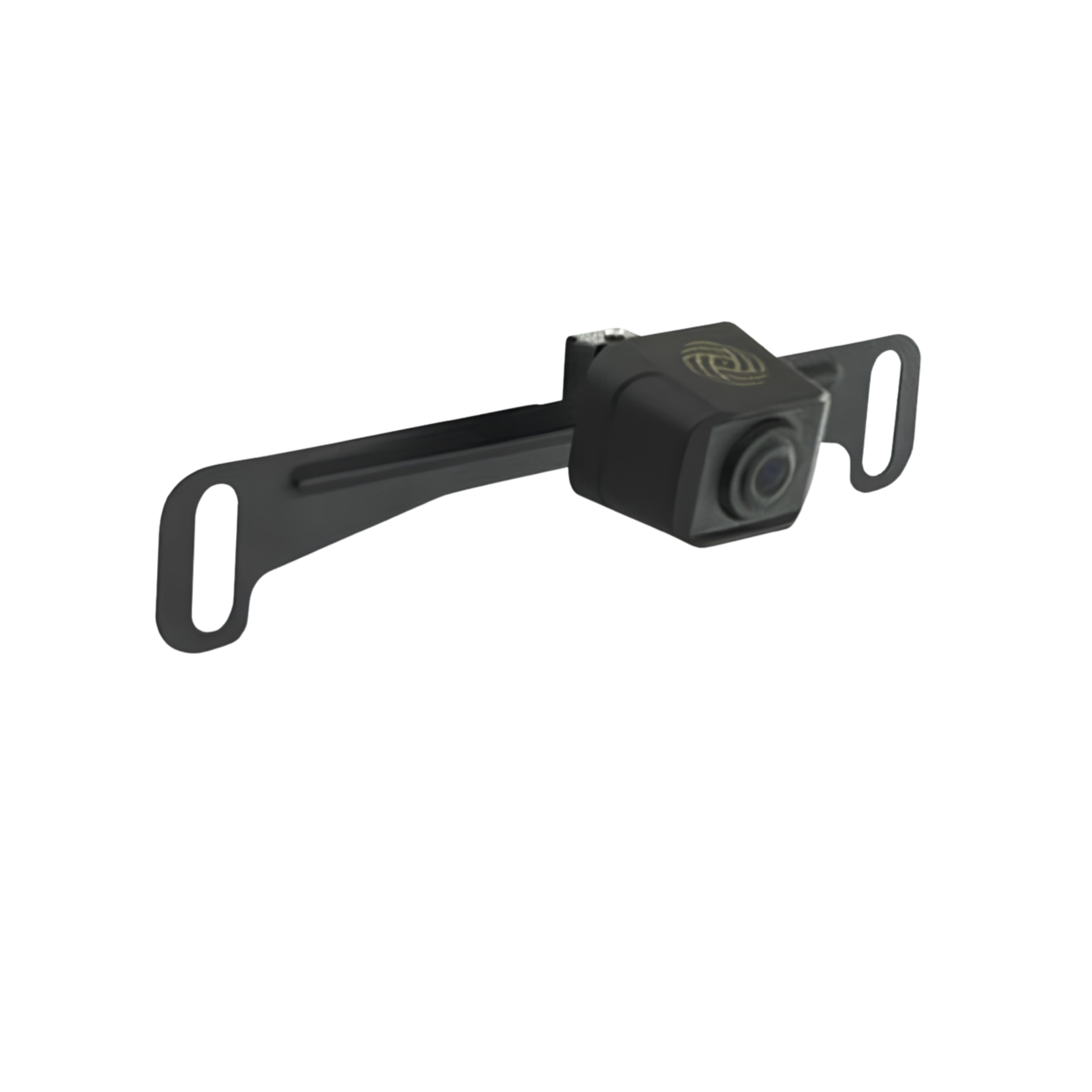

- 1 x Echomaster PCAM-WLP wireless camera

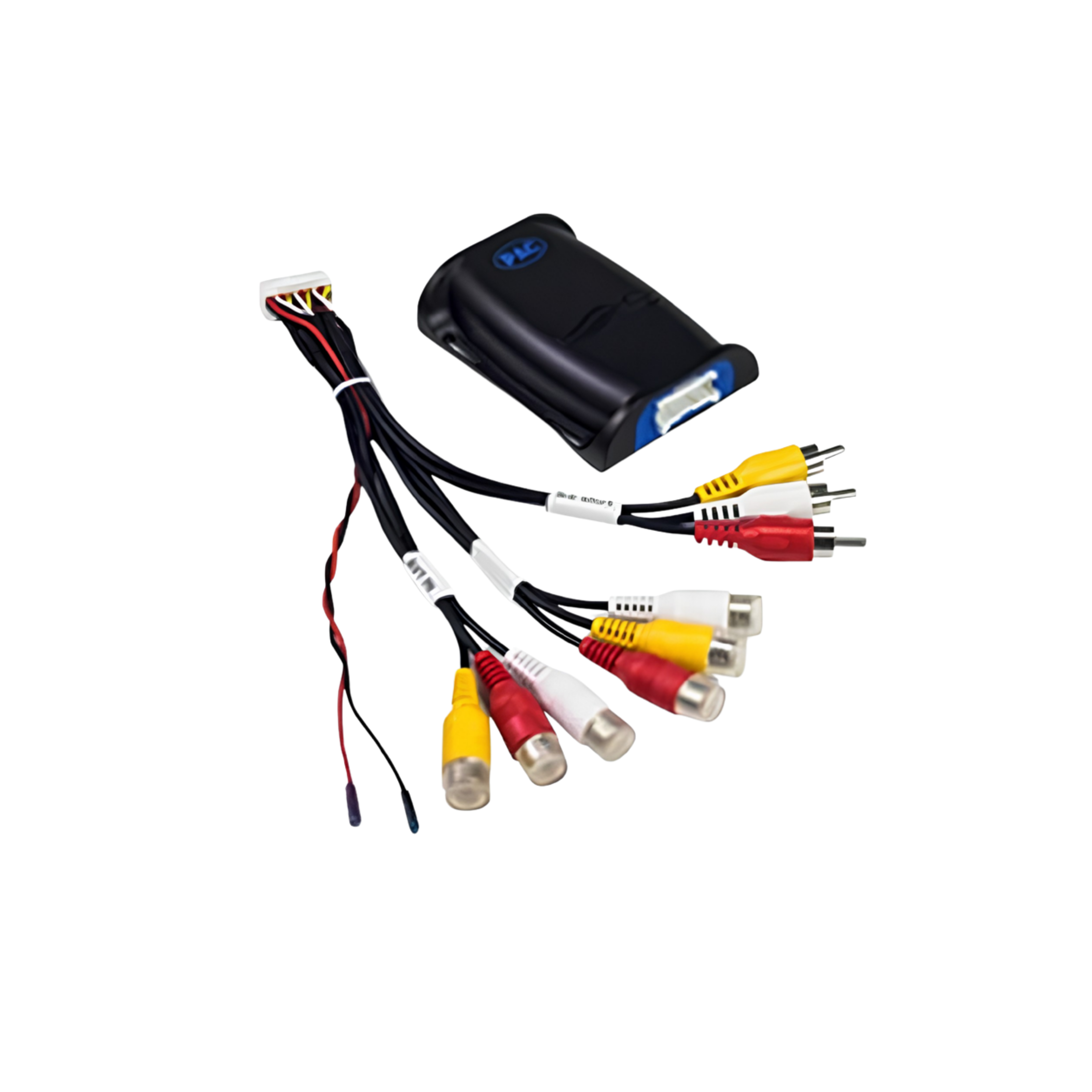

- 1 x PAC PACAVS-21 AV switching unit

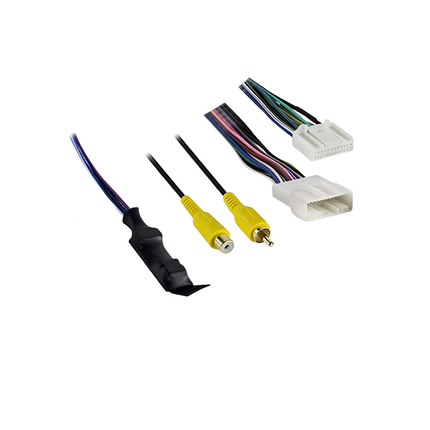

- 1 x AXBUCH-T16V Toyota 16-pin vehicle harness
- Mounting brackets
Technical specs
| Specification |
Detail |
| SKU |
TCTOY1KIT |
| Brand |
Stinger |
| Wireless Camera |
Echomaster PCAM-WLP |
| Wireless Frequency |
2.4GHz, digital encrypted |
| Wireless Range |
Up to 45 metres (without obstacles) |
| Viewing Angle |
140 degrees |
| IP Rating |
IP67 |
| Minimum Illumination |
0.1 LUX |
| Power Supply |
PWM, CAN-bus safe |
| Operating Temperature |
-20 to +65 degrees C |
| Vehicle Connector |
16-pin Toyota style |
| Parking Lines |
No |
| Factory Camera Retention |
Yes, overridden when trailer connected, resumes when removed |
| Aftermarket Camera Support |
Yes, if no factory camera fitted |
| AV Switching Unit |
PAC PACAVS-21 |
| Vehicle Harness |
AXBUCH-T16V |
| Mounting Brackets |
Included |
| Installation Type |
Factory connector to bare wires, some wiring required |
Compatible with
The Stinger TCTOY1KIT is confirmed for the following vehicles fitted with a factory 16-pin Toyota camera connector:
| Make |
Model |
Variant |
Years |
| Subaru |
Forester |
SJ |
2013-2014 |
| Toyota |
86 |
GSE/ZN6 Pre-facelift |
2012-2017 |
| Toyota |
86 |
GSE/ZN6 Post-facelift |
2017-2020 |
| Toyota |
Aurion |
XV40 |
2006-2011 |
| Toyota |
Aurion |
XV50 |
2012-2015 |
| Toyota |
Camry |
XV40 |
2007-2011 |
| Toyota |
Camry |
XV50 |
2012-2017 |
| Toyota |
Corolla |
E120 |
2009-2012 |
| Toyota |
Corolla Hatch |
E180 |
2013-2015 |
| Toyota |
FJ Cruiser |
GSJ10 |
2010-2016 |
| Toyota |
HiAce |
H200 |
2005-2019 |
| Toyota |
HiLux |
AN10/AN20/AN30 |
2013-2015 |
| Toyota |
LandCruiser Prado |
120 Series |
2002-2009 |
| Toyota |
LandCruiser Prado |
150 Series (non-navigation only) |
2009-2013 |
| Toyota |
Prius |
XW20 |
2004-2009 |
| Toyota |
Prius |
XW30 |
2010-2015 |
| Toyota |
Prius C |
XP130 |
2012-2018 |
| Toyota |
Prius V |
ZVW40/ZVW41 |
2015-2019 |
| Toyota |
RAV4 |
XA40 |
2012-2013 |
| Toyota |
Rukus |
E150 |
2010-2014 |
| Toyota |
Tarago |
XR50 |
2005-2017 |
| Toyota |
Tundra |
XK50 |
2007-2013 |
| Toyota |
Yaris |
XP90 |
2012-2014 |
The LandCruiser Prado 150 Series compatibility is limited to non-navigation models from 2009 to 2013 only. The Subaru Forester SJ (2013-2014) is listed as compatible due to shared connector type. Confirm fitment with us before purchase. Parking guidelines are not provided on the trailer camera image.
Frequently asked questions
Does the trailer camera replace my factory reverse camera permanently?
No. The trailer camera overrides the factory camera when the trailer is connected and reverse is engaged. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.
Do I need to run a cable through my caravan or trailer?
No. The PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard, so no video cable needs to be routed through the trailer.
Is this kit compatible with the Subaru Forester?
The Subaru Forester SJ (2013-2014) is listed as compatible due to its shared 16-pin connector type. Confirmation with us is recommended before purchasing to ensure correct fitment for your specific vehicle.
Does the LandCruiser Prado 150 Series need to be non-navigation?
Yes. The TCTOY1KIT is compatible with the LandCruiser Prado 150 Series (2009-2013) in non-navigation models only. Navigation-equipped 150 Series Prado models are not supported by this kit.
Will this kit show parking guidelines on the trailer camera image?
No. Parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
