Description
Tow With Total Confidence Wireless Trailer Camera Kit for Kluger, Estima, Aurion and Tundra
Product Overview
The Stinger TCTOY2KIT is a wireless trailer camera kit designed for select Toyota vehicles fitted with a 24-pin Toyota camera connector, making it straightforward to reverse when towing a caravan, horse float, or trailer without running video cabling through the rig.

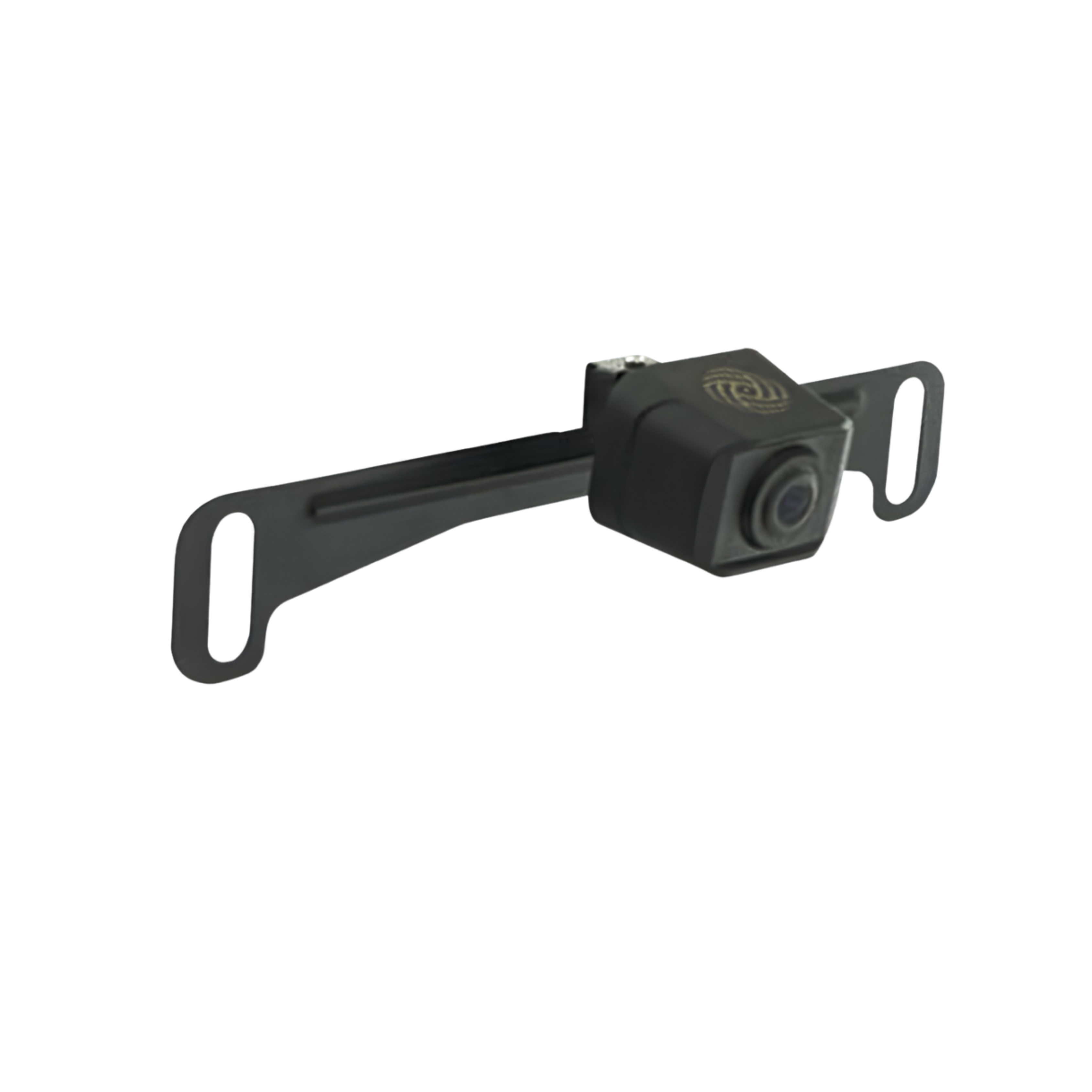

The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres (without obstacles) to a receiver installed behind the dashboard, powered directly from the trailer's reverse lights. When the trailer is connected and reverse is engaged, the trailer camera automatically overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation. If no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit.

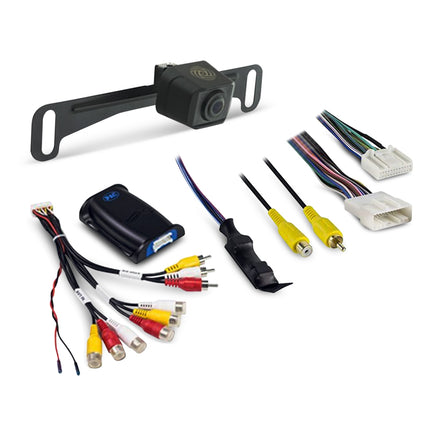

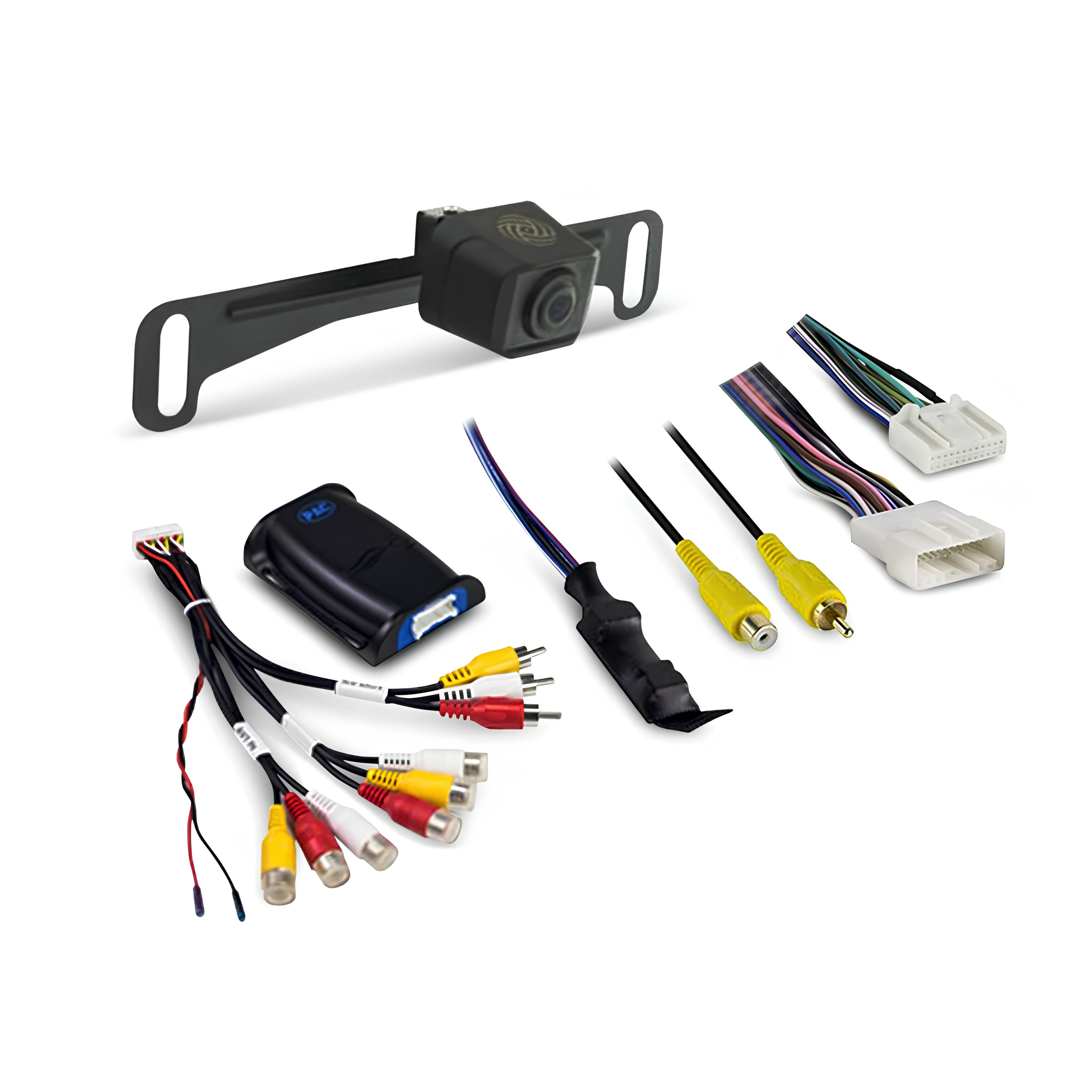

The bundle includes the PCAM-WLP wireless camera, PAC PACAVS-21 audio/video switching unit, and the vehicle-specific Toyota 24-pin harness (AXBUCH-T26V). Compatible vehicles are the Toyota Aurion XV40 (2006–2011), Toyota Estima XR30/XR40 (2000–2005), Toyota Estima XR50 (2006–2016), Toyota Kluger XU40 (2007–2013), and Toyota Tundra XK50 (2007–2013).
Key Specifications
- Manufacturer Part Number: TCTOY2KIT
- Function: Wireless trailer/caravan reverse camera kit
- Wireless camera: Echomaster PCAM-WLP
- Wireless range: Up to 45 metres (without obstacles)
- Wireless frequency: 2.4GHz with digital encryption
- Camera viewing angle: 140°
- Camera IP rating: IP67 (water and debris proof)
- Camera minimum illumination: 0.1 LUX
- Camera power supply: PWM — safe for CAN-controlled tail lights
- Camera operating temperature: -20°C to +65°C
- Vehicle connector: 24-pin Toyota style connector
- Parking lines: No
- Factory reverse camera retention: Yes — overridden when trailer connected; resumes when disconnected
- Aftermarket camera fitment: Supported — if no factory camera fitted
- Mounting brackets: Included
- Plug & Play: Factory connector to bare wires — some wiring required
Features & Benefits
-
45-Metre Wireless Range — The PCAM-WLP transmits video wirelessly up to 45 metres, eliminating the need to run cabling through caravans, horse floats, or trailers.
-
2.4GHz Digital Encrypted Wireless — Digital encryption on the 2.4GHz wireless link provides a stable, secure video signal.
-
IP67 Waterproof Camera — Full IP67 rating makes the wireless camera suitable for trailer mounting in all weather conditions — rain, dust, mud, and debris.
-
PWM Power Supply — CAN Bus Safe — The PCAM-WLP uses a PWM power supply, making it safe for use on Toyota vehicles with CAN-controlled tail light circuits.
-
Factory Camera Retained — Where fitted, the factory OEM reverse camera is retained. The trailer camera automatically takes priority when the trailer is connected and reverts when removed.
-
140° Wide Viewing Angle — A broad 140° field of view covers the full width of a trailer or caravan when reversing.
-

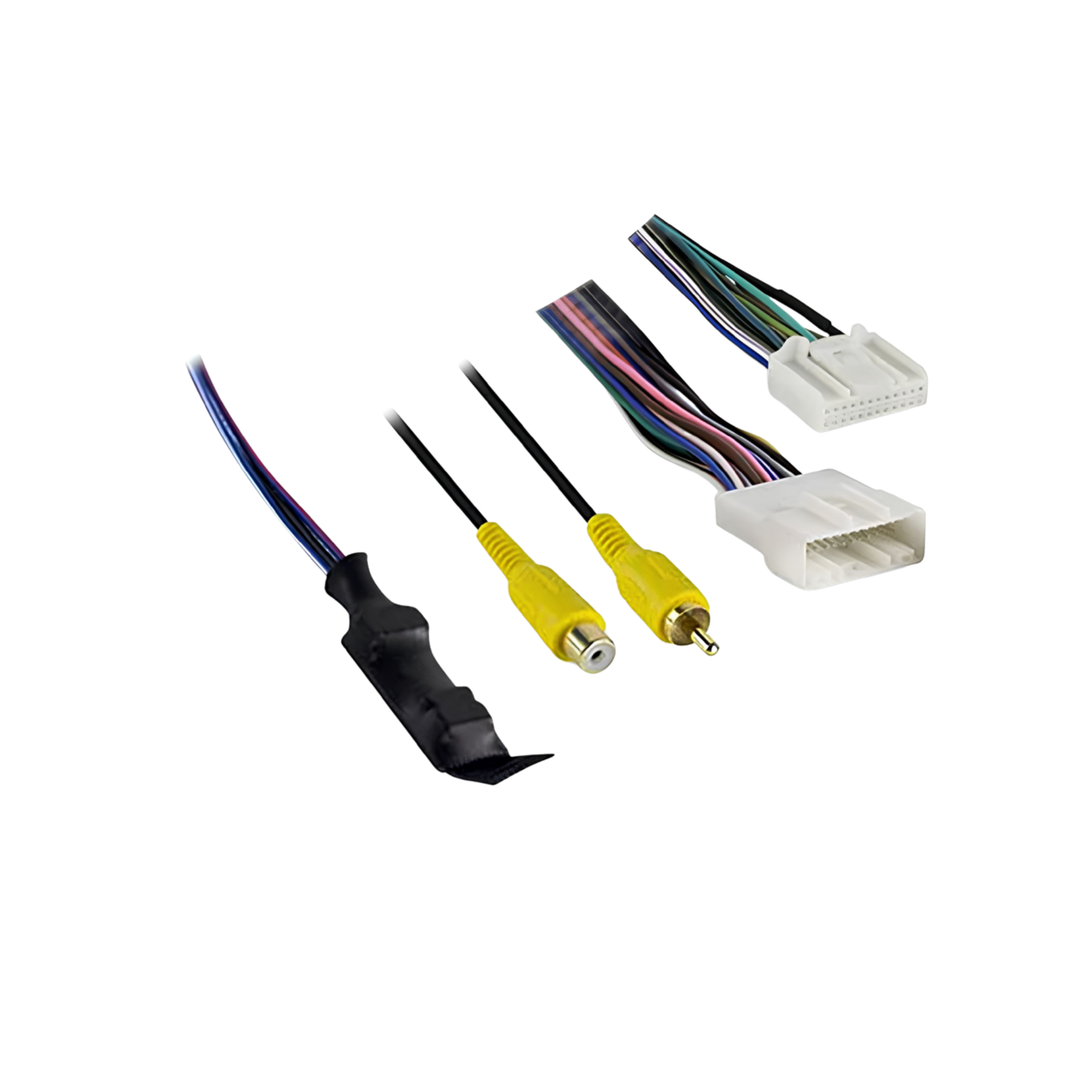

Vehicle-Specific 24-Pin Harness — The AXBUCH-T26V harness is included, matched to the 24-pin Toyota connector used across the compatible vehicle range.
-

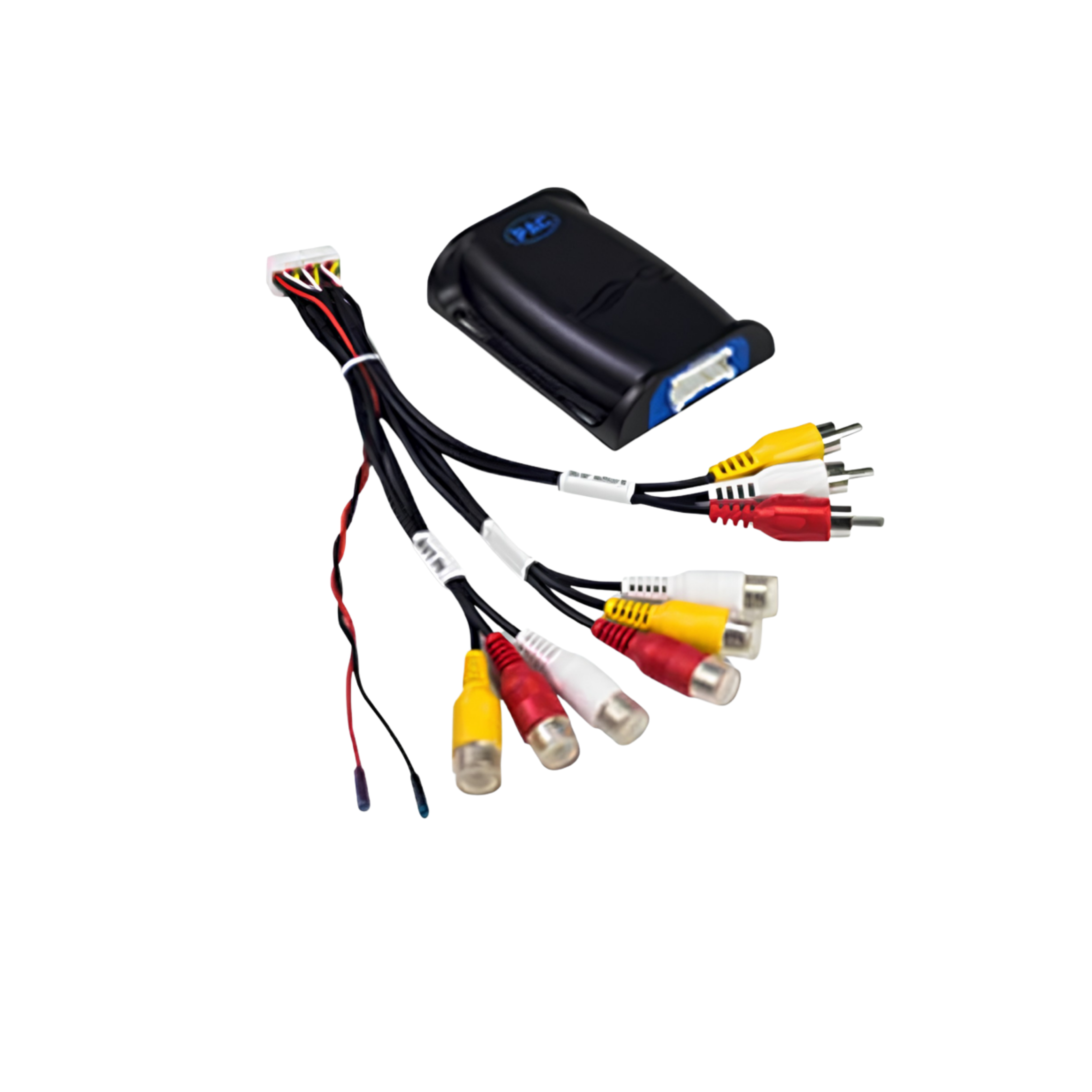

PAC AV Switching Unit — The PACAVS-21 manages automatic input switching between factory and trailer cameras.
Technical Specs
| Specification |
Detail |
| Part Number |
TCTOY2KIT |
| Brand |
Stinger |
| Wireless Camera |
Echomaster PCAM-WLP |
| Wireless Frequency |
2.4GHz, digital encrypted |
| Wireless Range |
Up to 45 metres (without obstacles) |
| Viewing Angle |
140° |
| IP Rating |
IP67 |
| Minimum Illumination |
0.1 LUX |
| Power Supply |
PWM — CAN bus safe |
| Operating Temperature |
-20°C to +65°C |
| Vehicle Connector |
24-pin Toyota style |
| Parking Lines |
No |
| Factory Camera Retention |
Yes — overridden when trailer connected; resumes when removed |
| Aftermarket Camera Support |
Yes — if no factory camera fitted |
| Mounting Brackets |
Included |
| AV Switching Unit |
PAC PACAVS-21 |
| Vehicle Harness |
AXBUCH-T26V |
| Plug & Play |
Factory connector to bare wires — some wiring required |
Compatible With / Goes Well With
- Toyota Aurion XV40 2006, 2007, 2008, 2009, 2010, 2011
- Toyota Estima XR30/XR40 2000, 2001, 2002, 2003, 2004, 2005
- Toyota Estima XR50 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
- Toyota Kluger XU40 2007, 2008, 2009, 2010, 2011, 2012, 2013
- Toyota Tundra XK50 2007, 2008, 2009, 2010, 2011, 2012, 2013
Caution: This kit uses the 24-pin Toyota style connector — confirm your vehicle's factory camera connector type before purchase. Note that this 24-pin harness (AXBUCH-T26V) is different from the 24-pin harness in the TCTOY3KIT (AXBUCH-T36V) — confirm the correct kit for your specific model. The kit connects factory connector to bare wires and requires some wiring — it is not fully plug-and-play. Parking guidelines are not provided on the trailer camera image.
Frequently Asked Questions
Does the trailer camera replace my factory reverse camera permanently?
No — the trailer camera overrides the factory camera when the trailer is connected and reverse is engaged. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.
Do I need to run a cable through my caravan or trailer?
No — the PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard with no video cable routed through the trailer.
Is the wireless camera safe for CAN-controlled tail lights?
Yes — the PCAM-WLP uses a PWM power supply designed for safe use on vehicles with CAN-controlled tail light circuits.
What is the difference between the TCTOY2KIT and TCTOY3KIT?
Both kits use a 24-pin Toyota connector but with different harnesses — the TCTOY2KIT uses the AXBUCH-T26V and suits the Aurion XV40, Estima, Kluger XU40, and Tundra XK50. The TCTOY3KIT uses the AXBUCH-T36V and covers newer models including the N80 HiLux, XU50 Kluger, Fortuner, and LandCruiser 200/Prado 150 Series from 2012 onwards. Always confirm the correct kit for your specific vehicle model, year, and chassis code.
Will this kit show parking guidelines on the trailer camera image?
No — parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
