Description
Stinger TCTOY3KIT Wireless Trailer Camera Kit for Toyota 24-Pin Connector Vehicles with Factory Camera Retention
The Stinger TCTOY3KIT is a wireless trailer camera kit designed for select Toyota vehicles fitted with a 24-pin Toyota camera connector at the back of the factory radio. The Echomaster PCAM-WLP wireless camera transmits video up to 45 metres at 2.4GHz with digital encryption, eliminating the need to run video cabling through the trailer. The kit includes the PCAM-WLP wireless camera, PAC PACAVS-21 AV switching unit, and the AXBUCH-T36V vehicle-specific Toyota 24-pin harness. Factory OEM reverse camera retention is supported where fitted.
Product overview
The TCTOY3KIT uses the Echomaster PCAM-WLP wireless camera to transmit live trailer video directly to a receiver installed behind the dashboard, with no video cable required through the caravan, float, or trailer. The camera connects to the trailer's reverse lights for power. When the trailer is connected and reverse is engaged, the trailer camera overrides the factory OEM reverse camera. When the trailer is disconnected, the factory camera resumes normal operation automatically.
The PCAM-WLP uses a PWM power supply, making it safe for use on modern Toyota vehicles with CAN-controlled tail light circuits. The PAC PACAVS-21 AV switching unit manages input switching between the factory camera and trailer camera automatically. The included AXBUCH-T36V vehicle harness connects to the Toyota factory 24-pin camera connector at the back of the factory radio. Note that the kit connects factory connector to bare wires and requires some wiring, so it is not fully plug-and-play.
If no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit. Parking guidelines are not provided on the trailer camera image. Confirm your vehicle has a 24-pin Toyota camera connector at the back of the factory radio before purchasing.
Features and benefits

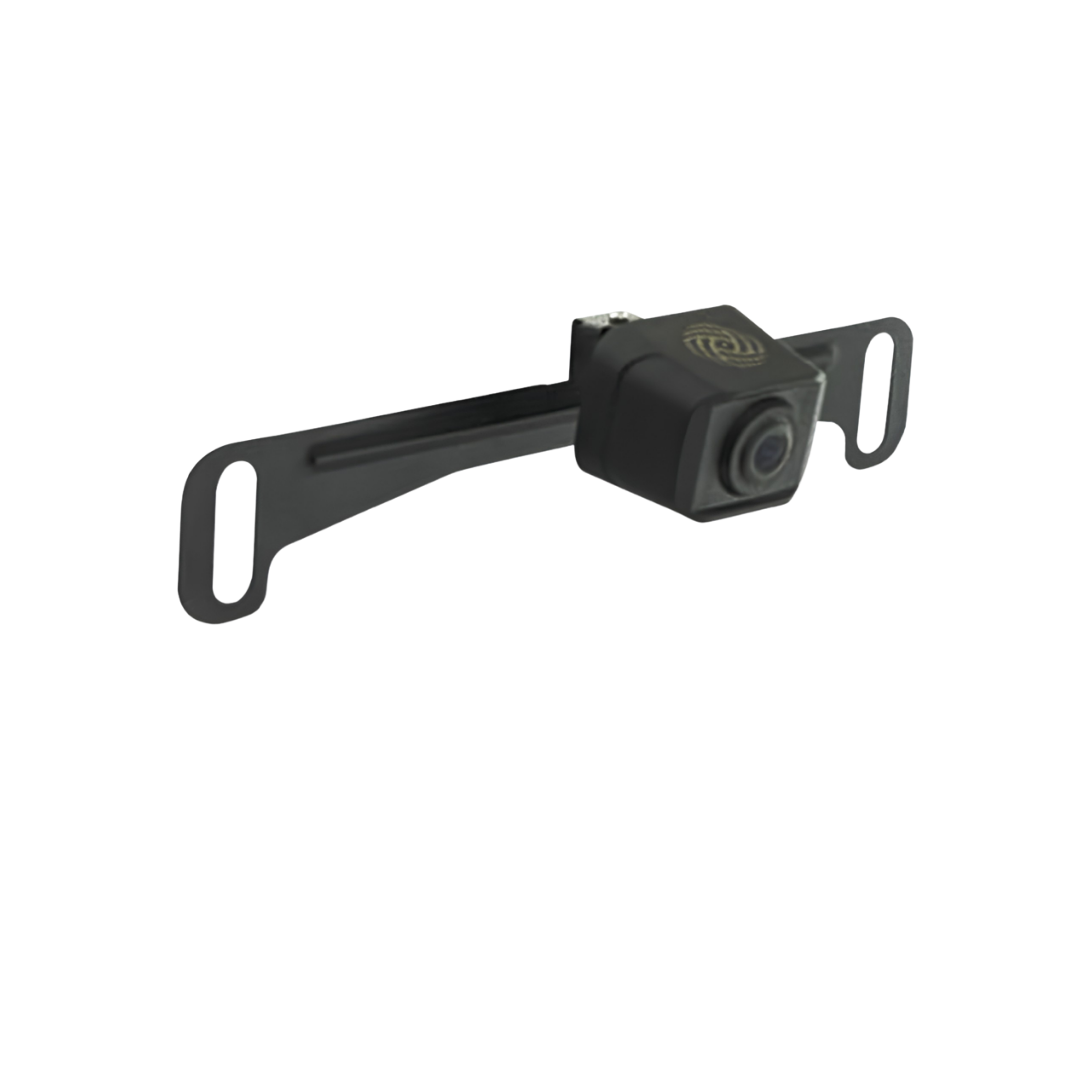

45-metre wireless range: The PCAM-WLP transmits video wirelessly up to 45 metres without obstacles, eliminating the need to run cabling through caravans, horse floats, or trailers, particularly valuable for long rigs where cable runs are impractical.
2.4GHz digital encrypted wireless: Digital encryption on the 2.4GHz wireless link provides a stable and secure video signal without interference from other wireless devices in the area.
IP67 waterproof camera: Full IP67 rating makes the wireless camera suited to trailer mounting in all weather conditions including rain, dust, mud, and debris.
PWM power supply, CAN-bus safe: The PCAM-WLP uses a PWM power supply specifically designed for vehicles with CAN-controlled tail light circuits, preventing issues that conventional accessory connections can cause on modern Toyota vehicles.
Factory camera retention: Where the Toyota is fitted with a factory OEM reverse camera, it is retained by the kit. The trailer camera automatically takes priority when the trailer is connected and reverse is engaged, and the factory camera resumes when the trailer is removed.
140-degree wide viewing angle: A broad 140-degree field of view covers the full width of a trailer or caravan, reducing blind spots when reversing.

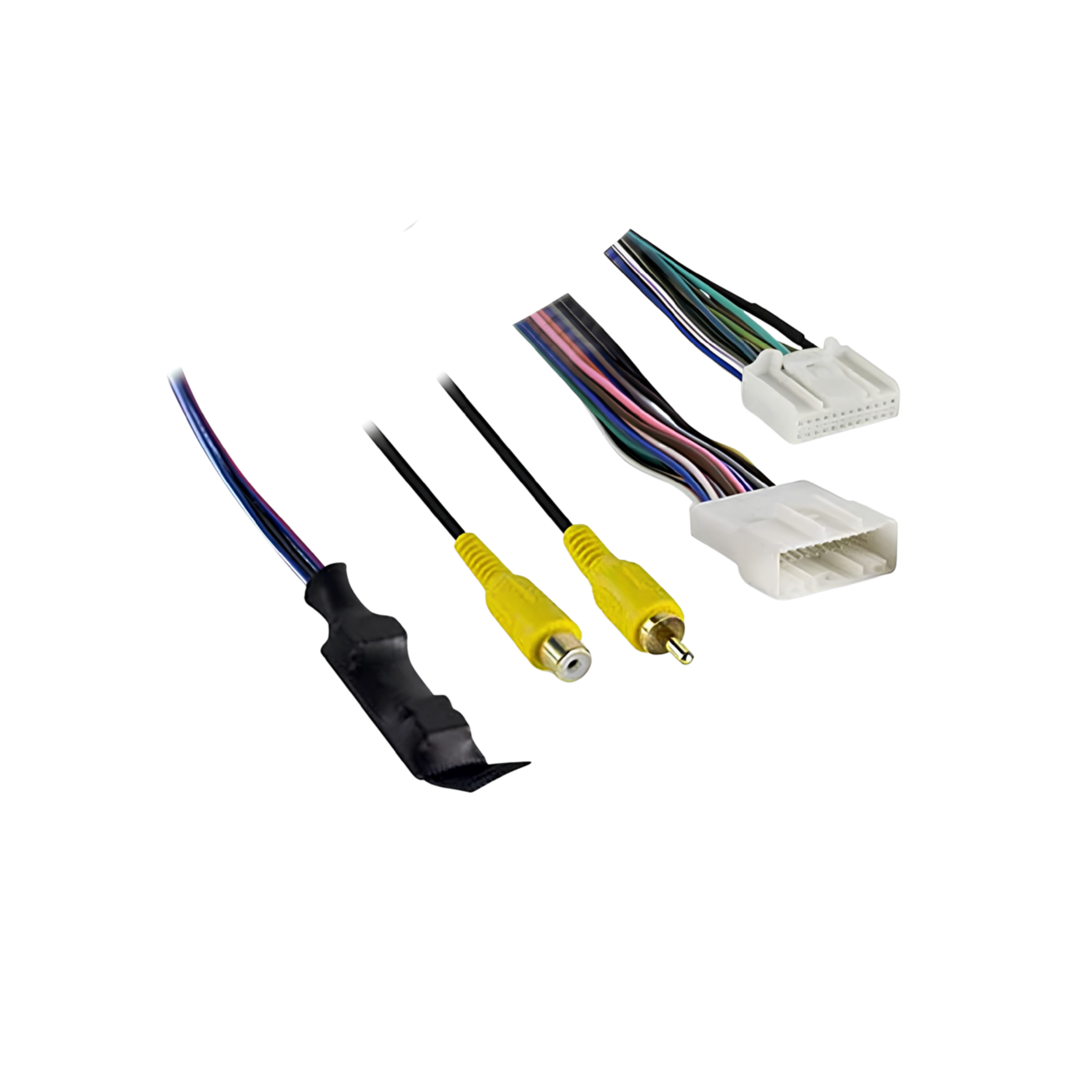

Vehicle-specific 24-pin Toyota harness: The AXBUCH-T36V vehicle harness provides a matched connection to the Toyota factory 24-pin camera connector at the back of the factory radio without additional adaptors.

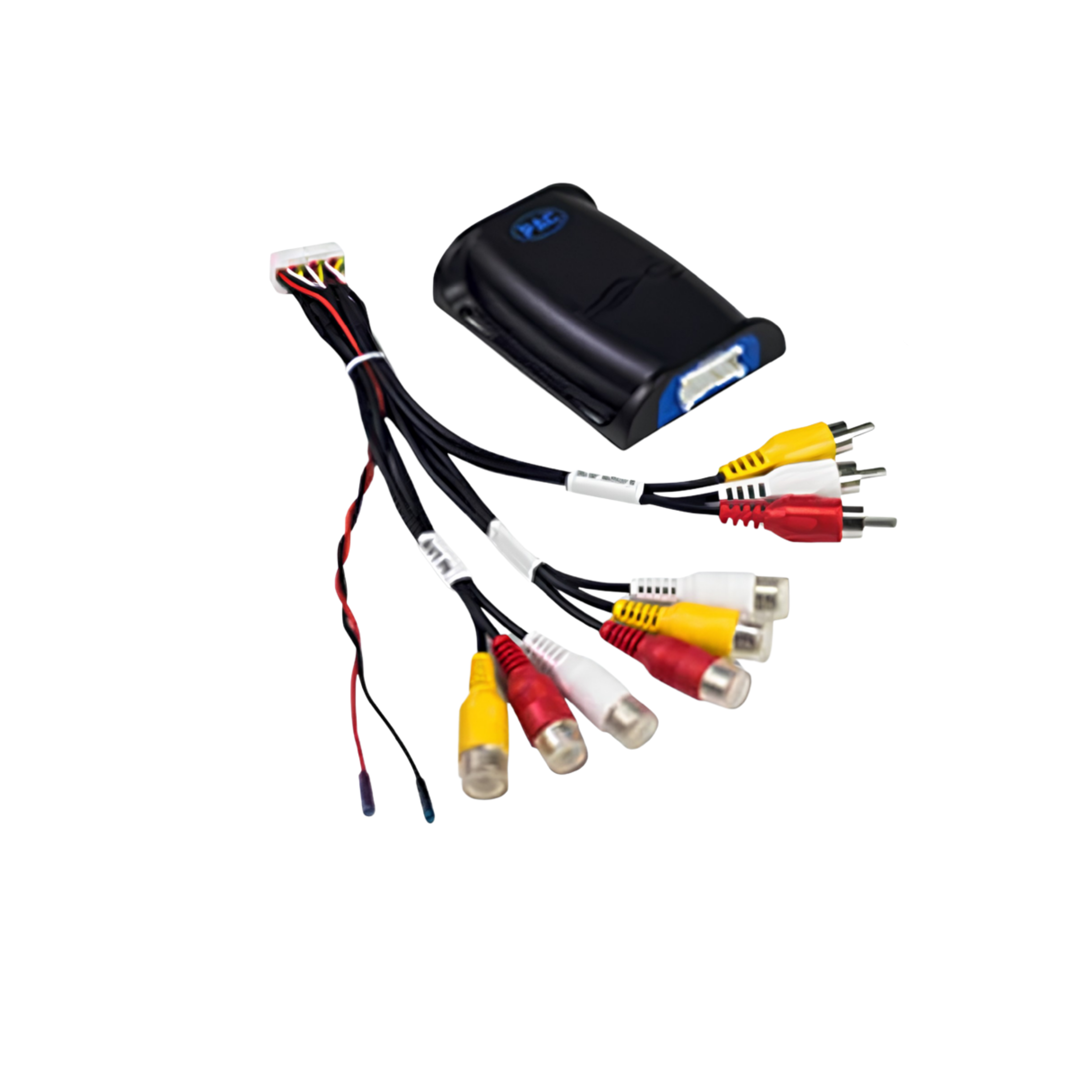

PAC PACAVS-21 AV switching unit: The included PAC AV switching unit manages input switching between the factory camera and trailer camera, enabling automatic override when the trailer is connected and reverse is engaged.
Broad newer Toyota coverage: 14 model and chassis combinations covering newer Toyota models from 2012 to 2023, including the N80 HiLux, XU50 Kluger, AN150/160 Fortuner, and LandCruiser 200 Series.

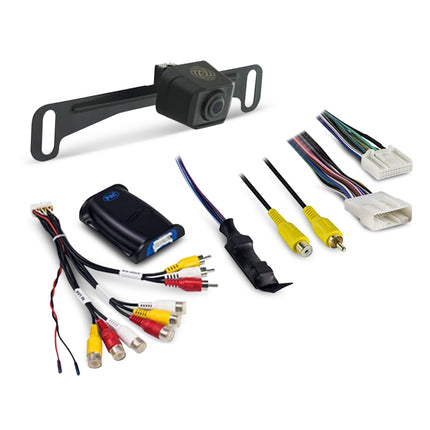

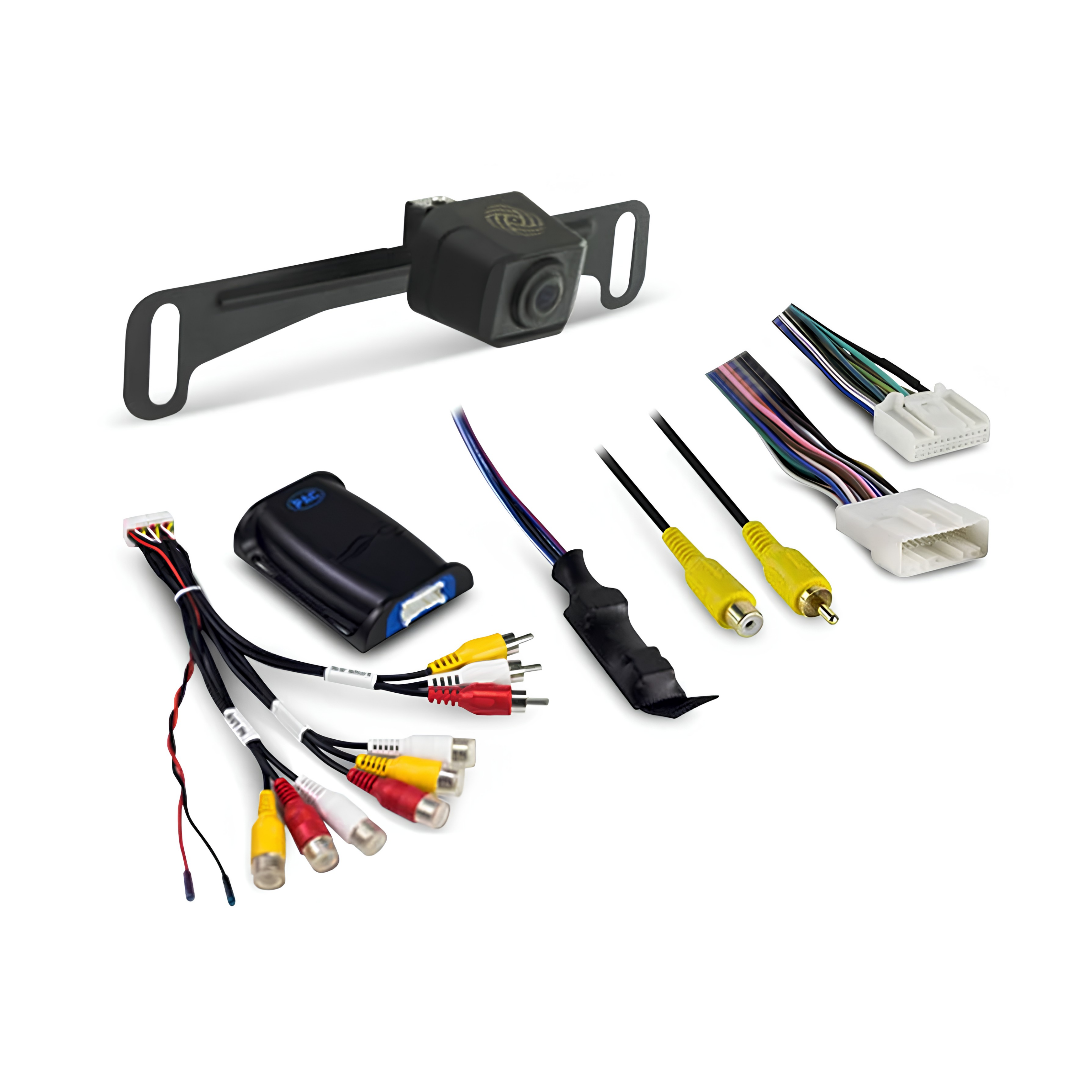

What's in the box
- 1 x Echomaster PCAM-WLP wireless camera
- 1 x PAC PACAVS-21 AV switching unit
- 1 x AXBUCH-T36V Toyota 24-pin vehicle harness
- Mounting brackets
Technical specs
| Specification |
Detail |
| SKU |
TCTOY3KIT |
| Brand |
Stinger |
| Wireless Camera |
Echomaster PCAM-WLP |
| Wireless Frequency |
2.4GHz, digital encrypted |
| Wireless Range |
Up to 45 metres (without obstacles) |
| Viewing Angle |
140 degrees |
| IP Rating |
IP67 |
| Minimum Illumination |
0.1 LUX |
| Power Supply |
PWM, CAN-bus safe |
| Operating Temperature |
-20 to +65 degrees C |
| Vehicle Connector |
24-pin Toyota at back of factory radio |
| Parking Lines |
No |
| Factory Camera Retention |
Yes, overridden when trailer connected, resumes when removed |
| Aftermarket Camera Support |
Yes, if no factory camera fitted |
| AV Switching Unit |
PAC PACAVS-21 |
| Vehicle Harness |
AXBUCH-T36V |
| Mounting Brackets |
Included |
| Installation Type |
Factory connector to bare wires, some wiring required |
Compatible with
The Stinger TCTOY3KIT is confirmed for the following Toyota models fitted with a factory 24-pin camera connector at the back of the factory radio:
| Make |
Model |
Variant |
Years |
| Toyota |
Aurion |
XV50 |
2015-2017 |
| Toyota |
Camry |
XV50 |
2012-2017 |
| Toyota |
Corolla Hatch |
E180 |
2013-2015 |
| Toyota |
Corolla Hatch |
E180/E200 |
2015-2018 |
| Toyota |
Corolla Sedan |
E170 |
2014-2016 |
| Toyota |
Corolla Sedan |
E170 |
2017-2018 |
| Toyota |
Fortuner |
AN150/AN160 |
2015-2019 |
| Toyota |
HiLux |
AN120/AN130 |
2015-2020 |
| Toyota |
Kluger |
XU50 |
2014-2019 |
| Toyota |
LandCruiser |
200 Series |
2013-2015 |
| Toyota |
LandCruiser |
200 Series |
2016-2021 |
| Toyota |
LandCruiser Prado |
150 Series |
2013-2017 |
| Toyota |
LandCruiser Prado |
150 Series |
2017-2023 |
| Toyota |
RAV4 |
XA40 |
2014-2018 |
This kit requires a 24-pin Toyota camera connector located at the back of the factory radio. Confirm your vehicle has this connector before purchase. Parking guidelines are not provided on the trailer camera image.
Frequently asked questions
Does the trailer camera replace my factory reverse camera permanently?
No. When the trailer is connected and reverse is engaged, the trailer camera overrides the factory camera. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.
Do I need to run a cable through my caravan or trailer?
No. The PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard, so no video cable needs to be routed through the trailer.
Is the wireless camera safe for vehicles with CAN-controlled tail lights?
Yes. The PCAM-WLP uses a PWM power supply specifically designed to be safe for use on vehicles with CAN-controlled tail light circuits, which are common on newer Toyota models.
How do I confirm this kit suits my Toyota?
This kit requires a 24-pin Toyota camera connector at the back of the factory radio. Confirm your vehicle's factory camera connector type and location before purchase. The compatible model list above includes confirmed chassis codes and year ranges. Contact us if you are unsure before purchasing.
Will this kit show parking guidelines on the trailer camera image?
No. Parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
