Reverse a Trailer, Caravan or Float With Confidence Wireless Camera Kit Engineered for Select Toyotas
Product Overview
The Stinger TCTOY4KIT is a wireless trailer camera kit designed specifically for select Toyota vehicles, making it straightforward to reverse when towing a caravan, horse float, or trailer of any size. The kit eliminates the need to run video cabling through or along the trailer the Echomaster PCAM-WLP wireless camera transmits video up to 45 metres (without obstacles) directly to a receiver installed behind the dashboard, keeping the install clean and the camera fully portable between trailers.
The wireless camera connects to the trailer's reverse lights for power. When the trailer is connected and reverse is engaged, the trailer camera overrides the factory OEM reverse camera. When the trailer is disconnected, the factory reverse camera resumes normal operation. If no factory camera is fitted, an aftermarket reverse camera can be integrated using this kit.

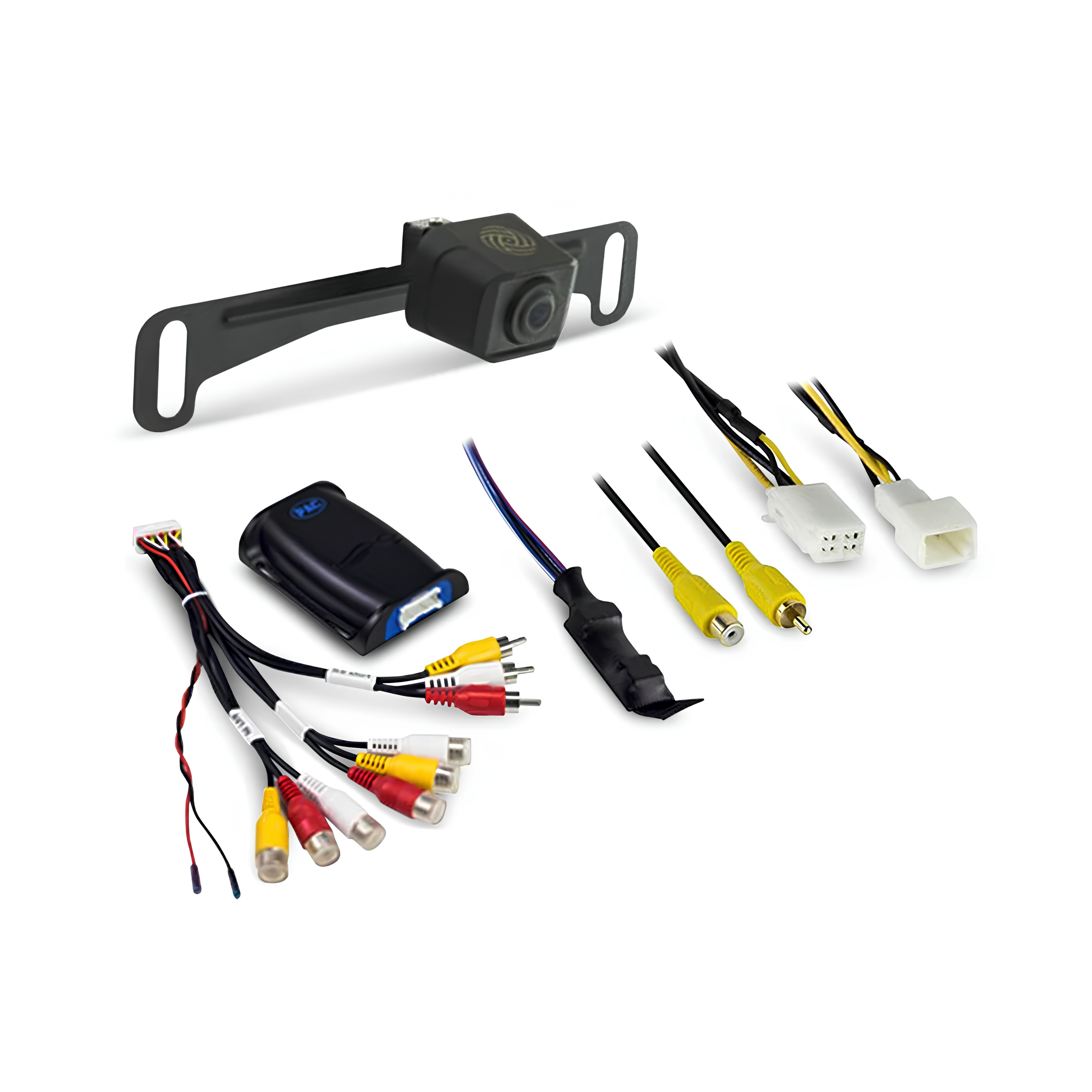

The bundle includes the PCAM-WLP wireless camera, PAC audio/video switching unit (PACAVS-21), and the vehicle-specific Toyota 4-pin harness (SCTYRT4). Compatible vehicles use a 4-pin Toyota camera connector and include the Toyota 86 (pre and post facelift), Estima, HiLux, and LandCruiser Prado (120 and 150 Series without navigation).
Key Specifications
- Manufacturer Part Number: TCTOY4KIT
- Function: Wireless trailer/caravan reverse camera kit

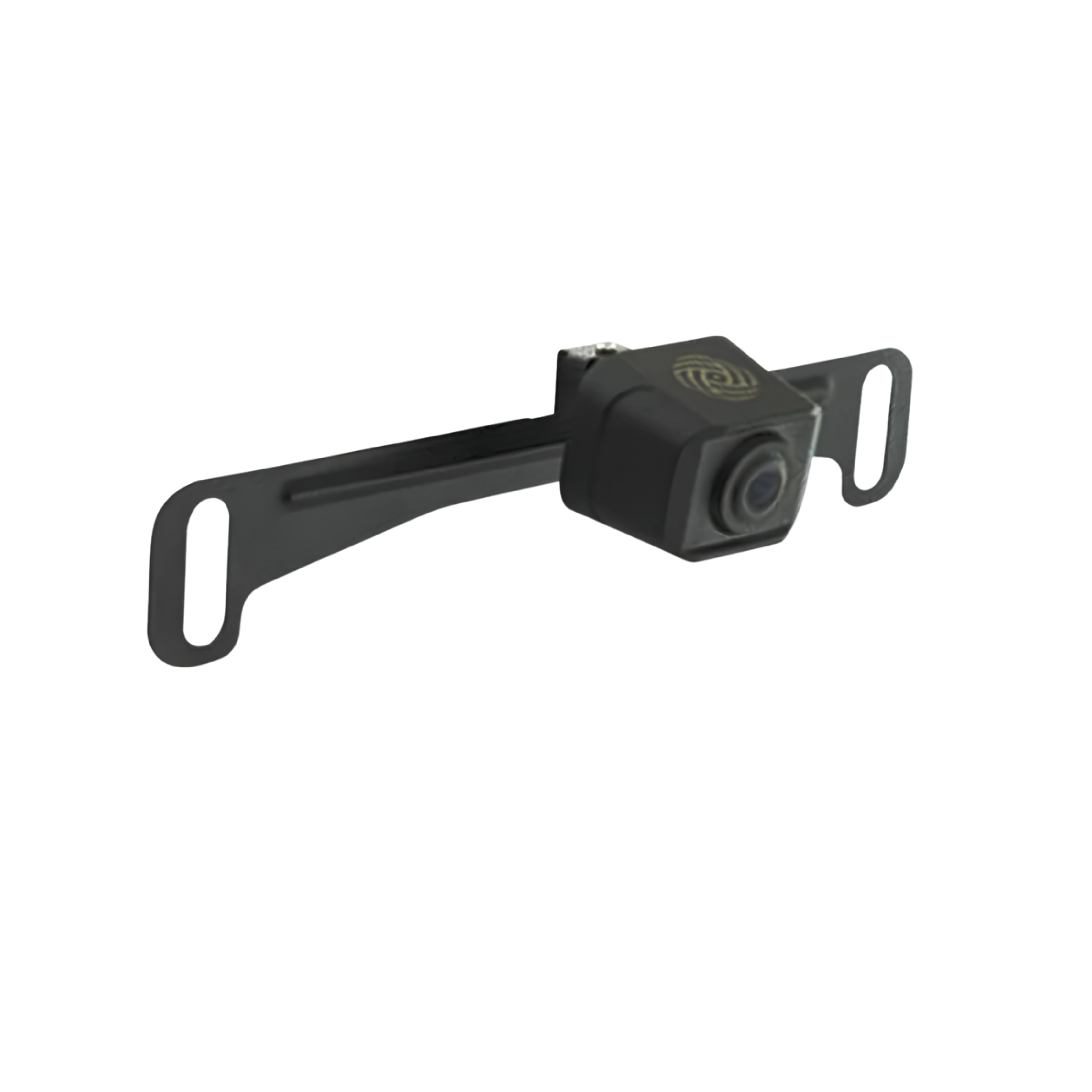

- Wireless camera: Echomaster PCAM-WLP
- Wireless range: Up to 45 metres (without obstacles)
- Wireless frequency: 2.4GHz with digital encryption
- Camera viewing angle: 140°
- Camera IP rating: IP67 (water and debris proof)
- Camera minimum illumination: 0.1 LUX
- Camera power supply: PWM — safe for CAN-controlled tail lights
- Camera operating temperature: -20°C to +65°C
- Parking lines: No
- Factory reverse camera retention: Yes — trailer camera overrides factory camera when trailer connected; factory camera resumes when disconnected
- Aftermarket camera fitment: Supported — if no factory camera fitted
- Vehicle connector: 4-pin Toyota style
- Plug & Play: Yes — factory connector to bare wires (some wiring required)
- Mounting brackets: Included
Features & Benefits
-
45-Metre Wireless Range — The PCAM-WLP transmits video wirelessly up to 45 metres, eliminating the need to run cabling through caravans, horse floats, or trailers — particularly valuable for long rigs where cable runs are impractical.
-
2.4GHz Digital Encrypted Wireless — Digital encryption on the 2.4GHz wireless link provides a stable, secure video signal without interference from other wireless devices.
-
IP67 Waterproof Camera — Full IP67 rating makes the wireless camera suitable for trailer mounting in all weather conditions — rain, dust, mud, and debris.
-
PWM Power Supply — CAN Bus Safe — The PCAM-WLP uses a PWM power supply, making it safe for use on modern Toyota vehicles with CAN-controlled tail light circuits that are sensitive to conventional accessory load connections.
-
Factory Camera Retained — Where the Toyota is fitted with a factory OEM reverse camera, it is retained by the kit. The trailer camera automatically takes priority when the trailer is connected and reverse is engaged — the factory camera resumes when the trailer is removed.
-
140° Wide Viewing Angle — A broad 140° field of view covers the full width of a trailer or caravan, reducing blind spots when reversing.
-

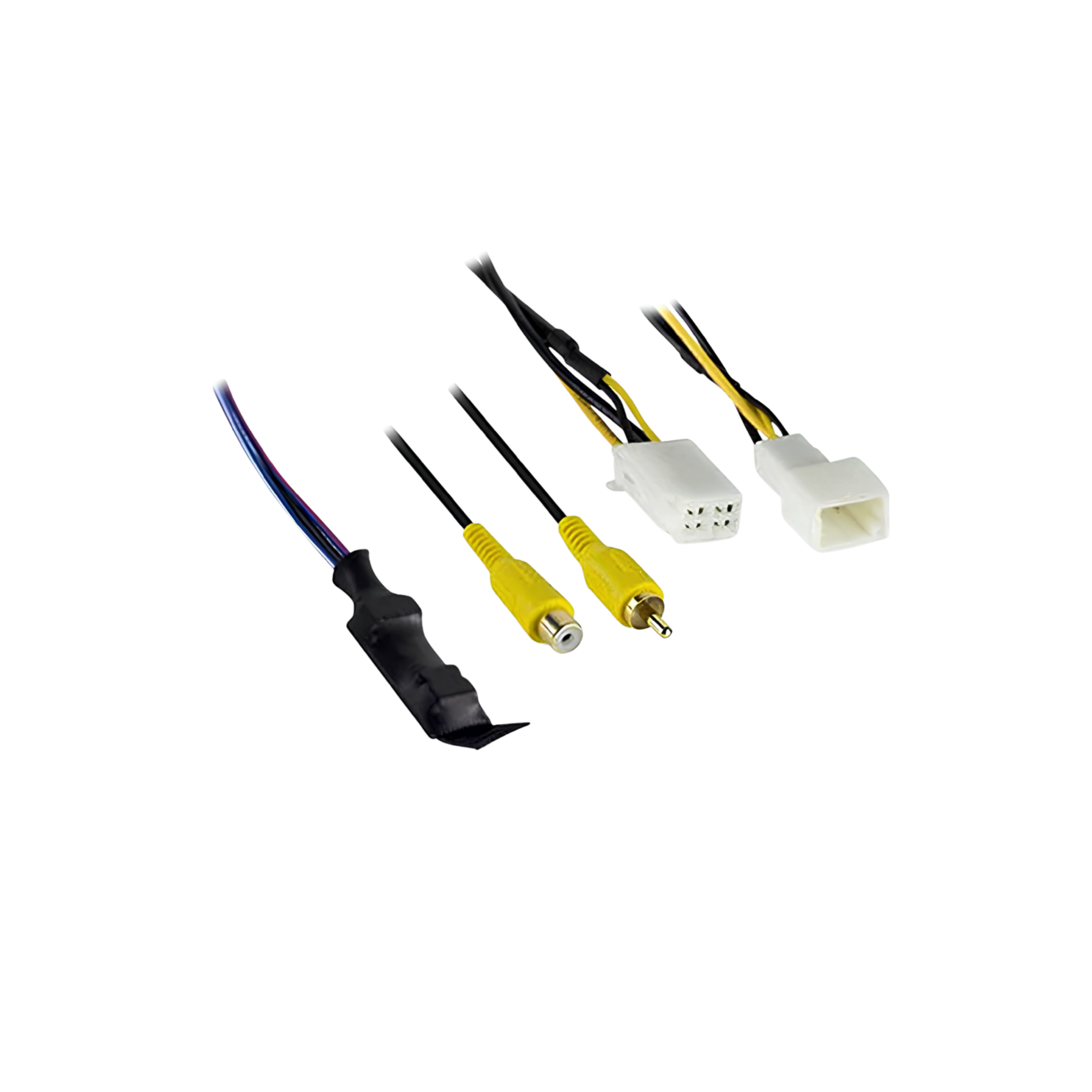

Vehicle-Specific 4-Pin Harness — The SCTYRT4 vehicle harness is included, providing a matched connection to the Toyota's factory 4-pin camera connector without additional adaptors.
-

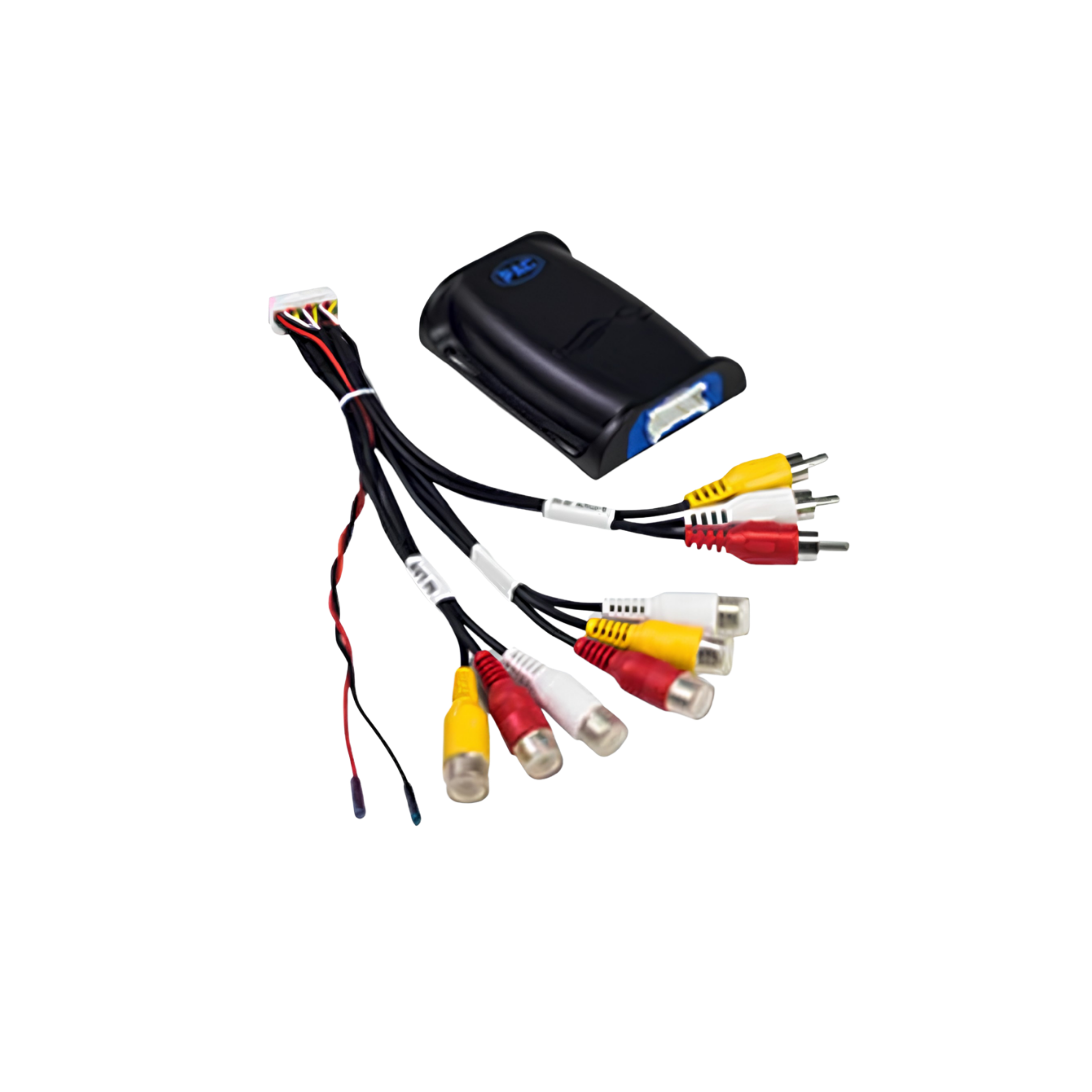

PAC AV Switching Unit — The PACAVS-21 audio/video switching unit manages the input switching between factory camera and trailer camera, enabling automatic override when the trailer is connected.
Technical Specs
| Specification |
Detail |
| Part Number |
TCTOY4KIT |
| Brand |
Stinger |
| Wireless Camera |
Echomaster PCAM-WLP |
| Wireless Frequency |
2.4GHz, digital encrypted |
| Wireless Range |
Up to 45 metres (without obstacles) |
| Viewing Angle |
140° |
| IP Rating |
IP67 |
| Minimum Illumination |
0.1 LUX |
| Power Supply |
PWM — CAN bus safe |
| Operating Temperature |
-20°C to +65°C |
| Vehicle Connector |
4-pin Toyota style |
| Parking Lines |
No |
| Factory Camera Retention |
Yes — overridden when trailer connected; resumes when removed |
| Aftermarket Camera Support |
Yes — if no factory camera fitted |
| Mounting Brackets |
Included |
| AV Switching Unit |
PAC PACAVS-21 |
| Vehicle Harness |
SCTYRT4 |
| Plug & Play |
Factory connector to bare wires — some wiring required |
Compatible With / Goes Well With
- Toyota 86 2012–2017 (pre-facelift)
- Toyota 86 2017–2020 (post-facelift)
- Toyota Estima XR30/XR40 2000–2005
- Toyota HiLux AN10/AN20/AN30 2011–2013
- Toyota LandCruiser Prado 120 Series 2002–2009
- Toyota LandCruiser Prado 150 Series 2009–2013 — without factory navigation only
Caution: The LandCruiser Prado 150 Series compatibility is limited to models without factory navigation — navigation-equipped 150 Series Prado models are not supported. The kit connects factory connector to bare wires and requires some wiring — it is not fully plug-and-play. Parking guidelines are not provided on the trailer camera image. Always confirm your vehicle's factory camera connector type (4-pin) before purchase.
Frequently Asked Questions
Does the trailer camera replace my factory reverse camera permanently?
No — when the trailer is connected and reverse is engaged, the trailer camera overrides the factory camera. When the trailer is disconnected, the factory OEM reverse camera resumes normal operation automatically.
Do I need to run a cable through my caravan or trailer?
No — the PCAM-WLP transmits wirelessly up to 45 metres. The camera is powered by the trailer's reverse lights and transmits to a receiver installed behind the dashboard — no video cable needs to be routed through the trailer.
Is the wireless camera safe for vehicles with CAN-controlled tail lights?
Yes — the PCAM-WLP uses a PWM power supply specifically designed to be safe for use on vehicles with CAN-controlled tail light circuits, which are sensitive to conventional direct accessory connections common on modern Toyotas.
Does the LandCruiser Prado 150 Series require factory navigation to be absent?
Yes — the TCTOY4KIT is compatible with the LandCruiser Prado 150 Series (2009–2013) only in models without factory navigation. Navigation-equipped 150 Series Prado models are not supported by this kit.
Will this kit show parking guidelines on the trailer camera image?
No — parking lines are not provided on the trailer camera feed. The PCAM-WLP displays a raw camera view without overlay guidelines.
