Description

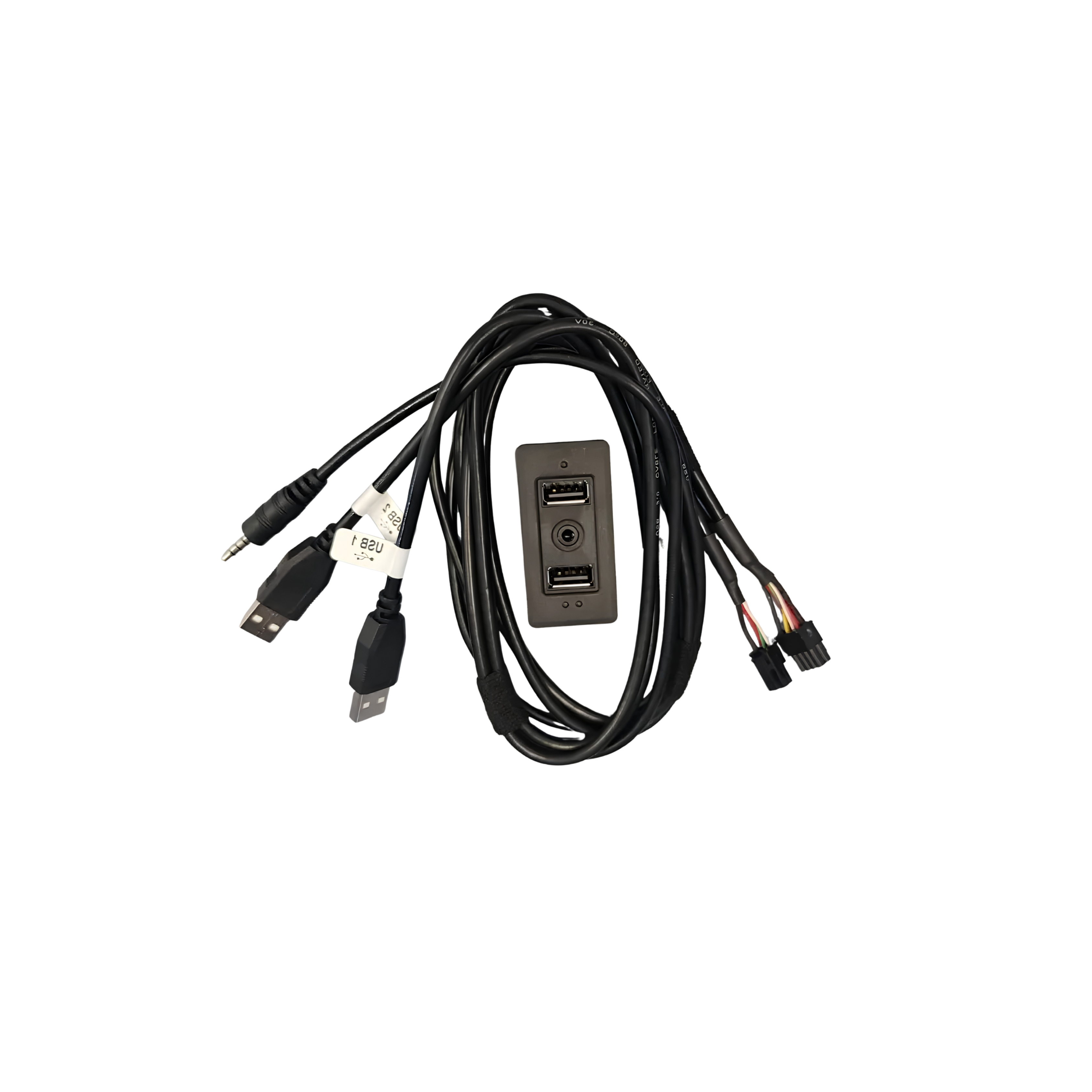

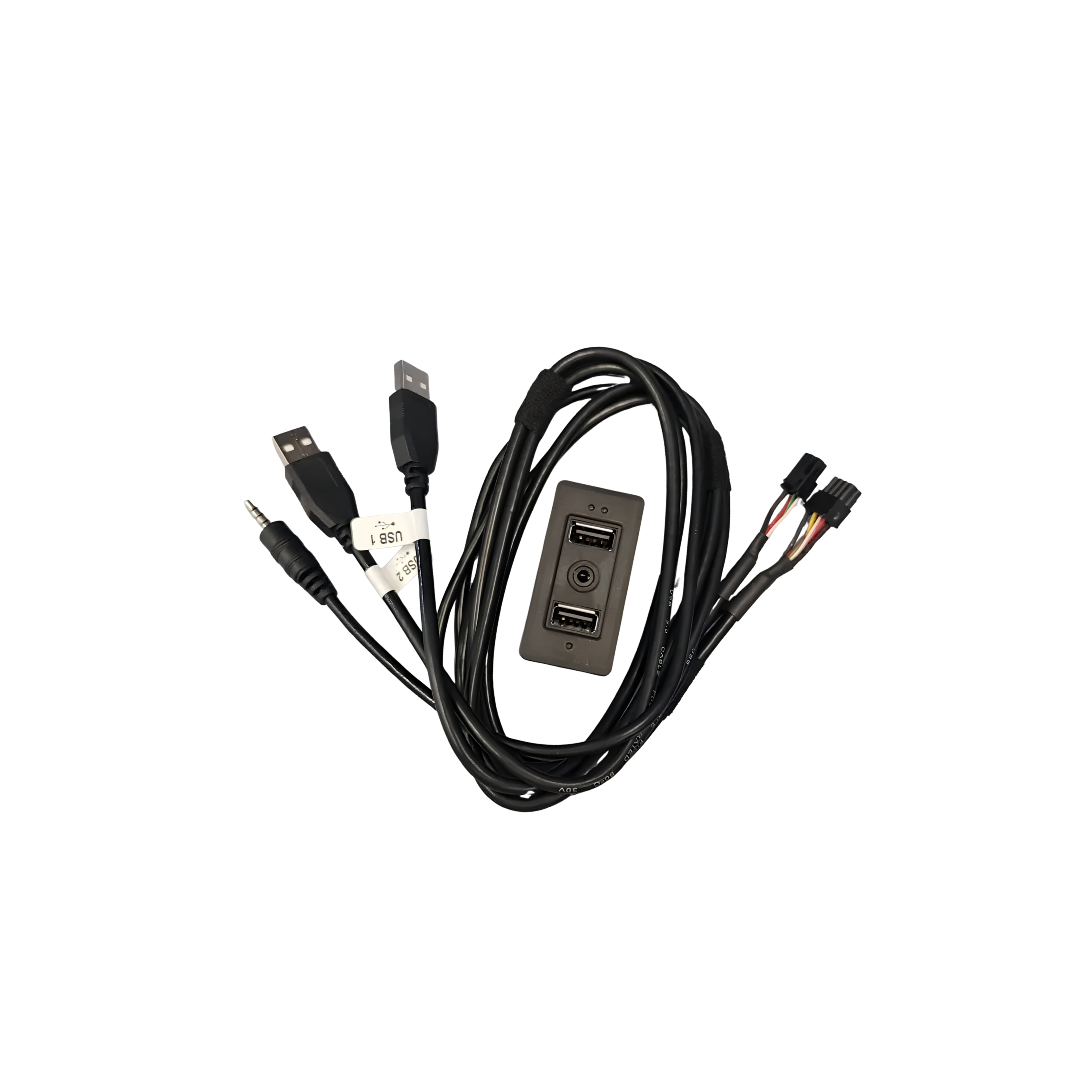

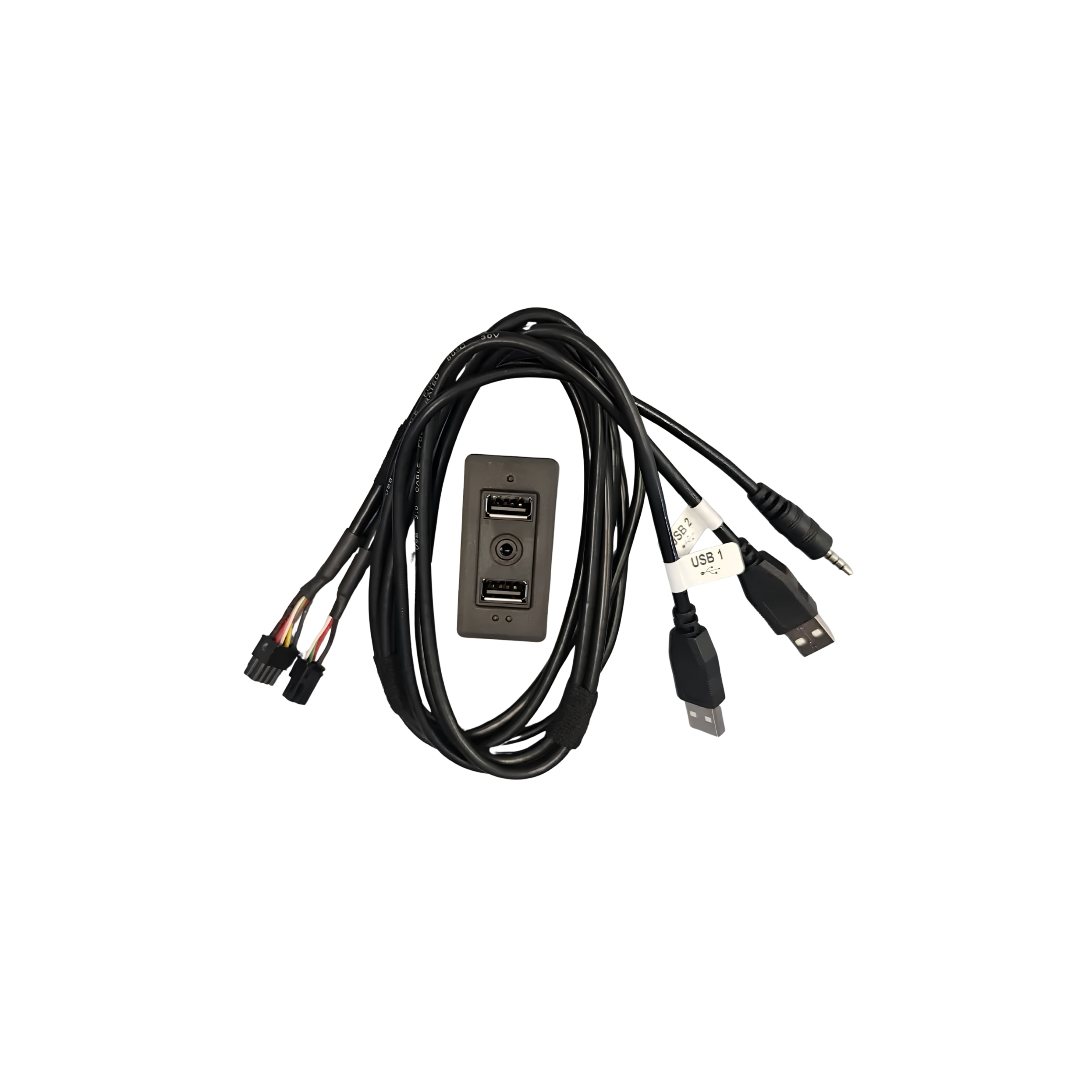

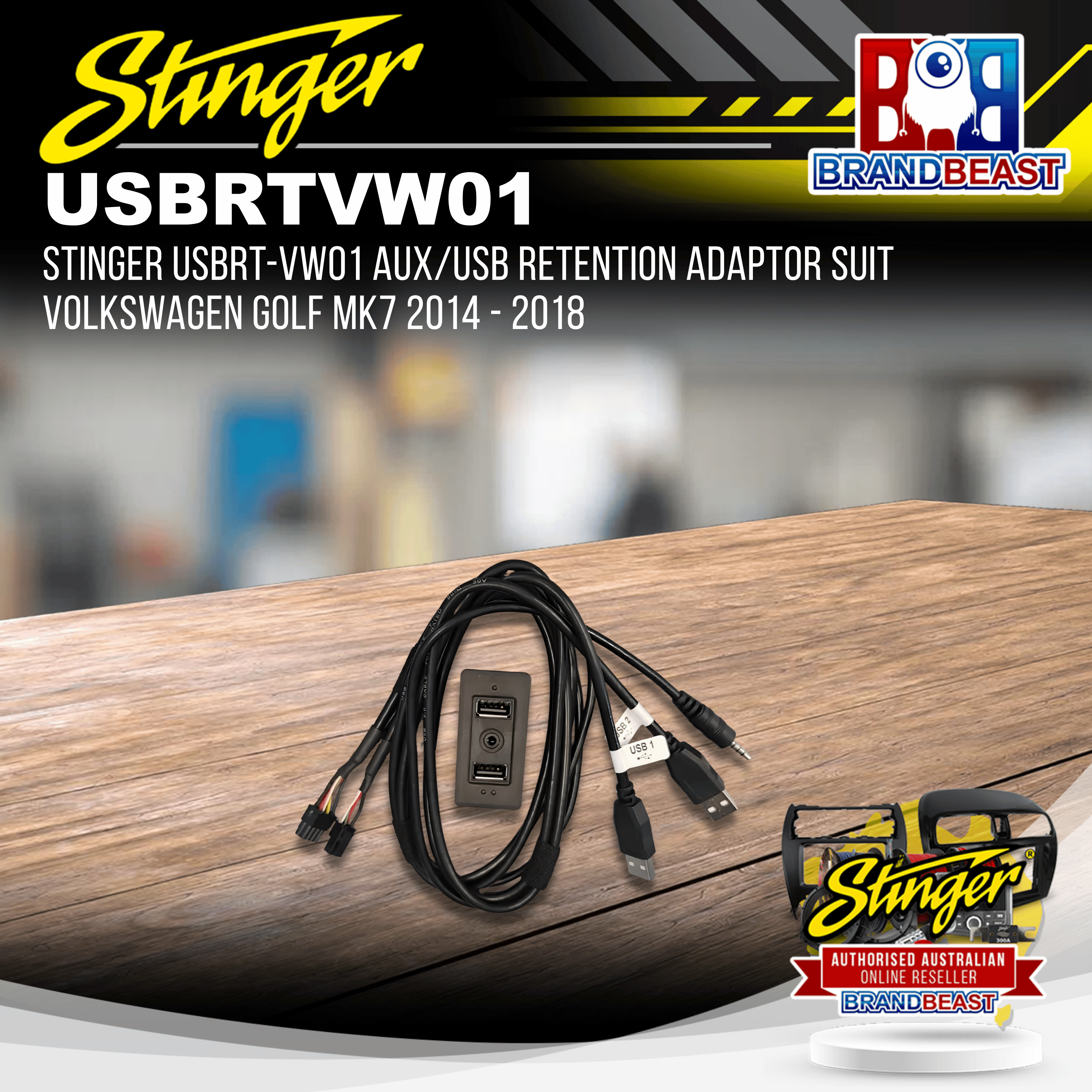

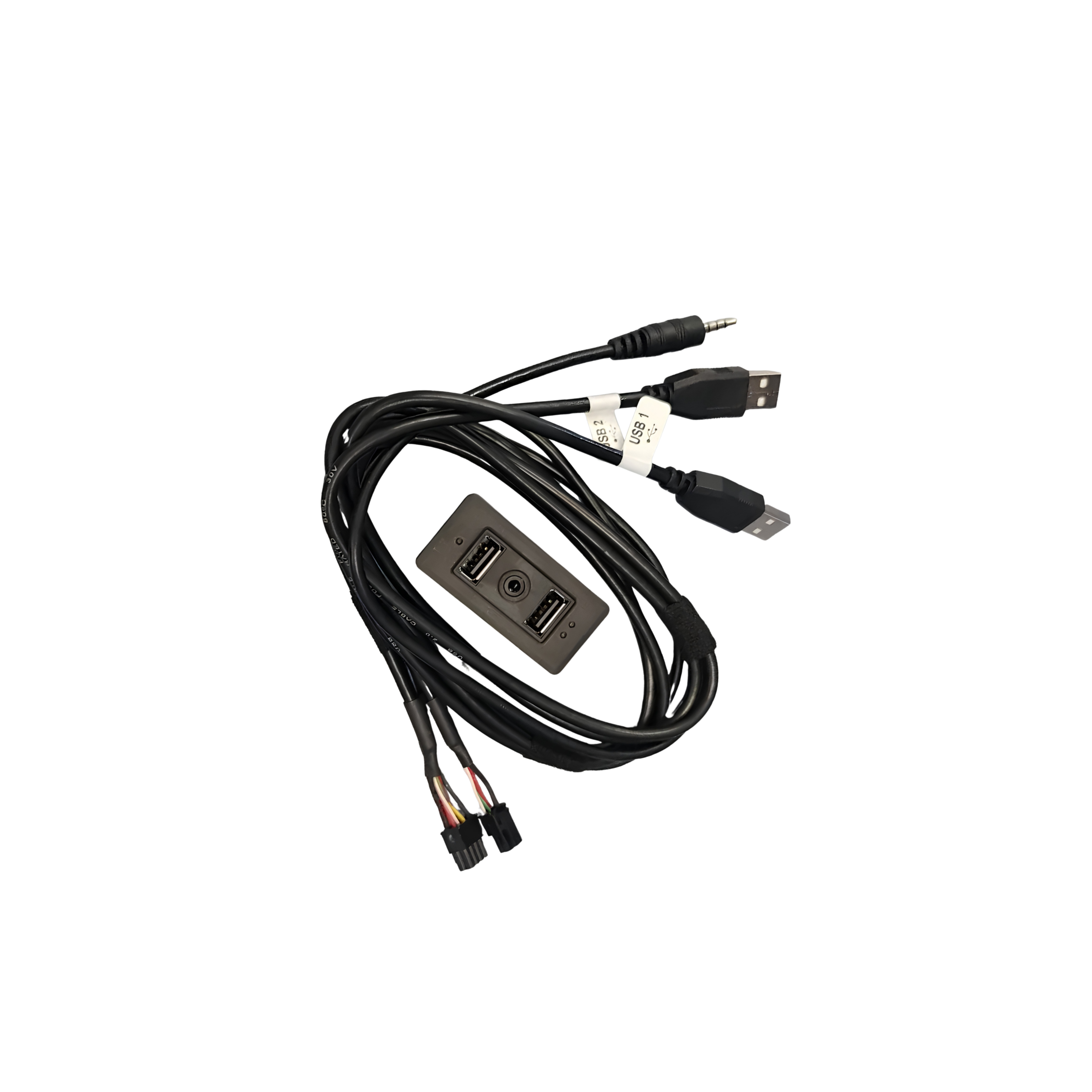

Stinger USBRT-VW01 Dual USB and 3.5mm AUX Retention Adaptor for Volkswagen Golf MK7 5G 2014 to 2018 Including GTI
The Stinger USBRT-VW01 is a USB and AUX retention adaptor for 2014 to 2018 Volkswagen Golf MK7 5G series models including GTI variants. Restores dual USB and 3.5mm AUX factory port functionality after a head unit upgrade by bridging the factory wiring to a compatible aftermarket head unit with dual USB and 3.5mm AUX rear inputs. No splicing or soldering required. Fascia kit and wiring harness not included.
Product overview
When the factory radio is replaced in the Golf MK7, the standard factory USB and AUX inputs can become non-functional. The USBRT-VW01 restores both connections by routing the factory wiring to the aftermarket head unit's rear inputs, keeping the factory-located ports working exactly as expected without additional wiring runs or exposed adaptors in the cabin.
The adaptor requires a compatible aftermarket head unit with dual USB and a 3.5mm AUX input on the rear. Confirm your head unit's rear input configuration before purchasing. For the fascia kit for this installation, the Stinger SFDVW01 Double DIN Gloss Black Fascia Kit is available separately.
Features and benefits
Dual USB retention: Retains both factory USB ports for use with a compatible aftermarket head unit, keeping charging and media playback connectivity in the factory location.
3.5mm AUX retention: Retains the factory AUX input for continued use with the new head unit without additional wiring.
Clean factory finish: Routes USB and AUX connections through the factory loom rather than adding new cables, maintaining a clean, unmodified appearance in the cabin.
No splicing or soldering required: Connects to the factory wiring on one end and the aftermarket head unit's rear inputs on the other.
Requires compatible head unit: The aftermarket head unit must have dual USB and a 3.5mm AUX input on the rear for this adaptor to function.
Technical specs
| Specification |
Detail |
| SKU |
USBRT-VW01 |
| Brand |
Stinger |
| Vehicle Compatibility |
VW Golf MK7 5G 2014 to 2018 (including GTI) |
| Connections Retained |
Dual USB and 3.5mm AUX |
| Head Unit Requirement |
Dual USB and 3.5mm AUX rear inputs |
| Weight |
0.03kg |
| Fascia Kit |
Not included |
| Wiring Harness |
Not included |
Compatible with
| Make |
Model |
Variant |
Years |
| Volkswagen |
Golf MK7 |
5G including GTI |
2014 to 2018 |
Compatible aftermarket head units must have dual USB and a 3.5mm AUX input on the rear.
Frequently asked questions
What does the USBRT-VW01 retain? The USBRT-VW01 retains dual USB and 3.5mm AUX connections from the factory Golf MK7 wiring to a compatible aftermarket head unit, keeping both factory USB ports and the AUX input functional after a head unit upgrade.
Does my aftermarket head unit need specific rear connections? Yes. The USBRT-VW01 requires a compatible aftermarket head unit with dual USB and a 3.5mm AUX input on the rear. Confirm your head unit's rear input configuration before purchasing.
Is this adaptor compatible with the Volkswagen Golf GTI? Yes. The USBRT-VW01 is confirmed for the Volkswagen Golf MK7 5G series including GTI variants from 2014 to 2018.
Does the kit include a fascia panel or wiring harness? No. The USBRT-VW01 is a USB and AUX retention adaptor only. A fascia kit and wiring harness need to be sourced separately for a complete installation. The Stinger SFDVW01 is the matching double DIN gloss black fascia kit for this vehicle.
Is this adaptor compatible with Golf MK7 models outside the 2014 to 2018 range? Compatibility is confirmed for the MK7 5G series from 2014 to 2018 only. Contact us before purchasing if your vehicle falls outside this range.
