Description

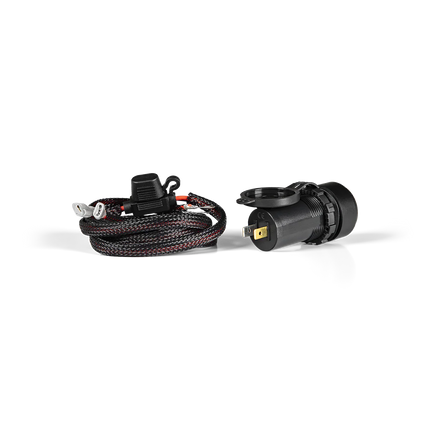

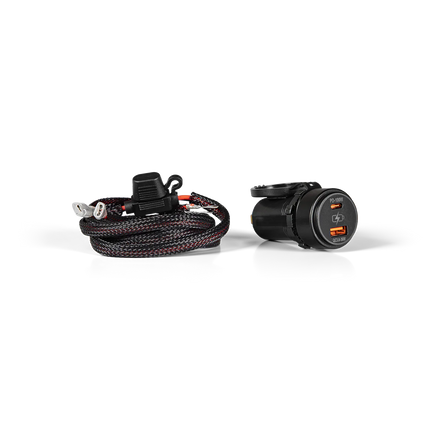

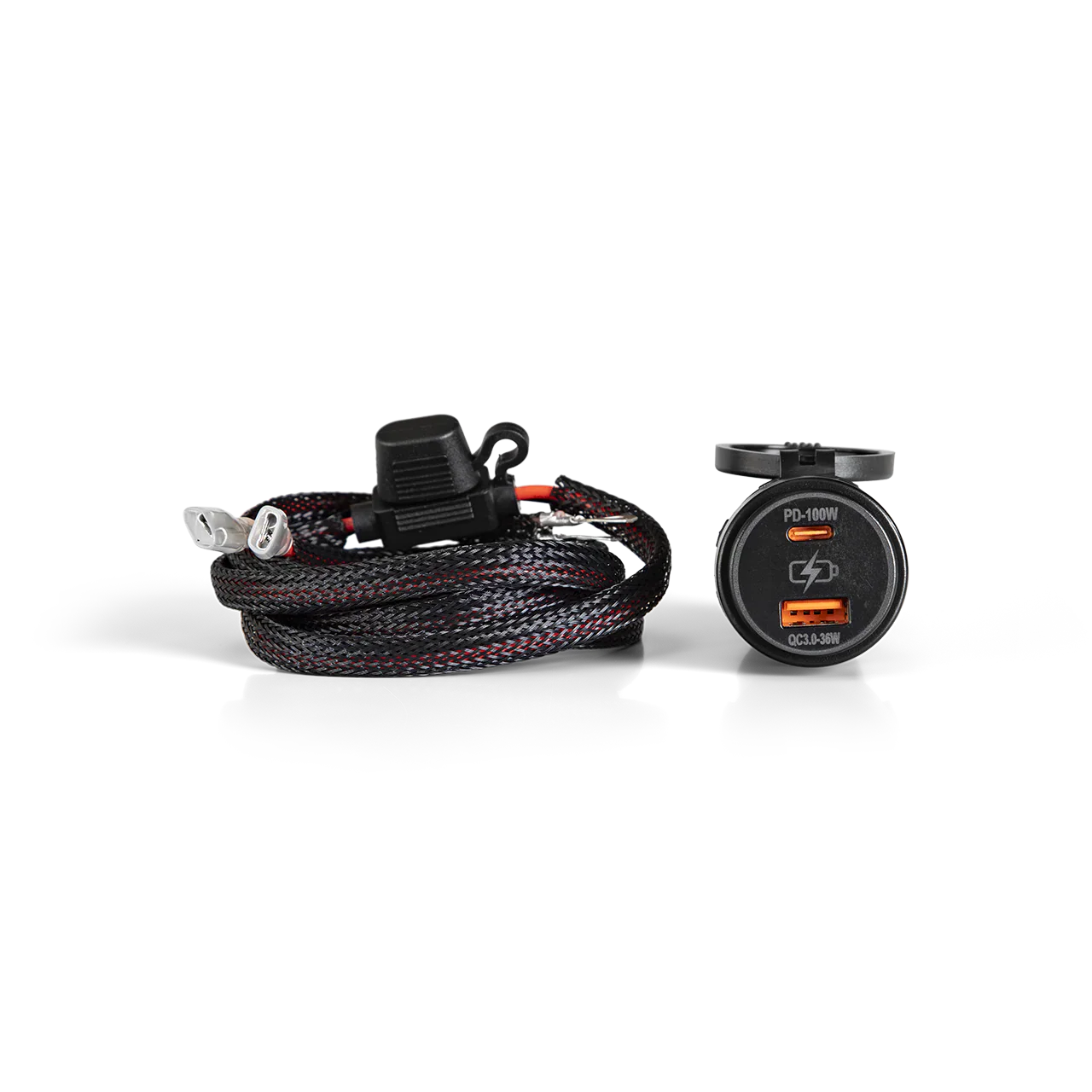

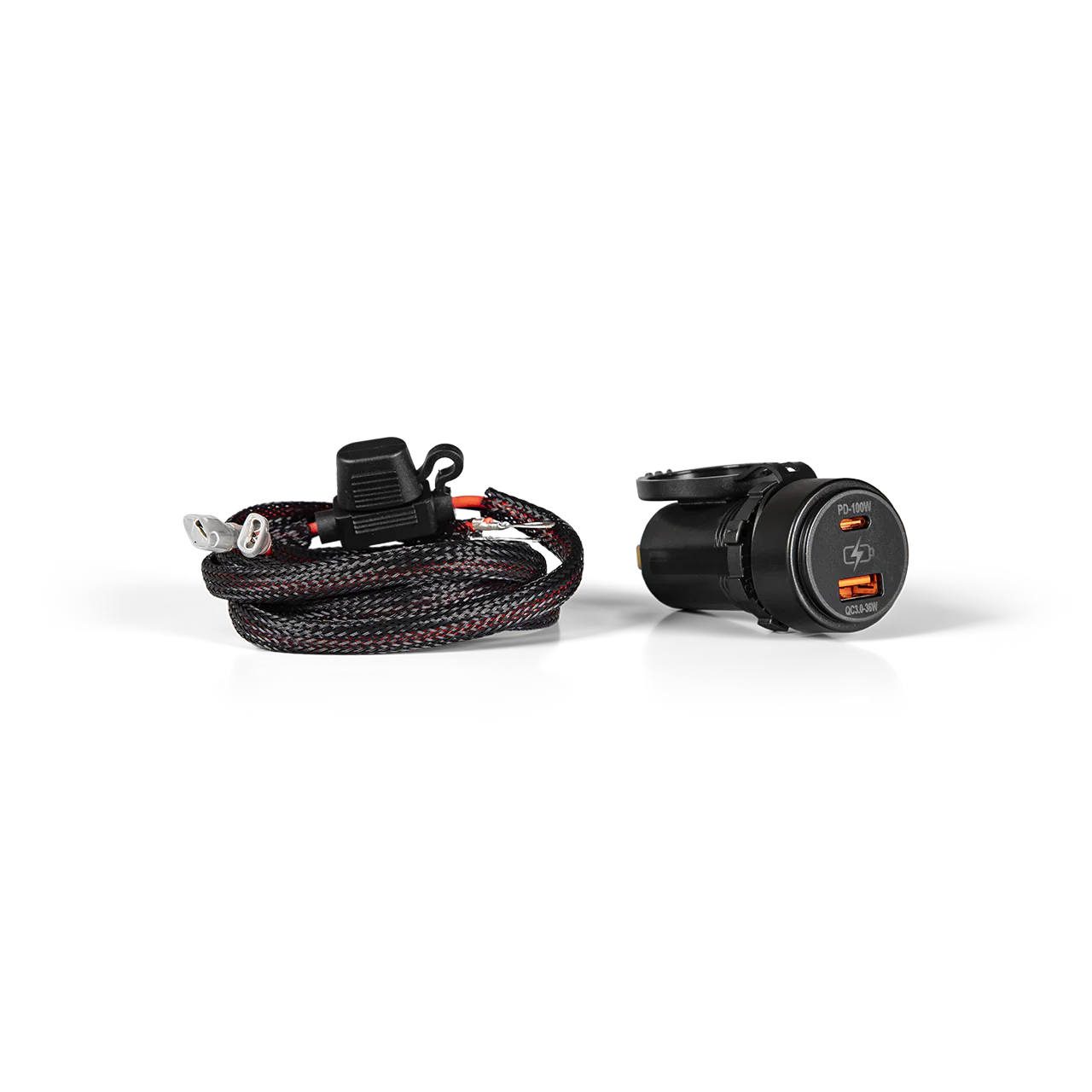

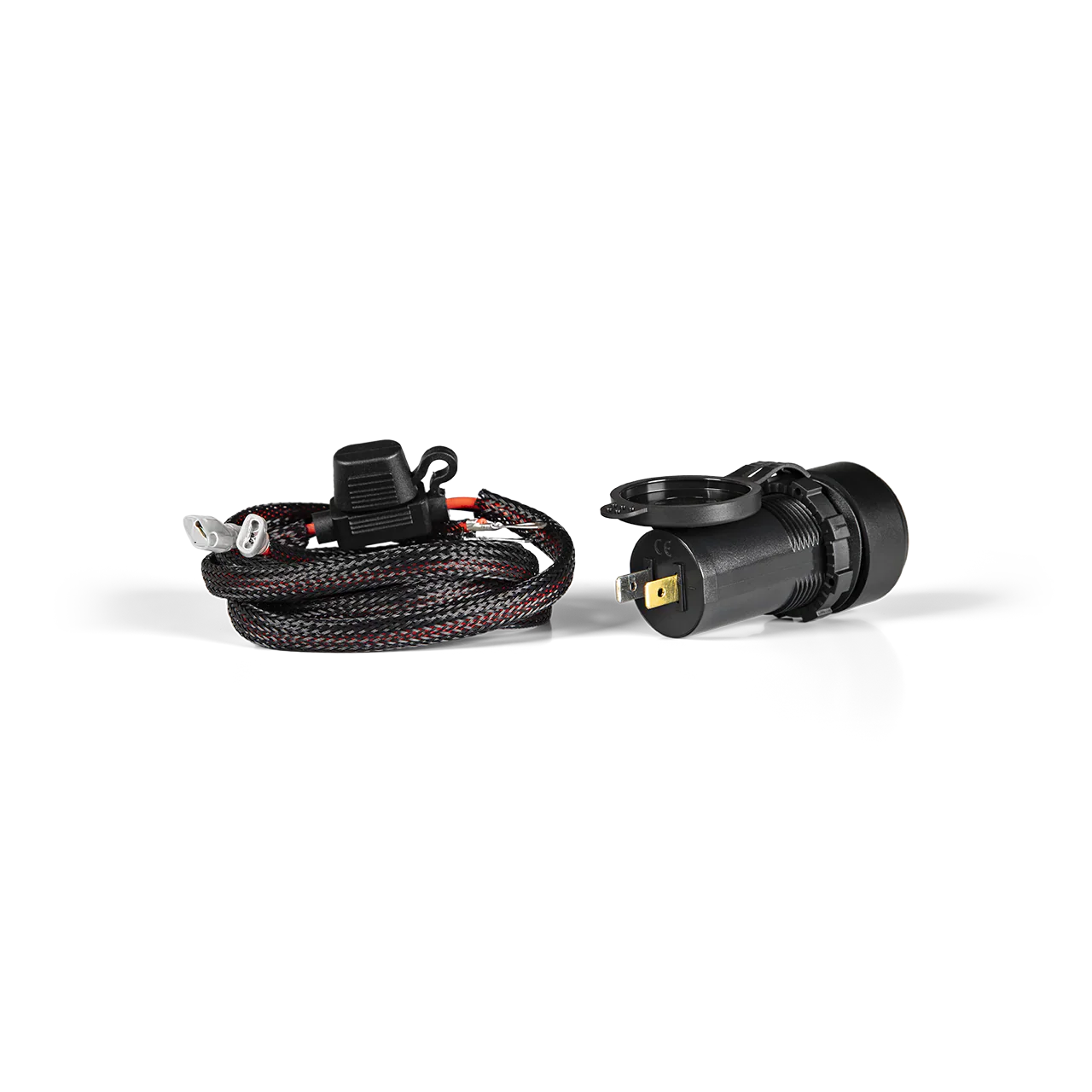

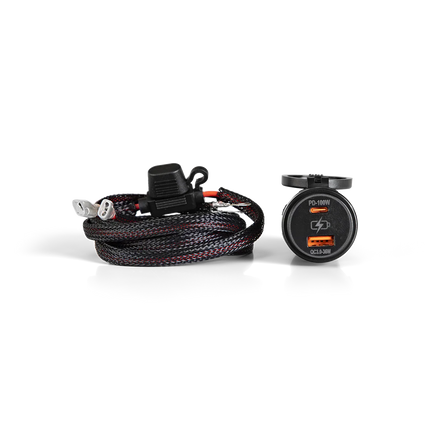

Teralume USB-PD-100W 100W Dual USB-C PD and Quick Charge 3.0 Charging Outlet
A flush mount dual-port charging outlet delivering up to 100W via USB-C PD and 36W via Quick Charge 3.0 USB-A from a 12-24V DC supply, the USB-PD-100W is IP65 rated and supplied with a 1-metre terminated and fused braided cable for installation in 4WDs, campers, caravans, and mobile setups.
Product Overview
The Teralume USB-PD-100W is a dual-socket flush mount charging outlet providing up to 100W output on the USB-C PD port and up to 36W on the USB-A Quick Charge 3.0 port from a 12-24V DC input. The USB-C port operates at 5-20V to deliver power equivalent to modern wall chargers at up to 100W at 12V, making it suited to high-demand devices including laptops and the Starlink Mini. The USB-A port operates at 5-12V for Quick Charge 3.0 compatible devices. Connected devices automatically recognise and adjust to the appropriate charging protocol.
The unit is IP65 rated for water resistance and is supplied with a 1-metre terminated and fused braided cable with battery terminals. The flush mount format requires a 28.6mm hole cut diameter, with the unit sitting 80mm deep and presenting a 36.5mm face diameter. Optional flush mount and surface mount adaptors are available separately.
Features & Benefits
100W USB-C PD Output at 12V: The USB-C port delivers up to 100W at 5-20V, providing power equivalent to modern wall chargers from a 12V or 24V vehicle supply. This enables fast charging of high-demand devices including laptops, tablets, and the Starlink Mini from a mobile power source.
36W Quick Charge 3.0 USB-A Output: The USB-A port delivers up to 36W at 5-12V with Quick Charge 3.0 support, providing fast charging for smartphones and other QC 3.0-compatible devices alongside the USB-C port.
12-24V DC Input Compatibility: The USB-PD-100W operates from a 12V or 24V DC supply, making it compatible with passenger vehicles, 4WDs, trucks, campers, and caravans without modification to the power input.
IP65 Water Resistance: The IP65 rating provides protection against dust ingress and water jets from any direction, making the USB-PD-100W suitable for installation in exposed locations within 4WD, camper, and caravan builds.
Flush Mount Installation: The flush mount format integrates cleanly into a panel or console surface with a 28.6mm hole cut diameter. Optional flush mount and surface mount adaptors are available separately for alternative installation configurations.
1-Metre Terminated and Fused Braided Cable Included: The included 1-metre braided cable is terminated and fused with battery terminals for direct connection to the vehicle battery or power distribution system, providing a complete and protected wiring solution out of the box.
Automatic Device Recognition and Protocol Adjustment: Connected devices automatically recognise and adjust to the appropriate charging protocol for optimal fast charging without manual configuration.
Technical Specs
| Specification |
Detail |
| SKU |
USB-PD-100W |
| Brand |
Teralume Industries |
| DC Input Voltage |
12-24V DC |
| USB-C Output |
5-20V, up to 100W |
| USB-A Output |
5-12V, up to 36W (Quick Charge 3.0) |
| IP Rating |
IP65 |
| Face Diameter |
36.5mm |
| Unit Depth |
80mm |
| Hole Cut Diameter |
28.6mm |
| Mount Type |
Flush Mount |
| Cable |
1-Metre Terminated and Fused Braided Cable with Battery Terminals |
| Optional Accessories |
Flush Mount Adaptors, Surface Mount Adaptors (sold separately) |
What's in the Box
- 1x 12V USB / USB-C PD Ultra Fast Charger - Flush Mount
- 1x 1-Metre Terminated and Fused Braided Cable with Battery Terminals
Compatible With
The USB-PD-100W is compatible with any 12V or 24V DC power supply including vehicle batteries, auxiliary batteries, and power distribution systems. The USB-C PD port is compatible with any USB-C PD device including laptops, tablets, smartphones, and the Starlink Mini. The USB-A port is compatible with Quick Charge 3.0 devices and standard USB-A devices. Devices automatically adjust to the appropriate charging protocol. Optional flush mount and surface mount adaptors are available separately for alternative installation configurations.
Frequently Asked Questions
Does the USB-PD-100W work on both 12V and 24V systems?
Yes. The USB-PD-100W accepts a 12-24V DC input, making it compatible with standard 12V passenger and 4WD vehicle systems as well as 24V truck and heavy vehicle systems.
Is the USB-PD-100W suitable for charging the Starlink Mini?
Yes. The Starlink Mini requires a high-wattage USB-C power source to operate from a vehicle supply. The USB-PD-100W delivers up to 100W via USB-C PD at up to 20V, providing the power level required for Starlink Mini operation from a 12V or 24V DC supply.
Is a surface mount option available?
The USB-PD-100W is supplied as a flush mount unit requiring a 28.6mm hole cut. Optional flush mount and surface mount adaptors are available separately for alternative installation configurations.
Does the included cable require additional fusing?
The included 1-metre braided cable is supplied terminated and fused with battery terminals, providing an integrated fuse in the cable for direct battery connection without requiring a separate inline fuse.
Can both ports be used simultaneously?
Yes. The USB-PD-100W features dual ports and both the USB-C and USB-A ports can be used simultaneously for charging two devices at once.
