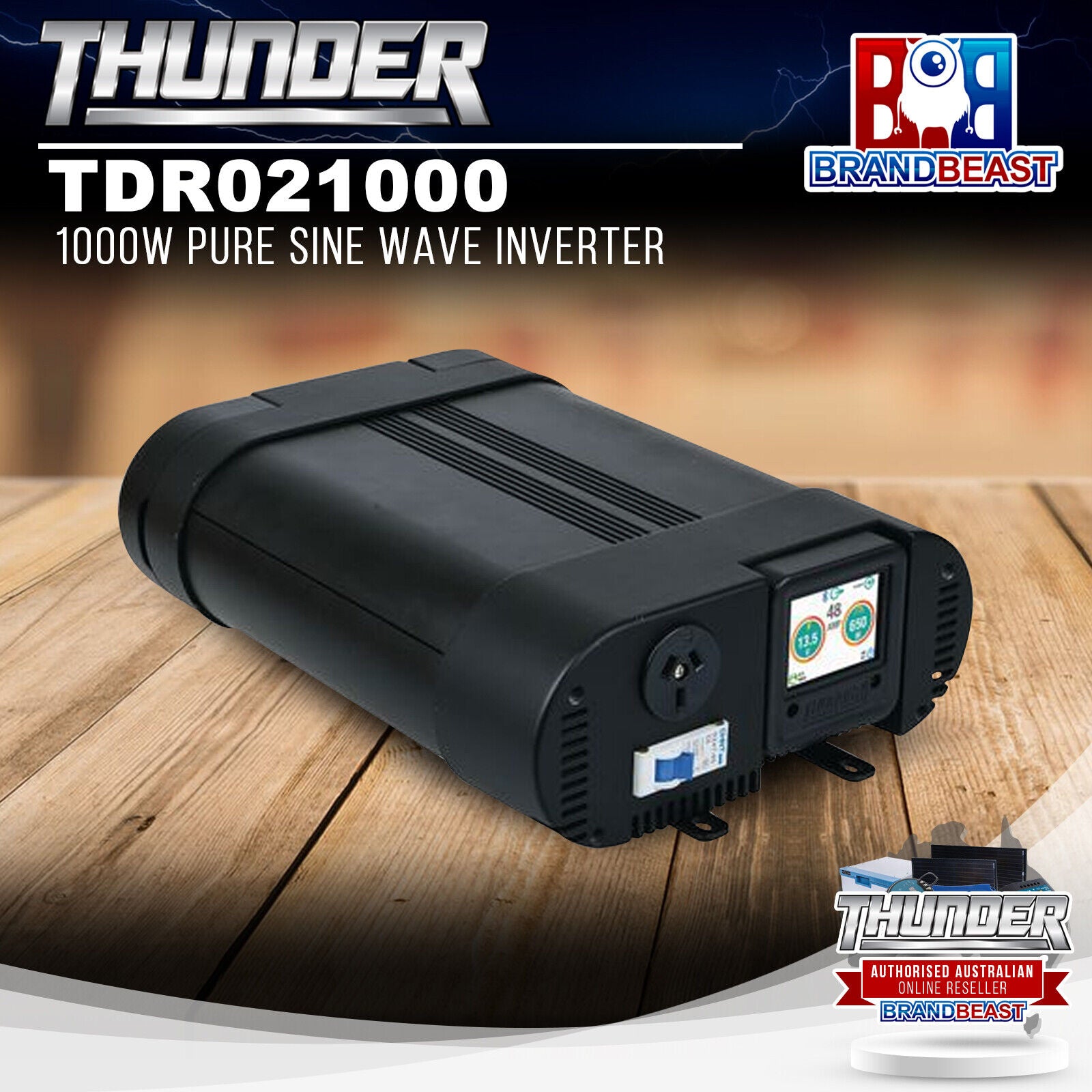

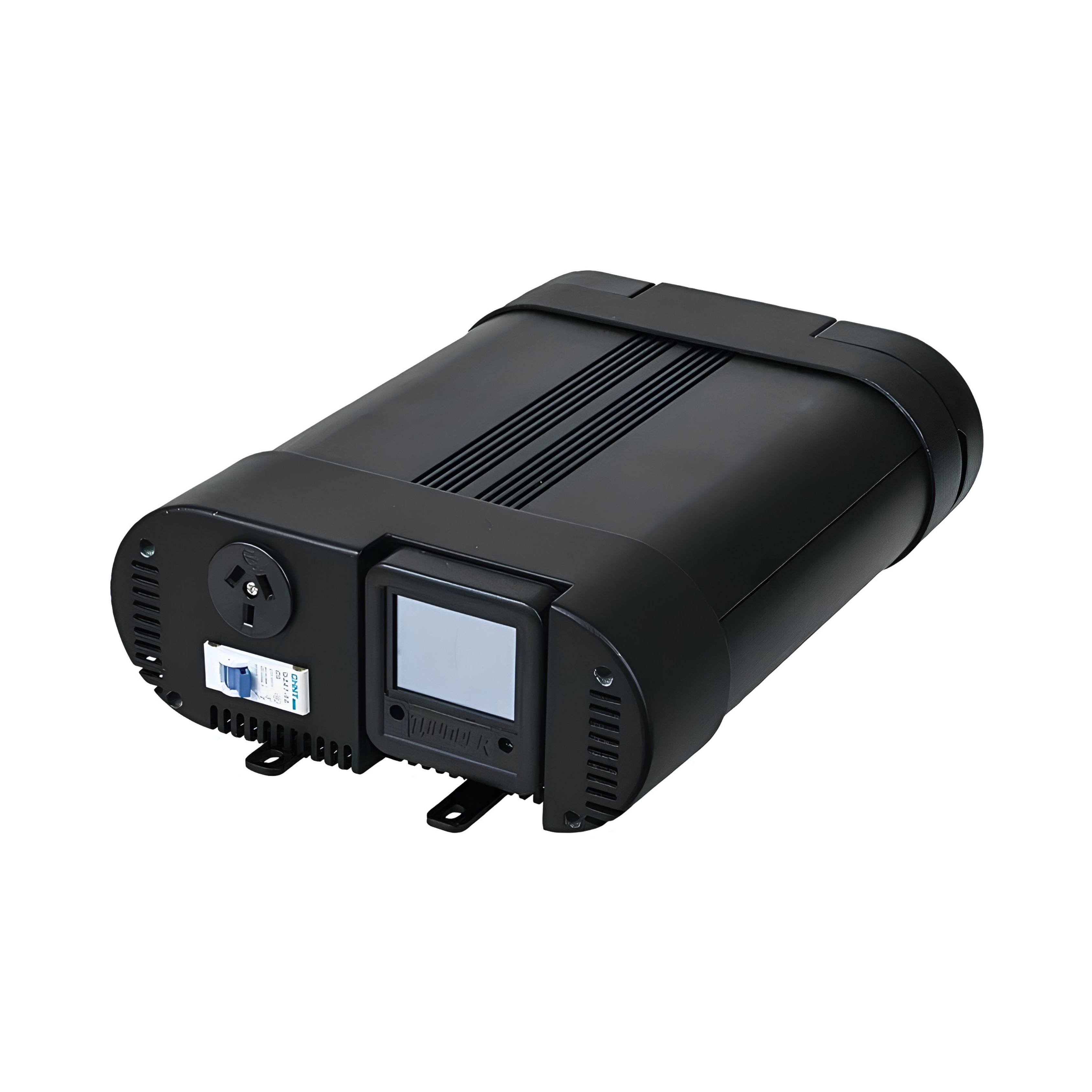

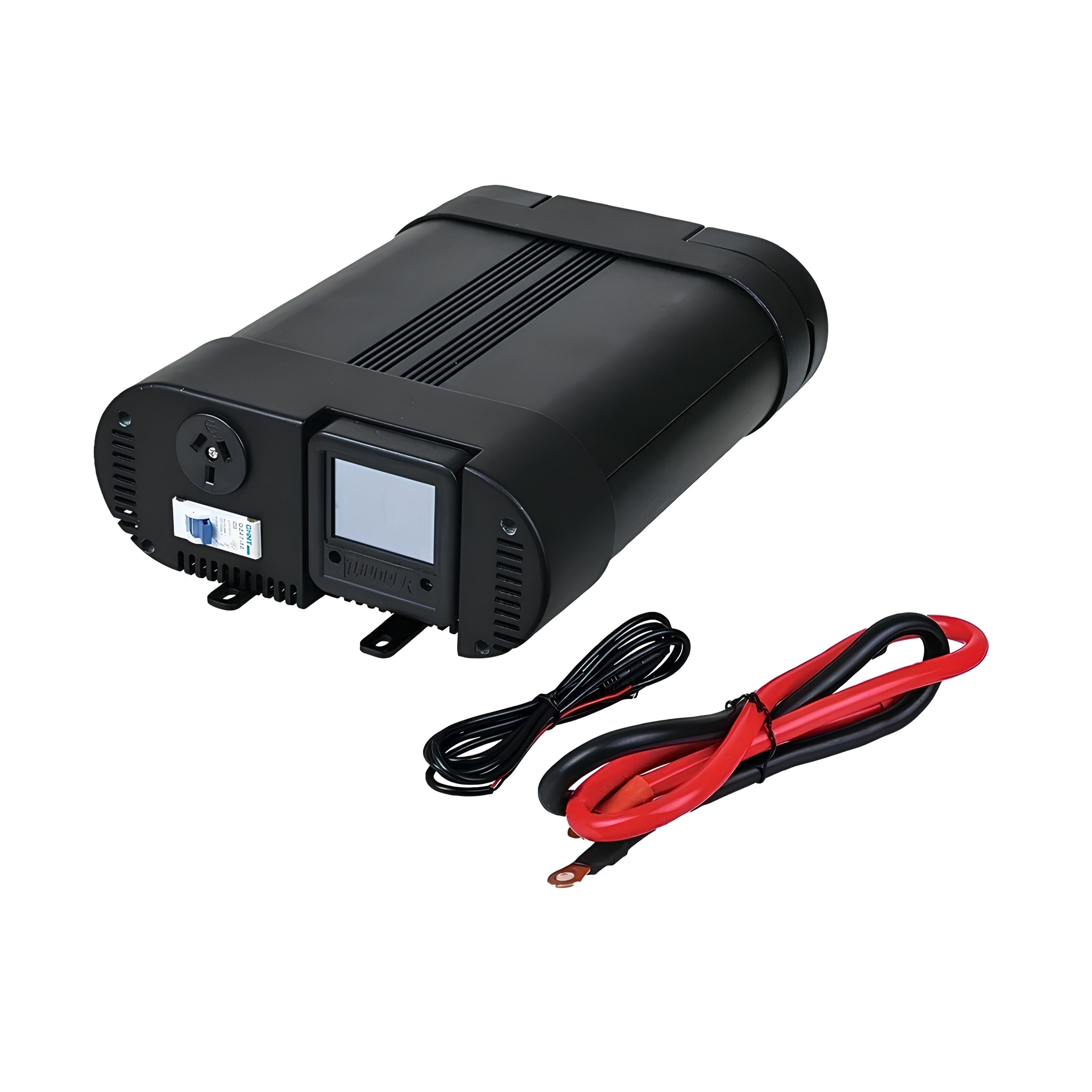

Thunder TDR021000 1000W Pure Sine Wave Power Inverter
A 1000W pure sine wave power inverter from Thunder, the TDR021000 delivers 2000W peak power with a removable Bluetooth colour LCD touch display, aluminium housing, and comprehensive protection systems, suited to camping, caravanning, and camper trailer setups.
Product overview
The Thunder 1000 watt Inverter can be used on camping trips, while caravanning around, or in camper trailers. Just connect to a deep cycle battery, connect solar panels to your solar regulator, connect your regulator to the battery, then connect the inverter to the battery and plug in your laptop, phones, lights, or whatever power requirements you may need. The display on the inverter will tell you battery power levels.
Features and benefits

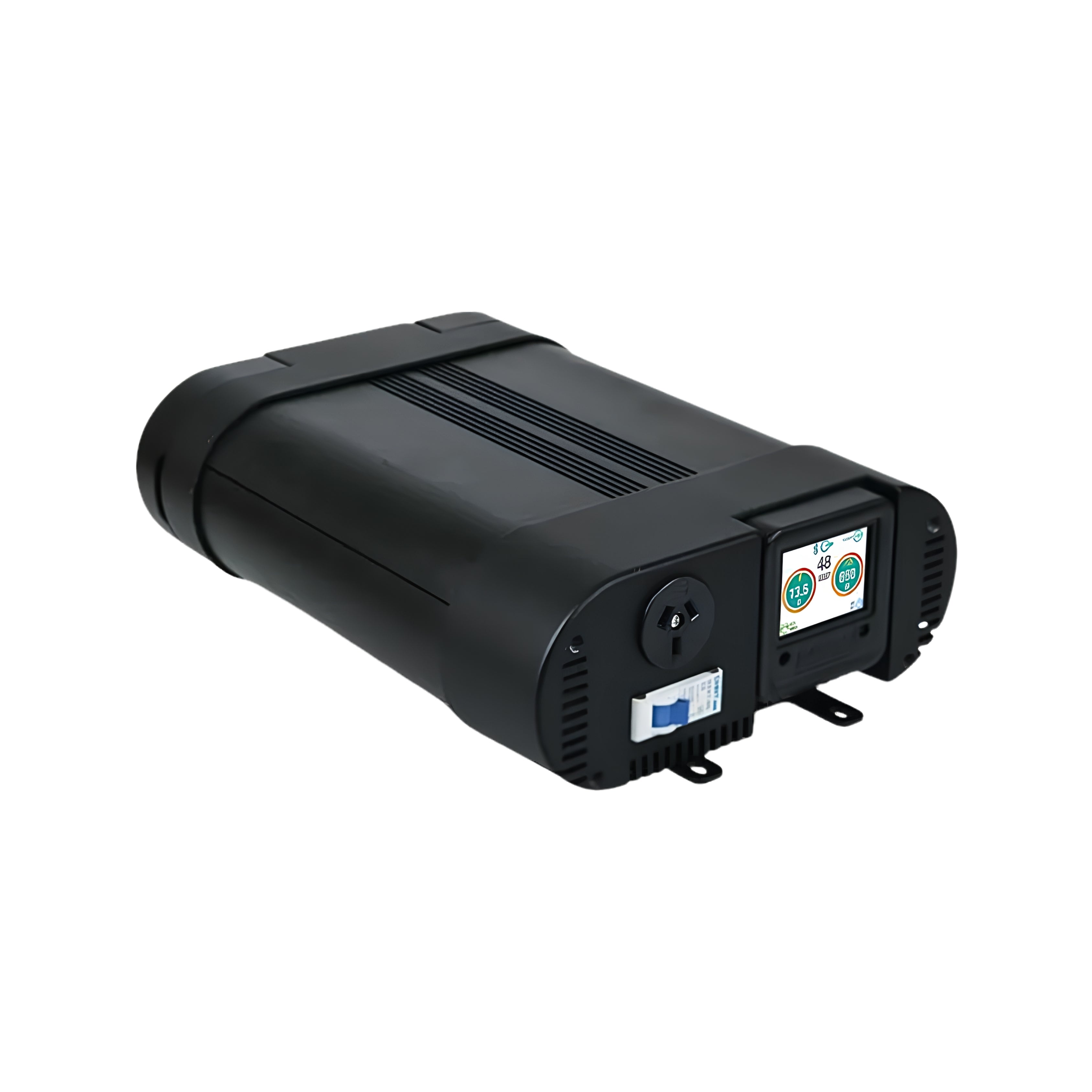

Removable 2.4 inch Bluetooth colour LCD display: Touch screen functionality allows switching the main unit on and off, and displays inverter input voltage, amperage, output wattage, and low voltage warning.
Single 240VAC outlet: Provides mains-style AC power output for laptops, phones, lights, and other 240V appliances.
Safety switch: Turns the unit's 240VAC output on and off and provides instantaneous output cut-off in the event of an accidental short circuit.
Low voltage shutdown: Shuts down output at 11V along with a warning icon on the LCD screen to protect the connected battery.
Comprehensive protection systems: Over and under voltage protection, output short circuit protection, and over temperature protection.
Pure sine wave output: Provides clean, stable power suited to sensitive electronics.
Aluminium housing: Durable construction suited to outdoor and touring use.
Technical specs
| Specification |
Detail |
| SKU |
TDR021000 |
| Brand |
Thunder |
| Type |
Pure Sine Wave Inverter |
| Continuous Output Power |
1000W |
| Peak Power |
2000W |
| Output Overload Protection |
1100W (Manual Restart) |
| Output Voltage |
240V |
| Output Frequency |
50Hz |
| Output Waveform |
Pure Sine Wave |
| Efficiency (Full Load) |
90% |
| Safety Switch |
5A 250VAC |

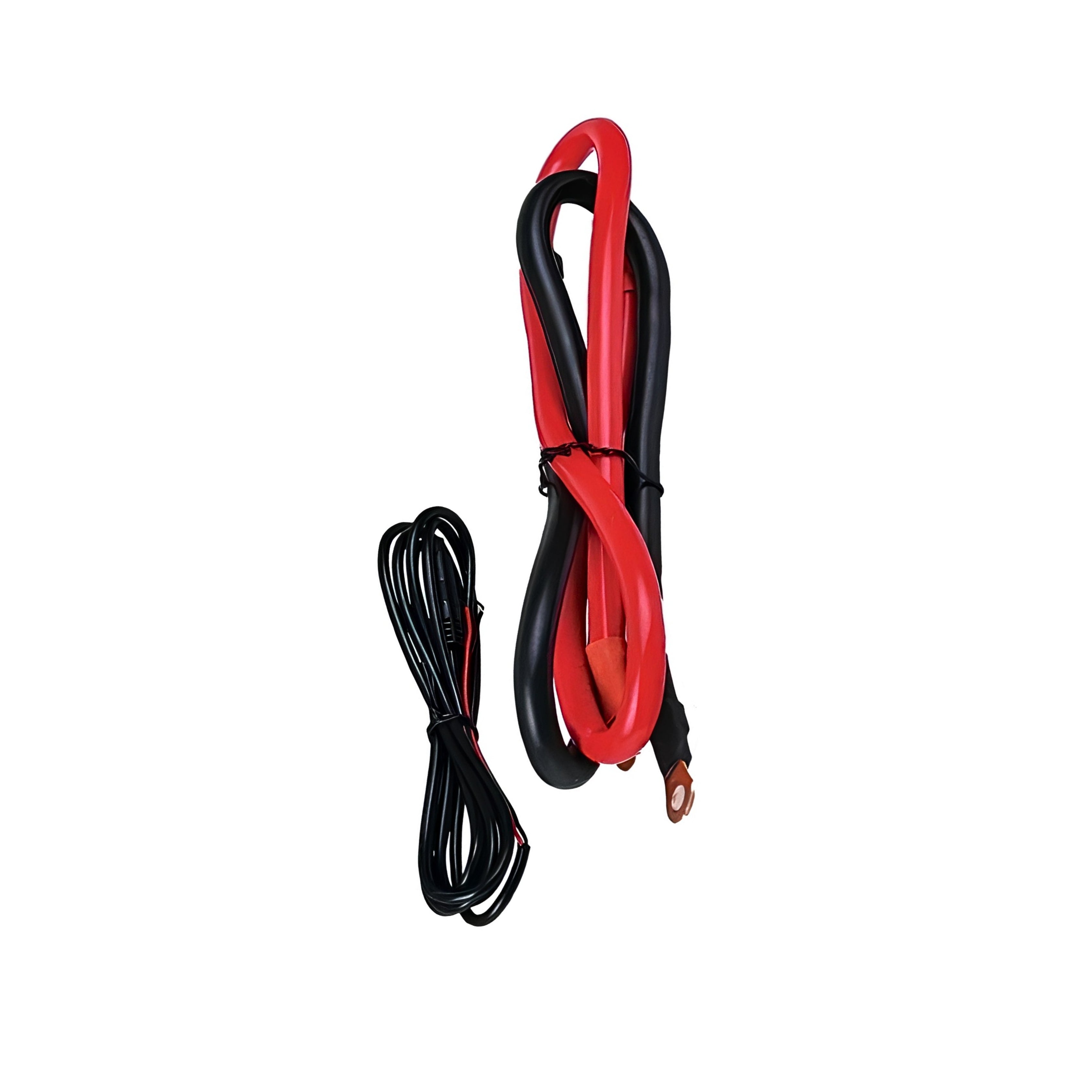

| Input Cable |
70cm AWG6 (13.3mm2) |
| External Fuse Specification |
80A |
| Dimensions |
310 x 233 x 95mm |
| Mounting Hole Spacing |
80mm C2C |
| Minimum Input Voltage |
11V |
| Input Voltage Range |
11-15V |
| Input Low Voltage Warning |
11.5V |
| Input Low Voltage Cut-Off |
11V |
| Input Over-Voltage Cut-Off |
15.5V (Automatic Reset) |
| Standby Current |
11mA |
| No Load Working Current |
0.5-0.6A |
| Internal Operating Temperature Range |
-10°C to 50°C |
| Internal Over-Temperature Protection |
60°C-65°C (Manual Reset) |
| Cooling Fan |
Single Brushless Fan (Automatic) |
| Fan Control |
Maintains 40°C ±10°C |
| Approvals |
CE, EMC, AS/NZS 4763:2011 |
| Material |
Aluminium Housing |
| Warranty |
3 Years |
Compatible with
The TDR021000 is compatible with deep cycle batteries and solar regulator setups for camping, caravanning, and camper trailer power systems. Confirm your battery and solar system specifications before purchase.
Frequently asked questions
What is the continuous output power of the TDR021000?
The TDR021000 provides 1000W continuous output power, with a peak power rating of 2000W for short durations.
Does the TDR021000 include a display?
Yes. The TDR021000 features a removable 2.4 inch Bluetooth colour LCD touch screen display showing input voltage, amperage, output wattage, and low voltage warnings.
What protection systems does the TDR021000 include?
The TDR021000 includes over and under voltage protection, output short circuit protection, overload protection, and over temperature protection, along with a safety switch for the 240VAC output.
What waveform does the TDR021000 produce?
The TDR021000 produces a pure sine wave output, suited to sensitive electronics that require clean, stable power.
What warranty does the TDR021000 come with?
The TDR021000 is backed by a three-year warranty.
