Description

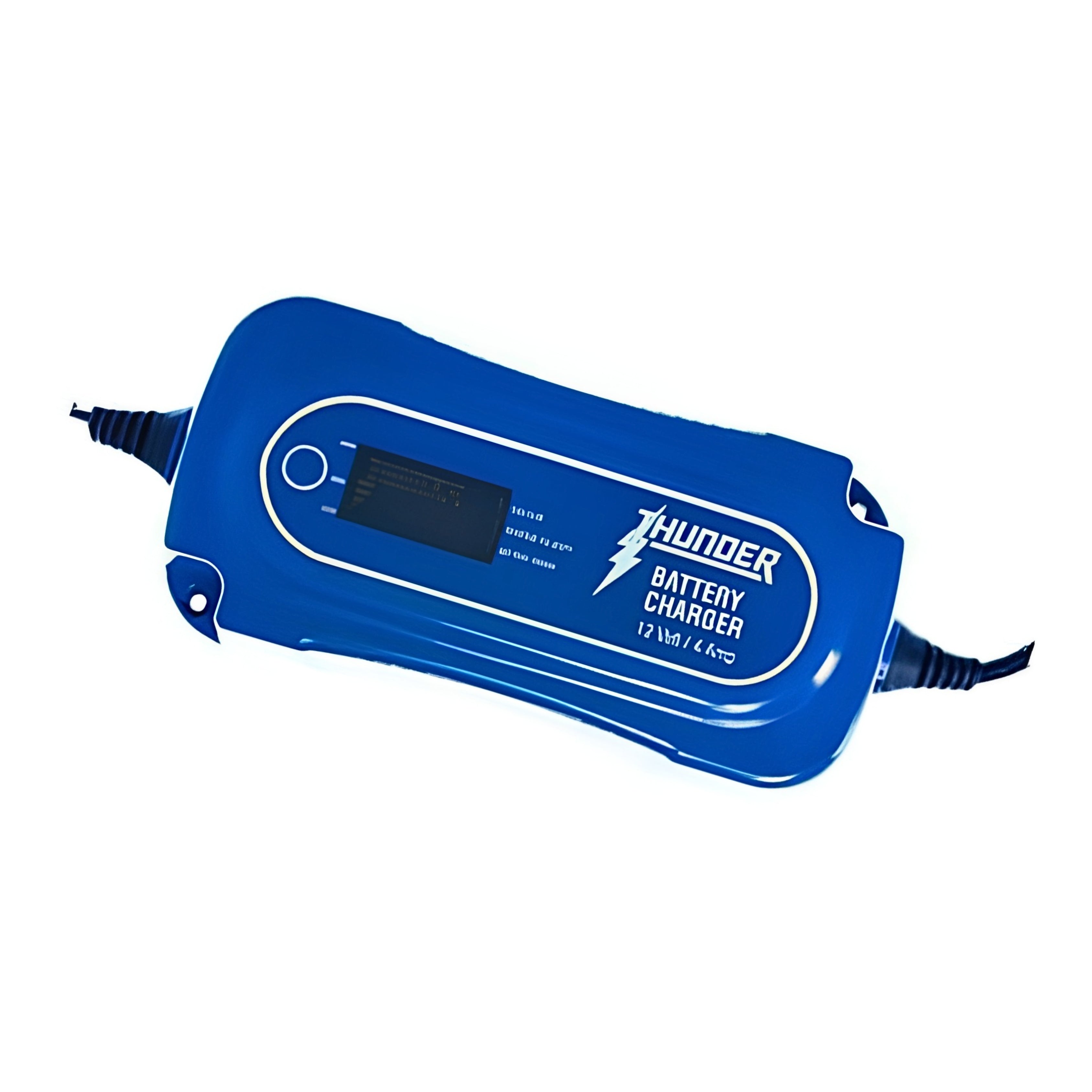

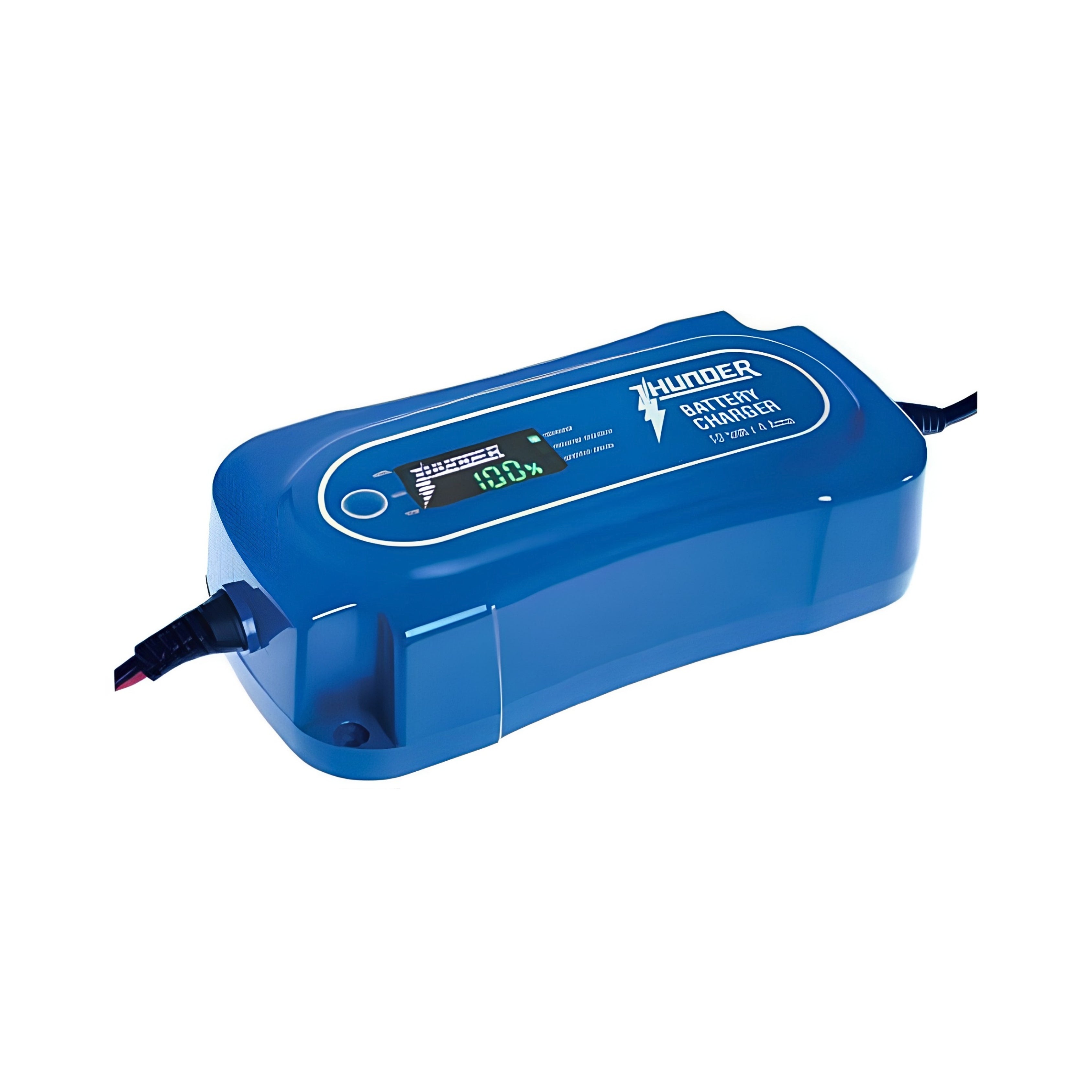

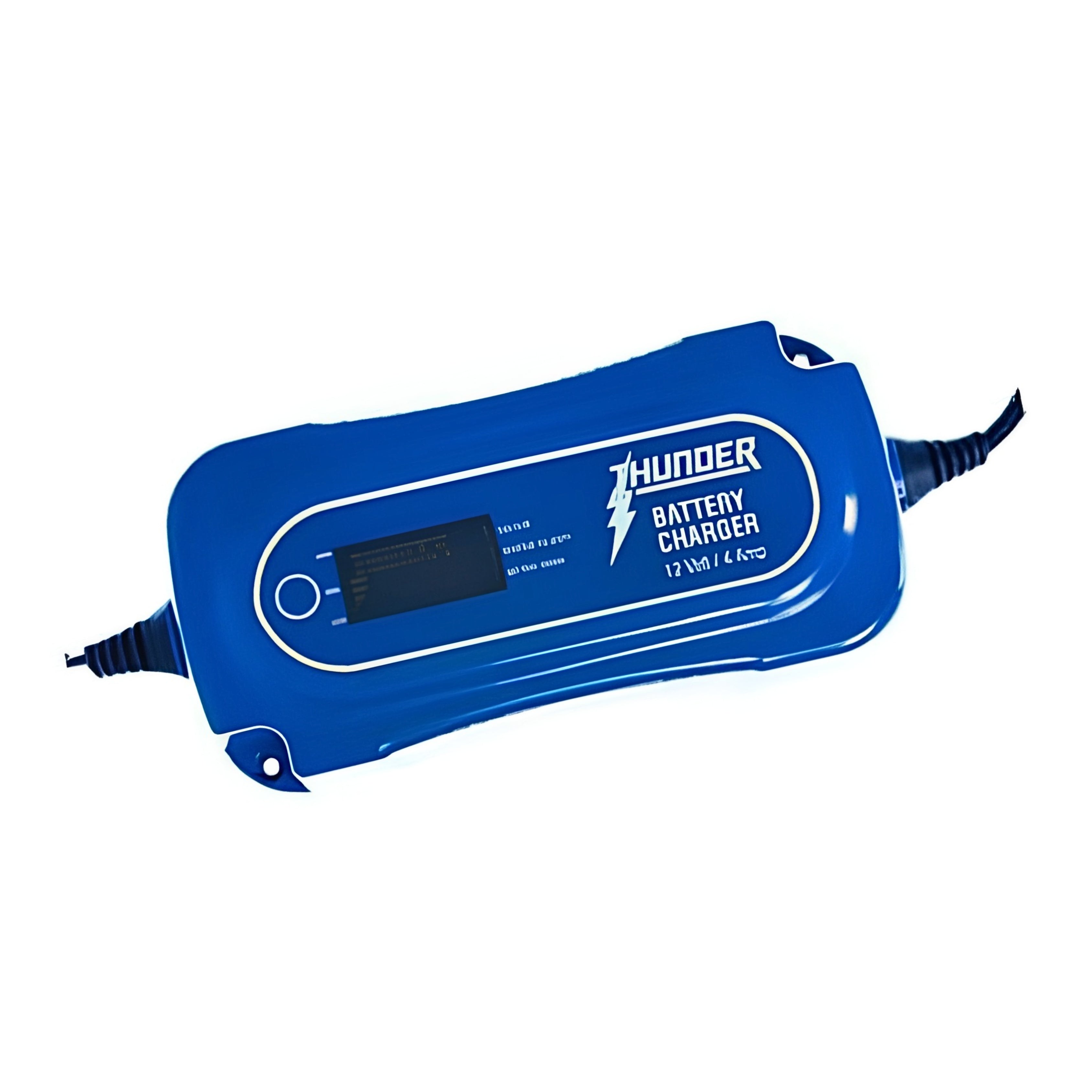

Thunder TDR02104 4 Amp 8 Stage Pulse Battery Charger
A 4 amp 8 stage pulse battery charger from Thunder, the TDR02104 is perfect for small, low amp 12 volt recreational vehicles and agricultural equipment such as personal watercraft and lawn mowers, using pulse mode technology to extend battery life.
Product overview
Perfect for small, low amp 12 volt recreational vehicles and agricultural equipment such as personal watercraft and lawn mowers. Features pulse mode technology to reduce oxidation, maintain electrolyte consistency, and combat stratification, which equates to longer battery life.
Features and benefits
Pulse mode technology: Reduces oxidation, maintains electrolyte consistency, and combats stratification for longer battery life.
8 stage charging: Provides a comprehensive charging cycle suited to Gel, Lead Acid, AGM, and Calcium batteries.
Multi safety protection: Includes overcharging, reverse polarity with flashing LED indication, short circuit, and over temperature protection.
Wide operating temperature range: Operates reliably across a -15°C to +50°C temperature range.
Suited to small recreational and agricultural batteries: Ideally suited to batteries rated 6-70Ah or 50-200 CCA, such as those used in personal watercraft and lawn mowers.
CE, EMC, SAA, and C-Tick approved: Certified to relevant safety and compliance standards.
Technical specs
| Specification |
Detail |
| SKU |
TDR02104 |
| Brand |
Thunder |
| Type |
8 Stage Pulse Battery Charger |
| Input Voltage |
240VAC/50Hz |
| Maximum Charging Current |
4A |
| Minimum Start Voltage |
≥0V |
| Operating Temperature |
-15°C to +50°C |
| Ideal Battery Rating |
6-70Ah, 50-200 CCA |
| Approvals |
CE, EMC, SAA, C-Tick |
Charging voltages
| Battery Type |
Charging Stage |
Boost |
Float |
| Gel |
14.3V |
14.8V |
13.3V |
| Lead Acid/AGM |
14.8V |
15.2V |
13.7V |
| Calcium |
15.6V |
16.2V |
13.7V |
Compatible with
The TDR02104 is compatible with 12V batteries rated 6-70Ah or 50-200 CCA, including Gel, Lead Acid, AGM, and Calcium battery types. Suited to personal watercraft, lawn mowers, and other small recreational and agricultural equipment.
Frequently asked questions
What battery types is the TDR02104 compatible with?
The TDR02104 is compatible with Gel, Lead Acid, AGM, and Calcium battery types, with charging voltages tailored to each chemistry.
What is the maximum charging current of the TDR02104?
The TDR02104 has a maximum charging current of 4A.
What battery sizes is the TDR02104 suited to?
The TDR02104 is ideally suited to batteries rated 6-70Ah or 50-200 CCA.
What safety protections does the TDR02104 include?
The TDR02104 includes overcharging protection, reverse polarity protection with a flashing LED, short circuit protection, and over temperature protection.
What is pulse mode technology?
Pulse mode technology reduces oxidation, maintains electrolyte consistency, and combats stratification within the battery, extending overall battery life during charging and maintenance.
