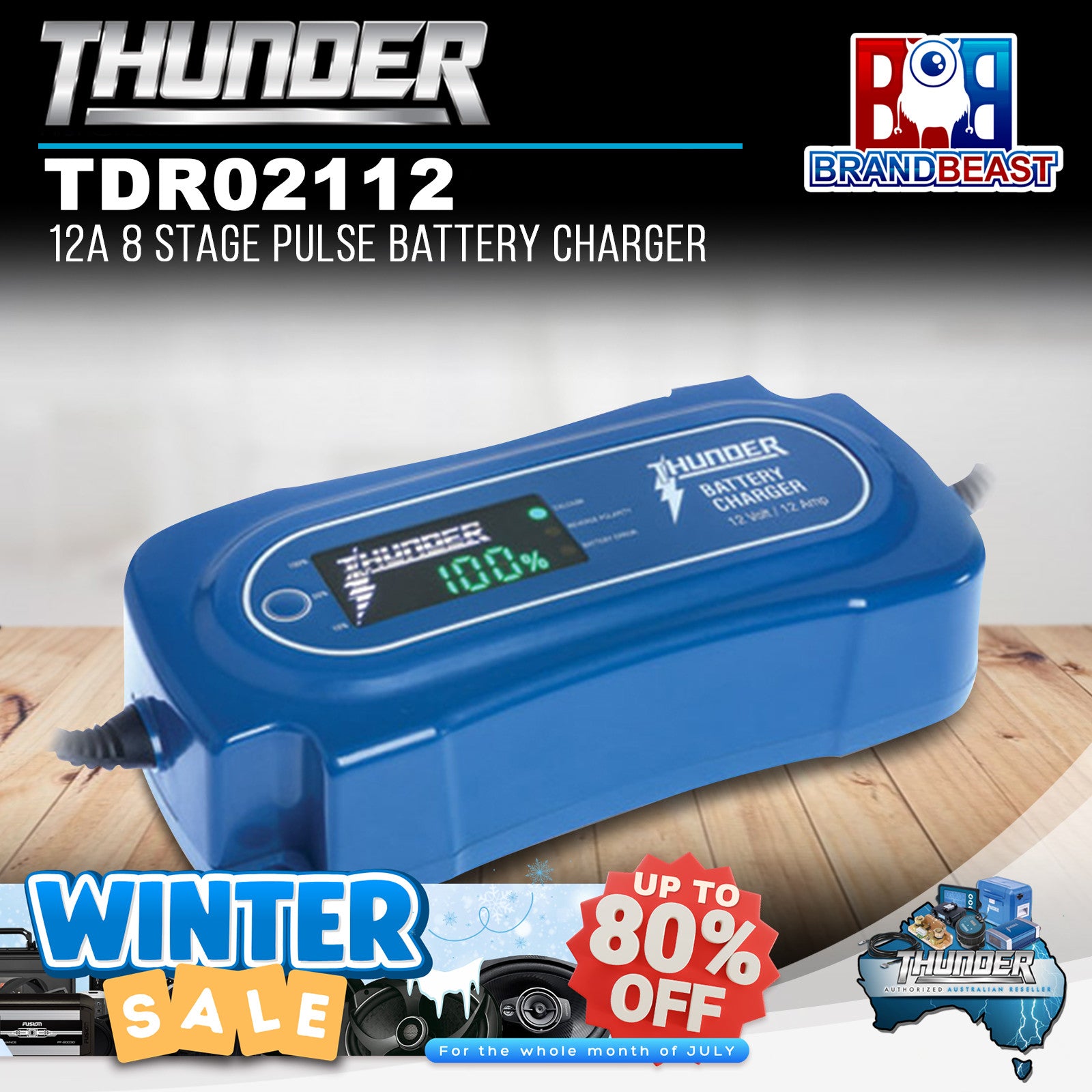

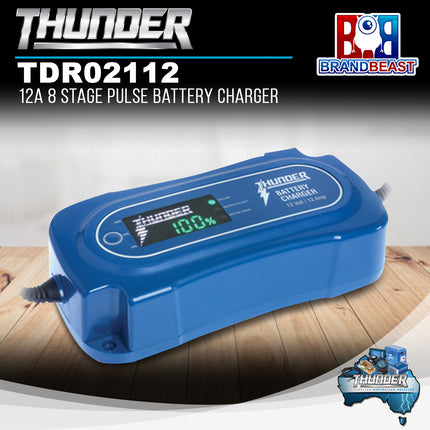

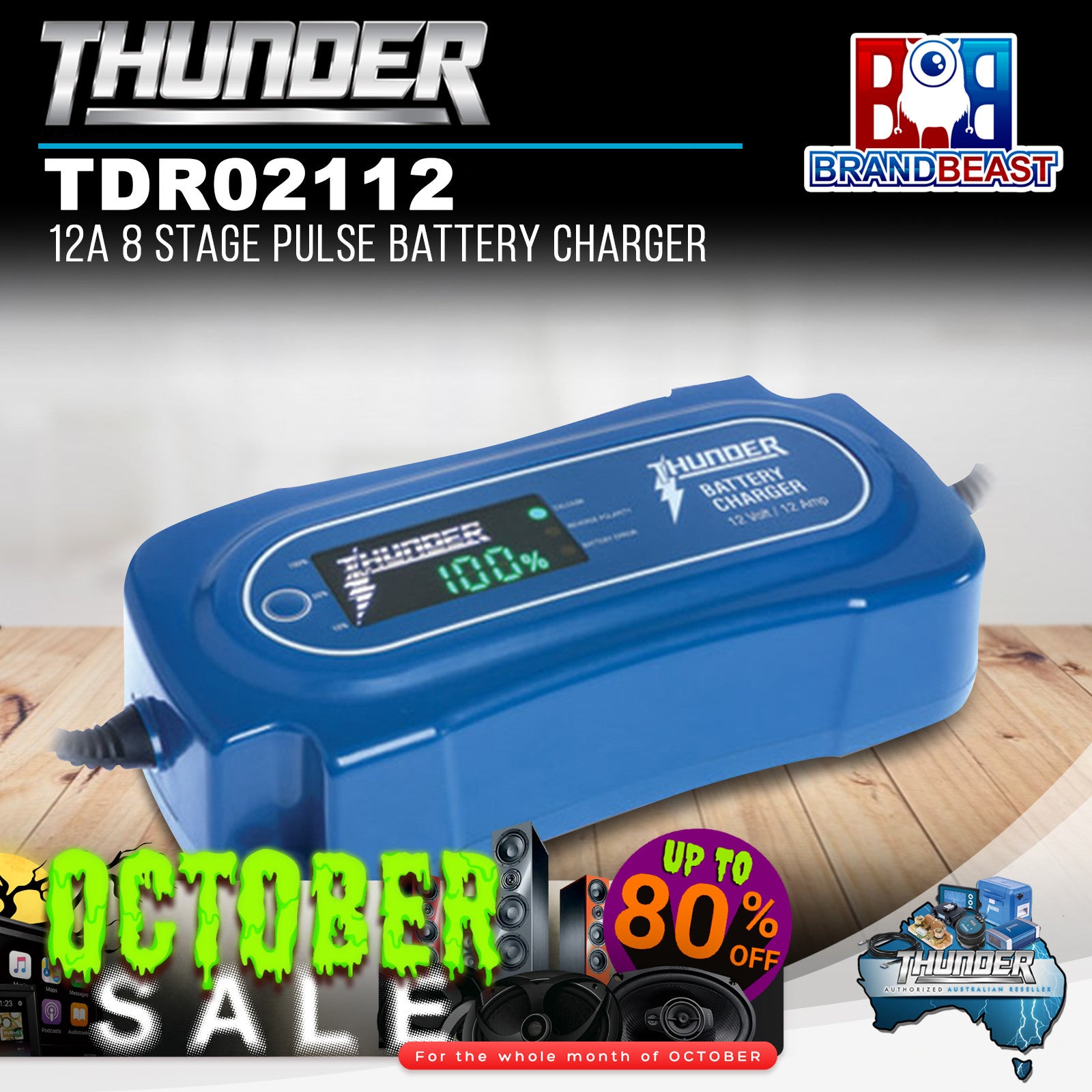

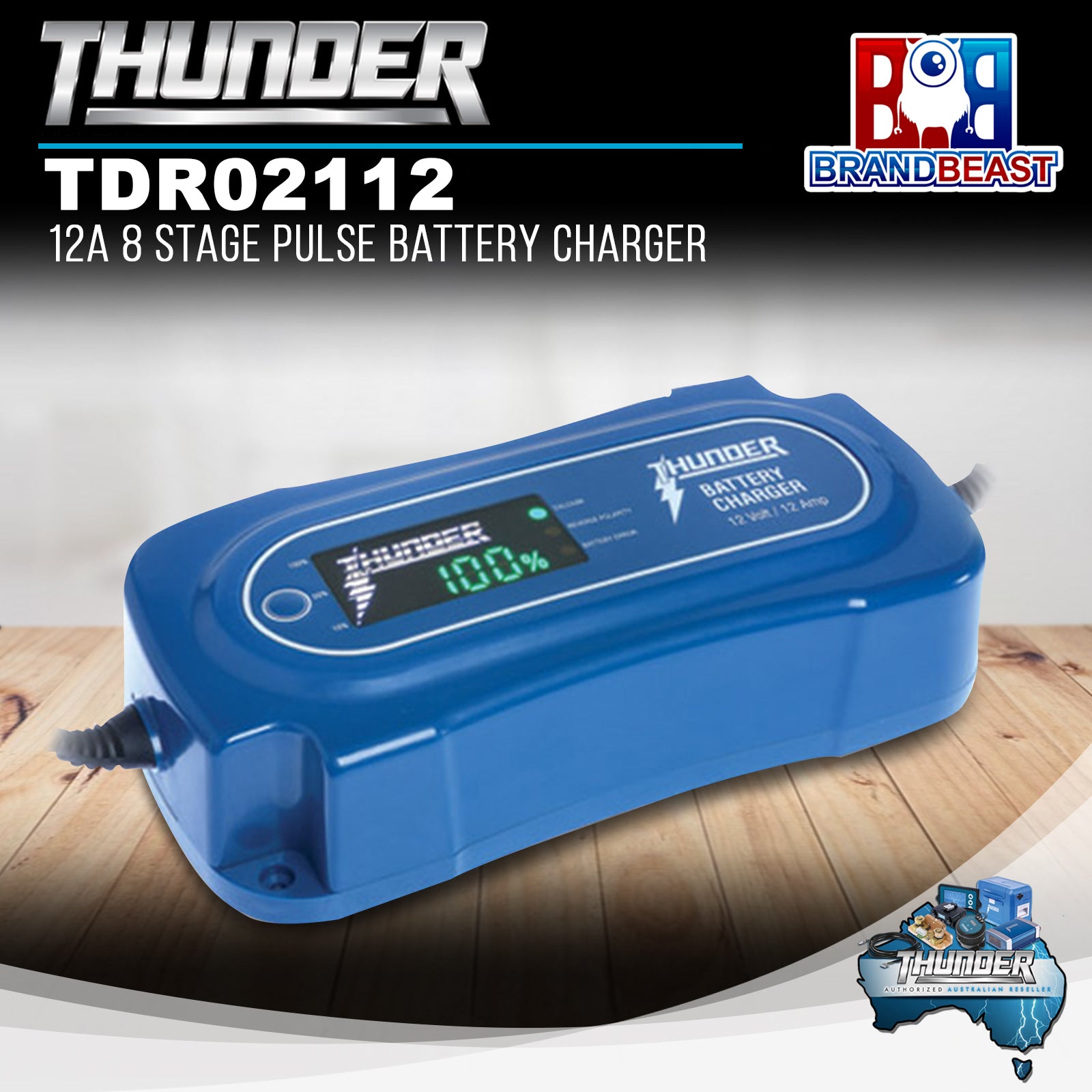

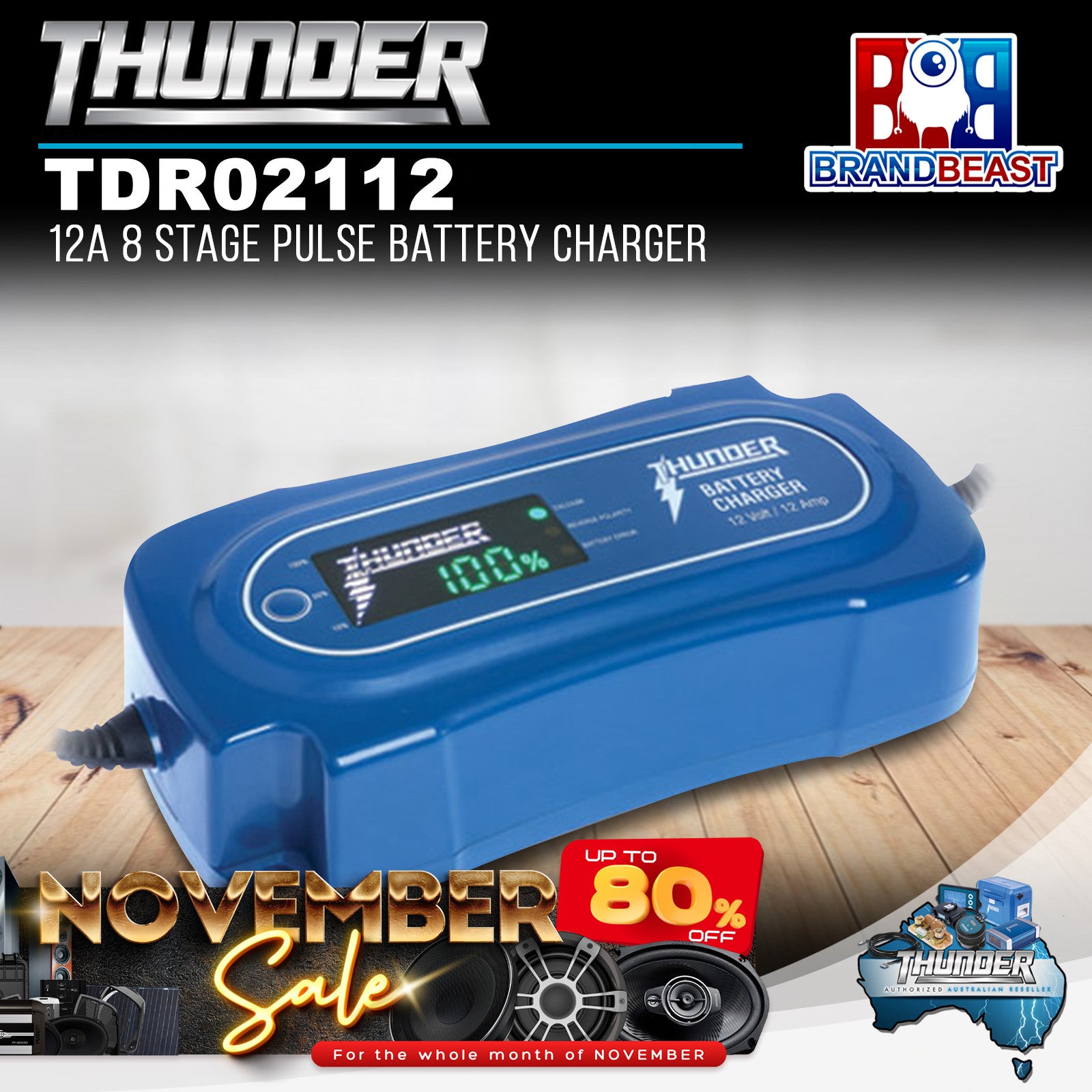

Thunder TDR02112 12 Amp 8 Stage Pulse Battery Charger
A 12 amp 8 stage pulse battery charger from Thunder, the TDR02112 suits larger 12 volt vehicles including SUVs and 4WDs as well as larger caravans, with an illuminating Thunder logo that indicates charging progress.
Product overview
Suits larger 12 volt vehicles including SUVs and 4WDs as well as larger caravans. As the charger increases the charge in the battery, the Thunder logo illuminates.
Features and benefits
8 stage pulse charging: Provides a comprehensive charging cycle suited to Gel, Lead Acid, AGM, and Calcium batteries.
Suited to larger 12V vehicles: Suits larger 12 volt vehicles including SUVs and 4WDs as well as larger caravans.
Illuminating Thunder logo: As the charger increases the charge in the battery, the Thunder logo illuminates, providing a visual indication of charging progress.
Multi safety protection: Includes overcharging, reverse polarity with flashing LED indication, short circuit, and over temperature protection.
Wide operating temperature range: Operates reliably across a -15°C to +50°C temperature range.
Suited to a broad battery range: Ideally suited to batteries rated 20-220Ah or 500-650 CCA.
CE, EMC, SAA, and C-Tick approved: Certified to relevant safety and compliance standards.
Technical specs
| Specification |
Detail |
| SKU |
TDR02112 |
| Brand |
Thunder |
| Type |
8 Stage Pulse Battery Charger |
| Input Voltage |
240VAC/50Hz |
| Maximum Charging Current |
12A |
| Minimum Start Voltage |
≥0V |
| Operating Temperature |
-15°C to +50°C |
| Ideal Battery Rating |
20-220Ah, 500-650 CCA |
| Approvals |
CE, EMC, SAA, C-Tick |
Charging voltages
| Battery Type |
Charging Stage |
Boost |
Float |
| Gel |
14.3V |
14.8V |
13.3V |
| Lead Acid/AGM |
14.8V |
15.2V |
13.7V |
| Calcium |
15.6V |
16.2V |
13.7V |
Compatible with
The TDR02112 is compatible with 12V batteries rated 20-220Ah or 500-650 CCA, including Gel, Lead Acid, AGM, and Calcium battery types. Suited to SUVs, 4WDs, and larger caravans.
Frequently asked questions
What battery types is the TDR02112 compatible with?
The TDR02112 is compatible with Gel, Lead Acid, AGM, and Calcium battery types, with charging voltages tailored to each chemistry.
What is the maximum charging current of the TDR02112?
The TDR02112 has a maximum charging current of 12A.
What battery sizes is the TDR02112 suited to?
The TDR02112 is ideally suited to batteries rated 20-220Ah or 500-650 CCA.
What vehicles is the TDR02112 suited to?
The TDR02112 suits larger 12 volt vehicles including SUVs and 4WDs as well as larger caravans.
What does the illuminating Thunder logo indicate?
As the charger increases the charge in the battery, the Thunder logo illuminates, providing a visual indication that the battery is charging.
