Description

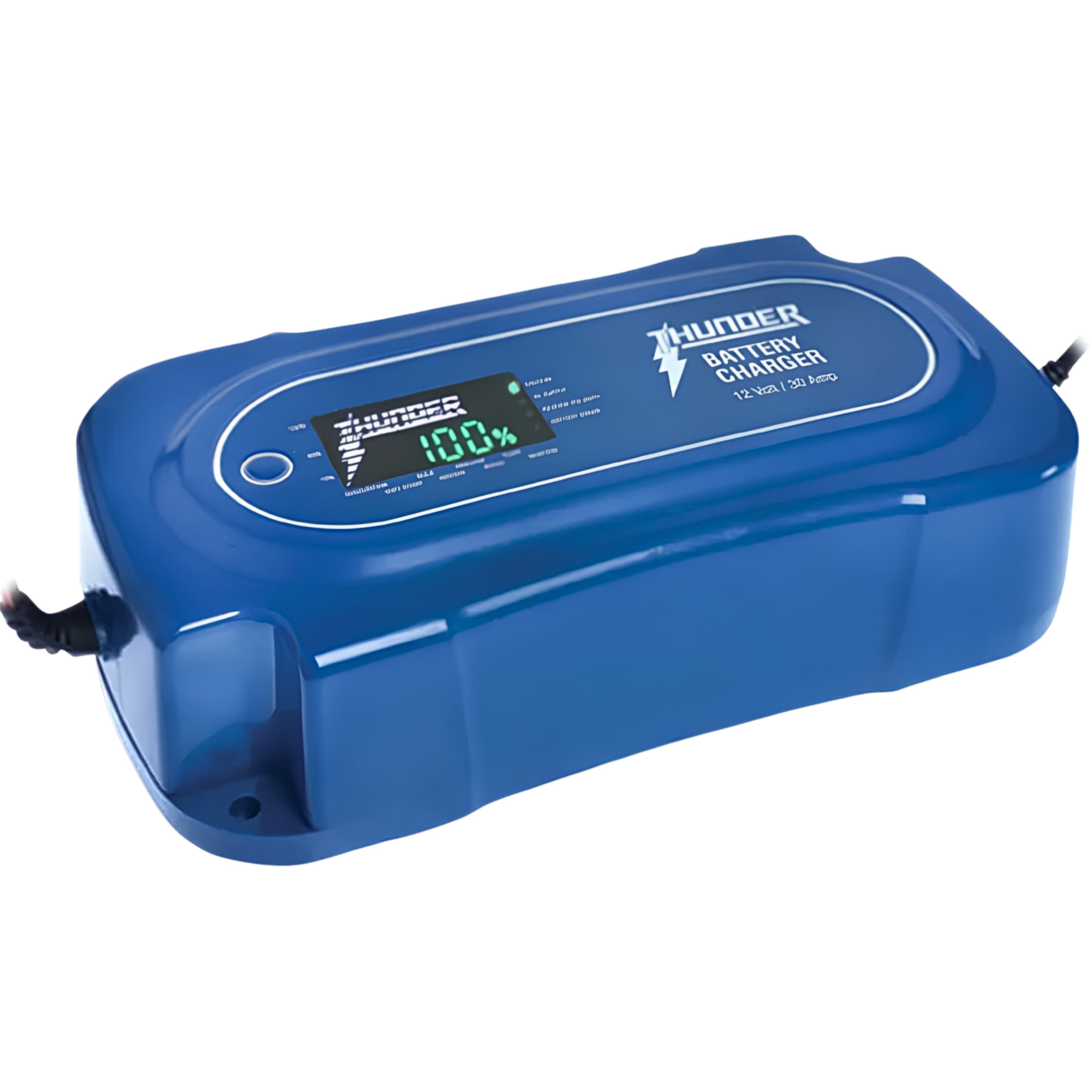

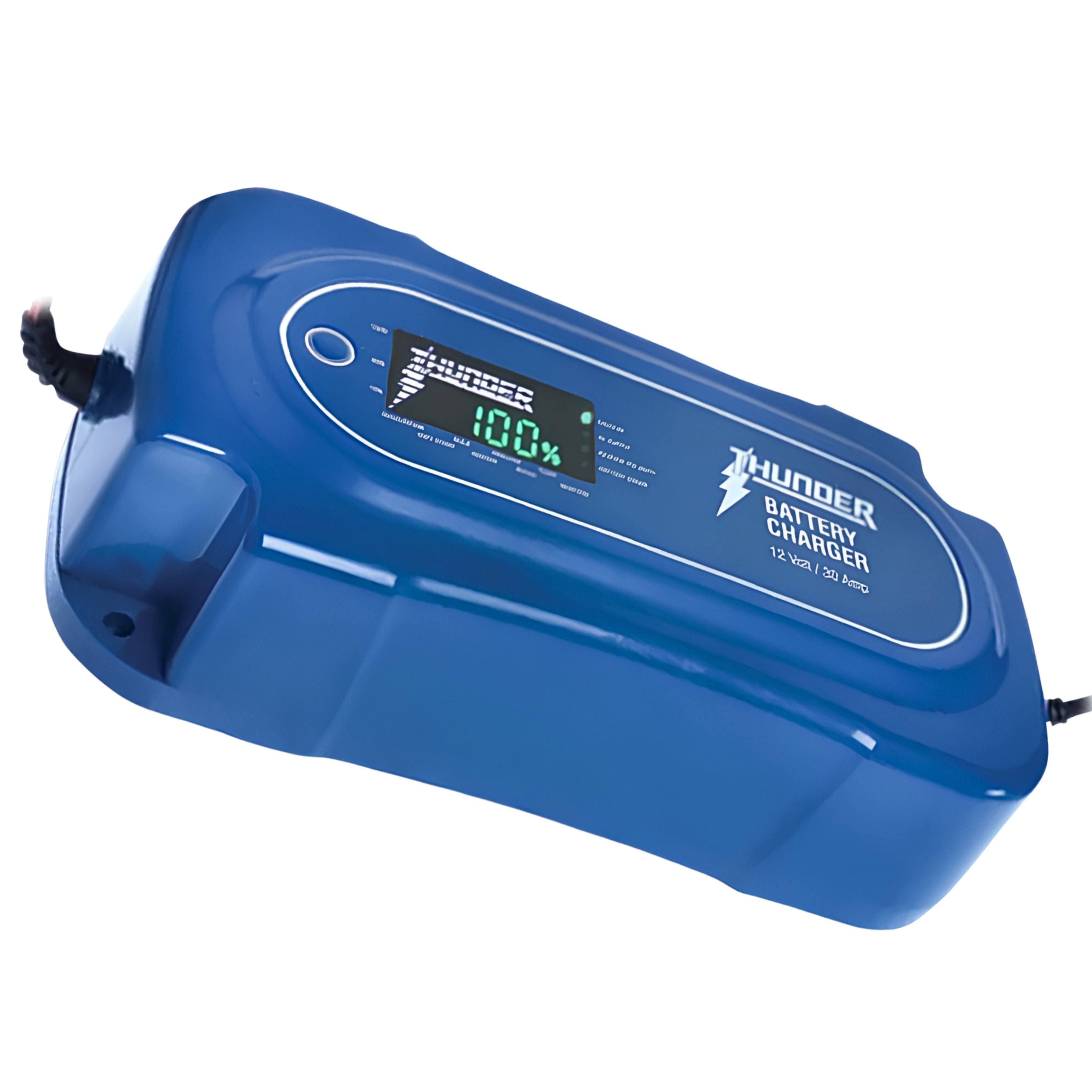

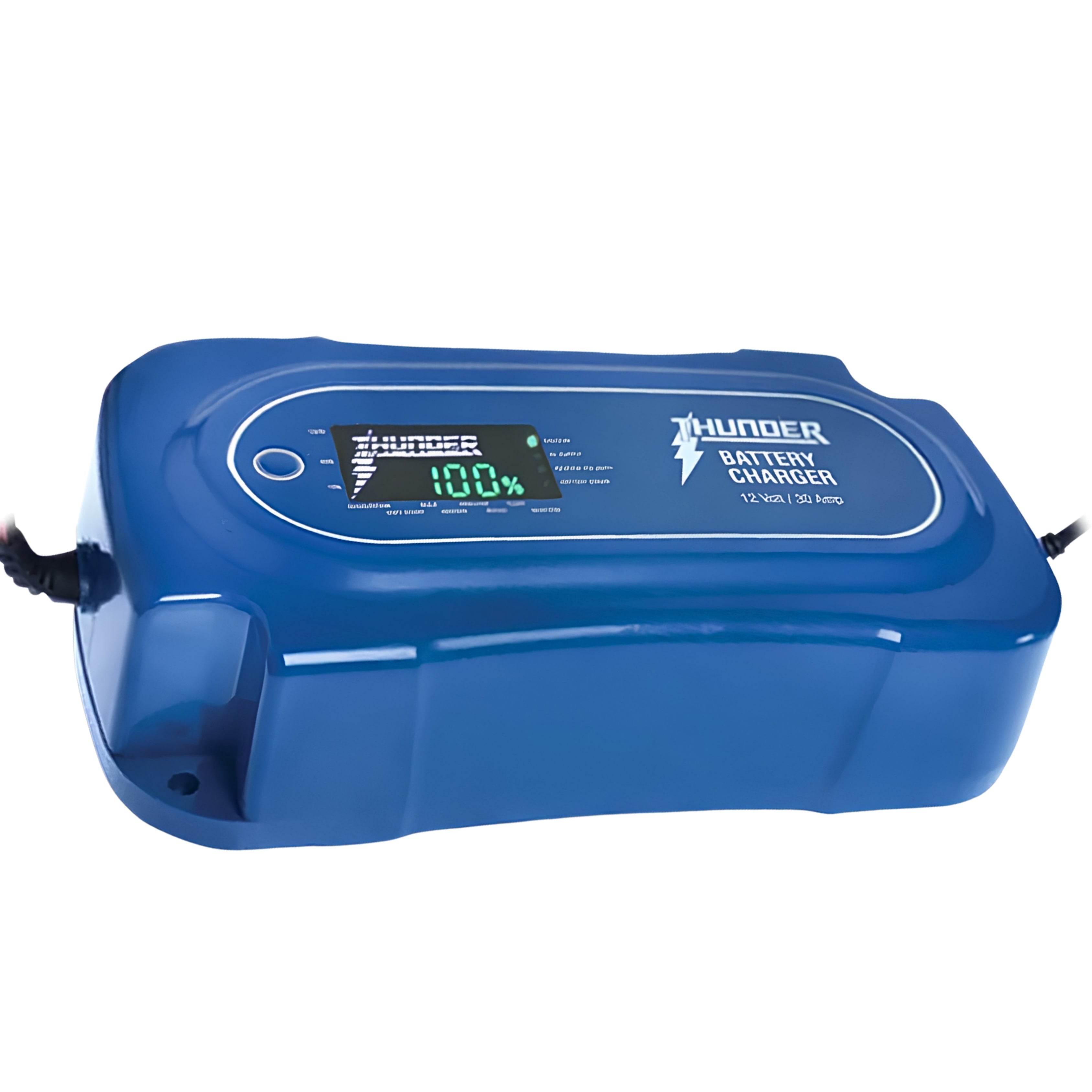

Thunder TDR02130 30 Amp 8 Stage Pulse Battery Charger
A 30 amp 8 stage pulse battery charger from Thunder, the TDR02130 charges 12 volt large vehicles, agricultural equipment, buses, and boats, and includes a 15 amp integrated power supply mode with automatic battery analysis.
Product overview
Charge 12 volt large vehicles, agricultural equipment, buses, and boats. Includes a 15 amp integrated power supply mode. The 8 stage fully automatic system analyses your battery to provide the best state of charge and will identify if the battery needs replacing.
Features and benefits
8 stage fully automatic charging: Analyses your battery to provide the best state of charge and will identify if the battery needs replacing.
15 amp integrated power supply mode: Provides a dedicated power supply function in addition to standard battery charging.
Suited to large vehicles, buses, and boats: Charges 12 volt large vehicles, agricultural equipment, buses, and boats.
Charge stage display: Lights show the stage of charge, allowing you to monitor charging progress at a glance.
Multi safety protection: Includes overcharging, reverse polarity with flashing LED indication, short circuit, and over temperature protection.
Wide operating temperature range: Operates reliably across a -15°C to +50°C temperature range.
Suited to a broad battery range: Ideally suited to batteries rated 40-550Ah or 800-1,000 CCA.
CE, EMC, SAA, and C-Tick approved: Certified to relevant safety and compliance standards.
Technical specs
| Specification |
Detail |
| SKU |
TDR02130 |
| Brand |
Thunder |
| Type |
8 Stage Pulse Battery Charger |
| Input Voltage |
240VAC/50Hz |
| Maximum Charging Current |
30A |
| Power Supply Mode |
15A @ 13.7V |
| Minimum Start Voltage |
≥0V |
| Operating Temperature |
-15°C to +50°C |
| Display |
Lights Show Stage of Charge |
| Ideal Battery Rating |
40-550Ah, 800-1,000 CCA |
| Approvals |
CE, EMC, SAA, C-Tick |
Charging voltages
| Battery Type |
Charging Stage |
Boost |
Float |
| Gel |
14.3V |
14.8V |
13.3V |
| Lead Acid/AGM |
14.8V |
15.2V |
13.7V |
| Calcium |
15.6V |
16.2V |
13.7V |
Compatible with
The TDR02130 is compatible with 12V batteries rated 40-550Ah or 800-1,000 CCA, including Gel, Lead Acid, AGM, and Calcium battery types. Suited to large vehicles, agricultural equipment, buses, and boats.
Frequently asked questions
What battery types is the TDR02130 compatible with?
The TDR02130 is compatible with Gel, Lead Acid, AGM, and Calcium battery types, with charging voltages tailored to each chemistry.
What is the maximum charging current of the TDR02130?
The TDR02130 has a maximum charging current of 30A.
What is the integrated power supply mode on the TDR02130?
The TDR02130 includes a 15 amp integrated power supply mode at 13.7V, providing power supply functionality in addition to standard battery charging.
What battery sizes is the TDR02130 suited to?
The TDR02130 is ideally suited to batteries rated 40-550Ah or 800-1,000 CCA.
Can the TDR02130 identify if my battery needs replacing?
Yes. The 8 stage fully automatic system analyses your battery to provide the best state of charge and will identify if the battery needs replacing.
