Description
Thunder TDR022000 2000W Pure Sine Wave Inverter with Automatic AC Transfer Switch
Keep your devices charged and your appliances powered up during your outdoor travels with the Thunder TDR022000 2000W Pure Sine Wave Inverter, featuring an automatic AC transfer switch, dual 240VAC outlets, and a removable Bluetooth LCD display.
Product overview
These intelligent devices convert the DC current from your vehicle's battery into AC current, giving you access to the same type of 240V power you get at home. The Thunder TDR022000 includes overload, short circuit, and over-temperature protection and a load-controlled cooling fan, which is engaged when power consumption reaches a certain level, preventing further damage to your battery. Whether you are looking to power a range of appliances from your caravan, motorhome, or boat, the Thunder TDR022000 has you covered.
The Thunder TDR022000 is conveniently designed with the addition of an automatic transfer switch to allow a seamless transition from DC input to 240V mains power and vice versa. This allows you the flexibility of using DC power when on the road, staying off the grid, or utilising 240V power while staying at powered sites without having to manually switch between input modes. The switch senses when AC power is going into the back of the unit's AC terminals, and this process happens in 0.1 seconds to ensure there is no disruption to powering the essentials in your caravan or motorhome.
Features and benefits

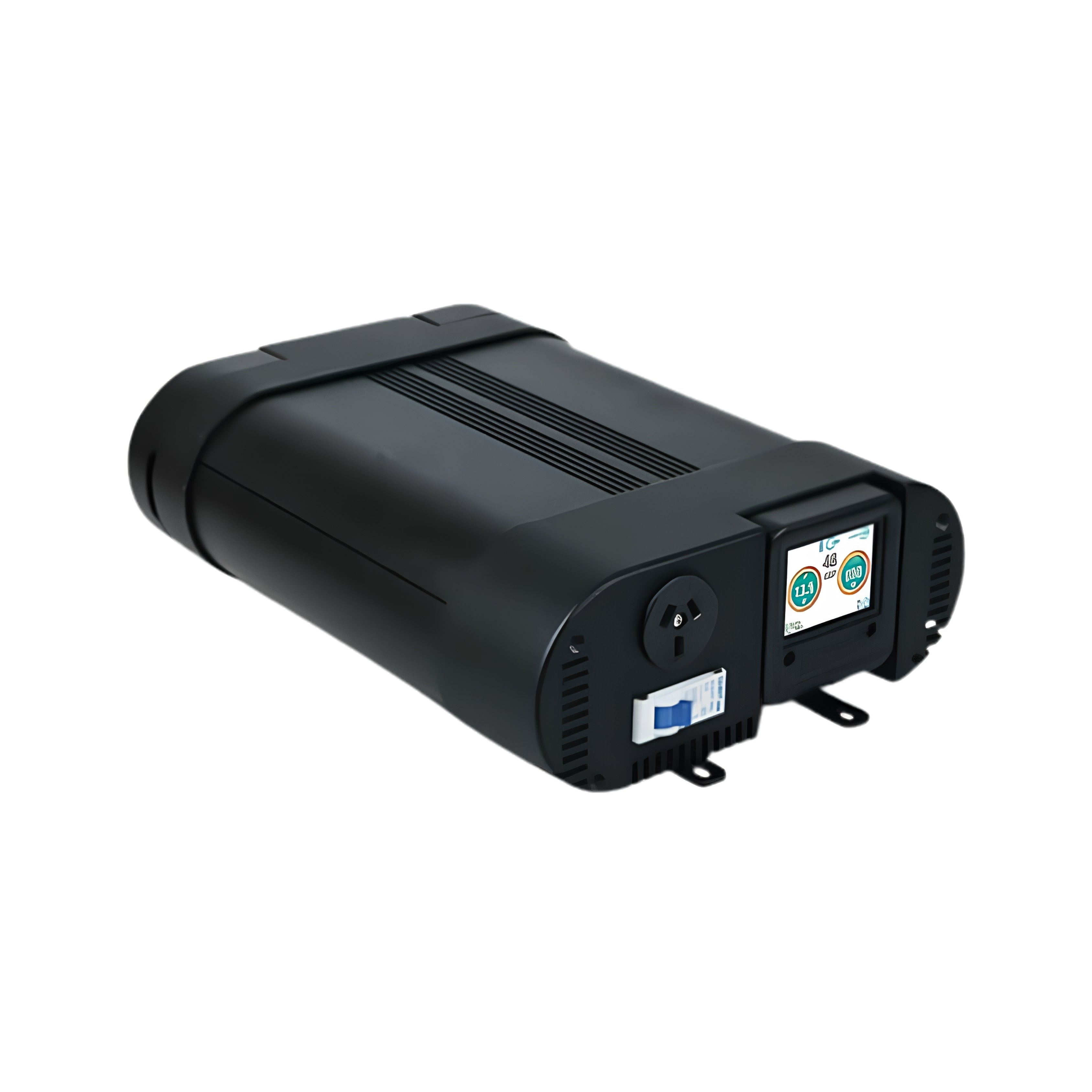

Removable 2.4 inch Bluetooth colour LCD display: Touch screen functionality allows switching the main unit on and off from up to 10m away, and displays inverter input voltage, amperage, output AC wattage, and low voltage warning.
Automatic AC transfer switch: Senses when 240VAC input is connected and automatically switches between DC input and mains power in 0.5 seconds or less, with no manual intervention required.
Dual 240VAC outlet: Provides two 240VAC power points for connecting appliances, exclusive to the 2000W inverter.
Heavy duty aluminium housing: Durable construction suited to outdoor and touring use.
Highly efficient power processing: Delivers 90% efficiency at full load.
Permanent mounting points: Allows secure, fixed installation in a vehicle, caravan, or vessel.
Low voltage warning and shutdown: Provides a low voltage warning at 11.5V with a flashing voltage reading, and shuts down output at 11V along with a visible warning on the LCD screen.
Comprehensive protection systems: Over and under voltage protection, output short circuit protection, over temperature protection, and RCD switch protection.

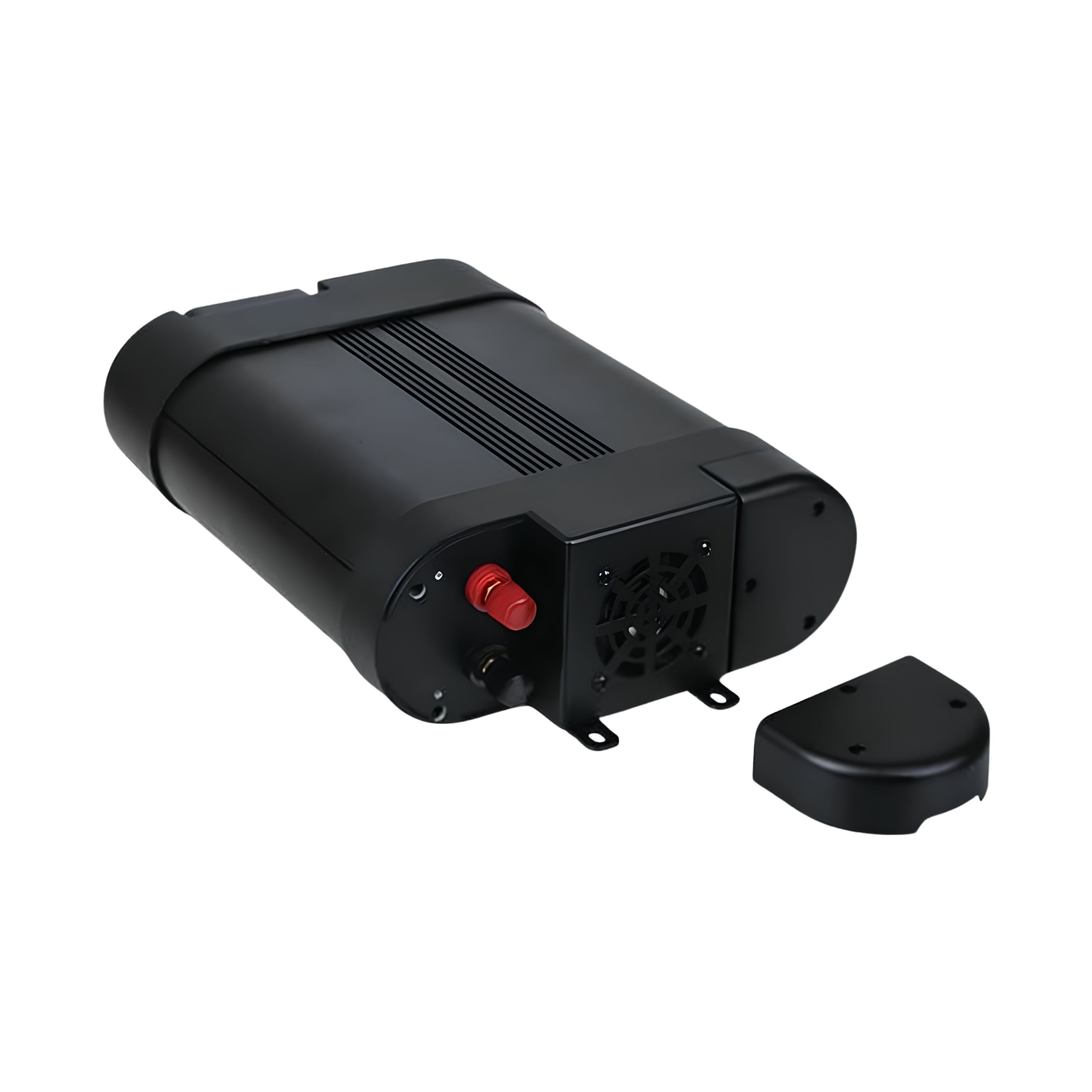

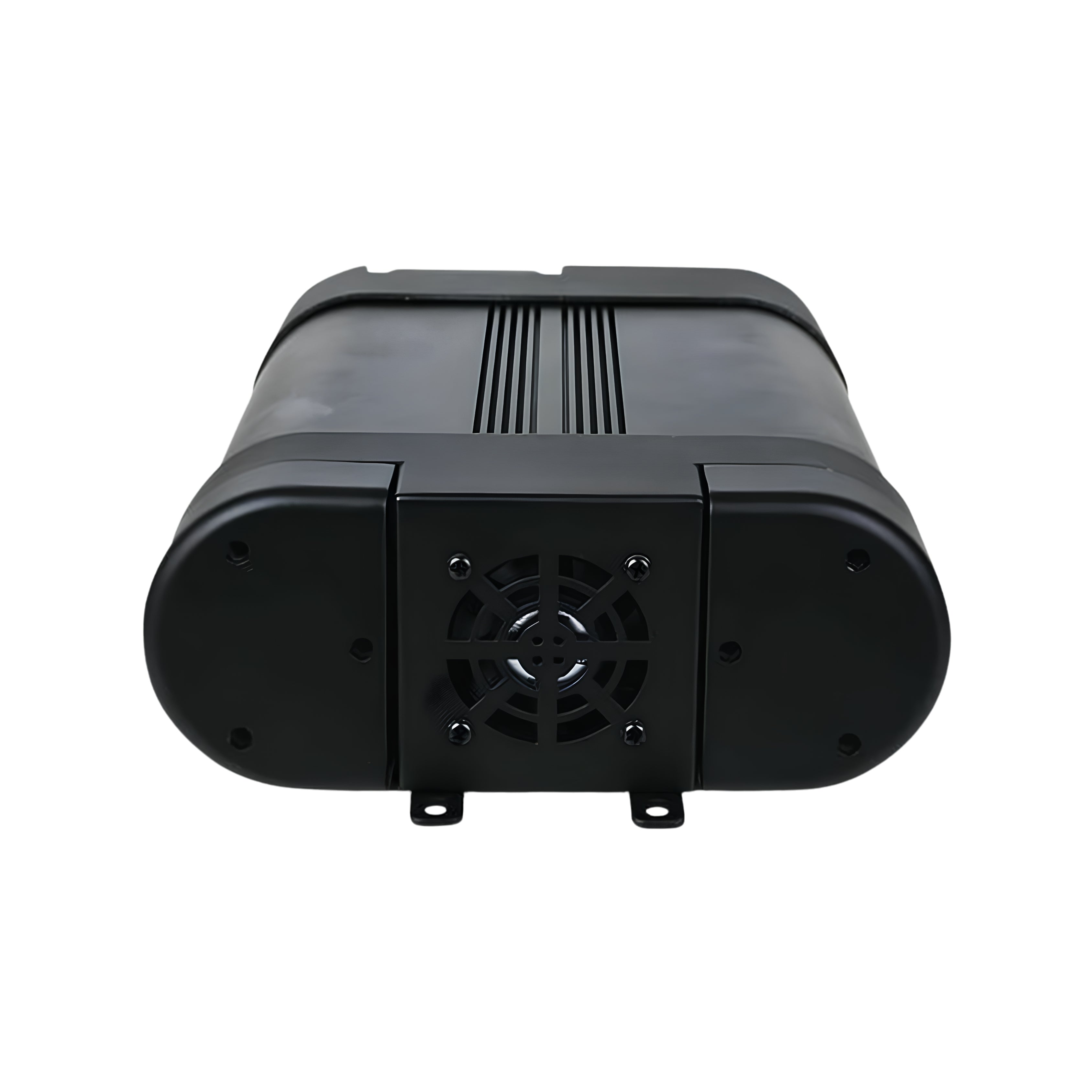

Automatic temperature reduction: A rear cooling fan automatically engages to manage internal temperature during operation.
3-year warranty: Backed by a three-year manufacturer warranty.
Technical specs
| Specification |
Detail |
| SKU |
TDR022000 |
| Brand |
Thunder |
| Type |
Pure Sine Wave Inverter |
| Continuous Output Power |
2000W |
| Peak Power |
4000W |
| Output Overload Protection |
2200W (Manual Restart) |
| Output Voltage |
240V |
| Output Frequency |
50Hz |
| Output Waveform |
Pure Sine Wave |
| Efficiency (Full Load) |
90% |
| AC Transfer Switch |
Yes |
| Transfer Switch Speed |
≤0.5s |
| Safety Switch |
5A 250VAC |
| RCD Switch Protection |
10A 240VAC, t≤0.1s |

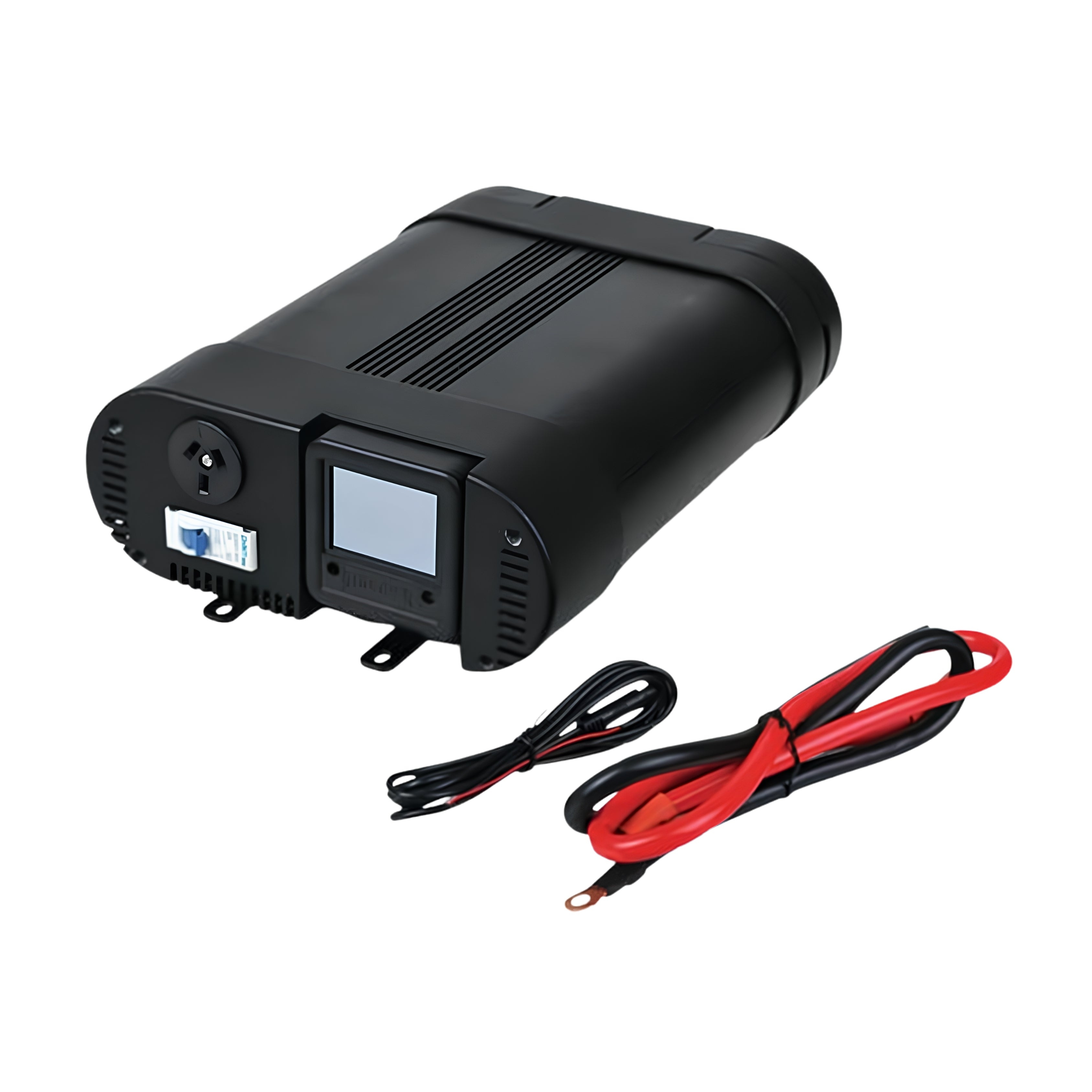

| Input Cable |
70cm AWG3 (25mm2), 100% Copper Fully Insulated |
| External Fuse Specification |
150A |
| Dimensions |
435 x 233 x 95mm |
| Mounting Hole Spacing |
80mm C2C |
| Minimum Input Voltage |
11V |
| Input Voltage Range |
11-15V |
| Input Low Voltage Warning |
11.5V |
| Input Low Voltage Cut-Off |
11V |
| Input Over-Voltage Cut-Off |
15.5V (Automatic Reset) |
| Standby Current |
11mA |
| No Load Working Current |
0.5-0.6A |
| Internal Operating Temperature Range |
-10°C to 50°C |
| Internal Over-Temperature Protection |
60°C-65°C (Manual Reset) |
| Cooling Fan |
Single Brushless Fan (Automatic) |
| Fan Control |
Maintains 40°C ±10°C |
| Approvals |
CE, EMC, AS/NZS 4763:2011 |
| Warranty |
3 Years |
Compatible with
The TDR022000 is compatible with 12V deep cycle battery systems and 240V mains power for caravan, motorhome, and boat installations requiring automatic switching between DC and AC power sources.
Frequently asked questions
What is the continuous output power of the TDR022000?
The TDR022000 provides 2000W continuous output power, with a peak power rating of 4000W for short durations.
What does the automatic AC transfer switch do?
The automatic AC transfer switch senses when 240VAC input is connected and switches between DC input and mains power in 0.5 seconds or less, allowing seamless transition without manual intervention.
How many 240VAC outlets does the TDR022000 have?
The TDR022000 has dual 240VAC outlets, along with three AC terminals at the back that become operational when mains power is connected.
Does the TDR022000 include a display?
Yes. The TDR022000 features a removable 2.4 inch Bluetooth colour LCD touch screen display showing output power, input voltage, amperage, and low voltage warnings, switchable from up to 10m away.
What warranty does the TDR022000 come with?
The TDR022000 is backed by a three-year warranty.
