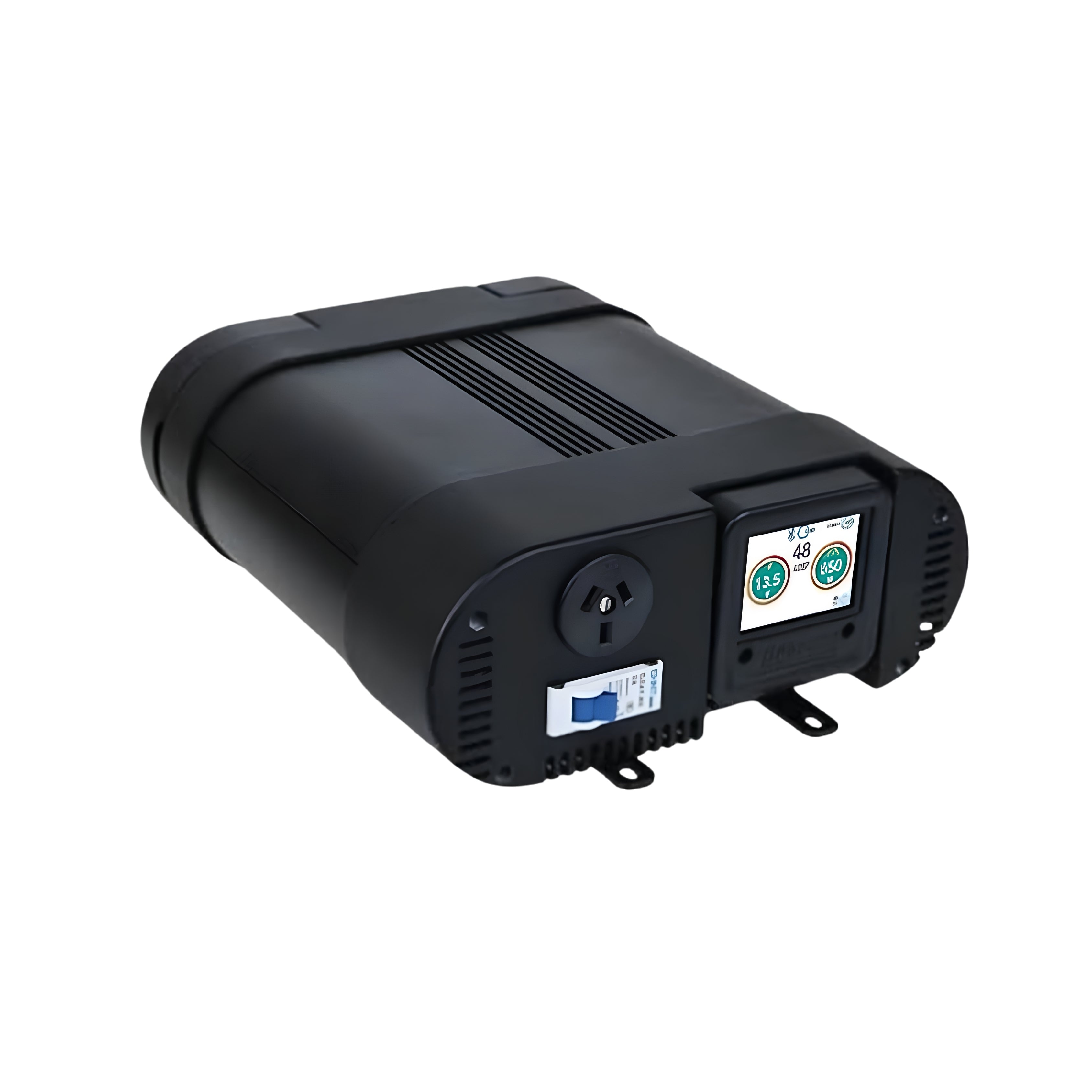

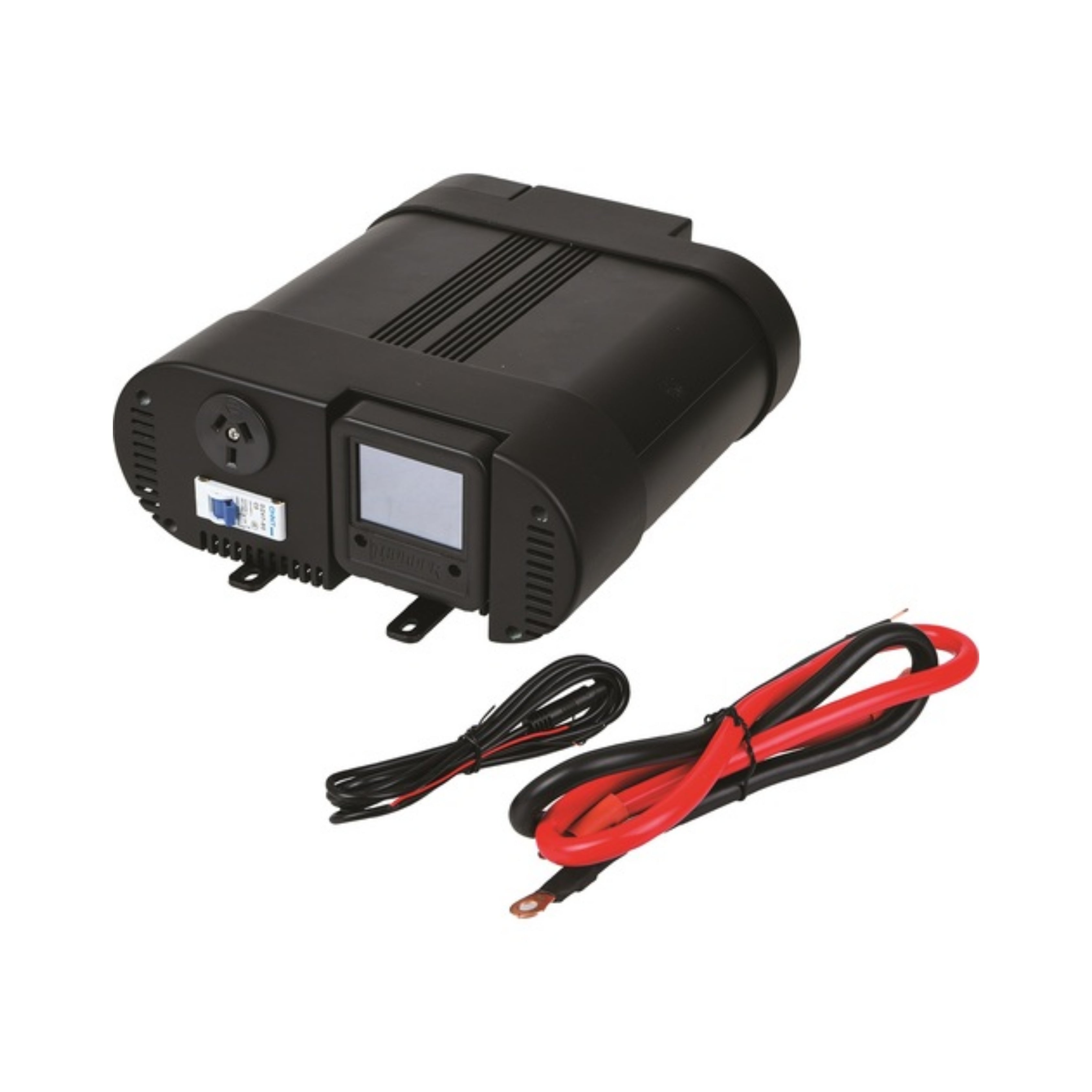

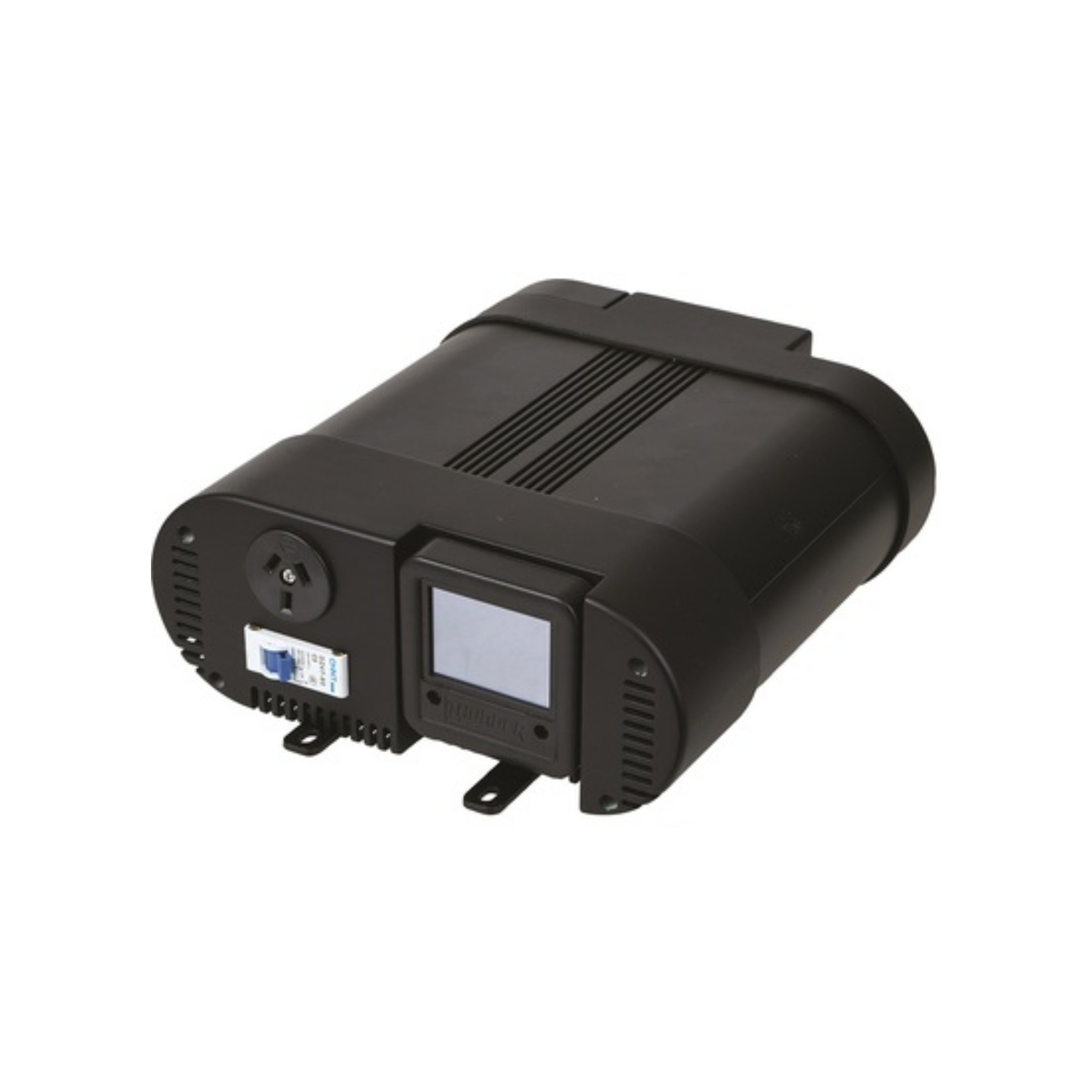

Thunder TDR02600 600W Pure Sine Wave Power Inverter
Keep your devices charged and your appliances powered up during your outdoor travels with the Thunder TDR02600 600W Pure Sine Wave Inverter, featuring a removable Bluetooth LCD touch screen display and heavy duty aluminium housing.
Product overview
Keep your devices charged and your appliances powered up during your outdoor travels with the Thunder 600W Pure Sine Wave Inverter. This intelligent device converts the DC current from your vehicle's battery into AC current, giving you access to the same type of 240V power you get at home. The Thunder inverter includes overload, short circuit, and over-temperature protection, and a load-controlled cooling fan, which is engaged when power consumption reaches a certain level, preventing further damage to your battery.
The Thunder TDR02600 comes with a 2.4 inch Bluetooth LCD display with touch screen functionality for switching the main unit on and off from up to 10m away from the inverter installation location. While the device is in use, the LCD screen shows the inverter output power, input voltage, amperage, output wattage, and low voltage warning, allowing you better visibility of your device's functionality.
Features and benefits
Removable 2.4 inch Bluetooth colour LCD display: Touch screen functionality for switching the main unit on and off, and displays inverter input voltage, amperage, output wattage, and low voltage warning.
Heavy duty aluminium housing: Durable construction suited to outdoor and touring use.
Highly efficient power processing: Delivers 90% efficiency at full load.
Permanent mount points: Allows secure, fixed installation in a vehicle, camper trailer, or vessel.
Low voltage warning and shutdown: Provides a low voltage warning at 11.5V with a flashing voltage reading, and shuts down output at 11V along with a visible warning on the LCD screen.
Comprehensive protection systems: Over and under voltage protection, output short circuit protection, and over temperature protection.
Automatic temperature reduction: A rear cooling fan automatically engages to manage internal temperature during operation.
Single 240VAC outlet: Provides one 240VAC power point for connecting appliances.
Technical specs
| Specification |
Detail |
| SKU |
TDR02600 |
| Brand |
Thunder |
| Type |
Pure Sine Wave Inverter |
| Continuous Output Power |
600W |
| Peak Power |
1200W |
| Output Overload Protection |
680W |
| Output Voltage |
240V |
| Efficiency (Full Load) |
90% |
| Minimum Input Voltage |
11V |
| Input Voltage Range |
11-15V |
| Input Low Voltage Warning |
11.5V |
| Standby Current |
11mA |
| No Load Working Current |
0.5-0.6A |
| Operating Temperature Range |
-10°C to 50°C |
| Display |
Bluetooth LCD Touch Screen |
| Outlets |
Single 240VAC |
Compatible with
The TDR02600 is compatible with 12V deep cycle battery systems for cars, camper trailers, and boats requiring a small to medium capacity power inverter.
Frequently asked questions
What is the continuous output power of the TDR02600?
The TDR02600 provides 600W continuous output power, with a peak power rating of 1200W for short durations.
Does the TDR02600 include a display?
Yes. The TDR02600 features a removable 2.4 inch Bluetooth colour LCD touch screen display showing output power, input voltage, amperage, and low voltage warnings, switchable from up to 10m away.
What protection systems does the TDR02600 include?
The TDR02600 includes over and under voltage protection, output short circuit protection, overload protection, and over temperature protection.
How many 240VAC outlets does the TDR02600 have?
The TDR02600 has a single 240VAC outlet.
What waveform does the TDR02600 produce?
The TDR02600 produces a pure sine wave output, suited to sensitive electronics that require clean, stable power.
