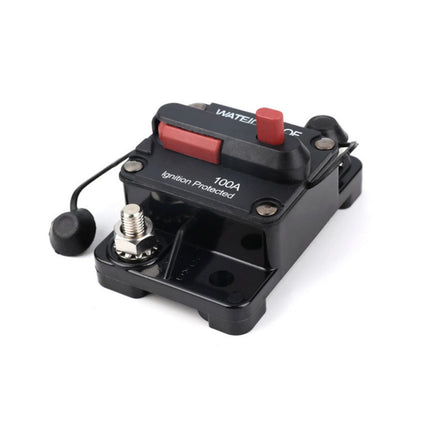

Thunder TDR05110 100A Manual Reset Circuit Breaker
A 100A manual reset circuit breaker from Thunder, the TDR05110 features a waterproof and dust resistant housing rated to IP67, suited to demanding 12V wiring applications.
Product overview

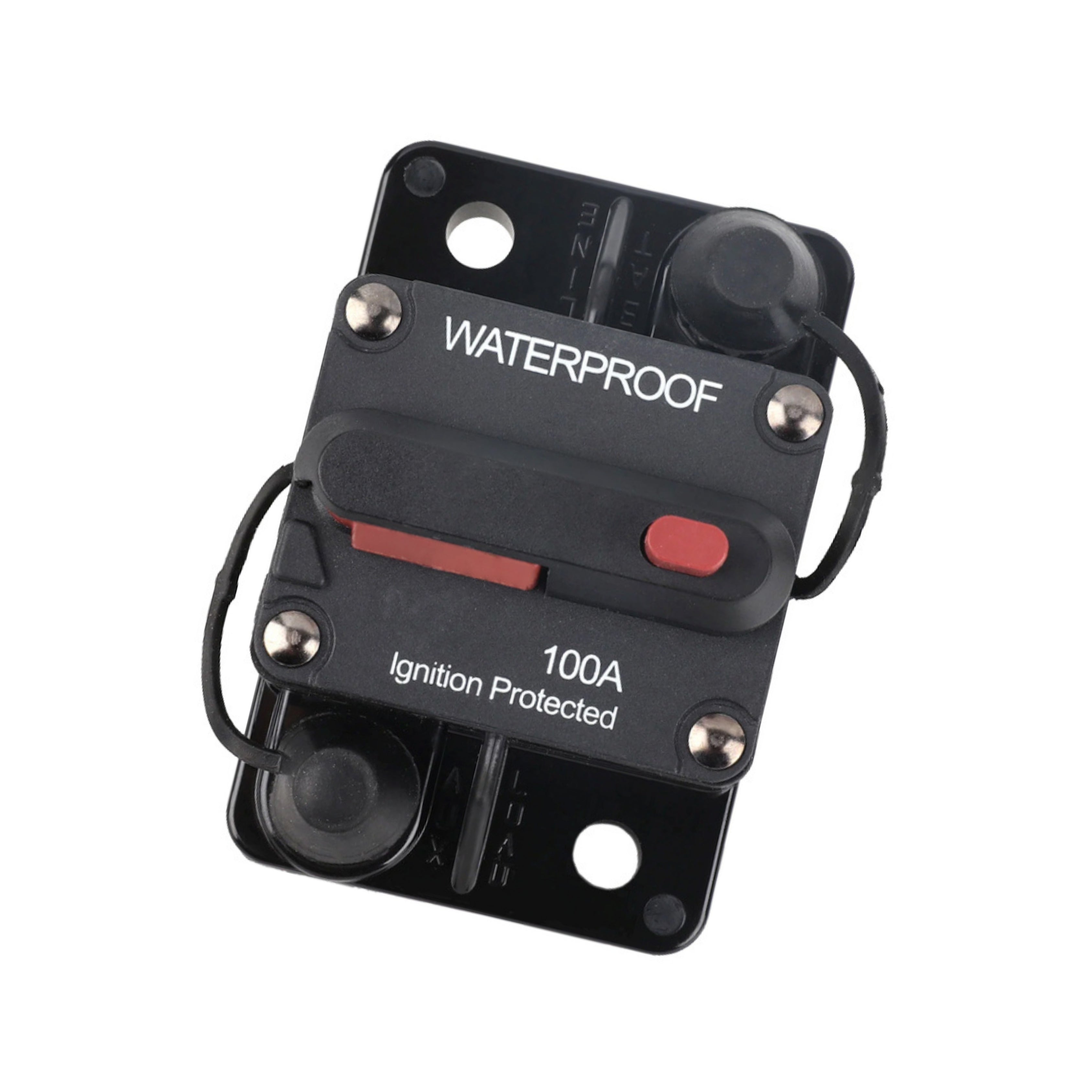

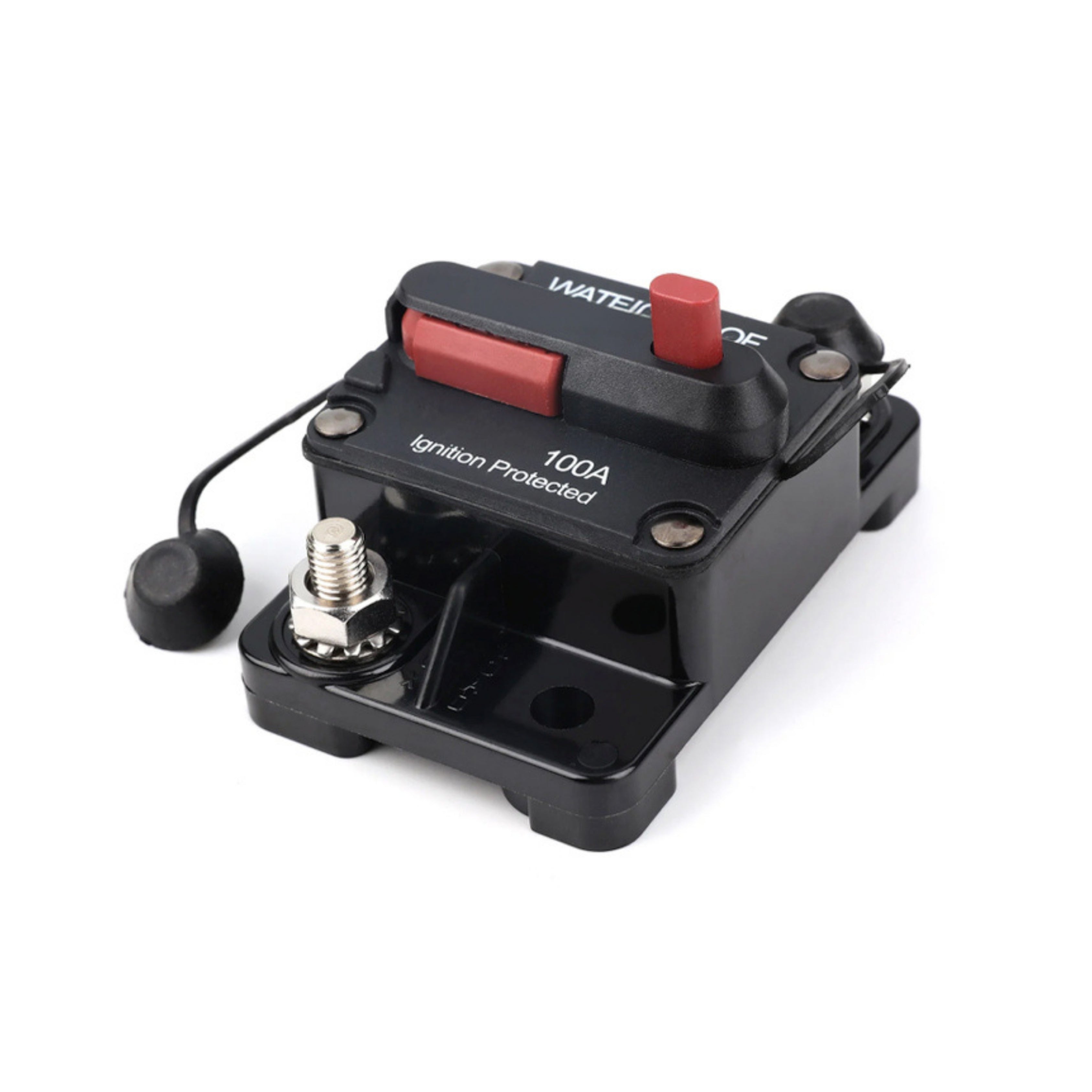

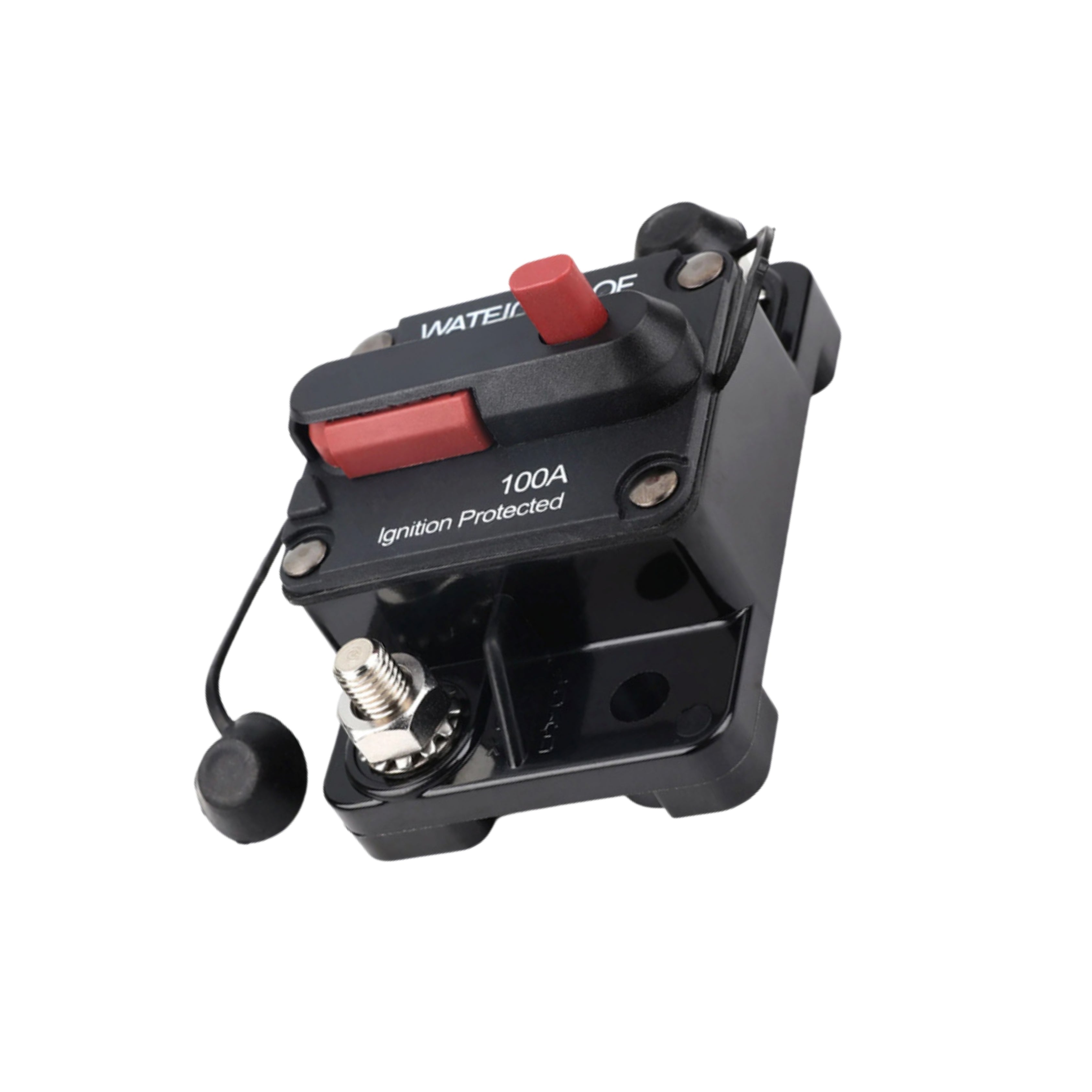

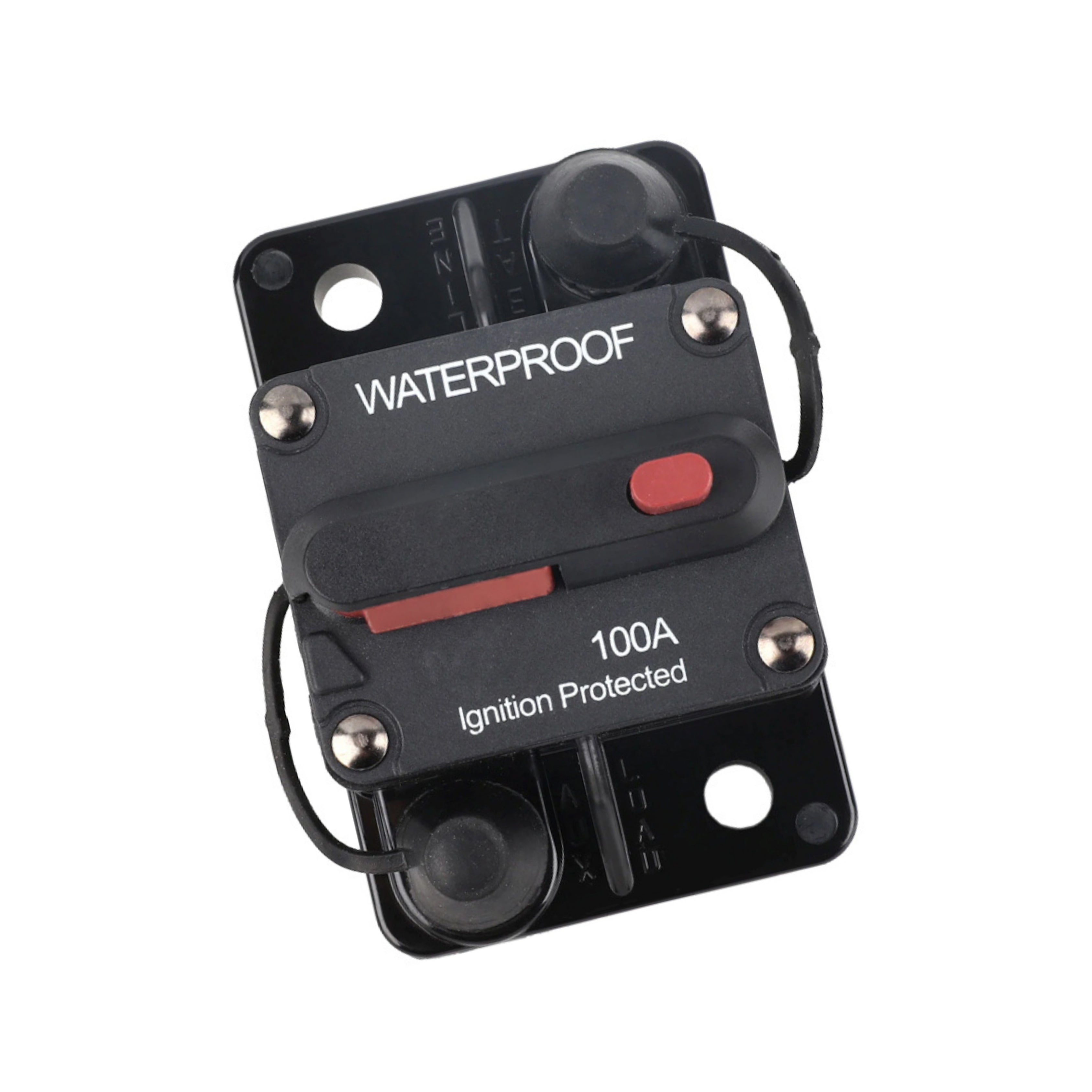

The Thunder TDR05110 is a 100A manual reset circuit breaker with a waterproof and dust resistant housing. Note that the bolt on the WATERPROOF label side is for power, while the other bolt is for load.
Features and benefits
Waterproof and dust resistant housing: Provides IP67 rated protection suited to outdoor, marine, and demanding vehicle wiring applications.
Manual reset operation: Requires the breaker to be manually reset once the overload condition causing it to trip has been corrected, providing a deliberate confirmation step before power is restored.
Clearly labelled power and load terminals: The bolt on the WATERPROOF label side is designated for power connection, while the other bolt is for the load connection, simplifying correct installation.
Technical specs
| Specification |
Detail |
| SKU |
TDR05110 |
| Brand |
Thunder |
| Type |
Manual Reset Circuit Breaker |
| Amps |
100A |
| Breaker Type |
Manual Reset |
| IP Rating |
IP67 |
| Weight |
0.1kg |
Compatible with
The TDR05110 is compatible with 12V wiring circuits requiring 100A manual reset overload protection in waterproof and dust exposed environments.
Frequently asked questions
What does manual reset mean for the TDR05110?
Manual reset means the circuit breaker must be manually reset once the overload condition causing it to trip has been corrected, rather than resetting automatically.
What amperage is the TDR05110 rated to?
The TDR05110 is rated to 100A.
What is the IP rating of the TDR05110?
The TDR05110 is rated IP67, providing waterproof and dust resistant protection.
Which bolt is for power and which is for load on the TDR05110?
The bolt on the WATERPROOF label side is for power connection, while the other bolt is for the load connection.
Is the TDR05110 suitable for marine applications?
The IP67 waterproof rating makes the TDR05110 suitable for marine and other demanding outdoor wiring applications. Confirm compatibility with your specific installation requirements before purchase.
