Description

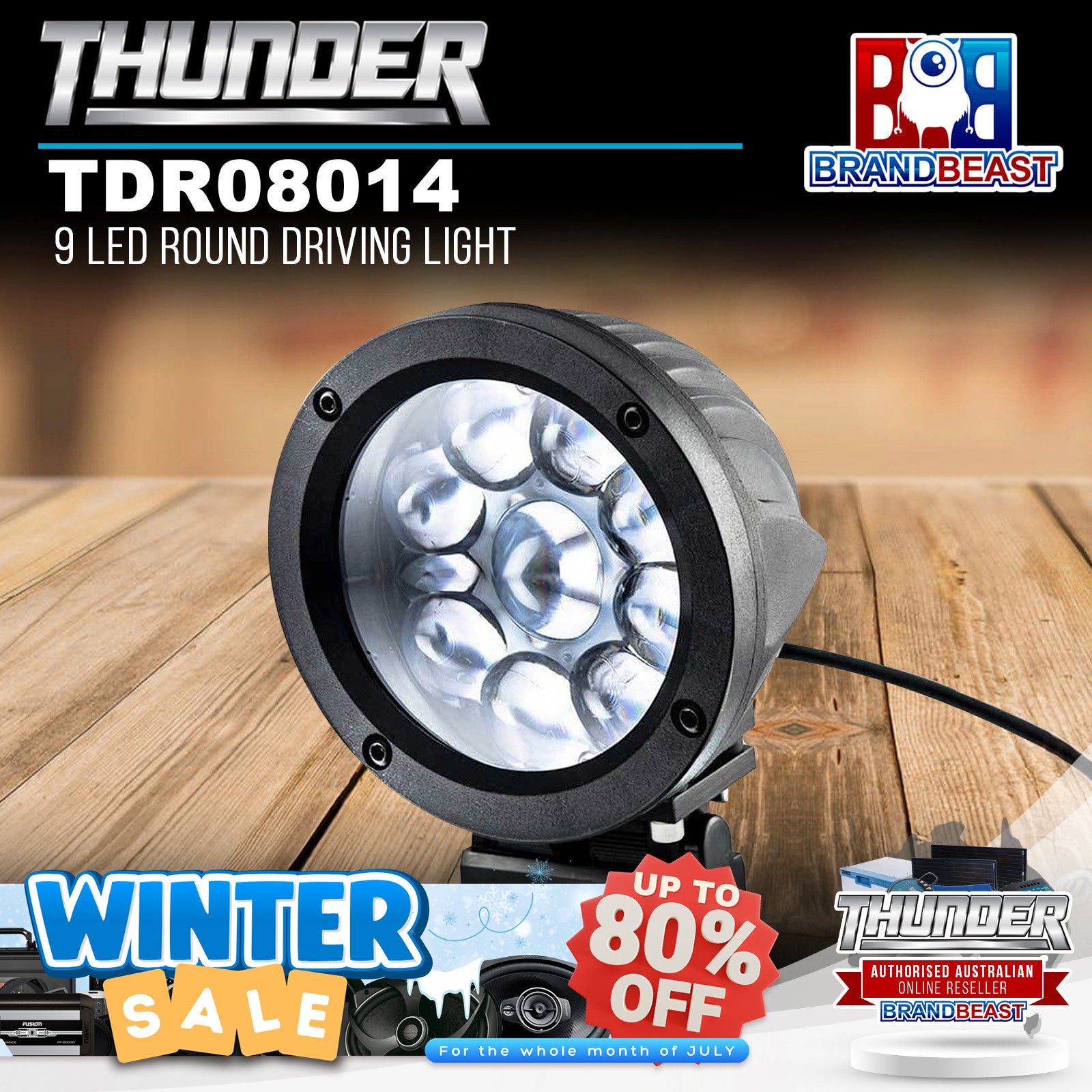

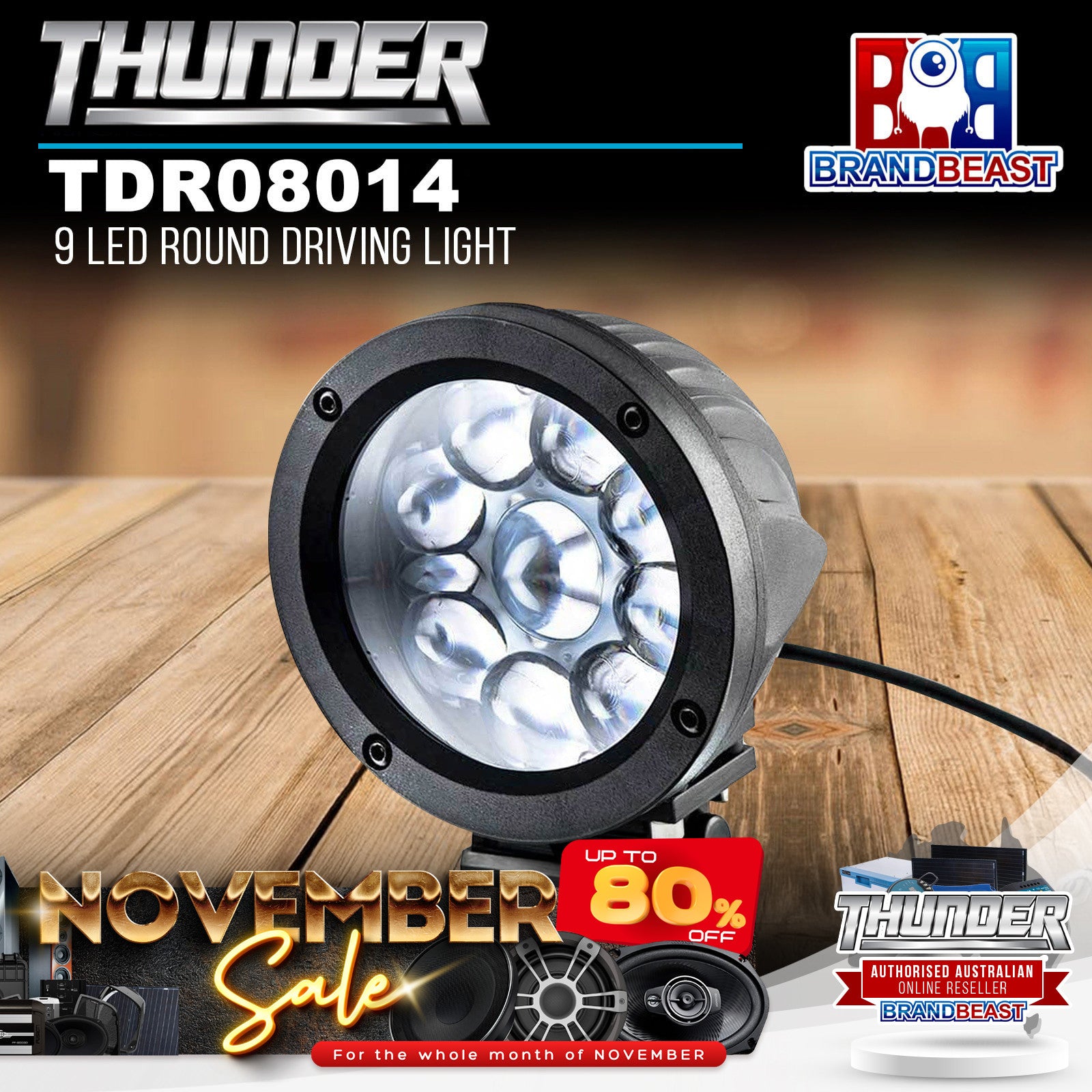

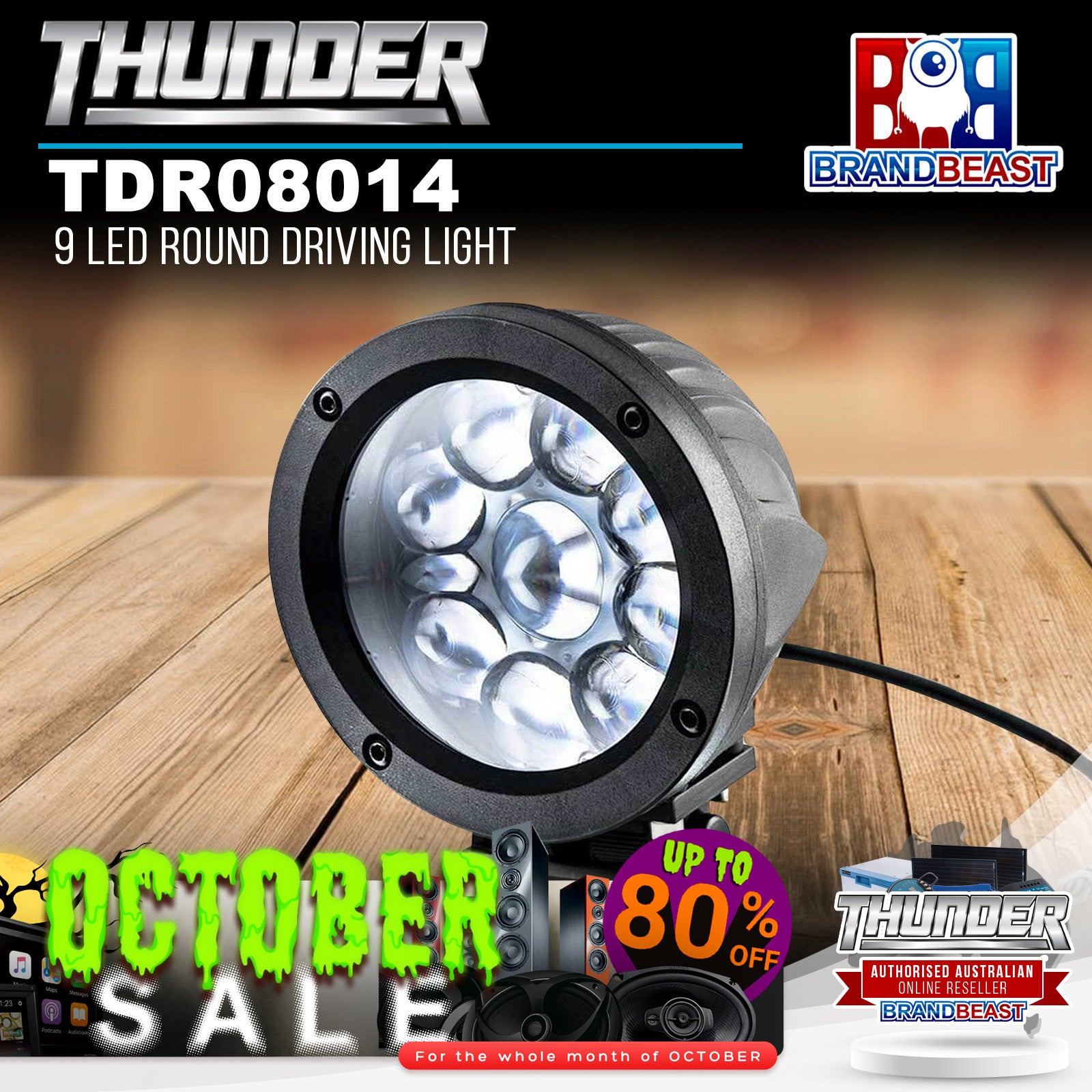

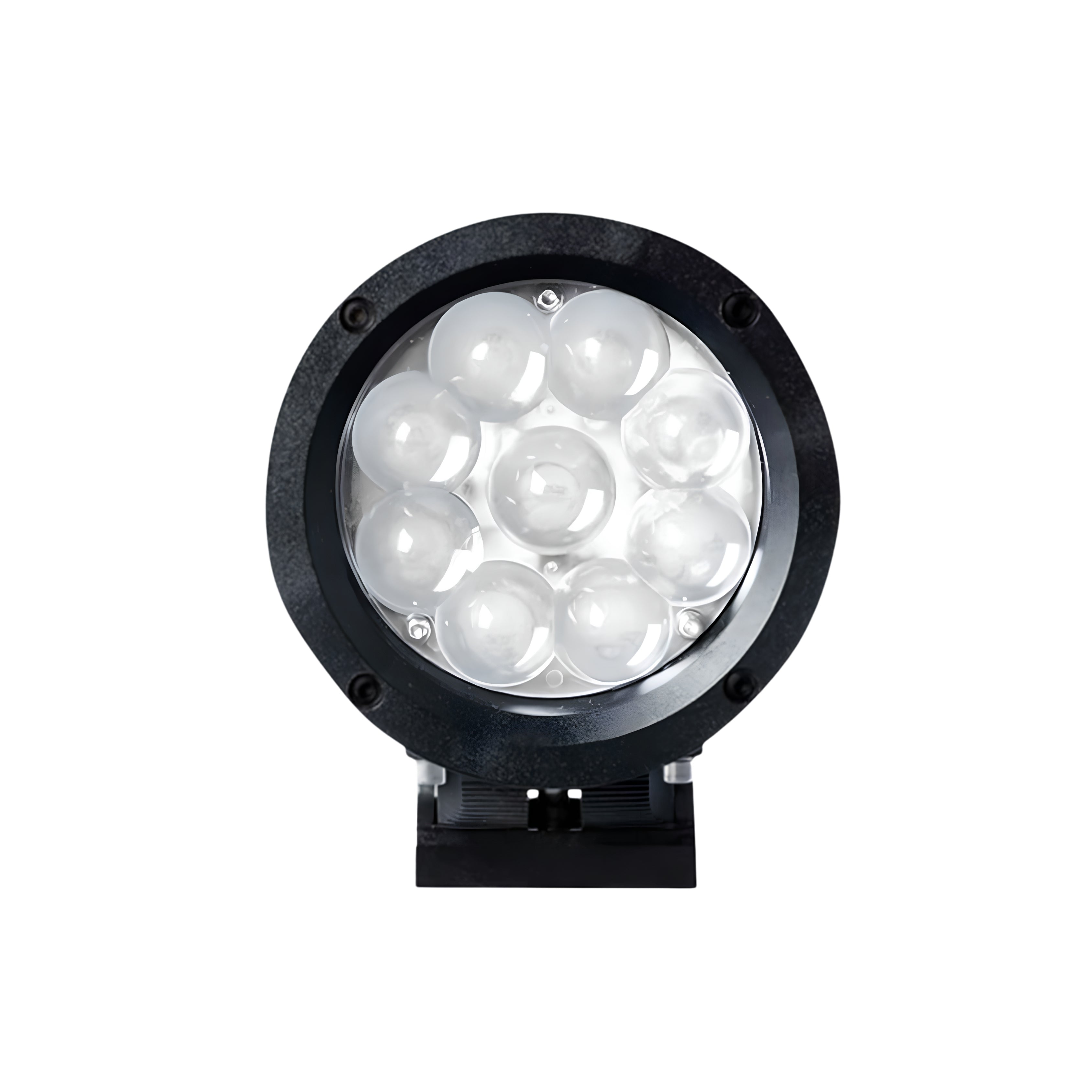

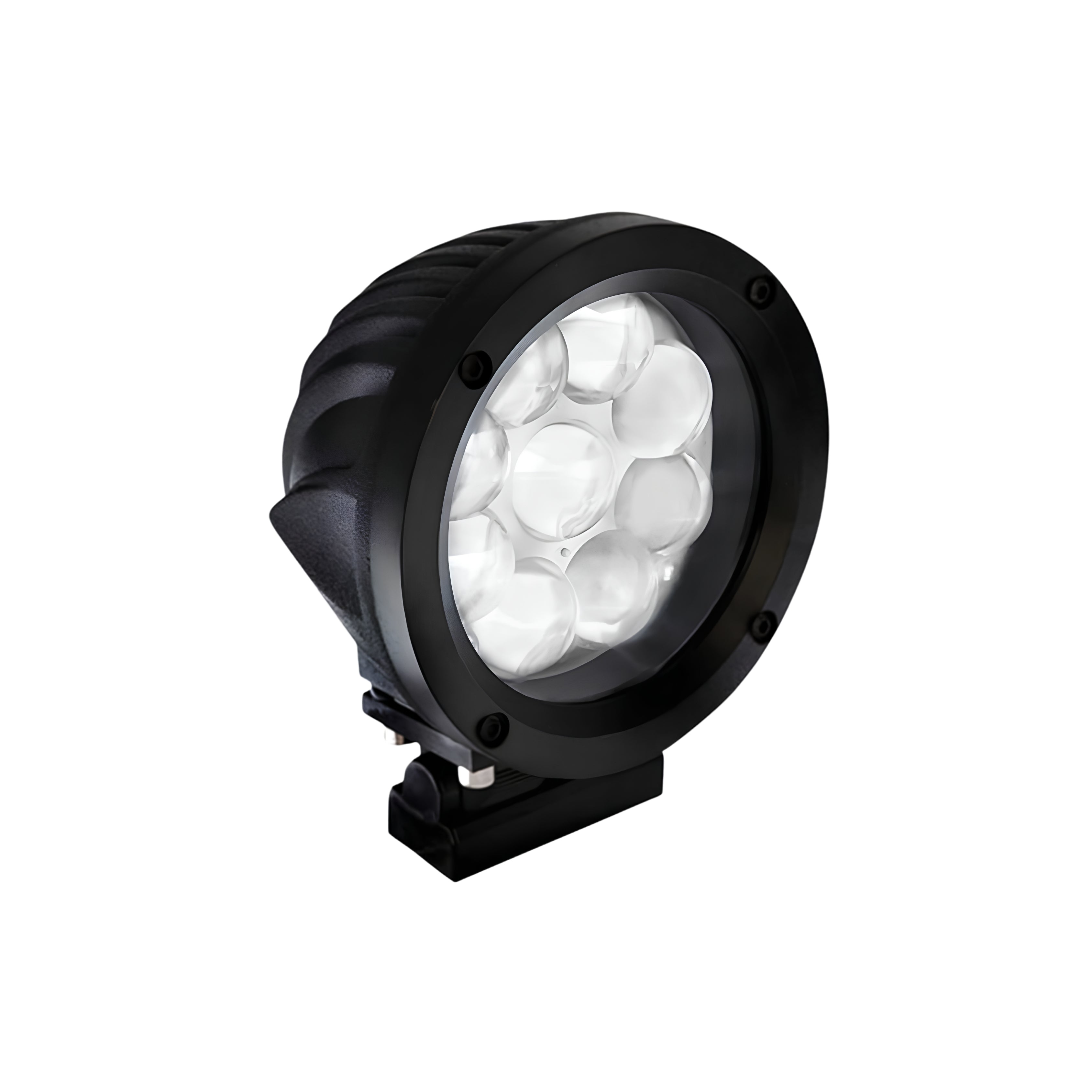

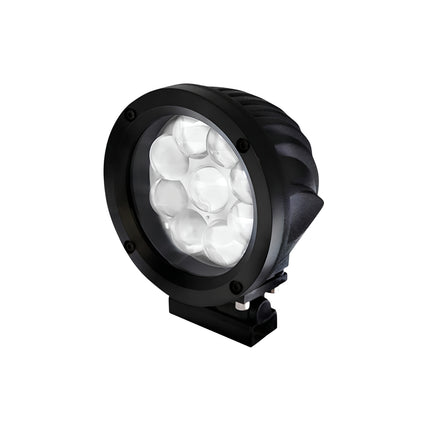

Thunder TDR08014 9 LED Driving Light
A 9 LED driving light from Thunder, the TDR08014 is fitted with high quality Cree 5 watt LEDs delivering 5,000 effective lumens, IP67 rated with a die cast aluminium housing and polycarbonate lens, sealed against dust and water ingress.
Product overview
Fitted with high quality Cree 5 watt LEDs and pre-wired with 1.2 metres of tinned cable. Black die cast aluminium housing, polycarbonate lens, and IP67 rated meaning they are sealed from dust and water ingress.
Features and benefits
9x 5W Cree LEDs: High quality Cree LEDs deliver strong output and reliable long-term performance.
5,000 effective lumens: Provides strong illumination suited to off-road and driving light applications.
IP67 rated: Sealed from dust and water ingress, suited to demanding outdoor and off-road conditions.

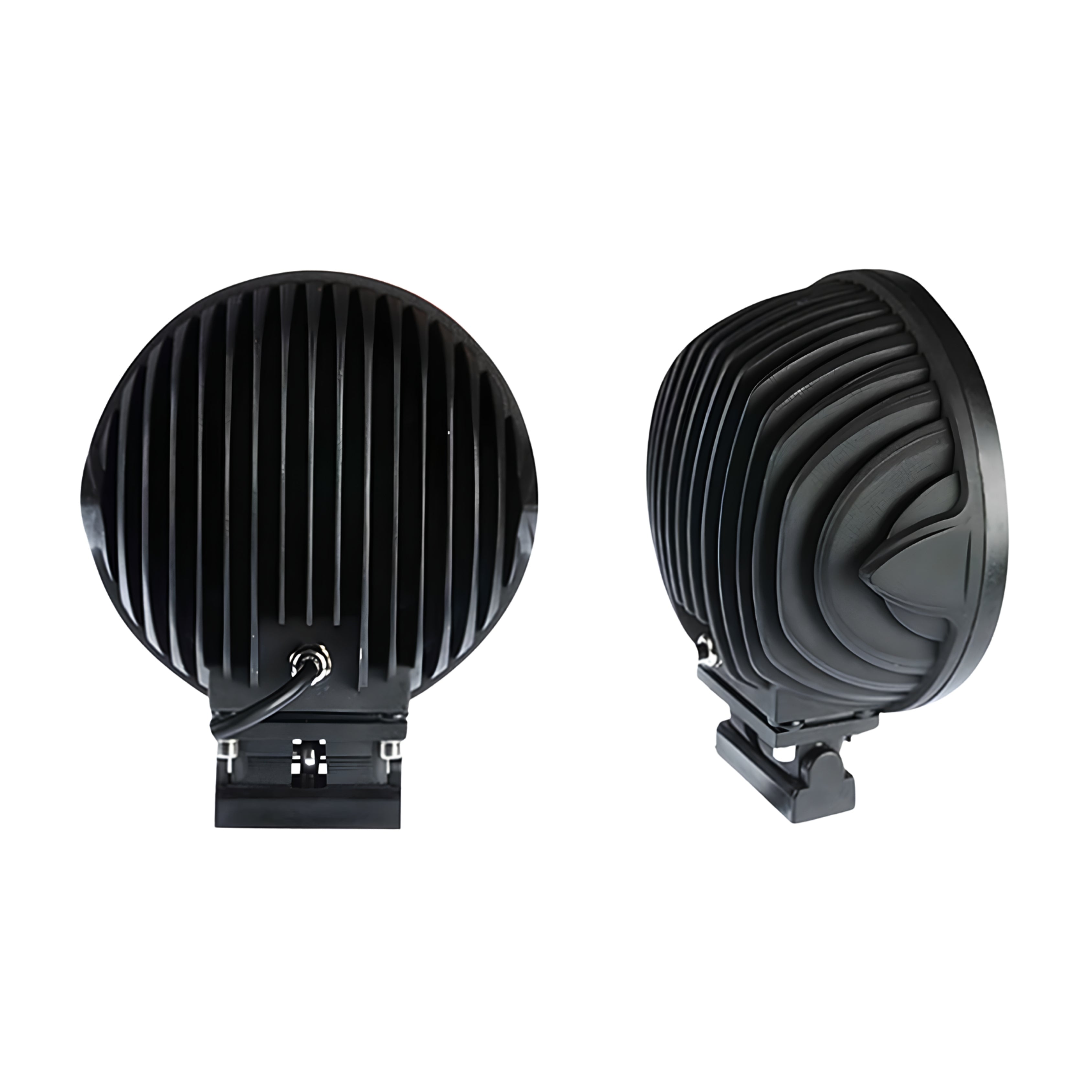

Die cast aluminium housing: Provides durable, corrosion-resistant housing construction.
Polycarbonate lens: Offers impact resistance while maintaining clear light transmission.
Pre-wired with 1.2m tinned cable: Simplifies installation with a ready-to-wire tinned cable connection.
Spot beam pattern: Concentrates light output for maximum distance illumination, suited to highway and open terrain driving.
12-24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
Technical specs
| Specification |
Detail |
| SKU |
TDR08014 |
| Brand |
Thunder |
| Type |
LED Driving Light |
| LEDs |
9x 5W Cree LEDs |
| Raw Lumens |
6,300 |
| Effective Lumens |
5,000 |
| Voltage |
12-24V |
| Diameter |
140mm |
| Current Draw |
2.5A @ 12V |
| Lens Material |
Polycarbonate |
| Housing Material |
Die Cast Aluminium |
| Cable |
1.2m Tinned |
| Beam Pattern |
Spot Beam |
| IP Rating |
IP67 |
Compatible with
The TDR08014 is compatible with 12V and 24V vehicle electrical systems requiring an off-road spot beam driving light.
Frequently asked questions
What is the effective lumen output of the TDR08014?
The TDR08014 delivers 5,000 effective lumens, with 6,300 raw lumens from the LED array.
What voltage does the TDR08014 support?
The TDR08014 suits both 12V and 24V applications.
Is the TDR08014 waterproof?
Yes. The TDR08014 is IP67 rated, sealed from dust and water ingress.
What beam pattern does the TDR08014 use?
The TDR08014 uses a spot beam pattern, concentrating light output for maximum distance illumination.
What cable length is pre-wired to the TDR08014?
The TDR08014 comes pre-wired with 1.2 metres of tinned cable.
