Description

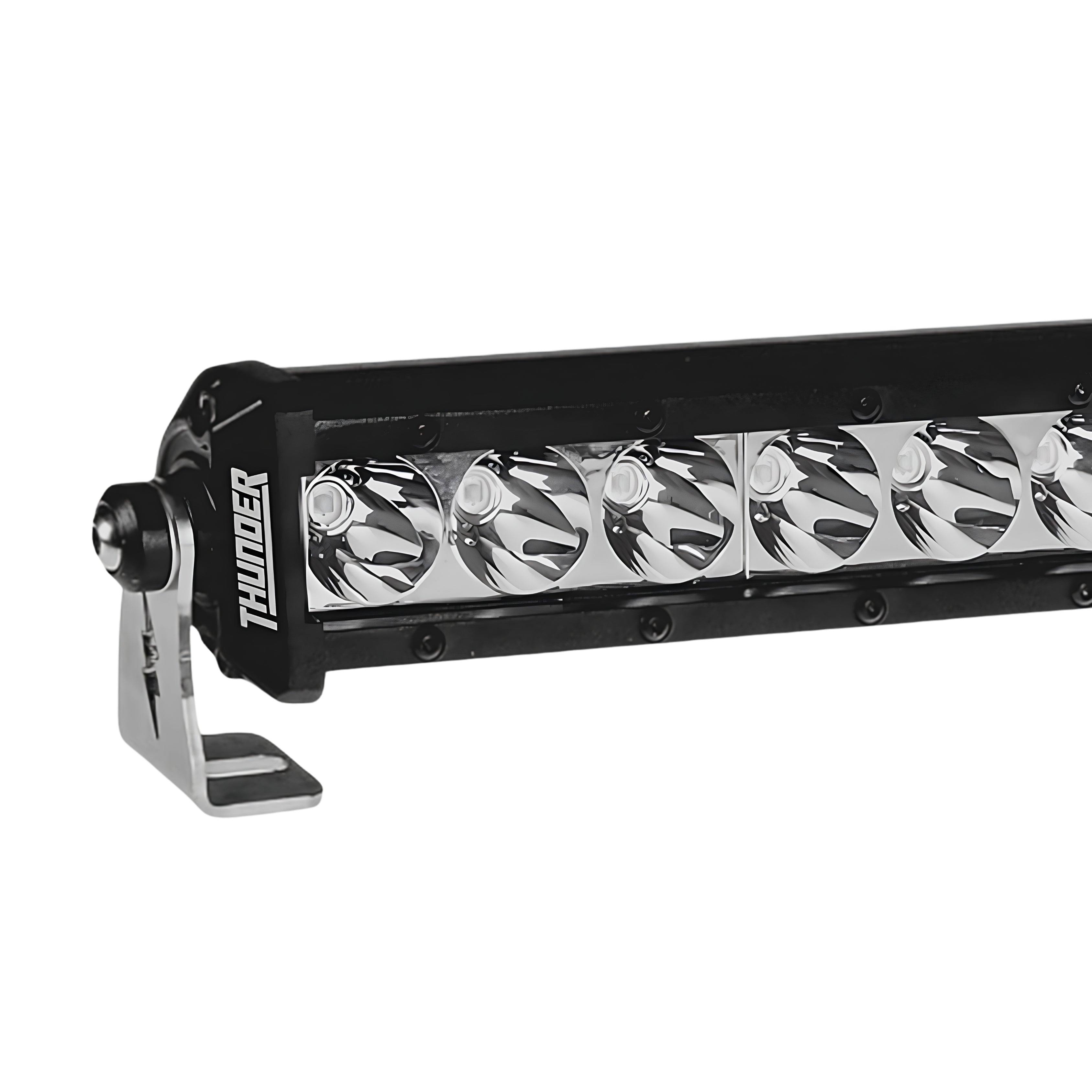

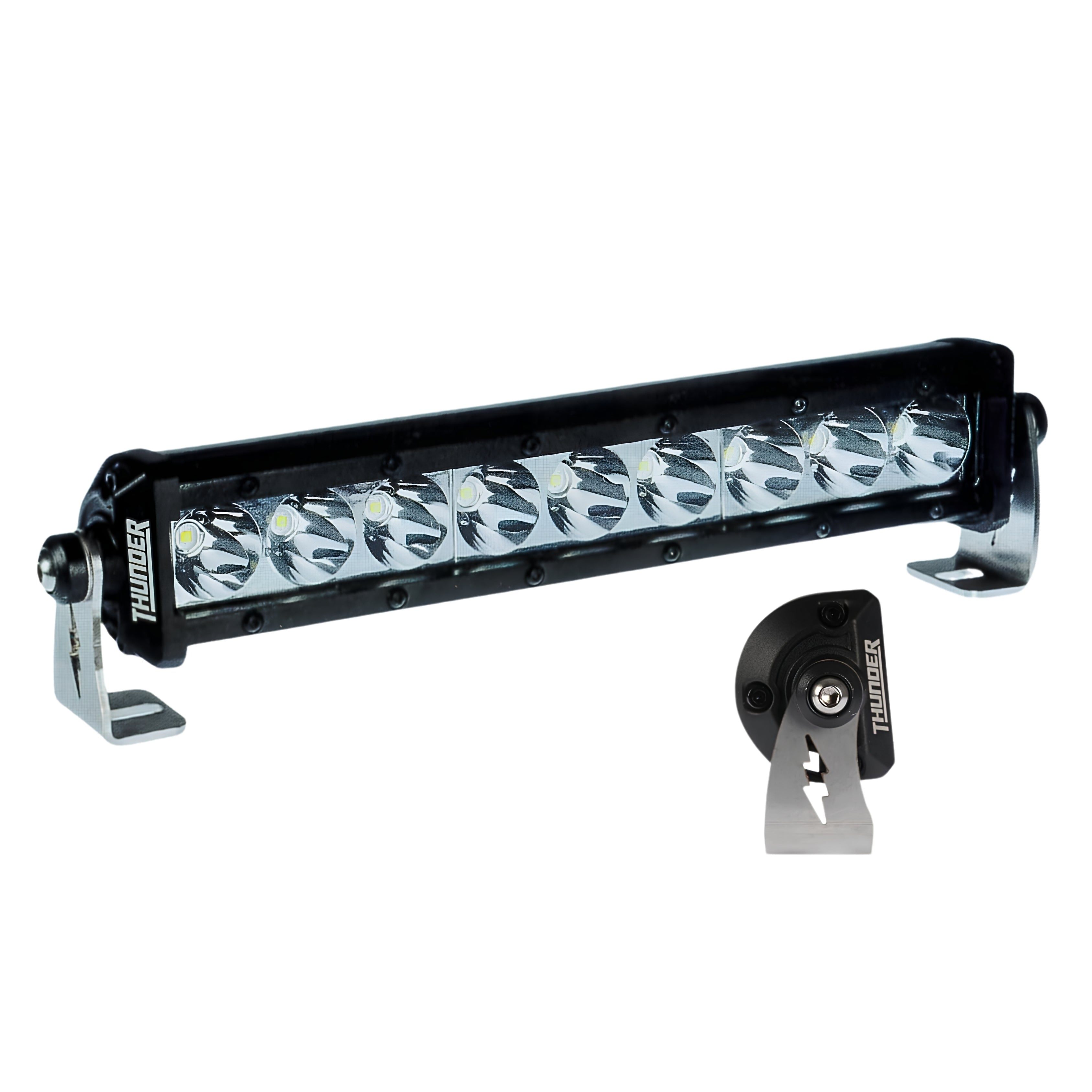

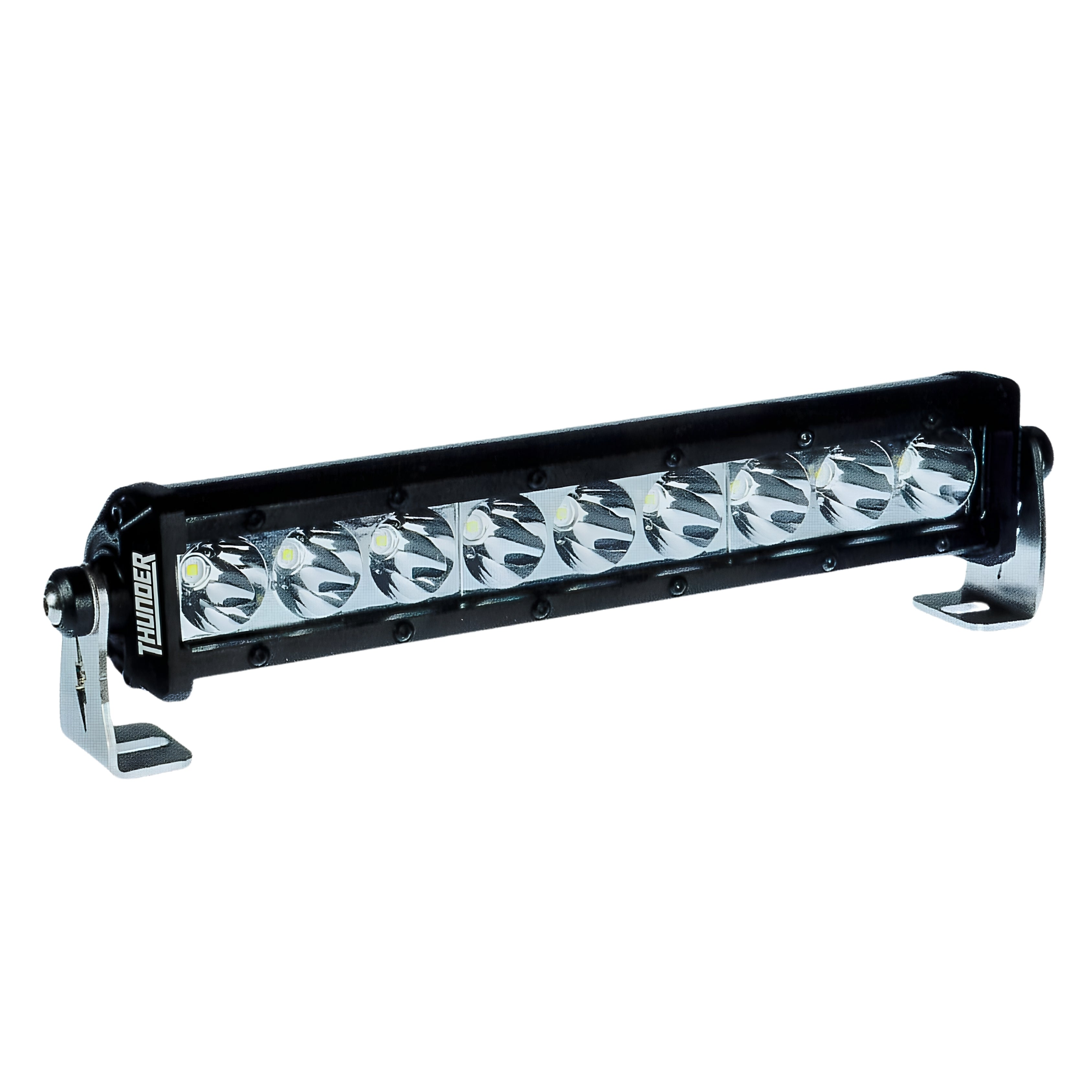

Thunder TDR08112 9 LED Driving Light Bar
A 300mm 9 LED driving light bar from Thunder, the TDR08112 delivers 1,130 effective lumens in a spot beam pattern, IP67 rated with die cast aluminium body and adjustable stainless steel mounting brackets.
Product overview
Adjustable brackets allow for versatile installation, with optional slide mounts available for a more slimline appearance, sold separately. Die cast aluminium body, polycarbonate lens, water and dust sealed to an IP67 rating, includes pre-wired connectors.
Features and benefits
9x 3W Cree LEDs: High quality Cree LEDs deliver strong output and reliable long-term performance.
1,130 effective lumens: Provides strong illumination suited to off-road and driving light bar applications.

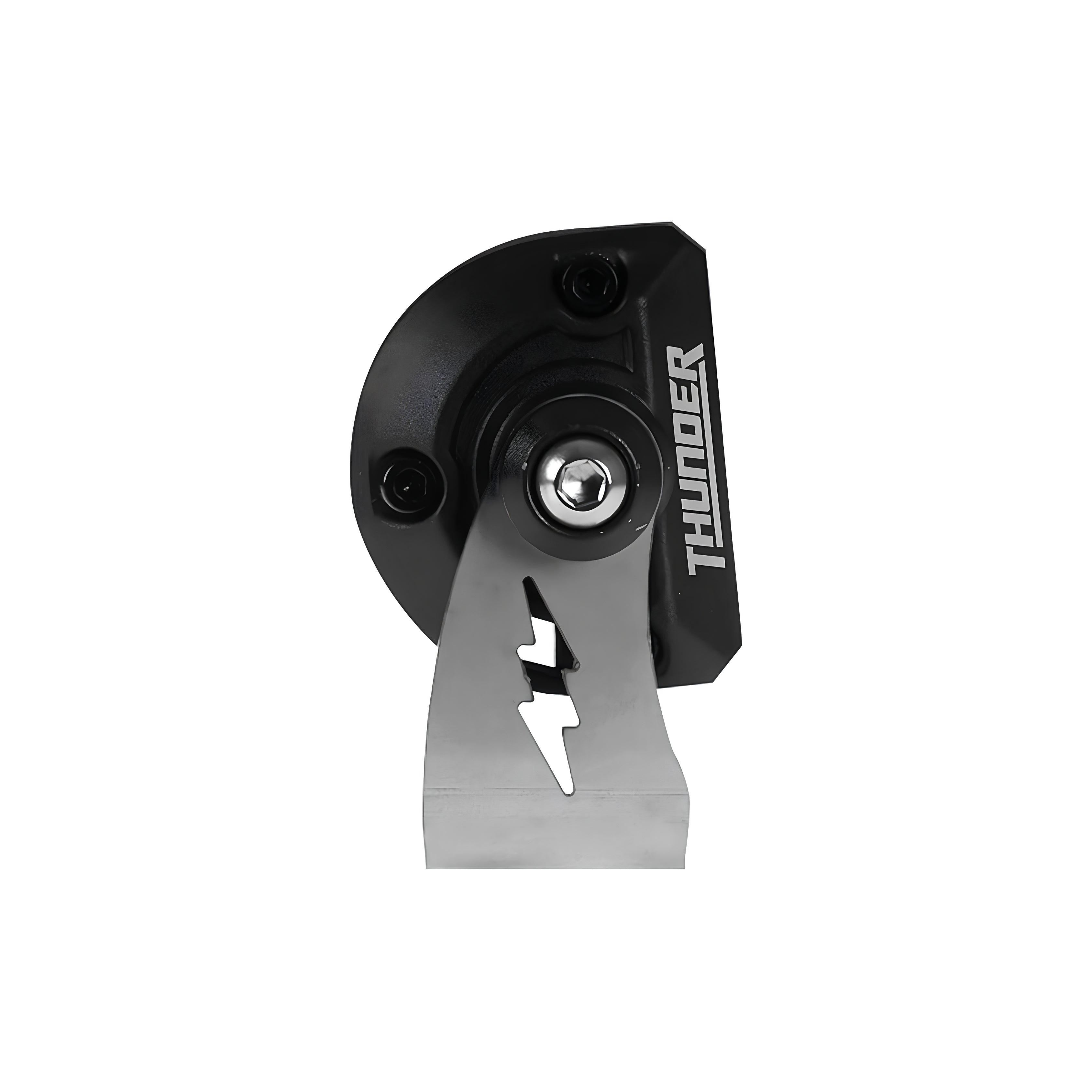

Adjustable mounting brackets: Stainless steel brackets support horizontal or vertical mounting for versatile installation.
Optional slide mounts available: Slide mounts are available separately for a more slimline mounting appearance.
Die cast aluminium housing: Provides durable, corrosion-resistant housing construction.
Polycarbonate lens: Offers impact resistance while maintaining clear light transmission.
IP67 rated: Sealed against dust and water ingress, suited to demanding outdoor and off-road conditions.
Pre-wired connectors included: Simplifies installation with ready-to-connect wiring.
Spot beam pattern: Concentrates light output for maximum distance illumination, suited to highway and open terrain driving.
12-24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
Technical specs
| Specification |
Detail |
| SKU |
TDR08112 |
| Brand |
Thunder |
| Type |
LED Driving Light Bar |
| LEDs |
9x 3W Cree LEDs |
| Raw Lumens |
2,000 |
| Effective Lumens |
1,130 |
| Voltage |
12-24V |
| Dimensions (L x H x W) |
300mm x 72mm x 44mm |
| Current Draw |
1.5A @ 12V |
| Lens Material |
Polycarbonate |
| Housing Material |
Die Cast Aluminium |
| Mounting Brackets |
Stainless Steel, Horizontal or Vertical Mount |
| Beam Pattern |
Spot Beam |
| IP Rating |
IP67 |
Compatible with
The TDR08112 is compatible with 12V and 24V vehicle electrical systems requiring an off-road spot beam driving light bar. Optional slide mounts are available separately for a slimline mounting appearance.
Frequently asked questions
What is the effective lumen output of the TDR08112?
The TDR08112 delivers 1,130 effective lumens, with 2,000 raw lumens from the LED array.
What voltage does the TDR08112 support?
The TDR08112 suits both 12V and 24V applications.
Is the TDR08112 waterproof?
Yes. The TDR08112 is IP67 rated, sealed against dust and water ingress.
What mounting options does the TDR08112 support?
The TDR08112 includes adjustable stainless steel brackets supporting horizontal or vertical mounting, with optional slide mounts available separately for a slimline appearance.
What beam pattern does the TDR08112 use?
The TDR08112 uses a spot beam pattern, concentrating light output for maximum distance illumination.
