Description

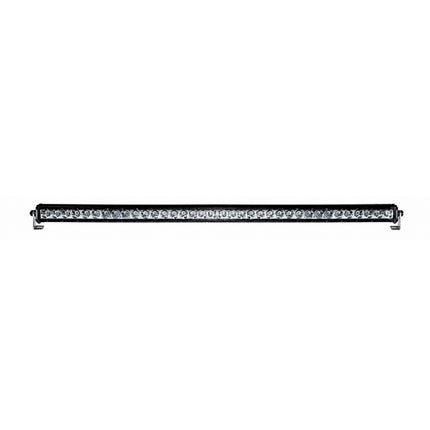

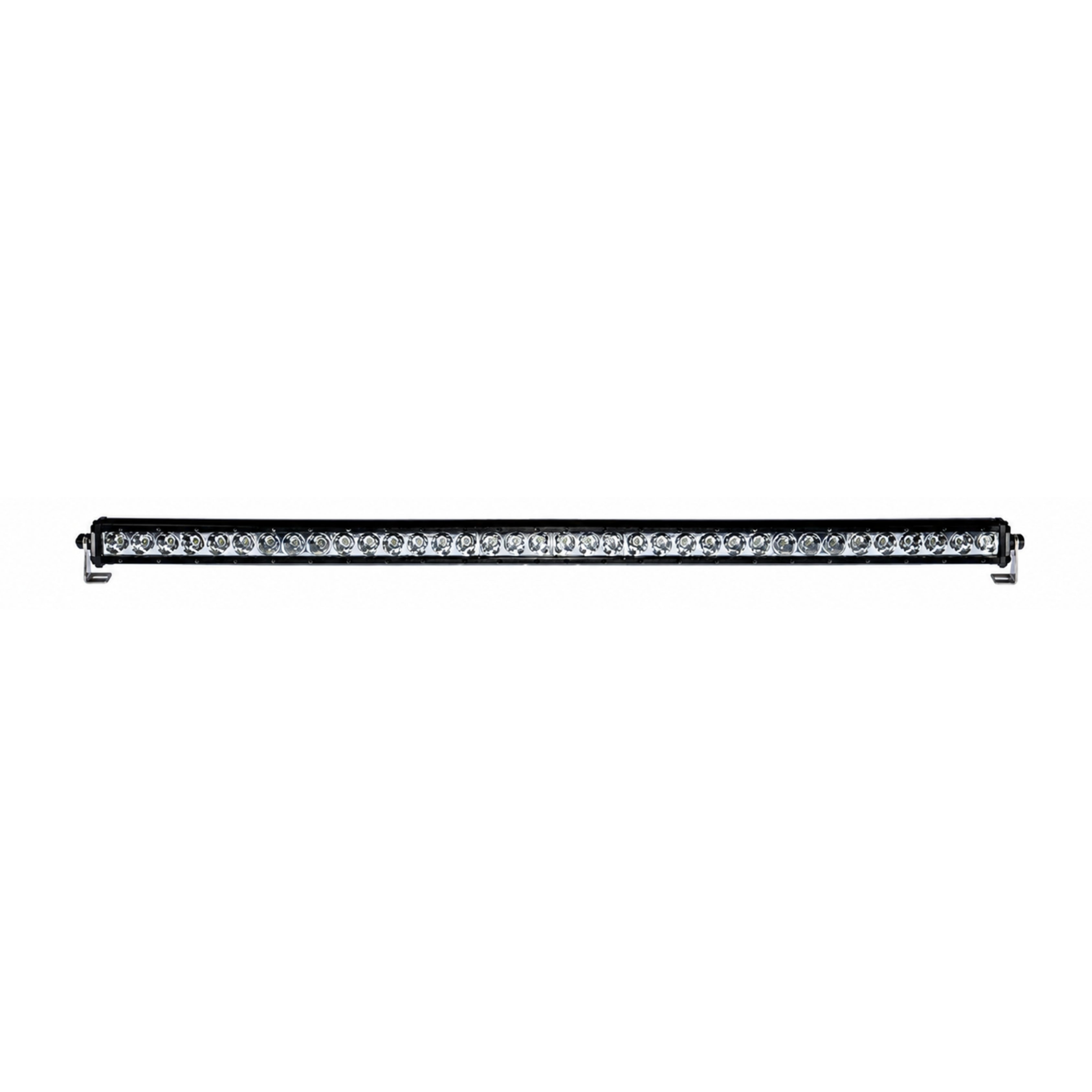

Thunder TDR08140 36 LED Driving Light Bar 108W
A 1,028mm 36 LED driving light bar from Thunder offering performance and quality at a great price, delivering 8,400 lumens in a 15 degree spot beam pattern, IP67 rated for 12/24V applications.
Product overview

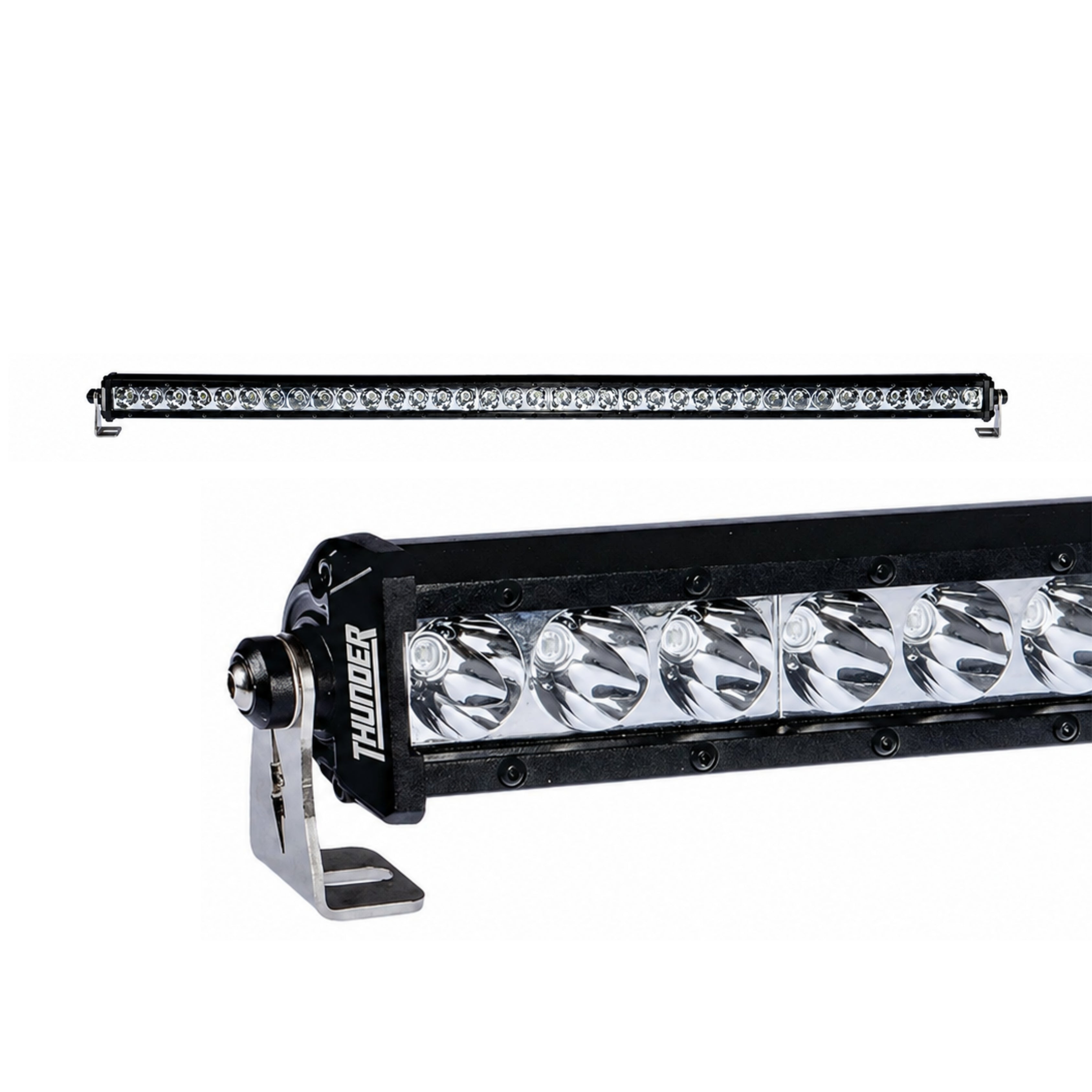

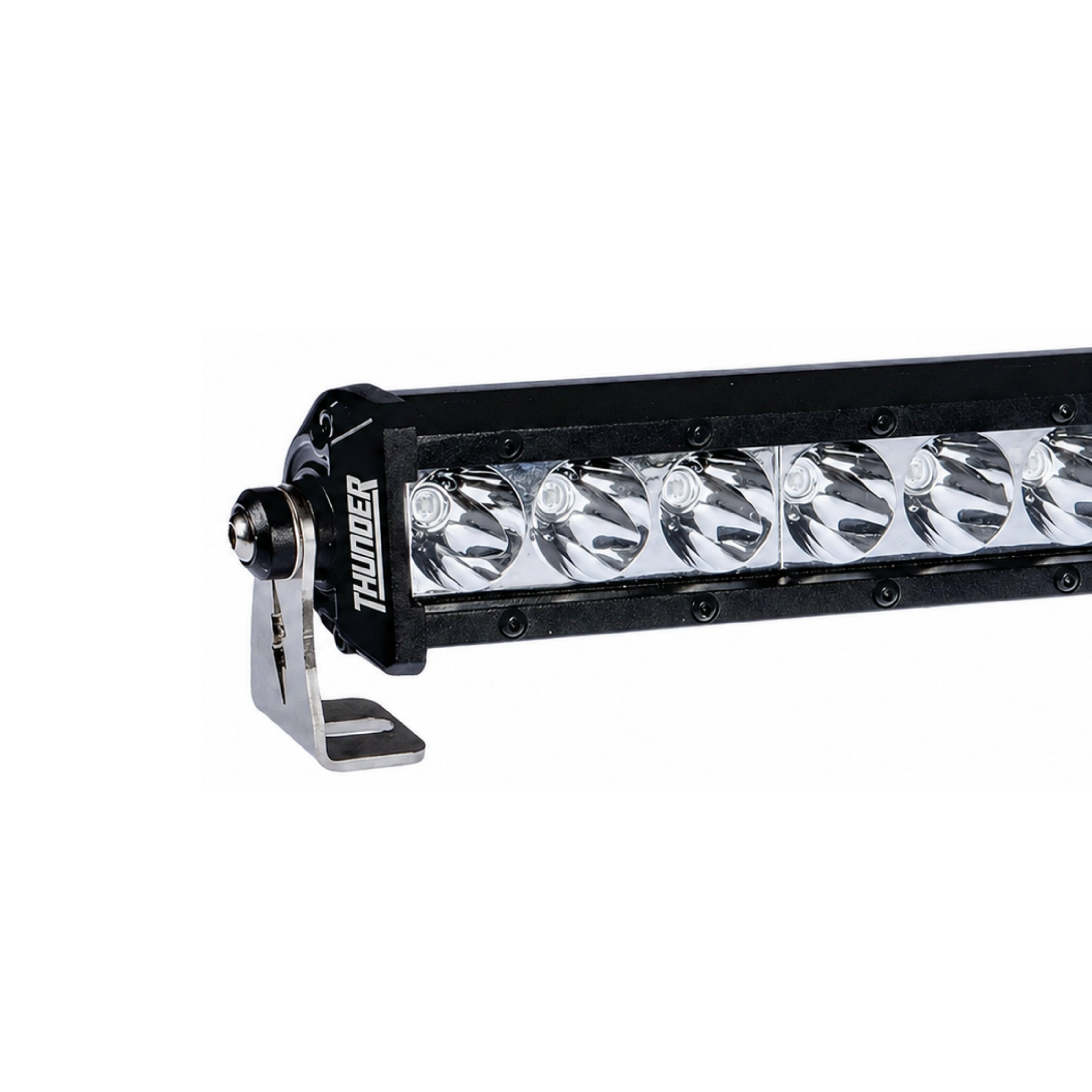

Hard-wearing LED bar driving lights designed for long-distance visibility, the range of Thunder LED driving light bars offers performance and quality at a great price. The driving light bars are made from an extruded die-cast aluminium housing with a polycarbonate lens and are supplied with stainless steel mounting brackets. They feature Cree 3-watt LEDs and are able to be used in 12 and 24-volt applications, sealed to an IP67 rating.
Features and benefits
36 x 3W Cree LEDs: High quality Cree LEDs deliver strong output and reliable long-term performance.
8,400 lumens: Provides strong illumination suited to long-distance visibility applications.
15 degree spot beam: Concentrates light output for maximum distance illumination, suited to highway and open terrain driving.
Extruded die-cast aluminium housing: Provides durable, corrosion-resistant housing construction.
Polycarbonate lens: Offers impact resistance while maintaining clear light transmission.
IP67 rated: Sealed against dust and water ingress, suited to demanding outdoor and off-road conditions.

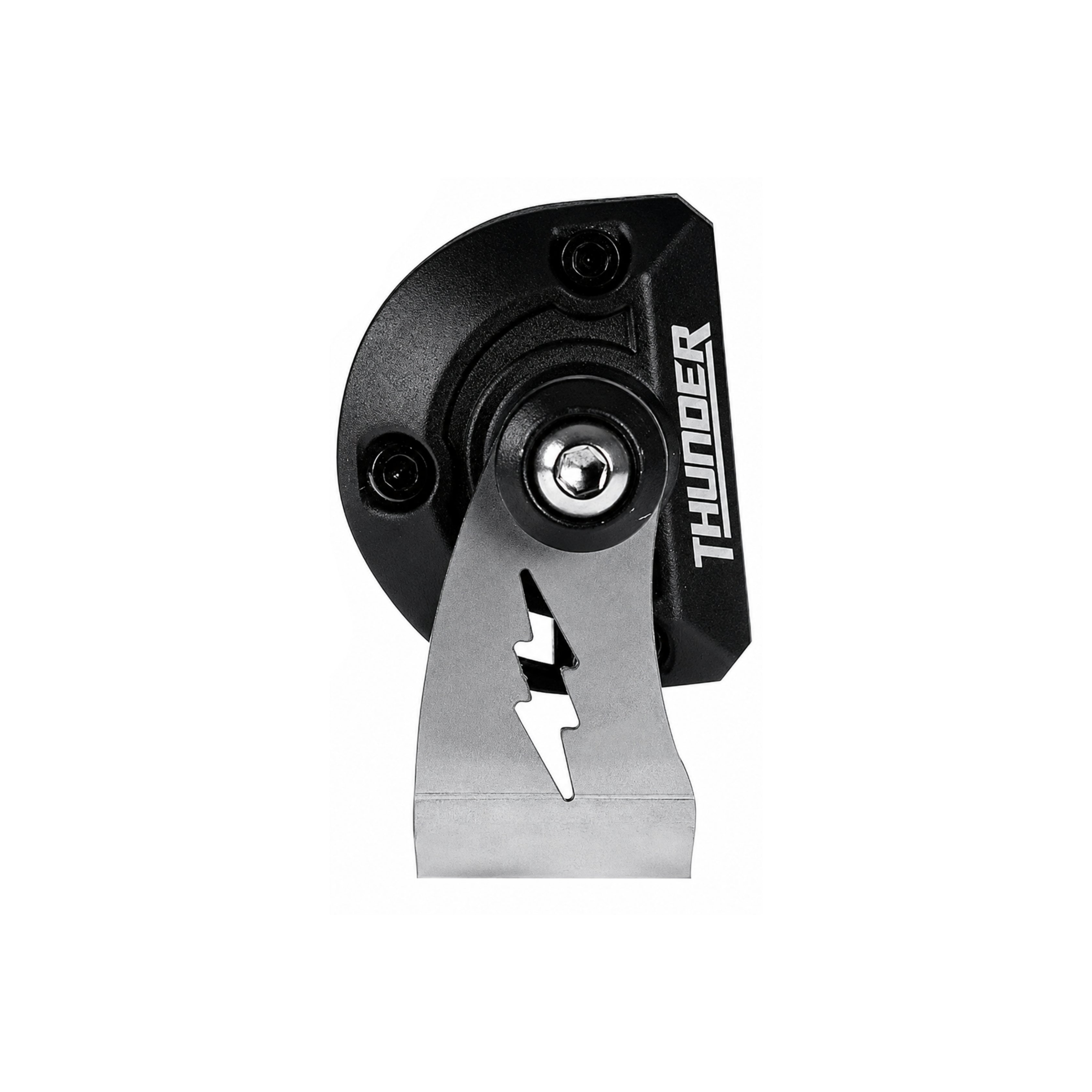

Stainless steel mounting brackets: Supports horizontal or vertical mounting for versatile installation.
DT04-2P connector: Provides a secure, standard connector interface for wiring installation.
12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
Technical specs
| Specification |
Detail |
| SKU |
TDR08140 |
| Brand |
Thunder |
| Type |
LED Driving Light Bar |
| LEDs |
36 x 3W Cree LEDs |
| Wattage |
108W |
| Connector |
DT04-2P |
| Lumens |
8,400 |
| Voltage |
12/24V |
| Current Draw |
6A @ 12V |
| Lens Material |
Polycarbonate |
| Shape |
Rectangle Bar |
| Housing Material |
Die-Cast Aluminium |
| Mounting Brackets |
Stainless Steel, Horizontal or Vertical Mount |
| Beam Pattern |
15° Spot Beam |
| Dimensions |
1,028mm x 72mm x 44mm |
| Weight |
4.50kg |
| IP Rating |
IP67 |
Compatible with
The TDR08140 is compatible with 12V and 24V vehicle electrical systems requiring a high-output long-distance spot beam driving light bar.
Frequently asked questions
What is the lumen output of the TDR08140?
The TDR08140 delivers 8,400 lumens.
What voltage does the TDR08140 support?
The TDR08140 suits both 12V and 24V applications.
Is the TDR08140 waterproof?
Yes. The TDR08140 is IP67 rated, sealed against dust and water ingress.
What beam angle does the TDR08140 use?
The TDR08140 uses a 15 degree spot beam pattern, concentrating light output for maximum distance illumination.
What connector does the TDR08140 use?
The TDR08140 uses a DT04-2P connector.
