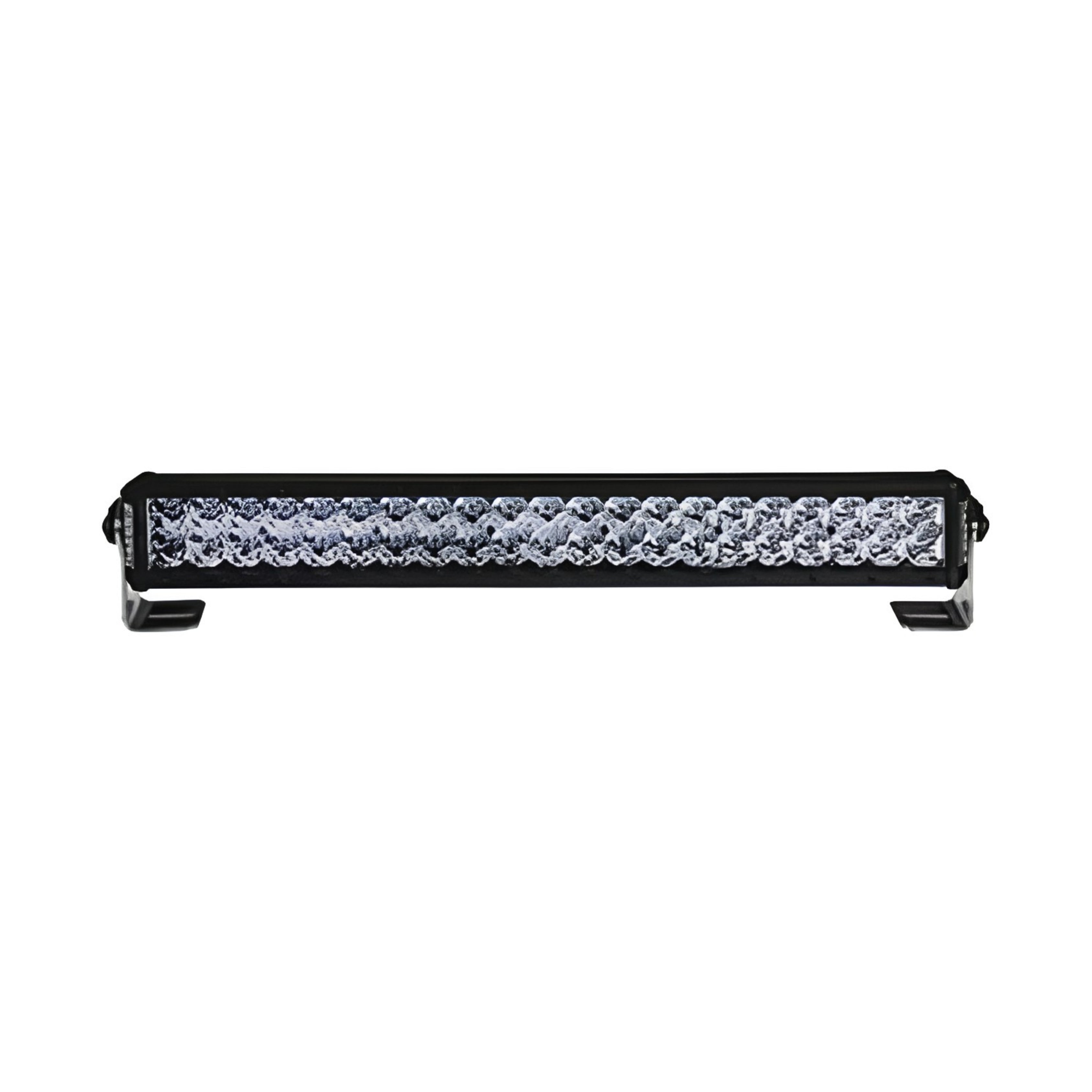

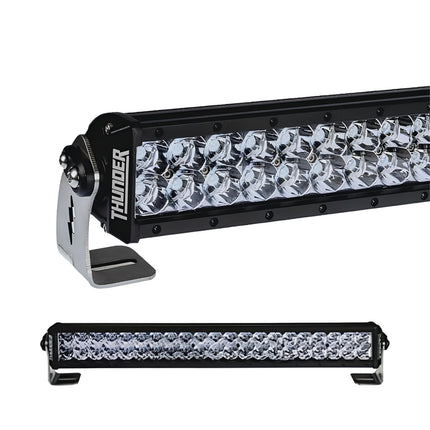

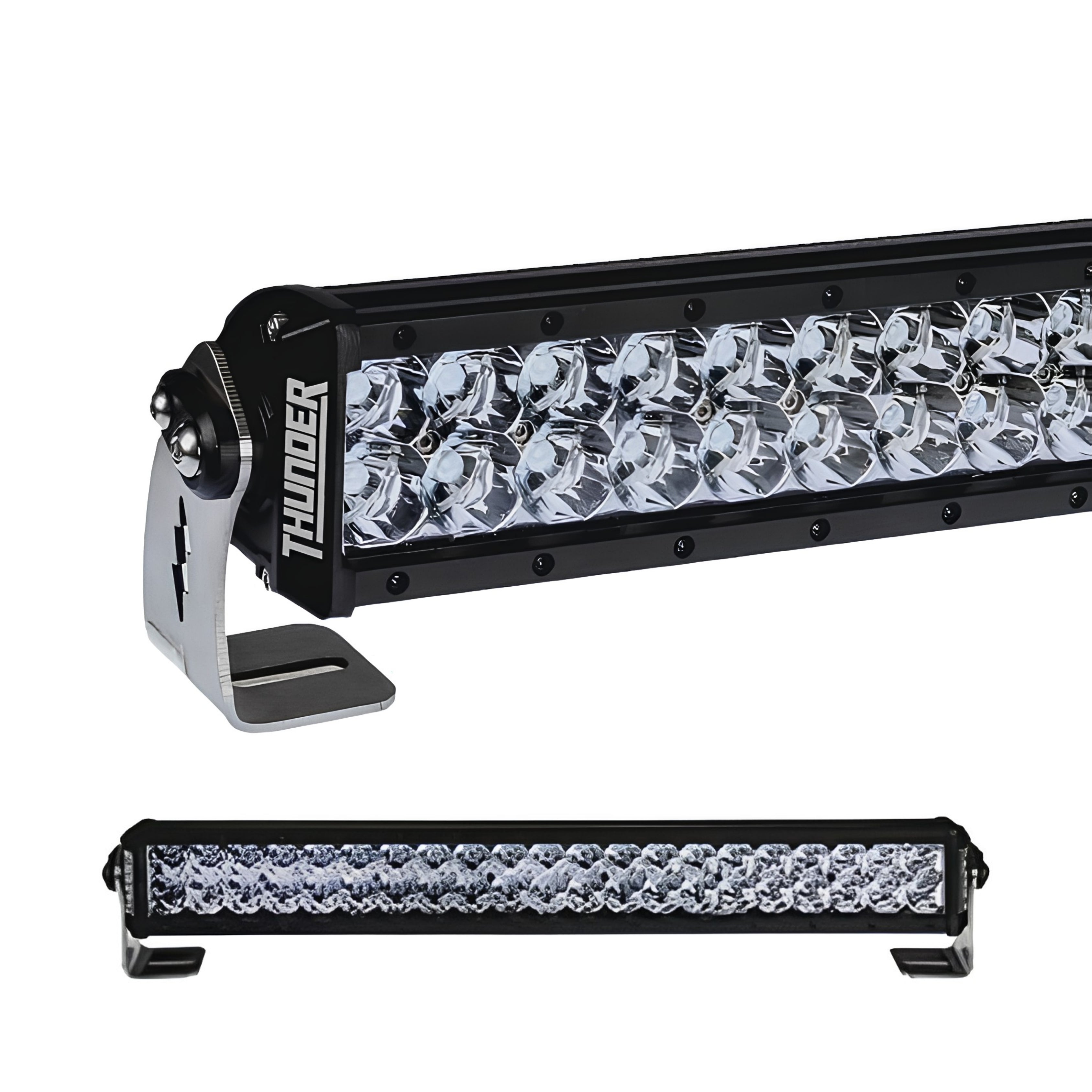

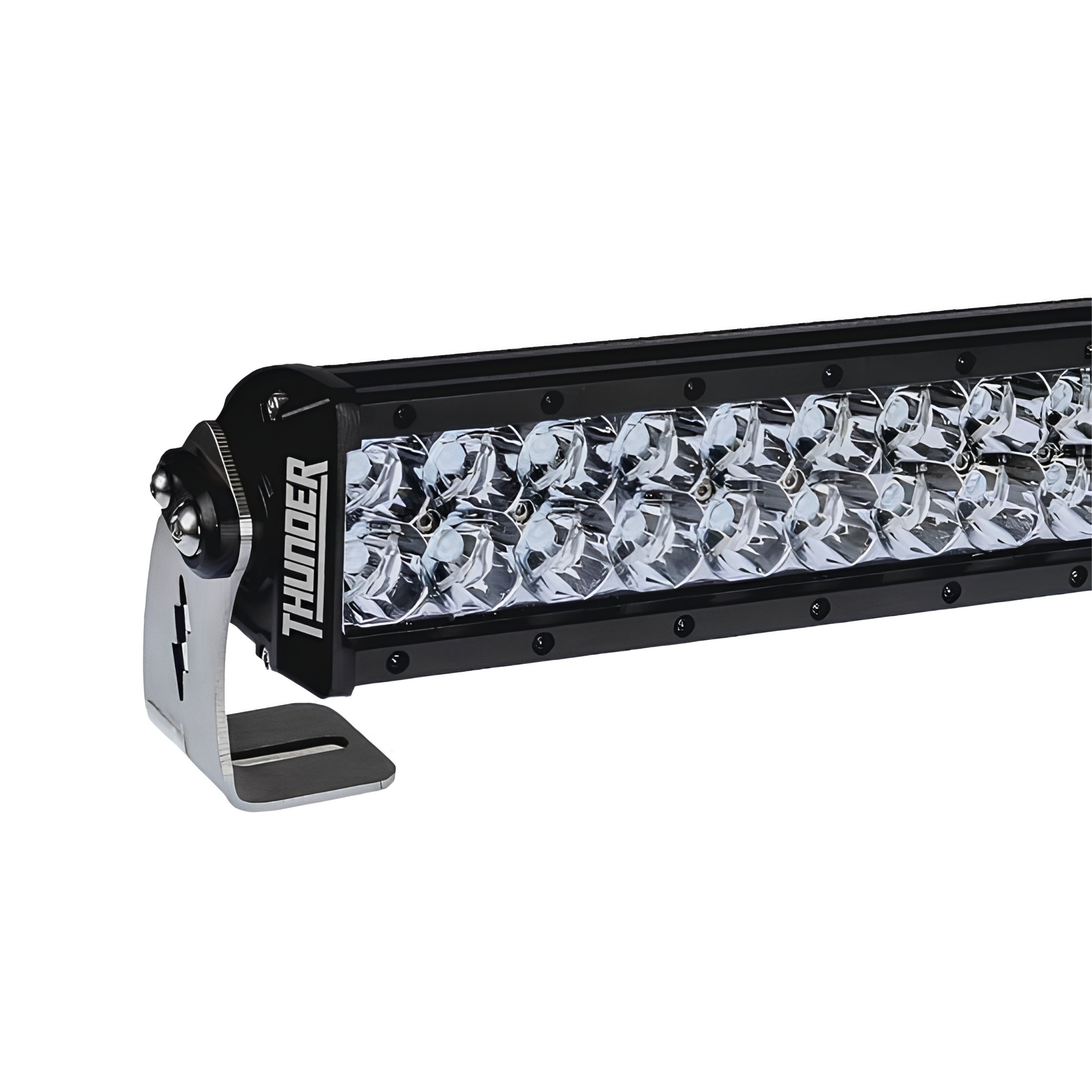

Thunder TDR08224 42 LED Driving Light Bar
A 612mm 42 LED driving light bar from Thunder, the TDR08224 provides a greater intensity of light in front of your vehicle to flood the area and see the hazards ahead, delivering 5,160 effective lumens with IP67 rated protection.
Product overview
Provides a greater intensity of light in front of your vehicle to flood the area and see the hazards ahead. Adjustable brackets allow for versatile installation, with optional slide mounts available for a more slimline appearance, sold separately. Die cast aluminium body, polycarbonate lens, IP67 rated for dust and water ingress, includes pre-wired connectors.
Features and benefits
42x 3W Cree LEDs: High quality Cree LEDs deliver exceptional output and reliable long-term performance.
5,160 effective lumens: Provides high intensity illumination to flood the area ahead of the vehicle and see hazards clearly.

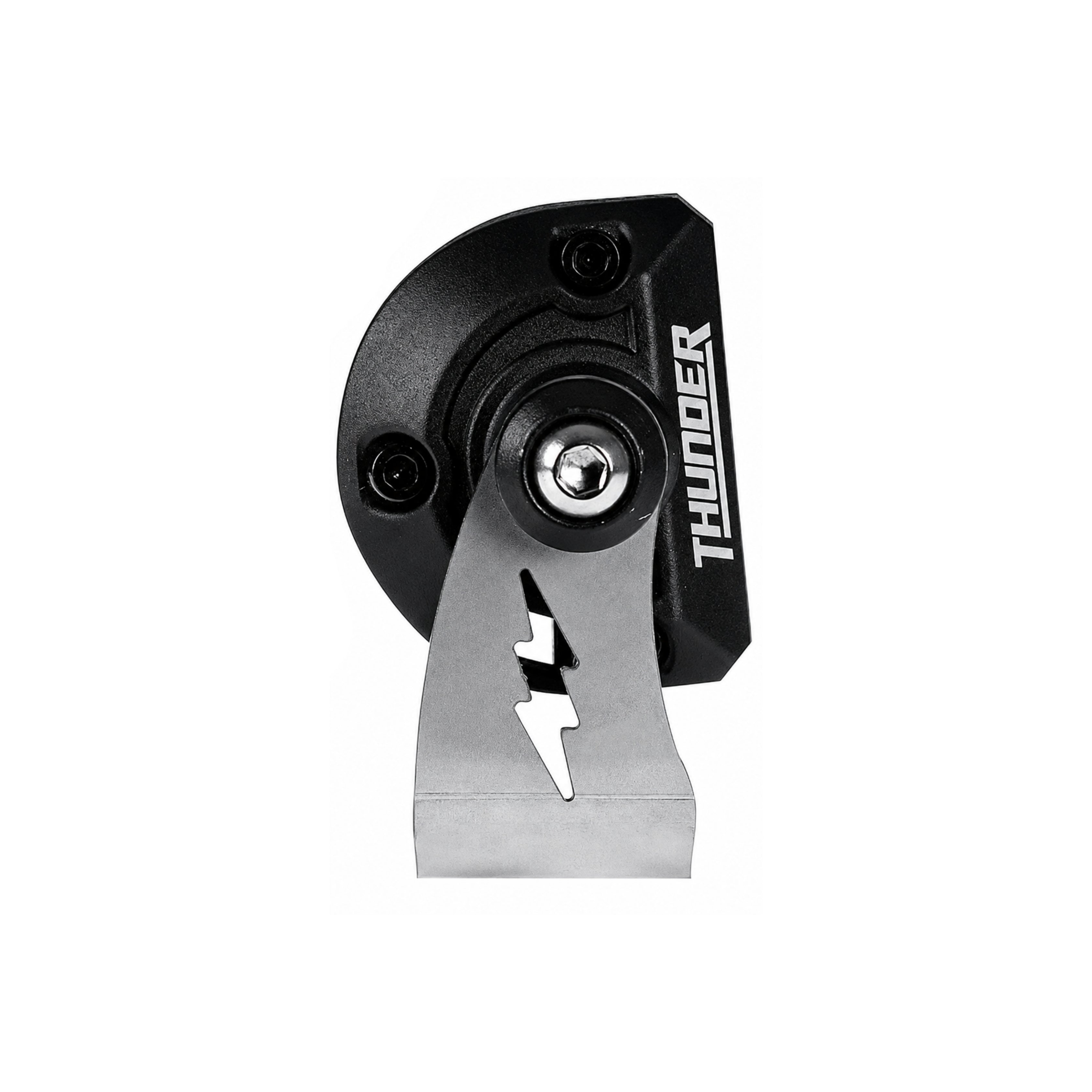

Adjustable mounting brackets: Stainless steel brackets support horizontal or vertical mounting for versatile installation.
Optional slide mounts available: Slide mounts are available separately for a more slimline mounting appearance.
Die cast aluminium housing: Provides durable, corrosion-resistant housing construction.
Polycarbonate lens: Offers impact resistance while maintaining clear light transmission.
IP67 rated: Sealed against dust and water ingress, suited to demanding outdoor and off-road conditions.
Pre-wired connectors included: Simplifies installation with ready-to-connect wiring.
Spot beam pattern: Concentrates light output for maximum distance illumination, suited to highway and open terrain driving.
12-24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
Technical specs
| Specification |
Detail |
| SKU |
TDR08224 |
| Brand |
Thunder |
| Type |
LED Driving Light Bar |
| LEDs |
42x 3W Cree LEDs |
| Raw Lumens |
9,800 |
| Effective Lumens |
5,160 |
| Voltage |
12-24V |
| Dimensions (L x H x W) |
612mm x 115mm x 77mm |
| Current Draw |
8A @ 12V |
| Lens Material |
Polycarbonate |
| Housing Material |
Die Cast Aluminium |
| Mounting Brackets |
Stainless Steel, Horizontal or Vertical Mount |
| Beam Pattern |
Spot Beam |
| IP Rating |
IP67 |
Compatible with
The TDR08224 is compatible with 12V and 24V vehicle electrical systems requiring a high-output spot beam driving light bar. Optional slide mounts are available separately for a slimline mounting appearance.
Frequently asked questions
What is the effective lumen output of the TDR08224?
The TDR08224 delivers 5,160 effective lumens, with 9,800 raw lumens from the LED array.
What voltage does the TDR08224 support?
The TDR08224 suits both 12V and 24V applications.
Is the TDR08224 waterproof?
Yes. The TDR08224 is IP67 rated, sealed against dust and water ingress.
What mounting options does the TDR08224 support?
The TDR08224 includes adjustable stainless steel brackets supporting horizontal or vertical mounting, with optional slide mounts available separately for a slimline appearance.
What beam pattern does the TDR08224 use?
The TDR08224 uses a spot beam pattern, concentrating light output for maximum distance illumination.
