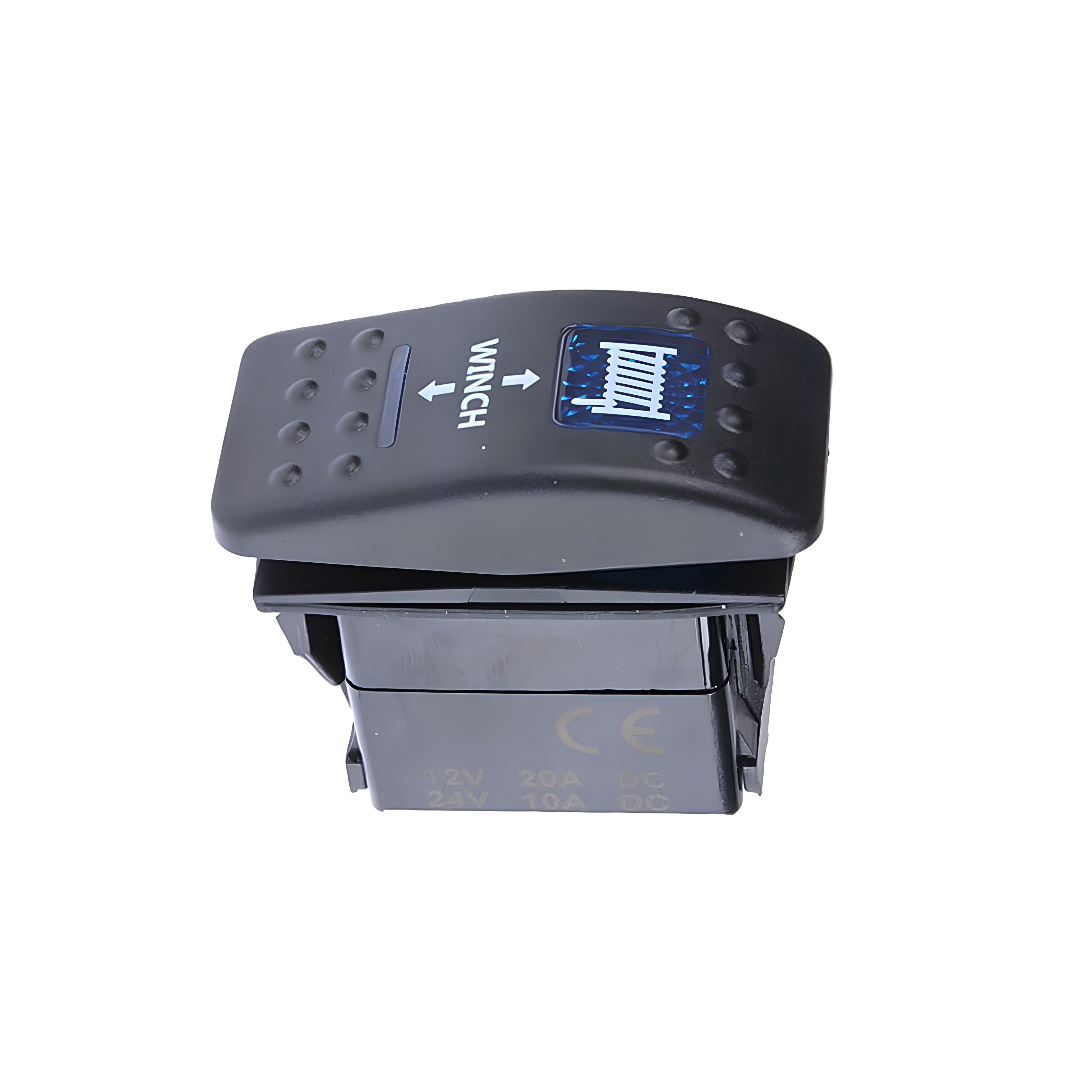

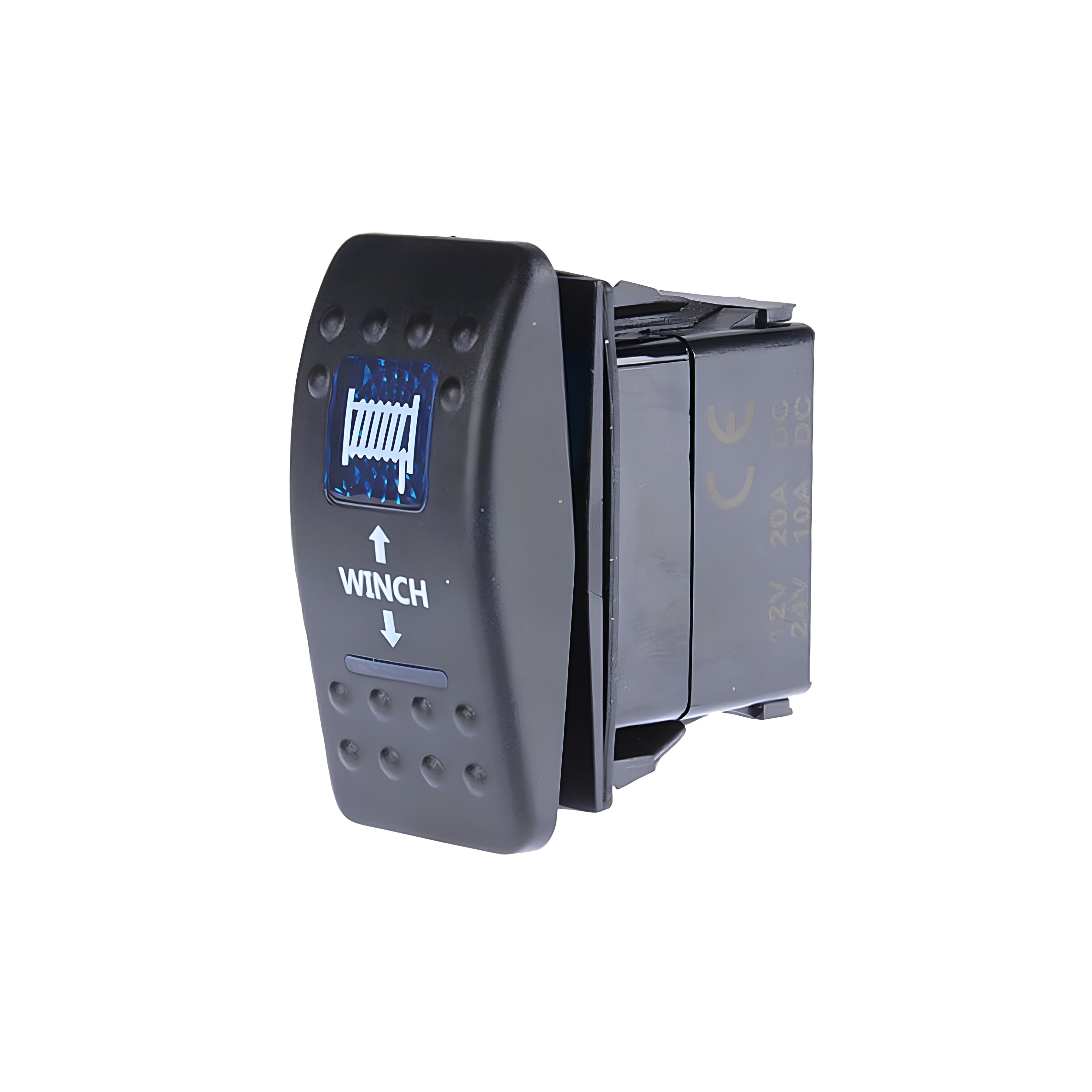

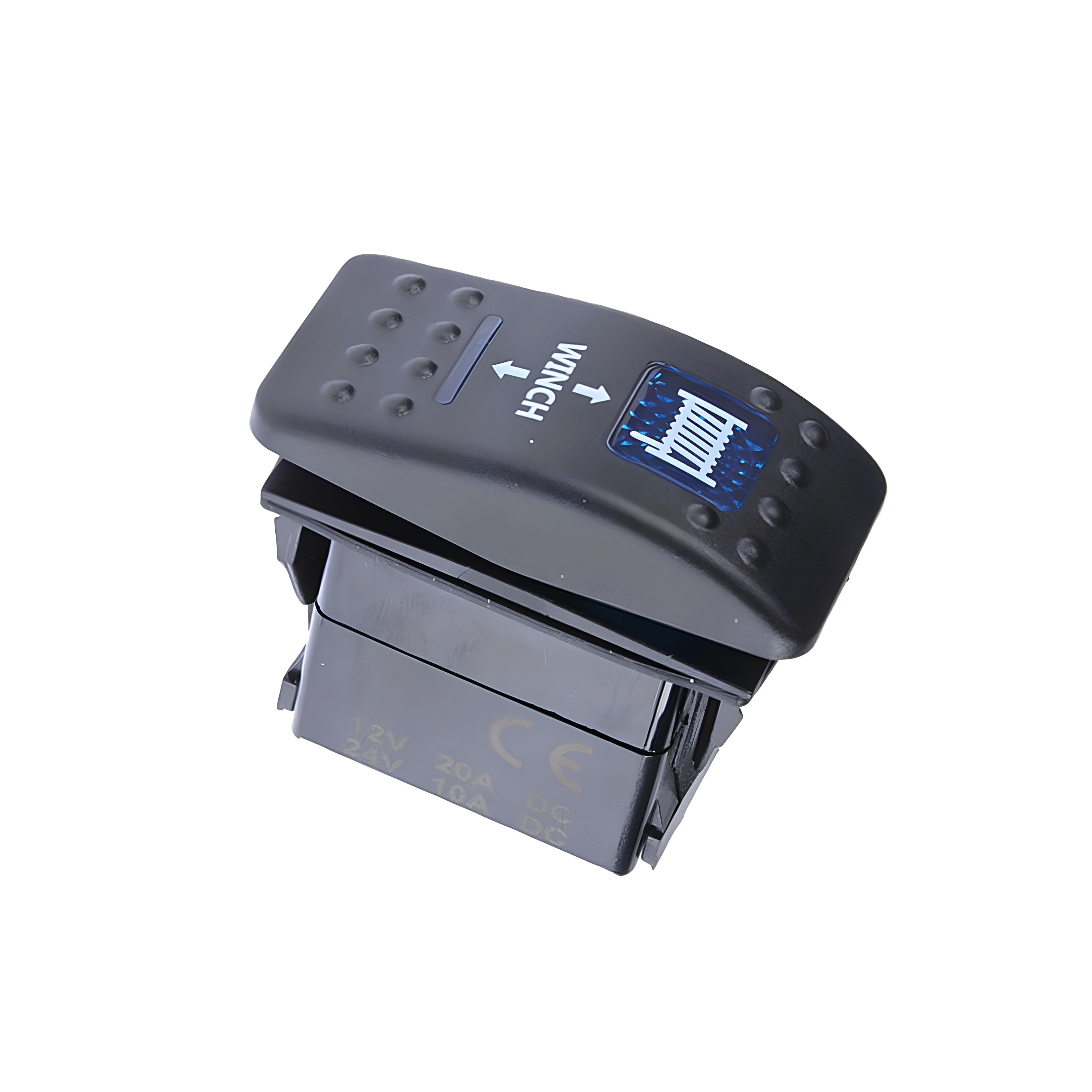

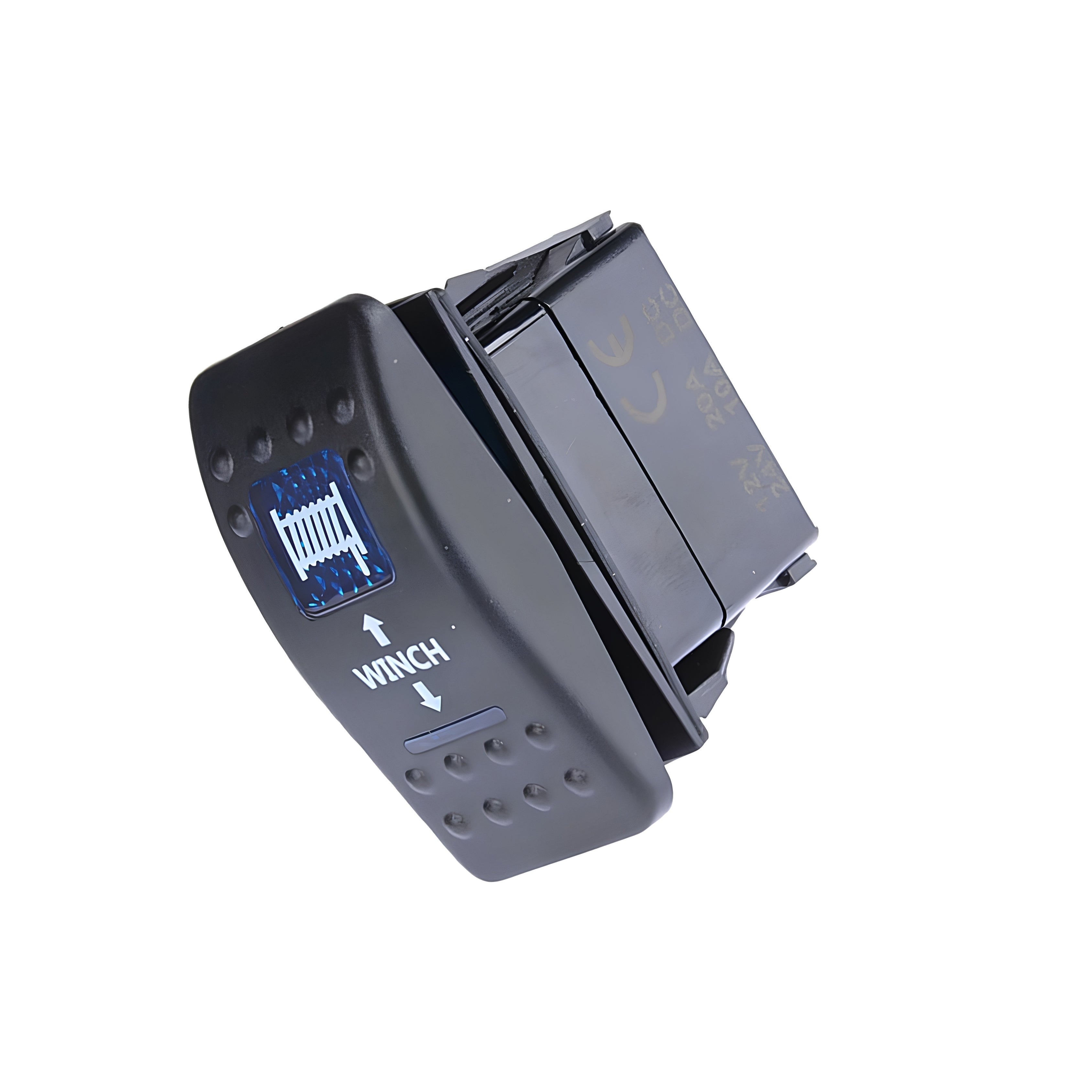

Thunder TDR11007 12/24V Winch Rocker Switch
A 12/24V winch rocker switch from Thunder, the TDR11007 features a 20A rating, blue backlit icon, and twin action momentary on-off-on SPDT function for controlling winch operation.
Product overview
A rocker switch for every occasion, or ever growing collection of equipment. Thunder's range of illuminated switches will make sure you turn on the right equipment when you need it. Each with a 20A, 12/24V draw, a Thunder rocker switch offers a twin action and blue backlit icons for easy identification.
Features and benefits
12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
20 amp rating at 12V: Provides sufficient current capacity for winch control applications.
Twin action momentary function: Momentary on-off-momentary on SPDT function allows control of winch in and winch out operation.
Blue LED backlit icon: Clearly identifies the switch function for easy operation, even in low light conditions.
6 terminal, single pole, 3 position design: Provides the wiring configuration required for winch direction control.
Technical specs
| Specification |
Detail |
| SKU |
TDR11007 |
| Brand |
Thunder |
| Type |
Winch Rocker Switch |
| Voltage |
12/24V |
| Amp Rating |
20A @ 12V |
| Mounting Hole |
21mm x 37mm |
| Poles |
1 |
| Positions |
3 |
| Terminals |
6 |
| Function |
Momentary On-Off-Momentary On, SPDT |
| Display |
Blue LED |
Compatible with
The TDR11007 is compatible with 12V and 24V winch systems requiring a momentary on-off-on control switch.
Frequently asked questions
What is the TDR11007 used for?
The TDR11007 is a rocker switch designed for controlling winch operation, using a momentary on-off-on function to control winch in and winch out.
What voltage does the TDR11007 support?
The TDR11007 supports both 12V and 24V systems.
What amperage is the TDR11007 rated to?
The TDR11007 is rated to 20A at 12V.
Does the TDR11007 illuminate?
Yes. The TDR11007 features a blue LED backlit icon for easy identification.
How many terminals does the TDR11007 have?
The TDR11007 has 6 terminals, with a single pole and 3 position SPDT function.
