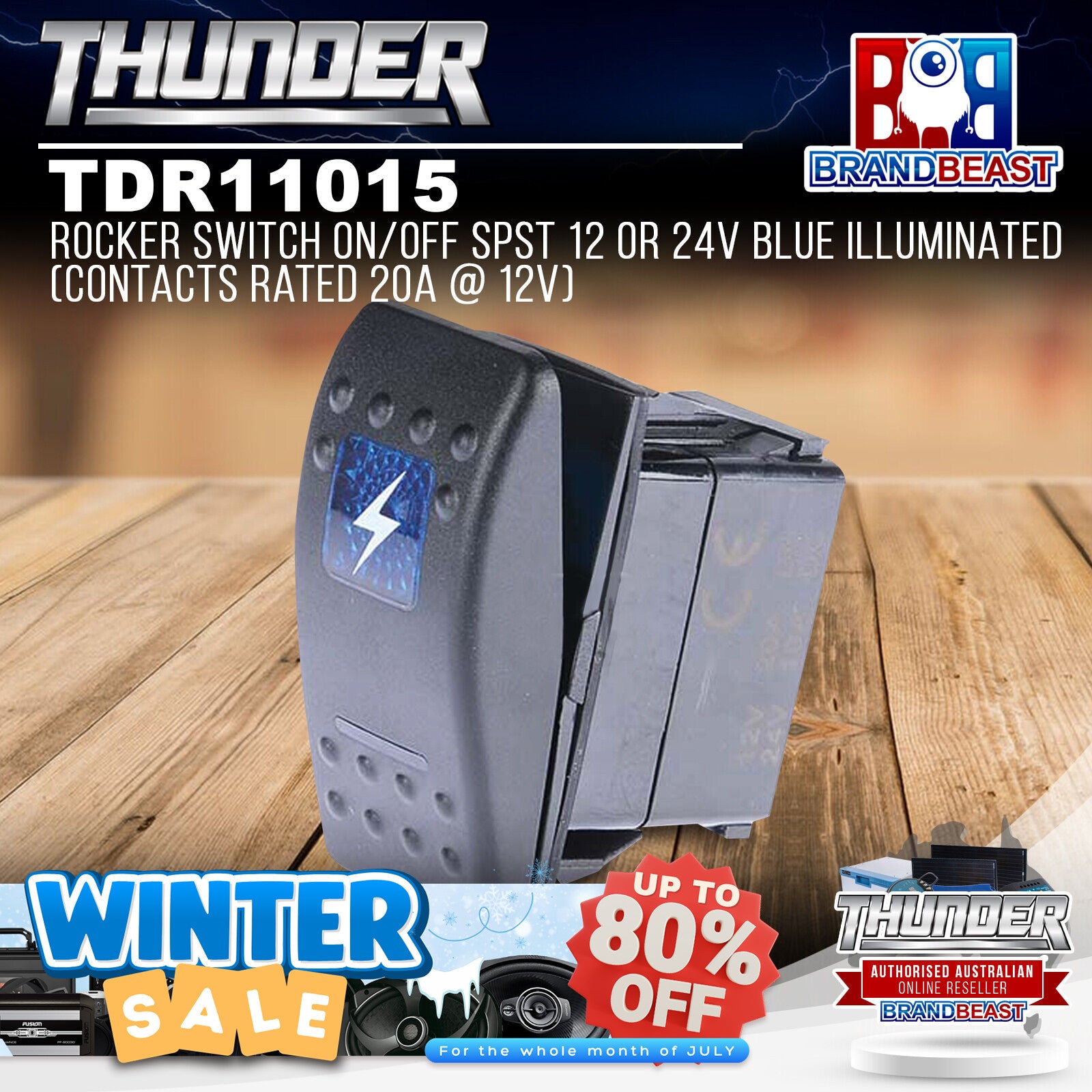

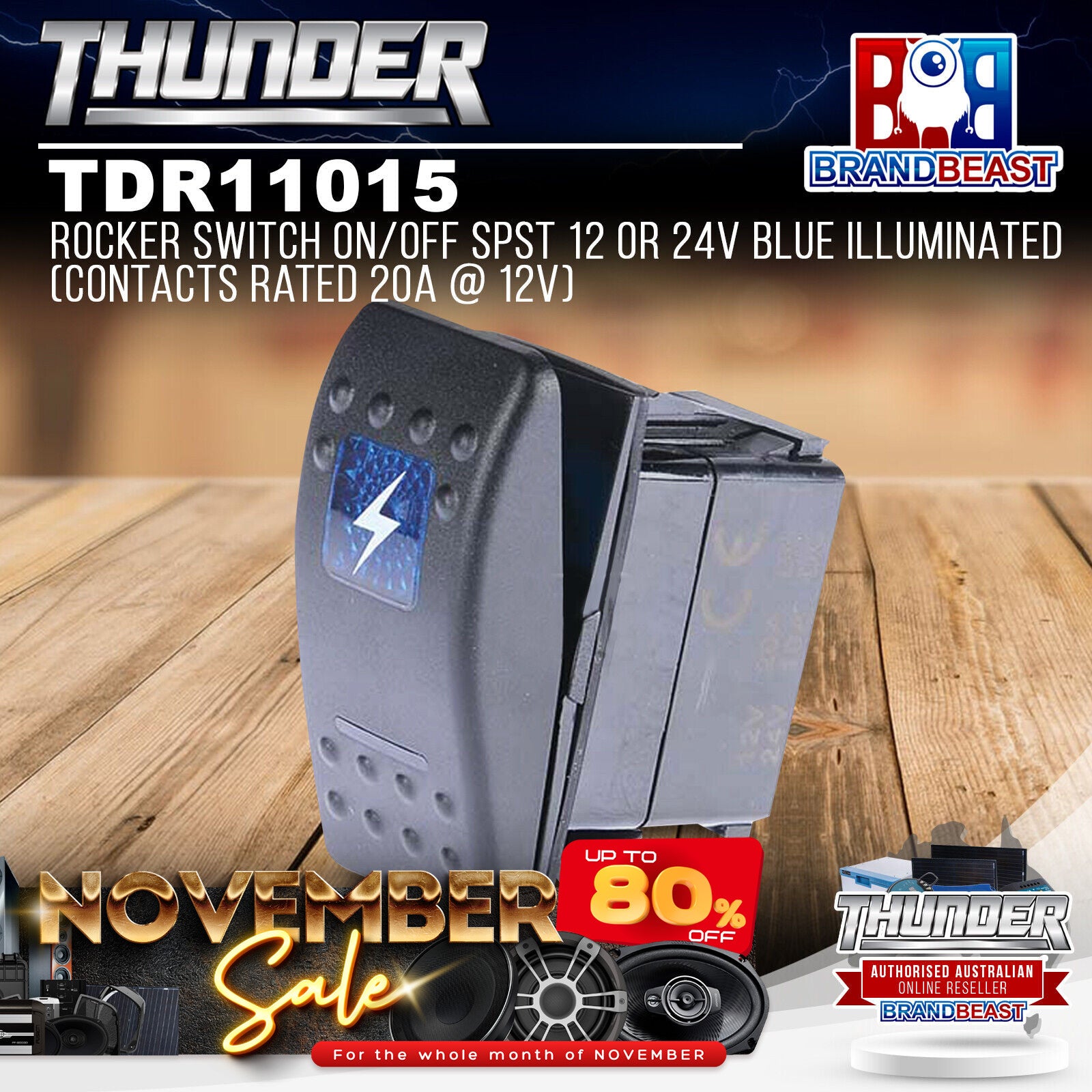

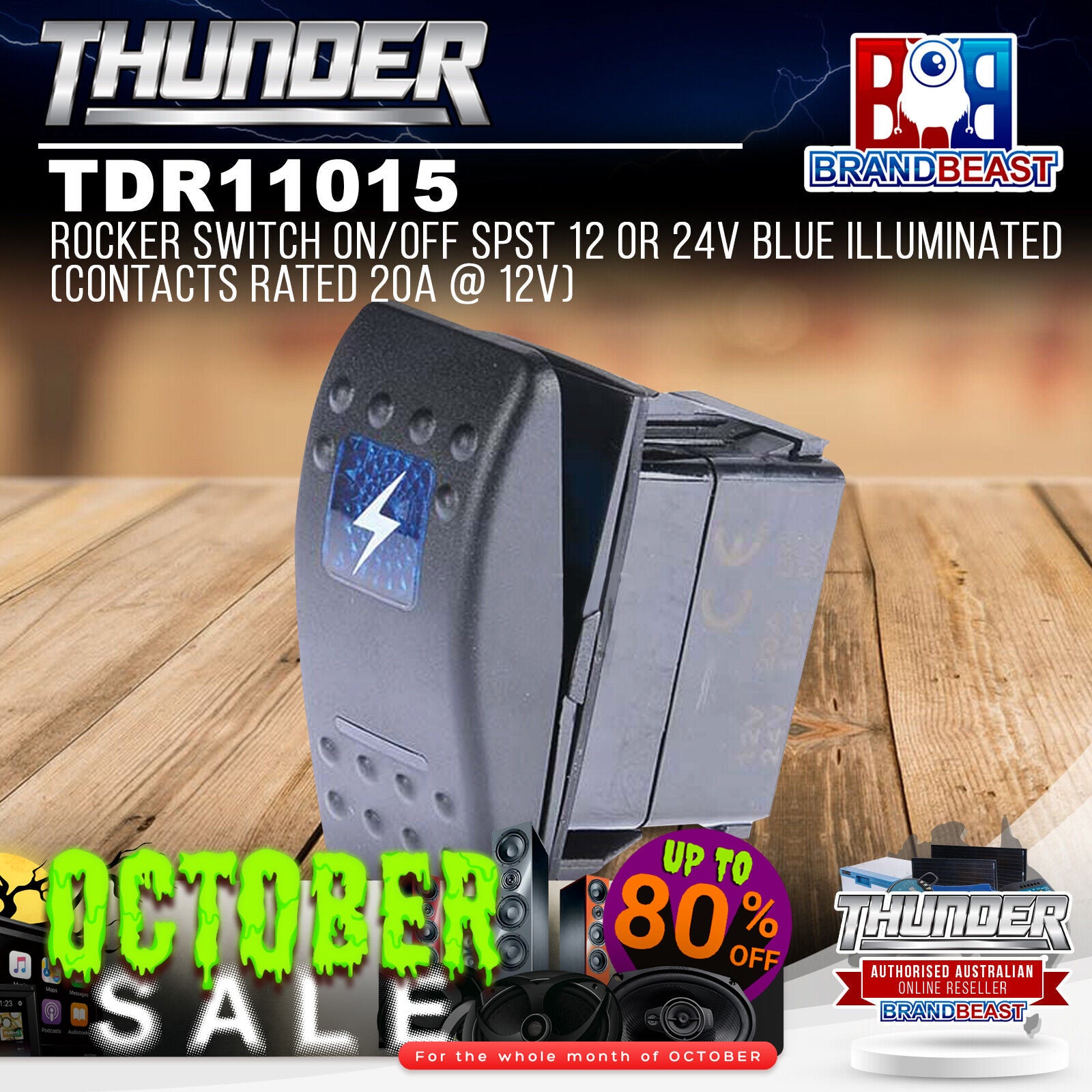

Thunder TDR11015 12/24V Universal Rocker Switch
A 12/24V universal rocker switch from Thunder, the TDR11015 features a 20A rating, blue backlit icon, and off-on SPDT function suited to a wide range of accessory control applications.
Product overview
Thunder's range of illuminated switches will make sure you turn on the right equipment when you need it. Each with a 20A, 12/24V draw, all rocker switches offer a twin action and blue backlit icons for easy identification.
Features and benefits
12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
20 amp rating at 12V: Provides sufficient current capacity for a wide range of accessory control applications.
Off-On SPDT function: Provides simple on and off control for a connected accessory.
Blue LED backlit icon: Clearly identifies the switch function for easy operation, even in low light conditions.
5 terminal, single pole, 2 position design: Provides the wiring configuration required for general accessory control.
Universal application: Suits a broad range of vehicle accessories beyond a single dedicated function.
Technical specs
| Specification |
Detail |
| SKU |
TDR11015 |
| Brand |
Thunder |
| Type |
Universal Rocker Switch |
| Voltage |
12/24V |
| Amp Rating |
20A @ 12V |
| Mounting Hole |
21mm x 37mm |
| Poles |
1 |
| Positions |
2 |
| Terminals |
5 |
| Function |
Off-On, SPDT |
| Display |
Blue LED |
Compatible with
The TDR11015 is compatible with 12V and 24V accessory systems requiring an off-on control switch for general purpose applications.
Frequently asked questions
What is the TDR11015 used for?
The TDR11015 is a universal rocker switch suited to a wide range of 12V and 24V accessory control applications, using an off-on function to switch the connected accessory on and off.
What voltage does the TDR11015 support?
The TDR11015 supports both 12V and 24V systems.
What amperage is the TDR11015 rated to?
The TDR11015 is rated to 20A at 12V.
Does the TDR11015 illuminate?
Yes. The TDR11015 features a blue LED backlit icon for easy identification.
How many terminals does the TDR11015 have?
The TDR11015 has 5 terminals, with a single pole and 2 position SPDT function.
