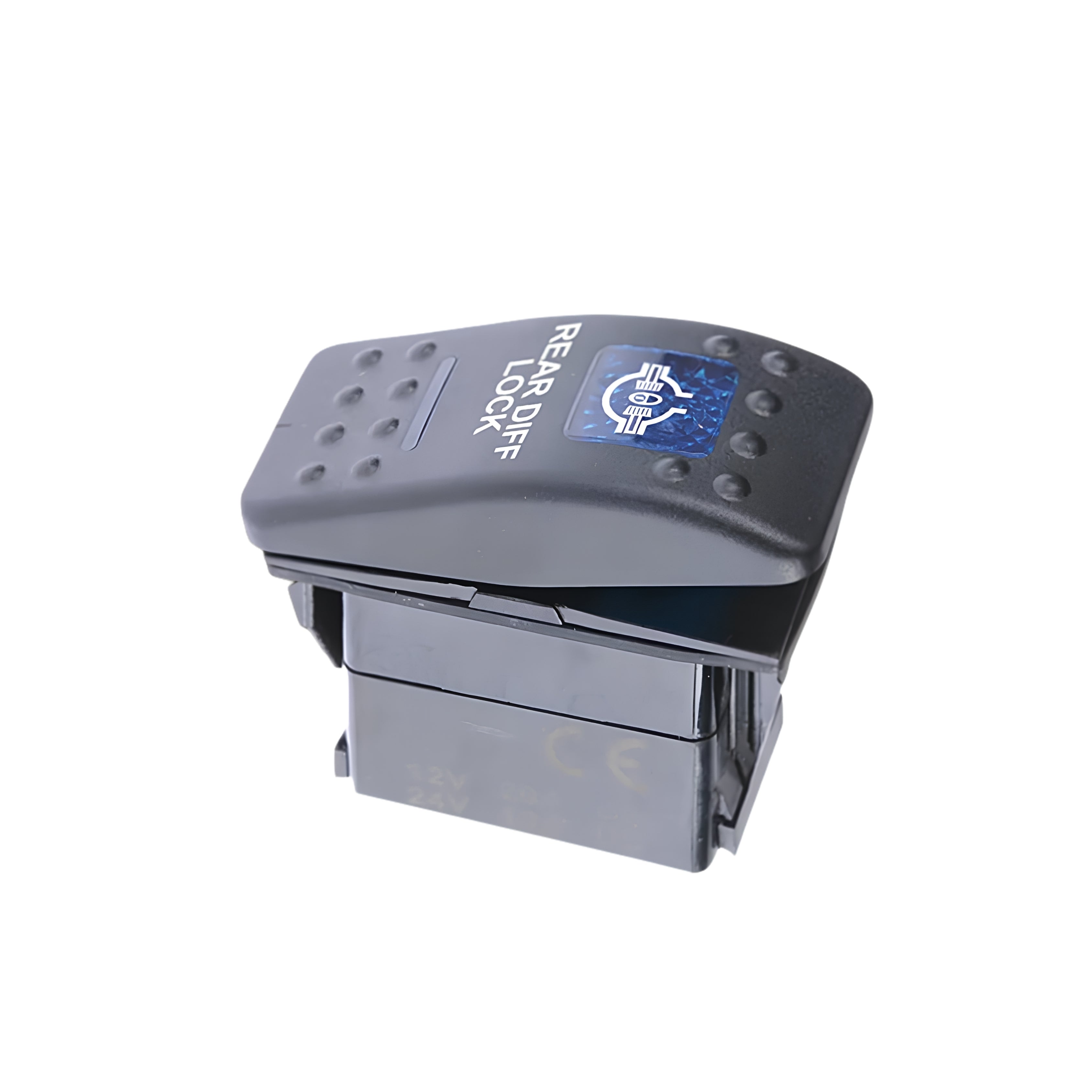

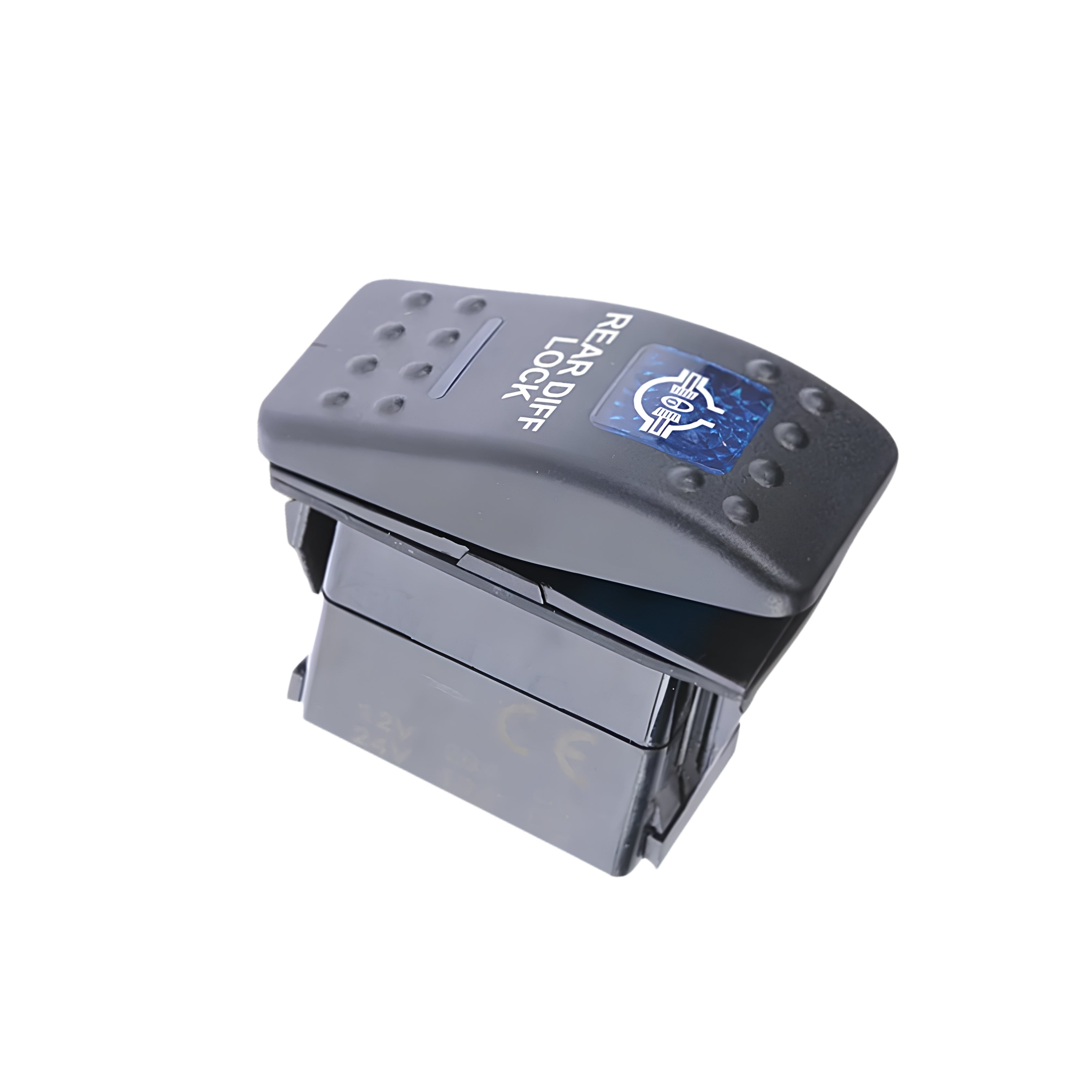

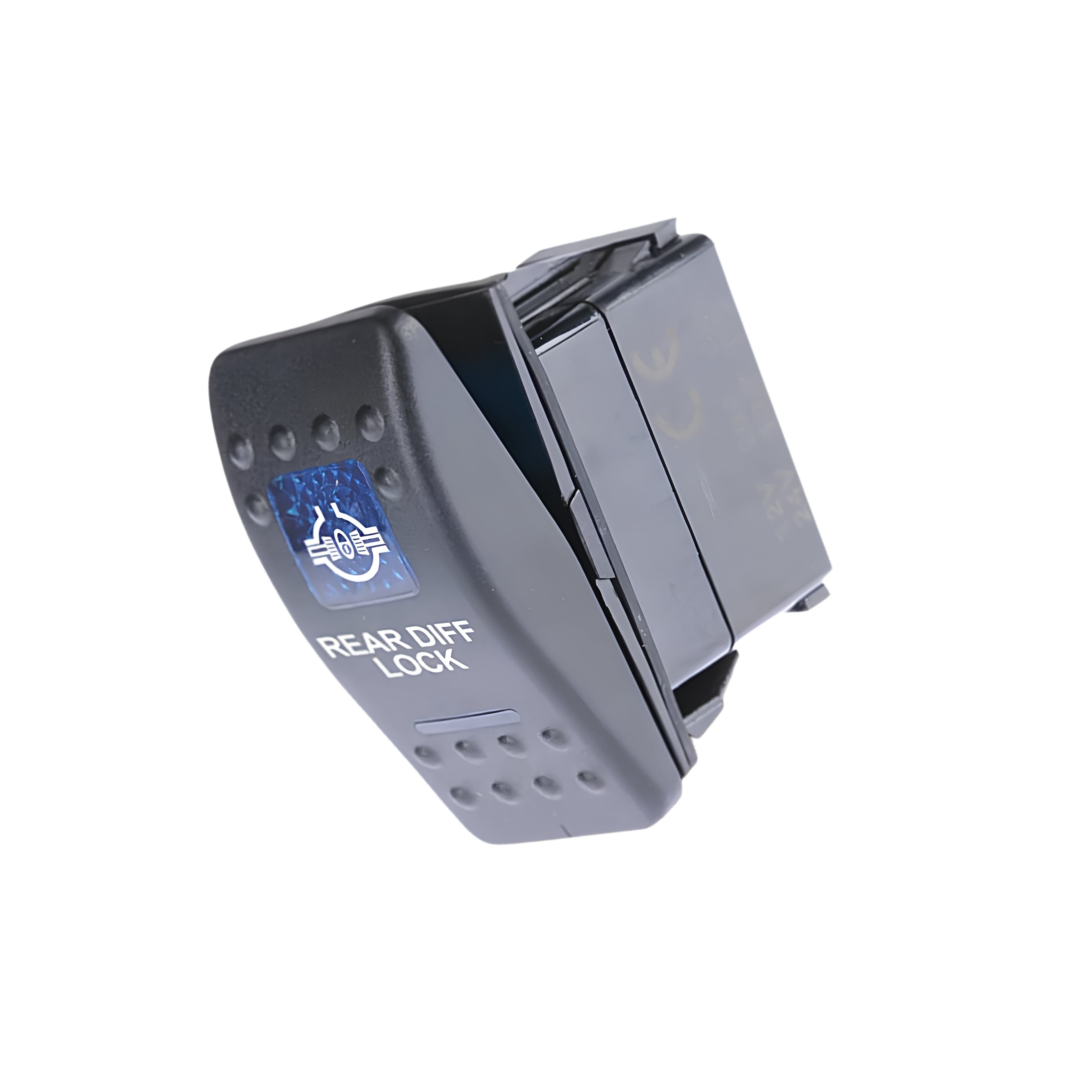

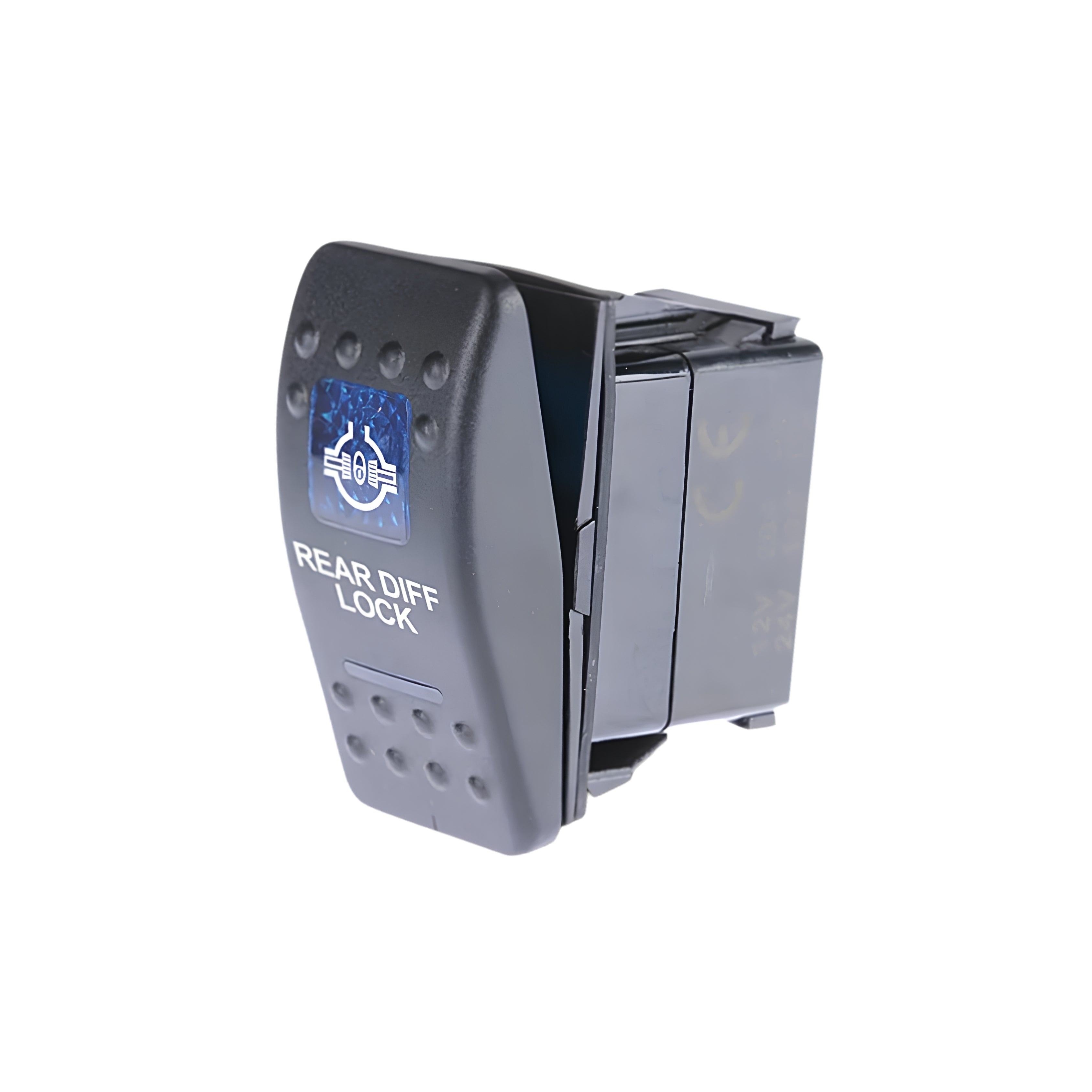

Thunder TDR11023 12/24V Rear Diff Lock Rocker Switch
A 12/24V rear diff lock rocker switch from Thunder, the TDR11023 features a 20A rating, blue backlit icon, and off-on SPDT function for controlling rear differential lock operation.
Product overview
Thunder's range of illuminated switches will make sure you turn on the right equipment when you need it. Each with a 20A, 12/24V draw, all rocker switches offer a twin action and blue backlit icons for easy identification.
Features and benefits
12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
20 amp rating at 12V: Provides sufficient current capacity for rear diff lock control applications.
Off-On SPDT function: Provides simple on and off control for the connected rear diff lock system.
Blue LED backlit icon: Clearly identifies the switch function for easy operation, even in low light conditions.
5 terminal, single pole, 2 position design: Provides the wiring configuration required for rear diff lock control.
Technical specs
| Specification |
Detail |
| SKU |
TDR11023 |
| Brand |
Thunder |
| Type |
Rear Diff Lock Rocker Switch |
| Voltage |
12/24V |
| Amp Rating |
20A @ 12V |
| Mounting Hole |
21mm x 37mm |
| Poles |
1 |
| Positions |
2 |
| Terminals |
5 |
| Function |
Off-On, SPDT |
| Display |
Blue LED |
Compatible with
The TDR11023 is compatible with 12V and 24V rear differential lock systems requiring an off-on control switch.
Frequently asked questions
What is the TDR11023 used for?
The TDR11023 is a rocker switch designed for controlling rear diff lock operation, using an off-on function to engage and disengage the rear differential lock.
What voltage does the TDR11023 support?
The TDR11023 supports both 12V and 24V systems.
What amperage is the TDR11023 rated to?
The TDR11023 is rated to 20A at 12V.
Does the TDR11023 illuminate?
Yes. The TDR11023 features a blue LED backlit icon for easy identification.
How many terminals does the TDR11023 have?
The TDR11023 has 5 terminals, with a single pole and 2 position SPDT function.
