Description

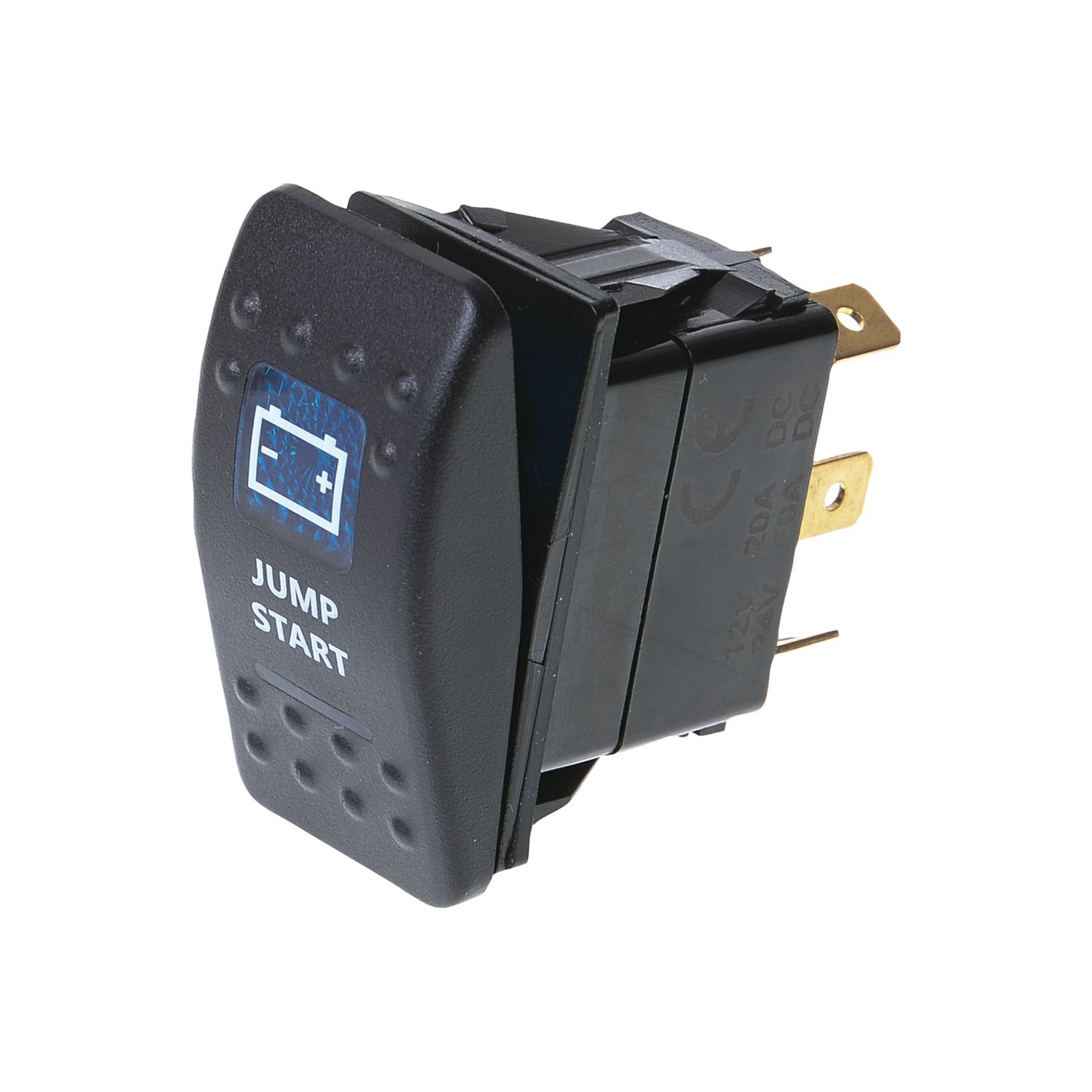

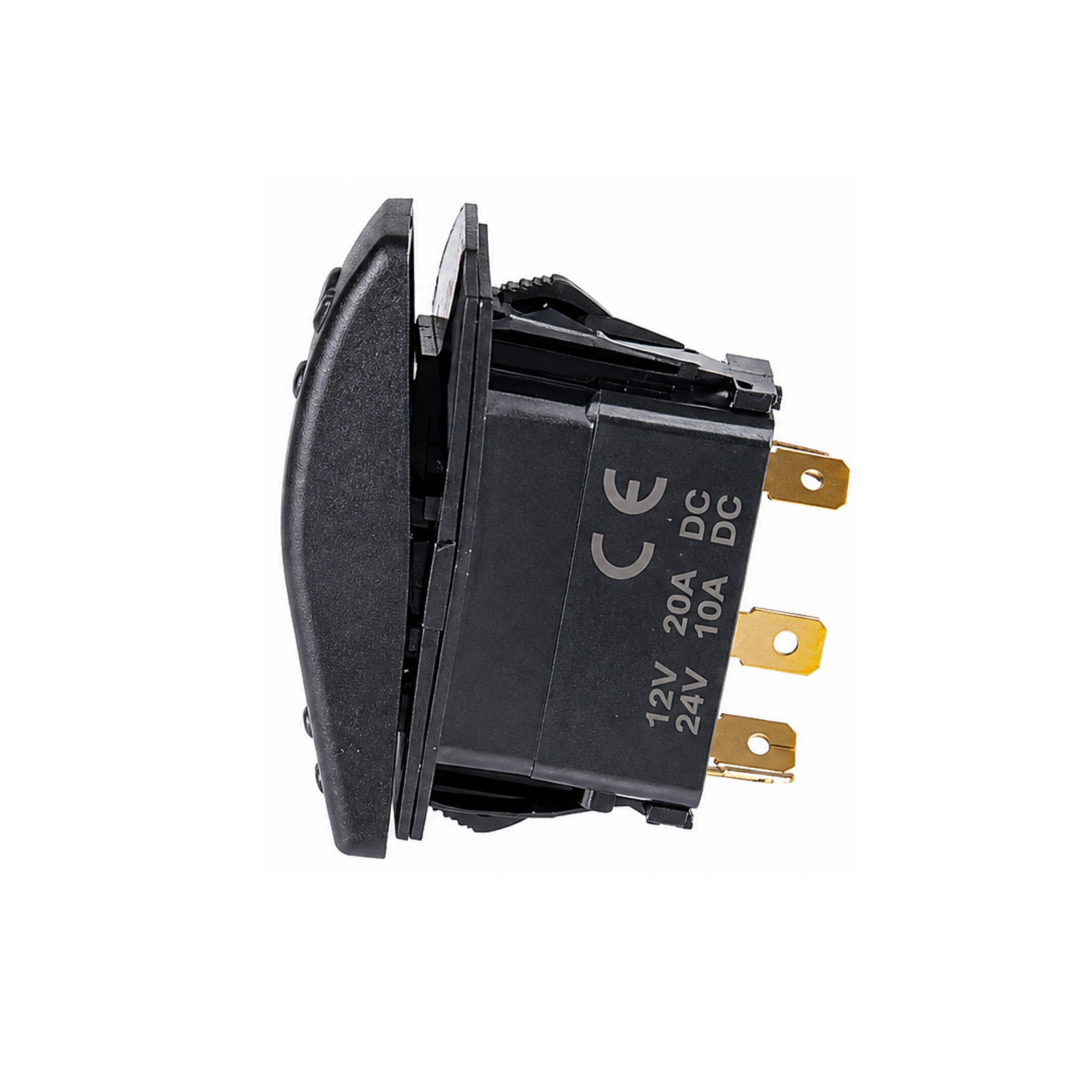

Thunder TDR11047 Off Momentary On Rocker Switch 12/24V Blue Illuminated
A 12/24V off-momentary on rocker switch from Thunder, the TDR11047 features blue LED illumination, a 20A rating, and SPST function, with contacts rated 20A at 12V.
Product overview
Thunder Rocker Switch Off Mom On SPST 12 or 24V Blue Illuminated, with contacts rated 20A at 12V.
Features and benefits
12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
20A rating at 12V: Provides sufficient current capacity for momentary-action switching applications.
Off-Momentary On SPST function: Provides a spring-return momentary action, suited to applications such as winch control or horn activation where the switch should only remain active while held.

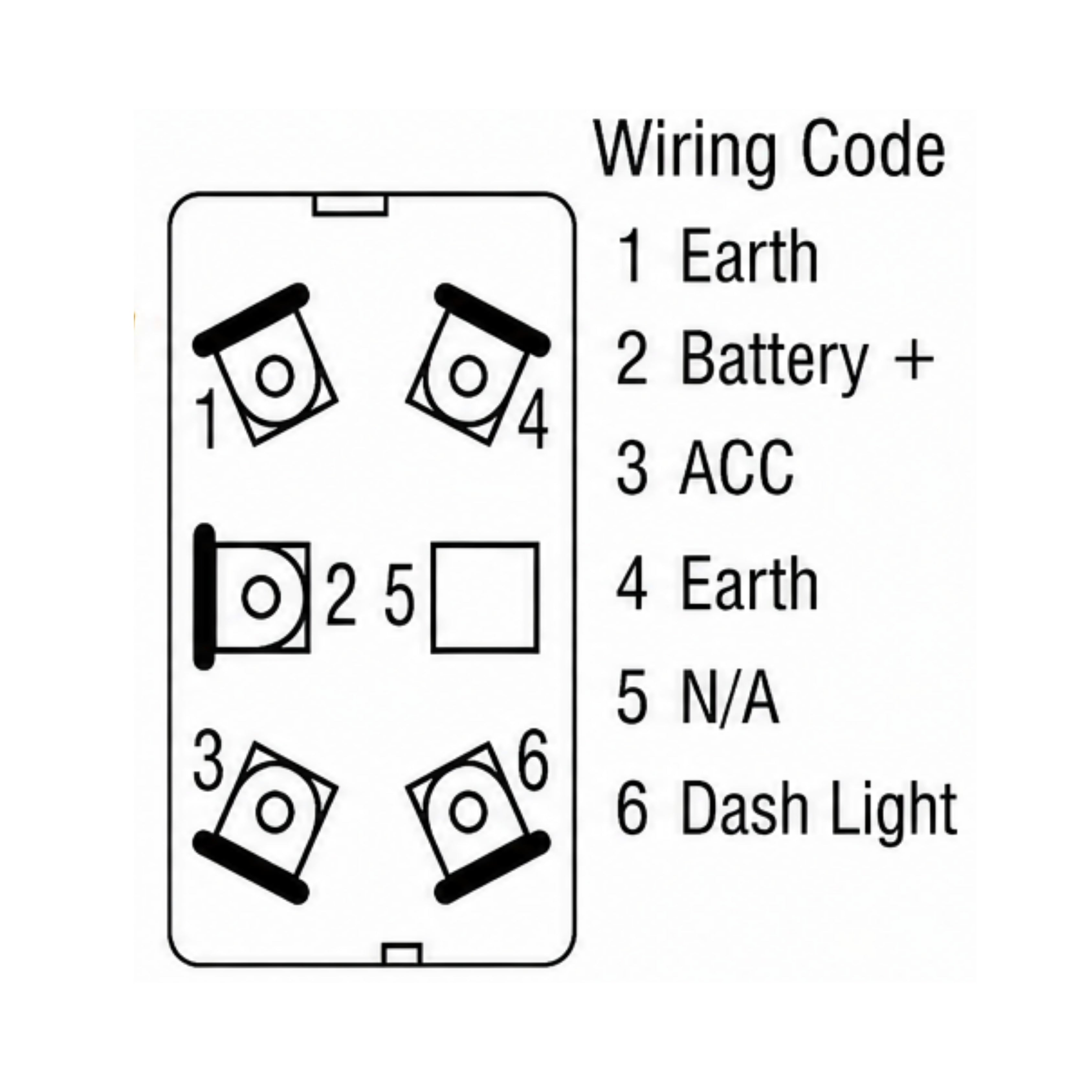

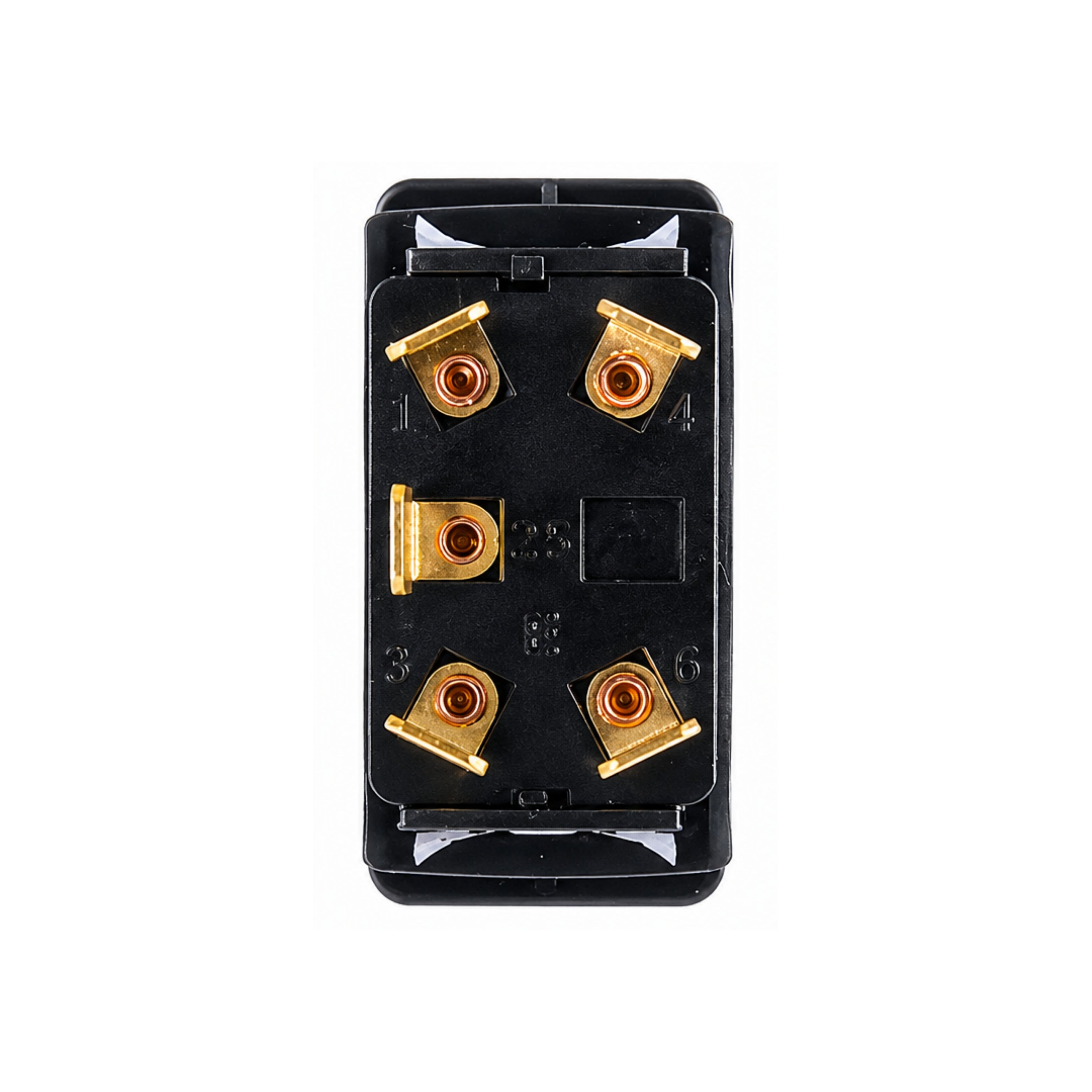

5 x blade terminals: Provides standard terminal connections for wiring.
Blue LED illumination: Clearly identifies the switch for easy operation, even in low light conditions.
Technical specs
| Specification |
Detail |
| SKU |
TDR11047 |
| Brand |
Thunder |
| Type |
Rocker Switch |
| Voltage |
12/24V |
| Power Rating |
20A @ 12V |
| Mounting Hole |
20mm x 36mm |
| Terminals |
5 x Blade |
| Switch Action |
Off-Momentary On, SPST |
| Poles |
1 |
| Positions |
2 |
| Lamp Colour |
Blue |
| Switch Type |
Rocker |
| Weight |
1kg |
| Illumination |
Illuminated |
Compatible with
The TDR11047 is compatible with 12V and 24V systems requiring a momentary-action rocker switch, such as winch control or similar applications.
Frequently asked questions
What does off-momentary on mean for the TDR11047?
Off-momentary on means the switch returns to the off position automatically when released, remaining active only while held, suited to applications such as winch or horn control.
What voltage does the TDR11047 support?
The TDR11047 supports both 12V and 24V systems.
What amperage is the TDR11047 rated to?
The TDR11047 contacts are rated 20A at 12V.
Does the TDR11047 illuminate?
Yes. The TDR11047 features blue LED illumination for easy identification.
How many terminals does the TDR11047 have?
The TDR11047 has 5 x blade terminals.
