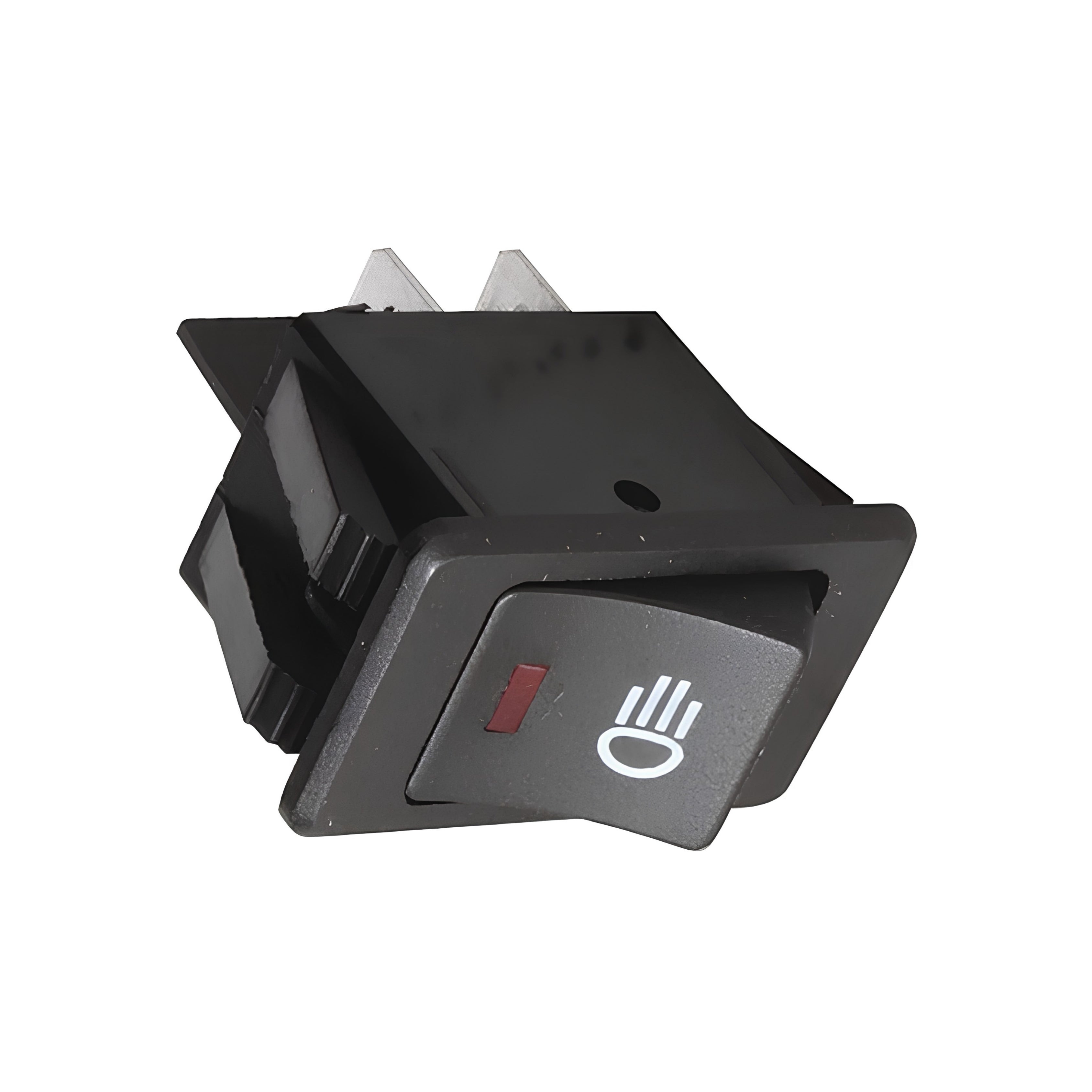

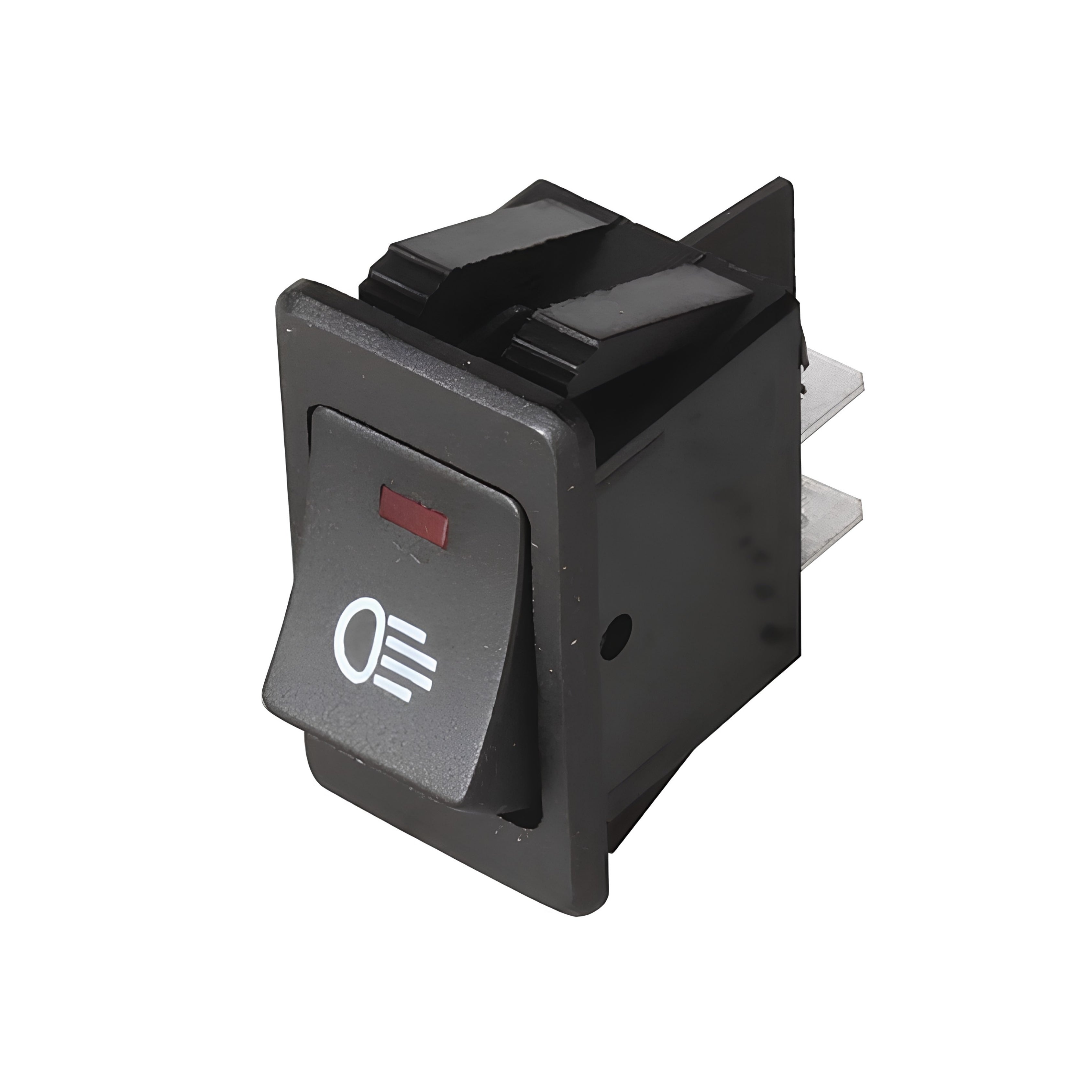

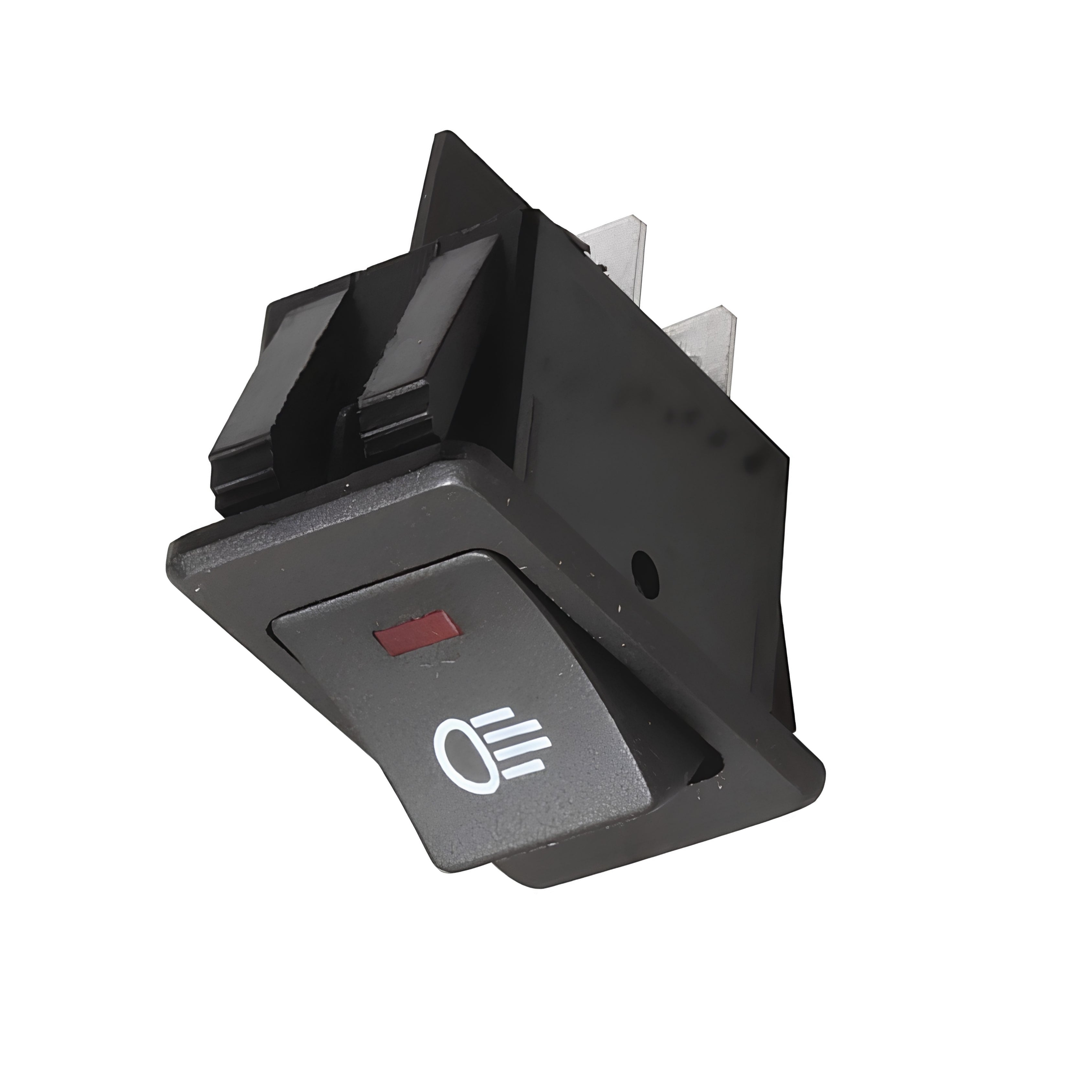

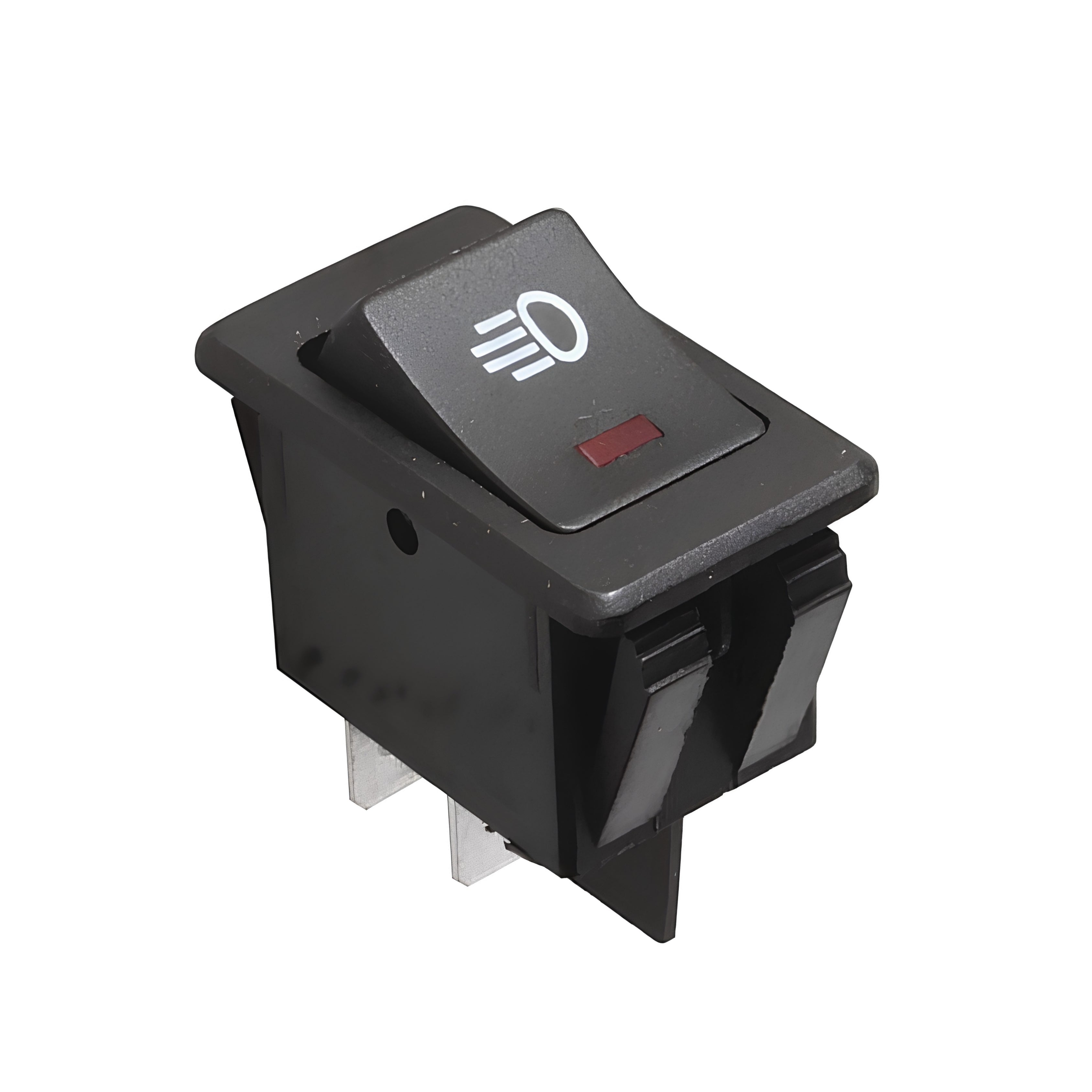

Thunder TDR11060 On/Off Rocker Switch 12V Red Illuminated
A 12V on-off SPST rocker switch from Thunder, the TDR11060 features red illumination, with contacts rated to 20A at 12V and 4 blade terminal connections.
Product overview
Thunder Rocker Switch On/Off SPST 12V Illuminated, with contacts rated 20A at 12V, providing red illumination for clear identification of switch status.
Features and benefits
On-Off SPST switch action: Provides simple single-pole single-throw switching for a range of 12V accessory control applications.
20A rating at 12V: Provides sufficient current capacity for a variety of vehicle accessory circuits.
4 x blade terminals: Provides standard terminal connections for straightforward wiring installation.
Red illumination: Clearly identifies the switch's on/off status for easy operation, even in low light conditions.
Technical specs
| Specification |
Detail |
| SKU |
TDR11060 |
| Brand |
Thunder |
| Type |
Rocker Switch |
| Voltage |
12V |
| Power Rating |
20A |
| Terminals |
4 (Blade) |
| Switch Action |
On-Off, SPST |
| Poles |
2 |
| Positions |
2 |
| Lamp Colour |
Red |
| Mount Length |
34.5mm |
| Mount Size |
20mm x 35mm |
| Switch Type |
Rocker |
| Weight |
0.1kg |
| Illumination |
Illuminated |
Compatible with
The TDR11060 is compatible with 12V vehicle electrical systems requiring an illuminated on-off rocker switch.
Frequently asked questions
What is the TDR11060 used for?
The TDR11060 is a rocker switch designed for general 12V accessory control applications, using an on-off SPST function.
What voltage does the TDR11060 support?
The TDR11060 supports 12V systems.
What amperage is the TDR11060 rated to?
The TDR11060 contacts are rated to 20A at 12V.
What colour does the TDR11060 illuminate?
The TDR11060 features red illumination.
How many terminals does the TDR11060 have?
The TDR11060 has 4 blade terminals.
