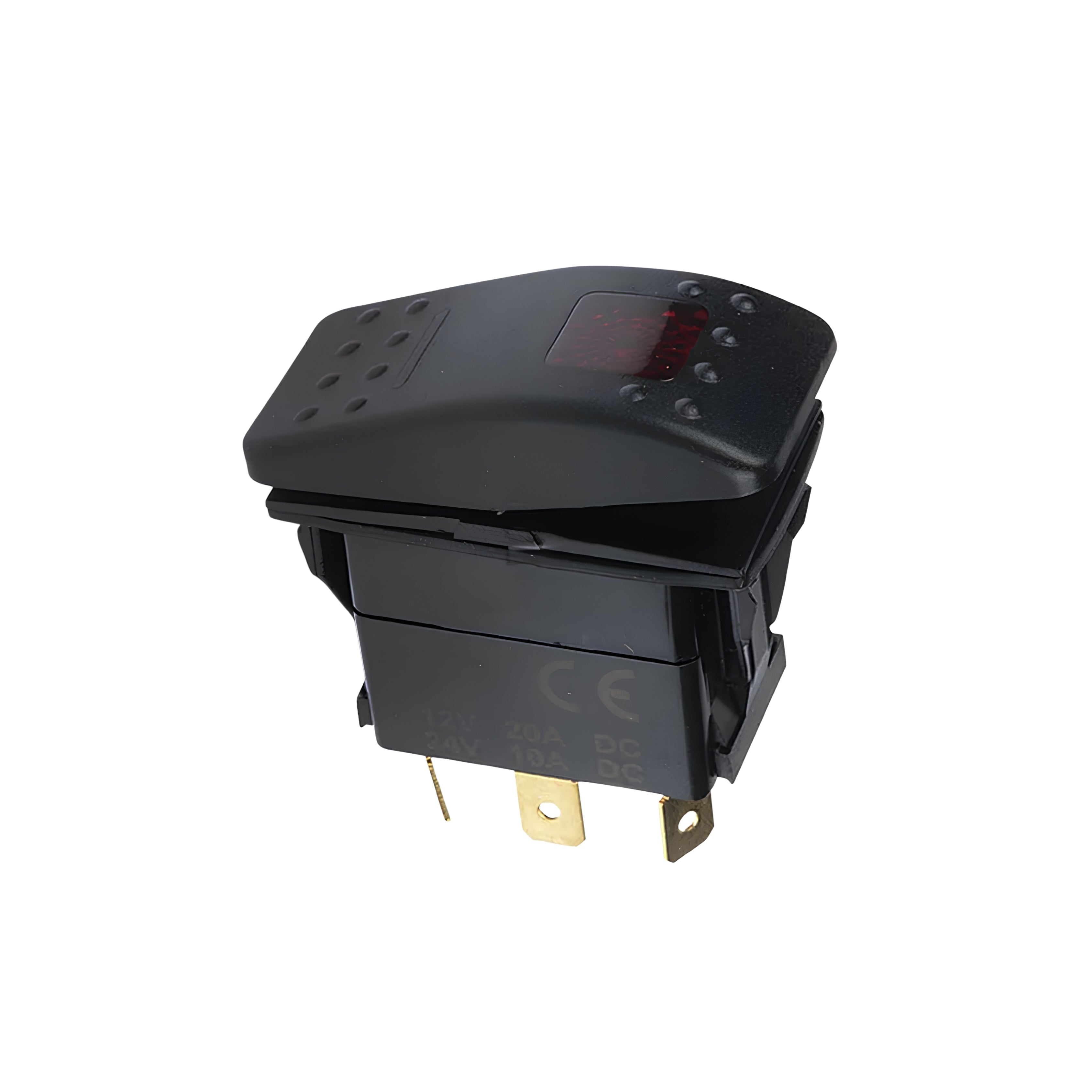

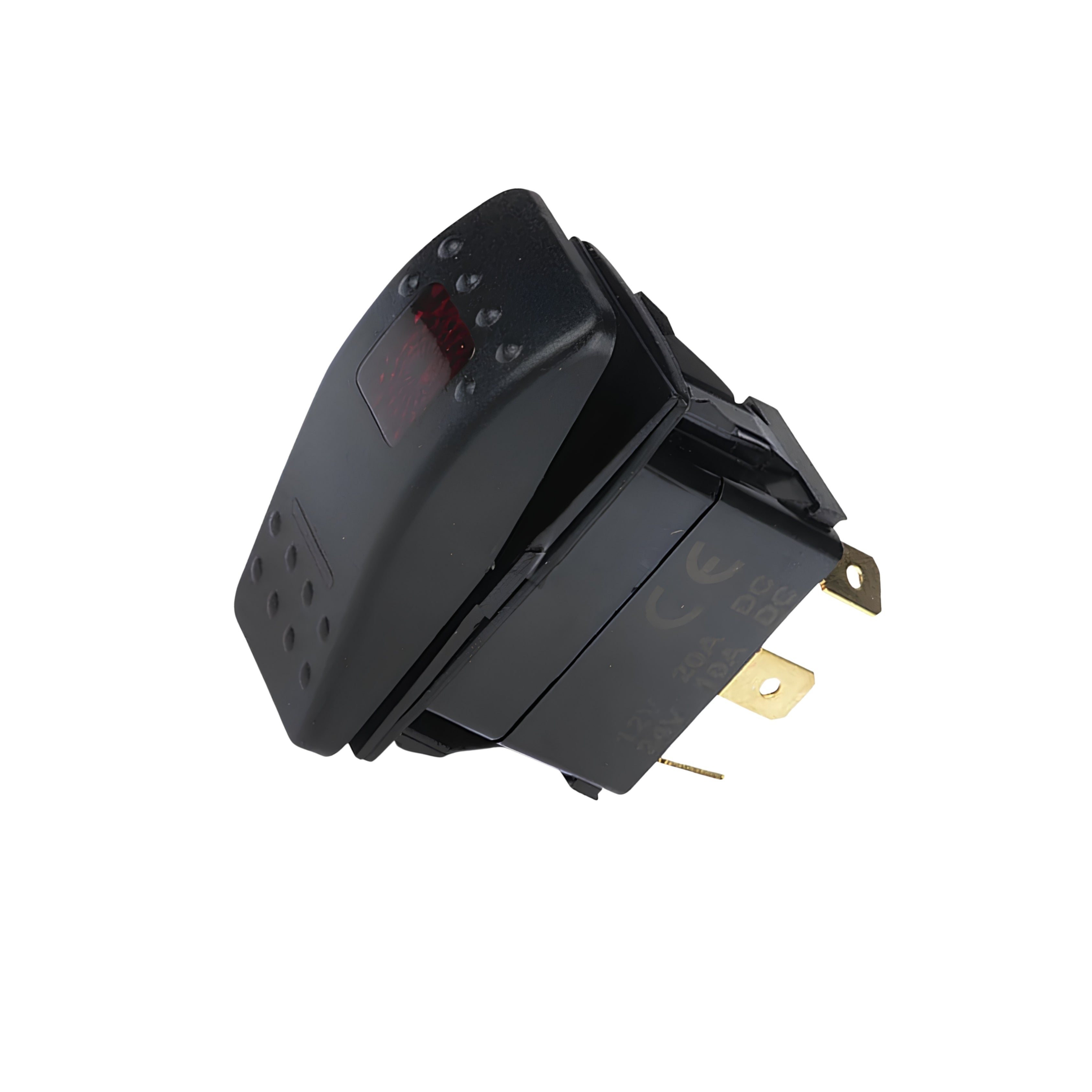

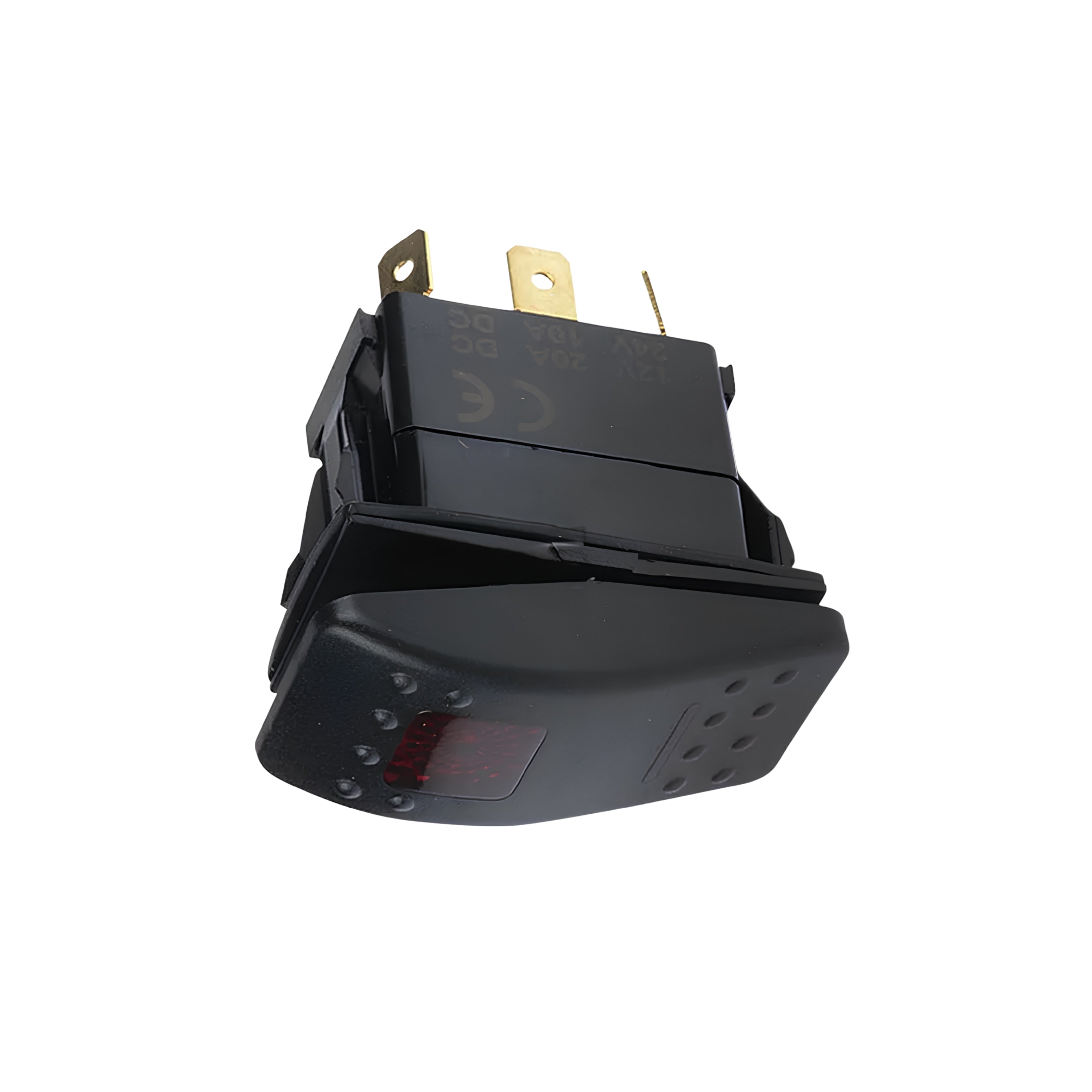

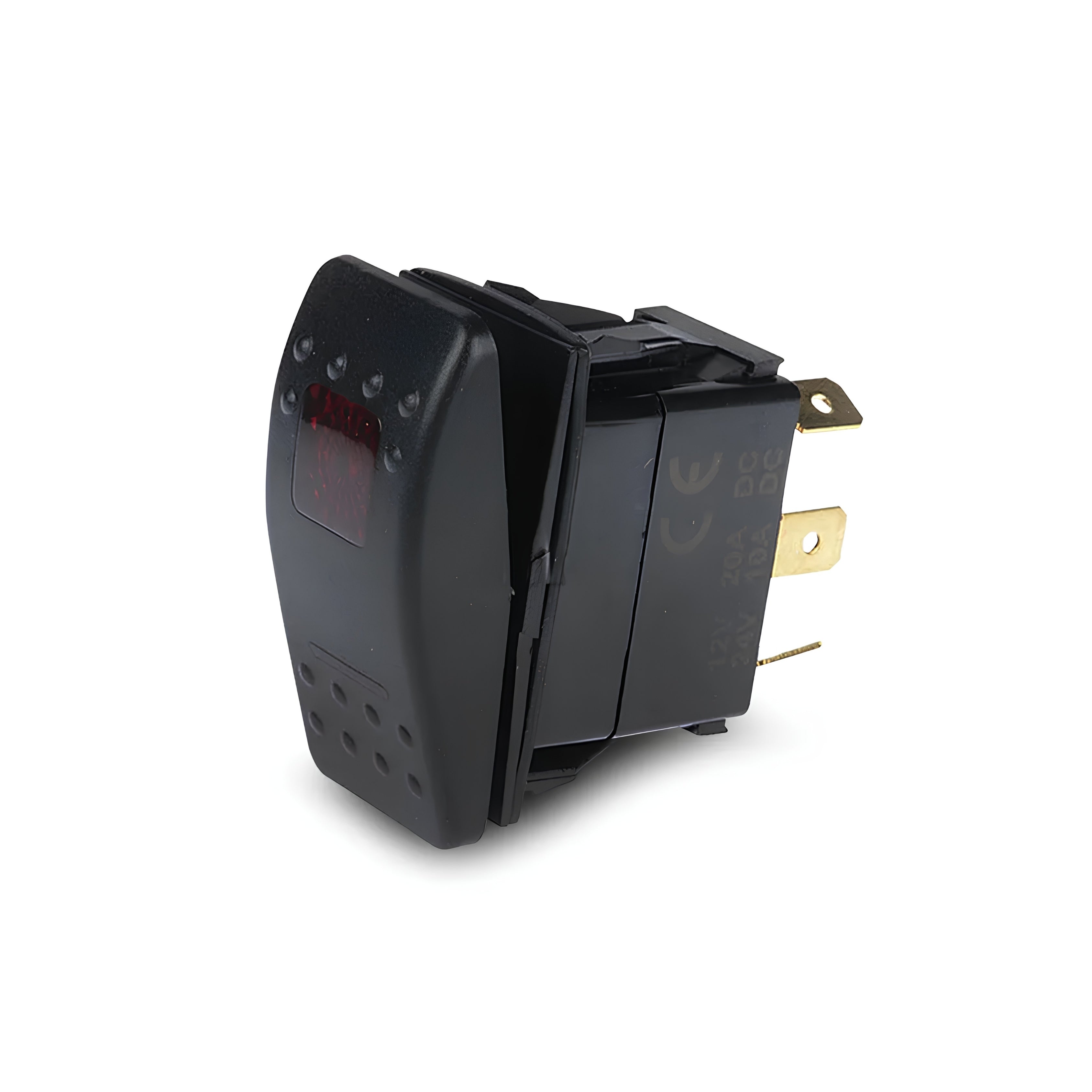

Thunder TDR11074 On/Off Rocker Switch Red Illuminated
A 12/24V on-off SPST rocker switch from Thunder, the TDR11074 features red illumination, rated to 20A with a 21mm x 37mm mounting hole design.
Product overview
Thunder Rocker Switch On/Off SPST Red Illuminated, providing simple on-off switching for a range of 12V and 24V accessory control applications with clear red illumination for status identification.
Features and benefits
On-Off SPST switch action: Provides simple single-pole single-throw switching for a range of accessory control applications.
Red illumination: Clearly identifies the switch's on/off status for easy operation, even in low light conditions.
12/24V compatibility: Suits both standard 12V passenger vehicles and 24V commercial vehicles and equipment.
20A rating: Provides sufficient current capacity for a range of vehicle accessory circuits.
21mm x 37mm mounting hole: Suited to standard rocker switch panel openings.
3 terminal configuration: Provides standard terminal connections for wiring, including the illumination circuit.
Technical specs
| Specification |
Detail |
| SKU |
TDR11074 |
| Brand |
Thunder |
| Type |
Rocker Switch |
| Voltage |
12 or 24V |
| Power Rating |
20A |
| Terminals |
3 |
| Switch Action |
On-Off, SPST |
| Poles |
1 |
| Positions |
2 |
| Lamp Colour |
Red |
| Mounting Hole |
21mm x 37mm |
| Switch Type |
Rocker |
| Weight |
0.01kg |
| Illumination |
Illuminated |
Compatible with
The TDR11074 is compatible with 12V and 24V vehicle electrical systems requiring an illuminated on-off rocker switch rated to 20A.
Frequently asked questions
What is the TDR11074 used for?
The TDR11074 is a rocker switch designed for general 12V and 24V accessory control applications, using an on-off SPST function with red illumination for status indication.
What voltage does the TDR11074 support?
The TDR11074 supports both 12V and 24V systems.
What amperage is the TDR11074 rated to?
The TDR11074 is rated to 20A.
What colour does the TDR11074 illuminate?
The TDR11074 features red illumination.
What mounting hole size does the TDR11074 require?
The TDR11074 requires a 21mm x 37mm mounting hole.
