Description

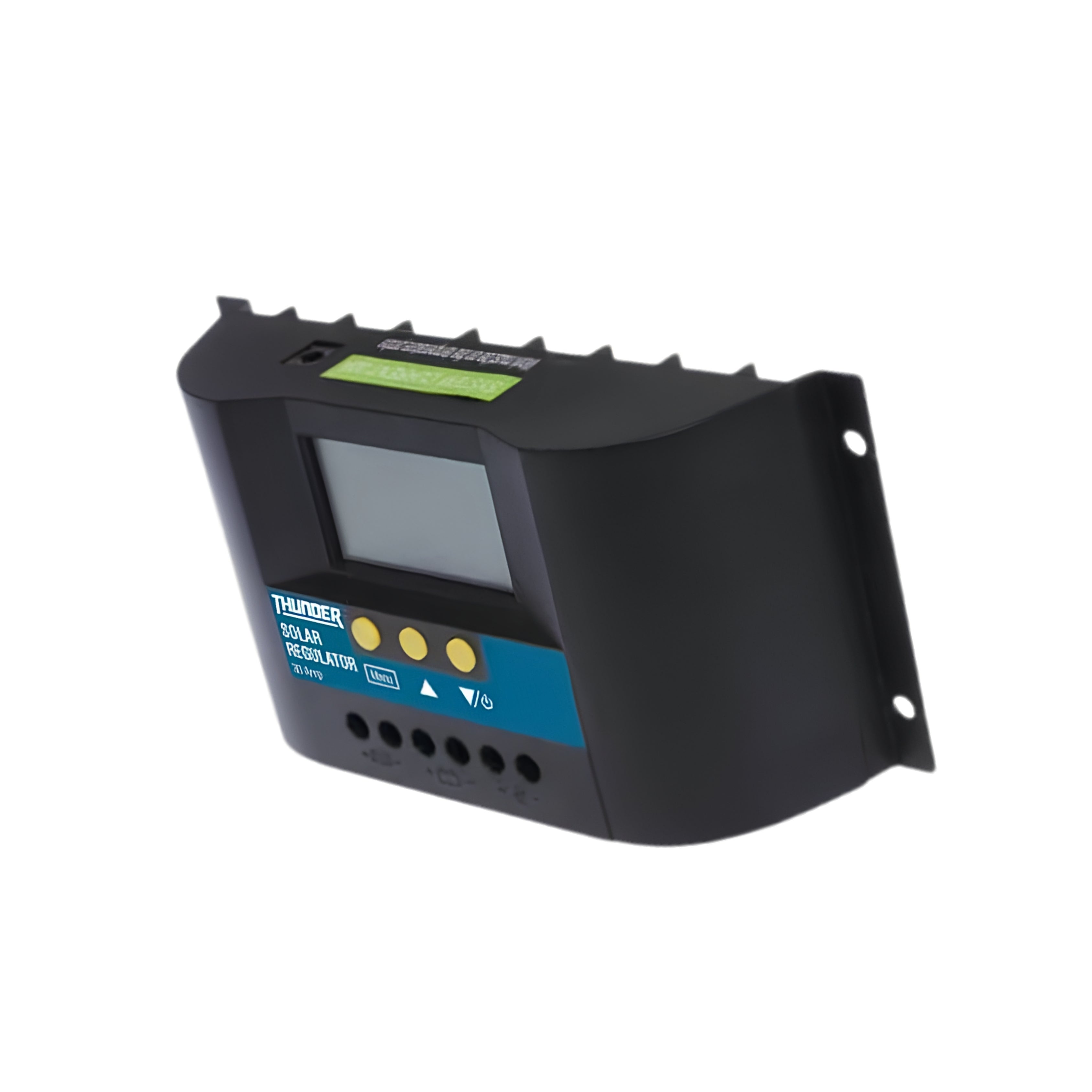

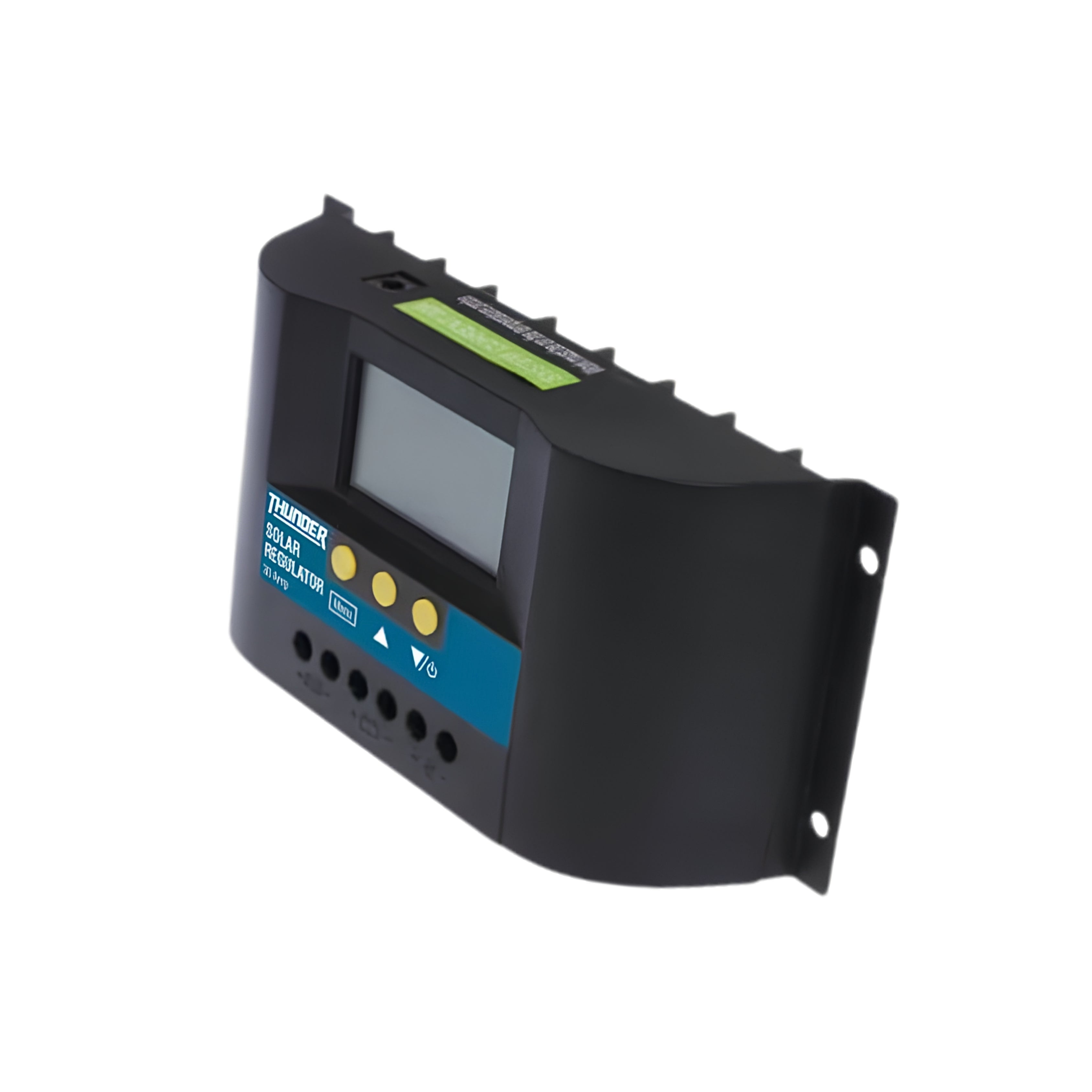

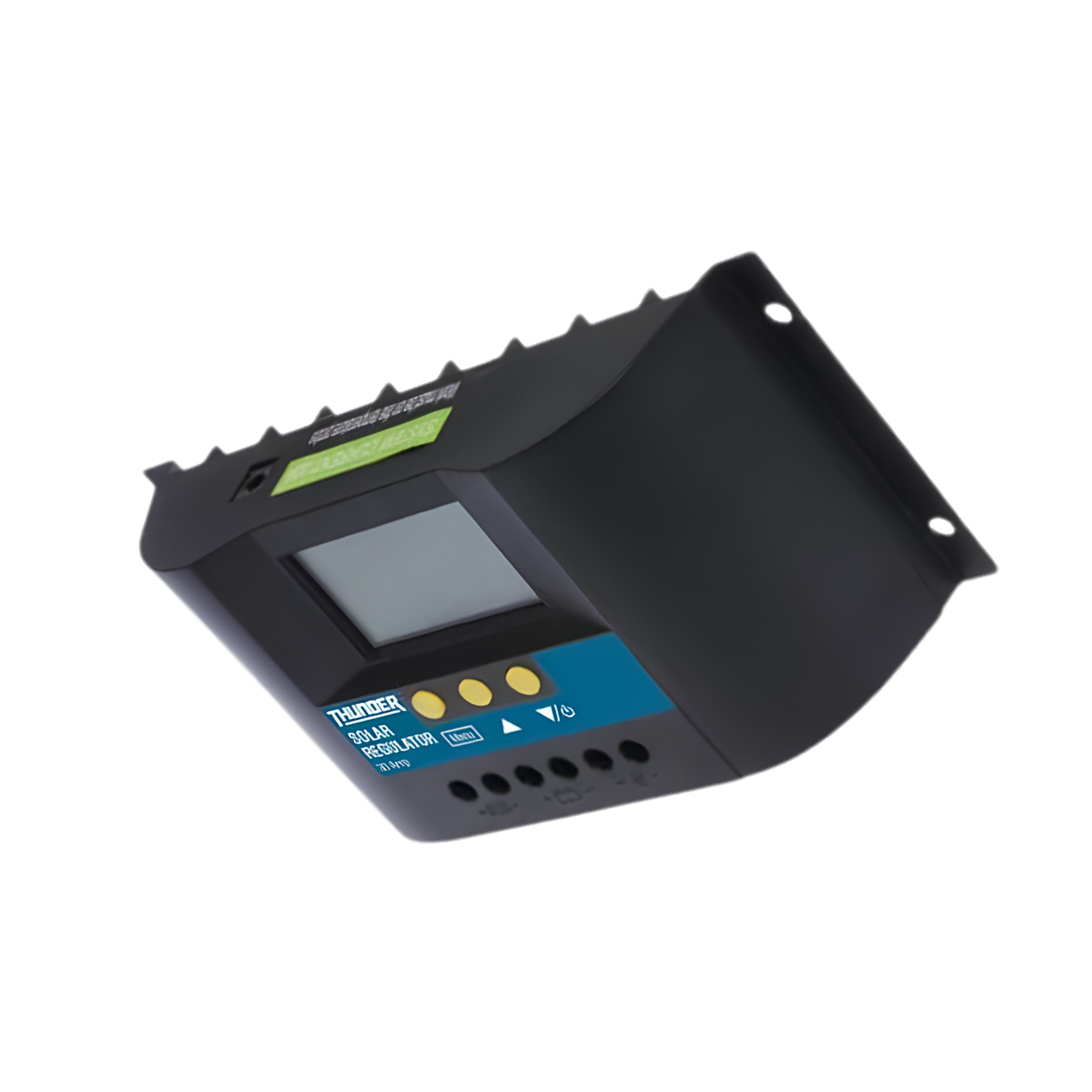

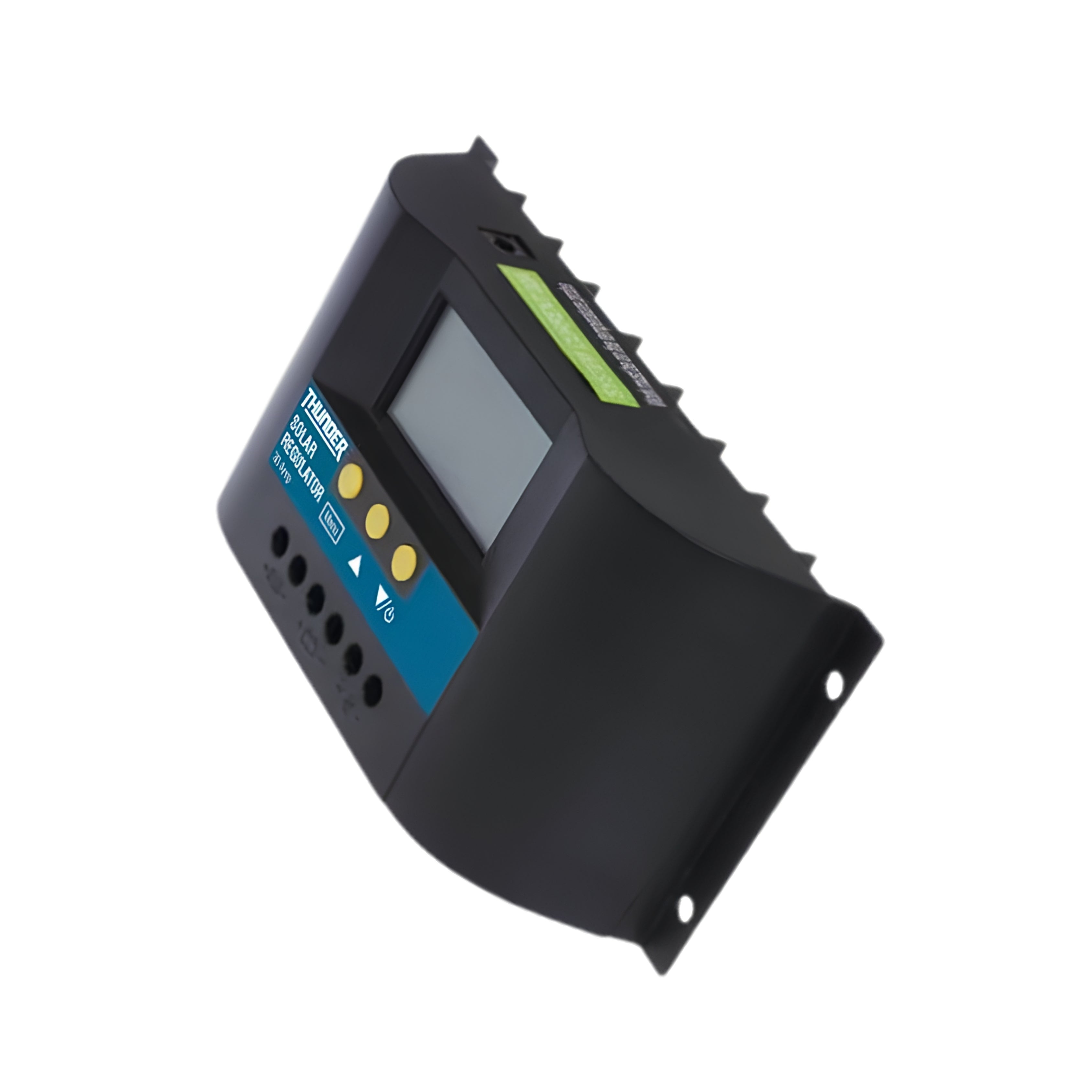

Thunder TDR15008 30 Amp Solar Regulator with LCD Monitor
A 30 amp waterproof PWM solar regulator and battery monitor from Thunder, the TDR15008 is suitable for solar panels up to 360 watts, featuring an LCD monitor, fully automatic operation, and low and high voltage disconnect protection.
Product overview
Waterproof PWM regulator and battery monitor, suitable for solar panels up to 360 watts, with LCD monitor, fully automatic operation, and low and high voltage disconnect.
Features and benefits
Waterproof PWM regulation: Provides reliable pulse width modulation charge regulation in a waterproof housing suited to outdoor and marine installations.
Suitable for solar panels up to 360W: Provides sufficient capacity for a range of solar panel setups, including combinations of multiple folding panels.
LCD monitor: Displays battery and charging status information at a glance.
Fully automatic operation: Manages the charging process automatically without requiring manual intervention.
Low and high voltage disconnect: Protects the connected battery from overcharging and excessive discharge.
Low no load current: Draws no more than 30mA when there is no load connected, minimising unnecessary battery drain.
Technical specs
| Specification |
Detail |
| SKU |
TDR15008 |
| Brand |
Thunder |
| Type |
Solar Regulator |
| Rated Current |
30A |
| Rated Voltage |
12/24V |
| Open Circuit of Solar Panel |
<50V |
| Low Voltage Disconnection |
10.7V/21.4V |
| Float Voltage |
14V/28V |
| Low Voltage Reconnection |
12.6V/25.2V |
| No Load Current |
≤30mA |
| Operating Temperature |
-10°C to 60°C |
| Storage Temperature |
-30°C to 70°C |
| Dimensions (L x W x D) |
90mm x 188mm x 48mm |
| Mounting Hole Spacing |
60mm x 178mm |
| Weight |
360g |
| Battery Type |
Wet Cell Rechargeable Only |
Compatible with
The TDR15008 is compatible with solar panels up to 360 watts and 12V or 24V wet cell rechargeable battery systems.
Frequently asked questions
What is the maximum solar panel wattage the TDR15008 supports?
The TDR15008 is suitable for solar panels up to 360 watts.
What current rating is the TDR15008?
The TDR15008 is rated to 30 amps.
What battery types is the TDR15008 compatible with?
The TDR15008 is compatible with wet cell rechargeable batteries only.
Does the TDR15008 include a display?
Yes. The TDR15008 includes an LCD monitor displaying battery and charging status information.
Is the TDR15008 waterproof?
Yes. The TDR15008 features a waterproof housing suited to outdoor and d
