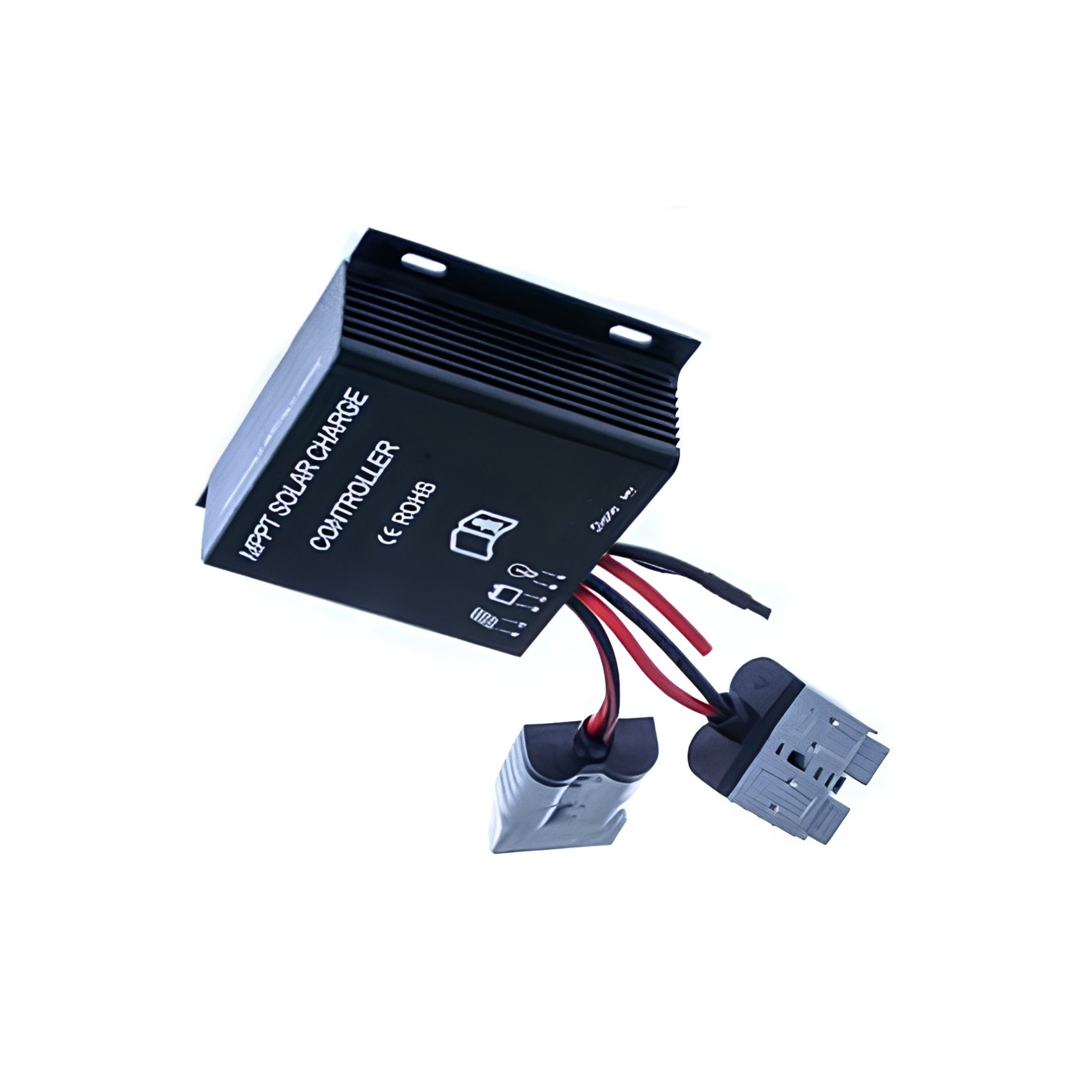

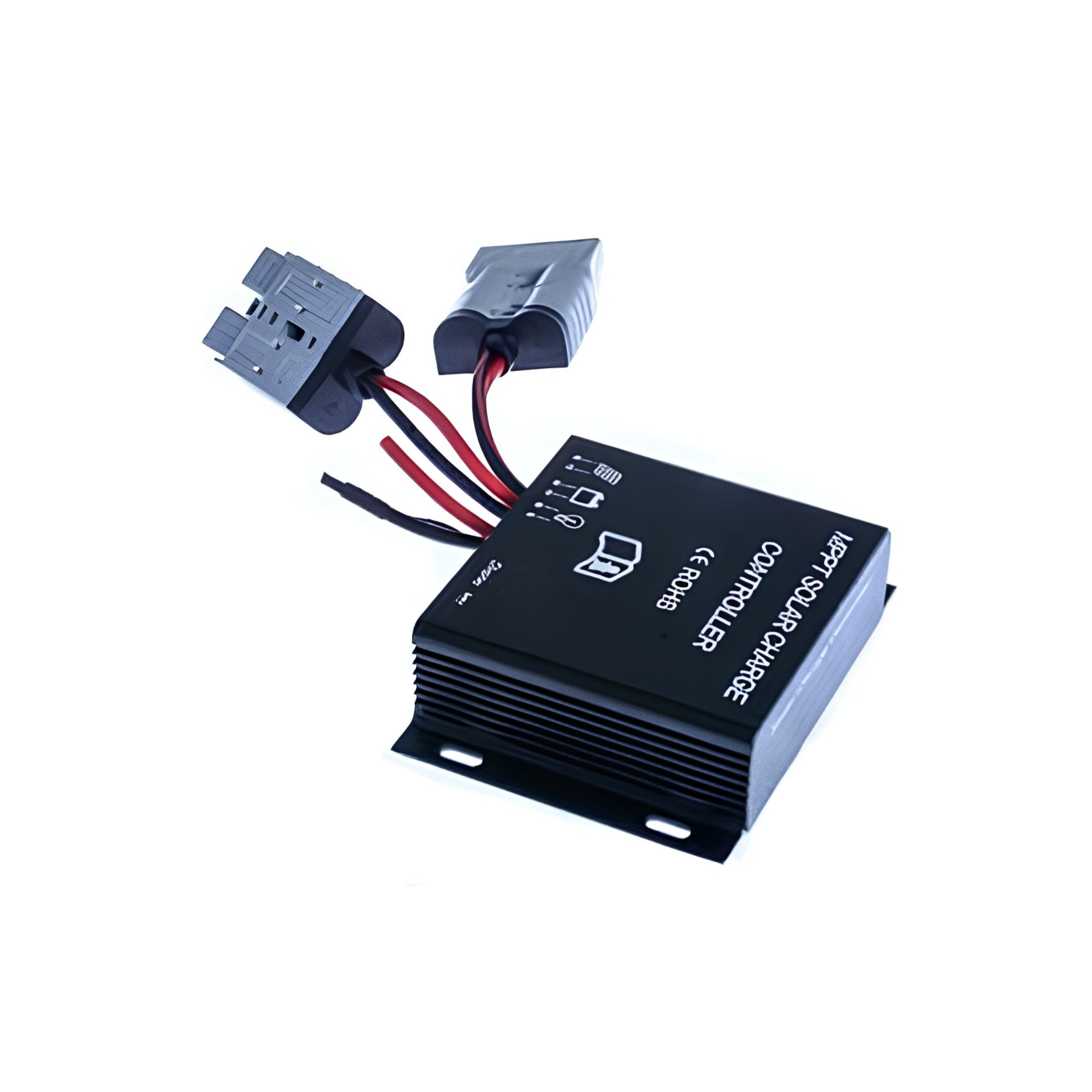

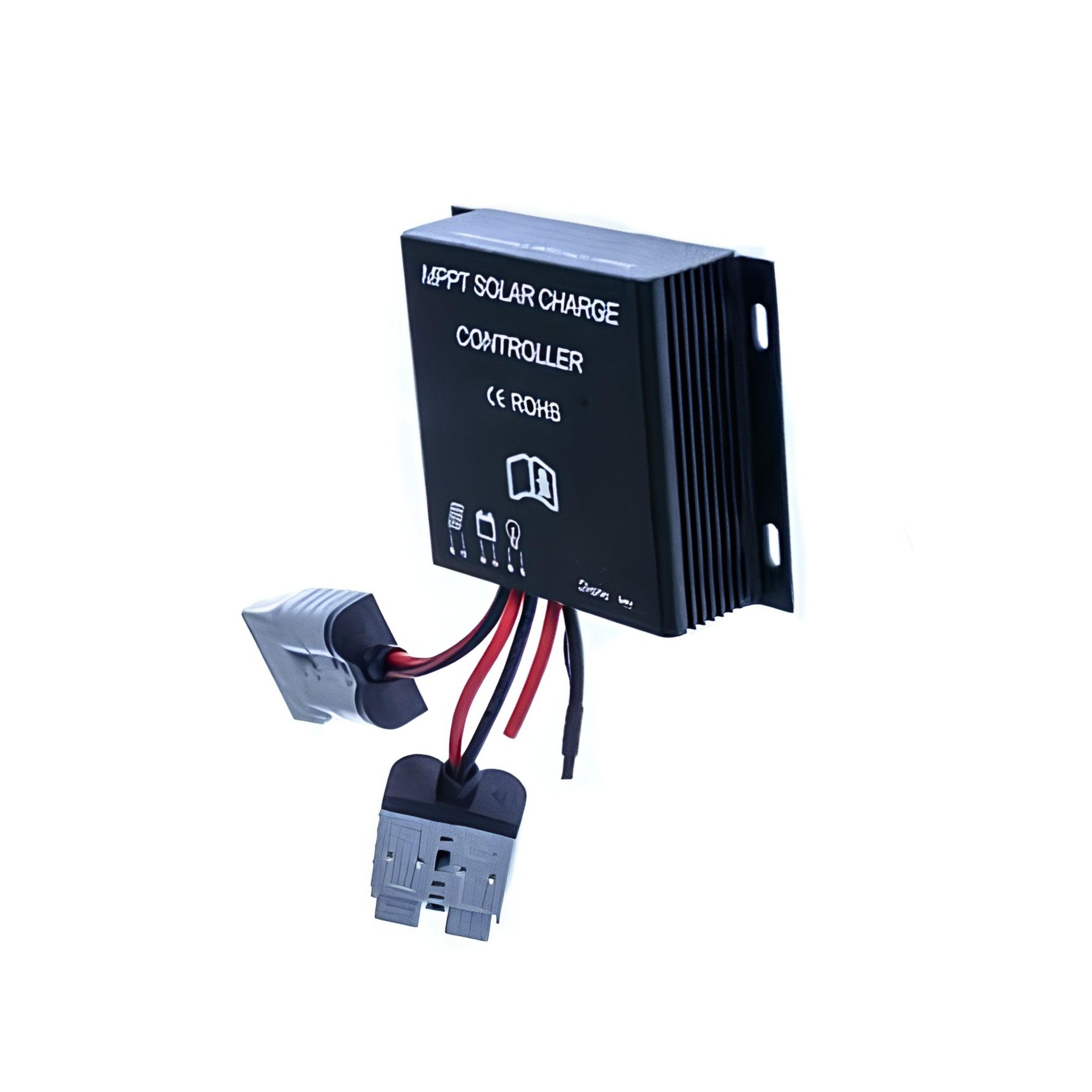

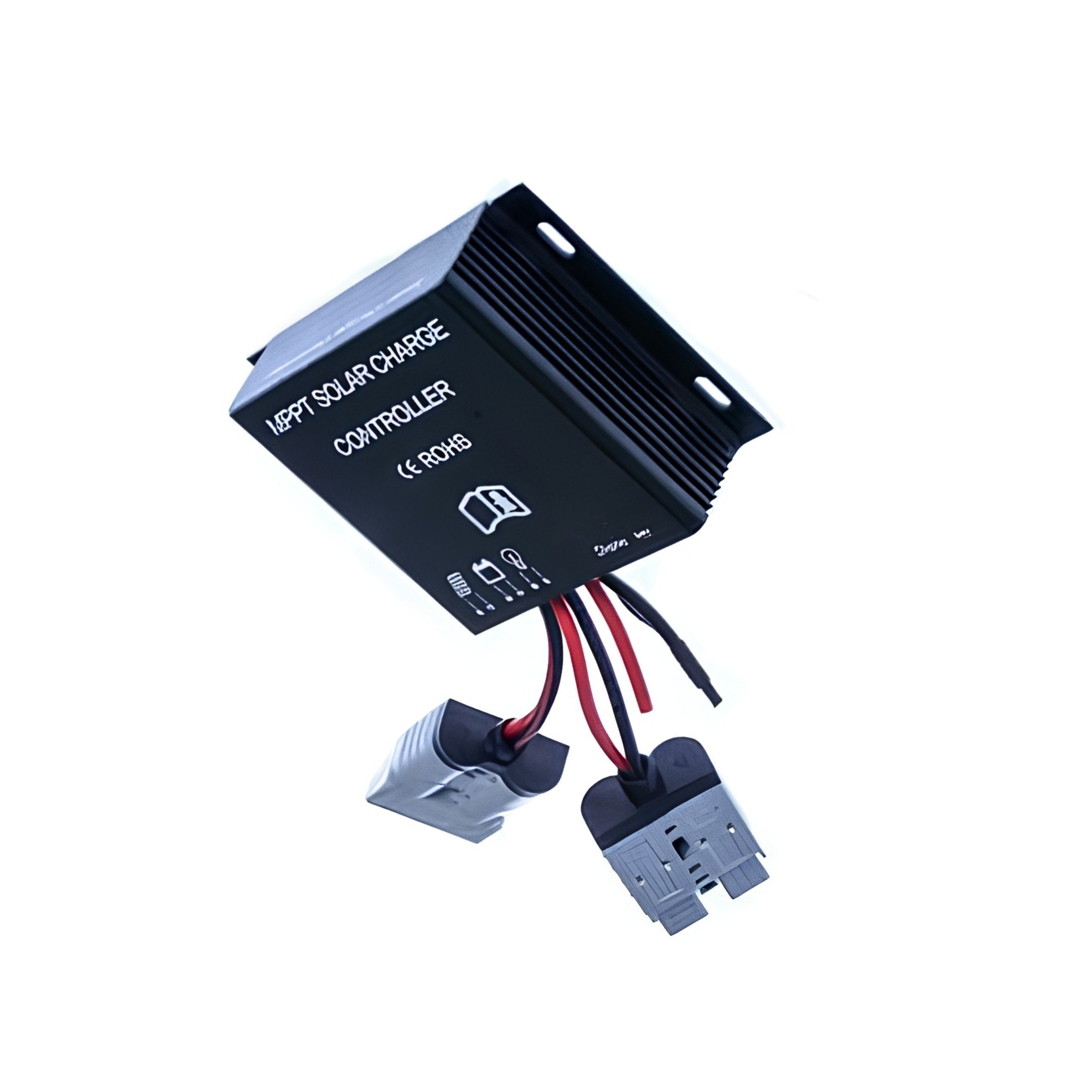

Thunder TDR15009 10 Amp MPPT Solar Regulator
A 10 amp waterproof MPPT solar regulator from Thunder, the TDR15009 is suitable for solar panels up to 120 watts, featuring LED indicators and fully automatic operation.
Product overview
Waterproof MPPT regulator, suitable for solar panels up to 120 watts, with LED indicators and fully automatic operation.
Features and benefits
Waterproof MPPT regulation: Provides efficient maximum power point tracking charge regulation in a waterproof housing suited to outdoor and marine installations.
Suitable for solar panels up to 120W: Provides sufficient capacity for smaller portable solar panel setups.
LED indicators: Provides at-a-glance charging status information.
Fully automatic operation: Manages the charging process automatically without requiring manual intervention.
Low no load current: Draws no more than 25mA when there is no load connected, minimising unnecessary battery drain.
Technical specs
| Specification |
Detail |
| SKU |
TDR15009 |
| Brand |
Thunder |
| Type |
Solar Regulator |
| Rated Current |
10A |
| Rated Voltage |
12/24V |
| Open Circuit of Solar Panel |
<50V |
| Low Voltage Disconnection |
10.6V/21.4V |
| Float Voltage |
13.75V/28V |
| Low Voltage Reconnection |
12.6V/25.2V |
| No Load Current |
≤25mA |
| Operating Temperature |
-20°C to 60°C |
| Storage Temperature |
-30°C to 70°C |
| Dimensions (L x W x D) |
105mm x 81mm x 29mm |
| Mounting Hole Spacing |
51mm x 95mm |
| Weight |
400g |
| Battery Type |
Wet Cell Rechargeable Only |
Compatible with
The TDR15009 is compatible with solar panels up to 120 watts and 12V or 24V wet cell rechargeable battery systems.
Frequently asked questions
What is the maximum solar panel wattage the TDR15009 supports?
The TDR15009 is suitable for solar panels up to 120 watts.
What current rating is the TDR15009?
The TDR15009 is rated to 10 amps.
What battery types is the TDR15009 compatible with?
The TDR15009 is compatible with wet cell rechargeable batteries only.
Does the TDR15009 include a display?
The TDR15009 includes LED indicators for charging status rather than an LCD display.
Is the TDR15009 waterproof?
Yes. The TDR15009 features a waterproof housing suited to outdoor and demanding installation environments.
