Description

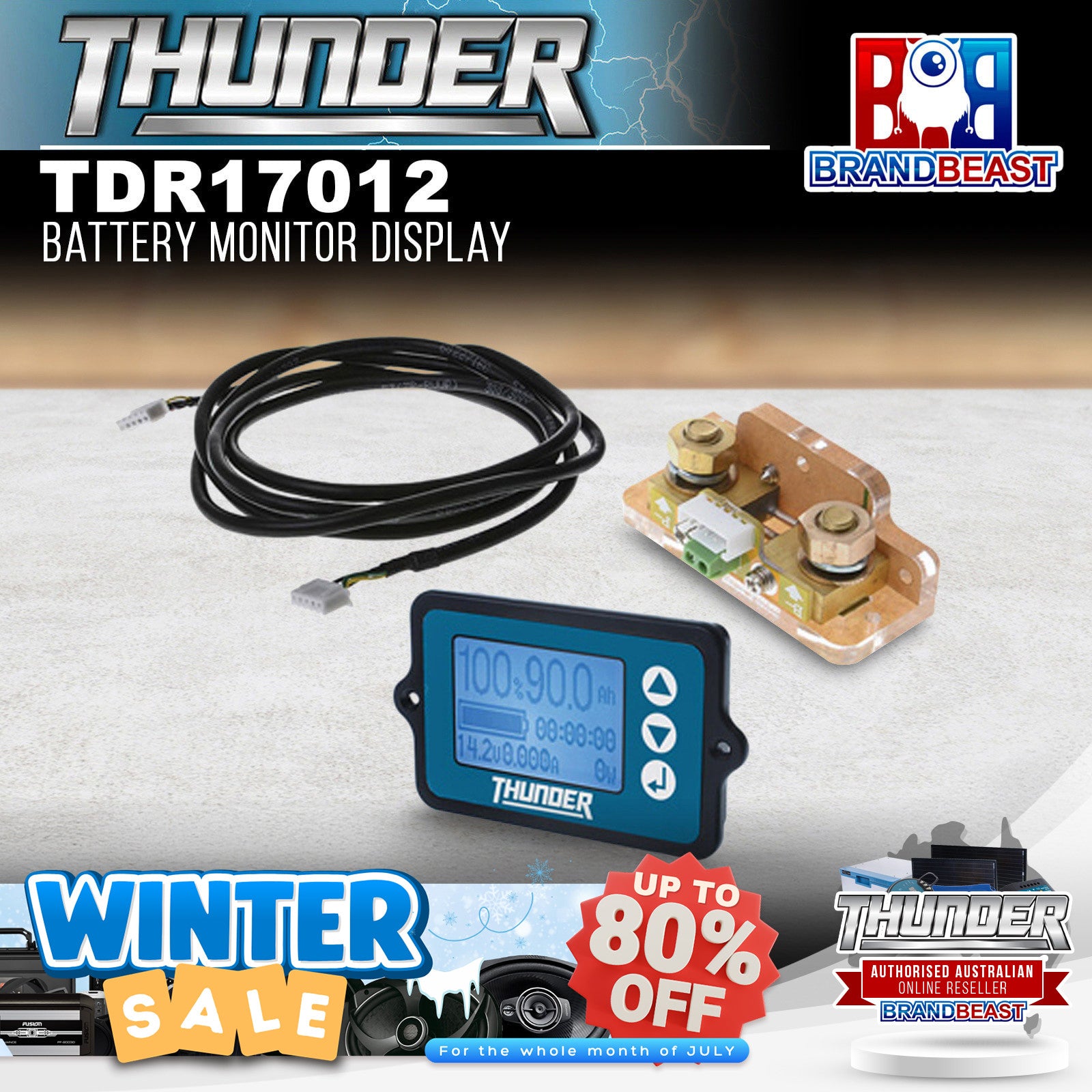

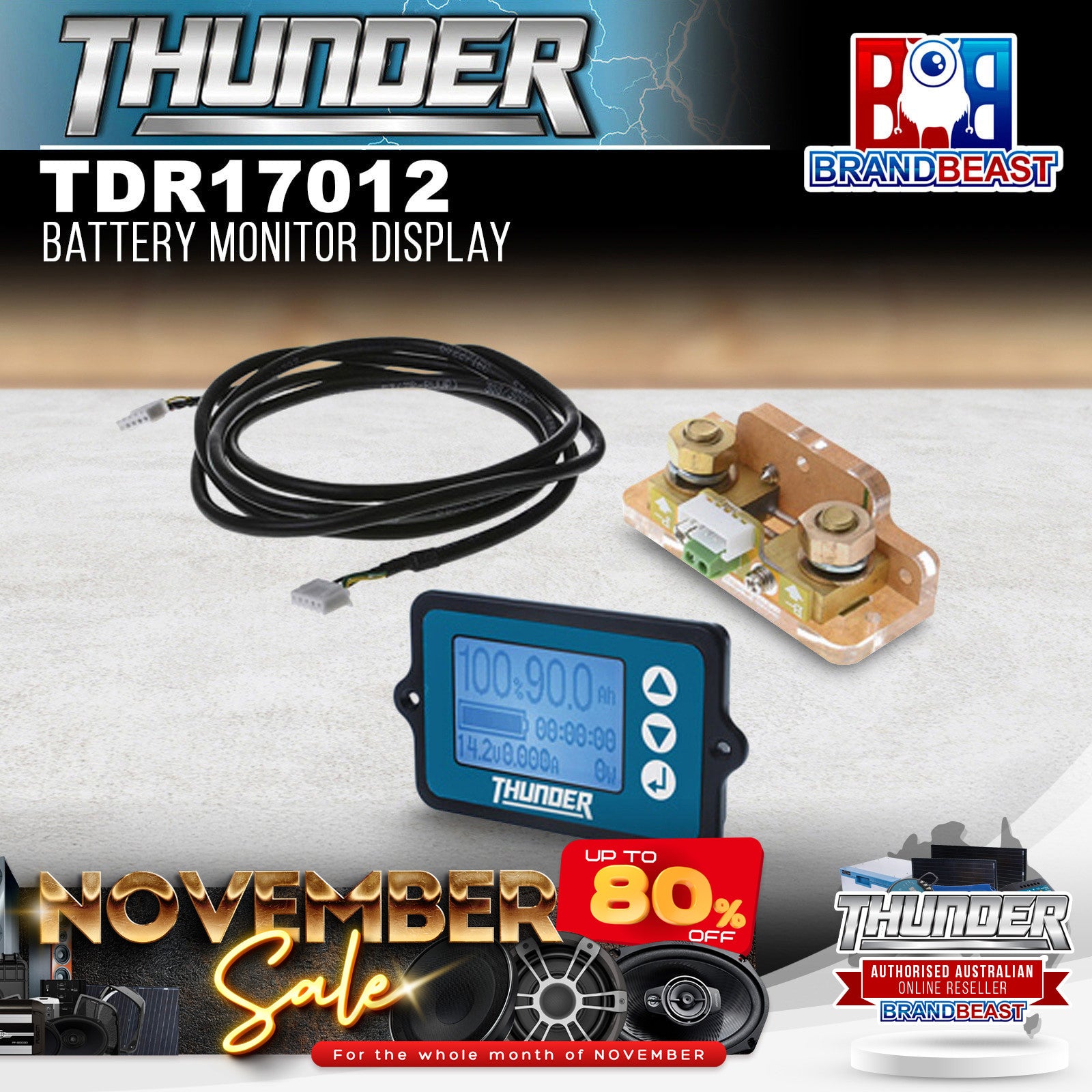

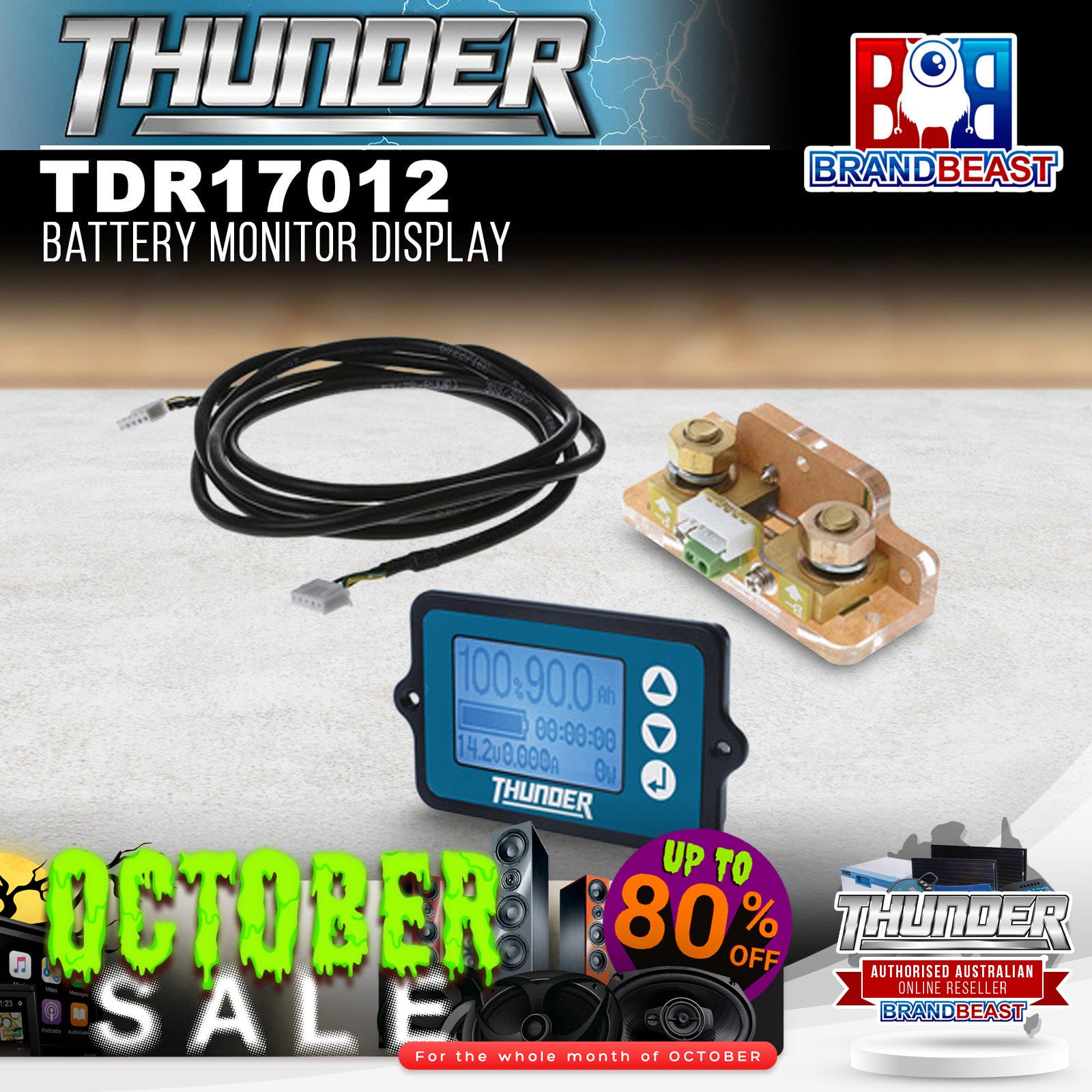

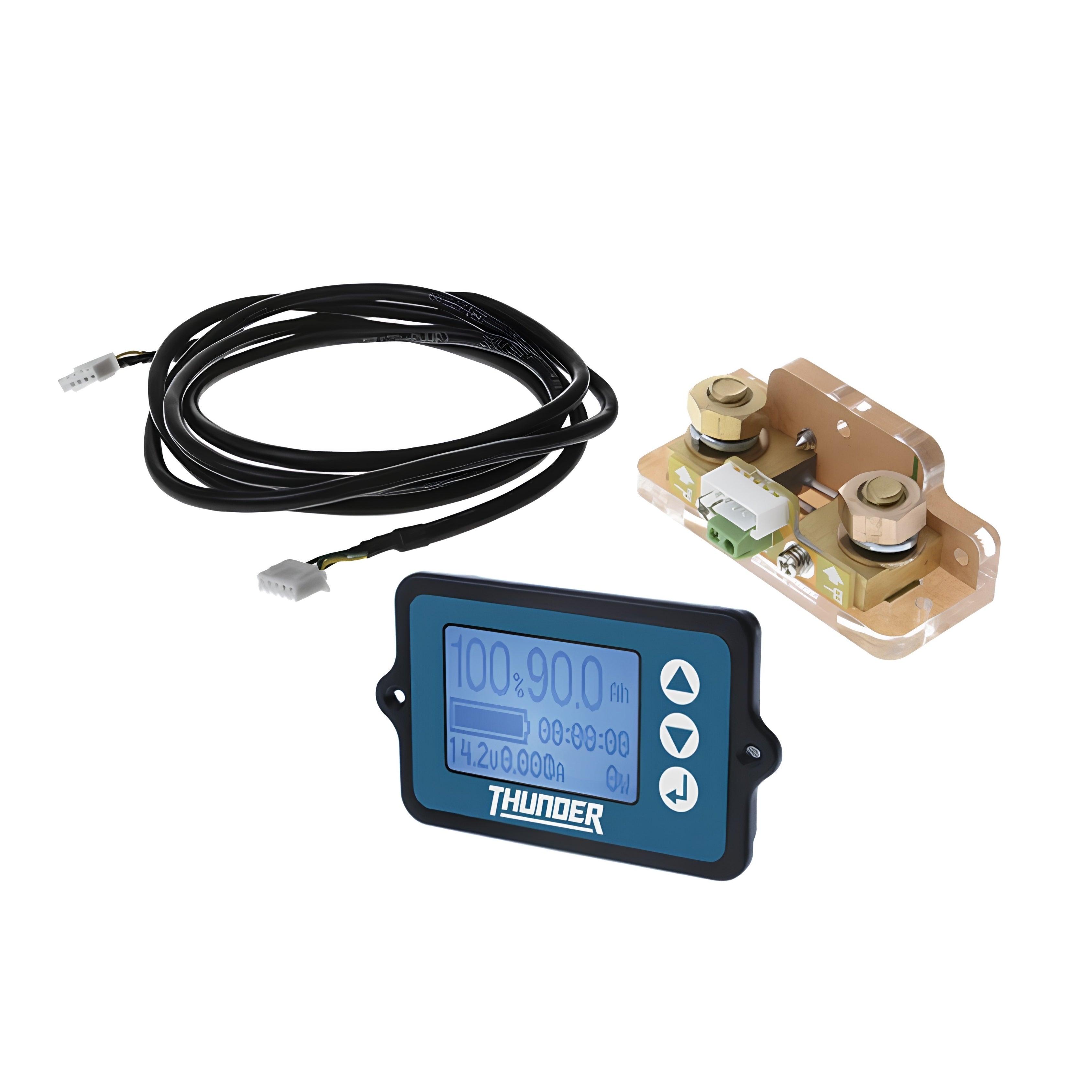

Thunder TDR17012 12V 150A Battery Monitor
A 150A battery monitor from Thunder, the TDR17012 monitors time to empty, battery percentage, current draw, current inwards, and wattage usage on battery banks up to 590Ah.
Product overview
Monitor time to empty, battery percentage, current draw, current inwards, and wattage usage on battery banks up to 590Ah. A 1.5m extension lead is also available separately as the TDR17013.
Features and benefits
Comprehensive battery monitoring: Displays time to empty, battery percentage, current draw, current inwards, and wattage usage from a single unit.
Suits battery banks up to 590Ah: Provides monitoring capacity suited to larger dual and multi-battery installations.
150A shunt operating current: Provides substantial current measurement capacity for demanding electrical systems.

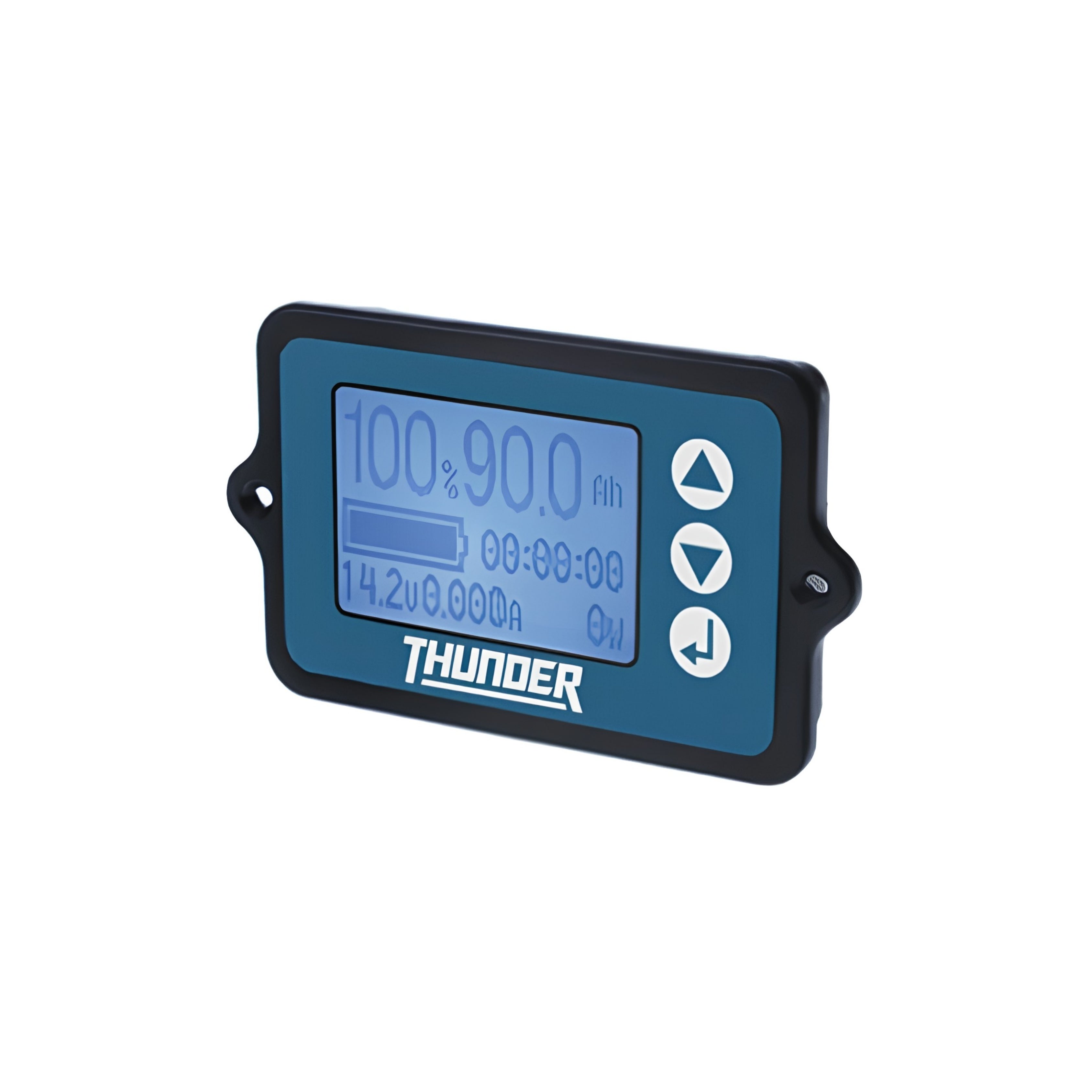

Backlit display: Provides clear visibility of battery status in a range of lighting conditions.

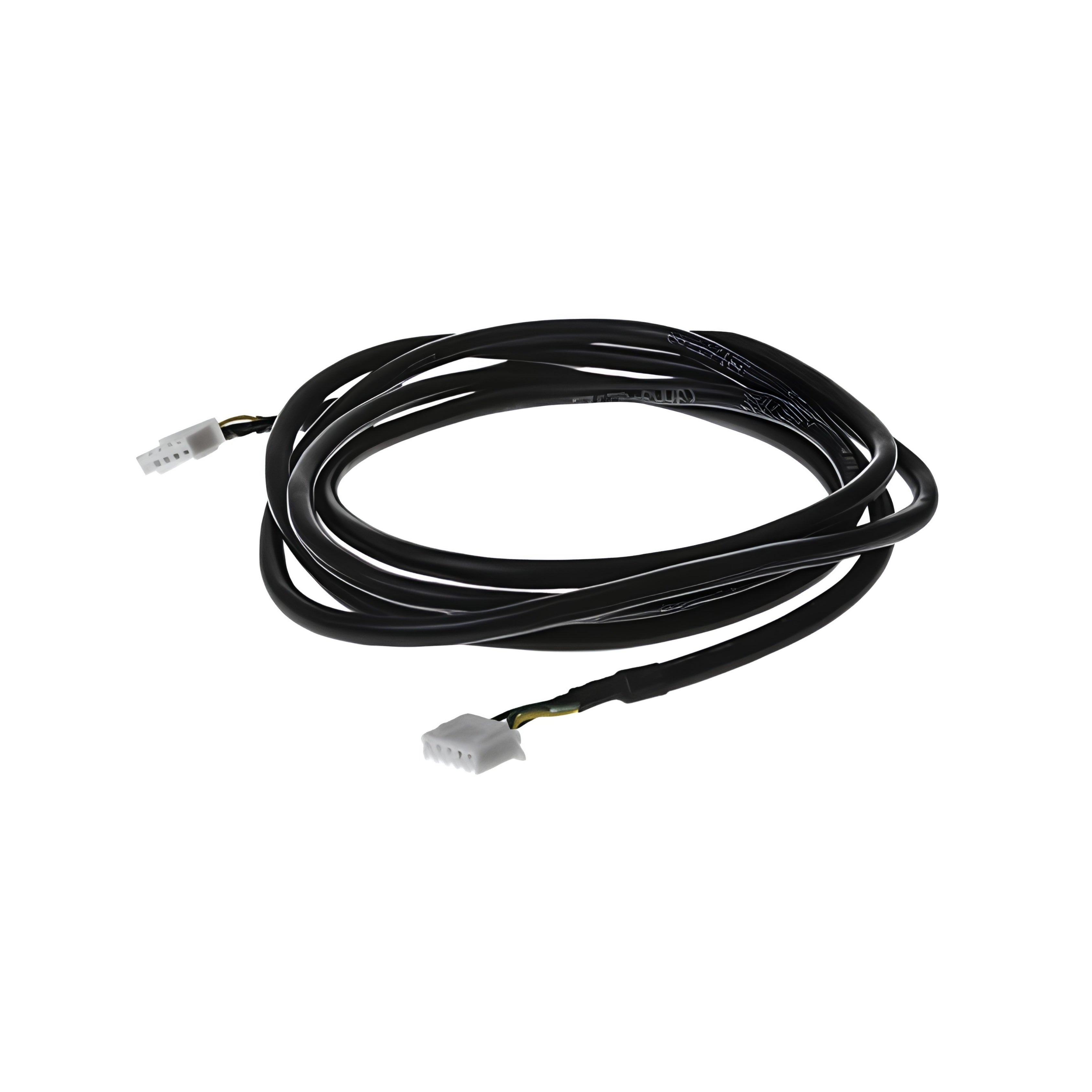

Extension lead available separately: A 1.5m extension lead, TDR17013, is available for installations requiring additional cable length between the monitor and shunt.
Technical specs
| Specification |
Detail |
| SKU |
TDR17012 |
| Brand |
Thunder |
| Type |
Battery Monitor |
| Operating Voltage |
8-60VDC |
| Working Power |
8-10mA |
| Standby Power Consumption |
0.5-0.8mA |
| Voltage Acquisition Accuracy |
±1.0% |
| Current Acquisition Accuracy |
±1.0% |
| Ambient Temperature Range |
0-45°C |
| Backlit Light Current |
40-50mA |
| Battery Capacity |
Maximum 590Ah |
| Built-In Current |
5-10A |
| Shunt Operating Current |
150A |
| Outside Unit Dimensions (W x H x D) |
66mm x 40mm x 10mm |
| Display Window Size (W x H) |
32mm x 23mm |

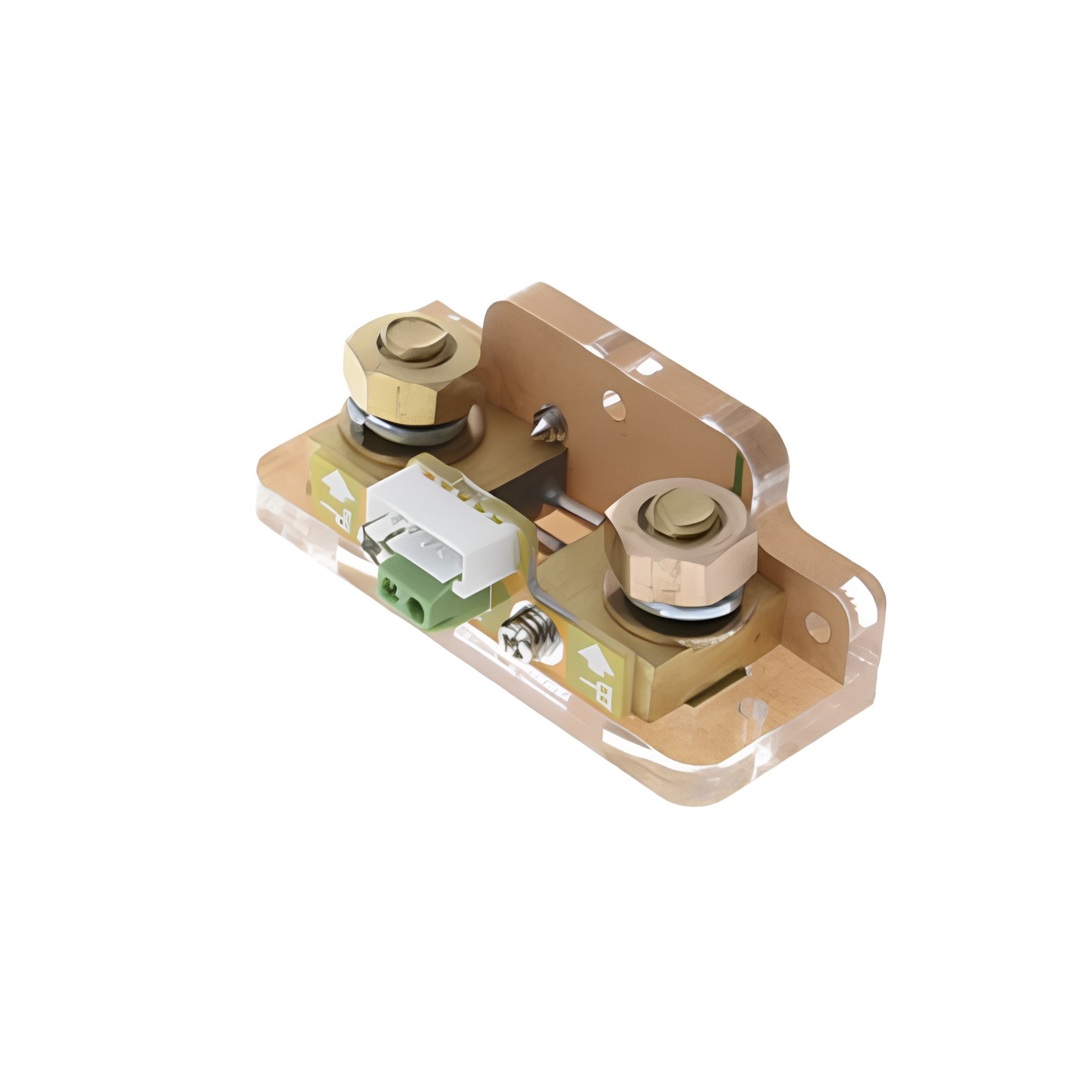

| External Shunt Dimensions (W x H x D) |
23mm x 18mm x 5mm |
Compatible with
The TDR17012 is compatible with 12V battery banks up to 590Ah. A 1.5m extension lead is available separately as the Thunder TDR17013.
Frequently asked questions
What is the maximum battery capacity the TDR17012 can monitor?
The TDR17012 can monitor battery banks up to a maximum of 590Ah.
What is the shunt operating current of the TDR17012?
The TDR17012 has a shunt operating current of 150A.
What does the TDR17012 display?
The TDR17012 displays time to empty, battery percentage, current draw, current inwards, and wattage usage.
Is an extension lead available for the TDR17012?
Yes. A 1.5m extension lead is available separately as the Thunder TDR17013.
What operating voltage range does the TDR17012 support?
The TDR17012 operates across an 8-60VDC range.
