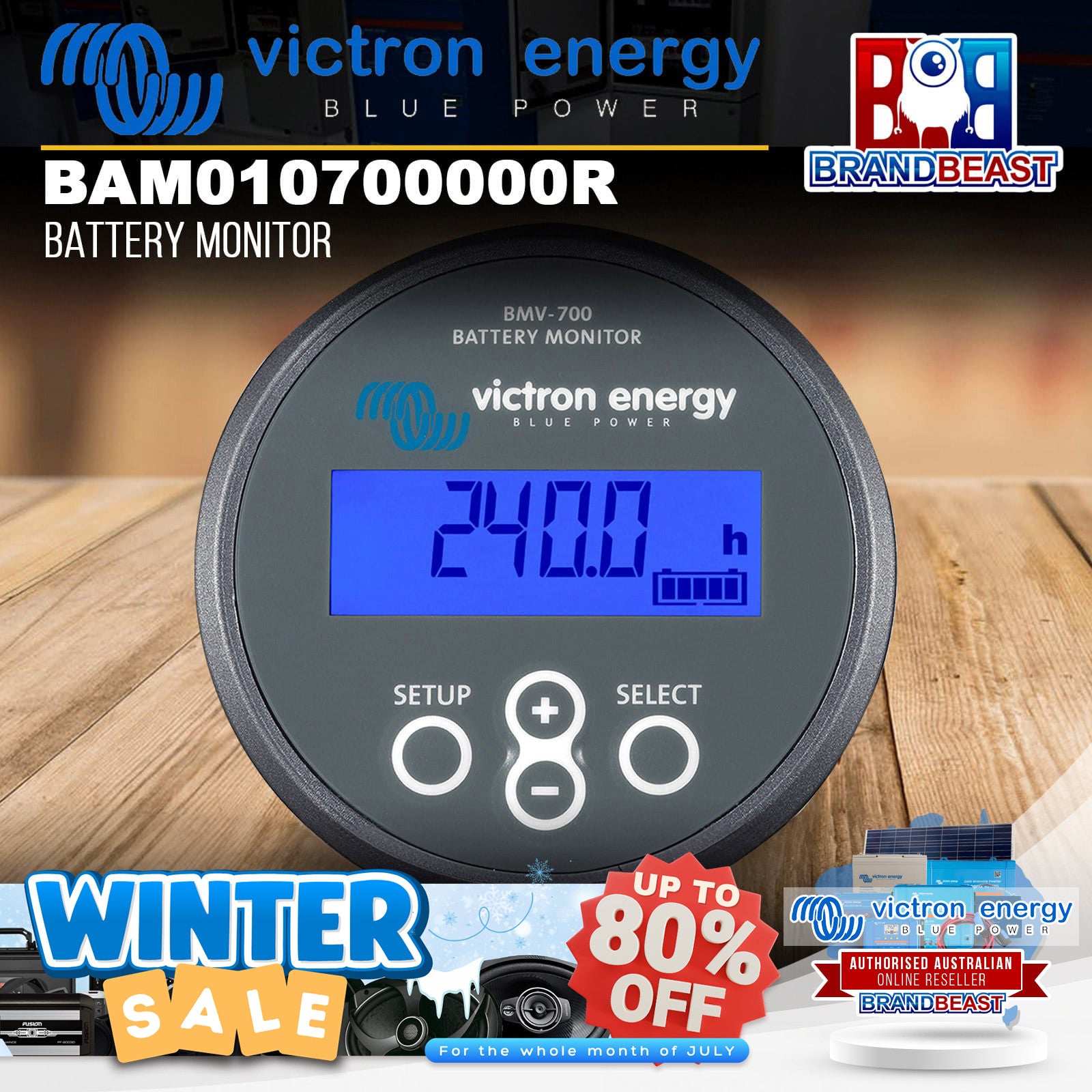

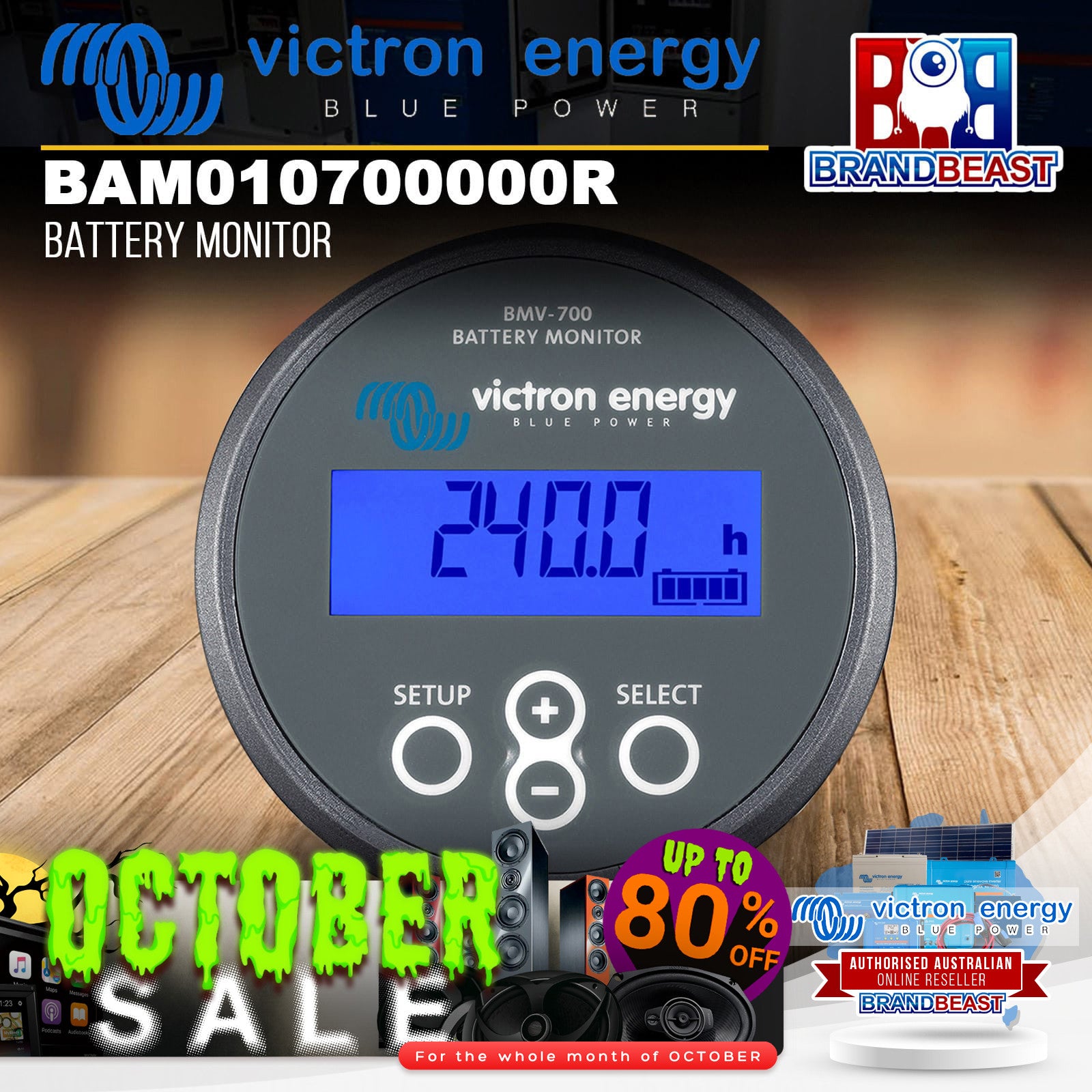

Victron Energy BAM010700000R Battery Monitor

Description

Victron Energy Battery Monitor: A High Precision Battery Monitor


The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Battery ‘fuel gauge', time-to-go indicator, and much more:
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature, and the age of the battery. Complex software algorithms are needed to take all these variables into account.
Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.
The BMV-702 features an additional input that can be programmed to measure the voltage (of a second battery), battery temperature, or midpoint voltage (see below).
Bluetooth Smart: Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, MacBooks, and other devices.
Easy to install: All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.
Also included is a separate front bezel for a square or round display appearance, a securing ring for the rear mounting, and screws for the front mounting.
Easy to program (with your smartphone): A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.
Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)
Midpoint voltage monitoring (BMV-702 only):
This feature, which is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank.
A battery bank consists of a string of series-connected cells. The midpoint voltage is the voltage halfway along the string. Ideally, the midpoint voltage would be exactly half of the total voltage. In practice, however, deviations will be seen, that depend on many factors such as a different state of charge for new batteries or cells, different temperatures, internal leakage currents, capacities, and much more.
Large or increasing deviation of the midpoint voltage points to improper battery care or a failed battery or cell. Corrective action following a midpoint voltage alarm can prevent severe damage to an expensive battery. Please consult the BMV manual for more information.
Victron Energy BAM010700000R Features:

  • Battery Voltage, Current, Power, Ampere-hours Consumed, And State Of Charge

  • Remaining Time At The Current Rate Of Discharge

  • Programmable Visual And Audible Alarm

  • Programmable Relay, To Turn Off Non Critical Loads Or To Run A Generator When Needed

  • 500 Amp Quick Connect Shunt And Connection Kit

  • Shunt Selection Capability Up To 10.000 Amps

  • VE.direct Communication Port

  • Stores A Wide Range Of Historical Events, Which Can Be Used To Evaluate Usage Patterns And Battery Health

  • Wide Input Voltage Range: 6,5 – 95v

  • High Current Measurement Resolution: 10 Ma (0,01a)

  • Low Current Consumption: 2,9ah Per Month (4ma) @12v And 2,2ah Per Month (3ma) @ 24V


Victron Energy BAM010700000R Specifications:

  • Supply Voltage Range: 6.5-95 VDC

  • Battery Capacity (Ah): 1-9999

  • Temperature Sensor: Optional

  • VE.direct Communication Port: Yes

  • Protection Category: IP55

  • Front Bezel: 69 X 69mm

  • Body Diameter & Depth: 52 X 31mm


Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy BAM010700000R Battery Monitor

Product form

Victron Energy Battery Monitor: A High Precision Battery MonitorThe essential function of a battery monitor is to calculate ampere-hours consumed... Read more

SKU: BAM010700000R

  • In Stock

$256.30 Incl. VAT
