Description
Premium power storage engineered for Australian touring, off-grid solar, and marine applications where reliability isn't optional.

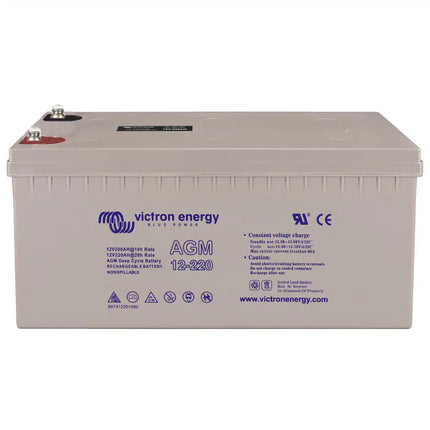

The Victron BAT412201085 is a professional-grade 12V/220Ah AGM deep cycle battery built for demanding applications where failure isn't an option. Engineered with Valve Regulated Lead Acid (VRLA) technology and flat-plate AGM construction, this 65kg powerhouse delivers 220Ah of usable capacity through a 20-hour discharge cycle at 25°C. With a 12-year float design life and exceptional deep discharge recovery capabilities, it's the go-to choice for off-grid solar systems, expedition vehicles, marine installations, and backup power applications across Australia.
This maintenance-free battery features sealed VRLA construction that eliminates the need for water top-ups while preventing gas leakage during normal operation. The M8 copper terminals provide reliable high-current connections, and with 650 Cold Cranking Amps and a 250-minute reserve capacity, it handles both sustained loads and power bursts with equal confidence. This item must be installed by a licensed electrician.
Key Specifications
- 220Ah rated capacity at 20-hour discharge rate (25°C)
- 12V nominal voltage with flat-plate AGM construction
- 12-year float design life at 20°C ambient temperature
- 650 CCA (Cold Cranking Amps) at 0°F/-18°C
- 250-minute reserve capacity at 80°F/27°C
- Cycle life: 1800 cycles at 30% DoD, 750 cycles at 50% DoD, 500 cycles at 80% DoD
- Less than 2% self-discharge per month at 20°C
- M8 copper terminals for reliable high-current connections
- Sealed VRLA design prevents electrolyte leakage
- Dimensions: 522mm (L) × 238mm (W) × 240mm (H)
Features & Benefits
Exceptional Deep Discharge Recovery – Bounces back from heavy discharge cycles that would cripple conventional batteries, perfect for multi-day off-grid adventures where you're running fridges, lighting, and communication gear without recharging.
Ultra-Low Self-Discharge Rate – Maintains over 98% charge after a month of storage at 20°C, meaning your caravan or boat is ready to go even after weeks of sitting idle between trips.
Extreme Cycle Life Performance – Delivers 1800 cycles at 30% depth of discharge, making it ideal for solar systems where daily cycling is the norm rather than the exception across the Australian outback.
Maintenance-Free VRLA Design – Sealed construction eliminates water top-ups and acid checks, saving you hours of maintenance over the battery's lifespan while preventing corrosive spills in vehicle installations.
High Cold Cranking Performance – 650 CCA ensures reliable starting power even in alpine conditions or early morning desert starts where temperatures drop unexpectedly.
Professional-Grade AGM Construction – Absorbent Glass Mat technology immobilises electrolyte for superior vibration resistance on corrugated tracks, while enabling the high discharge rates needed for inverter loads.
Extended Reserve Capacity – 250 minutes of sustained power delivery means your essential systems keep running even when charging isn't immediately available during equipment failures or extended cloudy periods.
Temperature-Resilient Design – Maintains performance across Australia's extreme temperature ranges, from Tasmanian winters to Top End summers, though extended high-temperature exposure will impact overall service life.
Technical Specs
- Model Number: BAT412201085
- Battery Chemistry: AGM (Absorbent Glass Mat)
- Technology: Valve Regulated Lead Acid (VRLA), Flat Plate Design
- Rated Capacity: 220Ah @ 20hr discharge rate, 25°C
- Nominal Voltage: 12V
- Cold Cranking Amps: 650 CCA @ 0°F (-18°C)
- Reserve Capacity: 250 minutes @ 80°F (27°C)
- Float Design Life: 12 years @ 20°C ambient
- Cycle Design Life: 1800 cycles @ 30% DoD / 750 cycles @ 50% DoD / 500 cycles @ 80% DoD
- Self-Discharge Rate: <2% per month @ 20°C
- Terminal Type: M8 Copper
- Dimensions (L×W×H): 522mm × 238mm × 240mm
- Net Weight: 65kg
- Shipping Weight: 63.688kg
- UPC/EAN: 8719076037095
- Installation Requirement: Licensed electrician installation mandatory
Frequently Asked Questions
What vehicles and systems is this battery compatible with?
This 220Ah deep cycle battery is suitable for 12V power systems including solar installations, recreational vehicles, marine applications, and backup power where high-capacity storage is needed.
Does this battery require regular maintenance?
No maintenance required. The sealed VRLA design eliminates water top-ups and acid checks, though terminal connections should be inspected periodically for corrosion or looseness.
Can I install this battery myself?
No. This item must be installed by a licensed electrician due to the battery's high capacity and potential electrical hazards.
What's the recommended charging voltage for this AGM battery?
Consult Victron's technical documentation for specific charging parameters and temperature-compensated charge curves suitable for this AGM battery model.
What warranty coverage does Victron provide?
Contact your supplier for specific warranty terms and conditions, as coverage varies based on application and proper installation.
Compatible With
- Victron Energy MPPT solar charge controllers
- Victron inverter/chargers (12V models)
- Off-grid solar systems (residential, cabin, remote monitoring)
- Caravan and motorhome house battery banks (single or parallel configurations)
- Marine house banks and auxiliary power applications
- 4WD auxiliary power systems with dual battery isolators
- Backup power systems for telecommunications and security equipment
- Battery monitoring systems
- AGM-compatible DC-DC chargers
Caution: Parallel connection requires identical battery age, chemistry, and state of charge. Series connection is not recommended for 12V systems.
