Description
Victron Energy Blue Smart IP22 Charger 12/30 (1) - 230V AU/NZ: Gives the Battery the Power It Needs, Maintains Its Health, & Ensures Better Performance!

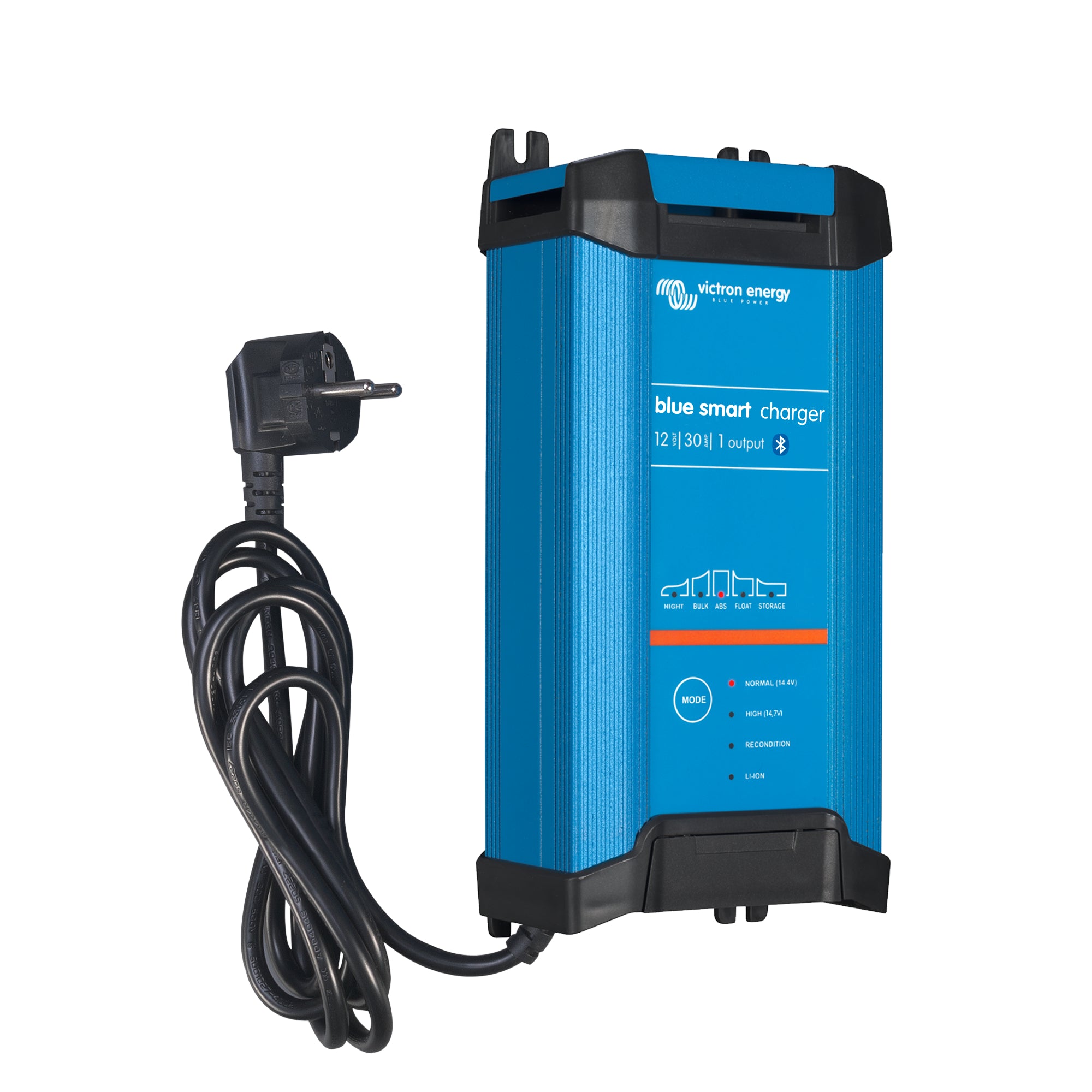

Victron Blue Smart IP22 Charger 12/30 (1)
The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars, motorbikes, boats, and camper vans.
The Battery is Charged, Smartly & to Perfect Condition:
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, and ensures better performance... and a longer life.
Recovery of Deeply-Discharged 'Dead' Batteries:
Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Check the Status of Your Battery Remotely:
The Blue Smart IP22 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app
Bluetooth Smart:
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, change settings, and update the charger when new features become available.
High Efficiency:
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. Once the battery is fully charged, power consumption reduces to 0.5W, some five to ten times better than the industry standard.
Adaptive 6-Stage Charge Algorithm: Test - Bulk – Absorption - Recondition – Float – Storage
The Blue Smart Charger features a microprocessor-controlled ‘adaptive’ battery management. The adaptive feature will automatically optimise the charging process relative to the way the battery is being used.
Storage Mode: Less Maintenance & Ageing When the Battery Is Not in Use:
The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode, float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimise gassing and corrosion of the positive plates. Once a week, the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure
Also, Charges Li-Ion (LiFePO₄) Batteries:
LiFePO₄ batteries are charged with a simple bulk–absorption–float algorithm.
Night & Low Setting:
When in NIGHT or LOW mode, the output current is reduced to max. 50% of the nominal output and the charger will be noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected Against Overheating:
The output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs For Status Indication:
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14.4V) / HIGH (14.7V) / RECONDITION / LI-ION.* Charger comes with 240V AU/NZ lead. This charger does not come with the recommended DC cable. 6 mm2 for over short distances.
Victron Energy BPC123047012 Features:
- Smart Charger
- Built-In Bluetooth
- Suitable For Lithium Batteries
- Cabling & Quick Fit Connectors Included
- Multi-Stage Charging
- Recovery of Fully Discharged Batteries
Victron Energy BPC123047012 Specifications:
- Input Voltage Range: 180 – 265V AC
- Charge Current, Normal Mode: 15 / 20 / 30A
- Charge Current, Night/Low: 7.5 / 10 / 15A
- Efficiency: 93%
- No Load Power Consumption: 0.5W
- Frequency: 45 – 65Hz
- Number of Outputs: 1
- Charge Voltage 'Absorption': Normal: 14.4V, High: 14.7V, Li-Ion: 14.2V
- Charge Voltage 'Float': Normal: 13.8V, High: 13.8V, Li-Ion: 13.5V
- Charge Voltage 'Storage': Normal: 13.2V, High: 13.2V, Li-Ion: 13.5V
- Charge Algorithm: 6-Stage Adaptive
- Can Be Used as a Power Supply: Yes
- Protection: Battery reverse polarity (Fuse) Output short circuit Over temperature
- Operating Temp. Range: 20 ~ +50°C
- Humidity (Non-Condensing): Max 98%
- Material & Colour: Aluminium (Blue RAL 5012)
- Battery Connection: Screw Terminals 13mm² / AWG6
- 230V AC Connection: Cable of 1.5 meters with CEE 7/7 plug, BS 1363 plug (UK), or AS/NZS 3112 plug (AU/NZ)
- Protection Category: IP22
- Safety: EN 60335-1, EN 60335-2-29
- Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
- Automotive: E4-10R
- Dimensions: 235mm x 108mm x 65mm
- Weight: 1.30kg
