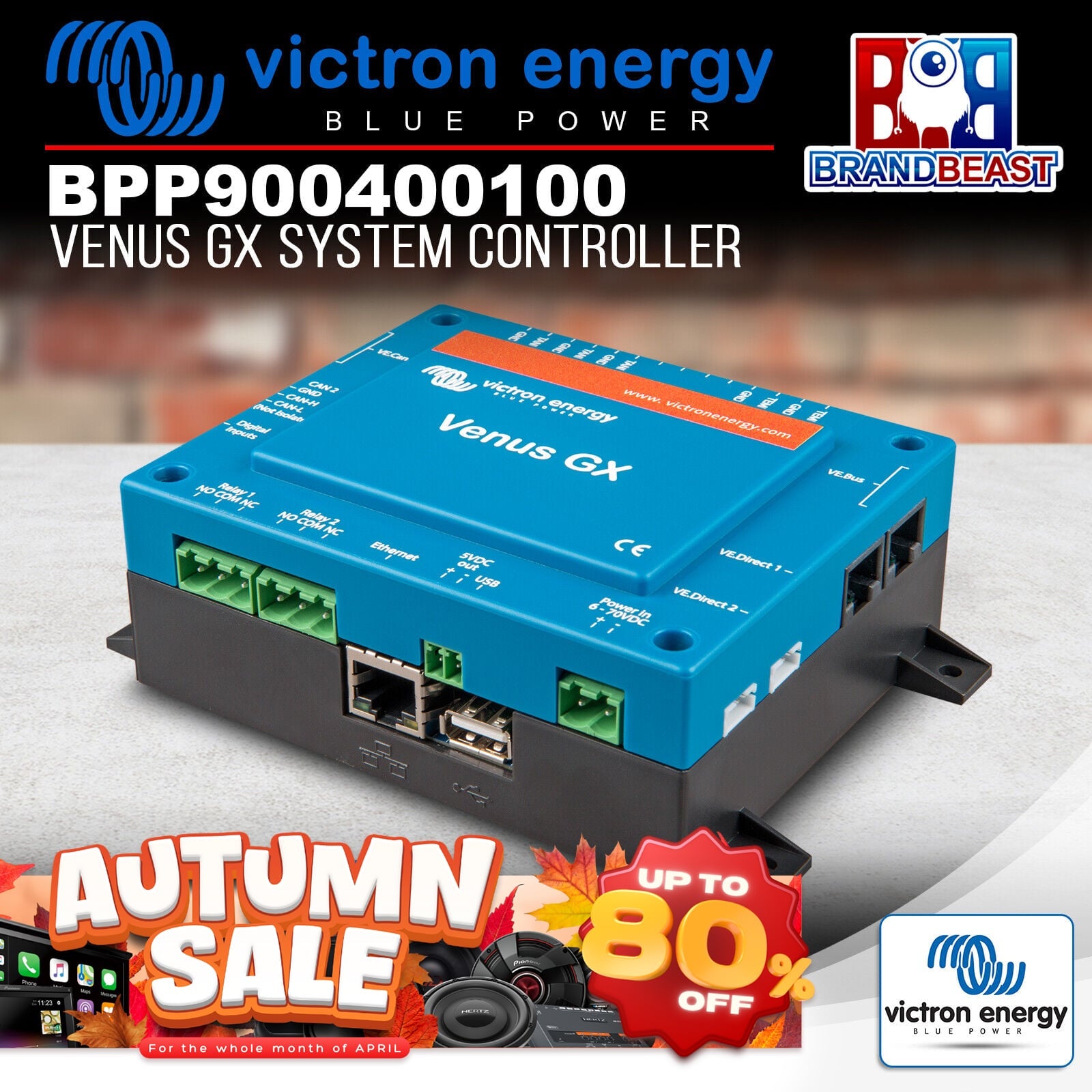

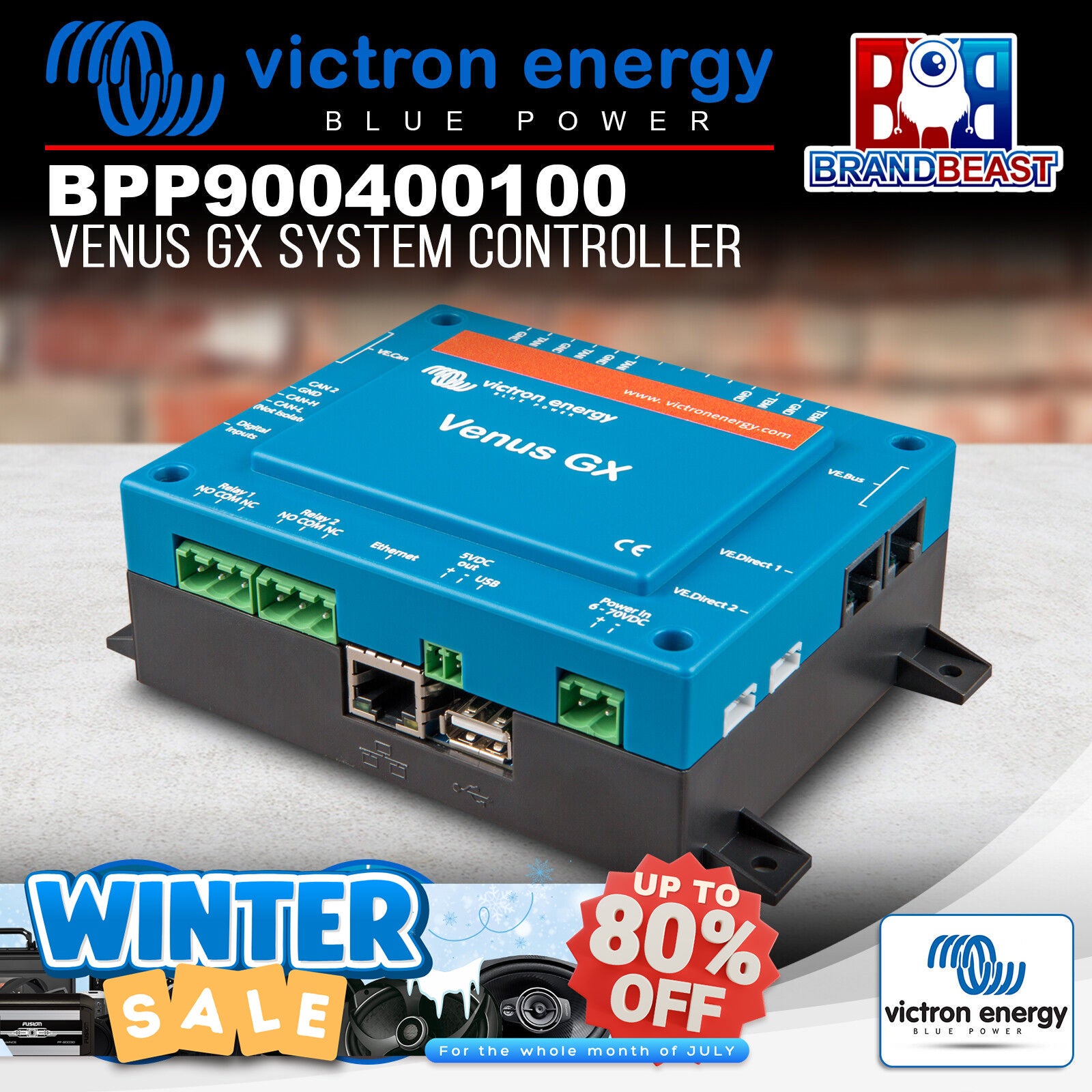

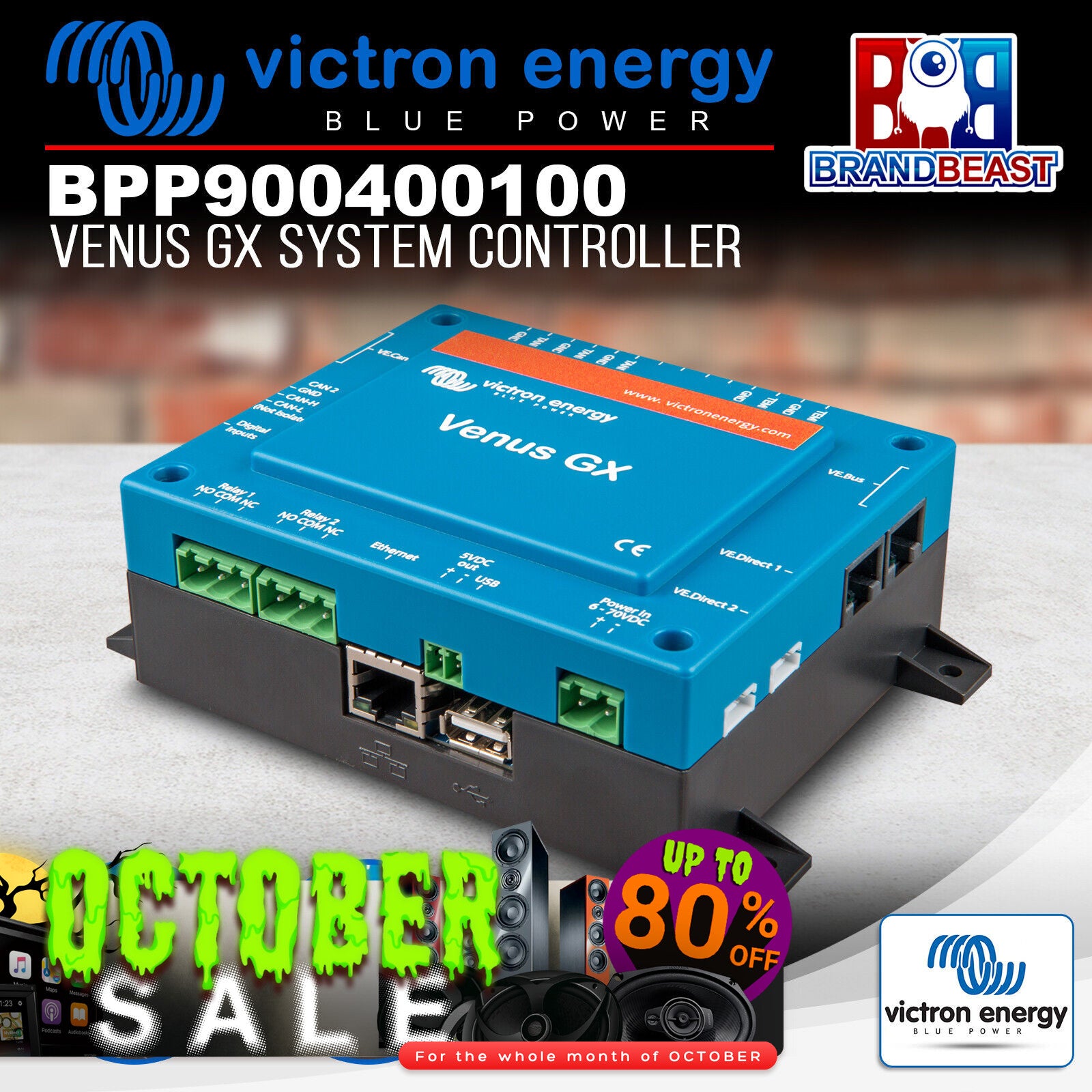

Victron Energy BPP900400100 Venus GX System Controller

Description

Victron Energy Venus GX System Controller: The Venus GX From Victron Energy Have Been Designed to Be a True Worldwide Product


Panels and system monitoring
The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM).
Intuitive system overview - all you need to know
As soon as you 'log on' Venus GX provides an instant overview of your system: Battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.
The full power of Victron Remote Management
Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.
Automatic Generator start/stop
The Venus GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night.
Remote Console - control everything from anywhere...
Remote Console provides visual access to the live data and settings of your Venus GX ...and because it's remote - you can do that from anywhere in the world.
ESS: Energy Storage Systems - 24 hour Monitoring
The Venus GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money. For examples and more detailed information see the ESS (Energy Storage System) manual.
Remotely Monitor your boat or motorhome electrics
Planning a trip? Remote monitoring of your Venus GX allows you to make sure your boat or motorhome are ready to go. Venus GX also allows you to talk to connected equipment from other manufacturers. And with Venus GX you can check the tanks, too.
Victron Energy BPP900400100 Specifications:
Communication Ports

  • Power supply voltage range: 8 – 70V DC

  • VE.Direct: 2 separate VE.Direct ports – isolated

  • VE.Can: 2 paralleled RJ45 sockets – isolated

  • CAN: 2nd CAN interface – non isolated

  • VE.Bus: 2 paralleled RJ45 sockets – isolated

  • USB: 2 USB Host ports – not isolated

  • Ethernet: 10/100/1000MB RJ45 socket – isolated except shield

  • WiFi Access Point: Use to connect to Remote Console

  • WiFi Client: Connect the Venux GX to an existing WiFi network


IO

  • Potential free contact: NO/COM/NC – 6 A 250 VAC/30 VDC

  • Tank level inputs: 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm)

  • Temperature level inputs: 2 x Requires ASS000001000


3rd party interfacing

  • Modbus-TCP: Use Modbus-TCP to monitor and control all products connected to the Venus GX

  • JSON: Use the VRM JSON API to retrieve data from the VRM Portal


Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy BPP900400100 Venus GX System Controller

Product form

Victron Energy Venus GX System Controller: The Venus GX From Victron Energy Have Been Designed to Be a True Worldwide... Read more

SKU: BPP900400100

  • In Stock

$526.90 $375.30
