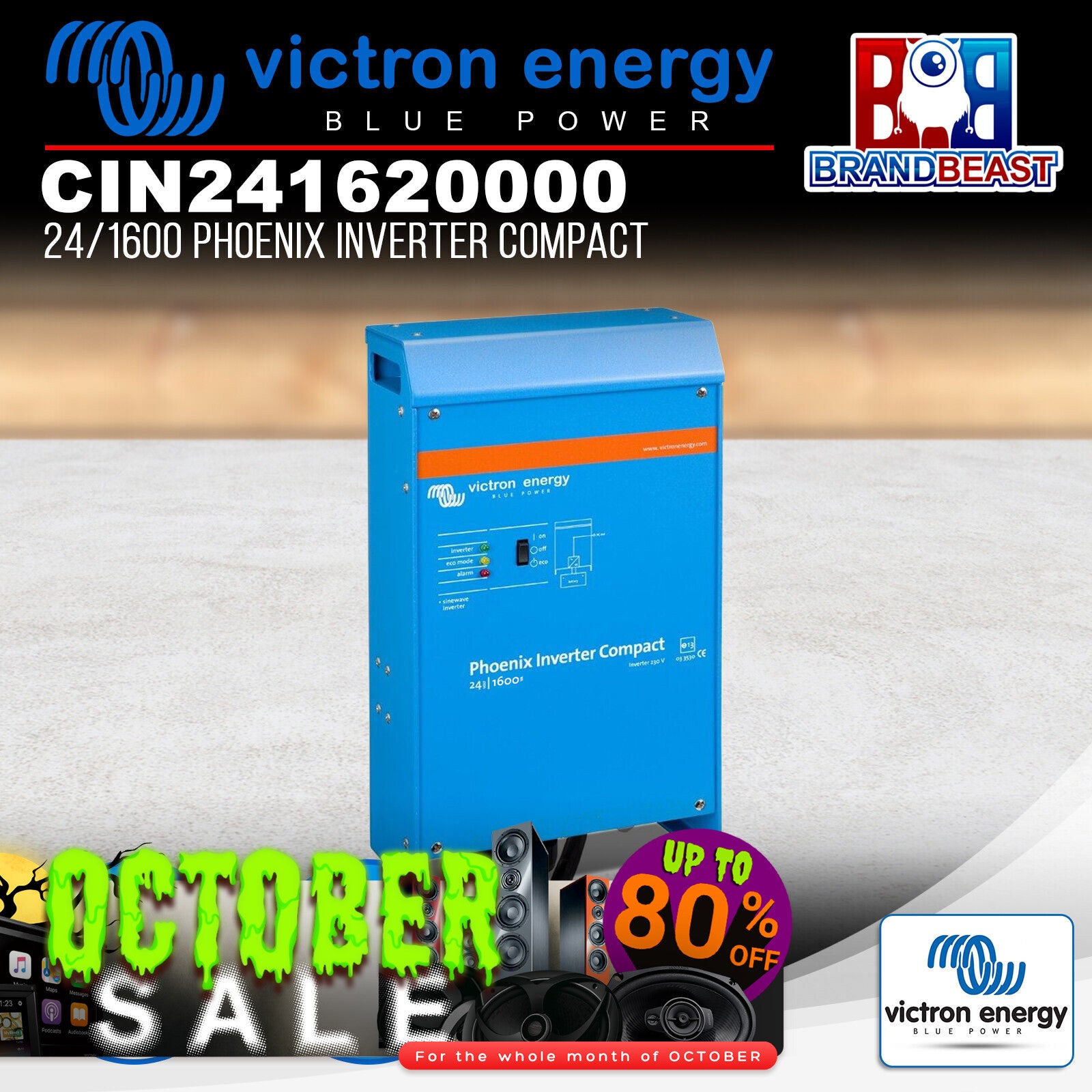

Victron Energy CIN241620000 24/1600 Phoenix Inverter Compact

Description












Victron Energy 24/1600 Phoenix Inverter Compact: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product


SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).
Computer interface
All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface.
Together with our VEConfigure software, which can be downloaded free of charge from
our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over
and under voltage settings and programming the relay. This relay can for example be used to signal several
alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control
network of Victron Energy, or to other computerized monitoring and control systems.
Victron Energy CIN241620000 Specifications:



    • Input voltage range (V DC): 19 – 33V

    • Output:

      • Output voltage: 230 VAC ¬±2%

      • Frequency: 50 Hz ¬± 0,1% (1)



    • Cont. output power at 25¬∫C (VA) (2): 1600

    • Cont. output power at 25¬∫C (W): 1300

    • Cont. output power at 40¬∫C (W): 1200

    • Cont. output power at 65¬∫C (W): 800

    • Peak power (W): 3000

    • Max. efficiency 12/ 24 /48 V (%): 94

    • Zero load power 12 / 24 / 48 V (W): 10

    • Zero load power in AES mode (W): 8

    • Zero load power in Search mode (W): 3




Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!
