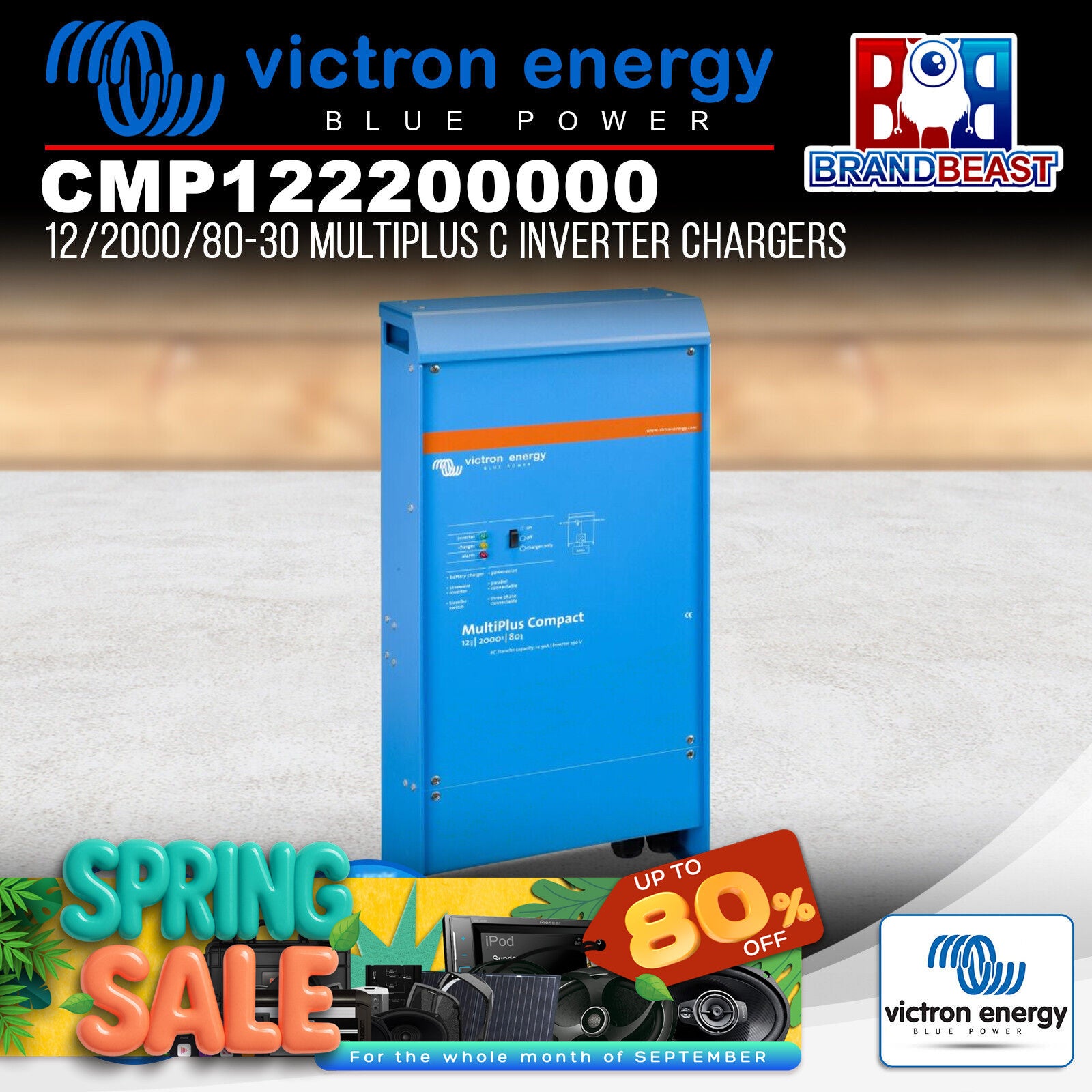

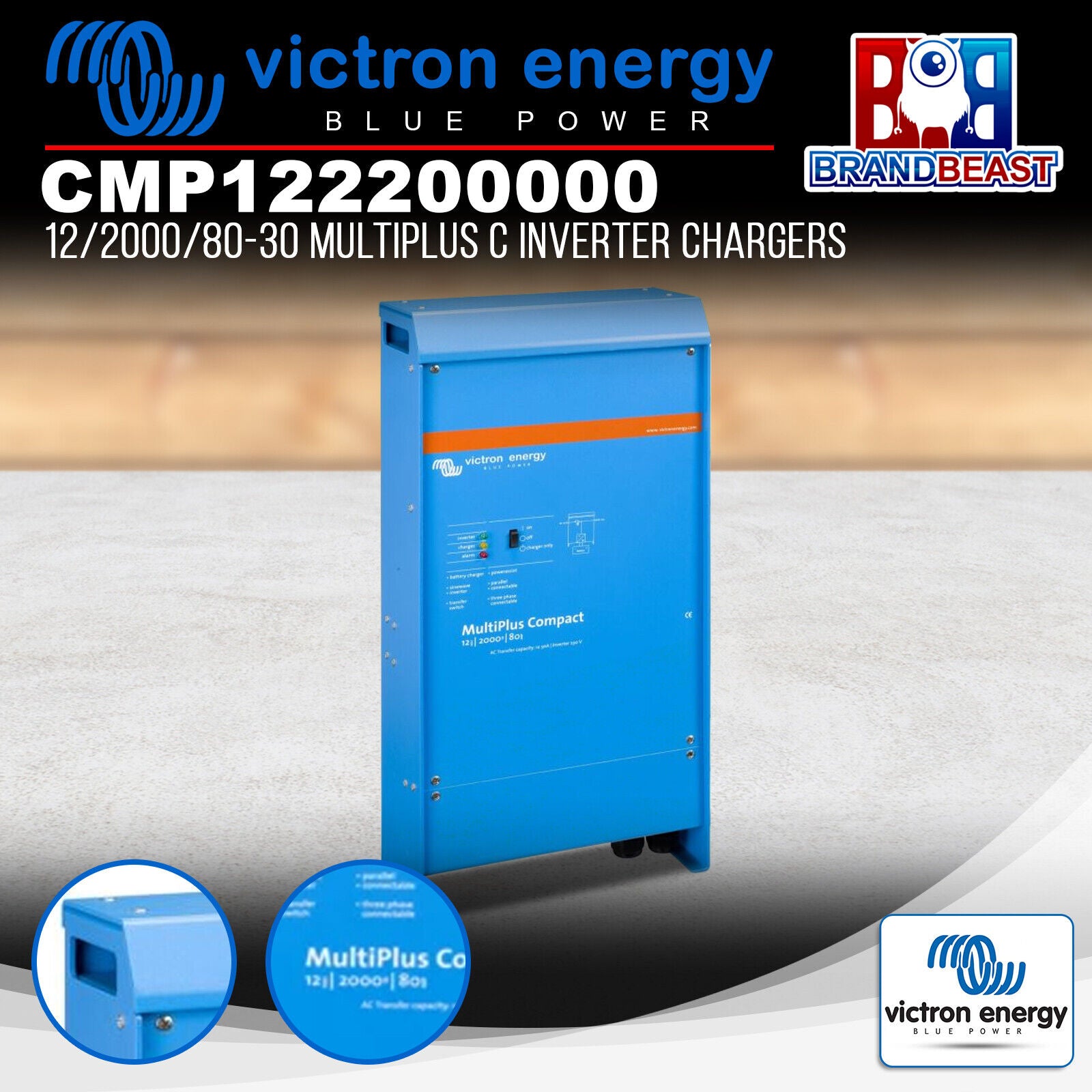

Victron Energy CMP122200000 12/2000/80-30 MultiPlus C Inverter Chargers

Description












Victron Energy 12/2000/80-30 MultiPlus C Inverter Chargers: The Inverter Chargers From Victron Energy Have Been Designed to Be a True Worldwide Product Proven reliability


The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
PowerControl - Dealing with limited generator, shore side or grid power (800-1200VA model only)
With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power (800-1200VA model only)
Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode
When Search Mode is ‘on', the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the MultiPlus, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Remote on / off / charger on
Three pole connector.
Victron Energy CMP122200000 Specifications:
Inverter

  • Input Voltage Range: 9.5V - 17V

  • Output:

    • Output voltage: 230VAC ¬± 2%

    • Frequency: 50Hz ¬± 0,1%



  • Cont. output power at 25¬∞C: 1600W

  • Cont. output power at 40¬∞C: 1400W

  • Cont. output power at 65¬∞C: 1000W

  • Peak power: 4000W

  • Maximum efficiency: 93%

  • Zero-load power: 9W

  • Zero-load power in search mode: 3W


Charger:



    • AC Input:

      • Input voltage range: 187-265 VAC

      • Input frequency: 45 – 65 Hz



    • Charge voltage 'absorption': 14.4V

    • Charge voltage 'float': 13.8V

    • Storage mode: 13.2V

    • Charge current house battery: 80A

    • Charge current starter batter:y 4A

    • Battery temperature sensor: Yes




Legendary Products & Support From Authorized Dealers

When you choose Victron Energy, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Victron Energy dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Victron Energy's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Victron Energy dealer today!

Victron Energy CMP122200000 12/2000/80-30 MultiPlus C Inverter Chargers

Product form

Victron Energy 12/2000/80-30 MultiPlus C Inverter Chargers: The Inverter Chargers From Victron Energy Have Been Designed to Be a True... Read more

SKU: CMP122200000

  • In Stock

$2,064.70 $1,864.65 Incl. VAT
